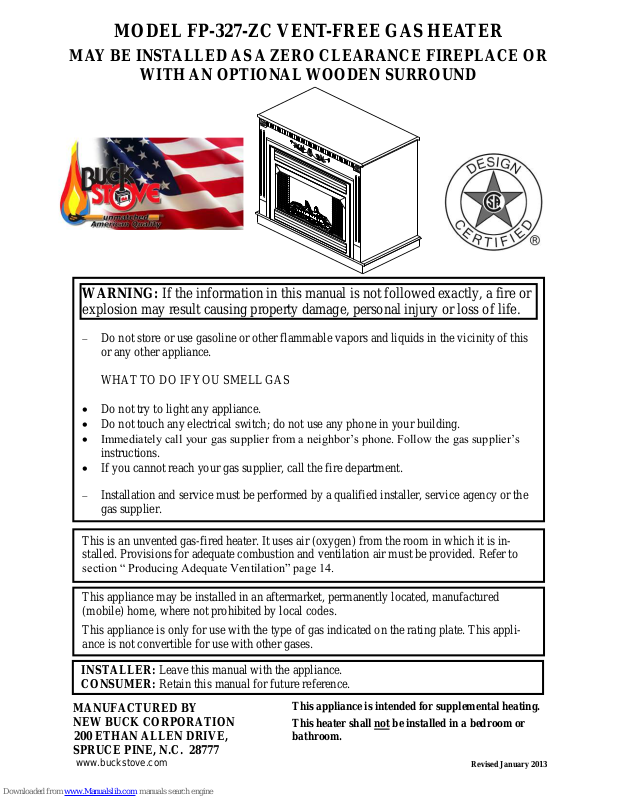

MODEL FP-327-ZC VENT-FREE GAS HEATER
MAY BE INSTALLED AS A ZERO CLEARANCE FIREPLACE OR
WITH AN OPTIONAL WOODEN SURROUND
WARNING: If the information in this manual is not followed exactly, a fire or
explosion may result causing property damage, personal injury or loss of life.
Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this
or any other appliance.
WHAT TO DO IF YOU SMELL GAS
Do not try to light any appliance.
Do not touch any electrical switch; do not use any phone in your building.
Immediately call your gas supplier from a neighbor’s phone. Follow the gas supplier’s
instructions.
If you cannot reach your gas supplier, call the fire department.
Installation and service must be performed by a qualified installer, service agency or the
gas supplier.
This is an unvented gas-fired heater. It uses air (oxygen) from the room in which it is installed. Provisions for adequate combustion and ventilation air must be provided. Refer to
section “ Producing Adequate Ventilation” page 14.
This appliance may be installed in an aftermarket, permanently located, manufactured
(mobile) home, where not prohibited by local codes.
This appliance is only for use with the type of gas indicated on the rating plate. This appliance is not convertible for use with other gases.
INSTALLER: Leave this manual with the appliance.
CONSUMER: Retain this manual for future reference.
MANUFACTURED BY
NEW BUCK CORPORATION
200 ETHAN ALLEN DRIVE,
SPRUCE PINE, N.C. 28777
www.buckstove.com
This appliance is intended for supplemental heating.
This heater shall not be installed in a bedroom or
bathroom.
Page 1
Revised January 2013
Page 2
TABLE OF CONTENTS
Safety Information and Warnings ........................................................................................................... 3
Installation .............................................................................................................................................. 6
Fireplace and Framing Dimensions ........................................................................................................ 7
Fireplace Clearances ............................................................................................................................... 8
Finishing Your Fireplace ........................................................................................................................ 9
Mantel Profiles For Zero Clearance ...................................................................................................... 10
Mantel Installation ............................................................................................................................... 11
Mobile Home Installation ..................................................................................................................... 13
Producing Adequate Air For Combustion And Ventilation ................................................................. 14
Ventilation Air For Combustion And Ventilation From Inside Building ............................................. 16
Ventilation Air For Combustion And Ventilation From Outdoors....................................................... 17
Gas Connection ..................................................................................................................................... 18
Gas Pressure Check .............................................................................................................................. 19
Placement of Logs ................................................................................................................................ 20
Lighting Instructions - Millivolt Valve ................................................................................................. 21
Lighting Instructions - Modulating Valve ............................................................................................ 25
Flame Check ......................................................................................................................................... 29
Wiring Diagram .................................................................................................................................... 30
Important Safeguards ............................................................................................................................ 32
Trouble Shooting .................................................................................................................................. 33
Service/Replacement Parts ................................................................................................................... 37
Warranty/Owner Registration ................................................................................................ Back Cover
Page 1
SECTION I
SAFETY INFORMATION WARNINGS
IMPORTANT: READ THIS OWNER’S MANUAL CAREFULLY AND COMPLETELY
BEFORE TRYING TO ASSEMBLE, OPERATE, OR SERVICE THE APPLIANCE.
IMPROPER USE OF THESE LOGS CAN CAUSE SERIOUS INJURY OR DEATH FROM
BURNS, FIRE, EXPLOSION, AND CARBON MONOXIDE POISONING.
Early signs of carbon monoxide poisoning resemble the flu, with headaches, dizziness, and/or
nausea. If you have these signs, the heater may not be working properly. Get fresh air at once!
Have heater serviced. Some people-pregnant women, persons with heart or lung disease,
anemia, those under the influence of alcohol, and those at high altitudes-are more affected by
carbon monoxide than others.
CAUTION: Strong drafts, such as a ceiling fan placed directly in front of the heater
(pulling from either direction) may create sooting. Sooting will discolor
walls.
1. The installation must conform with local codes ,or in the absence of local codes, with the
National Fuel Gas Code, ANSI Z223.1/NFPA54.
2. This appliance may be installed in an After-Market* Manufactured (Mobile) Home,
where not prohibited by state or local codes.
* (After-Market: Completion of sale, not for purpose of resale from the manufacturer.)
This appliance is only for use with the type of gas indicated on the rating plate. This
appliance is not convertible for use with other gases.
NOTE: See Section VII, “Producing Adequate Air For Combustion And Ventilation” page 14.
IMPORTANT: VENT-FREE HEATERS ADD MOISTURE TO THE AIR. ALTHOUGH THIS
IS BENEFICIAL, INSTALLING HEATER IN ROOMS WITHOUT ADEQUATE
VENTILATION MAY CAUSE MILDEW TO FORM FROM TOO MUCH MOISTURE.
3. Never install this heater:
in a recreational vehicle, bathroom, bedroom, or any other sleeping quarters
where curtains, furniture, clothing, or other flammable objects are less than 42" from the
front of the heater
in high traffic areas or in windy areas
4. Two models are available. One specific model for propane (LP), and one for natural gas.
Use the correct type gas for your home. Do not convert from one gas type to another.
NOTE: This appliance complies with ANSI Z21.11.2b-2010 Unvented Room Heater.
WARNING: ANY CHANGE TO THIS HEATER OR ITS CONTROLS CAN BE
DANGEROUS.
WARNING
This appliance is equipped for (natural or propane) gas .
Field conversion is not permitted.
Page 2
5. If this heater is used with propane gas, do not place propane supply tank (s) inside any structure.
6. What To Do IF You Smell Gas:
- Shut off gas supply.
- Do not try to light any appliance.
- Do not touch any electrical switch. Do not use any phone in your building.
- Immediately call your gas supplier from a neighbor’s phone.
- Follow the gas supplier’s instructions.
- If you cannot reach your gas supplier, call the fire department.
7. When operated for the first time, the logs may emit a “paper burning” smell. This smell will gradually
diminish and will be totally eliminated after the first few hours of operation. Run the gas logs with the
flue damper open during this time. Do not use blower at this time.
8. This heater shall not be installed in unusually tight construction unless provisions are provided for
adequate combustion and ventilation air. See Producing Adequate Air For Combustion And
Ventilation, page 14.
9. Surface of gas logs becomes very hot when operating. Keep children and adults away from hot surface.
Gas logs will remain hot for sometime after shutdown. Allow surface to cool before touching.
10. Do not place clothing or other flammable material on or near the appliance.
11. If equipped, fresh air damper must be closed.
12. Keep appliance area clean and free from combustible materials, gasoline and other flammable
flammable vapors and liquids. .
13. If burner shuts off, do not relight until you provide fresh outside air. If burner continues to shut off,
have unit serviced.
14. Do not use this heater if any part has been under water. Immediately call qualified service technician to
inspect the room heater and to replace any part of the control system and any gas control which has
been under water.
15. Turn off the heater and let cool before servicing.
16. These logs are made of bonded fiber. When removing logs and base, do not damage the bonded
material. If the material is damaged extensively, loose fiber dust could be emitted into the air.
17. Any safety screen or guard removed for servicing an appliance must be replaced prior to operating the
heater.
18. This appliance is intended for supplemental heating.
18. WARNING: Any change to this heater or its controls can be dangerous.
19. Installation and repairs should be performed by a qualified service person. The appliance should be
inspected before use and at least annually by a professional service person. More frequent cleaning may
be required due to excessive lint from carpeting, bedding material, etc. It is imperative that control
compartments, burners and circulating air passageways of the appliance be kept clean.
Page 3
20. All heater screens must be kept clean when operating the gas logs.
21. WARNING: Failure to keep the primary air opening(s) of the burner(s) clean may result in sooting
and property damage.
22. Do not use this heater for burning trash or cooking. Never place matches, paper, garbage or any
other material on top of logs or into the flames.
23. Do not install or operate this heater in areas where impurities in the air exist (such as tobacco smoke
or heavy cooking grease). Particles from impurities may discolor walls.
24. Due to high temperatures, the appliance should be located out of traffic and away from furniture and
draperies.
25. Children and adults should be alerted to the hazards of high surface temperature and should stay
away to avoid burns or clothing ignition.
26. Young children should be carefully supervised when they are in the same room with the appliance.
27. An unvented room heater having an input rating of more than 10,000 Btu per hour shall not be
installed in a bedroom or bathroom.
28. The appliance and its appliance main gas valve must be disconnected from the gas supply pipping
system during any pressure testing of that system at test pressure in excess of 1/2 psi (3.5 kPa).
29. The appliance must be isolated from the gas supply piping system by closing its equipment shut-off
valve during any pressure testing of the gas supply piping system at test pressures equal to or less
than 1/2 psi (3.5 kPa).
30. WARNING: Do not allow fans to blow directly into fireplace. Avoid any drafts that alter burner
flame patterns.
31. WARNING: Do not use a blower insert, heat exchanger insert or other accessory not approved for
use with this heater.
Page 4
SECTION II
ZERO CLEARANCE INSTALLATION
The installation must conform with local codes ,or in the absence of local codes, with the
National Fuel Gas Code, ANSI Z223.1/NFPA54.
This appliance may be installed in an After-Market* Manufactured (Mobile) Home,
where not prohibited by state or local codes.
* (After Market: Completion of sale, not for the purpose of resale from the manufacturer).
This appliance is only for use with the type of gas indicated on the rating plate. This appliance is not
convertible for use with other gases.
NOTE: See “Producing Adequate Air For Combustion And Ventilation” page 14.
CHOOSING THE LOCATION FOR YOUR FIREPLACE:

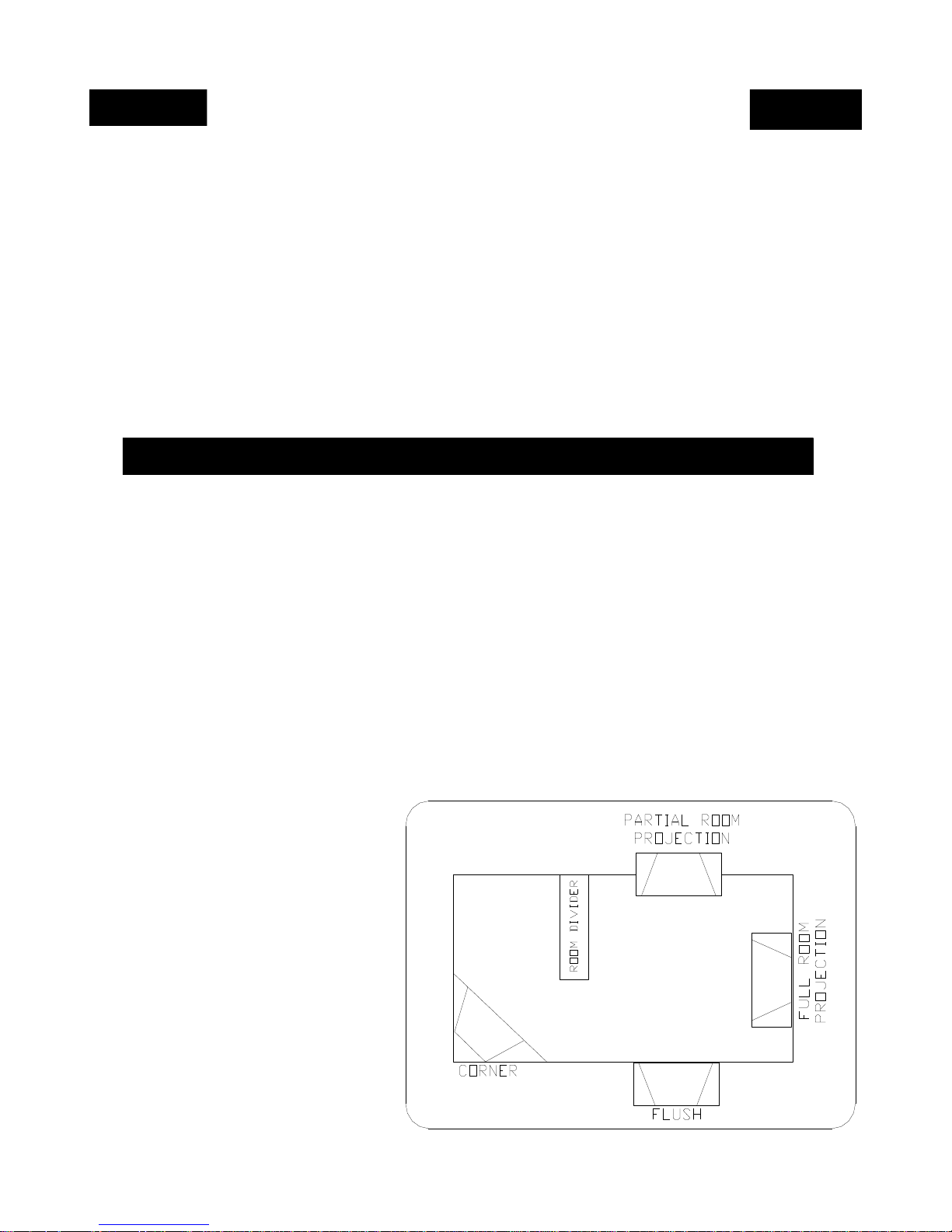

Figure 1 shows some of the many ways your fireplace may be installed. Consider the traffic pattern
in your room and the location of doors and windows. Moving air from ceiling fans, open doors, and
hot air grills may cause the flames to soot. If a disturbance is found that affects the flames, it must be
eliminated by turning off the ceiling fan, closing the door, or closing or moving the hot air register. A
corner location may be best where space is limited.
Your fireplace weighs no more than some of your fine furniture. If the fireplace is located near a load
bearing wall, additional supports to the foundation will not be necessary. HEAVY FACINGS, SUCH
AS BRICK, STONE, ETC., MAY REQUIRE ADDITIONAL FOUNDATION SUPPORT.
NOTE: If this appliance is installed directly on carpeting, tile or other combustible material,
other than wood flooring, the appliance shall be installed on a metal or wood panel extending
the full width and depth of the appliance.
GAS LINE
The gas supply line and electrical
supply must be installed before
framing in the fireplace by a licensed
installer.
DRAFTS
Do not locate the fireplace in high
traffic areas or areas exposed to high
drafts and winds. Locate the fireplace
away from furniture and draperies.
Page 5

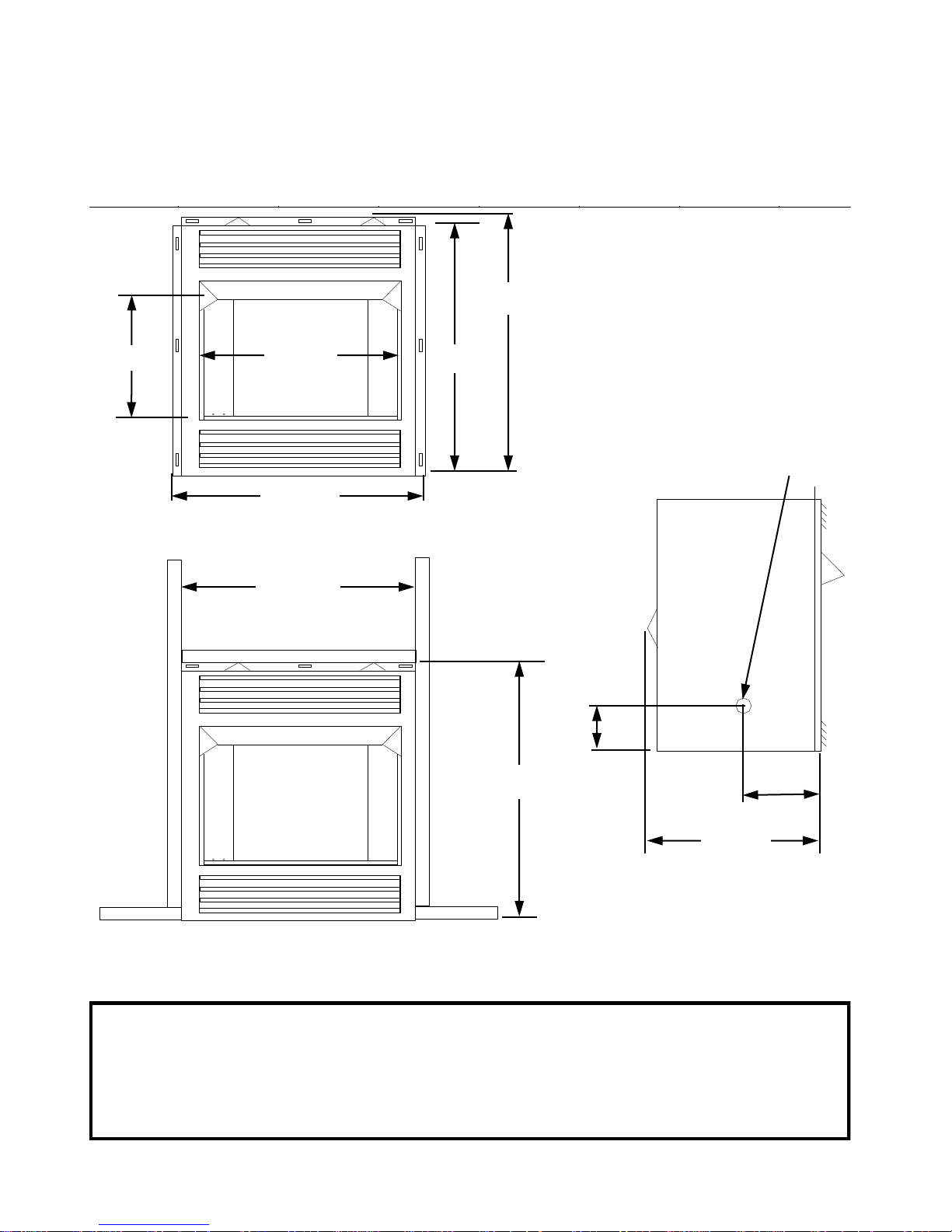

Fireplace and Framing Dimensions (inches)
NOTE: Do not obstruct air openings around appliance. Maintain adequate clearances around
air openings.
32 3/16"
15 3/4"
26 1/4"
31 7/8"
31 7/8"
30 3/16"
32 3/16"
GAS LINE
3 1/4"
7 1/2"
WARNING: Installation and repairs should be performed by a qualified service person.
The appliance should be inspected before use and at least annually by a professional service person. More frequent cleaning may be required due to excessive lint from carpeting,
bedding material, etc. It is imperative that control compartments, burners and circulating
air passageways of the appliance be kept clean.
13 1/2"
Figure 2
Page 6
FIREPLACE CLEARANCES
The fireplace may be placed directly on a combustible
floor, against a combustible wall at marked clearances, or
on a raised wooden platform.
If the fireplace is to be installed on a raised wooden
platform, the platform must be a continuous level surface.
The fireplace must be secured in place so it cannot shift
positions. The nailing flanges on the sides of the firebox
make securing it to the framing easy. They were designed
to allow the installation of 1/2" wallboard or plywood flush
with the face of the fireplace.
Only the header (see Figure 2) may rest on the standoffs
on top of the firebox.
When the firebox is installed over carpeting, vinyl tile, or
any combustible material other than wood flooring, it
must be installed on a metal or wood panel extending its
full width and depth. Alternatives, the carpeting, vinyl
tile, etc. may be removed beneath the fireplace before
installing.
COMBUSTIBLE MATERIALS MUST NOT BE INSTALLED
OVER OR TOUCH ANY BLACK PAINTED SURFACE. DO
NOT BLOCK HEAT CIRCULATING AIR OUTLETS. DOING
SO MAY RESULT IN POTENTIAL FIRE HAZARDS.
1. Sidewall Clearances: Clearances from the side of the
fireplace opening to any adjacent combustible wall
should not be less than 7"right side, 7” left side.
2. Ceiling Clearances: The ceiling height should
not be less than 42" from the top of the fireplace
opening.
INSTALLING THE FIREBOX
This list of specific instructions will help you make certain that every
installation operation is performed correctly. Complete the installation
steps in the sequence shown.
LOCAL BUILDING CODES SHOULD BE CONSULTED IN ALL CASES AS
TO THE PARTICULAR REQUIREMENTS CONCERNING THE
INSTALLATION OF FACTORY BUILT FIREPLACES. Select the location
for the fireplace by taking into consideration the factors previously
outlined in the “Choosing the Location.” See page 6.
Framing the Firebox
The width of the framed opening must be 31 7/8". The height of the
framed opening must be 32 3/16". The entire fireplace can be elevated
above the floor to achieve a raised hearth effect. This can be done by
adding a small platform to achieve the desired height.
NOTE: The wiring for the lower blower must be installed during the
framing stage. The nailing flanges on both sides were designed to allow
the installation of 1/2" wallboard or plywood flush with the face of the
fireplace.
When the framing is inside, the outside wall will be insulated. If the
framing or chase is outside, thin insulation should be used in the
framing on the back, sides, and top. The bottom should be insulated
with a hard insulating board. This will prevent cold from going into the
chase through the fireplace to the living space.
Install the Firebox
Install the firebox into the framed opening by placing it directly in front
of the opening and sliding it into the proper position.
Level the Firebox
Check the level of the firebox on the top edge of the fireplace face.
Shim if necessary.
Secure the Firebox
Secure the fireplace to the framing. The nailing flanges on the firebox
will make securing the firebox to the frame quick and easy. Use
appropriate size nails or screws to secure the firebox.
25"
LEFT
*7"
*Note: Minimum 1/2" clearance
13 1/2"
FRAMING
HEADER
32 3/16"
FRONT
31 7/8"
SIDE VIEW
32 3/16"
FRONT VIEW
31 7/8"
1/2"
13 1/2"
RIGHT
Page 7
FINISHING YOUR FIREPLACE
There is a wide variety of finishing material
available for your fireplace from formal wall
treatments with marble and mantels, to rustic
wood paneling, stone or brick. Noncombustible materials used in this installation
such as slate, tile, marble, etc. must be at least
1/2" thick.
IT IS IMPORTANT THAT THE BLACK FACE OF
THE FIREPLACE NOT BE COVERED WITH ANY
TYPE OF COMBUSTIBLE MATERIAL.
Non-combustible facing materials such as
marble, brick, or ceramic tile may overlap the
black face of the fireplace up to the opening on
either side of the fireplace. Seal all joints
between the black fireplace face and the wall
covering with a heat-resistant material such as
rock, wool, insulation or mortar. Be sure to use
high temperature adhesive or mortar when
anchoring brick, stone, or tile to the face of the
fireplace. Check to see whether man-made
brick and stone are made of non combustible
materials before using them on the face of the
fireplace. Some of these products contain
combustible materials. Combustible wall
coverings such as paneling or wallboard may
not overlap the black face of the fireplace. The
space between the wall covering and the
fireplace should be sealed with a heat resistant
material such as rock, wool, insulation or
mortar.
NOTE: An “L” shaped steel lintel must be
installed across the top of the firebox opening
where facing materials such as brick or stone is
used on the face of the firebox. It acts as a
support/firestop. It should be attached to the
face of the fireplace with screws and sealed to
the fireplace with a heat-resistant sealer.
CLEARANCES
To ensure a safe installation, the following
must be carefully observed.
1. Sidewall Clearances: Clearances from
the side of the fireplace opening to any
adjacent combustible wall should not be less
than 7"right side, 7” left side. See Figure 4.
2. Ceiling Clearances: The ceiling height
should not be less than 42" from the top of the
fireplace opening.

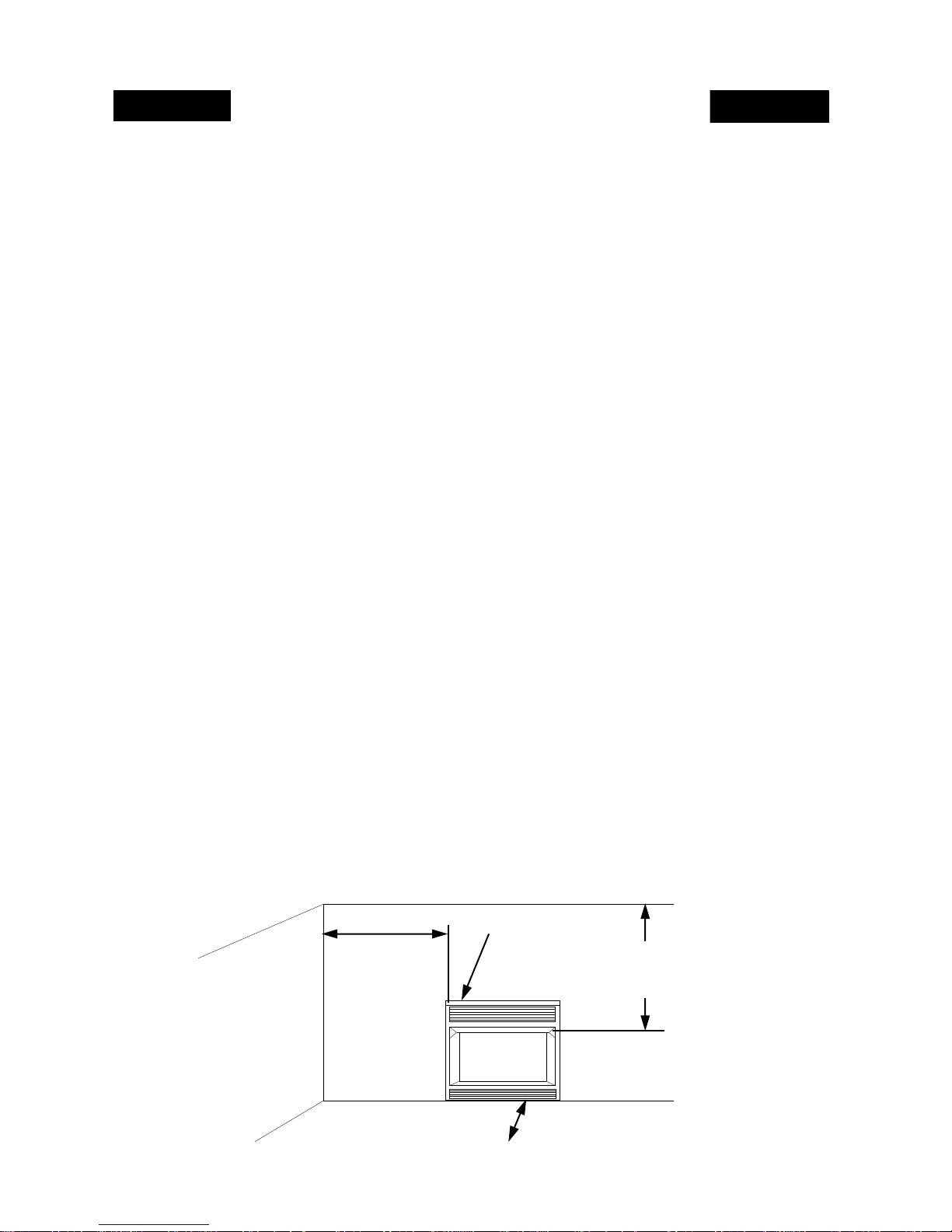

FIGURE 4
7" MIN.
CLEARANCE TO
SIDE WALL
SIDE WALL

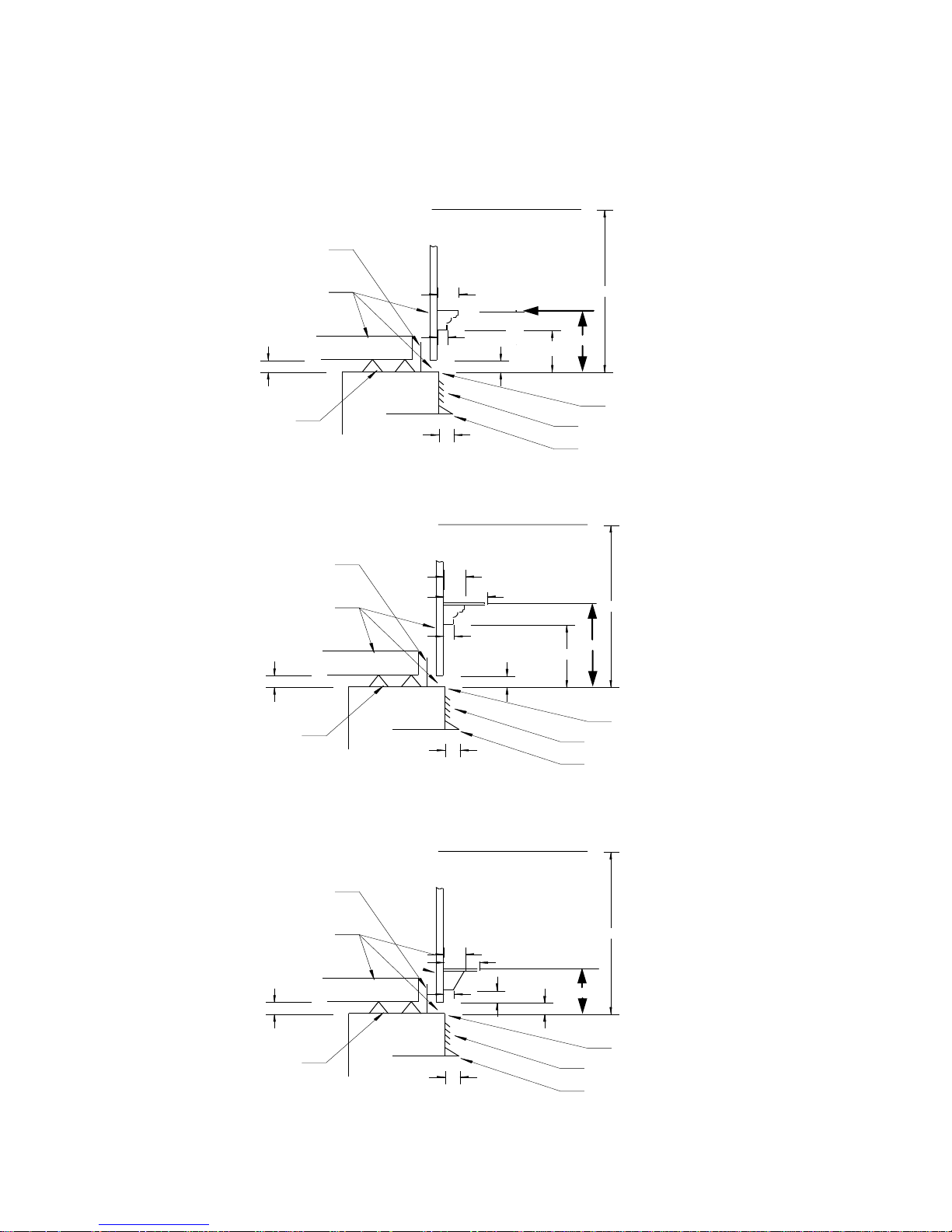

3. Mantel Clearances: We have provided 3
different situations to position your mantel.
See Figure 5.
4.Floor Clearances: No clearance is
required if the appliance is installed per
these instructions.
5. Front Clearances: 24” to combustible
Materials.
2"NON-COMBUSTIBLE
MATERIAL
42"MIN.
CLEARANCE
TO CEILING
LEFT SIDE
FRONT
Page 8
RIGHT SIDE
24” MIN. TO COMBUSTIBLE MATERIALS
2"
3"
3 1/4"
3 1/4"
2"
2"
42"
COMBUSTIBLE
MATERIAL
NAILING FLANGE
STAND OFF
FP-327-ZC
LOUVERS
HOOD
TOP TRIM (METAL)
CEILING
2"
2"
2"
42"
COMBUSTIBLE
MATERIAL
NAILING FLANGE
STAND OFF
FP-327-ZC
LOUVERS
HOOD
TOP TRIM (METAL)
CEILING
2"
6"
2"
2"
42" MIN.
COMBUSTIBLE
MATERIAL
NAILING FLANGE
STAND OFF
FP-327-ZC
LOUVERS
HOOD
TOP TRIM (METAL)
CEILING
MANTEL 3/4" FLAT SURFACE
MANTEL 3/4" FLAT SURFACE
2 1/2" FLAT SURFACE
3"
12"
10"
3/4"
TO 12"
5" MIN.
2-1/2"
3/4"
PICTURE. 1
MANTEL PROFILES FOR ZERO CLEARANCE CABINET
MUST BE FOLLOWED
PICTURE. 2
7”
10”
13”
PICTURE. 3
Figure 5
8”
Page 9
INSTALLATION OF MODEL
FP - 327- ZC
WITH OPTIONAL WOODEN MANTEL
(1) When choosing the right location for your heater and mantel keep the following in mind:
NOTE: Due to high temperatures, this heater should be located out of traffic areas and away
from furniture and draperies.
NOTE: Kit No. (PAKDM327) Optional Wooden Mantel for FP-327-ZC.
CAUTION: THE INSTALLATION MUST CONFORM WITH LOCAL CODES OR, IN THE
ABSENCE OF LOCAL CODES, WITH THE NATIONAL FUEL GAS CODES, ANSI Z223.1/
NFPA 54.
NOTE: See page 18 for “Gas Connection” and page 19 for “Gas Pressure Check”.
WARNING: YOUNG CHILDREN SHOULD BE CAREFULLY SUPERVISED WHEN THEY
ARE IN THE SAME ROOM WITH THE APPLIANCE.
DO NOT PLACE CLOTHING OR OTHER FLAMMABLE MATERIAL ON OR NEAR THE
APPLIANCE
(2) Screen(s) can not be removed or altered (Position screen(s) in the closed position before leaving
heater unattended).
(3) Follow instructions for assembly of (Optional) Wooden Mantel. See instructions supplied with
mantel.
(4) After mantel has been assembled, slide the heater from the rear into the opening of the mantel.
NOTE: Place a cloth or blanket over the front portions of the mantel as not to scar the wood.

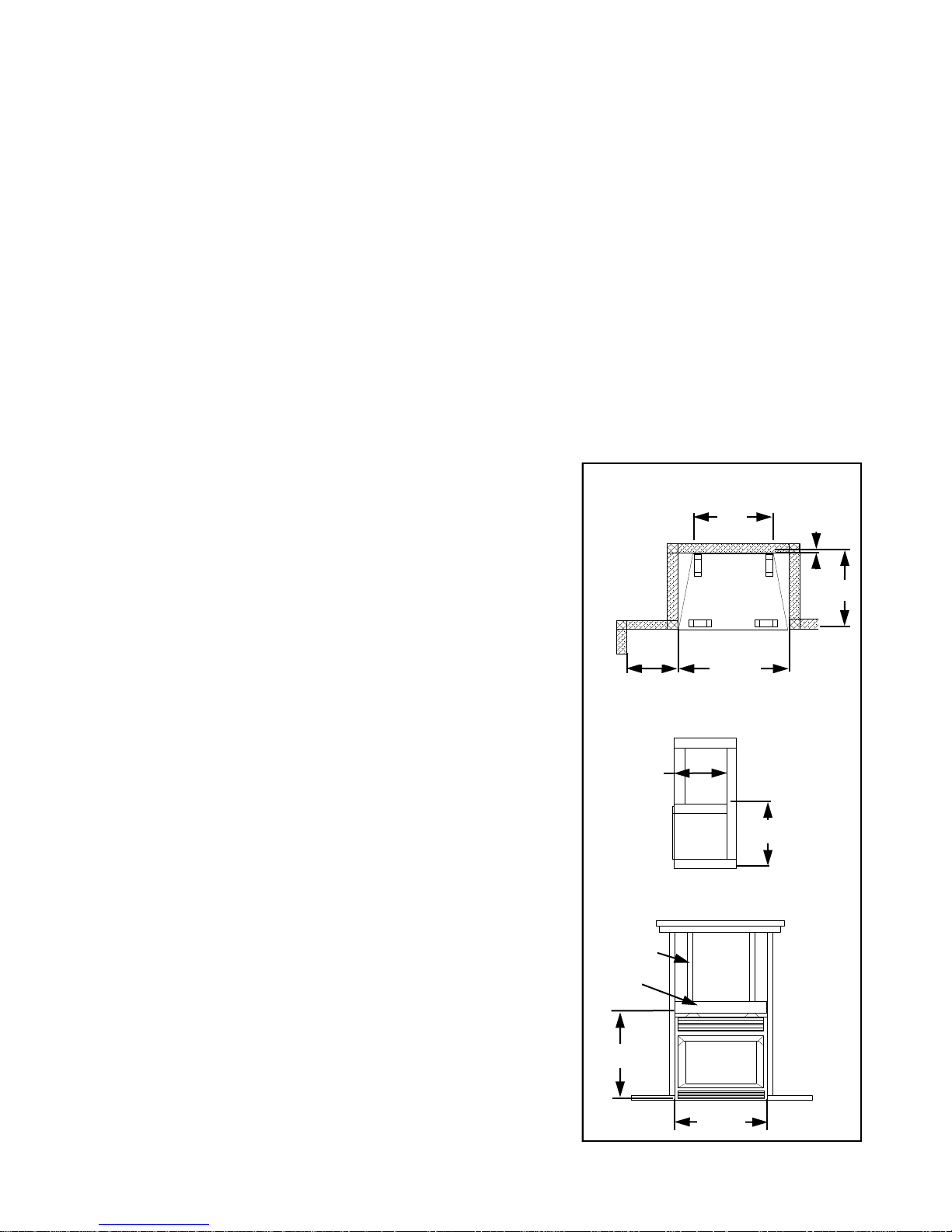

(5) Center the heater in the opening of the mantel. See Figure 6.
(6) Fasten mantel to hearth by using 1/2" wood screws.
(7) Insert the nine (9) wood screws provided with mantel through slots on nailing flange and secure in
place. See Figure 6.
(8) Position mantel and fireplace into desired location.
NOTE: Hook gas supply line into heater. Check for leaks using soap and water, not an open flame.
NOTE: At this point, you may want to anchor the mantel to the wall or floor.

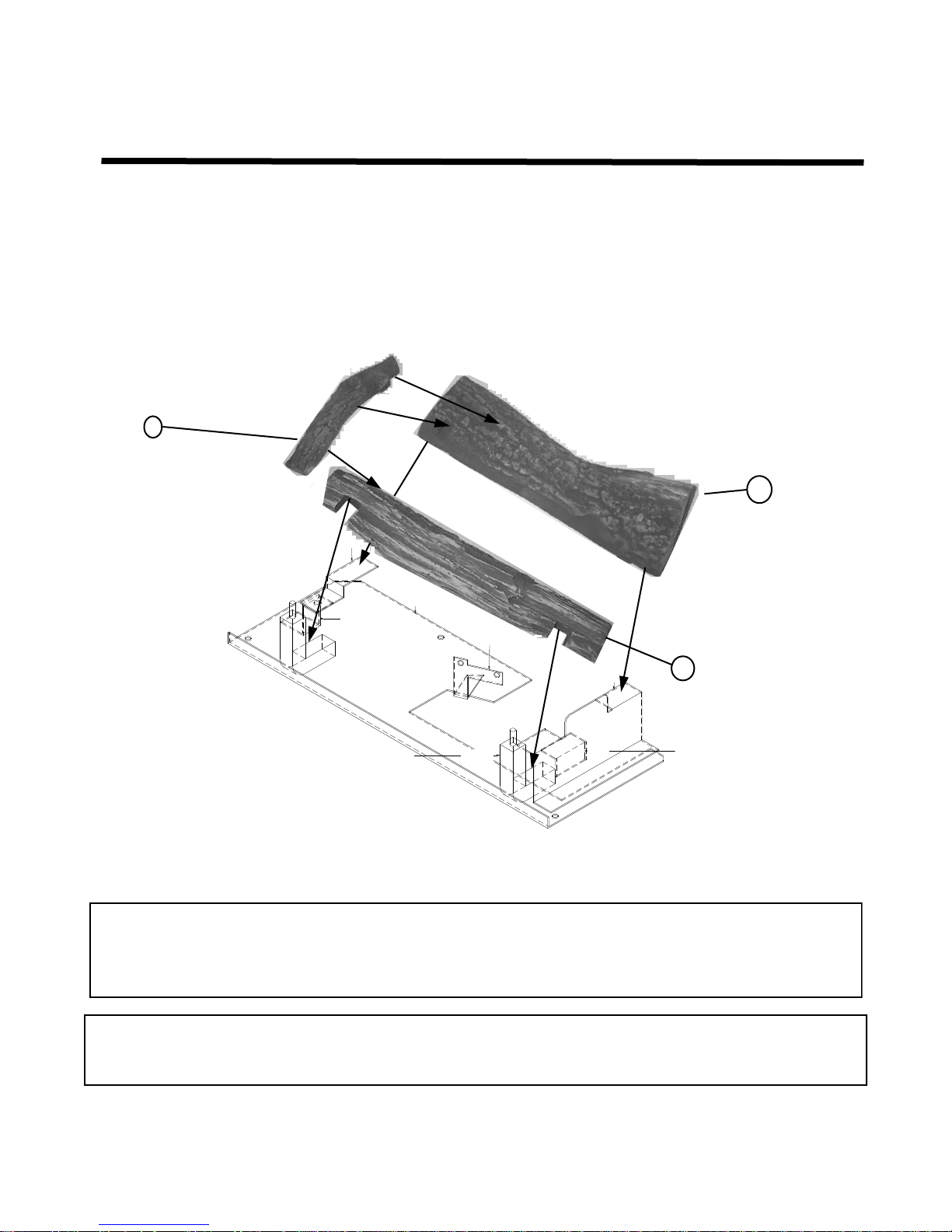

(9) Now you are ready to position the log set.
Page 10
(10) To light the heater, see “Lighting Instructions” pages 21 through 28. Make sure you have the
right gas valve for Natural or LP gas.
TOP MANTEL
1/2" WOOD
SCREWS
(9)
SIDE MANTEL
REAR OF HEATER
MANTEL BASE

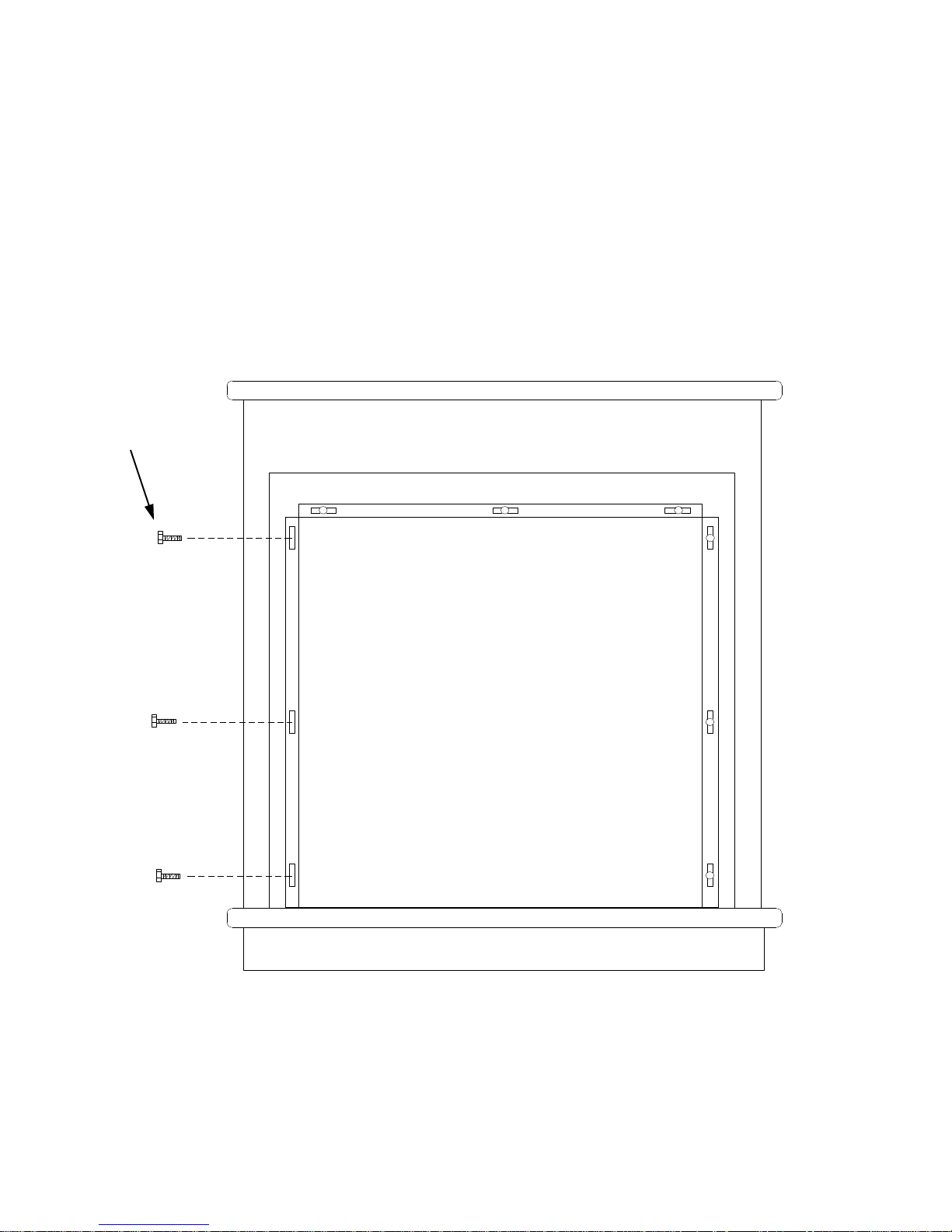

FIGURE 6
Page 11
SECTION VI
AFTER MARKET MOBILE HOME
INSTALLATION
NOTE: See “Producing Adequate Air For Combustion And Ventilation” page 14.
.THIS APPLIANCE MAY BE INSTALLED IN AN AFTERMARKET*, PERMANENTLY
LOCATED, MANUFACTURED (MOBILE) HOME, WHERE NOT PROHIBITED BY
LOCAL CODES.
*After Market: Completion of sale, not for the purpose of resale from the manufacturer.
THIS APPLIANCE IS ONLY FOR USE WITH THE TYPE OF GAS INDICATED ON
THE RATING PLATE. THIS APPLIANCE IS NOT CONVERTIBLE FOR USE WITH
OTHER GASES.
NOTE: For mobile home installation follow “Installation This Instruction Manual”.
NOTE: See “Producing Adequate Air For Combustion And Ventilation” page 14
Page 12
PRODUCING ADEQUATE AIR FOR
COMBUSTION AND VENTILATION
This section is for residential or manufactured (mobile) installation
This heater shall not be installed in unusually tight construction unless provisions are adequate
for combustion and ventilation air.
NOTE: This heater shall not be installed in a room or space unless the required volume of indoor combustion air is provided by the method in the National Fuel Gas Code, ANSIZ223.1/
NFPA 54, the International Fuel Gas Code, or applicable codes.
The National Fuel Gas Code, ANSI Z223.1/NFPA 54 defines unusually tight construction or
unconfined space as a space whose volume is less than 50 cubic feet per 1,000 BTU per hour
(4.8m 3 per kw) of the aggregate input rating of all appliances installed in that space and an
unconfined space as a space whose volume is not less than 50 cubic feet per 1,000 BTU per
hour (4.8m 3 per kw) of the aggregate input rating of all appliances installed in that space.
Rooms communicating directly with the space in which the appliances are installed, through
openings not furnished with doors, are considered a part of the unconfined space.
WARNING: IF THE AREA IN WHICH THE HEATER MAY BE OPERATED DOES
NOT MEET THE REQUIRED VOLUME FOR INDOOR COMBUSTION AIR, COMBUSTION AND VENTILATION AIR SHALL BE PROVIDED BY ONE OF THE
METHODS DESCRIBED IN THE NATIONAL FUEL GAS CODE, ANSI Z223.1/NFPA
54, THE INTERNATIONAL FUEL GAS CODE, OR APPLICABLE CODES.
WARNING: IF THE AREA IN WHICH THE HEATER MAY BE OPERATED IS
SMALLER THAN THAT DEFINED AS AN UNCONFINED SPACE OR IF THE
BUILDING IS OF UNUSUALLY TIGHT CONSTRUCTION, PROVIDE ADEQUATE
AIR FOR COMBUSTION AND VENTILATION BY ONE OF THE METHODS
DESCRIBED IN THE NATIONAL FUEL GAS CODE, ANSI Z223.1/NFPA 54 AIR FOR
COMBUSTION AND VENTILATION, OR APPLICABLE LOCAL CODES.
Unusually tight construction is defined as construction where:
a) Walls and ceilings exposed to the outside atmosphere have a continuous water vapor
retarder with a rating of 1 perm (6 x 10
or sealed;
b) Weather stripping has been added on openable windows and doors, and
c) Caulking or sealants are applied to areas such as joints around window and door frames,
between sole plates and floors, between wall-ceiling joints, between wall panels, at
penetrations for plumbing, electrical, and gas lines, and at other openings.
-11
kg per pa-sec-m2) or less with openings gasketed
NOTE: SOME AREAS IN THE UNITED STATES HAVE HIGHER REQUIREMENTS
FOR CUBIC FEET PER 1000 BTU/ HOUR INPUT. (EX. CINCINNATI, OHIO CODES
REQUIRE 70 CUBIC FEET). CHECK YOUR LOCAL CODE BEFORE
INSTALLATION.

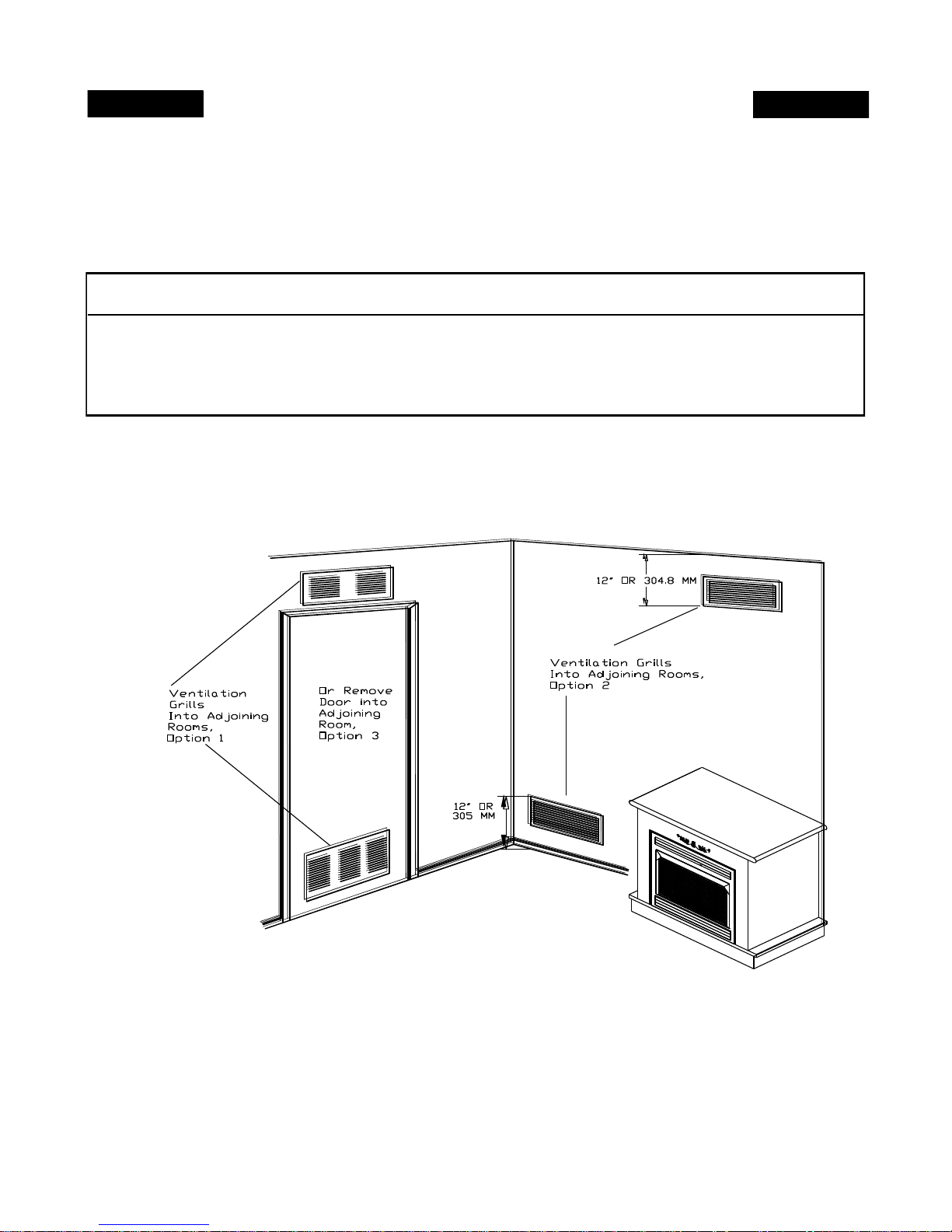

DETERMINING FRESH-AIR FLOW FOR
DETERMINE IF YOU HAVE UNUSUALLY TIGHT CONSTRUCTION OR UNCONFINED SPACE
Use this worksheet to determine if you have confined or unconfined space.
SPACE: Includes the room in which you will install heater plus adjoining rooms with
doorless passageways or ventilation grills between the rooms.
HEATER LOCATION
Page 13
1. Determine the volume of the space (length x width x height).
Length x Width x Height =_________cu.ft.(volume of space)
EXAMPLE: 20 ft.(Length) x 16 ft.(Width) x 8 ft.(ceiling Height)=
2560 cu. ft. (volume of space)
If additional ventilation to adjoining room is supplied with grills or openings, add the
volume of these rooms to the total volume of the space.
2. Divide the space volume by 50 cubic feet to determine the maximum BTU/Hr the
space can support.
_________(volume of space)/50 cu. ft. =maximum BTU/Hr the space can support)
EXAMPLE: 2560 cu. ft. (volume of space /50 cu. Ft .= 51.2 or
51200 (maximum BTU/Hr the space can support)
3. Add the BTU/Hr of all fuel burning appliances in the space.
Vent-free heater _______________BTU/Hr
Gas water heater* _______________BTU/Hr
Gas furnace _______________BTU/Hr
Vented gas heater _______________BTU/Hr
Gas fireplace logs _______________BTU/Hr
Other gas appliances* + _______________BTU/Hr
Total = _______________BTU/Hr
Example: Gas water heater 40000 BTU/Hr
Vent-free heater + 18000 BTU/Hr
Total = 58000 BTU/Hr
*Does not include direct-vent gas appliances. Direct-vent draws combustion air
from the outdoors and vents to the outdoors.
4. Compare the maximum BTU/Hr the space can support with the actual amount of BTU/
Hr used.
____________BTU/Hr (maximum the space can support)
____________BTU/Hr (actual amount of BTU/Hr used)
Example: 51200 BTU/Hr (maximum the space can support)
58000 BTU/Hr (actual amount of BTU/Hr used)
The space in the above example is unusually tight construction because the actual BTU/Hr
used is more than the maximum BTU/Hr the space can support. You must provide additional
fresh air. Your options are as follows: A. Rework worksheet, adding the space of an adjoining
room. If the extra space provides an unconfined space, remove door to adjoining room or add
ventilation grills between rooms. See “Ventilation Air For Combustion And Ventilation From
Inside Building”, page 16.
B. Vent room directly to the outdoors. See “Ventilation Air For Combustion And
Ventilation From Outdoors”, page 17.
C. Install a lower BTU/Hr heater, if lower BTU/Hr size makes room unconfined.
If the actual BTU/Hr used is less than the maximum BTU/Hr the space can support, the
space is an unconfined space. You will need no additional fresh air ventilation.
WARNING: YOU MUST PROVIDE ADDITIONAL VENTILATION AIR IN A UNUSU-
ALLY TIGHT CONSTRUCTION.
Page 14
VENTILATION AIR FOR COMBUSTION AND
VENTILATION FROM INSIDE BUILDING
This fresh air would come from an adjoining unconfined space. When venting to an adjoining space,
you must provide two permanent openings: one within 12" of the ceiling and one within 12" of the
floor on the wall connecting the two spaces (see Options 1 and 2, Figure 7). You can also remove door
into adjoining room (see Option 3, Figure 7).
WARNING
REWORK WORKSHEET, ADDING THE SPACE OF THE ADJOINING UNCONFINED
SPACE. THE COMBINED SPACES MUST HAVE ADEQUATE AMOUNT OF AIR TO
SUPPLY ALL APPLIANCES IN BOTH SPACES.
NOTE: Each opening shall have a minimum free area of 1 square inch per 1000 BTU’s per hour of
the total input ratings of all gas utilization equipment in the confined space, but not less than 100
square inches.
Figure 7 Ventilation Air From Inside Building
NOTE: This heater shall not be installed in a room or space unless the required volume of indoor
combustion air is provided by the method in the National Fuel Gas Code, ANSIZ223.1/NFPA 54, the
International Fuel Gas Code, or applicable codes.
Page 15
WARNING
THIS APPLIANCE MUST HAVE ADEQUATE AMOUNT OF AIR FOR PROPER
OPERATION. IF NOT, POOR FUEL COMBUSTION COULD RESULT. READ THE
FOLLOWING INSTRUCTIONS TO ENSURE PROPER AMOUNT OF AIR FOR THIS
AND OTHER FUEL-BURNING APPLIANCES IN YOUR HOME.
VENTILATION AIR FOR COMBUSTION AND
VENTILATION FROM OUTDOORS
Provide extra fresh air by using ventilation grills or ducts. You must provide two permanent
openings: one within 12" of the ceiling and one within 12" of the floor. Connect these items
directly to the outdoors. These spaces include attics and crawl spaces. Follow the National
Fuel Gas Code NFPA 54/ANSI Z223.1, Section 5.3, “Air For Combustion and Ventilation”
for required size of ventilation grills or ducts.
IMPORTANT: Do not provide openings for inlet air into attic if attic has a thermostatcontrolled power vent. Heated air entering the attic will activate the power unit.
OUTLET AIR
INLET AIR
OUTLET AIR
INLET AIR
VENTILATED ATTIC
TO ATTIC
TO
CRAWL
SPACE
VENTILATED
CRAWL SPACE

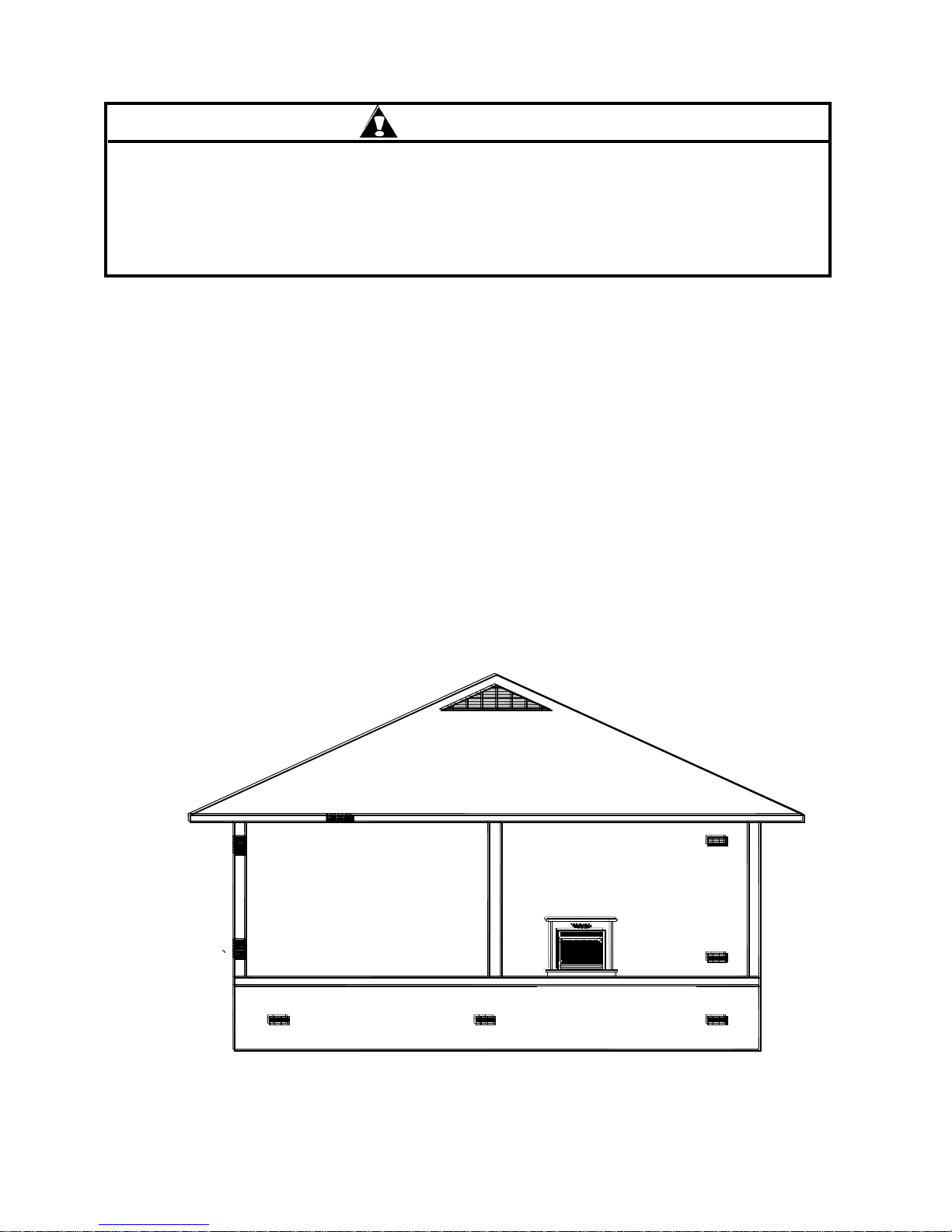

FIGURE 8
Page 16
WARNING: ANY CHANGE TO THIS HEATER OR ITS CONTROLS CAN BE
DANGEROUS
GAS CONNECTION
Check gas type. Use only the type of gas indicated on the valve rating plate. If the gas type listed on
the plate is not your type of gas supply, DO NOT INSTALL. Contact your dealer for proper model.
Always use an external regulator for all LP heaters to reduce the supply tank pressure to a maximum
of 13" W.C. This is in addition to the regulator furnished with the heater.
WARNING: CONNECTION DIRECTLY TO AN UNREGULATED LP TANK CAN
CAUSE AN EXPLOSION.
The normal gas connection is 3/8" N.P.T. made at the left side (facing the front of the appliance) of
the appliance. If a right side connection is desired, the connecting pipe may be led under the rear of
the burner base to terminate at the right side for connection to the inlet of the valve.
NOTE: The connecting pipe must be internally tinned copper tubing for use with natural gas. Test
for leaks using a solution of soap and water after completing the connection. DO NOT USE OPEN
FLAME.
NOTE: If the factory-built fireplace has no gas access hole(s) provided, an access hole of 1.5 inch (37.5mm)
diameter or less may be drilled through the lower sides or bottom of the fire box in a proper workmanlike
manner. This access hole must be plugged with non-combustible insulation after the gas supply line has been
installed.
WARNING: Installation and repairs should be performed by a qualified service person. The appli-
ance should be inspected before use and at least annually by a professional service person. More frequent cleaning may be required due to excessive lint from carpeting, bedding material, etc. It is imperative that control compartments, burners and circulating air passageways of the appliance be kept
clean.
Page 17
Check the inlet pressure to the burner to ensure that it is as shown in the table below.
GAS PRESSURE CHECK
NOTE: The pressure check point is located on the right side of the valve facing burner, for ITT, and
the left side for SIT.
The appliance and its appliance main gas valve must be disconnected from the gas supply piping
system during any pressure testing of that system at test pressures in excess of 1/2 psi (3.5kPa).
The appliance must be isolated from the gas supply piping system by closing its equipment shut-off
valve during any pressure testing of the gas supply piping system at test pressures equal to or less than
1/2 psi (3.5 kPa).
MODEL FP-327-ZC FP-327-ZC
Gas Natural ITT Maxitrol Propane ITT Maxitrol
Maximum Heat Input 27,000 27,000 27,0000 27,000
Gas Inlet Pressure:
Maximum 10.5 ins. W.C. 13 ins. W.C.
Minimum * 5 ins. W.C. *11 ins. W.C.
Manifold Pressure 3.5 ins. W.C. 9 ins. W.C.
NOTE: On initial installation it may be necessary to bleed out air in the gas lines. Do this by
holding the control knob and turning the knob to the “PILOT” position for about 30
seconds.
To check the Regulator pressure, remove the pressure tag plug at the left side of the
Regulator facing the heater. The pressure should be checked with the heater burning
and the control set on high. After measuring the pressure, replace the pressure tap
plug, ensuring that there are no leaks.
* For the purpose of minimum input adjustment.
WARNING
This appliance is equipped for (natural or propane) gas.
Field conversion is not permitted.
PLACEMENT OF LOGS
CERAMIC LOGS
(1) REAR LOG (2) FRONT LOG (3) LEFT TOP LOG
WARNING: POSITIONING OF LOGS IS VERY CRITICAL (FIGURE 9).
LOG PLACEMENT FOR CR8T LOG SET.
1. Place Rear log #1 on rear log support. The log has an alignment notch on Left and
right corners.
2. Place Front log #2 with alignment notches over front andirons.
3. Left Top log has locating hole in one end, place hole over pin on Left side of Rear log
(#1) . Make sure Front of Left Top log (#3) is resting on Left side of Left Andiron.
SEE DIAGRAM ON PAGE 20.
Page 18
DISCRIPTION
DATEREV.
BY
APRVD
NEW RELEASE
M.B.DATE
3
PLACEMENT OF LOGS
1
2
Figure 9
WARNING: FAILURE TO POSITION THE PARTS IN ACCORDANCE WITH THESE
DIAGRAMS OR FAILURE TO USE ONLY PARTS SPECIFICALLY APPROVED WITH
HEATER MAY RESULT IN PROPERTY DAMAGE OR PERSONAL INJURY.
WARNING: DO NOT ALLOW FANS TO BLOW DIRECTLY INTO THE FIREPLACE.
AVOID DRAFTS THAT ALTER BURNER FLAME PATTERN.
Page 19
LIGHTING INSTRUCTIONS
MILLIVOLT VALVE (ITT)
FOR YOUR SAFETY, READ BEFORE LIGHTING
WARNING
IF YOU DO NOT FOLLOW THESE INSTRUCTIONS EXACTLY, A FIRE OR
EXPLOSION MAY RESULT CAUSING PROPERTY DAMAGE, PERSONAL INJURY,
OR LOSS OF LIFE.
A. This appliance has a pilot which must be lit by hand. When lighting the pilot, follow these
instructions exactly.
B. BEFORE LIGHTING smell around the appliance for gas. Be sure to smell next to the
floor because gas is heavier than air and will settle on the floor.
WHAT TO DO IF YOU SMELL GAS
Do not try to light any appliance.
Do not touch any electrical switch; do not use any phone in your building.
Immediately call your gas supplier from a neighbor’s phone. Follow the gas
supplier’s instructions.
If you cannot reach your gas supplier, call the fire department.
C. Use only your hand to push in or turn the gas control knob. Never use tools. If the knob
will not push in or turn by hand, don’t try to repair it, call a qualified service technician.
Force or attempted repair may result in a fire or explosion.
D. Do not use this appliance if any part has been under water. Immediately call a qualified
service technician to inspect the appliance and to replace any part of the control system and
any gas control which has been under water.
Page 20
LIGHTING INSTRUCTIONS

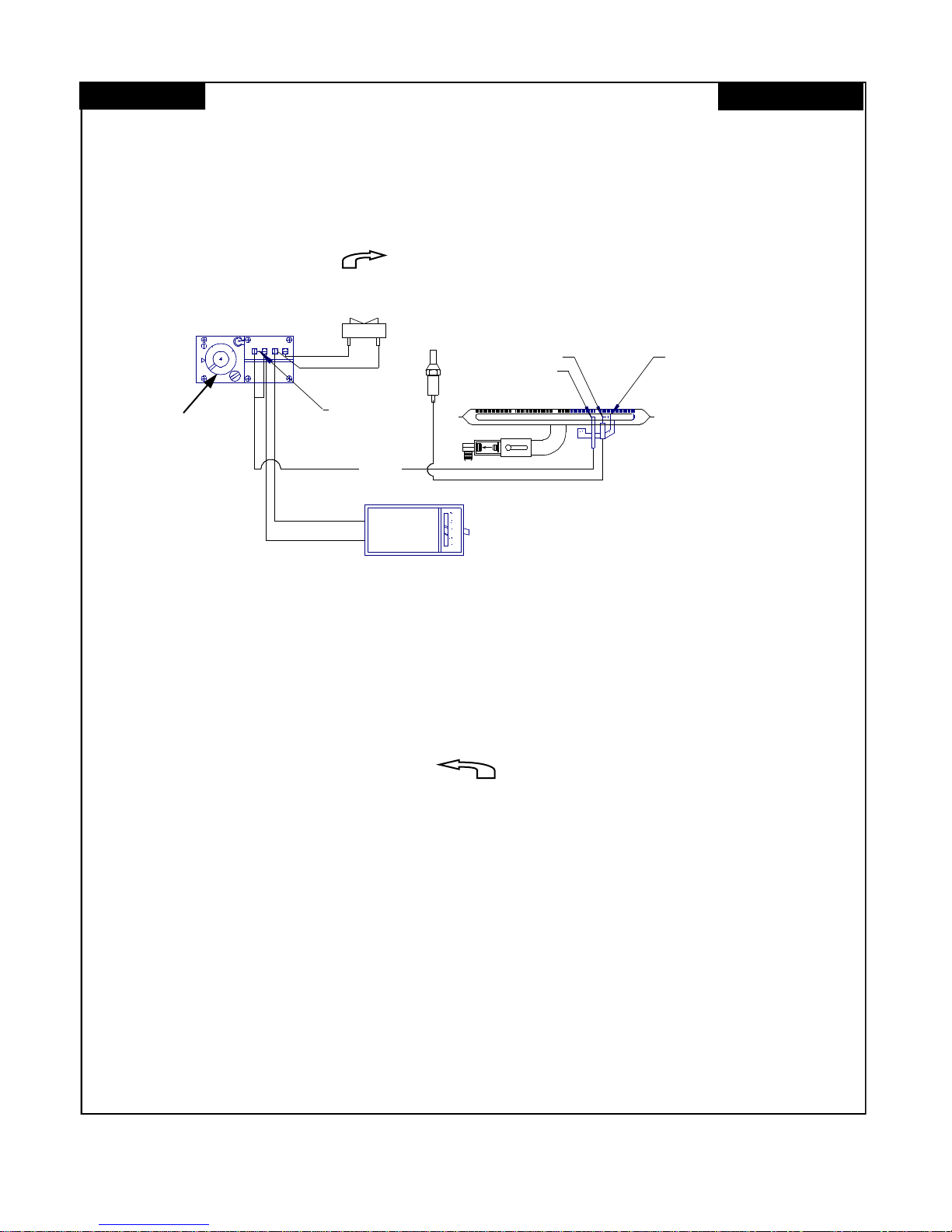

PIL OT B URNER
IGNIT OR E L E CTRODE
TH ERM OGEN ERAT OR
P I L O T
9080706050
ON
O F F
BE F ORE INST AL L ING T HERM OST A T
REM OVE M ET A L CONNECT OR
PIEZO
ROCKER SW IT CH
BURNER
PIL OT A SS' Y
TH ERM OSTAT
IT T VAL VE
T H E R M OG E N
A U X
P R E S S
TO
R E S E T
O F F
P I L O T
ON
ITT
G E N E R A L
C O N T R O L S
PIL O T
ADJ
1. STOP! Read the safety information on previous page.
2. Make sure the manual shutoff valve is fully closed. If equipped with thermostat set to the lowest
setting.
3. Turn off all electrical power to the appliance.
4. Open access panel door located at bottom front of the appliance.

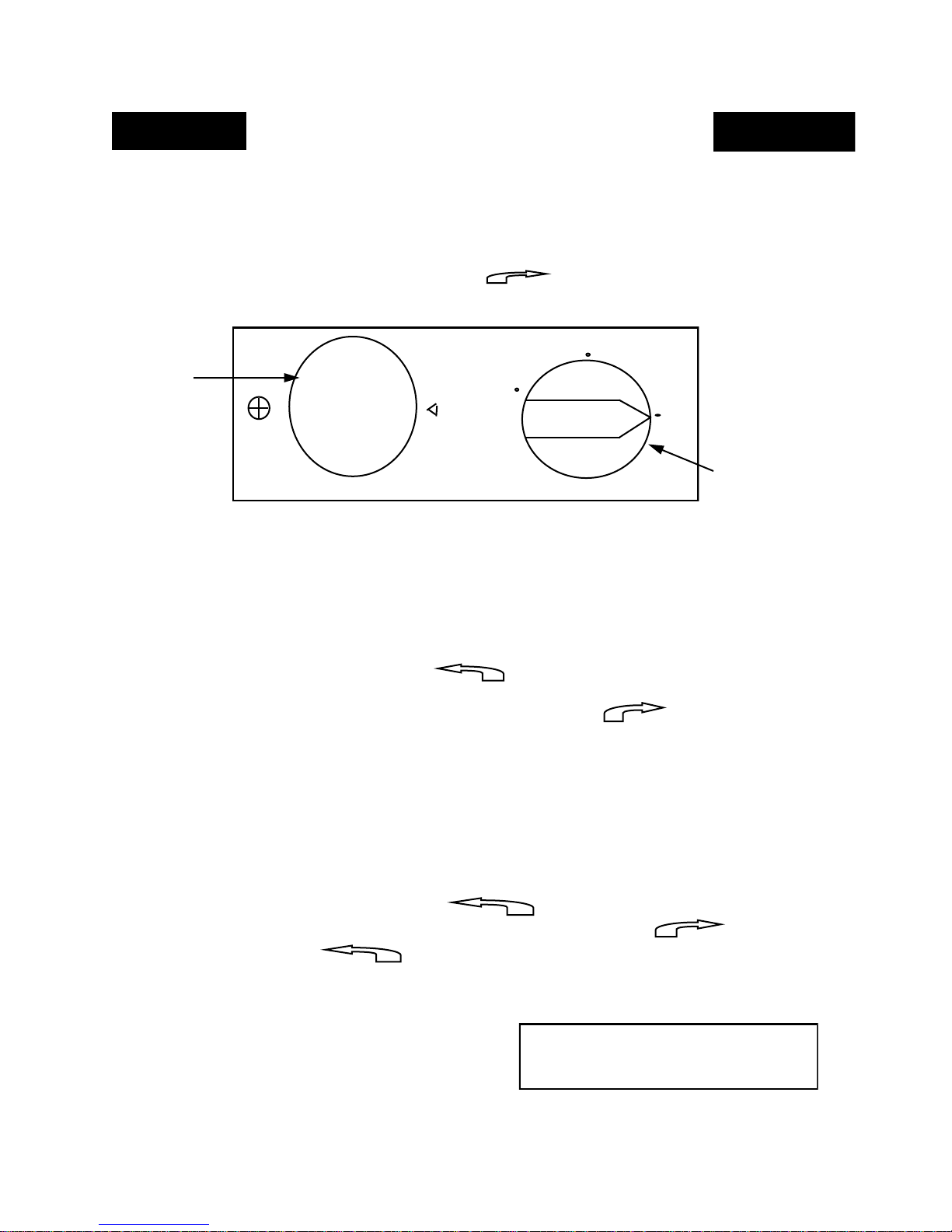

5. Turn control knob clockwise to the full “OFF” position.
THERMOPILE
CONTROL KNOB
When hooking up a Wall Thermostat to valve, remove the Jumper Bar. Do not remove the existing
wires, simply add the wire from the Wall Thermostat to screws (one wire to each screw).
6. Wait five (5) minutes to clear out any gas. Then smell for gas, including near the floor. If you
smell gas, STOP! Follow “B” in the safety informationon the previous page.If you don’t smell
gas, go to the next step.
7. Find Pilot: The pilot is located in front of the rear log and burner on the right hand side of the
appliance. Fully open the manual shutoff valve.
8. Push the ON/OFF toggle switch to “OFF” (rocker switch).
9. Turn gas control knob counterclockwise to the “PILOT” position.Press in gas control
knob for fifteen (15) seconds.
10. With control knob pressed in , push down (in) and release the igniter button (igniter button is
located on the left hand side of the front of the appliance). This will light the pilot. If needed, keep
repeating this step until pilot lights.
11. Keep control knob pressed in for (1) one minute after lighting pilot. After (1) minute, release the
gas control knob and it will pop back up. Pilot should remain lit. If pilot goes out, repeat steps 1
through 9.
If the knob does not pop up when released, stop and immediately call your service technician or
gas supplier.
Page 21
If the pilot will not stay lit after several tries, turn the gas control knob to “OFF”

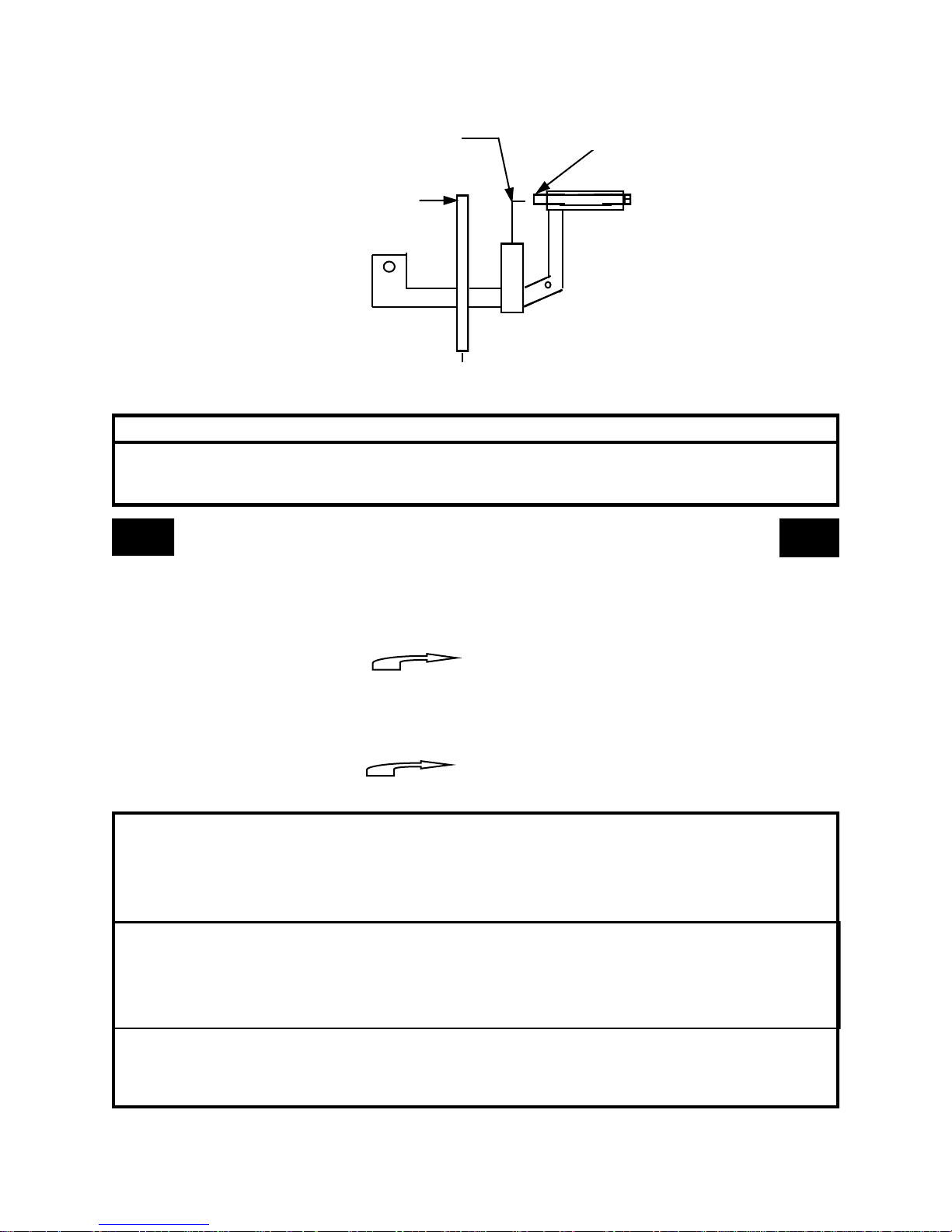

PILOT BURNER
IGNITOR ELECTRODE
THERMO-COUPLE
and call your service technician or gas supplier.
THERMO-PILE
12. Turn control knob counterclockwise to the “ON” position. Push the “ON/OFF”
toggle switch to the “ON” position. The main burner should light.
13. Close access panel door.
14. Turn on all electrical power to the appliance.
15. Set thermostat to desired setting.
NOTE: This unit may be used with an optional Wall Thermostat. If so, the Wall
Thermostat needs to be set at a higher temperature than the room temperature.
SHUTTING OFF UNIT
1. Open access panel door located at bottom front of the appliance.
2. If equipped with thermostat set to lowest setting.”
3. Turn control knob clockwise to the “OFF” position.
4. Turn off all electric power to the appliance if service is to be performed.
5. Close access panel door.
SHUTTING OFF BURNER ONLY (Pilot stays lit.)
Turn control knob clockwise to the “PILOT” position.
DO NOT TRY TO ADJUST HEATING LEVELS BY USING THE MANUAL
SHUTOFF VALVE.
TO TURN OFF GAS TO
APPLIANCE
CAUTION
Page 22
THERMOSTAT CONTROL OPERATION
This valve operates off of millivolts produced by the generator. You may choose to use an
optional Wall Thermostat or Remote control. If so, see Figure 2, page 22 for wiring diagram.
MANUAL LIGHTING PROCEDURE
1. If the pilot cannot be lit with the piezo, it can be manually lit with the use of a paper match
and a lighter rod.
2. Open access panel door located at bottom front of the appliance.
3. 2. Place the match in the holder and light. With the left hand, turn the control knob
counterclockwise to “PILOT”position. Press in gas control knob for fifteen (15)
seconds.
4. Use rod to light match and ignite pilot. The pilot is located in front of the rear log and burner
on the right hand side of the appliance.
5. Continue to hold the control knob for an additional one (1) minute to ensure the pilot is lit.
6. Turn control knob counterclockwise to the “ON” position. Push the “ON/
OFF” toggle switch to the “ON” position. The main burner should light.
7. Close access panel door.
8. Turn on all electrical power to the appliance.
NOTE: This unit may be used with an optional Wall Thermostat. If so, the Wall Thermostat needs
to be set at a higher temperature than the room temperature.
Page 23
LIGHTING INSTRUCTIONS
MODULATING VALVE(MAXITROL)
FOR YOUR SAFETY, READ BEFORE LIGHTING
WARNING
IF YOU DO NOT FOLLOW THESE INSTRUCTIONS EXACTLY, A FIRE OR EXPLOSION MAY RESULT CAUSING PROPERTY DAMAGE, PERSONAL INJURY
OR LOSS OF LIFE.
A. This appliance has a pilot which must be lighted by hand. When lighting the pilot,
follow these instructions exactly.
B. BEFORE LIGHTING: Smell all around the appliance for gas. Be sure to smell next
to the floor because gas is heavier than air and will settle on the floor.
WHAT TO DO IF YOU SMELL GAS
* Do not try to light any appliance.
* Do not touch any electrical switch; do not use any phone in your building.
* Immediately call your gas supplier from a neighbor’s phone. Follow the gas
supplier’s instructions.
* If you cannot reach your gas supplier, call your local fire department.
C. Use only your hand to push in or turn the gas control knob. Never use tools. If the knob
will not push in or turn by hand, don’t try to repair it, call a qualified service technician.
Force or attempted repair may result in fire or explosion.
D. Do not use this appliance if any part has been under water. Immediately call a qualified
service technician to inspect the appliance and to replace any part of the control system
and any gas control which has been under water.
Page 24
LIGHTING INSTRUCTIONS
1. STOP! Read the safety information on the previous page.
2. Make sure manual shutoff valve is fully closed.
3. Open access panel door, located in lower front center of base for access to control knobs.
4. Turn off all electric power to the appliance.
5. Set thermostat (flame control) to lowest setting.
6. Push in and turn control knob clockwise to the “OFF” position.
PILOT
IGNITE
OFF
CONTROL
KNOB
FLAME
CONTROL
1
2
3
4
5
FIGURE 3
7
6
MERTIK
MAXITROL
ON
7. Wait (5) five minutes to clear out any gas. Then smell for gas, including near the floor. If
you smell gas, STOP! Follow step “B” in the safety information on the previous page. If
you don’t smell gas, go to the next step.
8. Find Pilot: follow the small metal tub from the right hand rear of the gas control valve.
The pilot is located behind the burner tube and in front of the rear log. Fully open the
manual shut-off valve.
9. Turn control knob counterclockwise to the “PILOT” position. Press in
control knob for (15) fifteen seconds (see figure 3).
10. With control knob pressed in, turn control knob clockwise to IGNITE and
then immediately back to PILOT with the button still pressed in. This will light the pilot.
If needed, keep repeating this step until pilot lights.
11. Keep control knob pressed in for one (1) minute after lighting pilot. After (1) minute,
release the control knob. If pilot goes out, repeat steps 1 through 9.
If the knob does not pop up when released, stop and immediately call your service techni-
cian or gas supplier.
If the pilot will not stay lit after several tries, turn the gas control knob to “OFF” and call
your service technician or gas supplier.
12. Turn control knob counterclockwise to “ON” position.
13. Set thermostat (flame control) to desired setting. Turn clockwise for “LOW”
and counterclockwise for “HIGH”.
“REMOVAL OF THIS MARKING WILL
VOID THE COMPLIANCE OF THIS
HEATER WITH ANSI Z21.11.2”
Page 25

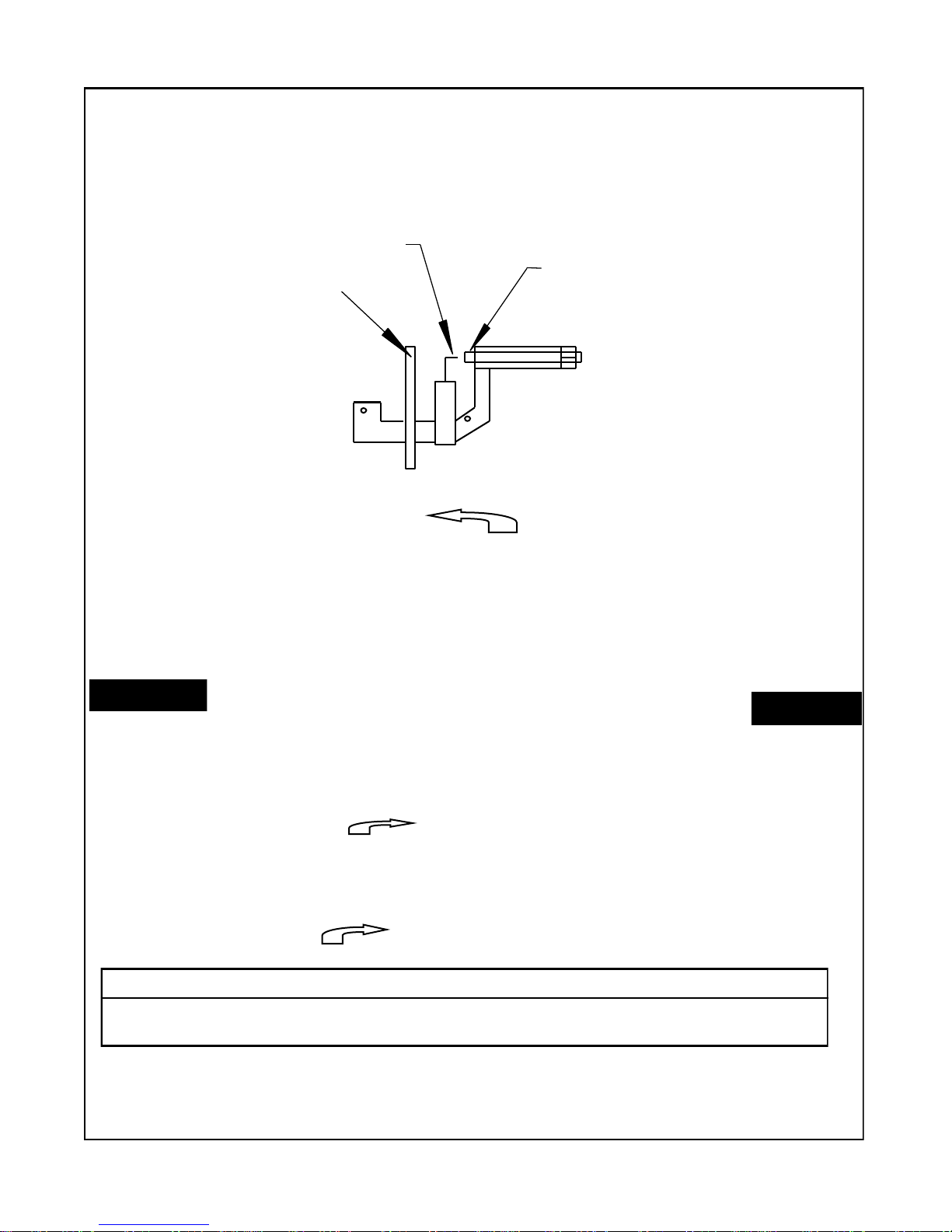

IGNITER ELECTRODE
O.D.S
PILOT BURNER
THERMO-COUPLE
13. Close the access panel door.
14. Turn on all electric power to the appliance.
PILOT
CAUTION
DO NOT TRY TO ADJUST HEATING LEVELS BY USING THE
MANUAL SHUTOFF VALVE.
TO TURN OFF GAS TO APPLIANCE
SHUTTING OFF UNIT:
1. Open access panel door, located in lower front center of base for access to control knobs.
2. Set thermostat (flame control) to lowest setting.
3. Turn control knob clockwise to the full “OFF” position.
4. Turn off all electrical power to the appliance if service is to be performed.
5. Close access panel door.
SHUTTING OFF BURNER ONLY (pilot stays lit)
1. Open access panel door, located in lower front center of base for access to control knobs.
2. Turn control knob clockwise to the “PILOT” position.
3. Close access panel door.
CAUTION: Hot while in operation. Do Not Touch. Keep children, clothing, furniture,
gasoline, and other liquids having flammable vapors away.
CAUTION: DO NOT TRY TO ADJUST HEATING LEVELS BY USING THE
MANUAL SHUTOFF VALVE.
WARNING: Improper installation, adjustment, alteration, service or maintenance can
cause property damage, personal injury, or loss of life. Refer to owner’s information manual
provided with this appliance. Installation and service must be performed by a qualified
installer, service agency, or the gas supplier.
IMPORTANT: Always operate the appliance at the completely “ON” or the completely
“OFF” positions. Never use the heater at a setting between these positions as this can result in
improper combustion and excessive carbon monoxide emissions.
Page 26
THERMOSTAT CONTROL OPERATION
The thermostat control used on this heater differs from standard thermostats. Standard
thermostats simply turn the burner on and off. The thermostat used on this heater senses the
room temperature and adjusts the amount of gas flow to the burner. This will increase
or decrease the flame height. At times, the room may exceed the set temperature, which will
cause the burner to shut off. When room temperature drops below the thermostat setting, the
burner will cycle itself on again. The flame control knob can be set to any level between 2
and 7.
NOTE: The thermostat sensing bulb measures the temperature of air near the heater cabinet.
This may not always agree with room temperature ( depending on housing construction,
installation location , room size, open air temperature,etc.). Frequent use of your heater will
allow you to determine your personal comfort levels.
MANUAL LIGHTING PROCEDURE
1. If the pilot cannot be ignited with the igniter on the control valve, it can be manually lit
with the use of a paper match and a lighter rod.
2. Place the match in the holder and light. With other hand, depress the control knob
counterclockwise to PILOT.
3. Use rod to light match and ignite pilot. The pilot is located behind the burner tub and in
front of the rear log. Fully open the manual shut-off valve.
4. Continue to hold the control knob for an additional (1) one minute to ensure the pilot
is completely on.
If the knob does not pop up when released, stop and immediately call your service tech-
nician or gas supplier.
If the pilot will not stay lit after several tries, turn the gas control knob to “OFF” and
call your service technician or gas supplier.
5. Turn control knob counterclockwise to “ON” position.
-Set thermostat (flame control) to desired setting. Turn clockwise for “LOW”
and counterclockwise for “HIGH”.
6. Close the access panel door.
7. Turn on all electric power to the appliance.
Page 27

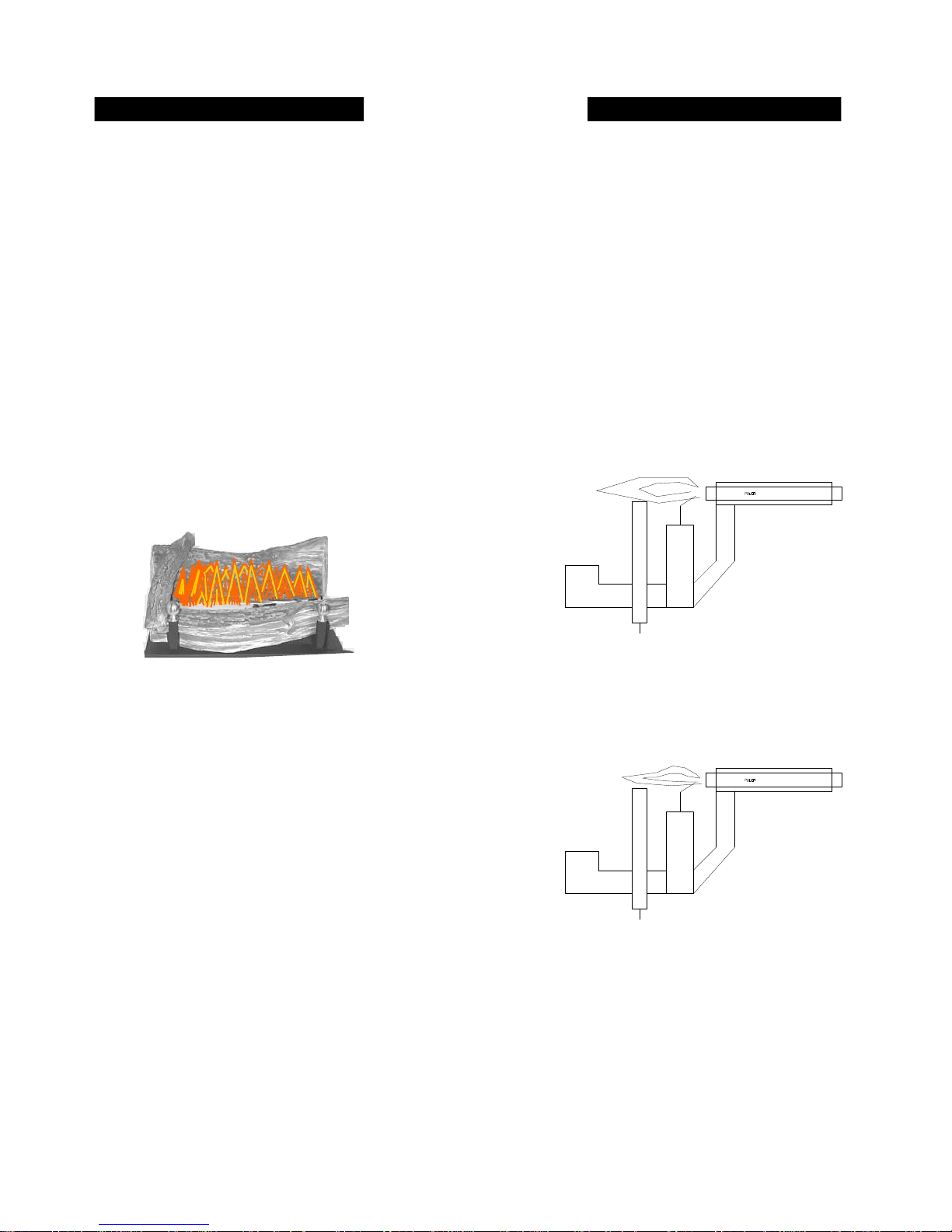

FLAME CHECK
A periodic check of the flames should be made. The pilot flame should always be present when the
unit is in operation.
FLAME: Propane (LP) should produce a flame that is 3" to 4" above rear log. This flame
should be yellow.
Natural gas should produce a flame that is 3" to 4" above rear log. This flame
should be mostly blue except for the top 1/2" which should be yellow.
NATURAL PILOT
BURNER
PROPANE PILOT
Figure 14
Page 28
WARNING: CHILDREN AND ADULTS SHOULD BE ALERTED TO THE HAZARDS
MOTOR
RHEOSTAT
THERMOSTAT
GREEN
JUMPER
WHITE
BLACK
BLACK
JUMPER
JUMPER
POWER CORD
OF HIGH SURFACE TEMPERATURES AND SHOULD STAY AWAY TO AVOID BURNS
OR CLOTHING IGNITION. YOUNG CHILDREN SHOULD BE CAREFULLY
SUPERVISED WHEN IN THE SAME ROOM AS GAS LOGS.
WARNING: CLOTHING OR OTHER FLAMMABLE MATERIAL SHOULD NOT BE
PLACED ON OR NEAR THESE GAS LOGS.

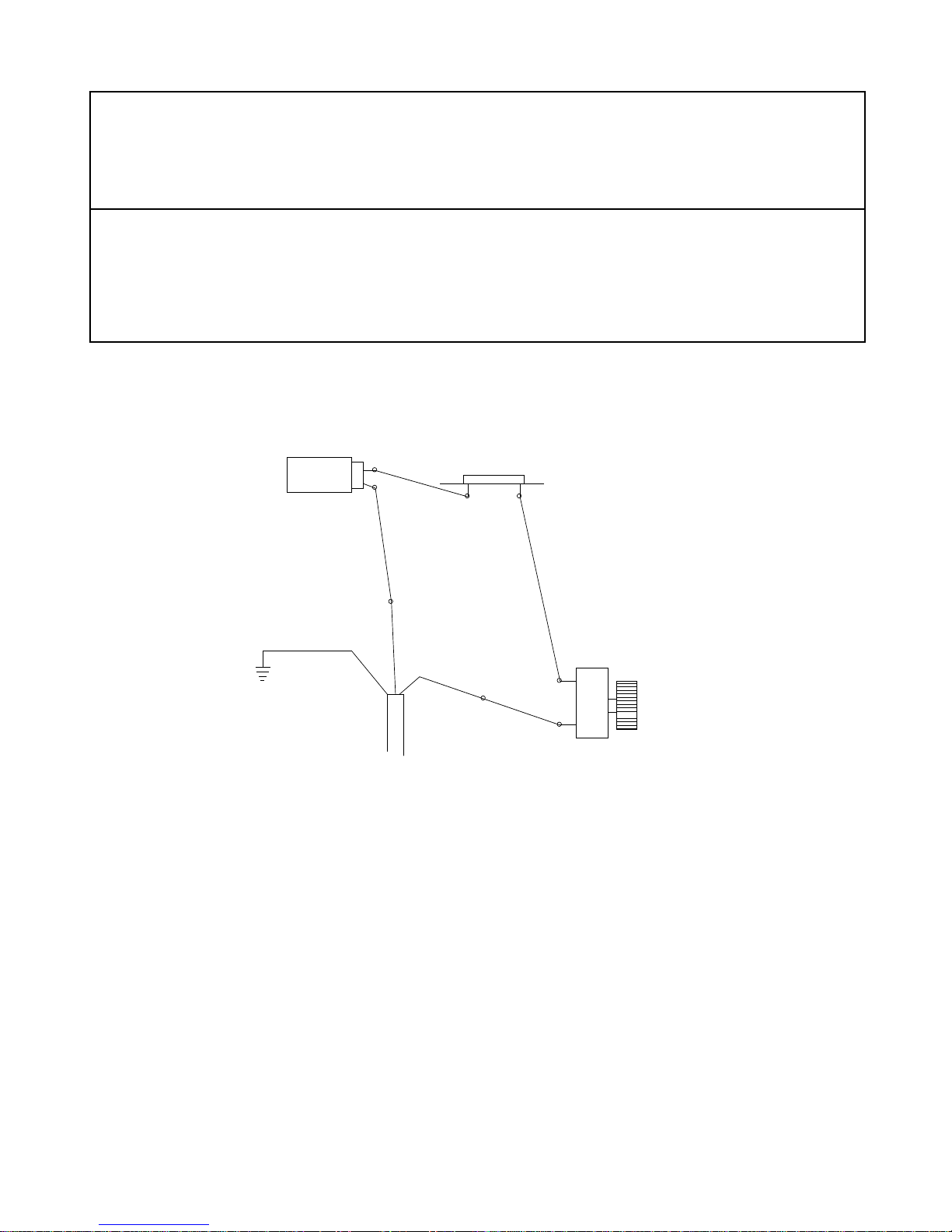

WIRING DIAGRAM
NOTE: If any of the original wire as supplied with the gas appliance must be replaced, it must be
replaced with type 16ga., 105o C. rating wire or its equivalent.
NOTE: The blower assembly is standard for this appliance, and is installed by the
manufacture.Installation and repair should be done by a qualified service person. This heater
CAUTION: Label all wires prior to disconnection when servicing controls. Wiring errors can cause
improper and dangerous operation.
Verify proper operation after servicing.
should be inspected before use and at least annually by a qualified service technician. More
frequent cleaning may be required due to excessive lint from carpeting, bedding material,
etc. It is imperative that control compartments and circulating air passageways of the heater
be kept clean.
Figure 15
Page 29
WARNING: ELECTRICAL GROUNDING INSTRUCTION: THIS HEATER IS
EQUIPPED WITH A THREE-PRONG PLUG FOR YOUR PROTECTION AGAINST
SHOCK HAZARD AND SHOULD BE PLUGGED DIRECTLY INTO A PROPERLY
GROUNDED THREE-PRONG RECEPTACLE.
NOTE: #PESBRO84 Blower Model FP-327-ZC.
Rating: 120 volts/60HZ/0.54 Amps.
NOTE: For convenience, allow licensed electrician to install properly grounded
3-plug receptacle near unit.
Page 30
IMPORTANT SAFEGUARDS
Although your gas logs are very realistic in appearance, it is not a real burning fireplace and must not
be used for burning rejected material.
To avoid irreparable damage to the heater or personal injury, matches, paper, garbage, or any other
material must not be placed or thrown on top of the logs or into the flames.
To avoid personal injury, do not touch hot surfaces when the heater is operating.
Close supervision is necessary when the heater is being operated near children.
WARNING:
THIS HEATER IS INTENDED FOR USE AS A GAS HEATER FIREPLACE AS
DESCRIBED IN THESE INSTRUCTIONS. IT SHOULD NOT BE USED FOR
ANY OTHER PURPOSE.
CLEANING
CAUTION: BEFORE CLEANING OR MOVING THESE LOGS OR
OTHER PARTS OF THE HEATER, BE SURE TO READ THE ABOVE
SECTIONS ON IMPORTANT SAFEGUARDS.
All cleaning should be carried out when the heater is cold. Limited cleaning is required with normal
use. Dusting the front of the base, the top of the piezo cover, or the control knob panel may be
required occasionally. Do not use cleaning fluids to clean the logs or any other part of the heater.
If the flames show unusual shapes or behavior, or if burner fails to ignite properly, the burner holes
may require cleaning. If this occurs, contact your nearest dealer to service the heater.
The heater can be cleaned by removing the top, front, and rear logs. Handle each log gently, as not to
damage the logs. Lift each log by holding it carefully at each end. Use a vacuum cleaner to remove
dust and loose particles from the base, logs and around the burner and ODS/Pilot.
Page 31
TROUBLE SHOOTING
WARNING
TURN OFF, UNPLUG HEATER AND LET COOL BEFORE SERVICING.
ONLY A QUALIFIED SERVICE PERSON SHOULD SERVICE AND REPAIR
HEATER.
CAUTION
NEVER USE A WIRE, NEEDLE, OR SIMILAR OBJECT TO CLEAN ODS/
PILOT. THIS CAN DAMAGE ODS/PILOT.
OBSERVED
PROBLEM
Igniter button is pressed, no
spark at ODS/Pilot
OBSERVED
PROBLEM
Igniter button is pressed
Spark at ODS/Pilot
No Ignition
POSSIBLE
CAUSE
1. Igniter electrode positioned
incorrectly
2. Igniter electrode broken
3. Igniter electrode not
connected to igniter cable
4. Igniter cable pinched or wet
5. Piezo igniter nut is loose
6. Broken igniter cable
7. Bad piezo igniter
POSSIBLE
CAUSE
1. Gas supply turned off or
manual shutoff valve is
closed
2. Control knob not in “PILOT”
position
3. Control knob not pressed in
while in “PILOT” position
SOLUTION
1. Replace igniter
2. Replace igniter
3. Reconnect igniter cable
4. Free igniter cable if pinched
by any metal or tubing. Keep
igniter cable dry.
5. Tighten nut holding piezo
igniter to heater cabinet. Nut
is located inside heater
cabinet at top.
6. Replace igniter cable
7. Replace piezo igniter
SOLUTION
1. Turn on gas supply or open
manual shutoff valve
2. Turn control knob to “PILOT”
position
3. Press in control knob while in
“PILOT” position.
Page 32
OBSERVED
PROBLEM
ODS/PILOT lights but flame
goes out when control knob is
released
4. Air in gas lines when
installed
5. Depleted gas supply
6. ODS/Pilot is clogged
7. Gas regulator setting is not
correct
POSSIBLE
PROBLEM
1. Control knob is not fully
pressed in
2. Control knob not pressed in
long enough
3. Safety interlock system has
been triggered (if equipped)
4. Manual shutoff valve not
fully open
5. Thermo-couple connection
loose at control valve.
6. Pilot flame not touching
thermo-couple, which
allows thermo-couple to
cool, causing pilot flame to
go out. This problem can be
caused by one or both of the
following:
A) Low gas pressure
B) Dirty or partially
clogged ODS/Pilot
7. Control valve damaged
4. Continue to hold down control
knob. Repeat igniting
operation until air is removed.
5. Contact local propane gas
company
6. Clean ODS/Pilot or replace
ODS/Pilot assembly
7. Replace gas regulator
SOLUTION
1. Press control knob completely
2. After ODS/Pilot lights keep
control knob pressed 30
seconds
3. Wait 1 minute for safety
interlock system to reset.
4. Fully open manual shutoff
valve.
5. Hand tighten until snug, then
tighten 1/4 turn
6. A) Contact local propane gas
company
B) Clean ODS/Pilot (See
Cleaning and Maintenance),
or replace ODS/Pilot
assembly
7. Replace valve control
Page 33
WARNING
IF YOU SMELL GAS:
* SHUT OFF GAS SUPPLY
* DO NOT TRY TO LIGHT APPLIANCE
* DO NOT TOUCH ANY ELECTRICAL SWITCH; DO NOT USE ANY
PHONE IN YOUR BUILDING
* IMMEDIATELY CALL YOUR GAS SUPPLIER FROM A NEIGHBOR’S
PHONE. FOLLOW THE GAS SUPPLIER’S INSTRUCTIONS.
* IF YOU CANNOT REACH YOUR GAS SUPPLIER, CALL THE FIRE
DEPARTMENT.
IMPORTANT: Operating heater where impurities in the air exist may create odors. Cleaning
supplies, paint, paint remover, cigarette smoke, cements and glues, new carpet or textiles, etc. create
fumes. These fumes may mix with combustion air and create odor.
OBSERVED
PROBLEM
Heater produces a
clinking/ticking noise just
after burner is lit or shut
off
Heater produces unwanted
odors
Heater shuts off in use
(ODS operates)
Gas odor even when
control knob is in “OFF”
position
Gas odor during combustion
POSSIBLE
CAUSE
1. Metal expands while heating
or contracts while cooling.
1. Heater burning vapors from
paint, hairspray, glues, etc.
(See Important above)
2. Low fuel supply
3. Gas leak (See WARNING
above)
1. Not enough fresh air is
available
2. Low line pressure
3. ODS/Pilot is partially clogged
1. Gas leak (See WARNING,
above).
2. Control valve defect
1. Foreign matter between
control valve and burner
2. Gas leak (See WARNING
above)
SOLUTION
1. This is common with most
heaters. If noise is excessive,
contact a qualified service
person.
1. Ventilate room. Stop using odor
causing products while heater is
running.
2. Refill supply tank
3. Locate and control all leaks. See
Checking Gas Connections.
1 . Open window/door for
ventilation
2. Contact local propane company
3. Clean ODS/Pilot
1. Locate and correct all leaks (see
Checking Gas Connections)
2. Replace control valve
1. Remove foreign matter from gas
tubing
2. Locate and correct all leaks (see
Checking Gas Connections)
Page 34
OBSERVED
PROBLEM
Burner does not light after ODS/
Pilot is lit
Delayed ignition of burner
Burner backfiring during
combustion
Slight smoke or odor during
initial operation
Heater produces a whistling
noise when burner is lit
POSSIBLE
CAUSE
1. Burner orifice is clogged
2. Inlet gas pressure is too low
1. Manifold pressure is too low
2. Burner orifice is clogged
1. Burner orifice is clogged or
damaged
2. Burner damaged
3. Gas regulator defective
1. Residues from manufacturing
process
1. Turning control knob to “HI”
position when burner is cold
(if equipped with this type of
valve)
2. Air in gas line
3. Air passageways on heater
blocked
4. Dirty or partially clogged
burner orifice
SOLUTION
1. Clean burner (see Cleaning
and Maintenance) or replace
burner orifice
2. Contact local propane gas
company
1. Contact local propane gas
company
2. Clean burner (see Cleaning
and Maintenance) or replace
burner orifice
1. Clean burner (see Cleaning
and Maintenance) or replace
burner orifice
2. Replace burner
3. Replace gas regulator
1. Problem will stop after a few
hours of operation
1. Turn control knob to “LOW”
position and allow to warm
2. Operate burner until air is
removed from line. Call
local propane company to
check gas line.
3. Observe minimum
installation clearances
4. Clean burner or replace
orifice
Page 35
SERVICING
Repair and replacement work should only be performed by a qualified service technician.
Always shut off the gas supply and make sure heater is cool before beginning any service operation.
Check for gas leaks after servicing.
REPAIR PARTS
A parts list with exploded view follows. Always include correct name, part number, and model
number of the heater when ordering service parts. Please contact your local dealer or distributor when
ordering. If one is not available, you may contact:
New Buck Corporation
8000 Highway 226 South
Spruce Pine, NC 28777
Phone: 828-765-6144
Page 36
PARTS LIST
Maxitrol Valve
KEY # PART # DESCRIPTION QUANTITY
1 GV 30B5A2L7B Maxitrol LP Valve 1
1A GV 30B5A2N7B Maxitrol Nat. Valve 1
2 PE 4966 3/8" - 3/8" Elbow 1
3 PS 112736 Maxitrol Regulator Holder 1
4 PS 112716 M1127 Inner Bottom 1
5 PO TBURN Single Burner 1
6 PE TPT100/433 Thermo-couple/ (Copreci) 1
7 PE 2150053 Copreci ODS Nat. Pilot 1
7A PE 2150054 Copreci ODS LP Pilot 1
8 PE RV12LF30 Maxitrol Regulator-Nat. 1
8A PE RV12LF90 Maxitrol Regulator-LP 1
9 RF 14ALMTUB 1/4" Aluminum Tubing 1
10 PH 1166 3/8" Street Elbow 1
11 PE 6482 1/4" -1/8" Compression Adapter 2
12 PO Orifice Orifice Nat. or LP 1
13 PS 112726 M1127 Burner Supports 2
14 PO 38634ALMTUB 3/8" x 6 - 3/4" Burner Tube 1
15 PO 54ORFHLD Angled Orifice Holder 1
Page 37

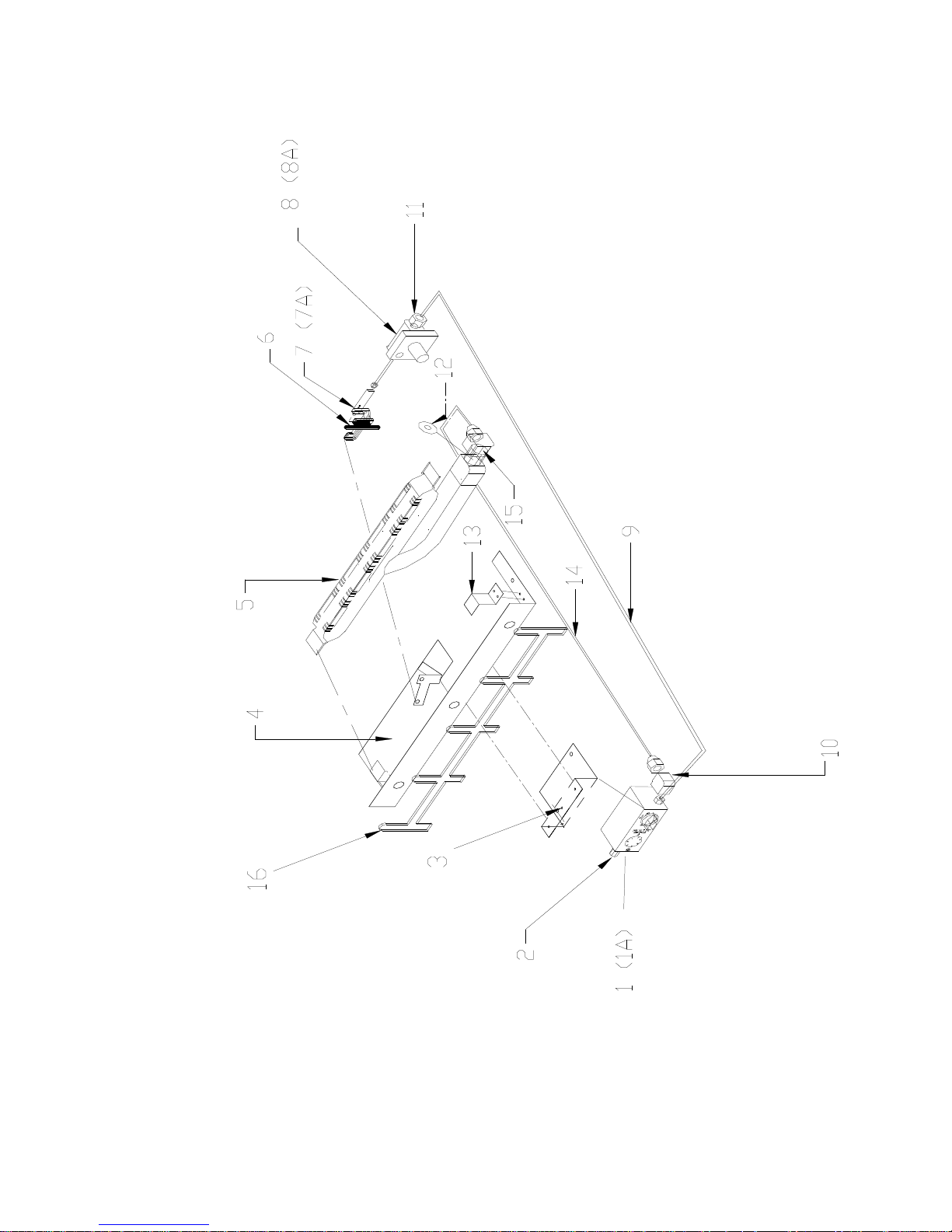

BLOWN UP VIEW OF BURNER ASSEMBLY
Page 38
PARTS LIST
ITT Valve
KEY # PART # DESCRIPTION QUANTITY
1 PE 124461 Piezo Igniter w/Nut 1
2 PE 2150053 Copreci ODS Nat. Pilot 1
2A PE 2150054 Copreci ODS LP Pilot 1
3 PE 65JUMPER 6" Jumper Wires #16 AWG Solid 2
4 PE B67SA233 ITT LP Valve 1
4A PE B67RA234 ITT NAT. Valve 1
5 PE G251F24S ITT Generator (ITT Valve) 1
6 PE RA911RB Carling Switch (On/Off) 1
7 PE RV12LF30 Maxitrol Regulator-Nat. 1
7A PE RV12LF90 Maxitrol Regulator-LP 1
8 PE 124461 14” Igniter Wire 1
9 PE 4966 3/8" - 3/8" Elbow 1
10 PH 63212RPP #6-32X 1/2" Round Head Screw 4
11 PH 632HNP #6-32 Hex Nut 2
12 PE 6482 1/4" -1/8" Compression Adapter 2
13 PO 112772 M1127 Switch Holder 1
14 PO 38634ALMTUB 3/8" x 6 - 3/4" Burner Tube 1
15 PO 54ORFHLD Angled Orifice Holder 1
16 PO Orifice Orifice Nat. or LP 1
17 PO TBURN Single Burner 1
18 PS 112716 M1127 Inner Bottom 1
19 PS 112726 M1127 Burner Supports 2
20 PS 112730 M1127 ITT Regulator Holder 1
21 RF 14ALMTUB 1/4" Aluminum Tubing 1
Page 39

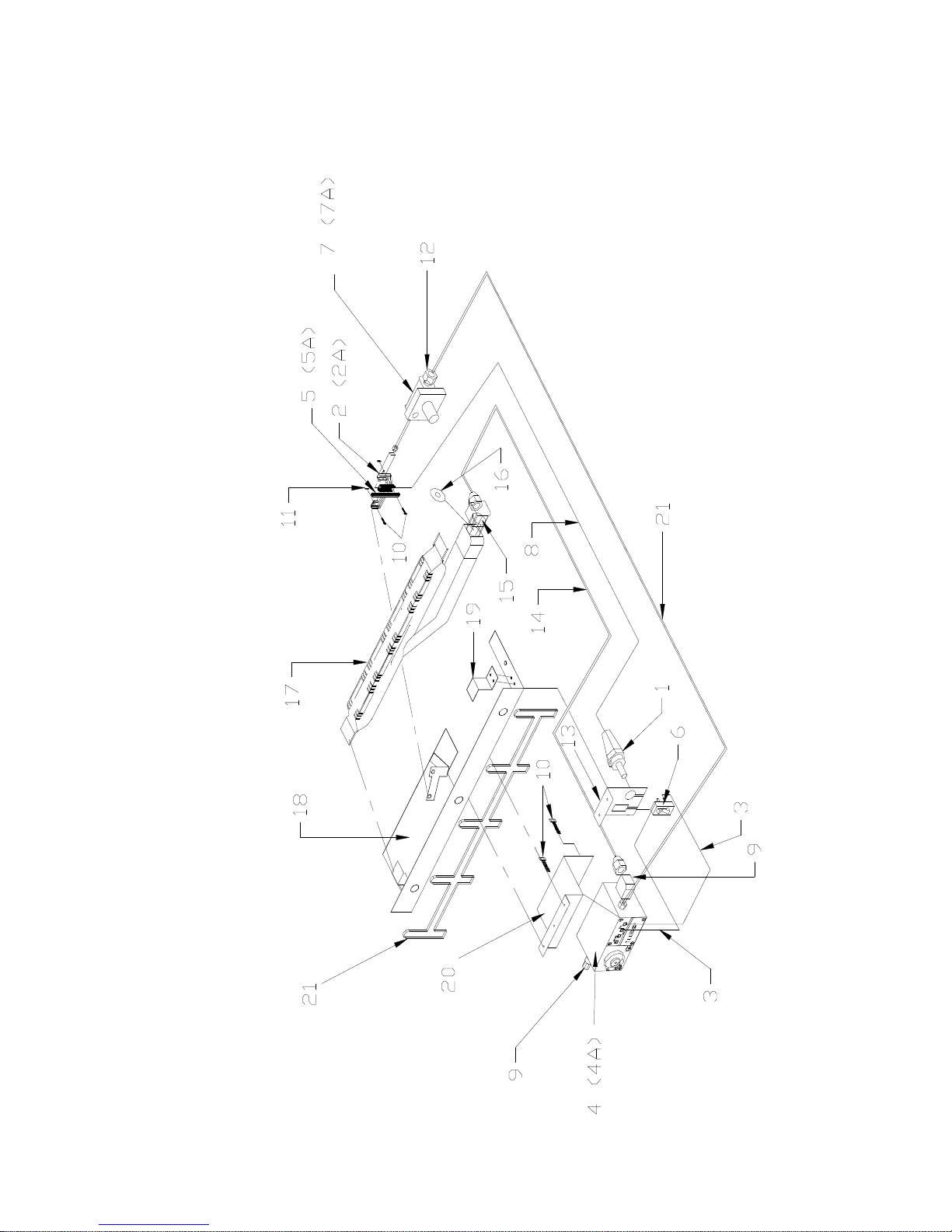

BLOWN UP VIEW OF BURNER ASSEMBLY
Page 40
NEW BUCK CORPORATION
We reserve the right to amend these specifications at any time without notice. The only warranty
applicable is our standard written warranty. We offer no other warranty, expressed or implied.
LIMITED WARRANTY
MODEL FP-327-ZC
New Buck warrants this product to be free from defects in materials and components for two (2) years
from the date of first purchase, provided that the product has been properly installed, operated, and
maintained in accordance with all applicable instructions. To make a claim under this warranty the Bill
of Sale or canceled check must be presented.
This warranty is extended only to the original retail purchaser and covers the cost of parts required to
restore the heater to proper condition. Warranty parts MUST be obtained through an authorized Buck
Stove dealer and/or New Buck, who will provide original factory replacement parts. Failure to use
original factory replacement parts voids this warranty. The heater must be installed by a qualified
installer in accordance with all local codes and instructions furnished with the unit.
Warranty does not apply to parts that are not in original condition, normal wear and tear, or parts that
fail or become damaged as a result of misuse, accidents, lack of proper maintenance or defects caused
by improper installation.
WARRANTY DOES NOT COVER:
- Removal and re-installation cost
- Labor costs for replacements or repairs
- Transportation
- Cost of service call to diagnose trouble
- Painted surfaces
- Damage or defect caused by improper installation, accident, misuse, abuse, or alteration
TO THE FULL EXTENT ALLOWED BY THE LAW OF THE JURISDICTION THAT GOVERNS
THE SALE OF THE PRODUCT, THIS EXPRESS WARRANTY EXCLUDES ANY AND ALL
OTHER EXPRESSED WARRANTIES AND LIMITS THE DURATION OF ANY AND ALL
WARRANTIES, INCLUDING WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A
PARTICULAR PURPOSE TO ONE (1) YEAR FROM THE DATE OF FIRST PURCHASE. NEW
BUCK LIABILITY IS HEREBY LIMITED TO THE PURCHASE PRICE OF THE PRODUCT AND
NEW BUCK SHALL NOT BE LIABLE FOR ANY OTHER DAMAGES WHATSOEVER
INCLUDING INCIDENTAL OR CONSEQUENTIAL DAMAGES.
Some states do not allow a limitation on how long an implied warranty lasts or an exclusion or
limitation of incidental or consequential damages, so the above limitation on implied warranties, or
exclusion on damages may not apply to you.
This warranty gives you specific legal rights. Other rights may vary from state to state.
Page 41
OWNER REGISTRATION
The attached owner registration card must be completed in its entirety and mailed within 30
days from date of installation in order for warranty coverage to begin to:
New Buck Corporation
P.O. Box 69
Spruce Pine, NC 28777
Email: info@buckstove.com
PLEASE NOTE: Owner Registration Card must contain Authorized Buck Stove Dealer
Number and Certified Installer’s number (if applicable) for warranty coverage to begin.
NAME: ____________________________________________________
ADDRESS: _________________________________________________
CITY: _____________________________________________________
STATE: ______________________ ZIP: ________________________
CUSTOMER EMAIL: ________________________________________
MODEL #:
FP-327ZC
SERIAL #: ___________________________
DATE OF INSTALLATION: ___________________________________
INSTALLER’S NAME: _______________________________________
DEALER’S NAME: __________________________________________
DEALER’S ADDRESS: _______________________________________
Loading...
