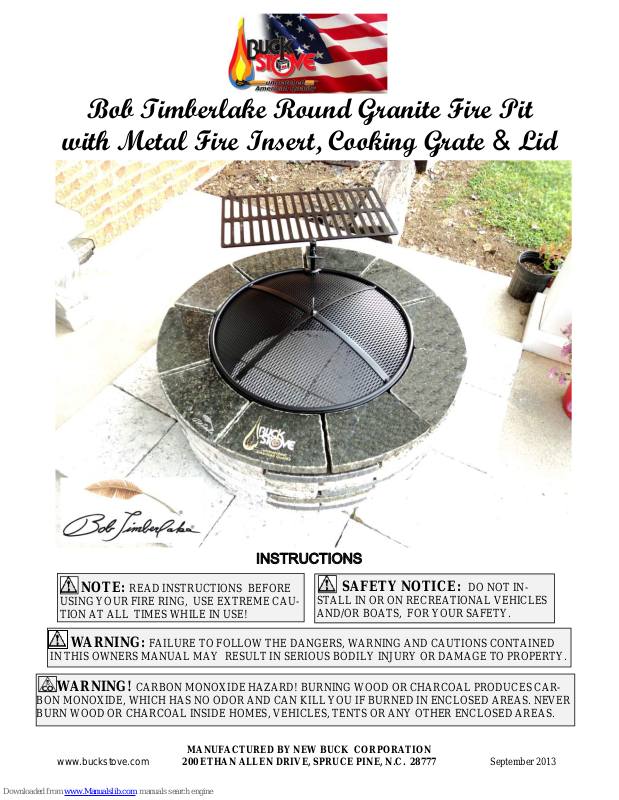

Bob Timberlake Round Granite Fire Pit
with Metal Fire Insert, Cooking Grate & Lid
NOTE: READ INSTRUCTIONS BEFORE
USING YOUR FIRE RING, USE EXTREME CAUTION AT ALL TIMES WHILE IN USE!
WARNING: FAILURE TO FOLLOW THE DANGERS, WARNING AND CAUTIONS CONTAINED
IN THIS OWNERS MANUAL MAY RESULT IN SERIOUS BODILY INJURY OR DAMAGE TO PROPERTY.
WARNING! CARBON MONOXIDE HAZARD! BURNING WOOD OR CHARCOAL PRODUCES CAR-
BON MONOXIDE, WHICH HAS NO ODOR AND CAN KILL YOU IF BURNED IN ENCLOSED AREAS. NEVER
BURN WOOD OR CHARCOAL INSIDE HOMES, VEHICLES, TENTS OR ANY OTHER ENCLOSED AREAS.
MANUFACTURED BY NEW BUCK CORPORATION
www.buckstove.com
200 ETHAN ALLEN DRIVE, SPRUCE PINE, N.C. 28777
INSTRUCTIONS
SAFETY NOTICE:
STALL IN OR ON RECREATIONAL VEHICLES
AND/OR BOATS, FOR YOUR SAFETY.
DO NOT IN-
September 2013
Page 2
1.
NEVER start a fire with
gasoline, kerosene, diesel
fuel or any other petroleumbased accelerants!
8.
DO NOT: Use your fire pit
under, on and around any
overhead construction or low
hanging branches, dry grass,
brush piles, wood piles
2.
3.
4.
DO NOT: Burn on wood
surface or any surface which
is combustible or flammable!
Check with your local
municipality or fire district
before using an outdoor
wood burning fire pit!
DO NOT: Use indoors! The
fire pit is designed for
outdoor use only! If used
indoors, toxic fumes will
accumulate and cause serious
bodily injury or death!
Your fire pit is hot while
burning! Use extreme
caution with children and
pets when fire pit is burning!
awnings, wood furniture,
propane, flammable gases or
vapors, paper, compressed
paper, plastic and plexiglass
9.
or anything combustible.
DO NOT: Leave your fire
pit unattended! Keep a fire
extinguisher on hand when
10.
you have a fire going.
Position your fire pit so that
it is shielded from strong
11.
wind and gusts!
Always start with small
fires; this will help you
determine how the fire will
behave in your fire pit .
5.
When using the fire pit,
exercise the same caution
that you would with a
6.
campfire!
DO NOT: Operate your fire
pit unless it is on a level
7.
surface!
DO NOT: Use your fire pit
in a garage, building
breezeway or any other
enclosed area!
12.
12.
Use caution when
removing ashes and coals
from fire pit. Dispose ashes
in tight sealed metal
containers. Use dirt or sand
to smooth the ashes out.
A minimum of 4'(four foot)
must be maintained from any
combustible materials while
in operation. Follow local
codes and specific safety
instructions for your area.
Page 3
Installing Fire Pit
When selecting a location for your fire pit it is important to consider the required clearances to all
combustibles.
Locate the fire pit, a minimum of 4'(four
combustible materials with NO COMBUSTIBLES OVER HEAD. Follow local codes and specific
safety instruction for your area.
Installation:
1. Installing Granite pad for fire pit:
Note: Place the Granite fire pit pad in an area that meets the required clearances to all combustibles.
Place the fire pit Granite on a noncombustible surface such as dirt with no grass or combustible
materials in the area of burning surface. Make sure the area for the fire pit is level and flat.
Follow the manufactures Granite installation instructions for installation of Granite pad for the fire
pit. After removing the Timberlake fire pit ring from the packing, place fire pit ring in center location
on Granite pad and install Granite around fire pit ring, per manufactures' Granite installation
instructions.

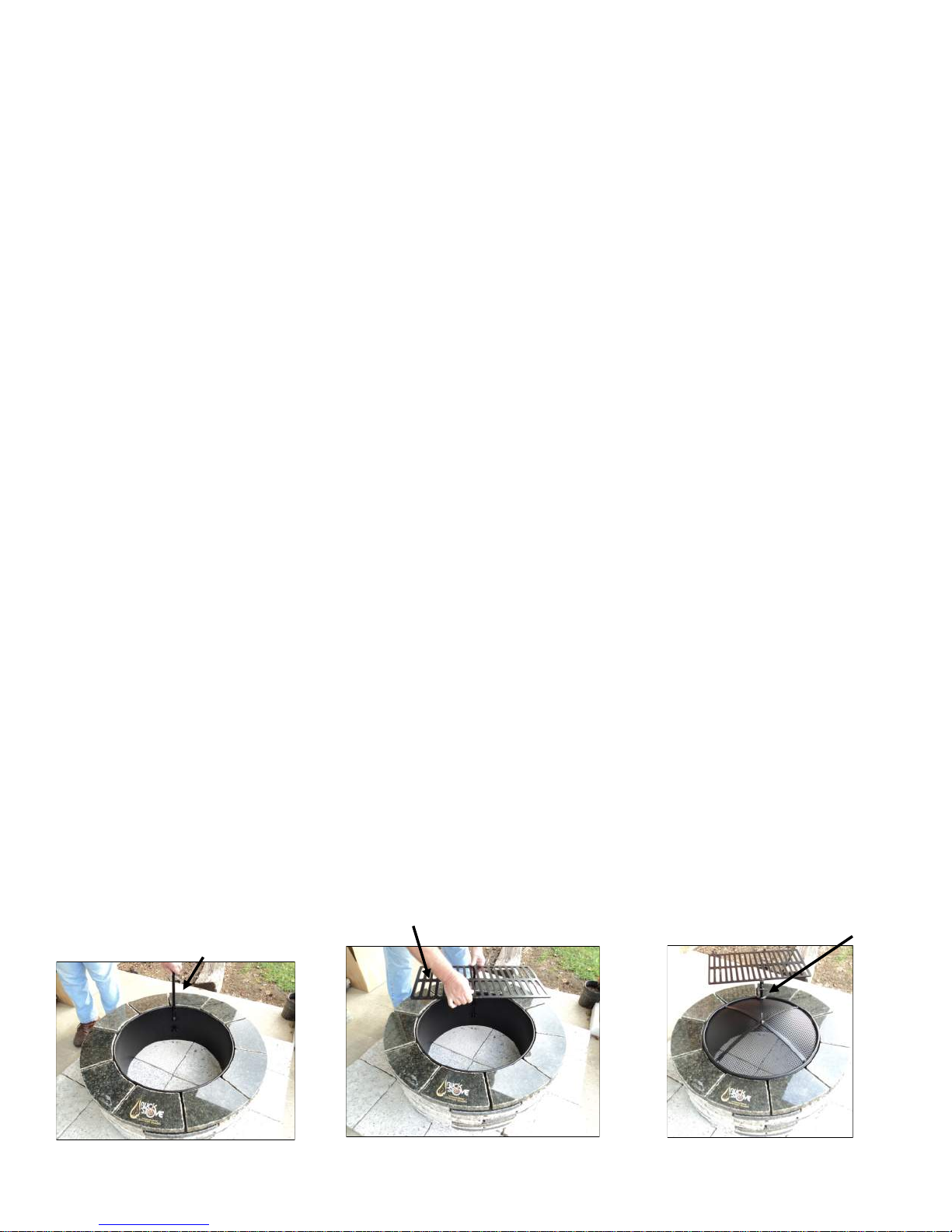

2. Installing Cooking Grate Support Rod:
Install Cooking Grate support rod into the rod holder in the side of fire ring.
3. Installing Cooking Grate:
Place the Cooking Grate onto the Cooking Grate Support Rod and use the T-Locking Bolt to adjust
the height of the Cooking Grate.
4. Installing Fire Pit Lid:
Place the Fire Pit Lid onto the fire pit with the notch in the lid around the Grate Support Rod.
Cooking Grate:
The Fire Ring has an adjustable Cooking Grate. Adjust the Cooking Grate by tightening or loosening
the T-LOCKING BOLT on the Cooking Grate. See Picture Below. This is also used for removing the
Cooking Grate for cleaning and storage. NOTE: When cooking on the Cooking Grate, always use
tinfoil, pots or pans and Cooking Grate.
NOTE:
The manufacturer recommends that for maximum performance burn natural seasoned
hardwood. Lay several pieces of dry kindling on top of newspaper in the Fire Pit. Place several
pieces of natural seasoned hardwood or hickory wood on kindling. Light newspaper. Don't leave fire
unattended at this point. NOTE: The cooking Grate is HOT at this time, it should not be touched
without adequate protection. After embers and a coal bed have been established, load Fire Pit with
seasoned natural hardwood as desired for cooking. Your Bob Timberlake Fire Pit with cooking Grate
is ready for use..
COOKING GRATE
COOKING GRATE
SUPPORT ROD
foot) must be maintained between your fire pit and any
T - LOCKING BOLT
NOTE: Always keep safety in mind when disposing of hot ashes. Pour water on them
until out. Dig hole and bury ashes; transport ashes using metal container with lid.
