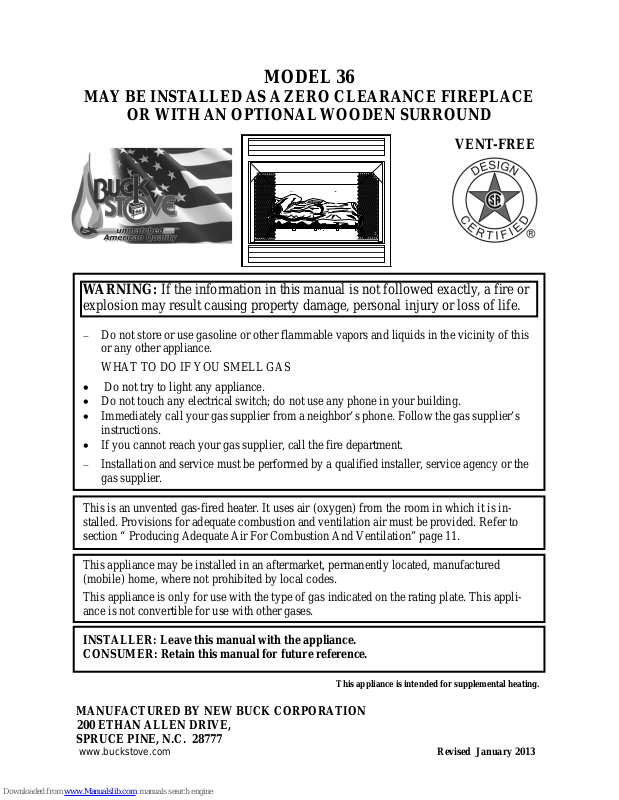

BuckMaster 36 User Manual

MODEL 36

MAY BE INSTALLED AS A ZERO CLEARANCE FIREPLACE

OR WITH AN OPTIONAL WOODEN SURROUND

VENT-FREE

WARNING: If the information in this manual is not followed exactly, a fire or

explosion may result causing property damage, personal injury or loss of life.

− Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this

or any other appliance.

WHAT TO DO IF YOU SMELL GAS

• Do not try to light any appliance.

• Do not touch any electrical switch; do not use any phone in your building.

• Immediately call your gas supplier from a neighbor’s phone. Follow the gas supplier’s

instructions.

• If you cannot reach your gas supplier, call the fire department.

− Installation and service must be performed by a qualified installer, service agency or the

gas supplier.

This is an unvented gas-fired heater. It uses air (oxygen) from the room in which it is in­stalled. Provisions for adequate combustion and ventilation air must be provided. Refer to
section “ Producing Adequate Air For Combustion And Ventilation” page 11.

This appliance may be installed in an aftermarket, permanently located, manufactured
(mobile) home, where not prohibited by local codes.

This appliance is only for use with the type of gas indicated on the rating plate. This appli­ance is not convertible for use with other gases.

INSTALLER: Leave this manual with the appliance.
CONSUMER: Retain this manual for future reference.

This appliance is intended for supplemental heating.
MANUFACTURED BY NEW BUCK CORPORATION

200 ETHAN ALLEN DRIVE,

SPRUCE PINE, N.C. 28777

www.buckstove.com Revised January 2013

TABLE OF CONTENTS

Safety Information Warnings ........................................................................................................ 1

Installation (ZC)(WS) ................................................................................................................... 4

Fireplace and Framing Dimensions (ZC) ..................................................................................... 5

Fireplace Clearances (ZC) ............................................................................................................ 6

Finishing Your Fireplace (ZC) ...................................................................................................... 7

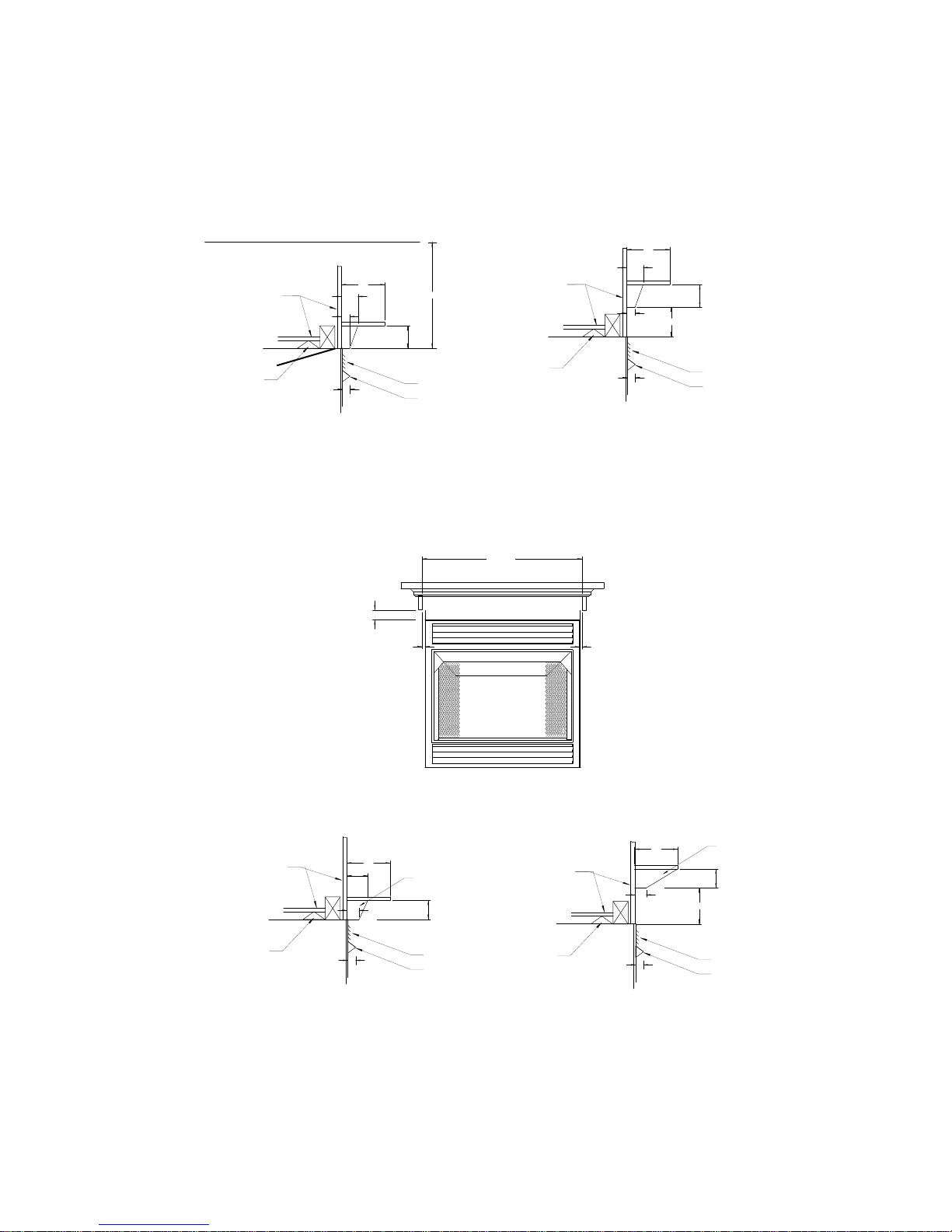

Mantel Profiles For Zero Clearance (ZC) ..................................................................................... 8

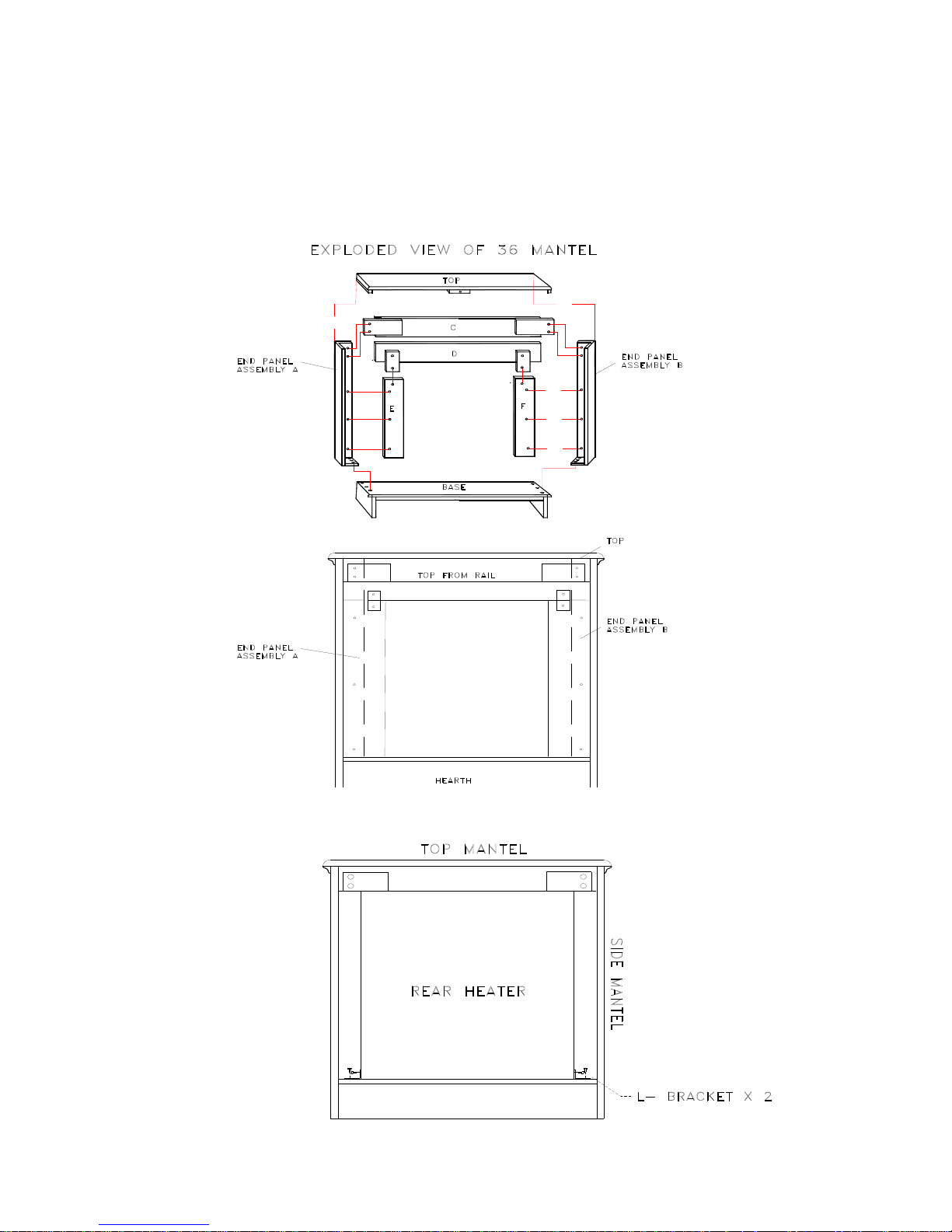

Installation of Wooden Surround (WS) ........................................................................................ 9

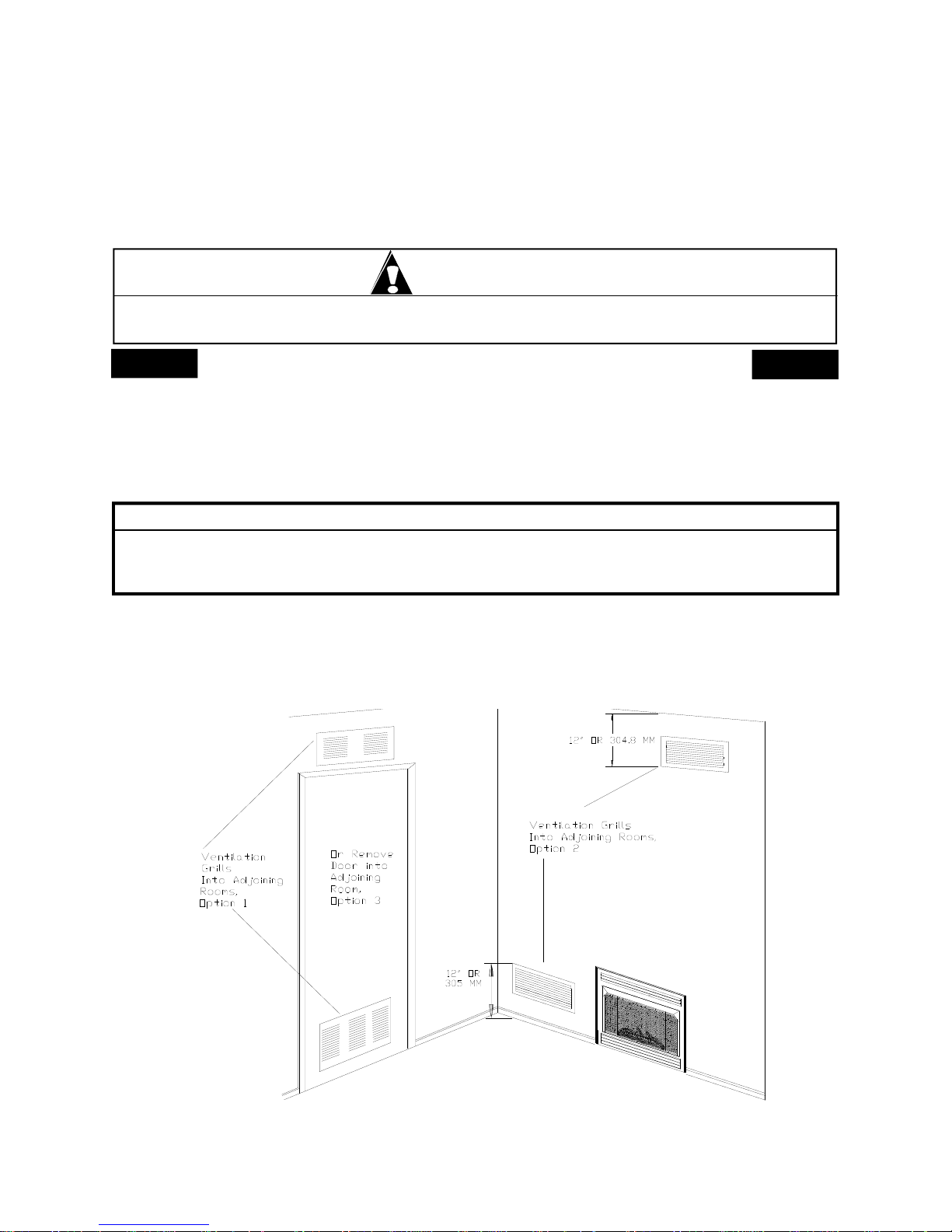

Producing Adequate Ventilation ................................................................................................. 11

Air for combustion Ventilation From Inside Building ............................................................... 13

Air for combustion Ventilation From Outdoors ......................................................................... 14

Gas Connection ........................................................................................................................... 15

Gas Pressure Check ..................................................................................................................... 16

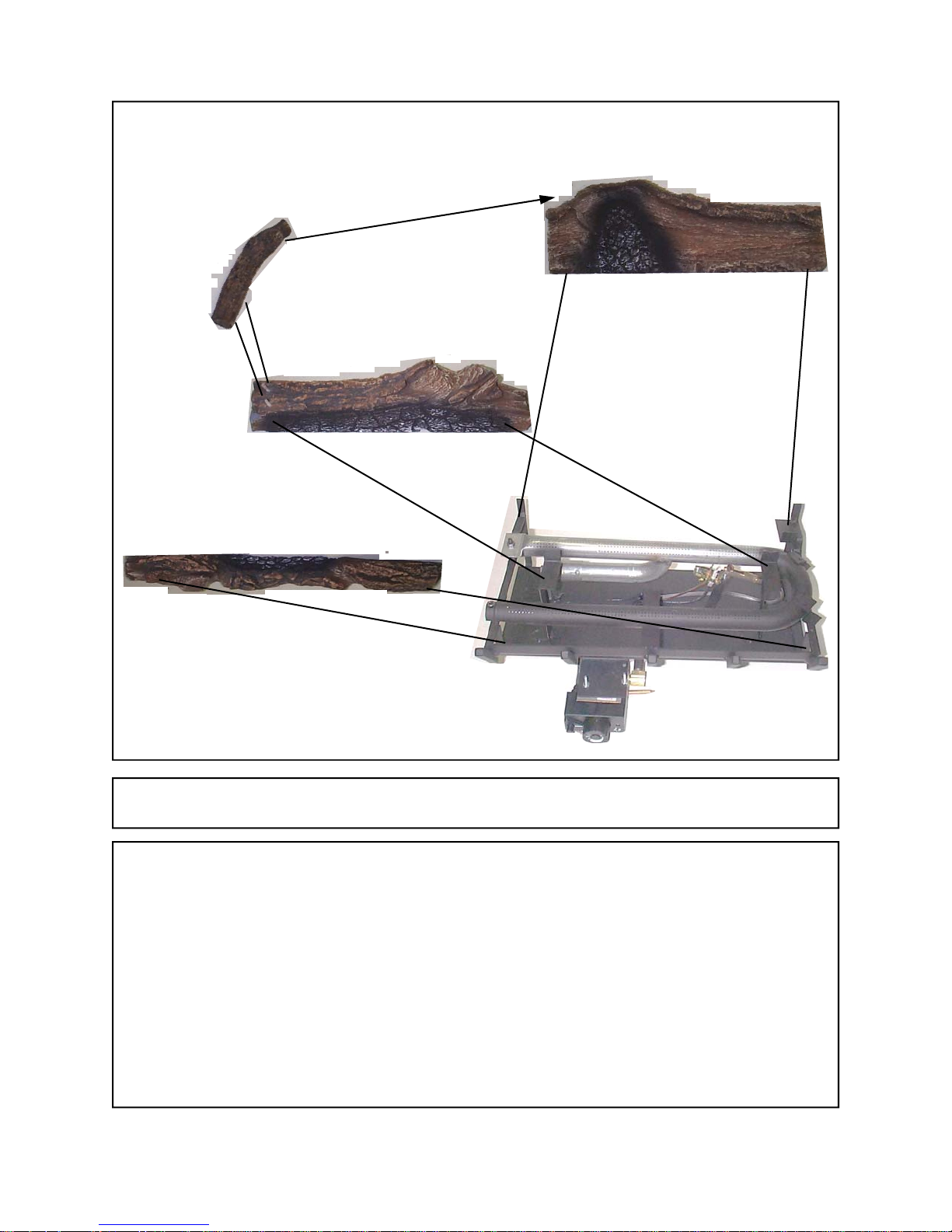

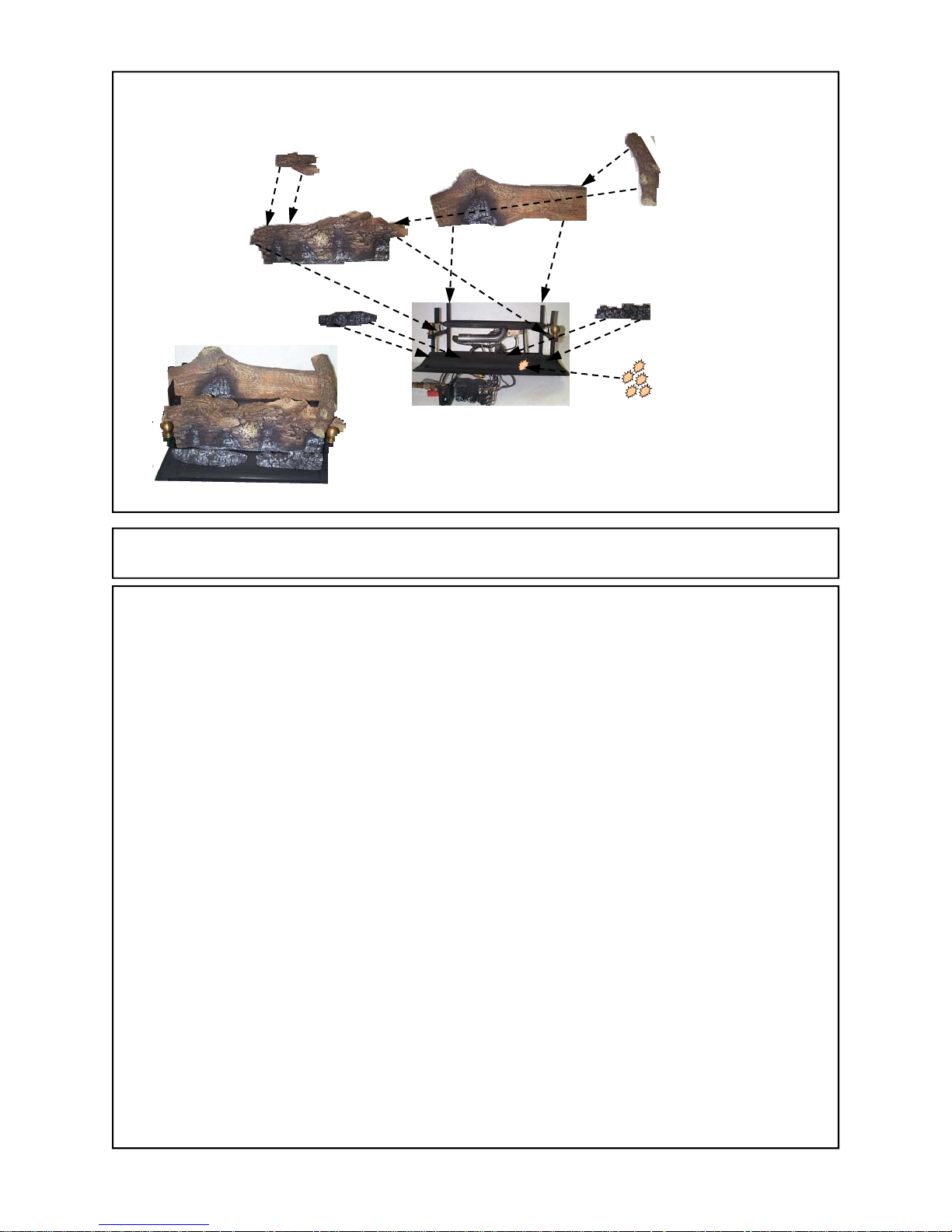

Placement of Logs .................................................................................................................. 17-18

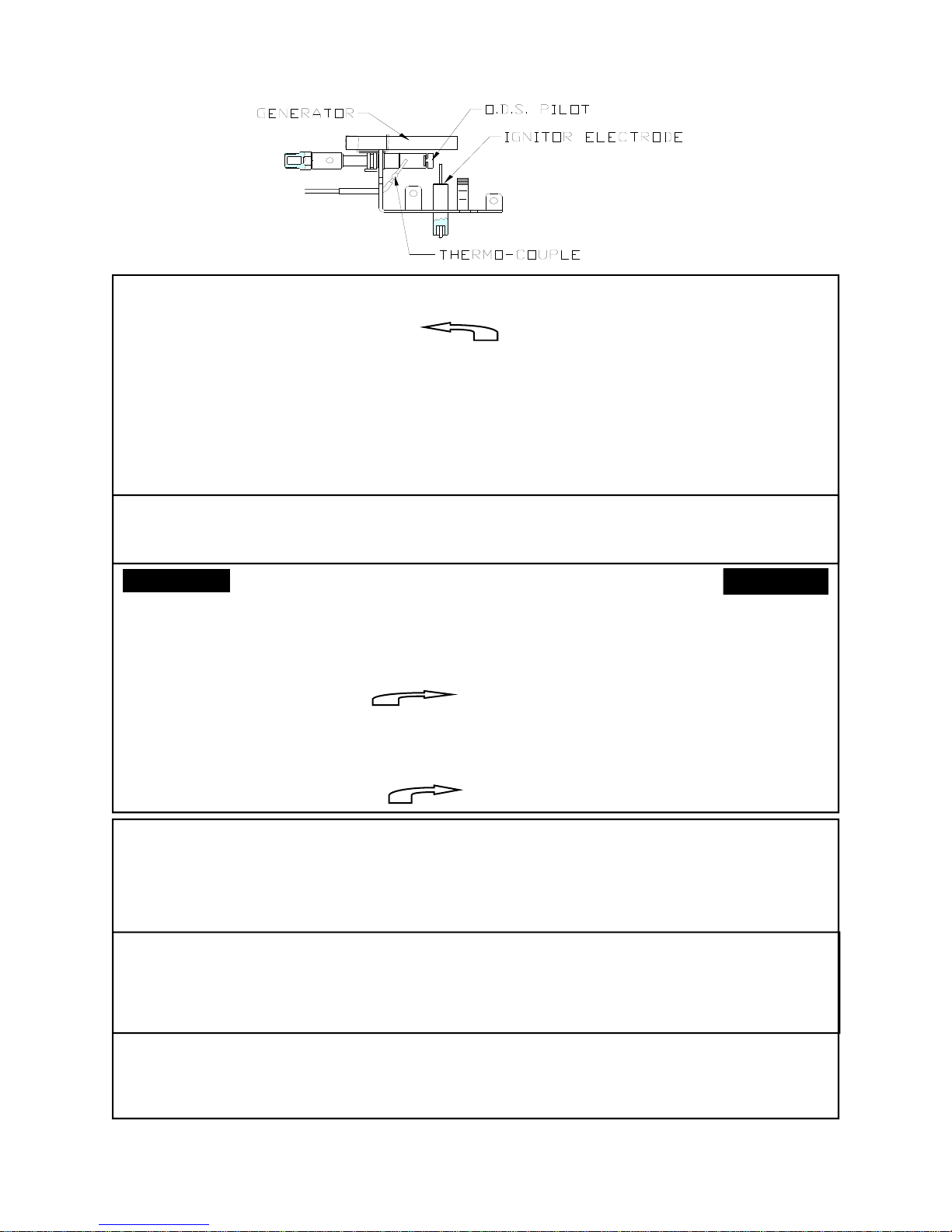

Lighting Instructions - ITT Millivolt Valve ................................................................................ 19

Lighting Instructions - SIT Modulating or SIT Manual Valve ................................................... 23

Lighting Instructions - SIT Millivolt Valve ................................................................................ 27

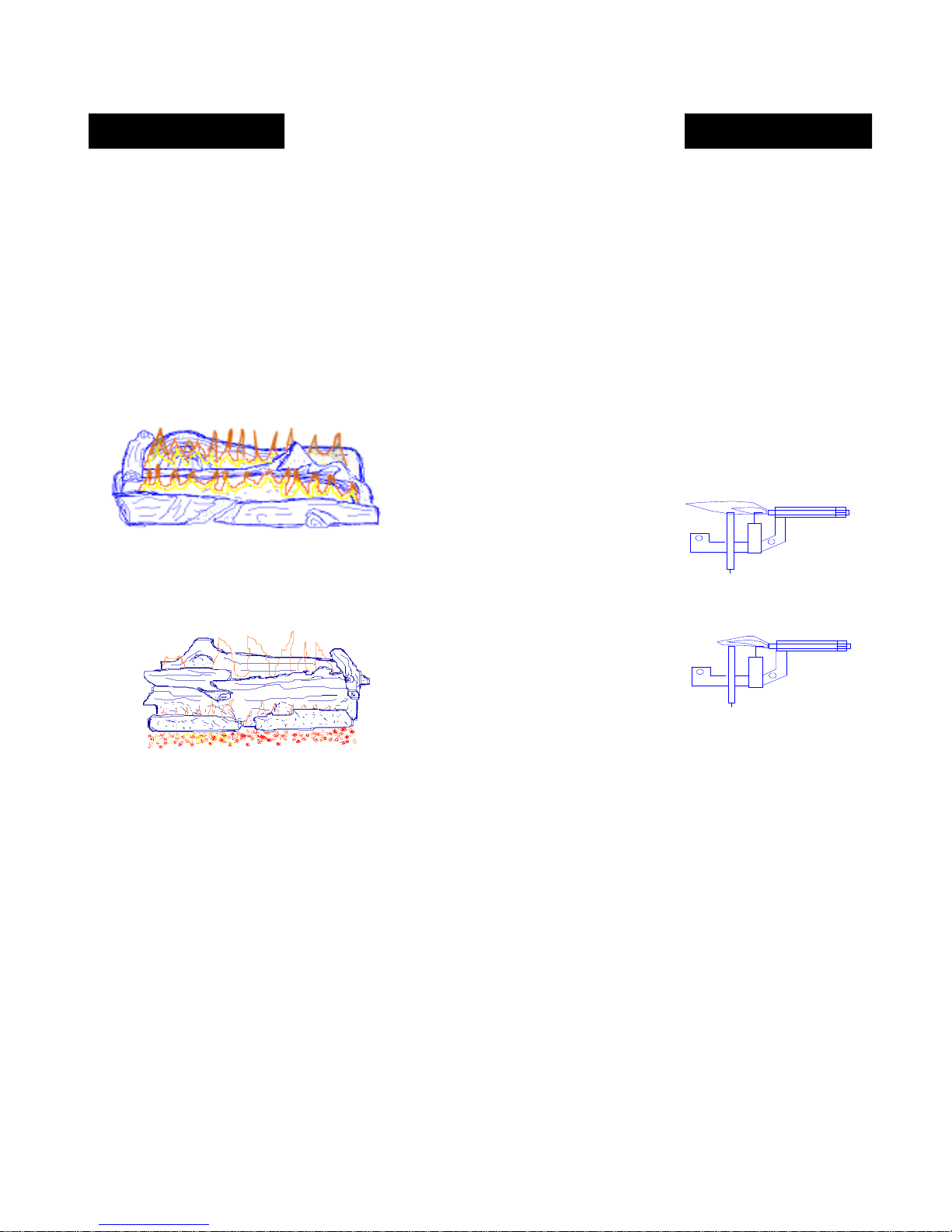

Flame Check ............................................................................................................................... 31

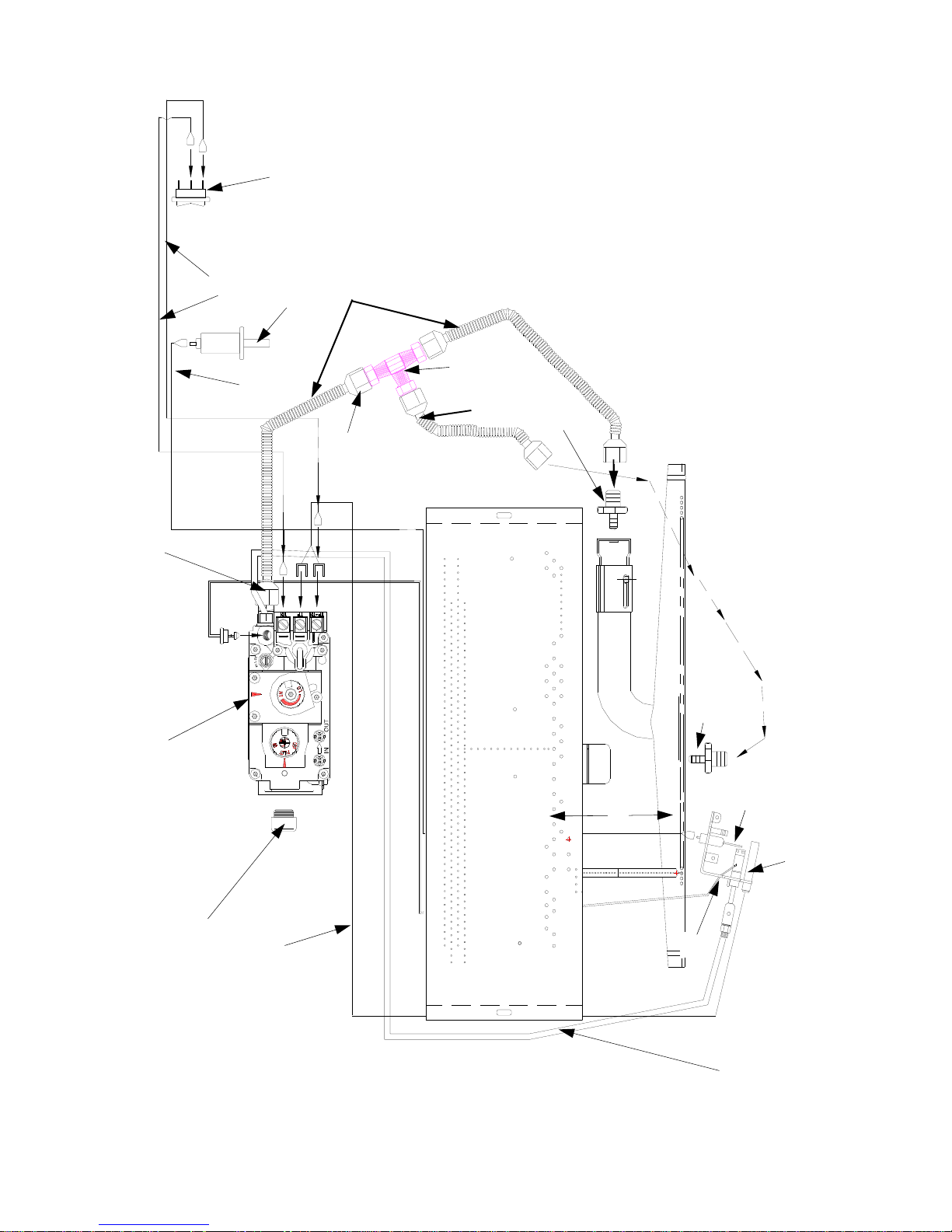

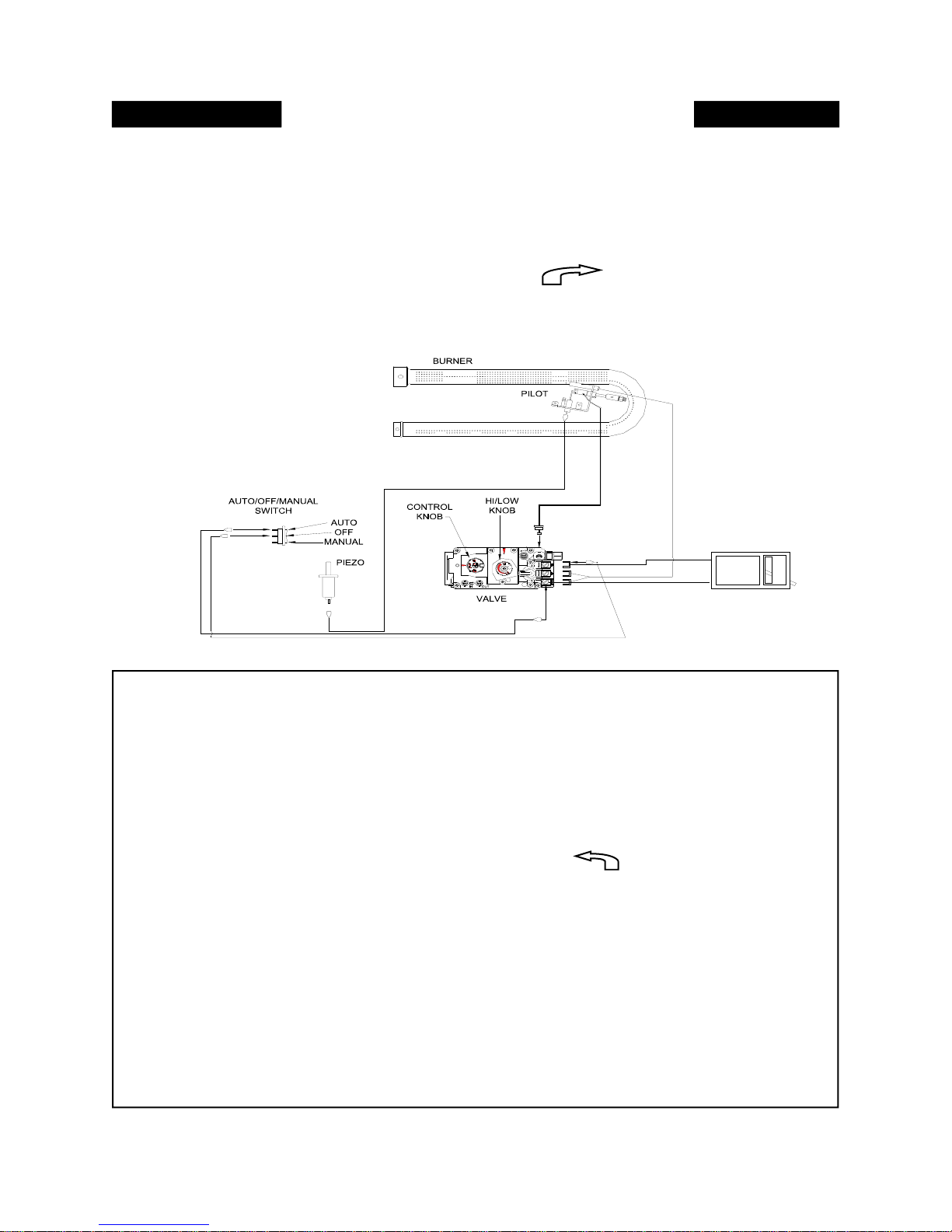

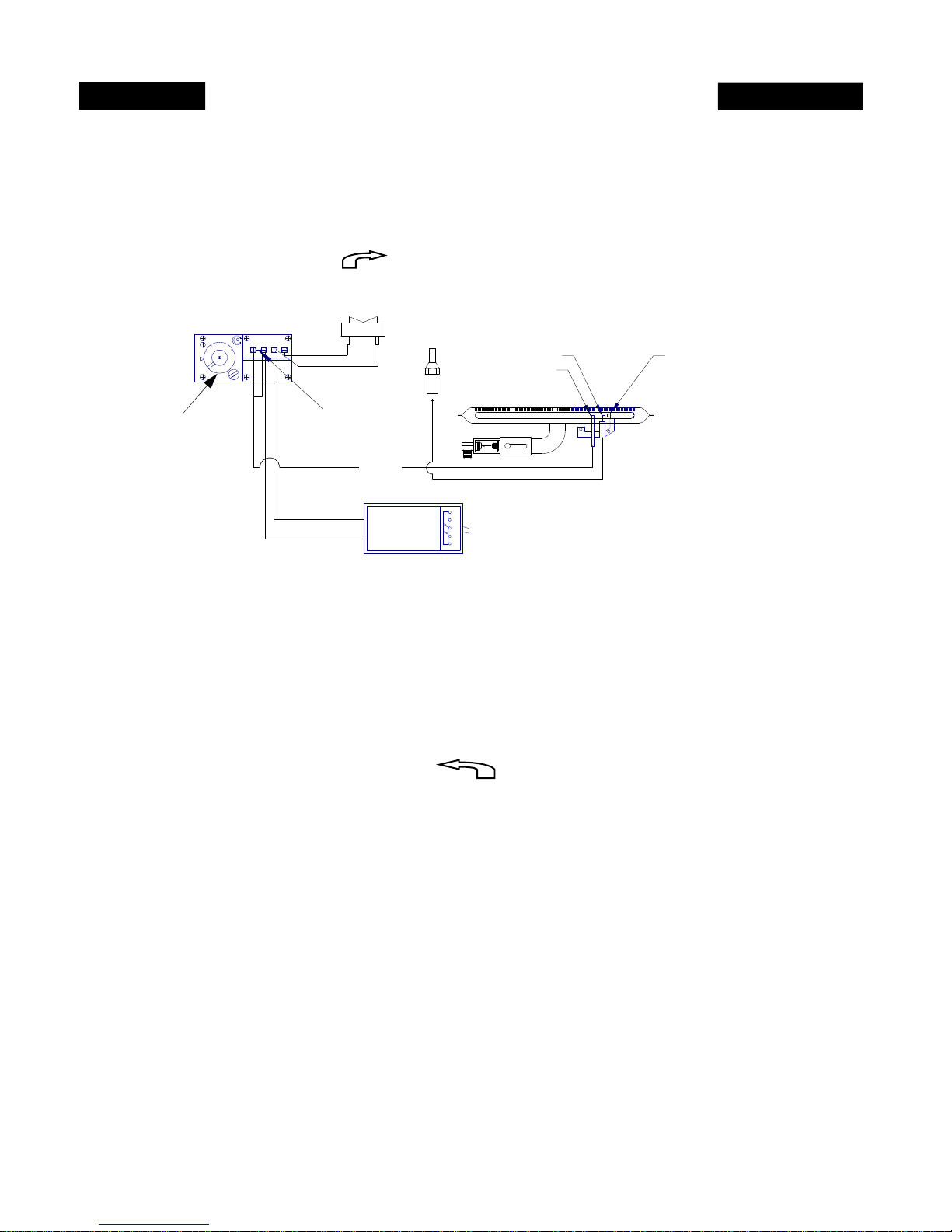

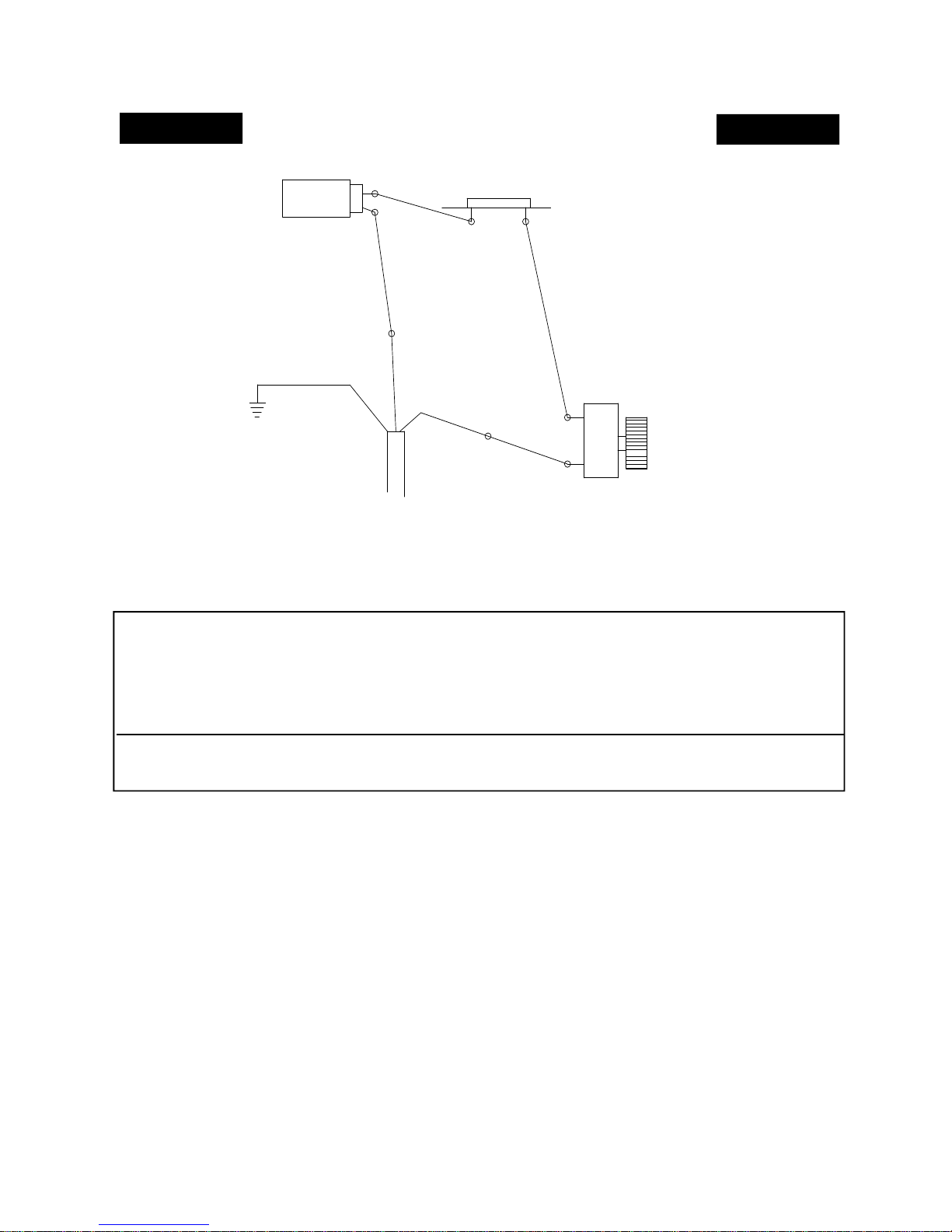

Wiring Diagram .......................................................................................................................... 32

Important Safeguards .................................................................................................................. 34

Trouble Shooting ........................................................................................................................ 35

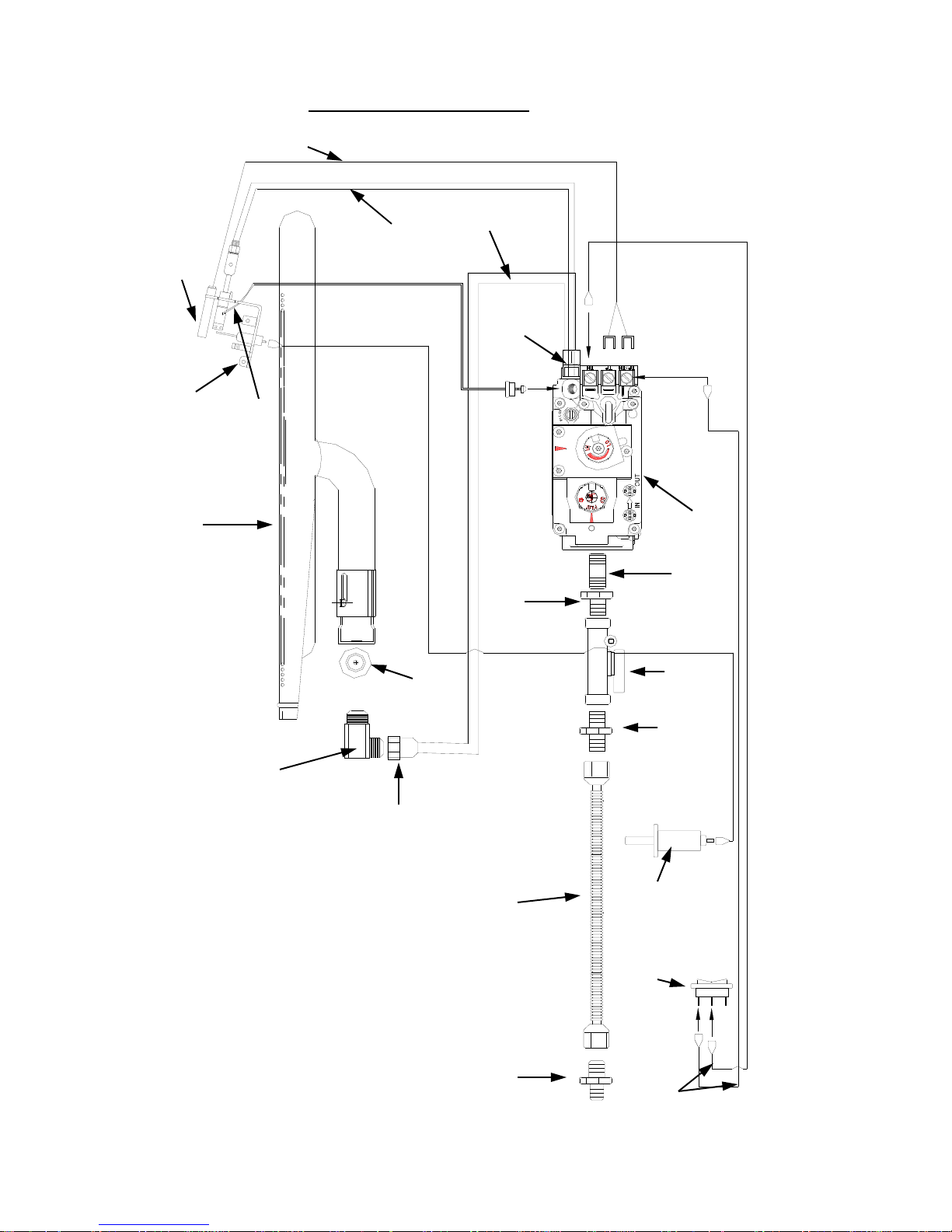

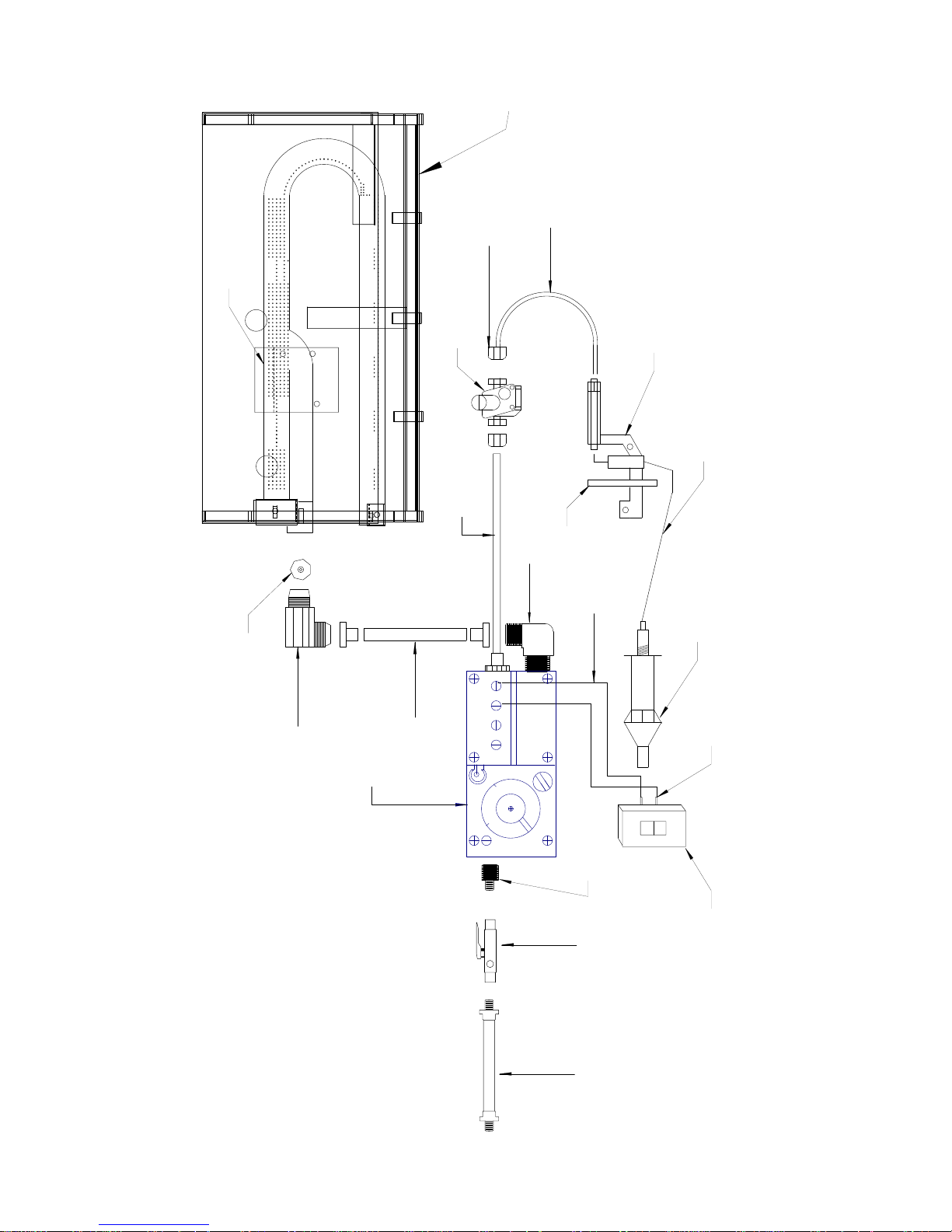

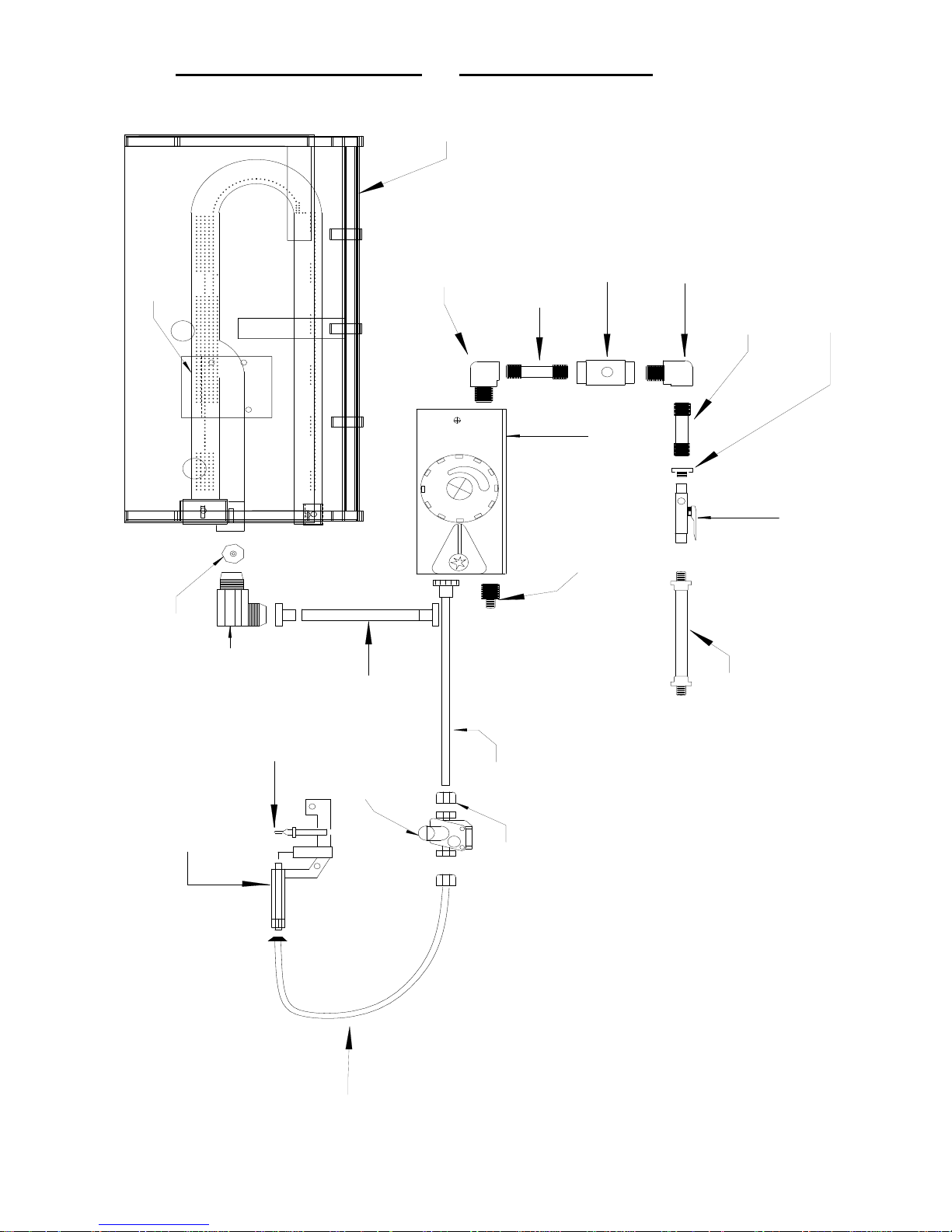

Service/Replacement Parts .......................................................................................................... 39

Warranty ..................................................................................................................................... 48

Owner Registration ...................................................................................................... Back Cover

SECTION I

SAFETY INFORMATION WARNINGS

IMPORTANT: READ THIS OWNER’S MANUAL CAREFULLY AND COMPLETELY

BEFORE TRYING TO ASSEMBLE, OPERATE, OR SERVICE APPLIANCE. IMPROPER
USE OF THESE LOGS CAN CAUSE SERIOUS INJUR Y OR DEATH FROM BURNS, FIRE,
EXPLOSION AND CARBON MONOXIDE POISONING.

Early signs of carbon monoxide poisoning resemble flu, with headaches, dizziness and/or
nausea. If you have these signs, heater may not be working properly. Get fresh air at once!
Have heater serviced.
Some people-pregnant women, persons with heart or lung disease, anemia, those under
influence of alcohol and those at high altitudes are more affected by carbon monoxide than
others.

CAUTION: Strong drafts, such as a ceiling fan placed directly in front of heater

(pulling from either direction) may create sooting. Sooting will discolor
walls.

1. The installation must conform with local codes or in absence of local codes, with
National Fuel Gas Code, ANSI Z223.1/NFPA54.

2. This appliance may be installed in an After-Market* Manufactured (Mobile) Home,
where not prohibited by state or local codes.

* (After-Market: Completion of sale, not for purpose of resale from manufacturer.)

This appliance is only for use with type of gas indicated on rating plate.
This appliance is not convertible for use with other gases.

NOTE:

IMPORTANT: VENT- FREE HEATERS ADD MOISTURE TO AIR. ALTHOUGH THIS IS

BENEFICIAL, INSTALLING HEATER IN ROOMS WITHOUT ADEQUATE VENTILATION
MAY CAUSE MILDEW TO FORM FROM TOO MUCH MOISTURE.

3. Never install this heater:

♦ in a recreational vehicle, bathroom, bedroom or any other sleeping quarters
♦ where curtains, furniture, clothing, or other flammable objects are less than 42" from

front of the heater
♦ in high traffic areas or in windy areas

4. Two models are available. One specific model for propane (LP), and one for natural gas.
Use the correct type gas for your home. Do not convert from one gas type to another.

NOTE: This appliance complies with ANSI Z21.11.2b-2010 Unvented Room Heater.

“WARNING: ANY CHANGE TO THIS HEATER OR ITS CONTROLS CAN BE

DANGEROUS.”

See Section VII, “Producing Adequate Air For Combustion And Ventilation” page 11.

Page 1

5. If this heater is used with propane gas, do not place propane supply tank (s) inside any structure.

6. What To Do IF You Smell Gas:

Shut off gas supply.

- Do not try to light any appliance.

- Do not touch any electrical switch; do not use any phone in your building.

- Immediately call your gas supplier from a neighbor’s phone.

Follow gas supplier’s instructions.

- If you cannot reach your gas supplier, call fire department.

7. When operated for first time, the logs may emit a “paper burning” smell. This smell will gradually
diminish and will be totally eliminated after first few hours of operation. Run the gas logs with
flue damper open during this time. Do not use blower at this time.

8. “This heater shall not be installed in unusually tight construction unless provisions are

provided for adequate combustion and ventilation air.” See “Producing Adequate Air for
Combustion And Ventilation”, page 11.

9. Surface of gas logs becomes very hot when operating. Keep children and adults away from hot
surface. Gas logs will remain hot for sometime after shutdown. Allow surface to cool before
touching.

10. Do not place clothing or other flammable material on or near appliance.

11. If equipped, fresh air damper must be closed.

12. Keep appliance area clean and free from combustible materials, gasoline and other flammable
flammable vapors and liquids. .

13. If burner shuts off, do not relight until you provide fresh outside air. If burner continues to shut off,
have unit serviced.

14. Do not use this heater if any part has been under water. Immediately call qualified service

technician to inspect room heater and to replace any part of control system and any gas
control which has been under water.

15. Turn off heater and let cool before servicing.

16. These logs are made of bonded fiber. When removing logs and base, do not damage bonded
material. If the material is damaged extensively, loose fiber dust could be emitted into air.

17. Any safety screen or guard removed for servicing an appliance must be replaced prior to

operating heater.

18. This appliance is intended for supplemental heating.

19. “WARNING: Any change to this heater or its controls can be dangerous.”

20. Installation and repairs should be performed by a qualified service person. The appliance

should be inspected before use and at least annually by a professional service person. More
frequent cleaning may be required due to excessive lint from carpeting, bedding material, etc.
It is imperative that control compartments, burners and circulating air passageways of
appliance be kept clean.

Page 2

21. All heater screens must be kept closed when operating gas logs.

22.

”WARNING: Failure to keep the primary air openings of the burners clean may result in

soot and property damage.”

23. Do not use this heater for burning trash or cooking. Never place matches, paper, garbage or any

other material on top of logs or into flames.

24. Do not install or operate this heater in areas where impurities in air exist (such as tobacco

smoke or heavy cooking grease). Particles from impurities may discolor walls.

25. Due to high temperatures, appliance should be located out of traffic and away from

furniture and draperies.

26. Children and adults should be alerted to hazards of high surface temperature and should

stay away to avoid burns or clothing ignition.

27. Young children should be carefully supervised when they are in same room with

appliance.

28. An unvented room heater having an input rating of more than 10,000 Btu per hour shall not be

installed in a bedroom or bathroom.

29. The appliance and its appliance main gas valve must be disconnected from gas supply

piping system during any pressure testing of that system at test pressure in excess of 1/2 psi
(3.5 kPa).

30. The appliance must be isolated from gas supply piping system by closing its equipment

shut-off valve during any pressure testing of gas supply piping system at test pressures
equal to or less than 1/2 psi (3.5 kPa).

31. “

WARNING: Do not allow fans to blow directly into fireplace. Avoid any drafts that alter

burner flame patterns.”

32. “

WARNING: Do not use a blower insert, heat exchanger insert or other accessory not

approved for use with this heater.”

33. Adequate clearances around air openings. Nothing may be placed over any of air openings

on this appliance or can any of air openings be modified in anyway.

Page 3

INSTALLATION (ZC) (WS)

Your New Buck Vent-Free Gas Fireplace Heater may be installed in Residential or *After­Market Manufactured Mobile Homes. This appliance may be installed in an *After Market
Manufactured Mobile Home, where not prohibited by state or local codes.

(Exception: This appliance may not be installed in a bedroom or bathroom.)

* (After Market: Completion of sale, not for the purpose of resale from manufacturer).

This appliance is only for use with type of gas indicated on rating plate. This appliance is not
convertible for use with other gases.

NOTE: See page 11 for “Producing Adequate Air For Combustion And Ventilation”.

CHOOSING THE LOCATI ON FOR YOUR FIREPLACE:

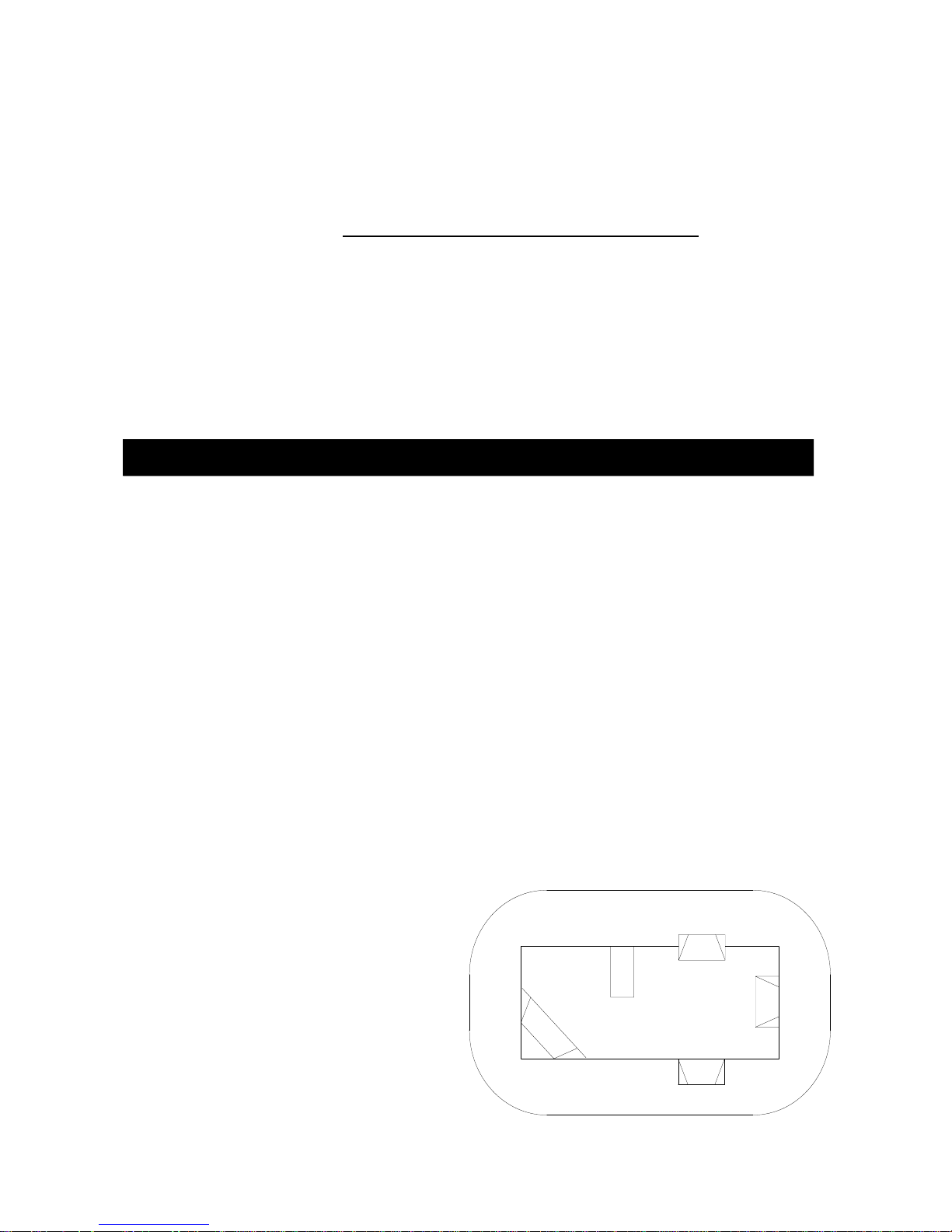

Figure 1 shows some of the many ways your fireplace may be installed. Consider traffic
pattern in your room and location of doors and windows. Moving air from ceiling fans, open
doors and hot air grills may cause flames to soot. If a disturbance is found that affects flames,
it must be eliminated by turning off ceiling fan, closing door or closing hot air register. A
corner location may be best where space is limited.

Your fireplace weighs no more than some of your fine furniture. If fireplace is located near a
load bearing wall, additional supports to the foundation will not be necessary. HEAVY
FACINGS, SUCH AS BRICK, STONE, ETC., MAY REQUIRE ADDITIONAL
FOUNDATION SUPPORT.

NOTE: If this appliance is installed directly on carpeting, tile or other combustible
material, other than wood flooring, appliance shall be installed on a metal or wood panel
extending full width and depth of appliance.

GAS LINES

The gas supply line and electrical supply
must be installed before framing in
fireplace by a licensed installer.

DRAFTS

Do not locate fireplace in high traffic areas
or areas exposed to high drafts and winds.
Locate fireplace away from furniture and
draperies.

Page 4

CORNER

Figure 1

PARTIAL ROOM PROJECTION

ROOM DIVIDER

FULL ROOM PROJECTION

FLUSH

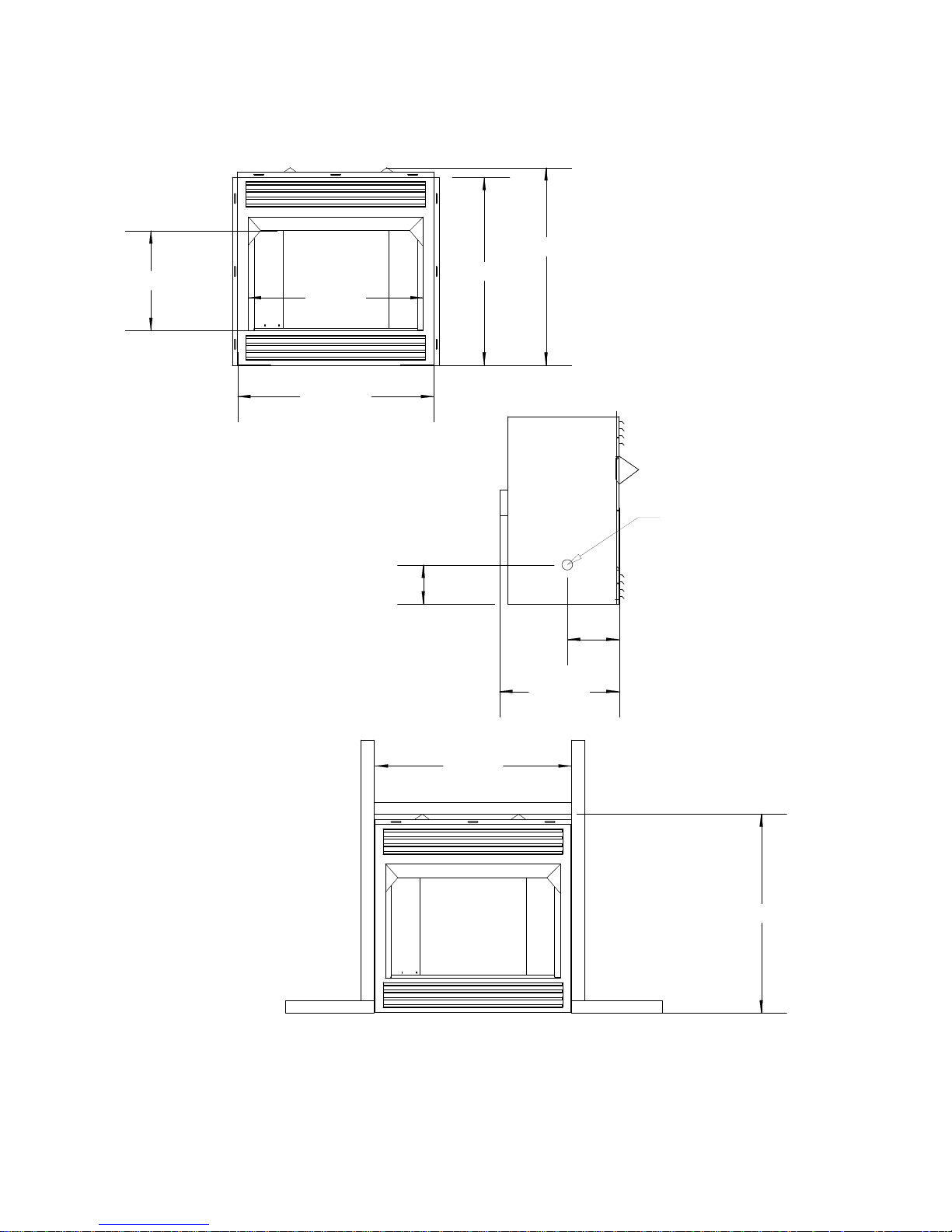

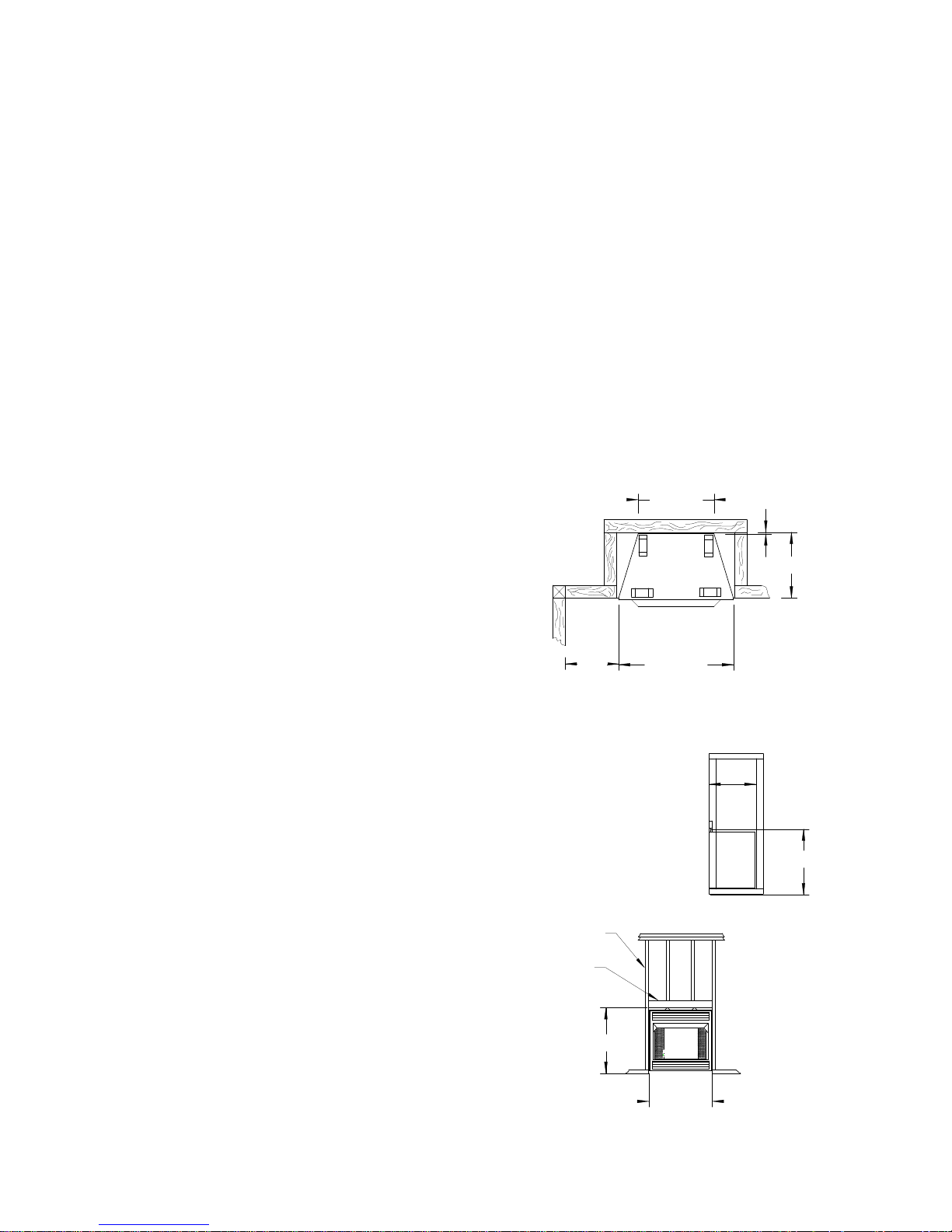

FIREPLACE AND FRAMING DIMENSIONS FOR MODEL 36 (ZC) ZERO

CLEARANCE INSTALLATION

36-5/8"

18-15/16"

35-5/8"

33-1/8"

37-5/16"

Figure 2

GAS LINE

7-1/2"

15"

Figure 2

21-1/2"

37-5/16"

36-5/8"

WARNING:Installation and repairs should be performed by a qualified service person. The appliance
should be inspected before use and at least annually by a professional service person. More frequent clean­ing may be required due to excessive lint from carpeting, bedding material, etc. It is imperative that control
compartments, burners and circulating air passageways of appliance be kept clean.

Page 5

FIREPLACE CLEARANCES (ZC)

The fireplace may be placed directly on a combustible floor,
against a combustible wall at marked clearances or on a
raised wooden platform.
If fireplace is to be installed on a raised wooden platform, the
platform must be a continuous level surface. The fireplace
must be secured in place so it cannot shift positions. The
nailing flanges on sides of firebox make securing it to
framing easy. They were designed to allow installation of
1/2" wallboard or plywood flush with face of fireplace.
Only header (see Figure 2) may rest on standoffs on top of
firebox.

When firebox is installed over carpeting, vinyl tile or
any combustible material other than wood flooring, it

must be installed on a metal or wood panel extending its full

INSTALLING FIREBOX (ZC)

This list of specific instructions will help you make certain that
every installation operation is performed correctly. Complete
installation steps in sequence shown.
LOCAL BUILDING CODES SHOULD BE CONSULTED IN
ALL CASES AS TO THE PARTICULAR REQUIREMENTS
CONCERNING INSTALLATION OF FACTORY BUILT
FIREPLACES. Select location for fireplace by taking into
consideration factors previously outlined in “Choosing Loc ation.”
See page 4.

Framing Firebox

The width of framed opening must be 37 5/16". The height of
framed opening must be 36 5/8". The entire fireplace can be
elevated above floor to achieve a raised hearth effect. This can be
done by adding a small platform to achieve desired height.
NOTE: The wiring for lower blower must be installed during
framing stage. The nailing flanges on both sides were designed to
allow the installation of 1/2" wallboard or plywood flus h with face
of fireplace.
When framing is inside, outside wall will be insulated. If
framing or chase is outside, thin insulation should be used in
framing on back, sides and top. The bottom should be insulated
with a hard insulating board. This will prevent cold from going
into chase through fireplace to living space.

Install Firebox

Install the firebox into framed opening by placing it directly in
front of opening and sliding it into proper position.

Level Firebox

Check the level of firebox on top edge of the fireplace face. Shim
if necessary.

Secure Firebox

Secure fireplace to framing. The nailing flanges on firebox will
make securing firebox to frame quick and easy. Use appropriate
size nails or screws to secure firebox.

width and depth. Alternatively, carpeting, vinyl tile, etc. may
be removed beneath fireplace before installing.
COMBUSTIBLE MATERIALS MUST NOT BE
INSTALLED OVER OR TOUCH ANY BLACK PAINTED
SURFACE. DO NOT BLOCK HEAT CIRCULATING AIR
OUTLETS. DOING SO MAY RESULT IN POTENTIAL
FIRE HAZARDS.

1. Sidewall Clearances: Clearances from side of tfireplace
opening to any adjacent combustible wall should not be less
than 7'.

2. Ceiling Clearances: The ceiling height should not
be less than 42" from top of fireplace opening.

*

25 3/8"

Figure 3

7" *

* Note: Minimum 1/2" clearance
NOT required at this point

FRAMING
HEADER

36-5/8"

TOP
VIEW

37 5/16"

21 1/2"

FRONT
VIEW

37-5/16"

1/2"

21 1/2"

SIDE
VIEW

36-5/8"

Page 6

FINISHING YOUR FIREPLACE (ZC)

There is a wide variety of finishing material
available for your fireplace from formal wall
treatments with marble and mantels, to rustic
wood paneling, stone or brick.

IT IS IMPORTANT THAT BLACK FACE OF
FIREPLACE NOT BE COVERED WITH ANY
TYPE OF COMBUSTIBLE MATERIAL.

Non-combustible facing materials such as
marble, brick or ceramic tile may overlap
black face of fireplace up to opening on
either side of fireplace. Seal all joints
between black fireplace face and wall
covering with a heat-resistant material such
as rock wool insulation or mortar. Be sure to
use high temperature adhesive or mortar
when anchoring brick, stone or tile to face of
fireplace. Check to see whether man-made
brick and stone are made of non-combustible

CLEARANCES (ZC)

To ensure a safe installation, following must be
carefully observed.

1. Sidewall Clearances: Clearances from side of
fireplace opening to any adjacent combustible
wall should not be less than 7"right side and 7”
left side. See Figure 4

2. Ceiling Clearances: The ceiling height
should not be less than 42" from the top of
fireplace opening.

3. Mantel Clearances: We have provided

different situations to position your mantel.

3

materials before using them on the face of
fireplace. Some of these products contain
combustible materials. Combustible wall
coverings such as paneling or wallboard may
not overlap black face of fireplace. The
space between wall covering and fireplace
should be sealed with a heat resistant material
such as rock wool insulation or mortar.
NOTE: An “L” shaped steel lintel must be
installed across top of firebox opening where
facing materials such as brick or stone is used
on face of firebox. It acts as a support/
firestop. It should be attached to face of
fireplace with screws and sealed to t fireplace
with a heat-resistant sealer.

See Figure 5, page 8.
Non-Combustible materials used in this
installation such as slate, tile, marble, etc.
must be at least 1/2" thick.

4. Floor Clearances: No clearance is
required if appliance is installed per these
instructions.

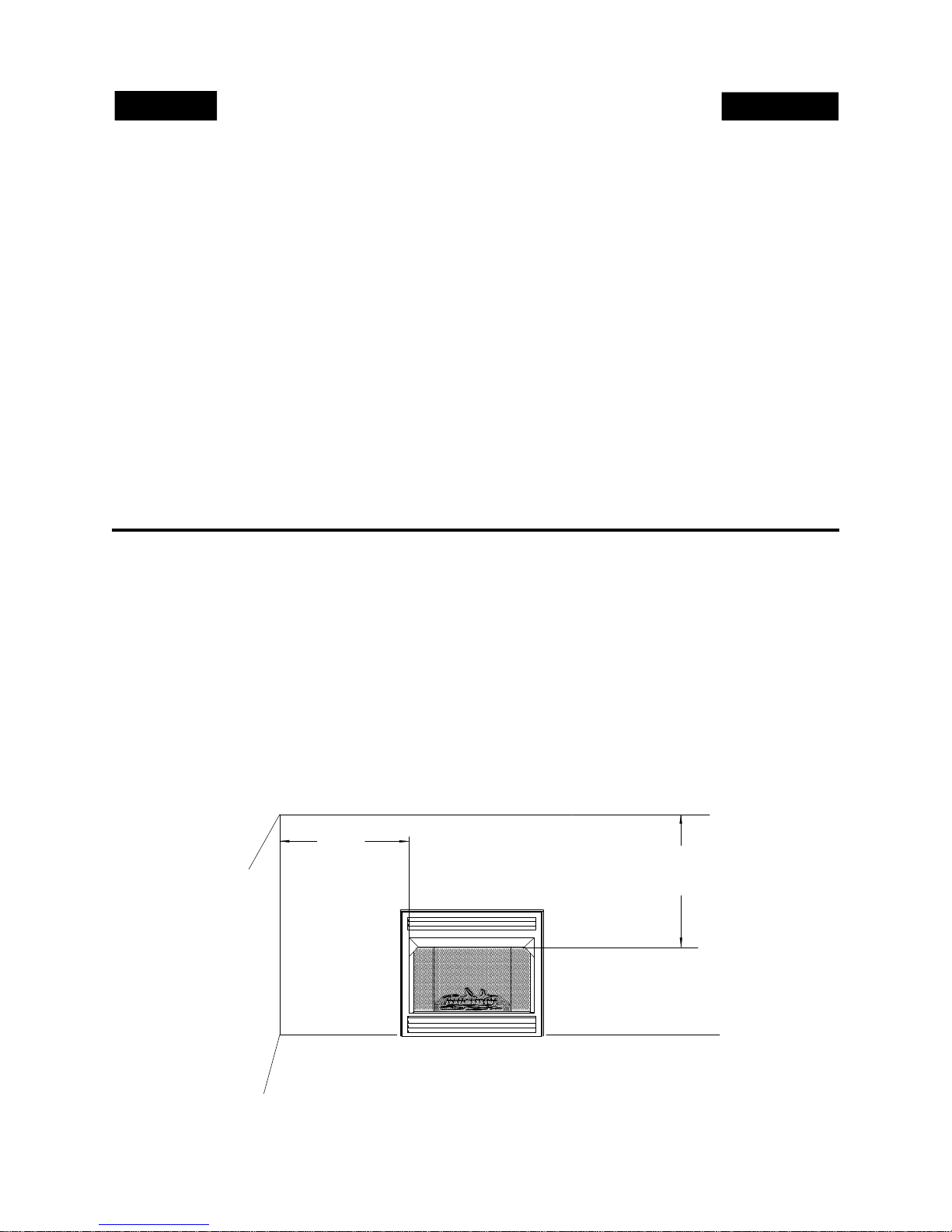

SIDE WALL

7" MIN.

LEFT
SIDE

FIGURE 4

CLEARANCE
FROM FIREPLACE
OPENING TO SIDE WALL

FRONT

Page 7

42" MIN.

CLEARANCE

TO CEILING

RIGHT
SIDE

MANTEL PROFILES FOR 36 (ZC) ZERO CLEARANCE CABINET

MUST BE FOLLOWED

MODEL FP-36-ZC MANTEL 3/4” FLAT SURFACE

CEILING

COMBUSTIBLE
MATERIAL

NAILING FLANGE

STAND OFF

42-ZC-FP

10"

3-1/2"

3/4"

2"

4”

Bottom of 3/4" Base or Support
may be Flush with top of Unit
if mantel is 10" wide or less.

3"

2-3/8"

MANTELS WITH 3/4" BASE

COMBUSTIBLE

42"

3"

LOUVERS
HOOD

MATERIAL

STAND OFF

MODEL FP-36-ZC MANTEL WITH SUPPORTS

42-ZC-FP

Bottom of 3/4" Base or Support
must be at least 2-1/2" from top
of Unit if mantel is 10" wide or more.

FRONT VIEW MODEL FP-36-ZC

FRONT VIEW OF MODEL 42-ZC-FP

FLAT MANTEL WITH SUPPORTS

FLAT MANTEL WITH SUPPORTS

39 1/2”

50-3/8"

2-3/8"

12"

3-1/2"

3"

3/4"

2-1/2"

2"

4”

LOUVERS
HOOD

Figure 5

COMBUSTIBLE
MATERIAL

STAND OFF

42-ZC-FP

4”

2"

Bottom of 2-1/2" Base or Support
may be Flush with top of Unit
if mantel is 12" wide or less.

MANTELS WITH 2-1/2" BASE

SUPPORT

3"

2-1/2"

LOUVERS
HOOD

4”

12"

2-1/2"

2"

12"

6"

SUPPORT

2-1/2"

3"

LOUVERS
HOOD

COMBUSTIBLE
MATERIAL

STAND OFF

42-ZC-FP

Bottom of 2-1/2" Base or
Support must be at least
2-1/2" from top of Unit if
mantel is 12" wide or more.

Page 8

INSTALLATION OF MODEL 36 (WS)

WITH OPTIONAL WOODEN SURROUND (KIT#PAKDM36)

1. When choosing right location for your heater and surround (mantel) keep following in
mind:

NOTE: Due to high temperatures, this heater should be located out of traffic areas and
away from furniture and draperies.

NOTE: Kit No. (PAKDM36) Optional Wooden Surround (Mantel) for Model 36 (WS).

CAUTION: THE INSTALLATION MUST CONFORM WITH LOCAL CODES OR,

IN THE ABSENCE OF LOCAL CODES, WITH NATIONAL FUEL GAS CODES,
ANSI Z223.1/NFPA 54.

NOTE: See page 15 for “Gas Connection” and page 16 for “Gas Pressure Check”.

WARNING: YOUNG CHILDREN SHOULD BE CAREFULLY SUPERVISED WHEN
THEY ARE IN SAME ROOM WITH APPLIANCE.
DO NOT PLACE CLOTHING OR OTHER FLAMMABLE MATERIAL ON OR NEAR
THE APPLIANCE

2. Screen(s) can not be removed or altered (Position screen (s) in closed position before
leaving heater unattended).

3. Follow instructions for assembly of (Optional) Wooden Surround (Mantel). See
instructions supplied with surround.

4. After mantel has been assembled, slide heater from rear into opening of surround.

NOTE: Place a cloth or blanket over front portions of surround as not to mar wood.

5. Center heater in opening of surround.

6. Fasten surround (mantel) to hearth by using 1/2" wood screws.

7. Insert nine (9) wood screws provided with surround through slots on nailing flange and
secure in place.

8. Position surround (mantel) and fireplace into desired location.

NOTE: Hook gas supply line into heater. Check for leaks using soap and water, not an
open flame.

NOTE: At this point, you may want to anchor surround (mantel) to wall or floor.

Page 9

9. Now you are ready to position log set. See page,s 17-18.

10. To light heater, see “Lighting Instructions”, pages 19 through 30. Make sure you have
right gas valve for Natural or LP gas.

EXPLODED VIEW OF SURROUND KIT# PAKDM36

AS VIEWED FROM BACK OF SURROUND (MANTEL)

SURROUND BASE

Page 10

PRODUCING ADEQUA TE AIR FOR

COMBUSTION AND VENTILATION

This section is for residential or manufactured (mobile) installation

“This heater shall not be installed in unusually tight construction unless provisions are adequate
for combustion and ventilation air.”

NOTE: This heater shall not be installed in a room or space unless the required volume of in­door combustion air is provided by method in the National Fuel Gas Code, ANSIZ223.1/NFPA
54, International Fuel Gas Code, or applicable codes.

The National Fuel Gas Code, ANSI Z223.1/NFPA 54 defines unusually tight construction or
unconfined space as a space whose volume is less than 50 cubic feet per 1,000 BTU per hour
(4.8m 3 per kw) of aggregate input rating of all appliances installed in that space and an
unconfined space as a space whose volume is not less than 50 cubic feet per 1,000 BTU per
hour (4.8m 3 per kw) of aggregate input rating of all appliances installed in that space. Rooms
communicating directly with space in which appliances are installed, through openings not
furnished with doors, are considered a part of unconfined space.

“WARNING: IF THE AREA IN WHICH HEATER MAY BE OPERATED DOES NOT
MEET REQUIRED VOLUME FOR INDOOR COMBUSTION AIR, COMBUSTION
AND VENTILATION AIR SHALL BE PROVIDED BY ONE OF METHODS DE­SCRIBED IN NATIONAL FUEL GAS CODE, ANSI Z223.1/NFPA 54, INTERNA-
TIONAL FUEL GAS CODE, OR APPLICABLE CODES.”

“WARNING: IF AREA IN WHICH HEATER MAY BE OPERATED IS SMALLER
THAN THAT DEFINED AS AN UNCONFINED SPACE OR IF BUILDING IS OF
UNUSUALLY TIGHT CONSTRUCTION, PROVIDE ADEQUATE AIR FOR
COMBUSTION AND VENTILATION BY ONE OF METHODS DESCRIBED IN
NATIONAL FUEL GAS CODE, ANSI Z223.1/NFPA 54 AIR FOR COMBUSTION AND
VENTILATION OR APPLICABLE LOCAL CODES.”

Unusually tight construction is defined as construction where:
a) Walls and ceilings exposed to outside atmosphere have a continuous water vapor retarder

with a rating of 1 perm (6 x 10

b) Weather stripping has been added on openable windows and doors.

-11

kg per pa-sec-m2) or less with openings gasketed or sealed;

c) Caulking or sealants are applied to areas such as joints around window and door frames,
between sole plates and floors, between wall-ceiling joints, between wall panels, at penetrations
for plumbing, electrical, and gas lines and at other openings.

NOTE: SOME AREAS IN THE UNITED STATES HAVE HIGHER REQUIREMENTS

FOR CUBIC FEET PER 1000 BTU/ HOUR INPUT. (EX. CINCINNATI, OHIO CODES
REQUIRE 70 CUBIC FEET). CHECK YOUR LOCAL CODE BEFORE
INSTALLATION.

Page 11

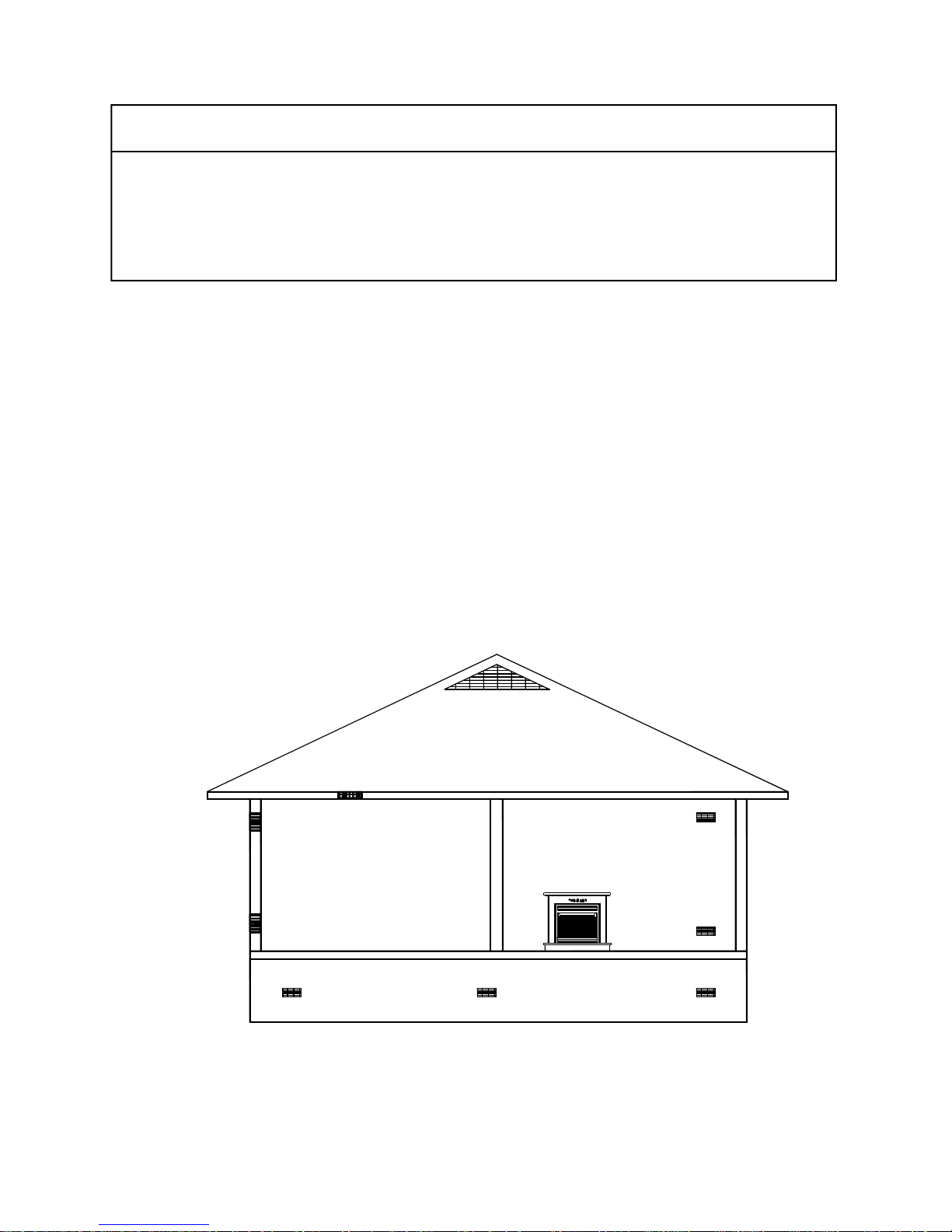

DETERMINING FRESH-AIR FLOW FOR

HEATER LOCATION

DETERMINE IF YOU HAVE UNUSUALLY TIGHT CONSTRICTION OR UNCONFINED SPACE

Use this worksheet to determine if you have confined or unconfined space.

SPACE: Includes the room in which you will install heater plus adjoining rooms with
doorless passageways or ventilation grills between rooms.

1. Determine the volume of space (length x width x height).

Length x Width x Height =_________cu.ft.(volume of space)
EXAMPLE: 20 ft.(Length) x 16 ft.(Width) x 8 ft.(ceiling Height)=
2560 cu. ft. (volume of space)
If additional ventilation to adjoining room is supplied with grills or openings, add volume
of these rooms to total volume of the space.

2. Divide the space volume by 50 cubic feet to determine the maximum BTU/Hr space

can support.

_________(volume of space)/50 cu. ft. =maximum BTU/Hr the space can support)

EXAMPLE: 2560 cu. ft. (volume of space /50 cu. Ft .= 51.2 or
51200 (maximum BTU/Hr space can support)

3. Add the BTU/Hr of all fuel burning appliances in space.
Vent-free heater _______________BTU/Hr
Gas water heater* _______________BTU/Hr
Gas furnace _______________BTU/Hr
Vented gas heater _______________BTU/Hr
Gas fireplace logs _______________BTU/Hr
Other gas appliances* + _______________BTU/Hr
Total = _______________BTU/Hr

Example: Gas water heater 40000 BTU/Hr
Vent-free heater + 18000 B
Total = 58000 BTU/Hr

*Does not include direct-vent gas appliances. Direct-vent draws combustion air
from the outdoors and vents to the outdoors.

4. Compare the maximum BTU/Hr the space can support with actual amount of BTU/Hr
used.
____________BTU/Hr (maximum the space can support)
____________BTU/Hr (actual amount of BTU/Hr used)
Example: 51200 BTU/Hr (maximum the space can support)
58000 BTU/Hr (actual amount of BTU/Hr used)
The space in the above example is unusually tight construction space because actual BTU/Hr
used is more than the maximum BTU/Hr the space can support. You must provide additional
fresh air. Your options are as follows:

TU/Hr

Page 12

A. Rework worksheet, adding space of an adjoining room. If the extra space provides an
unconfined space, remove door to adjoining room or add ventilation grills between rooms. See
“Air For Combustion And Ventilation From Inside Building”, figure 6.
B. Vent room directly to outdoors. See “Air For Combustion And Ventilation From
Outdoors”, page 14.
C. Install a lower BTU/Hr heater, if lower BTU/Hr size makes room unconfined.

If actual BTU/Hr used is less than maximum BTU/Hr space can support, space is an
unconfined space. You will need no additional fresh air ventilation.

WARNING:

YOU MUST PROVIDE ADDITIONAL VENTILATION AIR IN UNUSUALLY TIGHT
CONSTRUCTION

AIR FOR COMBUSTION AND VENTILA TION

FORM INSIDE BUILDING

This fresh air would come from an adjoining unconfined space. When venting to an

adjoining space, you must provide two permanent openings: one within 12" of ceiling and one within
12" of floor on the wall connecting two spaces. (See Options 1 and 2 ) You can also remove door into

adjoining room. (See Option 3 )

WARNING

REWORK WORKSHEET, ADDING SPACE OF ADJOINING UNCONFINED SPACE. THE
COMBINED SPACES MUST HAVE ADEQUATE AMOUNT OF AIR TO SUPPLY ALL
APPLIANCES IN BOTH SPACES.

NOTE: Each opening shall have a minimum free area of 1 square inch per 1000 BTU’s per hour of

total input ratings of all gas utilization equipment in confined space, but not less than 100 square inches.

Figure 6 Ventilation Air From Inside Building

Page 13

WARNING

THIS HEATER MUST HAVE ADEQUATE AMOUNT OF AIR FOR PROPER
OPERATION. IF NOT, POOR FUEL COMBUSTION COULD RESULT. READ THE
FOLLOWING INSTRUCTIONS TO INSURE PROPER FRESH AIR FOR THIS AND
OTHER FUEL-BURNING APPLIANCES IN YOUR HOME.

AIR FOR COMBUSTION AND VENTILATION

FROM OUTDOORS

Provide extra fresh air by using ventilation grills or ducts. You must provide two permanent
openings: one within 12" of ceiling and one within 12" of floor. Connect these items directly
to outdoors. These spaces include attics and crawl spaces. Follow National Fuel Gas Code
NFPA 54/ANSI Z223.1, Section 5.3, “Air For Combustion and Ventilation” for required size of
ventilation grills or ducts.

IMPORTANT: Do not provide openings for inlet air into attic if attic has a thermostat­controlled power vent. Heated air entering attic will activate power unit.

Ventilated Attic

Outlet Air

Outlet Air

Inlet Air

Inlet Air

To Attic

To Crawl
Space

Ventilation
To Crawl Space

Figure 7

Page 14

WARNING: ANY CHANGE TO THIS HEATER OR ITS CONTROLS CAN BE

DANGEROUS.

GAS CONNECTION

Check gas type. Use only type of gas indicated on valve rating plate. If type of gas listed on plate is
not your type of gas supply, DO NOT INSTALL.
Always use an external regulator for all LP heaters to reduce supply tank pressure to a maximum of 13"
W.C. This is in addition to regulator furnished with heater.

WARNING: CONNECTION DIRECTLY TO AN UNREGULATED LP TANK CAN CAUSE

AN EXPLOSION.

The normal gas connection is 3/8” N.P.T. made at left side (facing front of appliance) of appliance. If
a right side connection is desired, connecting pipe may be led under rear of burner base to terminate at
right side for connection to inlet of valve.

NOTE: The connecting pipe must be internally tinned copper tubing for use with natural gas. Test for
leaks using a solution of soap and water after completing connection. DO NOT USE OPEN FLAME.

WARNING: Installation and repairs should be performed by a qualified service person. The

appliance should be inspected before use and at least annually by a professional service person.
More frequent cleaning may be required due to excessive lint from carpeting, bedding material,
etc. It is imperative that control compartments, burners and circulating air passageways of
appliance be kept clean.

Contact your dealer for proper model.

Page 15

GAS PRESSURE CHECK

Check inlet pressure to burner to ensure that it is as shown in table below.
NOTE: The pressure check point is located on right side of valve facing burner, for ITT, and
left side for SIT.
The appliance and its appliance main gas valve must be disconnected from gas supply piping
system during any pressure testing of that system at test pressures in excess of 1/2 psi (3.5kPa).
The appliance must be isolated from gas supply piping system by closing its equipment shut-off
valve during any pressure testing of gas supply piping system at test pressures equal to or less
than 1/2 psi (3.5 kPa).

VALVE

MODEL: FP36 FP36 FP36 FP36
GAS

Natural Propane Natural Propane

Maximum Heat Input 33,000 33,000 33,000 33,000
Minimum Heat Input 23,000 23,000 12,000 13,000
Gas Inlet Pressure
Maximum 10.5ins.W.C. 13ins.W.C. 10.5ins.W.C. 9.0ins.W.C.
Minimum * 5.0ins.W.C. *11ins.W.C. *5.0ins.W.C. *11ins.W.C.
Manifold Pressure
Maximum 3.5ins.W.C. 9.0ins.W.C. 3.5ins.W.C. 9.0ins.W.C.
Minimum 3.0ins.W.C. 8.2ins.W.C. 2.8ins.W.C. 7.2ins.W.C.

NOTE: On initial installation it may be necessary to bleed out air in gas lines. Do this by
holding control knob and turning knob to “PILOT” position for about 30 seconds.
To check regulator pressure, remove pressure tag plug at left side of regulator facing heater.
The pressure should be checked with heater burning and control set on high. After measuring
pressure, replace pressure tap plug, ensuring that there are no leaks.

* For the purpose of minimum input adjustment.

This appliance is equipped for (natural or propane) gas.
Field conversion is not permitted.

(MILLIVOLT) (SIT MANUAL-MODULATING)

WARNING

Page 16

CR3329 CERAMIC LOG SET PLACEMENT

(1)

(4)

(2)

(3)

WARNING: Failure to position parts in accordance with these diagrams or failure to use only

parts specifically approved with this heater may result in property damage or personal injury.

WARNING: POSITIONING OF LOGS IS VERY CRITICAL (SEE DIAGRAM ABOVE).

(1) Front Log #1 (Slim Log wrapped in cardboard box) . Place log between front portion of burner

and log grates.

(2) Middle Glow Log #2 . Place rear of log on top of middle log supports located in open center por-

tion of burner base. Front of log should rest slightly behind rear line of burner holes on front
portion of burner. Align the notch on left front bottom side of log over the existing hold down

nut of burner. This should align log at right position from left or right on burner.
(3) Rear Log #3. Place log in rear log supports center from left to right.
(4) Left Top Log #4. Log has two (2) holes in bottom front side. Align holes with the two (2) pins

located on left top of log #2. Rear of log #4 should rest on left top end of rear log #3.

Page 17

E.S.B. LOG SET PLACEMENT FOR MODEL 36

3

2

1

4

5

6

7

“MILLIVOLT ONLY”

WARNING: Failure to position parts in accordance with these diagrams or failure to use only

parts specifically approved with this heater may result in property damage or personal injury.

WARNING: POSITIONING OF LOGS IS VERY CRITICAL (SEE DIAGRAM ABOVE).

MODEL E.S.B: (1) Rear Log, (2) Middle Log, (3) Left Top Middle Log, (4) Right Top Mid­dle Log (5) Left Front Log (6) Right Front Log (7) Glowing Embers in front of 5 & 6 logs.
WARNING: POSITIONING OF LOGS IS VERY CRITICAL (See Figure 2).

1) Place rear log #1 on rear log supports. The log has alignment notches on each rear corner.

2) Place Middle log #2 in front of rear burner tube and then move log forward. The log should seat
just behind the brass knobs, located in middle section of base between rear burner tube and front
burner pan.

3) Place Left Top Middle log #3 on pins located on left top section of Middle log #2.

4) Place Right Top Middle log #4 on pin located on right top section of Middle log #2 and a line

notch on right side #4 with side shield on right.

5) Place Left Front log #5 on locator pins located on left middle section of front burner pan.

6) Place Right Front log #6 on locator pins located on right middle section of front burner pan.

7) Provided with your log set is a package of Glowing Embers (rock wool). Open package and tare

off small pieces of wool material and place it over small holes (ports) located on front burner

pan in front of logs #5 and #6. Cover entire section of holes (ports). *Replacement of loose

(Glowing Embers) must be purchased from original manufacturer and application of ex-

cess loose material may adversely affect performance of heater.
NOTE: “Wash your hands immediately after coming in contact with wool material. The wool
can cause slight itching or burning in some cases, avoid any contact with eyes.”

“WARNING: All previously applied loose material must be removed prior to replacement.”

Page 18

LIGHTING INSTRUCTIONS

MILLIVOLT VALVE (ITT)

FOR YOUR SAFETY, READ BEFORE LIGHTING

WARNING

IF YOU DO NOT FOLLOW THESE INSTRUCTIONS EXACTLY, A FIRE OR
EXPLOSION MAY RESULT CAUSING PROPERTY DAMAGE, PERSONAL INJURY,
OR LOSS OF LIFE.

A. This appliance has a pilot which must be lighted by hand. When lighting pilot, follow

these instructions exactly.

B. BEFORE LIGHTING smell around appliance for gas. Be sure to smell next to floor

because gas is heavier than air and will settle on floor.

WHAT TO DO IF YOU SMELL GAS

♦ Do not try to light any appliance.
♦ Do not touch any electrical switch; do not use any phone in your building.
♦ Immediately call your gas supplier from a neighbor’s phone. Follow gas

supplier’s instructions.

♦ If you cannot reach your gas supplier, call fire department.

C. Use only your hand to push in or turn gas control knob. Never use tools. If knob will not

push in or turn by hand, don’t try to repair it, call a qualified service technician. Force or
attempted repair may result in a fire or explosion.

D. Do not use this appliance if any part has been under water. Immediately call a qualified

service technician to inspect appliance and to replace any part of the control system and
any gas control which has been under water.

Page 19

LIGHTING INSTRUCTIONS

1. STOP! Read safety information on previous page.19

2. Make sure the manual shutoff valve is fully closed. If equipped with thermostat set to lowest
setting.

3. Turn off all electrical power to appliance.

4. Open access panel door located at bottom front of appliance.

5. Turn control knob clockwise to full “OFF” position.

ROCKER SWITCH

OFF

ON

PIEZO

THERMOSTAT

IGNITOR ELECTRODE

THERMOGENERATOR

THERMOPILE

9080706050

PILOT BURNER

BURNER

PILOT

PILOT ASS'Y

CONTROL KNOB

ITT VALVE

PILOT

ADJ

T

O
L

I

P

OFF

P

T

R

E

S

S

O

N

T

E

S

E

R

O

THERMO GEN

AUX

CONTROLS

ITT

GENERAL

BEFORE INSTALLING THERMOSTAT
REMOVE METAL CONNECTOR

When hooking up a Wall Thermostat to valve, remove Jumper Bar. Do not remove existing wires,
simply add wire from Wall Thermostat to screws (one wire to each screw).

6. Wait five (5) minutes to clear out any gas. Then smell for gas, including near floor. If you
smell gas, STOP! Follow “B” in safety informationon previous page.If you don’t smell
gas, go to next step.

7. Find Pilot: The pilot is located in front of rear log and burner on right hand side of
appliance. Fully open manual shutoff valve.

8. Push ON/OFF toggle switch to “OFF” (rocker switch).

9. Turn gas control knob counterclockwise to “PILOT” position. Press in gas control
knob for fifteen (15) seconds.

10. With control knob pressed in, push down (in) and release igniter button (igniter button is
located on left hand side of front of appliance). This will light pilot. If needed, keep
repeating this step until pilot lights.

11. Keep control knob pressed in for (1) one minute after lighting pilot. After (1) minute, release
gas control knob and it will pop back out. Pilot should remain lit. If pilot goes out, repeat steps 1
through 9.

• If the knob does not pop out when released, stop and immediately call your service technician or

gas supplier.

Page 20

• If pilot will not stay lit after several tries, turn gas control knob to “OFF” and call

your service technician or gas supplier.

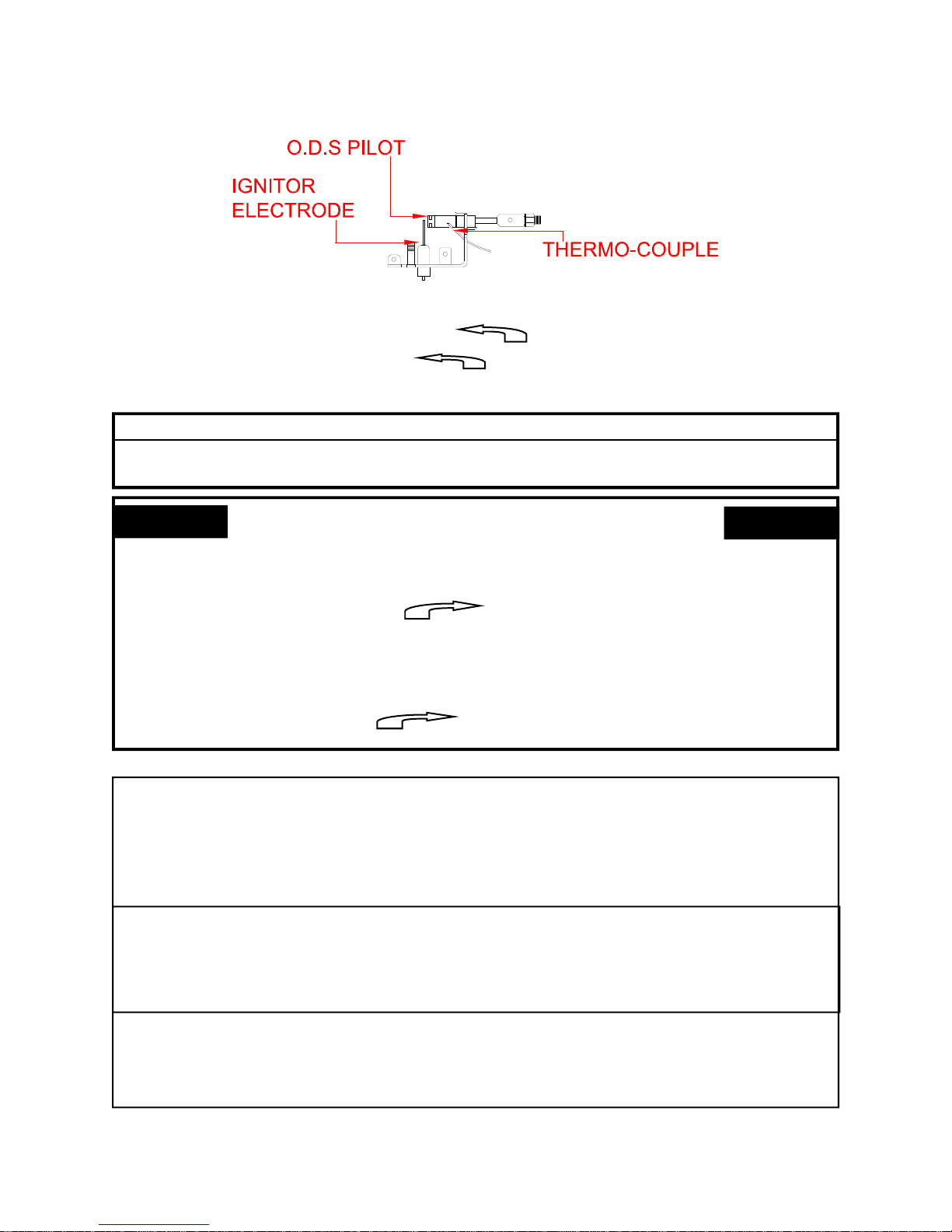

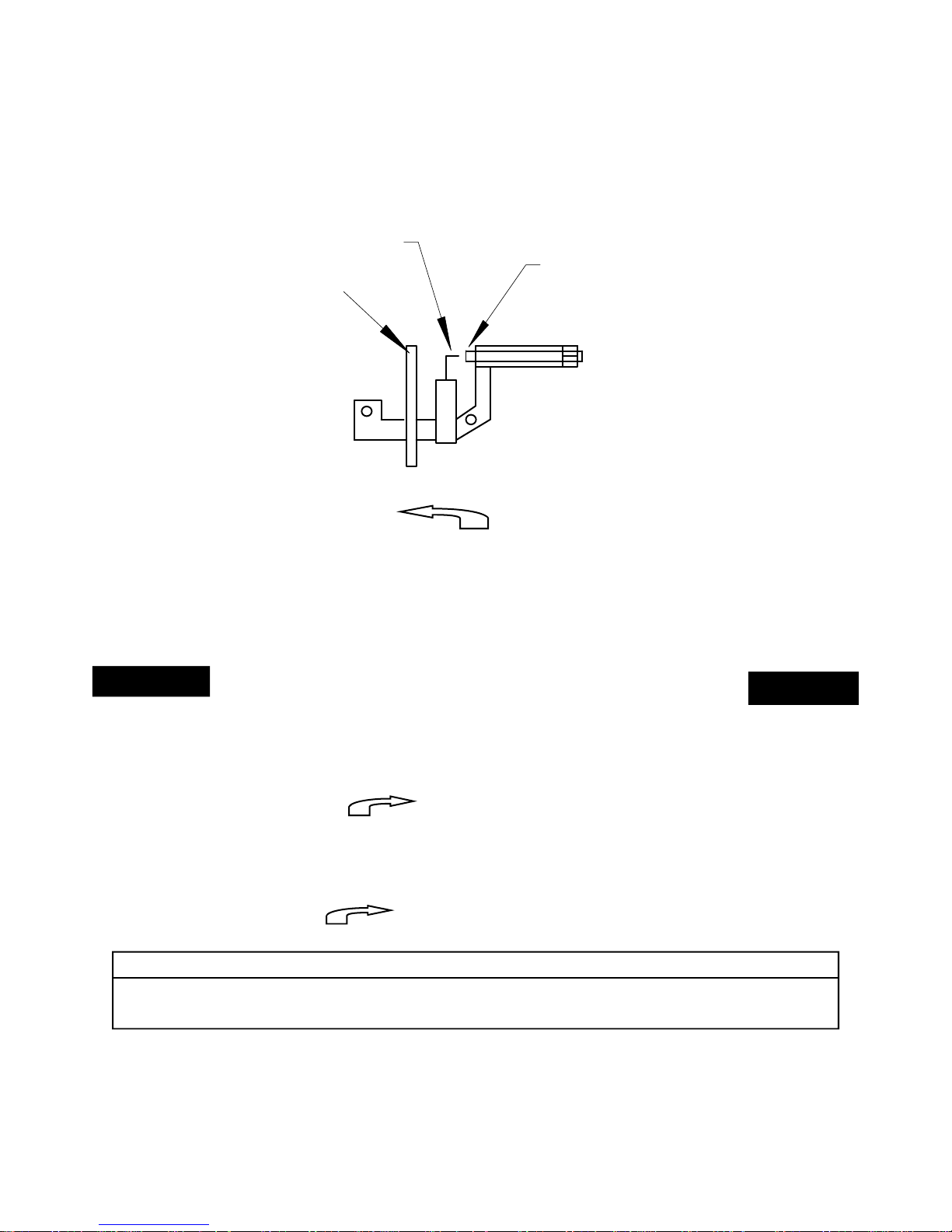

IGNITOR ELECTRODE

THERMO-COUPLE

THERMO-PILE

11. Turn control knob counterclockwise to “ON” position. Push “ON/OFF”
toggle switch to “ON” position. The main burner should light.

12. Close access panel door.

14. Turn on all electrical power to appliance.
NOTE: This unit may be used with an optional Wall Thermostat. If so, the Wall
Thermostat needs to be set at a higher temperature than room temperature.

TO TURN OFF GAS T O APPLIANCE

PILOT BURNER

SHUTTING OFF UNIT

1. Open access panel door located at bottom front of appliance.

2. “If equip with thermostat set to lowest setting.”

3. Turn control knob clockwise to “OFF” position.

4. Turn off all electric power to appliance if service is to be performed.

5. Close access panel door.

SHUTTING OFF BURNER ONLY (Pilot stays lit.)
Turn control knob clockwise to “PILOT” position.

CAUTION

DO NOT TRY TO ADJUST HEATING LEVELS BY USING MANUAL
SHUTOFF VALVE.

Page 21

THERMOSTAT CONTROL OPERATION

• This valve operates off of millivolts produced by the generator. You may choose to use an
optional Wall Thermostat or Remote control. If so, see Figure 2, page 11 for wiring diagram.

MANUAL LIGHTING PROCEDURE

1. If pilot cannot be lit with piezo, it can be manually lit with use of a paper match and a
lighter rod.

2. Open access panel door located at bottom front of appliance.

3. Place match in holder and light. With the left hand, turn control knob counterclockwise

to “PILOT”position. Press in gas control knob for fifteen (15) seconds.

4. Use rod to light match and ignite pilot. The pilot is located in front of rear log and burner

on right hand side of appliance.

5. Continue to hold control knob for an additional one (1) minute to ensure pilot is lit.

6. Turn control knob counterclockwise to “ON” position. Push “ON/

OFF” toggle switch to “ON” position. The main burner should light.

7. Close access panel door.

8. Turn on all electrical power to appliance.

NOTE: This unit may be used with an optional Wall Thermostat. If so, Wall Thermostat
needs to be set at a higher temperature than room temperature.

Page 22

LIGHTING INSTRUCTION

MODULATING OR MANUAL VALVE (SIT)

FOR YOUR SAFETY READ BEFORE LIGHTING

WARNING

IF YOU DO NOT FOLLOW THESE INSTRUCTIONS EXACTLY, A FIRE OR
EXPLOSION MAY RESULT CAUSING PROPERTY DAMAGE, PERSONAL
INJURY OR LOSS OF LIFE.

A. This appliance has a pilot which must be lighted by hand. When lighting pilot, follow these

instructions exactly.

B. BEFORE LIGHTING smell all around appliance area for gas. Be sure to smell next to

floor because gas is heavier than air and will settle on floor.

WHAT TO DO IF YOU SMELL GAS:

• Do not try to light any appliance.

• Do not touch any electric switch; do not use any phone in your building.

• Immediately call your gas supplier from a neighbor’s phone. Follow gas sup-

plier’s instructions.

• If you cannot reach your gas supplier, call fire department.”

C. Use only your hand to push in or turn gas control knob. Never use tools. If knob will not

push in or turn by hand, don’t try to repair it’ call a qualified service technician. Force or
attempted repair may result in a fire or explosion.”

D. Do not use this appliance if any part has been under water. Immediately call a qualified ser-

vice technician to inspect appliance and to replace any part of control system and any gas
control which has been under water.”

Page 23

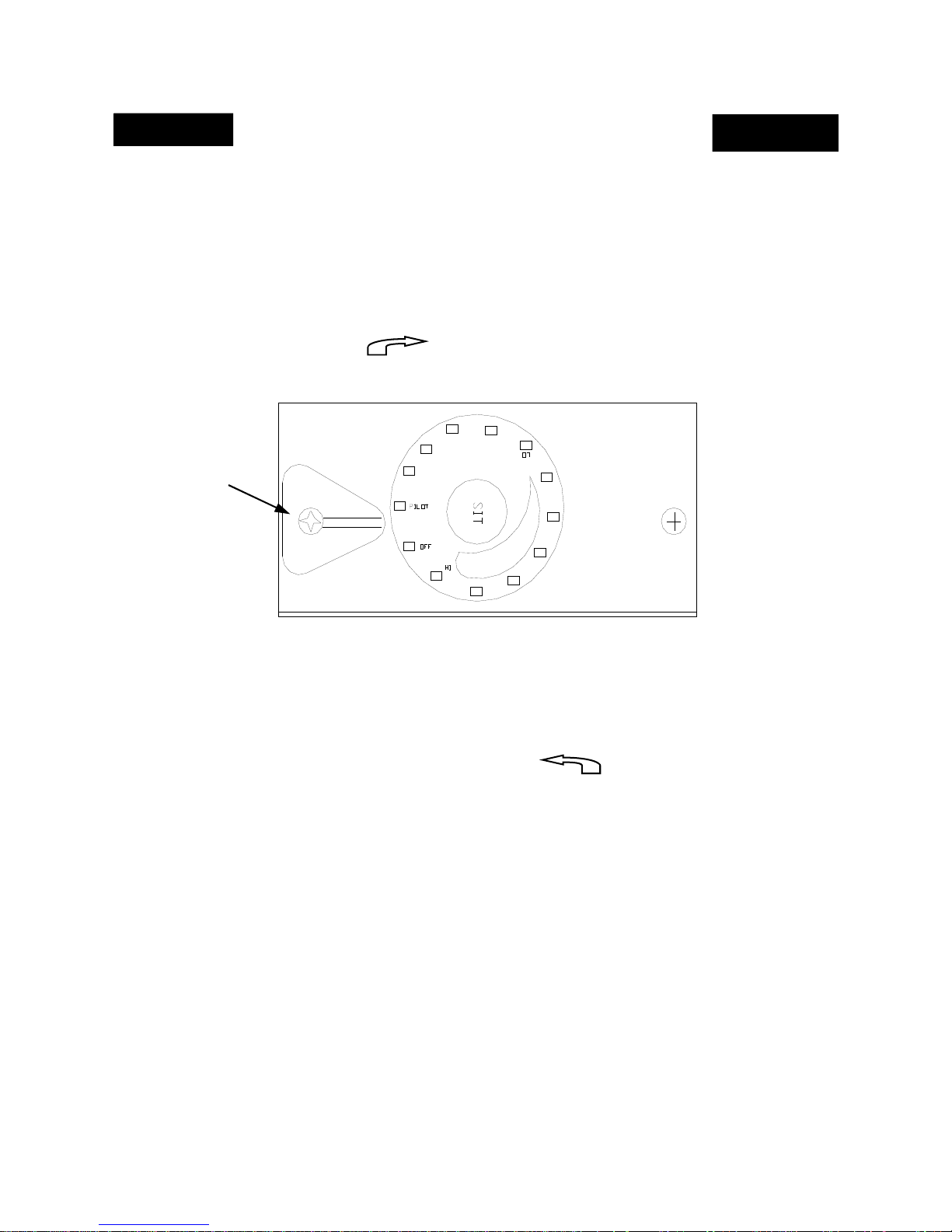

LIGHTING INSTRUCTION

1. STOP! Read safety information on preceding page 23.

2. Make sure manual shutoff valve is fully closed.

3. Turn off all electrical power to appliance.

4. Open access panel door located at bottom front of appliance.

5. Turn control knob clockwise to full “OFF” position.

Igniter Button

6. Wait five (5) minutes to clear out any gas. Then smell for gas, including near floor. If you

smell gas, STOP! Follow “B” on preceding page in Safety Information. If you don’t smell
gas, go to next step.

7. Find Pilot: The pilot is located in front of rear log and burner on right hand side of appli­ance. Fully open manual shutoff valve.

8. Press in and turn gas control knob counterclockwise to “PILOT” position
continue pressing in control knob for fifteen (15) seconds.

9. With control knob pressed in, push down (in) and release the igniter button (igniter button
is located on left hand side of gas control valve) . This will light pilot. If needed, keep re­peating this step until pilot lights.

10. Keep control knob pressed in for one (1) minute after lighting pilot. After one (1) minute,
release control knob and it will pop back out. Pilot should remain lit. If pilot goes out, re­peat steps 1 through 9.

• If the knob does not pop out when released, stop and immediately call your service techni-

cian or gas supplier.

• “If the pilot will not stay lit after several tries, turn gas control knob to “OFF” and call your

services technician or gas supplier.”

Page 24

11. Turn gas control knob counterclockwise to “ON” position. Continue to turn
gas control knob counterclockwise to your desired setting.

12. Close access panel door.

13. Turn on all electrical power to appliance.

CAUTION

DO NOT TRY TO ADJUST HEATING LEVELS BY USING MANUAL SHUTOFF
VALVE.

TO TURN OFF GAS TO APPLIANCE

SHUTTING OFF UNIT

1. Open access panel door.

2. Turn gas control knob clockwise to full “OFF” position.

3. Turn off all electric power to the appliance if service is to be performed

4. Close access panel door.

SHUTTING OFF BURNER ONLY (pilot stays lit)

Turn control knob clockwise to “PILOT” position.

CAUTION: Hot while in operation. Do Not Touch. Keep children, clothing, furniture,

gasoline and other liquids having flammable vapors away.

CAUTION: DO NOT TRY TO ADJUST HEATING LEVELS BY USING MANUAL

SHUTOFF VALVE.

WARNING: Improper installation, adjustment, alteration, service or maintenance can

cause property damage, personal injury or loss of life. Refer to owner’s information manual
provided with this appliance. Installation and service must be performed by a qualified
installer, service agency or gas supplier.

IMPORTANT: Always operate appliance at the completely “ON” or completely “OFF”

positions. Never use heater at a setting between these positions as this can result in improper
combustion and excessive carbon monoxide emissions.

Page 25

THERMOSTAT CONTROL OPERATION

1. The thermostat control on this heater differs from standard thermostats. Standard

thermostats simply turn burner on and off. The thermostat used on this heater senses
room temperature and adjusts amount of gas flow to burner. This will increase or
decrease flame height. At times, room may exceed set temperature, which will cause
the burner to shut off. When room temperature drops below the thermostat setting,
burner will cycle itself on again. The control knob can be set to any level between
“LO” and “HI”.

NOTE: The thermostat sensing bulb measures temperature of air near heater
cabinet.This may not always agree with room temperature (depending on
housing construction, installation location, room size, open air temperatures,
etc.). Frequent use of your heater will allow you to determine your personal
comfort levels.

MANUAL LIGHTING PROCEDURE

1. If pilot cannot be lit with piezo, it can be manually lit with use of a paper match and a

lighter rod.

2. Open access panel door located at bottom front of appliance.

3. Place the match in holder and light. With the left hand, turn control knob

counterclockwise to “PILOT”position. Press in gas control knob for fifteen
(15) seconds.

4. Use rod to light match and ignite pilot. The pilot is located in front of rear log and

burner on right hand side of appliance.

5. Continue to hold control knob for an additional one (1) minute to ensure pilot is

lit.

6. Turn control knob counterclockwise to “ON” position. Push

“ON/ OFF” toggle switch to “ON” position. The main burner should light.

7. Close access panel door.

8. Turn on all electrical power to appliance.

NOTE: This unit may be used with an optional Wall Thermostat. If so, Wall Thermostat needs
to be set at a higher temperature than room temperature.

Page 26

LIGHTING INSTRUCTIONS

SIT-MILLIVOLT VALVE

FOR YOUR SAFETY READ BEFORE LIGHTING

WARNING: If you do not follow these instructions exactly, a fire or explosion may result

causing property damage, personal injury or loss of life.

A. This appliance has a pilot which must be lighted by hand. When lighting pilot follow these
instructions exactly. If piezo fails, then light pilot using matches. Refer to match lighting
instructions.
B. BEFORE LIGHTING smell all around appliance area for gas. Be sure to smell next to
floor because some gas is heavier than air and will settle to floor.

WHAT TO DO IF YOU SMELL GAS:
* Do not try to light any appliance.
* Do not touch any electric switch; do not use any phone in your building.
* Immediately call your gas supplier from a neighbor’s phone. Follow gas supplier’s
instructions.
* If you cannot reach your gas supplier, call fire department.

C. Use only your hand to push in or turn gas knob. Never use tools. If the knob will not push
in or turn by hand, don’t try to repair it. Call a qualified service technician. Force or attempted
repair may result in a fire or explosion.”

D. Do not use this appliance if any or part of it has been under water. Immediately call a
qualified service technician to inspect appliance and to replace any part of the control system
and any gas control which has been under water.”

Page 27

LIGHTING INSTRUCTIONS

1. STOP! Read the safety information on the preceding page 27.

2. Make sure manual shutoff valve is fully closed. If equipped with thermostat, set to

lowest setting.

3. Turn off all electrical power to appliance.

4. Open access panel door.

5. Push in gas control knobslightly and turn clockwise to full “OFF” position.

REMOTE CONTROL OR
WALL THERMOSTAT

NOTE: Knob cannot be turned from “PILOT” to “OFF” unless knob is pushed in slightly.
Do not force.

6. Wait (5) five minutes to clear out any gas. Then smell for gas, including near floor. If you
smell gas, STOP! Follow “B” in safety information on reverse side of this label. If you
don’t smell gas, go to next step.

7. Find Pilot: The pilot is located in front of rear log and burner on right hand side of
appliance. Fully open the manual shutoff valve.

8. Press in and turn knob on gas control counterclockwise to “PILOT” and continue
pressing in the knob for (15) fifteen seconds.

9. With control knob pressed in push down (in) and release the igniter button (igniter button is
located on left hand side of front of appliance). This will light pilot. If needed, keep
repeating this step until pilot lights.

10. Keep control knob pressed in for (1) one minute after lighting pilot. After (1) minute,
release the control knob and it will pop back out. Pilot should remain lit. If pilot goes out,
repeat steps 1 through 9.

• If the knob does not pop out when released, stop and immediately call your service

technician or gas supplier.

Page 28

∗ If pilot will not stay lit after several tries, turn gas control knob to “OFF” and call

your service technician or gas supplier.

10. Turn control knob counterclockwise to “ON”.

11. If using unit without wall thermostat place Auto/Off/Manual switch into manual position.
If using wall thermostat place Auto Off Manual Switch into auto position and place
thermostat to a setting higher than room temperature.

12. “Turn on all electrical power to appliance.”

13. Your heater is equipped with a HI & LO control. Turn clockwise for Low and
counterclockwise for High.

14. Close access panel door.

CAUTION

DO NOT TRY TO ADJUST HEATING LEVELS BY USING MANUAL SHUTOFF
VALVE.

TO TURN OFF GAS TO APPLIANCE

SHUTTING OFF UNIT

1. Open access panel door.

2. “If equipped with thermostat set to lowest setting.”

3. Turn control knob clockwise to full “OFF”.

4. Turn off all electric power to appliance if service is to be performed.

5. Close access panel door.

SHUTTING OFF BURNER ONLY (Pilot stays lit.)
Turn control knob clockwise to “PILOT” position.

CAUTION: Hot while in operation. Do Not Touch. Keep children, clothing, furniture,

gasoline and other liquids having flammable vapors away.

CAUTION: DO NOT TRY TO ADJUST HEATING LEVELS BY USING MANUAL

SHUTOFF VALVE.

WARNING: Improper installation, adjustment, alteration, service or maintenance can

cause property damage, personal injury or loss of life. Refer to owner’s information manual
provided with this appliance. Installation and service must be performed by a qualified
installer, service agency, or gas supplier.

IMPORTANT: Always operate appliance at completely “ON” or completely “OFF”

positions. Never use heater at a setting between these positions as this can result in improper
combustion and excessive carbon monoxide emissions.

Page 29

MANUAL LIGHTING PROCEDURE

1. If pilot cannot be lit with piezo, it can be manually lit with use of a paper match and a
lighter rod.

2. Open access panel door located at bottom front of appliance.

3. Place the match in holder and light. With left hand, turn control knob
counterclockwise to “PILOT”position. Press in gas control knob for fifteen
(15) seconds.

4. Use rod to light match and ignite pilot. The pilot is located in front of rear log and

burner on right hand side of appliance.

5. Continue to hold control knob for an additional one (1) minute to ensure pilot is

lit.

6. Turn control knob counterclockwise to “ON” position. Push

“ON/ OFF” toggle switch to “ON” position. The main burner should light.

7. Close access panel door.

8. Turn on all electrical power to appliance.

NOTE: This unit may be used with an optional Wall Thermostat. If so, Wall Thermostat
needs to be set at a higher temperature than room temperature.

Page 30

FLAME CHECK

A periodic check of flames should be made. The pilot flame should always be present when gas logs
are in operation. See Figure 15.

Rear Flames: The flames at rear or at either side of top log should be very similar, yellow in color,

and should be about 3" to 4" above large rear log for natural gas logs and about 6" for propane
(LP) gas log sets.

Front Flame: The flame should be 1-1/2" to 2" high and touch back of front log. This will produce a

red glow on this log.

CR3329 LOG SET

E.S.B. LOG SET

Figure 15

Natural

PILOT

Propane

PILOT

NOTE: The fireplace screen must be in place when the appliance is in
operation. The screen must have openings for introduction of combustion air
unless other provisions have been made.

Page 31

WIRING DIAGRAM

MOTOR

JUMPER

GREEN

POWER CORD

JUMPER

WHITE

THERMOSTAT

JUMPER

BLACK

RHEOSTAT

BLACK

Figure 16

WARNING: CHILDREN AND ADULTS SHOULD BE ALERTED TO

HAZARDS OF HIGH SURFACE TEMPERATURES AND SHOULD STAY AWAY TO
AVOID BURNS OR CLOTHING IGNITION. YOUNG CHILDREN SHOULD BE
CAREFULLY SUPERVISED WHEN THEY ARE IN SAME ROOM WITH
APPLIANCE

WARNING: DO NOT PLACE CLOTHING OR OTHER FLAMMABLE

MATERIAL ON OR NEAR APPLIANCE.

NOTE: “If any of original wire as supplied with gas appliance must be replaced,

it must be replaced with a wire of at least a 105

NOTE: Installation and repair should be done by a qualified service person.
This heater should be inspected before use and at least annually by a qualified
service person. More frequent cleaning may be required due to excessive lint
from carpeting, bedding material, etc. It is imperative that control compartments
and circulating air passageways of heater be kept clean.

CAUTION: Label all wires prior to disconnection when servicing controls. Wiring errors can
cause improper and dangerous operation.

Verify proper operation after servicing.

o

C. temperature rating.”

Page 32

WARNING:

ELECTRICAL GROUNDING INSTRUCTION:
THIS APPLIANCE IS EQUIPPED WITH A THREE-PRONG (GROUNDING) PLUG
FOR YOUR PROTECTION AGAINST SHOCK HAZARD AND SHOULD BE
PLUGGED DIRECTLY INTO A PROPERLY GROUNDED THREE-PRONG
RECEPTACLE.

NOTE: #PESBR084 Blower Motor

Rating: 120 volts/60HZ/1.1 Amps.

See Figure 16, page 32 for wiring diagram.

NOTE: For convenience, allow licensed electrician to install properly grounded
3-plug receptacle near unit.

ROOM BLOWER INSTALLATION AND OPERATION INSTRUCTIONS

The room air blower is located at rear of unit in bottom chamber. To remove or replace
blower, open lower louvered access door. The motor is located right center in rear. Remove
two (2) hex head screws holding motor and motor bracket to outer bottom of unit. Unhook
two motor wires and remove the motor from unit. Next remove (2) screws that fasten the
motor bracket to motor. Locate motor bracket on new motor in same position as with the old.
Using two (2) hex head screws fasten the bracket to new motor. Place new motor into lower
compartment.

NOTE: Make sure motor opening 1"x 5" is behind inner wall of the stove and not touching
any metal. Fasten new motor and bracket to motor support on bottom of unit. Hook motor
wires as shown in diagram on page 32.

Installation and repairs should be performed by a qualified service person. The appliance should
be inspected before use and at least annually by a professional service person. More frequent
cleaning may be required due to excessive lint from carpeting, bedding material, etc. It is
imperative that control compartments, burners and circulating air passageways of appliance be
kept clean.

Page 33

IMPORTANT SAFEGUARDS

Although your gas logs are very realistic in appearance, it is not a real burning fireplace and must not be
used for burning rejected material.

• To avoid irreparable damage to heater or personal injury, matches, paper, garbage or any other

material must not be placed or thrown on top of logs or into flames.

• To avoid personal injury, do not touch hot surfaces when heater is operating.

• Close supervision is necessary when heater is being operated near children.

WARNING: THE LOGS ARE MANUFACTURED FROM

BONDED CERAMIC FIBER. THIS IS A COMMONLY USED
MATERIAL IN INDUSTRY WORLDWIDE. IN THE EVENT THAT A
LOG SHOULD BE REMOVED, CARE SHOULD BE TAKEN NOT TO
DAMAGE THE BONDED MATERIAL.
INTENTIONAL MISUSE OR DELIBERATELY FRAGMENTING THE
MATERIAL COULD LEAD TO INHALING FIBERS AND BE
HAZARDOUS TO YOUR HEALTH.

THIS HEATER IS INTENDED FOR USE AS A GAS HEATER
FIREPLACE AS DESCRIBED IN THESE INSTRUCTIONS. IT SHOULD
NOT BE USED FOR ANY OTHER PURPOSE.

CLEANING

CAUTION: BEFORE CLEANING OR MOVING THESE LOGS OR

OTHER PARTS OF HEATER, BE SURE TO READ ABOVE SECTIONS
ON “IMPORTANT SAFEGUARDS.

The appliance must be turned “OFF” before cleaning inside firebox (burn area),
make sure pilot is “OFF” completely and appliance has cooled.

• All cleaning should be carried out when heater is cold. Limited cleaning is required with

normal use. Dusting front of the base, top of piezo cover, or control knob panel may be
required occasionally. Do not use cleaning fluids to clean logs or any other part of heater.

• If the flames show unusual shapes or behavior or if burner fails to ignite properly, burner

holes may require cleaning. If this occurs, contact your nearest dealer to service the heater.

• The heater can be cleaned by removing logs. Lift logs gently, as not to damage the fiber

pieces, use caution when removing. Lift each log by holding it carefully at each end. Use
a vacuum cleaner to remove dust and loose particles from base, logs and around burner
and ODS/Pilot. Gloves are recommended to prevent fibers from breaking skin. If skin is
broken, clean with soap and water.

WARNING: Failure to keep primary air openings (s) of burner (s) clean may result in

soot and property damage.

Page 34

TROUBLESHOOTING

WARNING

TURN OFF, UNPLUG HEATER AND LET COOL BEFORE SERVICING.
ONLY A QUALIFIED SERVICE PERSON SHOULD SERVICE AND REPAIR
HEATER.

CAUTION

NEVER USE A WIRE, NEEDLE OR SIMILAR OBJECT TO CLEAN ODS/
PILOT. THIS CAN DAMAGE ODS/PILOT.

OBSERVED
PROBLEM

Igniter button is pressed no
spark at ODS/Pilot

OBSERVED
PROBLEM

Igniter button is pressed
Spark at ODS/Pilot
No Ignition

POSSIBLE
CAUSE

1. Igniter electrode positioned
incorrectly

2. Igniter electrode broken

3. Igniter electrode not conn­ected to igniter cable

4. Igniter cable pinched or wet

5. Piezo igniter nut is loose

6. Broken igniter cable

7. Bad piezo igniter

POSSIBLE
CAUSE

1. Gas supply turned off or
manual shutoff valve is
closed

2. Control knob not in “PILOT”
position

3. Control knob not pressed in
while in “PILOT” position

SOLUTION

1. Replace igniter

2. Replace igniter

3. Reconnect igniter cable

4. Free igniter cable if pinched
by any metal or tubing. Keep
igniter cable dry.

5. Tighten nut holding piezo
igniter to heater cabinet. Nut
is located inside heater
cabinet at top.

6. Replace igniter cable

7. Replace piezo igniter

SOLUTION

1. Turn on gas supply or open
manual shutoff valve

2. Turn control knob to “PILOT”
position

3. Press in control knob while in
“PILOT” position.

Page 35

OBSERVED
PROBLEM

ODS/PILOT lights but flame
goes out when control knob is
released

4. Air in gas lines when
installed

5. Depleted gas supply

6. ODS/Pilot is clogged

7. Gas regulator setting is not
correct

POSSIBLE
PROBLEM

1. Control knob is not fully
pressed in

2. Control knob not pressed in
long enough

3. Safety interlock system has
been triggered (if equipped)

4. Manual shutoff valve not
fully open

5. Thermocouple connection
loose at control valve

6. Pilot flame not touching
thermocouple, which allows
thermocouple to cool,
causing pilot flame to go
out. This problem can be
caused by one or both of the
following:

A) low gas pressure
B) dirty or partially

clogged ODS/Pilot

7. Control valve damaged

4. Continue to hold down control
knob. Repeat igniting
operation until air is removed.

5. Contact local propane gas
company

6. Clean ODS/Pilot or replace
ODS/Pilot assembly

7. Replace gas regulator

SOLUTION

1. Press control knob completely

2. After ODS/Pilot lights keep
control knob pressed 30
seconds.

3. Wait one (1) minute for safety
interlock system to reset.

4. Fully open manual shutoff
valve.

5. Hand tighten until snug, then
tighten 1/4 turn

6. A) contact local propane gas
company

B) Clean ODS/Pilot (See

“Cleaning and Maintenance”),
or replace ODS/Pilot
assembly

7. Replace valve control

Page 36

OBSERVED
PROBLEM

Burner does not light after ODS/
Pilot is lit

Delayed ignition of burner

Burner backfiring during
combustion

Slight smoke or odor during
initial operation

Heater produces a whistling
noise when burner is lit

POSSIBLE
CAUSE

1. Burner orifice is clogged

2. Inlet gas pressure is too low

1. Manifold pressure is too low

2. Burner orifice is clogged

1. Burner orifice is clogged or
damaged

2. Burner damaged

3. Gas regulator defective

1. Residues from manufacturing
process

1. Turning control knob to HI
position when burner is cold
(if equipped with this type of
valve)

2. Air in gas line

3. Air passageways on heater
blocked

4. Dirty or partially clogged
burner orifice

SOLUTION

1. Clean burner (see “Cleaning
and Maintenance”) or replace
burner orifice

2. Contact local propane gas
company

1. Contact local propane gas
company.

2. Clean burner (see “Cleaning
and Maintenance”) or replace
burner orifice

1. Clean burner (see “Cleaning
and Maintenance”) or replace
burner orifice

2. Replace burner

3. Replace gas regulator

1. Problem will stop after a few
hours of operation

1. Turn control knob to LOW
position and allow to warm

2. Operate burner until air is
removed from line. Call
local propane company to
check gas line

3. Observe minimum
installation clearances

4. Clean burner or replace
orifice

Page 37

WARNING

IF YOU SMELL GAS:

* DO NOT TRY TO LIGHT APPLIANCE
* DO NOT TOUCH ANY ELECTRICAL SWITCH; DO NOT USE ANY
PHONE IN YOUR BUILDING
* IMMEDIATELY CALL YOUR GAS SUPPLIER FROM A NEIGHBOR’S
PHONE. FOLLOW GAS SUPPLIER’S INSTRUCTIONS.
* IF YOU CANNOT REACH YOUR GAS SUPPLIER, CALL FIRE
DEPARTMENT.

IMPORTANT: Operating heater where impurities in air exist may create odors. Cleaning supplies,

paint, paint remover, cigarette smoke, cements and glues, new carpet or textiles, etc. create fumes.
These fumes may mix with combustion air and create odor.

OBSERVED
PROBLEM

Heater produces a clinking/
ticking noise just after burner is lit
or shut off

Heater produces unwanted odors

Heater shuts off in use
(ODS operates)

Gas odor even when control knob
is in OFF position

Gas odor during combustion

POSSIBLE
CAUSE

1. Metal expands while heating
or contracts while cooling

1. Heater burning vapors from
paint, hairspray, glues, etc.
(See Important above)

2. Low fuel supply

3. Gas leak (See WARNING
above)

1. Not enough fresh air is
available

2. Low line pressure

3. ODS/Pilot is partially clogged

1. Gas leak (See WARNING,
above)

2. Control valve defective

1. Foreign matter between
control valve and burner

2. Gas leak (See WARNING
above).

SOLUTION

1. This is common with most
heaters. If noise is excessive,
contact a qualified service
person

1. Ventilate room. Stop using
odor causing products while
heater is running.

2. Refill supply tank

3. Locate and control all leaks
See Checking Gas
Connections

1. Open window/door for
ventilation

2. Contact local propane co.

3. Clean ODS/Pilot

1. Locate and correct all leaks
(see “Checking Gas
Connections”)

2. Replace control valve

1. Remove foreign matter from
gas tubing

2. Locate and correct all leaks
(see “Checking Gas
Connections”)

Page 38

SERVICING

Repair and replacement work should only be performed by a qualified service technician.

Always shut off gas supply and make sure heater is cool before beginning any service
operation. Check for gas leaks after servicing.

REPAIR PARTS

A parts list with exploded view follows. Always include correct name, part number and model
number of heater when ordering service parts. Please contact your local dealer or distributor
when ordering . If one is not available, you may contact.

New Buck Corporation
P.O. Box 69
200 Ethan Allen Drive
Spruce Pine, NC 28777

Page 39

REPLACEMENT PARTS

ITT VALVE 19GL BASE

(Picture on page 42)

KEY# PART DESCRIPTION PART NUMBER

1. Carling Switch PE RA911VB

2. Female Terminals PE 5X425

3. Piezo Igniter PE 124461

4. Piezo 14" Igniter Wire PE UL3573

5. Pilot (NAT.) Copreci PE 2150053 - NAT.

5. Pilot (LP) Copreci PE 2150054 - LP

6. Pilot Tube 1/4" MF 147AL

7. 1/8" x 1/4" Compression Adapter PH 6842

8. Regulator (LP) Maxitrol PE RV 12LF90

8. Regulator (NAT.) Maxitrol PE RV 12LF30

9. Pilot Tube 1/4" MF 147AL

10. 3/8" x 3/8" Elbow (Brass) PH 4966

11. Thermo-pile PE G251F24S

12. Jumper Wire 6" PE 65 JUMPER

13. 3/8" IPT Male & Female Connector PH 4866

14. Gas Ball Valve PO 110-553

15. 1/2" x 12" Gas Connector PO 20-2131-12

16. Valve (LP) ITT PE B67SA233

16. Valve (NAT.) ITT PE B67RA234

17. Burner Tube 3/8" PO 38812ALMTUB

18. Orifice Holder PO 54ORFHLD

19. Orifice PO ORIFICE

20. Burner Tube PO DTBURN

21. Burner Base PSNV 0000

OTHER PARTS (NOT SHOWN)

22. Fan Motor PE SBR084

23. Power Cord PE 400240

24. Strain Release PE 400320

25. Thermostat PE 400130

26. Male Terminals PE 5X428

27. Jumper Wire 12" PE 12JUMPER

28. Gas Log Set PO CR34LG

29. Fan Speed Control Label PE KB9724

30. Rheostat PE BC204

31. Rheostat Knob PE BC204A

32. Heyco 1-1/4" Grommet PO HEYCO 2883

Page 40

ITT VALVE 19GL BASE

21

20

19

18

16

17

8

9

7

6

5

4

11

10

12

3

ITT

THERMO

GENERAL

CONTROLS

AUX

GEN

T

E

S

E

R

N

O

O

T

S

T

ADJ
PILOT

S
E

O

R

L

I

P

P

OFF

ON

2

13

1

14

15

Page 41

REPLACEMENT PARTS

SIT MODULATING VALVE OR SIT Manual VALVE 19GL BASE

(Picture on page 44)

KEY# PART DESCRIPTION PART NUMBER

1. Pilot (NAT.) Copreci PE 2150053 - NAT.

1. Pilot (LP) Copreci PE 2150054 - LP

2. Thermocouple (Copreci) PE TPT100 / 90
3a. Pilot Tube 1/4" MF 147AL
3b. Pilot Tube 1/4" MF 147AL

4. Burner Tube 3/8" PO 38812ALMTUB

5. Pilot Regulator (LP) Maxitrol PE RV 12LF90

5. Pilot Regulator (NAT.) Maxitrol PE RV 12LF30

6. Burner Tube PO DTBURN

7. Orifice Holder PO 54ORFHLD

8. Orifice PO ORIFICE

9. Valve (LP) SIT (Modulating) PE 0630504

9. Valve (NAT.) SIT (Modulating) PE 0630504

9.A Valve (LP) SIT (Manual) PE0630.552

9.A Valve (NAT.) SIT (Manual) PE0630.552

10. Burner Base PSNV0000

11. Valve Regulator (LP) Maxitrol PE RV20LF90

11. Valve Regulator (NAT.) Maxitrol PE RV20LF35

Black Pipe:

12. Brass 90 degree street elbow PH1166

13. 3/8" x 1-1/2" Nipples (1) PO 382BINIP

14. 3/8" x 5" Nipples (1) PO 385BINIP

15. Brass Pipe Bushing PH11086

16. 1/2" x 12" Gas Connector PO 20-2131-12

17. 3/8" Straight to 3/8" Flare Connector PH 4866

18. 1/8" x 1/4" Compression Adaptor PH 6842

19. Gas Ball Valve PO 110-553

OTHER PARTS (NOT SHOWN)

20. Fan Motor PE SBR084

21. Power Cord PE 400240

22. Strain Release PE 400320

23. Thermostat PE 400130

24. Male Terminals PE 5X428

25. Jumper Wire 12" PE 12JUMPER

26. Gas Log Set PO CR34LG

27. Fan Speed Control Label PE KB9724

28. Rheostat PE BC204

29. Rheostat Knob PE BC204A

30. Heyco 1-1/4" Grommet PO HEYCO 2883

Page 42

SIT MODULATING VALVE OR SIT MANUAL VALVE 19GL BASE

10

9

8

7

4

L

O

12

Sit

F

F

O

PILOT

11

12

13

14

15

6

I

H

19

17

16

1

2

3B

5

18

3A

Page 43

REPLACEMENT PARTS

SIT MILLIVOLT VALVE 19GL BASE

Picture on Page 46

KEY# PART DESCRIPTION PART NUMBER

1. 820 MV. S.I.T. VALVE LP-PE 820636
NAT– PE 820637

2. GENERATOR (PILOT ASSEMBLY)

3. BURNER TUBE PO DTBURN

4. O.D.S PILOT (L.P.) O.P. ASSEMBLY PE 8404C
O.D.S PILOT (NAT.) O.P. ASSEMBLY PE 8204C

5. THERMO-COUPLE (PILOT ASSEMBLY)

6. 2"-3/8" BLACKIRON NIPPLE PO 382BINIP

7. BURNER SUPPLY LINE ELBOW PH4966

8. 21" PILOT TUBE 3/16" MF 31621ALMTUB

9. ORIFICE PO ORIFICE

10. ORIFICE HOLDER PO 54ORFHLD

11. 3/8" NUT & SLEEVE PH 616 & PH 606

12. PIEZO STRIKER PE 124461

13. CARLING SWITCH
(AUTO/OFF/MANUAL) PE RC211RB

14. 12" SWITCH WIRES PE 12JUMPER

15. 12" GENERATOR WIRE (PILOT ASSEMBLY)

16. 14 3/4" x 3/8" BURNER SUPPLY TUBE PO 381434ALMTUB

17. 3/8" FIP TO 1/2" MPT PIPE BUSHING PH 11086

18. 1/2" BALL VALVE WITH PRESSURE TAP PO 110-553

19. 1/2" FLARE TO 1/2" STRAIGHT (FLEX LINE ASSEMBLY)

20. 1/2" FLEX LINE PO 20-213-12

21. 1/2" FLARE TO 3/8" FLARE PH 4286

Page 44

SIT MILLVOLT VALVE 19GL BASE

15

8 16

2

7

4

5

3

1

6

17

9

18

19

10

11

Page 45

20

21

12

13

14

REPLACEMENT PARTS FOR

SIT MILLIVOLT VALVE ESB. BASE

(PICTURE ON PAGE 47)

A parts list with exploded view follows. Always include correct name, part number and model
number of heater when ordering service parts.

KEY# PART DESCRIPTION PART NUMBER

1. O.D.S. PILOT (L.P.) O.P. ASSEMBLY PE 8404C

1. O.D.S. PILOT (NAT) O.P. ASSEMBLY PE 8204C

2. GENERATOR ASSEMBLY (Part of Pilot Assembly)

3. PILOT TUBE 3/16" MF 31612 ALMTUB

4. GENERATOR WIRE (Part of Pilot Assembly)

5. REAR BURNER PO VE1002
FRONT BURNER PO 383436

6. INLET ELBOW PH 4966

7. 3/8" COMP. NUT & SLEEVE PH 616 & PH 606

8. 3/8" BURNER SUPPLY TUBE (FLEX)

- 3 pieces 12" PO T6-12

9. 24" SWITCH WIRES PE 30JUMPER

10. CARLING SWITCH
(AUTO/OFF/MANUAL) PE RC211RB

11. PIEZO STRIKER PE 124461

12. PIEZO 18" IGNITOR WIRE PE 8400-014

13. MALE RUN TEE FITTING PH 64A-66

14. THERMO-COUPLE

15. MANIFOLD OUTLET CONNECTOR PH 68A-6C

16. ORIFICES L.P.
FRONT #1.25mm PO 125 MVORF
REAR #.046” PO 046 MVORF
NATURAL
FRONT #2.05mm PO 205 MVORF
REAR #48 PO 48 MVORF

17. 820 mv. S.I.T. VALVE LP - PE 820-636
NAT - PE 820-637

18. 8”L 3/8”BURNER SUPPLY LINE MF382ALMTUB
(3/4”-3/8” FLARE/3/8” COMP. N&S FITTINGS)

* LOG SET EMBER STOVE BASE (CERAMIC)

Page 46

SIT MILLIVOLT VALVE ESB. BASE

10

15

6

8

11

13

12

8

16

7

16

17

5

1

2

6

4

14

3

Page 47

NEW BUCK CORPORATION

We reserve rights to amend these specifications at any time without notice. The only warranty
applicable is our standard written warranty. We offer no other warranty, expressed or implied.

LIMITED WARRANTY

MODEL FP-36-ZC

New Buck warrants this product to be free from defects in materials and components for two
(2) years from date of first purchase, provided that product has been properly installed,
operated and maintained in accordance with all applicable instructions. To make a claim under
this warranty Bill of Sale or canceled check must be presented.

This warranty is extended only to original retail purchaser and covers cost of parts required to
restore heater to proper condition. Warranty parts MUST be obtained through an authorized
Buck Stove dealer and/or New Buck, who will provide original factory replacement parts.
Failure to use original factory replacement parts voids this warranty. The heater must be
installed by a qualified installer in accordance with all local codes and instructions furnished
with unit.

Warranty does not apply to parts that are not in original condition, normal wear and tear or
parts that fail or become damaged as a result of misuse, accidents, lack of proper maintenance
or defects caused by improper installation.

WARRANTY DOES NOT COVER:

- Removal and re-installation cost

- Labor costs for replacements or repairs

- Transportation

- Cost of service call to diagnose trouble

- Painted surfaces

- Damage or defect caused by improper installation, accident, misuse, abuse or alteration

TO FULL EXTENT ALLOWED BY LAW OF THE JURISDICTION THAT GOVERNS
SALE OF PRODUCT, THIS EXPRESS WARRANTY EXCLUDES ANY AND ALL
OTHER EXPRESSED WARRANTIES AND LIMITS DURATION OF ANY AND ALL
WARRANTIES, INCLUDING WARRANTIES OF MERCHANTABILITY AND FITNESS
FOR A PARTICULAR PURPOSE TO ONE (1) YEAR FROM DATE OF FIRST
PURCHASE. NEW BUCK LIABILITY IS HEREBY LIMITED TO PURCHASE PRICE OF
PRODUCT AND NEW BUCK SHALL NOT BE LIABLE FOR ANY OTHER DAMAGES
WHATSOEVER INCLUDING INCIDENTAL OR CONSEQUENTIAL DAMAGES.

Some states do not allow a limitation on how long an implied warranty lasts or an exclusion or
limitation of incidental or consequential damages, so above limitation on implied warranties or
exclusion on damages may not apply to you.

This warranty gives you specific legal rights. Other rights may vary from state to state.

Page 48

OWNER REGISTRATION

The attached owner registration card must be completed in its entirety and mailed within 30
days from date of installation in order for warranty coverage to begin to:

New Buck Corporation
P.O. Box 69
Spruce Pine, NC 28777

PLEASE NOTE: Owner Registration Card must contain Authorized Buck Stove Dealer
Number and Certified Installer’s number (if applicable) for warranty coverage to begin.

NAME: _____________________________________________________
ADDRESS: __________________________________________________
CITY: ______________________________________________________
STATE: ______________________ ZIP: ________________________

CUSTOMER EMAIL: ________________________________________

MODEL #:

FP-36ZC

SERIAL #: ___________________________

DATE OF INSTALLATION: ___________________________________
INSTALLER’S NAME: ________________________________________
DEALER’S NAME: ___________________________________________
DEALER’S ADDRESS: _______________________________________
