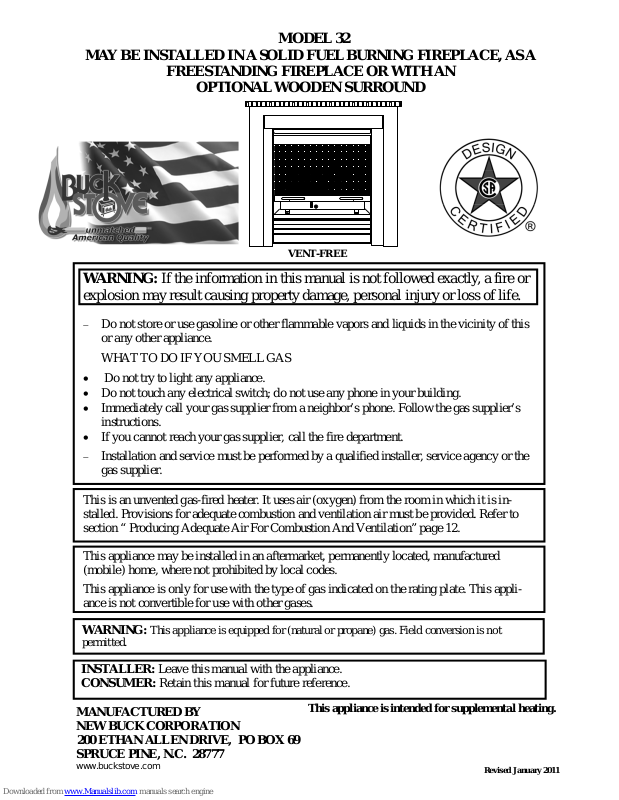

BuckMaster 32 User Manual

MODEL32

MAY BE INSTALLED INA SOLID FUELBURNING FIREPLACE, AS A

FREESTANDING FIREPLACE OR WITHAN

OPTIONALWOODEN SURROUND

ON

VENT-FREE

WARNING: If the information in this manual is not followed exactly, a fire or

explosion may result causing property damage, personal injury or loss of life.

 Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this

or any other appliance.
WHAT TO DO IF YOU SMELL GAS

 Do not try to light any appliance.
 Do not touch any electrical switch; do not use any phone in your building.
 Immediately call your gas supplier from a neighbor’s phone. Follow the gas supplier’s

instructions.

 If you cannot reach your gas supplier, call the fire department.

 Installation and service must be performed by a qualified installer, service agency or the

gas supplier.

This is an unvented gas-fired heater. It uses air (oxygen) from the room in which it is in­stalled. Provisions for adequate combustion and ventilation air must be provided. Refer to
section “ Producing Adequate Air For Combustion And Ventilation” page 12.

This appliance may be installed in an aftermarket, permanently located, manufactured
(mobile) home, where not prohibited by local codes.

This appliance is only for use with the type of gas indicated on the rating plate. This appli­ance is not convertible for use with other gases.

WARNING: This appliance is equipped for (natural or propane) gas. Field conversion is not

permitted.

INSTALLER: Leave this manual with the appliance.
CONSUMER: Retain this manual for future reference.

Manufacturer: NEW BUCK CORPORATION

MANUFACTURED BY
NEW BUCK CORPORATION

200 ETHAN ALLEN DRIVE, PO BOX 69

P.O. Box 69
200 Ethan Allen Drive.
Spruce Pine, NC 28777

SPRUCE PINE, N.C. 28777

www.buckstove.com

This appliance is intended for supplemental heating.

Revised January 2011

TABLE OF CONTENTS

Safety Information and Warnings................................................................................................. 3

Solid Fuel Burning Fireplace Installation (FP)............................................................................. 6

Freestanding Installation Without or With Optional Pedestal (FS)............................................. 8

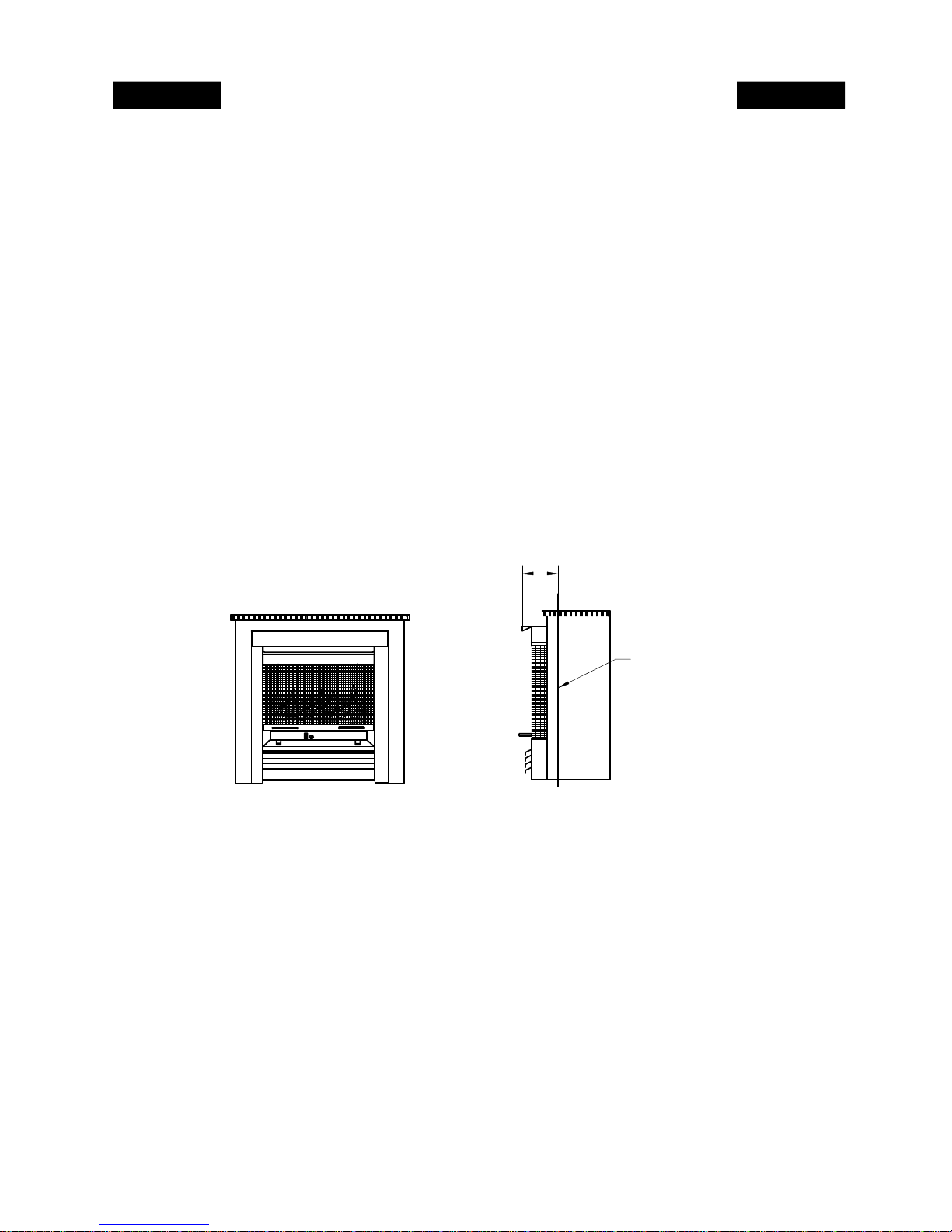

Wooden Surround Installation (WS) .......................................................................................... 10

Mobile Home Installation .......................................................................................................... 11

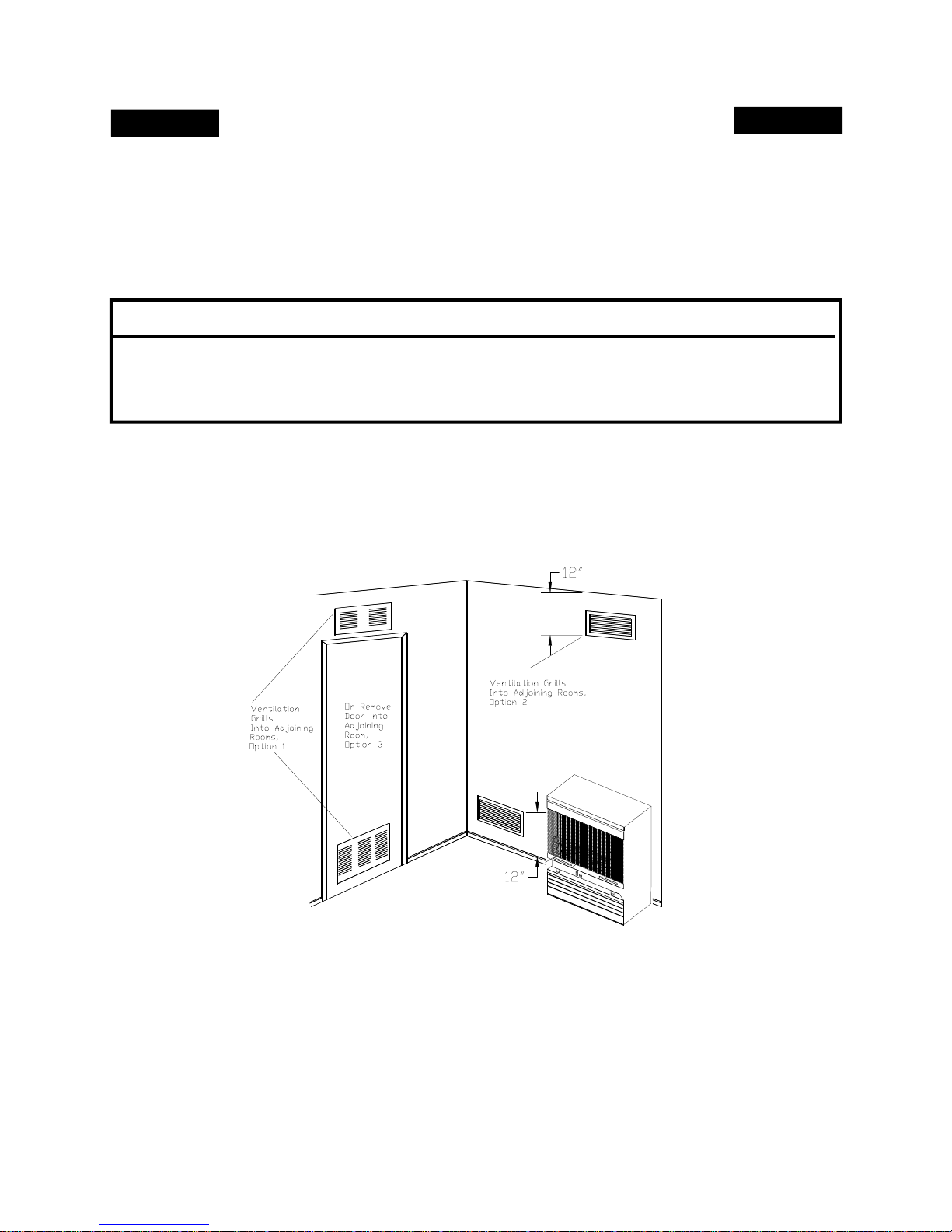

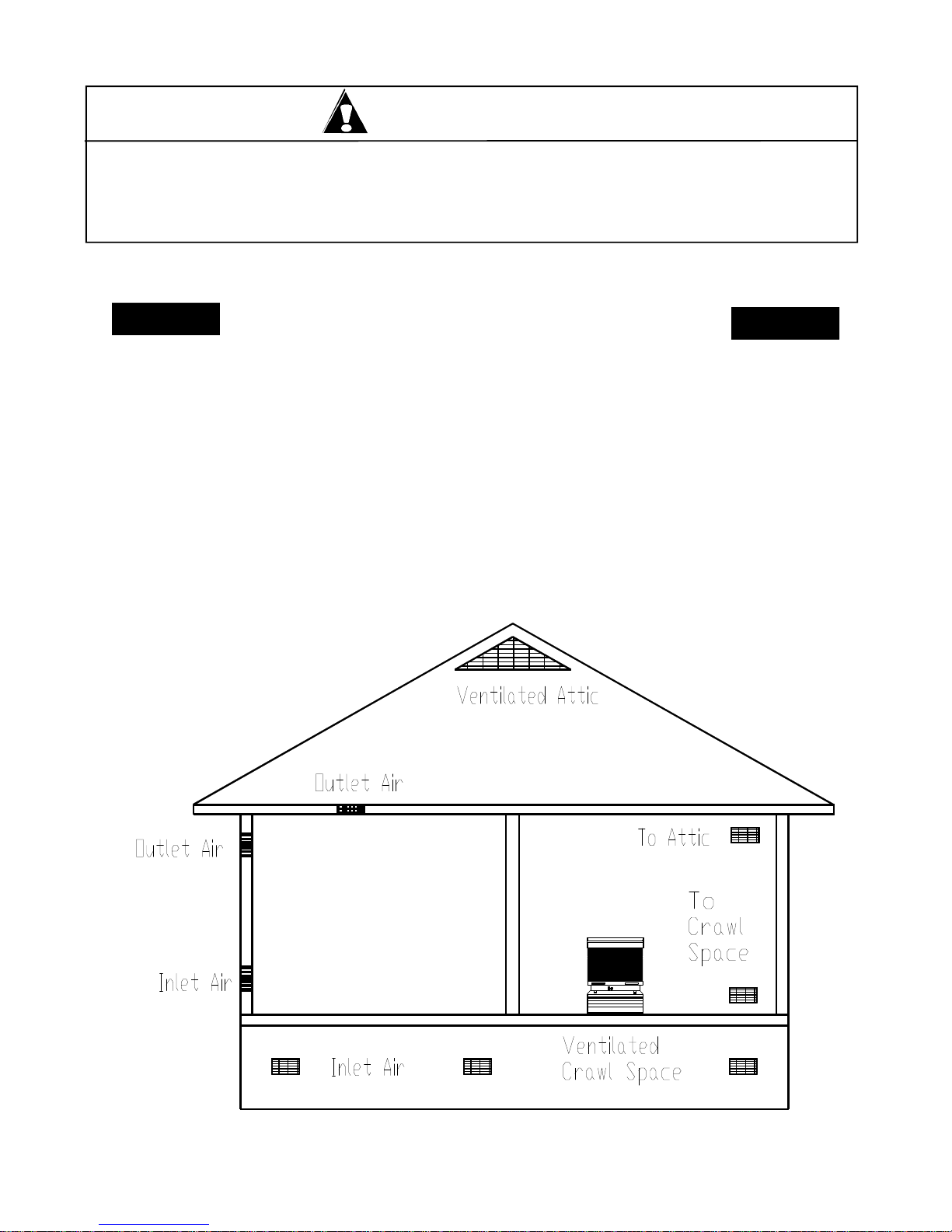

Producing Adequate Ventilation................................................................................................. 12

Air For Combustion And Ventilation Inside building................................................................ 14

Air For Combustion And Ventilation Outdoors ......................................................................... 15

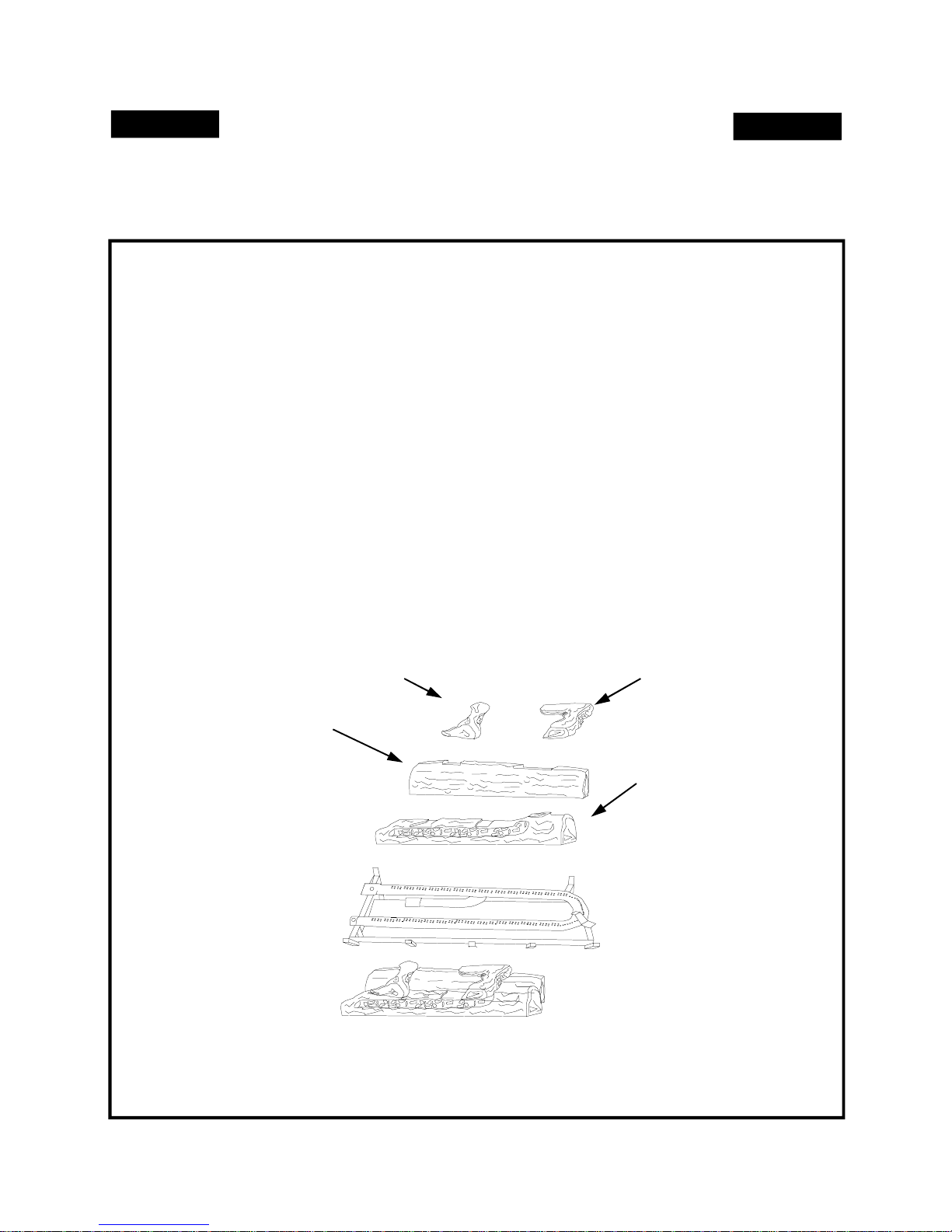

Placement of Logs.......................................................................................................................16

Gas Connection...........................................................................................................................17

Gas Pressure Check..................................................................................................................... 18

Lighting Instructions - (ITT) Millivolt Valve............................................................................. 19

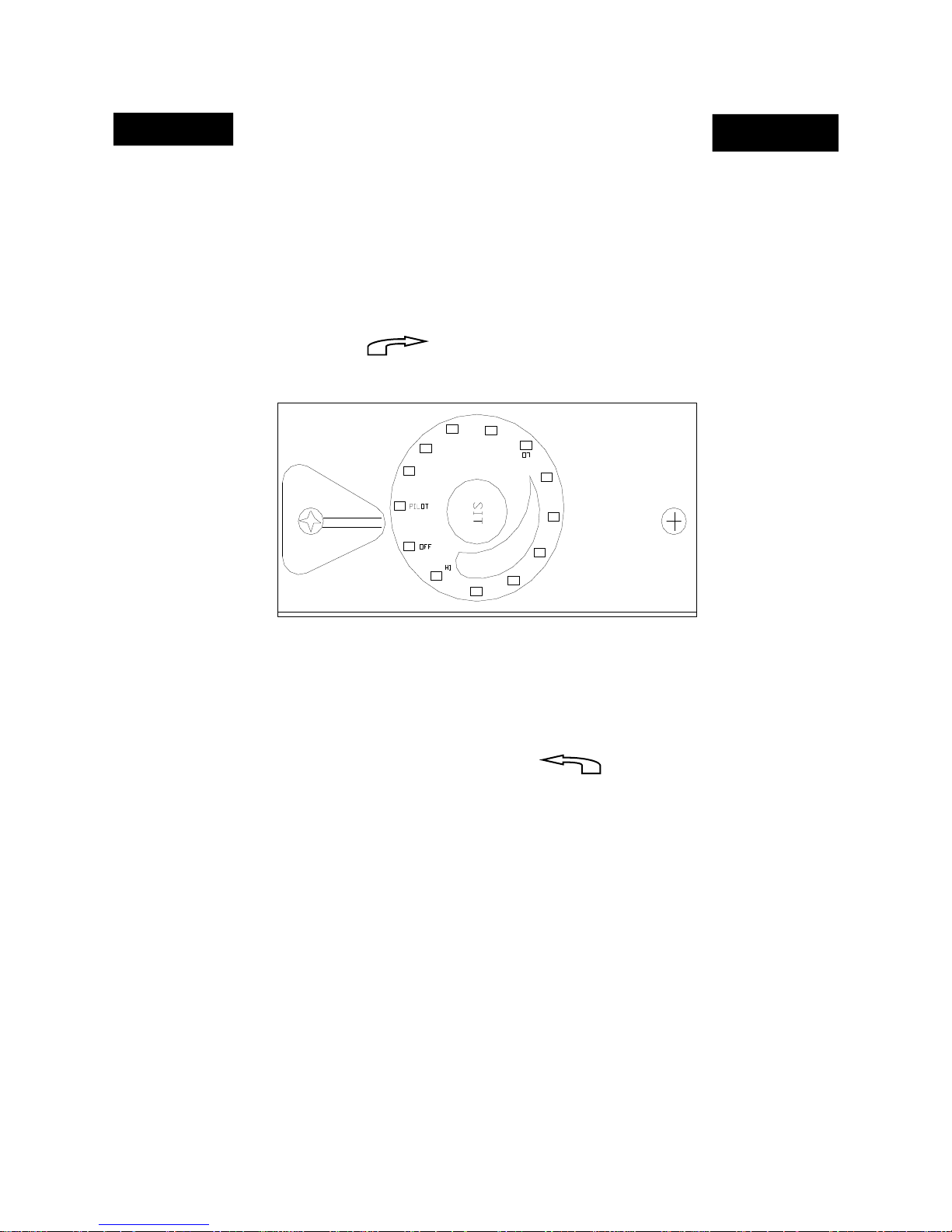

Lighting Instructions - (SIT) Modulating or – (SIT) Manual................................................... 23

Flame Check ............................................................................................................................... 27

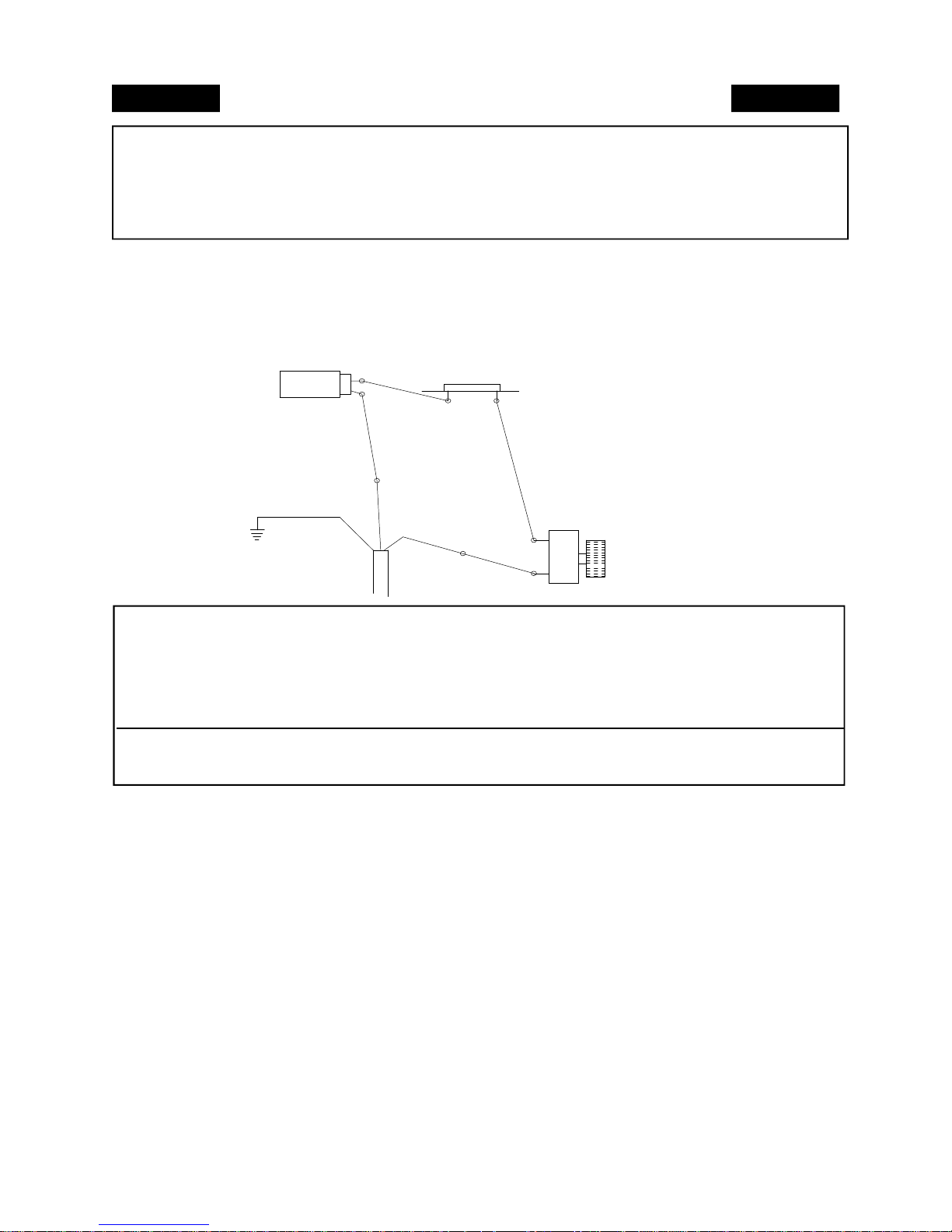

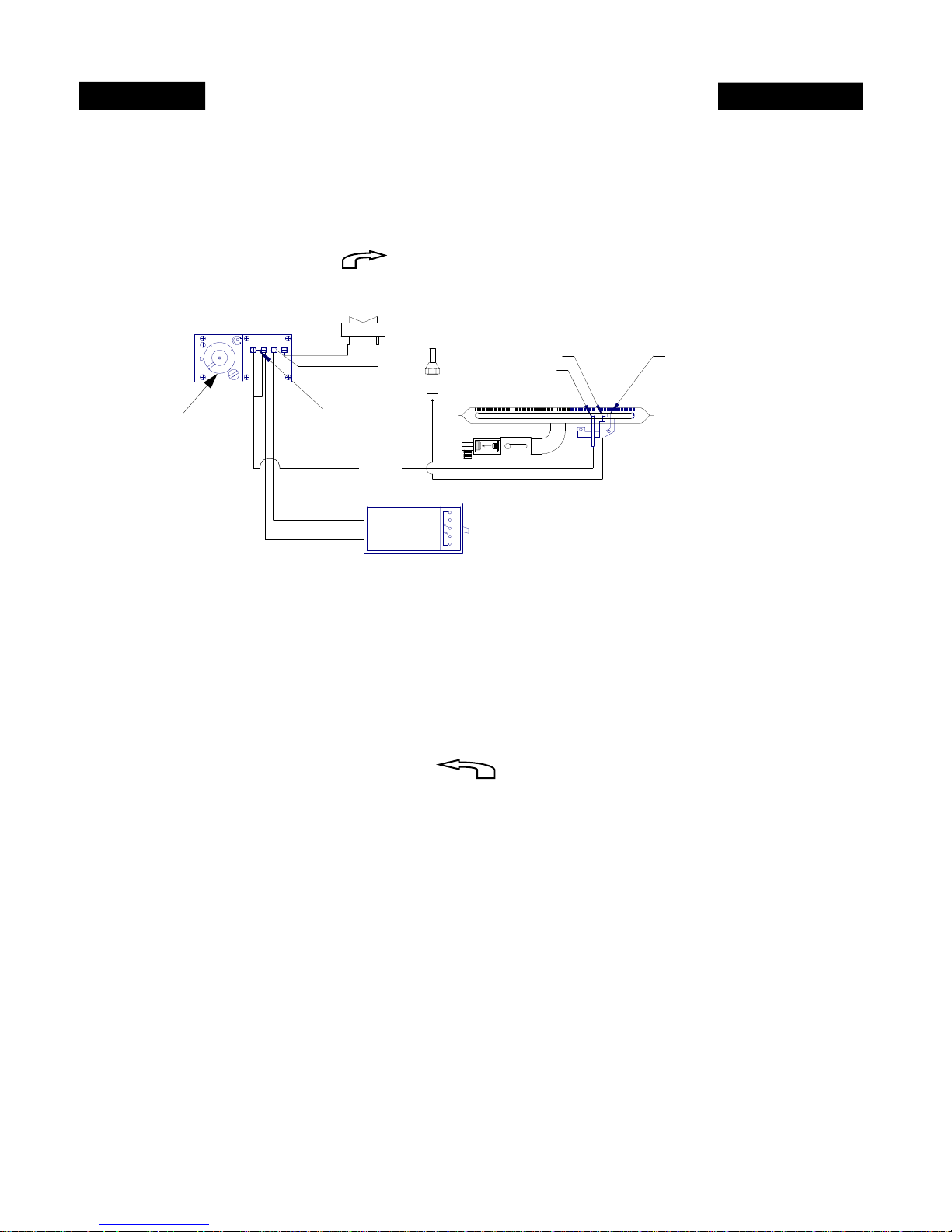

Wiring Diagram .......................................................................................................................... 28

Important Safeguards.................................................................................................................. 29

Trouble Shooting ........................................................................................................................ 30

Service/Replacement Parts.......................................................................................................... 34

Warranty/Owner Registration......................................................................................Back Cover

Page 2

SECTION I

SAFETY INFORMATION WARNINGS

IMPORTANT: READ THIS OWNER’S MANUAL CAREFULLY AND COMPLETELY

BEFORE TRYING TO ASSEMBLE, OPERATE, OR SERVICE APPLIANCE. IMPROPER
USE OF THESE LOGS CAN CAUSE SERIOUS INJURY OR DEATH FROM BURNS, FIRE,
EXPLOSION AND CARBON MONOXIDE POISONING.

Early signs of carbon monoxide poisoning resemble flu, with headaches, dizziness and/or
nausea. If you have these signs, heater may not be working properly. Get fresh air at once!
Have heater serviced.
Some people-pregnant women, persons with heart or lung disease, anemia, those under
influence of alcohol and those at high altitudes-are more affected by carbon monoxide than
others.

CAUTION: Strong drafts, such as a ceiling fan placed directly in front of heater

(pulling from either direction) may create sooting. Sooting will discolor
walls.

1. The installation must conform with local codes or in absence of local codes, with

National Fuel Gas Code, ANSI Z223.1/NFPA54.

2. This appliance may be installed in an After-Market*Manufactured (Mobile) Home,
where not prohibited by state or local codes.

*

(After-Market: Completion of sale, not for purpose of resale from manufacturer.)

This appliance is only for use with type of gas indicated on rating plate.
This appliance is not convertible for use with other gases.

NOTE: “Producing Adequate Air For Combustion And Ventilation” page 12.

IMPORTANT: VENT-FREE HEATERS ADD MOISTURE TO AIR. ALTHOUGH THIS IS

BENEFICIAL, INSTALLING HEATER IN ROOMS WITHOUT ADEQUATE VENTILATION
MAY CAUSE MILDEW TO FORM FROM TOO MUCH MOISTURE.

3. Never install this heater:

 in a recreational vehicle, bathroom, bedroom or any other sleeping quarters
 where curtains, furniture, clothin or other flammable objects are less than 42" from

front of heater

 in high traffic areas or in windy areas

4. Two models are available. One specific model for propane (LP), and one for natural gas.
Use correct type gas for your home. Do not convert from one gas type to another.

NOTE: This appliance complies with ANSI Z21.11.2b-2010 Unvented Room Heater.

“WARNING: ANY CHANGE TO THIS HEATER OR ITS CONTROLS CAN BE

DANGEROUS.”

Page 3

5. If this heater is used with propane gas, do not place propane supply tank (s) inside any structure.

6. What To Do IF You Smell Gas:

Shut off gas supply.

- Do not try to light any appliance.

- Do not touch any electrical switch; do not use any phone in your building.

- Immediately call your gas supplier from a neighbor’s phone.
Follow gas supplier’s instructions.

- If you cannot reach your gas supplier, call fire department.

7. When operated for first time, logs may emit a “paper burning” smell. This smell will gradually
diminish and will be totally eliminated after first few hours of operation Do not use blower at this
time.

8. “This heater shall not be installed in unusually tight construction unless provisions are

provided for adequate combustion and ventilation air.” See “Producing Adequate Air For
Combustion And Ventilation”, page 12.

9. Surface of gas logs becomes very hot when operating. Keep children and adults away from hot
surface. Gas logs will remain hot for sometime after shutdown. Allow surface to cool before
touching.

10. Do not place clothing or other flammable material on or near appliance.

11. If equipped, fresh air damper must be closed.

12. Keep appliance area clean and free from combustible materials, gasoline and other flammable
flammable vapors and liquids. .

13. If burner shuts off, do not relight until you provide fresh outside air. If burner continues to shut off,
have unit serviced.

14. Do not use this heater if any part has been under water. Immediately call qualified service

technician to inspect room heater and to replace any part of control system and any gas
control which has been under water.

15. Turn off heater and let cool before servicing.

16. These logs are made of bonded fiber. When removing logs and base, do not damage bonded
material. If material is damaged extensively, loose fiber dust could be emitted into the air.

17. Any safety screen or guard removed for servicing an appliance must be replaced prior to

operating heater.

18. This appliance is intended for supplemental heating only.

19. “WARNING: Any change to this heater or its controls can be dangerous.”

20. Installation and repairs should be performed by a qualified service person. The appliance

should be inspected before use and at least annually by a professional service person. More
frequent cleaning may be required due to excessive lint from carpeting, bedding material, etc.
It is imperative that control compartments, burners and circulating air passageways of
appliance be kept clean.

Page 4

21. All heater screens must be kept clean when operating gas logs.

22. .”WARNING: Failure to keep primary air opening (s) of burner (s) clean may result

in soot and property damage.”

23. Do not use this heater for burning trash or cooking. Never place matches, paper, garbage or any
other material on top of logs or into flames.

24. Do not install or operate this heater in areas where impurities in air exist (such as tobacco

smoke or heavy cooking grease). Particles from impurities may discolor walls.

25. Due to high temperatures, appliance should be located out of traffic and away from furniture

and draperies.

26. Children and adults should be alerted to hazards of high surface temperature and should stay
away to avoid burns or clothing ignition.

27. Young children should be carefully supervised when they are in the same room with
appliance.

28. An unvented room heater having an input rating of more than 10,000 Btu per hour shall not
be installed in a bedroom or bathroom.

29. The appliance and its appliance main gas valve must be disconnected from gas supply piping
system during any pressure testing of that system at test pressure in excess of 1/2

psi (3.5 kPa).

30. The appliance must be isolated from the gas supply piping system by closing its equipment
shut-off valve during any pressure testing of gas supply piping system at test pressures equal
to or less than 1/2 psi (3.5 kPa).

31. “WARNING: Do not allow fans to blow directly into fireplace. Avoid any drafts that alter
burner flame patterns.”

32. “WARNING: Do not use a blower insert, heat exchanger insert or other accessory not
approved for use with this heater.”

33. Adequate clearances around air openings. Nothing may be placed over any of air openings on
this appliance or can any of air openings be modified in anyway.

34. “Trim panels or surrounds shall not seal ventilation openings in fireplace.”

35. “A fireplace screen must be in place when appliance is operating and unless other provisions
for combustion air are provided, screen shall have opening for introduction of combustion air.

Page 5

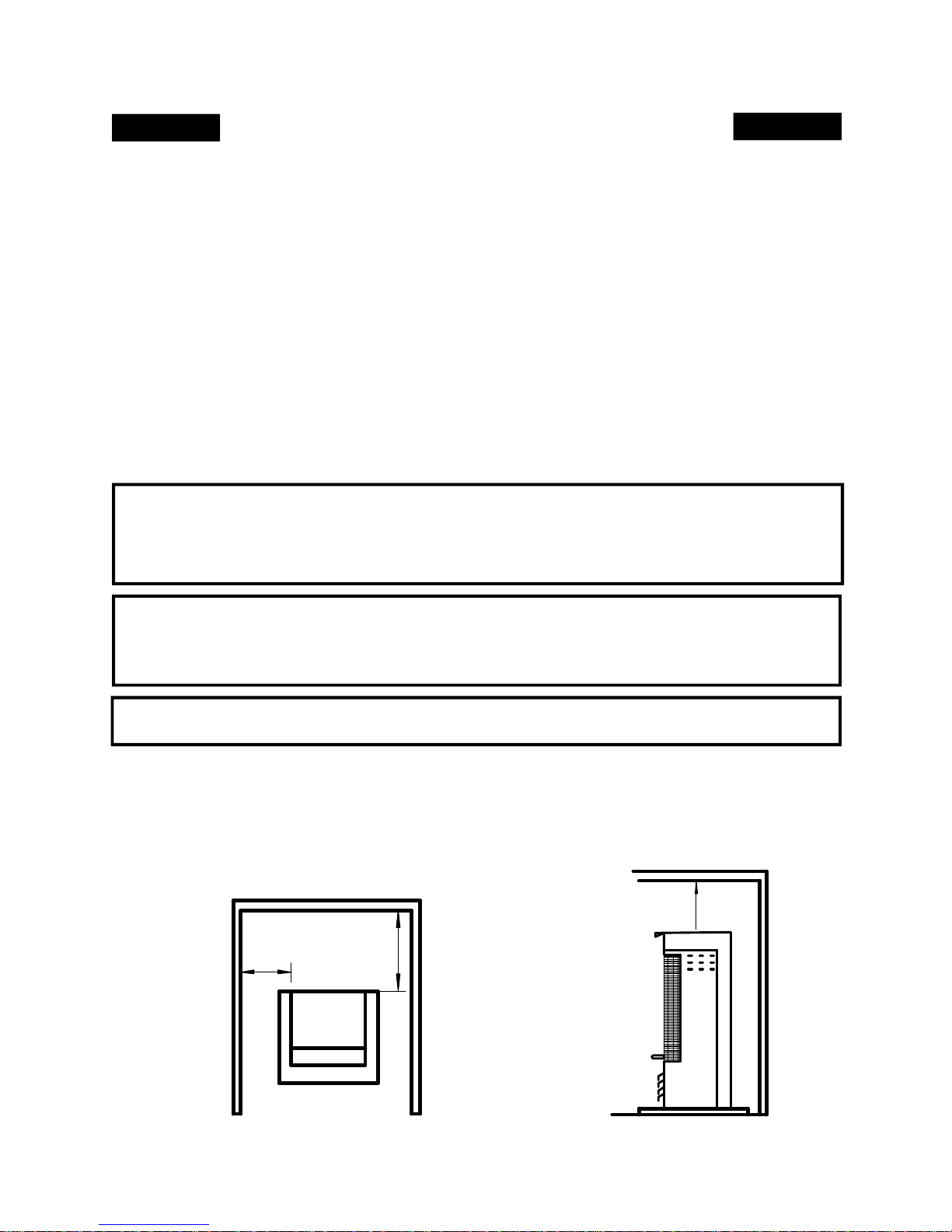

MASONRY INSERT INSTALLATION/ SOLID

FUELBURNING FIREPLACE MODEL 32 (FP)

1. The Model 32 (FP) may be installed in a masonry fireplace.
Minimum fireplace dimensions: 25 1/2" high, 21-1/2" wide, 13" deep.

CEILING

“WARNING: Before installing in a
solid-fuel burning fireplace, chimney
flue and firebox must be cleaned of
soot, creosote, ashes and loose paint by
a qualified chimney cleaner.”

NOTE: Any outside air ducts and / or
ash dumps in the fireplace shall be per­manently closed at time of appliance
installation.

“WARNING: Any glass doors shall be
fully opened when appliance is in opera­tion.”

WALL

LEFT SIDE

7"

5”

FRONT

24” TO COMBUSTIBLES

13"

21-1/2"

25-1/2"

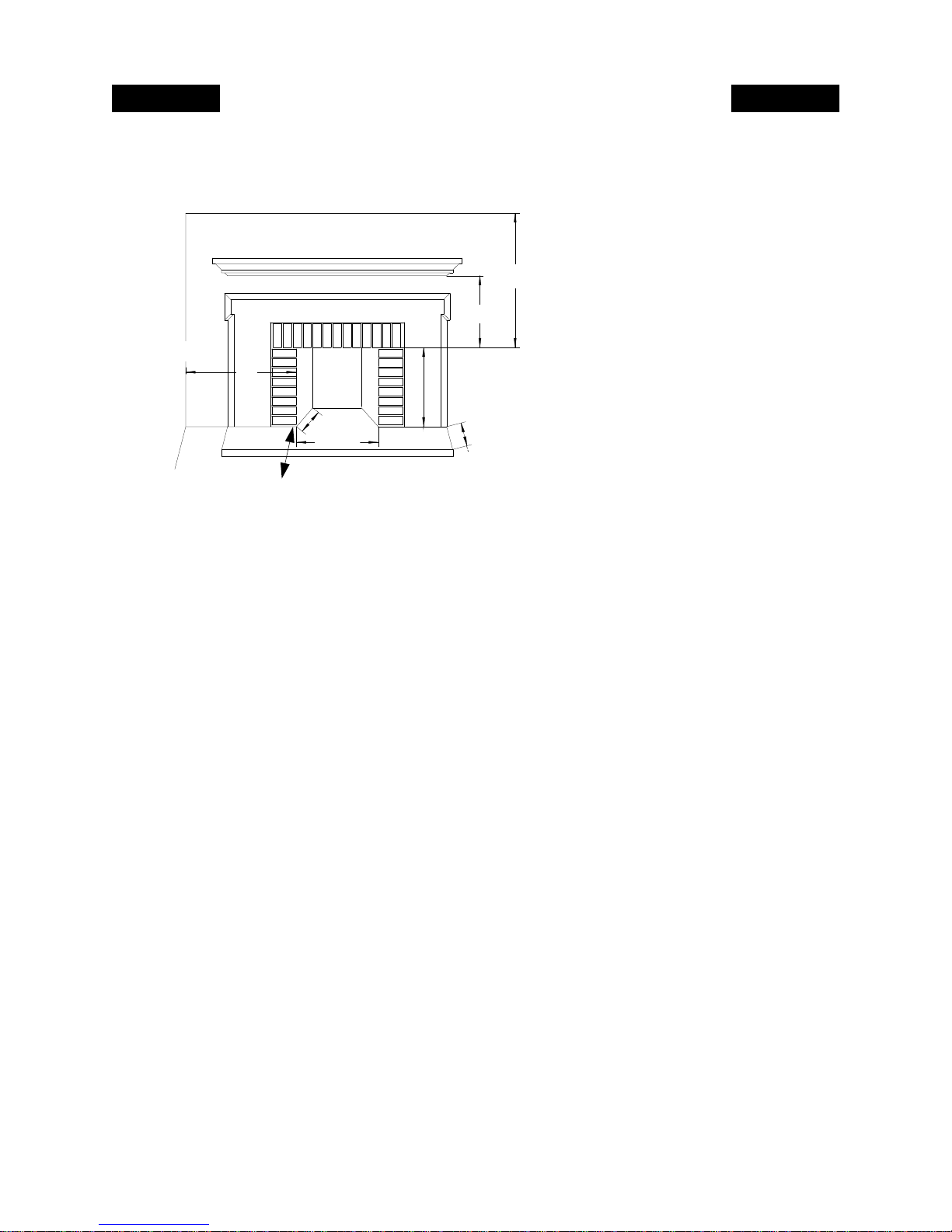

Figure 1

42”

24"

20"

16”

RIGHT SIDE

12"

Your new Buck Vent-Free gas heater may be installed in a Residential or *After-Market Mobile

Home, where not prohibited by state or local codes.
*After-Market: Completion of sale. Not for purpose of resale from manufacturer.

This appliance is for use with type of gas indicated on rating plate. Not convertible for use
with other gases.

2. Minimum dimensions sidewall and mantel:
Sidewall-not less than 5" See Figure 1.
Mantel-not less than 16" See Figure 1.

3. Center Model 32 in masonry fireplace. Position front of heater even with front of fireplace
chamber if possible.

4. Place side trim panels flat against fireplace. Draw a vertical reference line along inside
edge of trim panel.

5. Place top trim panel on top of unit. Draw reference line for mounting on lower edge of pane

NOTE: The installer of this appliance must mechanically (peel and stick) attach the marking
supplied with this unvented appliance before installing to inside of firebox of solid-fuel burn­ing fireplace or listed vent less firebox enclosure into which unvented fireplace insert is in­stalled. See example of marking on page 18 of this manual.

CAUTION: Cutting any sheet-metal parts of solid-fuel burning fireplace or listed vent less en­closure in which unvented fireplace is to be installed is prohibited.

NOTE: “If factory-built fireplace has no gas access hole provided an access hole of 1.5 inch
(37.5) diameter or less may be drilled through lower sides or bottom of firebox in a proper
workmanlike manner. This access hole must be plugged with non-combustible insulation after
gas supply line has been installed.”

“Refractory, glass doors, screen rails, screen mesh and solid-fuel log grates (if applicable) can
be removed from the fireplace before installing the unvented fireplace insert.”
“Smoke shelves shields and baffles may be removed if attached by mechanical fasteners.”

Page 6

6. Slide unit out and install trim panels with a drill or screw gun. (Self tapping screws
provided).

NOTE: Make sure gas supply line is hooked up at this time and check for leaks at connection

using soap and water.

CAUTION: Do Not use an open flame to check for leaks.

7. Place logs on the burner base as shown on page 16.

8. For gas hookup and pressure tap test, see instructions on pages 17 & 18.

NOTE: When operated for the first time, the logs and paint may emit a “paper burning smell”.
This smell will gradually diminish after a few hours of operation. Run the heater with the flue
damper, windows or doors, open during this time. DO NOT use blower at this time.

Page 7

FREESTANDING INSTALLATION

MODEL 32 (FS)

1. Determine exact location of your gas heater.
NOTE: Due to high temperatures, this heater should be located out of traffic areas and away
from furniture and draperies.

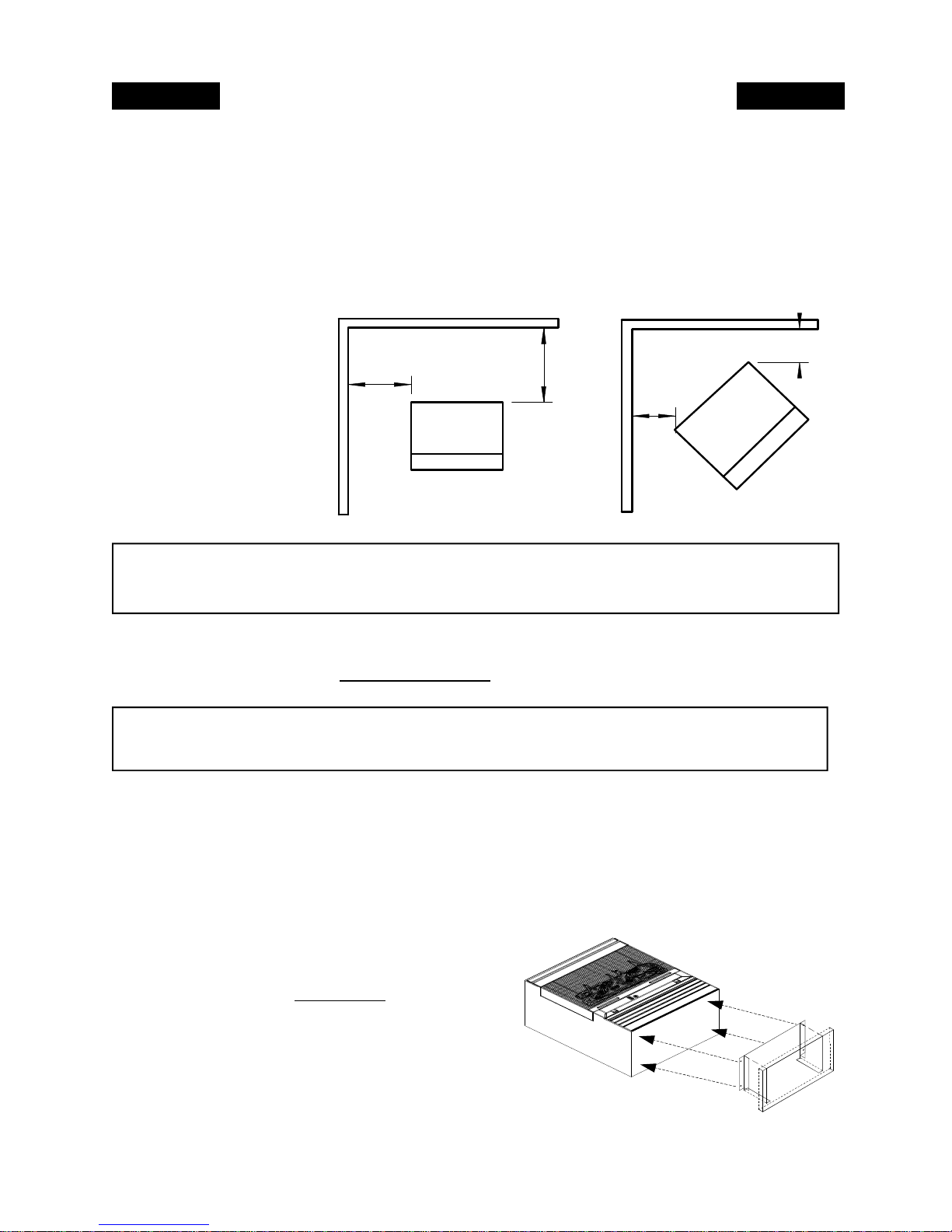

NOTE: For safe installation the minimum clearances must be met. See Figure 2. For floor
protector, see last paragraph, page 8.

NOTE: Clearance form
top of appliance to ceil­ing is 42”. (Not shown
in figure 2)

NOTE:
DIMENSIONS SHOWN ARE
MINIMUM CLEARANCE TO
COMBUSTIBLEWALL.

5"

WALL

4"

WALL

4"

4"

STOVE

Figure 2

CAUTION: THE INSTALLATION MUST CONFORM TO LOCAL CODES. IN ABSENCE
OF LOCAL CODES, INSTALLATION MUST CONFORM WITH NATIONAL FUEL GAS
CODE,ANSI Z223.1/NFPA54.

NOTE: See page 17 for “Gas Connection” and page 18 for “Pressure Check”.

2. Check gas type. Use only type of gas indicated on valve rating plate. If type of gas listed on plate is

not your type of gas supply, DO NOT INSTALL. Contact your dealer for proper model. Position
logs as shown on page 16. Position screen before leaving heater unattended.

WARNING: YOUNG CHILDREN SHOULD BE CAREFULLY SUPERVISED WHEN THEY
ARE IN SAME ROOM AS THE HEATER. DO NOT PLACE CLOTHING OR OTHER
FLAMMABLE MATERIAL ON OR NEAR THE HEATER.

STOVE

NOTE: When appliance is installed directly on carpeting, tile or other combustible material, other than
wood flooring, appliance shall be installed on a metal or wood panel extending full width and depth of
appliance.

Optional Pedestal (Part#FAP11) Instructions: Lay heater on its back (use a drop-cloth to protect
back of heater and surface of your flooring). Place pedestal against bottom of heater. Center pedestal
from left to right and from front to rear. Mark holes on angle of the top of pedestal onto bottom of heater.

Lay pedestal aside. Drill the marks made onto heater with a
1/8” bite (not provided). Replace pedestal and secure with
screws provided. Next stand heater to upright position. Place
heater in desired location following clearances above in
figure 2. Note: At this point you may need to secure pedestal
to floor with screws or an “ell” bracket (not provided) for
safety concerns. Next hook up gas supply line following in­structions in this manual completely.

Page 8

ALCOVE INSTALLATION

CAUTION: READ ENTIRE MANUAL BEFORE INSTALLING HEATER.

1. For clearances, see Figure 3. The minimum clearances must be met.

2. For “Installation and Gas Connection”, see page 17.

FOR YOUR SAFETY:

WHAT TO DO IF YOU SMELL GAS

-Do not try to light appliance.

-Do not touch any electrical switch.

-Do not use telephone in building.

-Call your gas supplier immediately, from a neighbor’s phone. Follow gas supplier
instructions.

-If you cannot reach your gas supplier, call Fire Department.

-Do not store or use gasoline or any other flammable vapors or liquids in the vicinity of
this appliance or any other appliance.

WARNING: DO NOT USE THIS ROOM HEATER IF ANY PART HAS BEEN UNDER

WATER. IMMEDIATELY CALL A QUALIFIED SERVICE TECHNICIAN TO INSPECT T
ROOM HEATER AND TO REPLACE ANY PART OF CONTROL SYSTEM AND ANY
GAS CONTROL WHICH HAS BEEN UNDER WATER.

WARNING: IMPROPER INSTALLATION, ADJUSTMENT, ALTERATION, SERVICE

OR MAINTENANCE CAN CAUSE PROPERTY DAMAGE, PERSONAL INJURY OR
LOSS OF LIFE. INSTALLATION AND SERVICE MUST BE PERFORMED BY A
QULIFIED INSTALLER, SERVICE AGENCY OR GAS SUPPLIER.

“WARNING: ANY CHANGE TO THIS HEATER OR ITS CONTROLS CAN BE

DANGEROUS.”
NOTE: The depth of alcove must allow a 4" minimum clearance at rear. The width of alcove

must allow a 5” clearance on right side and left side. The height of alcove must allow for a
10” clearance form top of heater to ceiling of alcove. The front edge of heater must meet the
front of alcove, and have a minimum of 24” to any combustible material.

WALL

10"

5"

NOTE:
DIMENSIONS SHOWN ARE
MINIMUMCLEARANCE TO
COMBUSTIBLEWALL.

STOVE

4"

FLOOR
PROTECTOR

Figure 3

Page 9

INSTALLATION OF MODEL 32 (WS)

WITH OPTIONALWOODEN SURROUND (KIT#PA-KDM32)

A. Determine desired location for your heater and wooden surround. See “Freestanding Installation”

for minimum clearances.

B To install metal filler strips to surround (after completing step 2 of surround assembly), position

wooden mantel over unit, centering it up in cabinet. Place metal filler strips to side of cabinet,
allowing 1/4" air space between strips and side of cabinet. Make a light pencil mark on strip.
Remove wooden mantel from around cabinet. Align pencil mark with inner edge of cabinet from
back side. Using screws provided with heater, fasten strips to back of mantel.(At this point

complete steps 3 and 4 of surround assembly)

C Make sure wooden mantel is in correct position. Place heater into surround. Connect gas line to

heater, following all instruction in this manual completely

D Make sure you leave 1/4" space between metal filler strip and top and sides of heater. You will

also want to position heater so you have 5 1/2" from outer lip of hot air vent to pieces of metal strips,
not wooden face of mantel. See Figure 4.

NOTE: You will need to heave 1/2" space between back of wooden mantel and an adjacent
combustible wall.
NOTE: If a masonry hearth is built up under front bottom of heater, and you do not use hearth provided
with wooden surround, you must have 12" of non-combustible material from front bottom edge of
heater.

5-1/2"

METALSTRIP

ON

Figure 4

(WS) ASSEMBLY INSTRUCTIONS

Tools Needed: Medium Phillips Screwdriver
Step 1: Lay out all components. (See diagram 1)

Step 2: Assemble end panels (A & B) to top front rail ( C ).(See section “B” above on this page)
Step 3: Stand end panels and top front rail onto hearth and fasten down with screws provided (See dia-

gram 1).
NOTE: Position back of end panels with back of hearth centering assembly from each end. Install front

screws first, then pull back towards inside to square surround (mantel) up. Install screws through back
holes.

Step 4: Place top onto surround, flush with back and equal on each end. Secure both ends and middle
with screws provided.

CONTINUED ON PAGE 11

Page 10

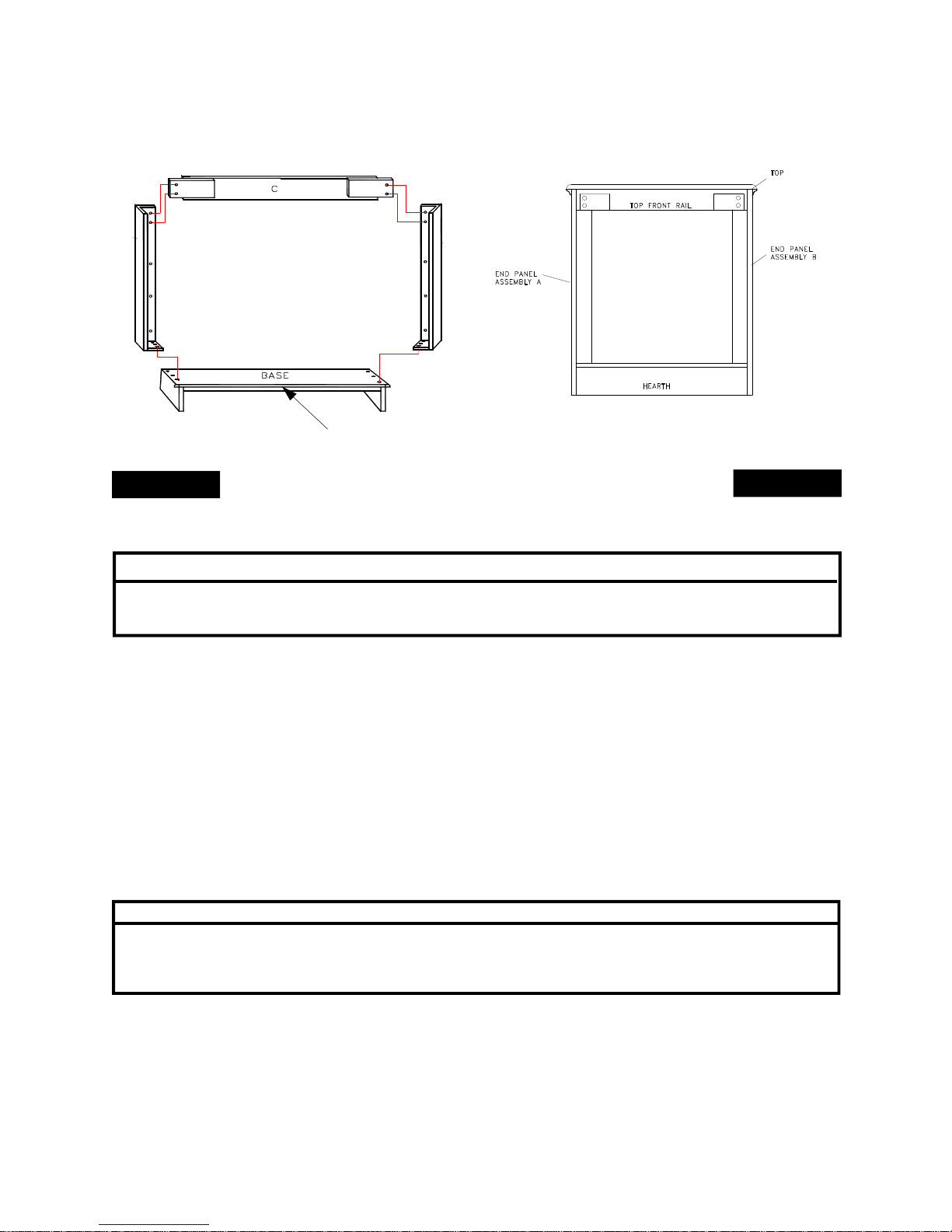

EXPLODED VIEW OF MODEL 32 (WS)

WOODEN SURROUND BASE (HEARTH)

(SHOWN AS VIEWED FROM REAR OF SURROUND)

INSTALLATION IN RESIDENTIAL

OR AFTER-MARKET MOBILE HOMES

NOTICE:

A QUALIFIED SERVICE TECHNICIAN MUST INSTALL THIS HEATER. CHECK FOR
STATE AND LOCAL CODES CONCERNING INSTALLATION REQUIREMENTS.

CHECK GAS TYPE:
THIS APPLIANCE IS ONLY FOR USE WITH TYPE OF GAS INDICATED ON RATING
PLATE. THIS APPLIANCE IS NOT CONVERTIBLE FOR USE WITH OTHER GASES.

INSTALLATION SUPPLIES:

Before installing heater, gather following materials:

- external regulator - ground joint union
(supplied by installer for propane) - sediment trap

- piping (check local codes) - tee joint

- manual shutoff valve* - pipe wrench

- test gauge connection* - sealant (resistant to LP gas)

* An C.S.A. design-certified manual shutoff valve with 1/8" NPT tap is an acceptable alternative to test
gauge connection. Purchase optional C.S.A. design-certified manual shutoff valve from your dealer.

MAINTAIN THE MINIMUM CLEARANCES SHOWN THROUGHOUT THIS MANUAL. IF
POSSIBLE, PROVIDE GREATER CLEARANCES FROM FLOOR, CEILING AND
ADJOINING WALL.

NOTE: See “Producing Adequate Air For Combustion And Ventilation” page 12.
.THIS APPLIANCE MAY BE INSTALLED IN AN AFTERMARKET*, PERMANENTLY

LOCATED, MANUFACTURED (MOBILE) HOME, WHERE NOT PROHIBITED BY LOCAL
CODES.

*After Market: Completion of sale, not for the purpose of resale from the manufacturer.

WARNING

Page 11

PRODUCING ADEQUATE AIR FOR

COMBUSTION AND VENTILATION

This section is for residential or manufactured (mobile) installation

“This heater shall not be installed in unusually tight construction or unconfined space unless
provisions are adequate for combustion and ventilation air.”

The National Fuel Gas Code, ANSI Z223.1/NFPA 54 defines unusually tight construction or
unconfined space as a space whose volume is less than 50 cubic feet per 1,000 BTU per hour
(4.8m3per kw) of aggregate input rating of all appliances installed in that space and an
unconfined space as a space whose volume is not less than 50 cubic feet per 1,000 BTU per
hour (4.8m3per kw) of the aggregate input rating of all appliances installed in that space.
Rooms communicating directly with space in which appliance are installed, through openings
not furnished with doors, are considered a part of the unconfined space.

“WARNING: IF AREA IN WHICH HEATER MAY BE OPERATED DOES NOT
MEET REQUIRED VOLUME FOR INDOOR COMBUSTION AIR, COMBUSTION
AND VENTILATION AIR SHALL BE PROVIDED BY ONE OF METHODS DE­SCRIBED IN NATIONAL FUEL GAS CODE, ANSI Z223.1/NFPA 54, INTERNATIONAL
FUEL GAS CODE OR APPLICABLE CODES.”

“WARNING: IF AREA IN WHICH HEATER MAY BE OPERATED IS SMALLER
THAN THAT DEFINED AS AN UNCONFINED SPACE OR IF BUILDING IS OF
UNUSUALLY TIGHT CONSTRUCTION, PROVIDE ADEQUATE COMBUSTION
AND VENTILATION AIR BY ONE OF METHODS DESCRIBED IN NATIONAL
FUEL GAS CODE, ANSI Z223.1/NFPA 54 AIR FOR COMBUSTION AND VENTILA­TION, OR APPLICABLE LOCAL CODES.”

Unusually tight construction is defined as construction where:
a) Walls and ceilings exposed to outside atmosphere have a continuous water vapor retarder

with a rating of 1 perm (6 x 10
b) Weather stripping has been added on openable windows and doors, and
c) Caulking or sealants are applied to areas such as joints around window and door frames,

between sole plates and floors, between wall-ceiling joints, between wall panels, at

penetrations for plumbing, electrical, and gas lines and at other openings.

-11

kg per pa-sec-m2) or less with openings gasketed or sealed;

NOTE: SOME AREAS IN UNITED STATES HAVE HIGHER REQUIREMENTS

FOR CUBIC FEET PER 1000 BTU/ HOUR INPUT. (EX. CINCINNATI, OHIO CODES
REQUIRE 70 CUBIC FEET). CHECK YOUR LOCAL CODE BEFORE
INSTALLATION.

DETERMINING FRESH-AIR FLOW FOR

HEATER LOCATION

DETERMINE IF YOU HAVE UNUSUALLY TIGHT CONSTRUCTION OR UNCONFINED SPACE
Use this worksheet to determine if you have unusually tight construction or unconfined space.
SPACE: Includes the room in which you will install heater plus adjoining rooms with

doorless passageways or ventilation grills between rooms.

Page 12

1. Determine volume of space (length x width x height).

Length x Width x Height =_________cu.ft.(volume of space)
EXAMPLE: 20 ft.(Length) x 16 ft.(Width) x 8 ft.(ceiling Height)=

2560 cu. ft. (volume of space)
If additional ventilation to adjoining room is supplied with grills or openings, add volume
of these rooms to total volume of space.

2. Divide the space volume by 50 cubic feet to determine maximum BTU/Hr space

can support.

_________(volume of space)/50 cu. ft. =maximum BTU/Hr the space can support)

EXAMPLE: 2560 cu. ft. (volume of space /50 cu. Ft .= 51.2 or

51200 (maximum BTU/Hr the space can support)

3. Add BTU/Hr of all fuel burning appliances in space.
Vent-free heater _______________BTU/Hr
Gas water heater* _______________BTU/Hr
Gas furnace _______________BTU/Hr
Vented gas heater _______________BTU/Hr
Gas fireplace logs _______________BTU/Hr
Other gas appliances* + _______________BTU/Hr
Total = _______________BTU/Hr

Example: Gas water heater 40000 BTU/Hr

Vent-free heater + 18000 BTU/Hr
Total = 58000 BTU/Hr

*Does not include direct-vent gas appliances. Direct-vent draws combustion air

from outdoors and vents to outdoors.

4. Compare maximum BTU/Hr the space can support with actual amount of BTU/Hr

used.

____________BTU/Hr (maximum the space can support)
____________BTU/Hr (actual amount of BTU/Hr used)

Example: 51200 BTU/Hr (maximum the space can support)

58000 BTU/Hr (actual amount of BTU/Hr used)

The space in above example is a unusually tight construction because actual BTU/Hr used
is more than maximum BTU/Hr space can support. You must provide additional fresh
air. Your options are as follows:

A. Rework worksheet, adding space of an adjoining room. If the extra space provides an

unconfined space, remove door to adjoining room or add ventilation grills between

rooms. See “Ventilation Air From Inside Building”, page 21.
B. Vent room directly to outdoors. See “Ventilation Air From Outdoors”, page 22.
C. Install a lower BTU/Hr heater, if lower BTU/Hr size makes room unconfined.

If actual BTU/Hr used is less than maximum BTU/Hr space can support, space is an
unconfined space. You will need no additional fresh air ventilation.

YOU MUST PROVIDE ADDITIONAL VENTILATION AIR IN UNUSUALLY TIGHT
CONSTRUCTION

WARNING:

Page 13

AIR FOR COMBUSTION AND

VENTILATION INSIDE BUILDING

This fresh air would come from an adjoining unconfined space. When venting to an adjoining
space, you must provide two permanent openings: one within 12" of the ceiling and one within
12" of floor on wall connecting two spaces. (See Options 1 and 2, Figure 5). You can also
remove door into adjoining room. (See Option 3, Figure 5).

WARNING

REWORK WORKSHEET, ADDING SPACE OF ADJOINING UNCONFINED SPACE.
THE COMBINED SPACES MUST HAVE ADEQUATE AMOUNT OF AIR TO SUPPLY
ALL APPLIANCES IN BOTH SPACES.

NOTE: Each opening shall have a minimum free area of 1 square inch per 1000 BTU’s per

hour of total input ratings of all gas utilization equipment in confined space, but not less than
100 square inches.

Figure 5: Ventilation Air From Inside Building

NOTE: Drill holes on bottom of pedestal base on each corner. Unit must be fastened to floor
with screws.

Page 14

WARNING

THIS HEATER MUST HAVE ADEQUATE AMOUNT OF AIR FOR PROPER
OPERATION. IF NOT, POOR FUEL COMBUSTION COULD RESULT. READ THE
FOLLOWING INSTRUCTIONS TO ENSURE PROPER AMOUNT OF AIR FOR THIS
AND OTHER FUEL-BURNING APPLIANCES IN YOUR HOME.

AIR FOR COMBUSTION AND

VENTILATION OUTDOORS

Provide extra fresh air by using ventilation grills or ducts. You must provide two permanent
openings: one within 12" of the ceiling and one within 12" of the floor. Connect these items
directly to the outdoors. These spaces include attics and crawl spaces. Follow National Fuel
Gas Code NFPA 54/ANSI Z223.1, Section 4.3, “Air For Combustion and Ventilation” for
required size of ventilation grills or ducts. See Figure 6.

IMPORTANT: Do not provide openings for inlet air into attic if attic has a thermostat­controlled power vent. Heated air entering the attic will activate the power unit.

Figure 6: Ventilation Air From Outdoors

Page 15

PREPARING LOG KIT

Open cartons containing Burner Base and M-3019 logs. The logs are numbered

as follows: (1) Front, (2) Rear, (3) Right side top, (4) Left side top.

WARNING: POSITIONING OF LOGS IS VERY CRITICAL (SEE FIGURE 7).

(1) POSITION REAR LOG (#2) , IN REAR LOG HOLDERS, CENTERING LEFT TO

RIGHT.

(2) PLACE FRONT LOG (#1) OVER FRONT PART OF BURNER TUBE. LOCATE LOG

IN CENTER OF BURNER BASE. MAKE SURE MIDDLE SUPPORT LEG OF
FRONT LOG IS IN HOLDERS LOCATED IN CENTER OF BURNER BASE, JUST
BEHIND FRONT PART OF BURNER TUBE.

(3) TAKE RIGHT TOP LOG (#3) AND PLACE IT IN SLOTS LOCATED AT RIGHT

SIDE OF FRONT AND REAR LOGS, FACING BURNER BASE.
(4) PLACE LEFT TOP LOG (#4) IN SLOTS OF LEFT FRONT AND REAR LOGS.
(5) WHEN IGNITING BURNER, CHECK AND MAKE SURE FLAME IS NOT TOUCHING

EITHER SIDE OF LOG (#3), OR LOG (#4). IF FLAME IS TOUCHING LOGS ON

EITHER SIDE, MOVE SLIGHTLY TO LEFT OR RIGHT TO ELIMINATE FLAME

FROM TOUCHING EITHER LOG.

TOP LEFT

REAR LOG

TOP RIGHT

FRONT LOG

Figure 7

WARNING: Failure to position parts in accordance with these diagrams or failure to use only

parts specifically approved with this heater may result in property damage or personal injury.

Page 16

GAS CONNECTION

Check gas type. Use only type of gas indicated on valve rating plate. If gas type listed on
plate is not your type of gas supply, DO NOT INSTALL. Contact your dealer for proper
model.

Always use an external regulator for all LP heaters to reduce the supply tank pressure to a
maximum of 14" W.C. This is in addition to regulator furnished with heater.

WARNING: CONNECTION DIRECTLY TO AN UNREGULATED LP TANK CAN

CAUSE AN EXPLOSION.

The normal gas connection is 3/8" N.P.T. made at left side (facing front of appliance) of
appliance. If a right side connection is desired, connecting pipe may be led under the rear of
burner base to terminate at right hand side for connection at inlet of valve.

NOTE: The connecting pipe must be internally tinned copper tubing for use with natural gas. Test for
leaks using a solution of soap and water after completing connection. DO NOT USE OPEN FLAME.

WARNING: ANY CHANGE TO THIS HEATER OR ITS CONTROLS CAN BE

DANGEROUS.

NOTE: “If factory-built fireplace has no gas access hole provided, an access hole of 1.5 inch

(37.5mm) diameter or less may be drilled through lower sides or bottom of fire box in a proper
workmanlike manner. This access hole must be plugged with non-combustible insulation after gas
supply line has been installed.”

WARNING: Installation and repairs should be performed by a qualified service person. The

appliance should be inspected before use and at least annually by a professional service person.
More frequent cleaning may be required due to excessive lint from carpeting, bedding material,
etc. It is imperative that control compartments, burners and circulating air passageways of
appliance be kept clean.

Page 17

GAS PRESSURE CHECK

Check inlet pressure to burner to ensure that it is shown in table below.

NOTE: The pressure check point is located on right side of valve facing burner, for SIT
Millivolt and left side for SIT Modulating.

The appliance and its appliance main gas valve must be disconnected from gas supply piping
system during any pressure testing of that system at test pressures in excess of 1/2
psi (3.5kPa).
The appliance must be isolated from gas supply piping system by closing its equipment shut-off
valve during any pressure testing of gas supply piping system at test pressures equal to or less
than 1/2 psi (3.5 kPa).

VALVE (MILLIVOLT) (SIT MANUAL-MODULATING)
MODEL: FP32 FP32 FP32 FP32
GAS Natural Propane Natural Propane

Maximum Heat Input 33,000 33,000 33,000 33,000
Minimum Heat Input 23,000 23,000 12,000 13,000
Gas Inlet Pressure

Maximum 10.5ins.W.C. 13ins.W.C. 10.5ins.W.C. 9.0ins.W.C.
Minimum * 5.0ins.W.C. *11ins.W.C. *5.0ins.W.C. *11ins.W.C.

Manifold Pressure

Maximum 3.5ins.W.C. 9.0ins.W.C. 3.5ins.W.C. 9.0ins.W.C.
Minimum 3.0ins.W.C. 8.2ins.W.C. 2.8ins.W.C. 7.2ins.W.C.

NOTE: On initial installation it may be necessary to bleed out air in gas lines. Do this by
holding control knob and turning knob to “PILOT” position for about 30 seconds.
To check regulator pressure, remove pressure tag plug at left side of regulator facing heater.
The pressure should be checked with heater burning and control set on high. After measuring
pressure, replace pressure tap plug, ensuring that there are no leaks.

* For purpose of minimum input adjustment.

WARNING

This appliance is equipped for (natural or propane) gas.
Field conversion is not permitted.

Solid fuels shall not be burned in same fireplace where an unvented room heater has been
installed.
NOTE: The following label has been provided with this appliance and must be read and

then attached to floor of fireplace or firebox area beneath appliance. The label is
a peel and stick label. Make sure the area is cleaned before attaching the label to it.

“WARNING: This solid-fuel burning fireplace or listed ventless enclosure has been

converted for use with an unvented fireplace insert only. A solid-fuel burning
fireplace cannot be used for burning wood or solid fuels unless all original parts
have been replaced, and fireplace re-approved by authority having jurisdiction. A
vent less firebox enclosure cannot be used with an unvented gas log unless all
original parts have been replaced and vent less firebox enclosure re-approved by
authority having jurisdiction.”

Page 18

LIGHTING INSTRUCTIONS

MILLIVOLT VALVE (ITT)

FOR YOUR SAFETY, READ BEFORE LIGHTING

WARNING

IF YOU DO NOT FOLLOW THESE INSTRUCTIONS EXACTLY, A FIRE OR
EXPLOSION MAY RESULT CAUSING PROPERTY DAMAGE, PERSONAL INJURY
OR LOSS OF LIFE.

A. This appliance has a pilot which must be lit by hand. When lighting the pilot, follow these

instructions exactly.

B. BEFORE LIGHTING smell around appliance for gas. Be sure to smell next to floor

because gas is heavier than air and will settle on floor.

WHAT TO DO IF YOU SMELL GAS

 Do not try to light any appliance.
 Do not touch any electrical switch; do not use any phone in your building.
 Immediately call your gas supplier from a neighbor’s phone. Follow gas

supplier’s instructions.

 If you cannot reach your gas supplier, call fire department.

C. Use only your hand to push in or turn the gas control knob. Never use tools. If knob will

not push in or turn by hand, don’t try to repair it, call a qualified service technician. Force
or attempted repair may result in a fire or explosion.

D. Do not use this appliance if any part has been under water. Immediately call a qualified

service technician to inspect appliance and to replace any part of control system and any
gas control which has been under water.

Page 19

LIGHTING INSTRUCTIONS

1. STOP! Read the safety information on previous page.

2. Make sure the manual shutoff valve is fully closed. If equipped with thermostat set to lowest
setting.

3. Turn off all electrical power to appliance.

4. Open access panel door located at bottom front of appliance.

5. Turn control knob clockwise to full “OFF” position.

ROCKER SWITCH

OFF

ON

PIEZO

IGNITOR ELECTRODE

THERMOGENERATOR

THERMOPILE

BURNER

PILOT

PILOT ASS'Y

PILOT BURNER

CONTROL KNOB

ITT VALVE

PILOT

ADJ

T

O

L

I

P

OFF

P

T

R

E

S

S

O

N

T

E

S

E

R

O

THERMO GEN

AUX

CONTROLS

ITT

GENERAL

BEFORE INSTALLING THERMOSTAT
REMOVE METAL CONNECTOR

9080706050

THERMOSTAT

FIGURE: 8

When hooking up a Wall Thermostat to valve, remove Jumper Bar. Do not remove existing wires,
simply add wire from Wall Thermostat to screws (one wire to each screw).

6. Wait five (5) minutes to clear out any gas. Then smell for gas, including near floor. If you
smell gas, STOP! Follow “B” in the safety informationon previous page. If you don’t smell
gas, go to next step.

7. Find Pilot: The pilot is located in front of rear log and burner on right hand side of
appliance. Fully open manual shutoff valve.

8. Push ON/OFF toggle switch to “OFF” (rocker switch).

9. Turn gas control knob counterclockwise to “PILOT” position.Press in gas control

knob for fifteen (15) seconds.

10. With control knob pressed in, push down (in) and release the ignitor button (ignitor button is

located on left hand side of front of appliance). This will light pilot. If needed, keep
repeating this step until pilot lights.

11. Keep control knob pressed in for (1) one minute after lighting pilot. After (1) minute, release
gas control knob and it will pop back out. Pilot should remain lit. If pilot goes out, repeat steps 1
through 9.

 If the knob does not pop out when released, stop and immediately call your service technician or

gas supplier.

Page 20

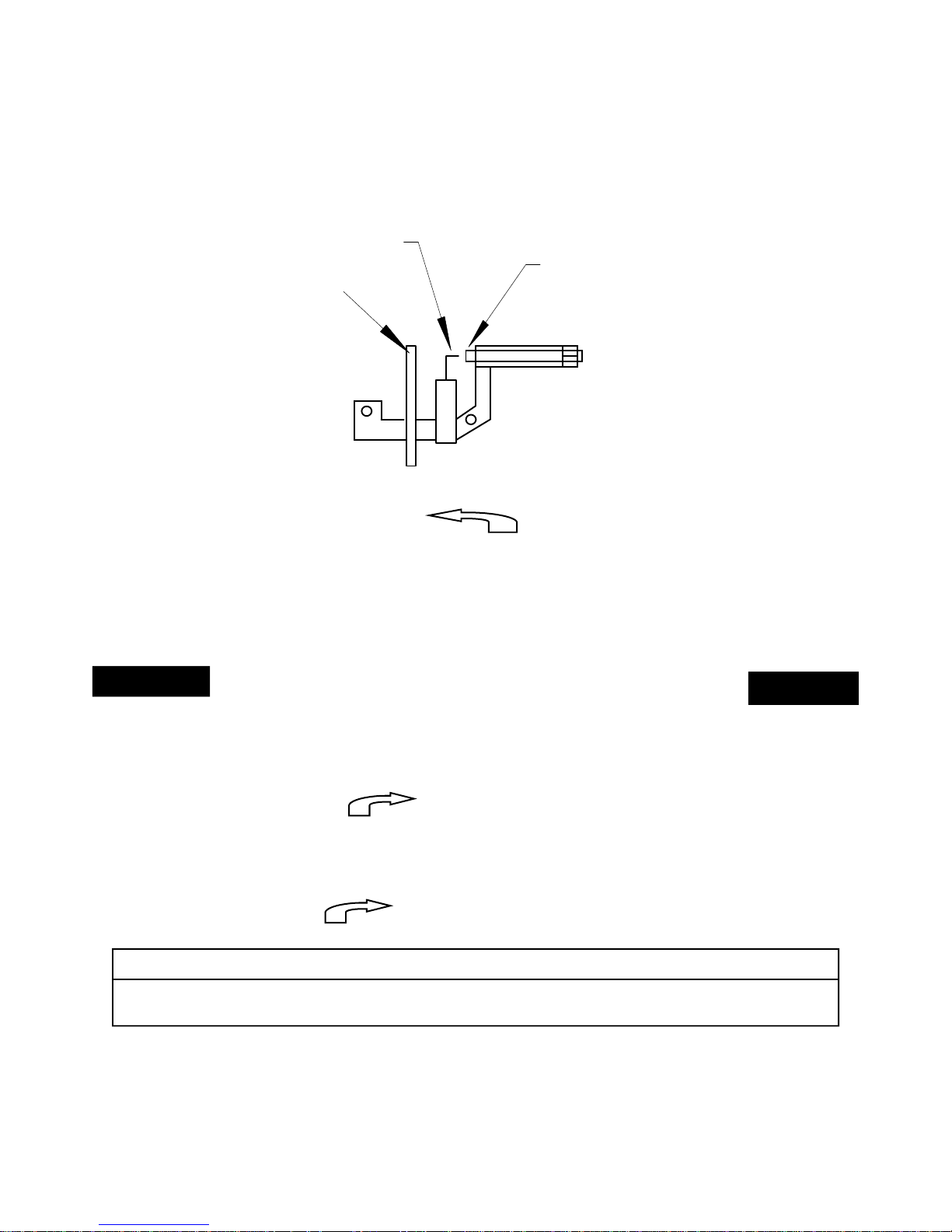

 If the pilot will not stay lit after several tries, turn gas control knob to “OFF” and

call your service technician or gas supplier.

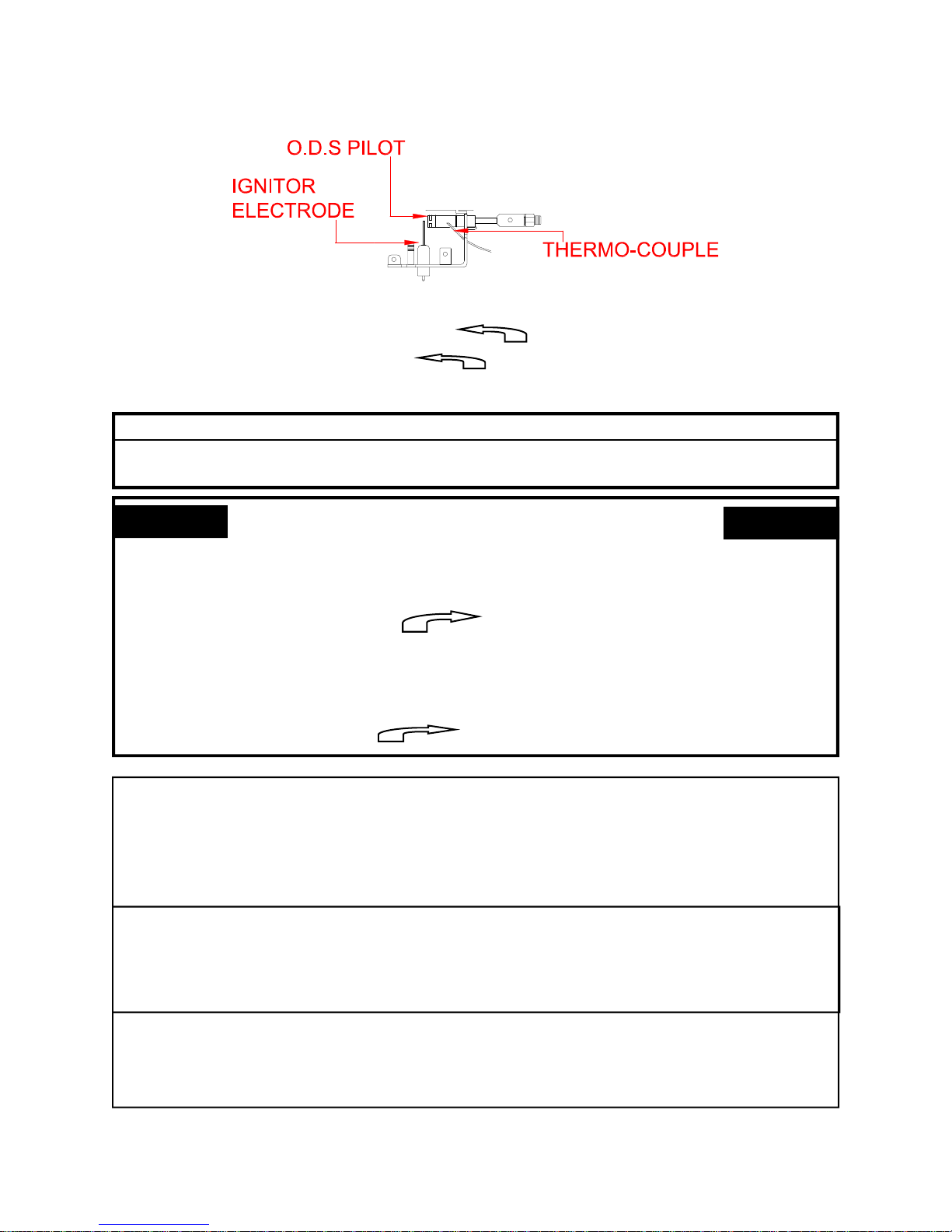

IGNITOR ELECTRODE

THERMO-COUPLE

THERMO-PILE

12. Turn control knob counterclockwise to “ON” position. Push “ON/OFF”
toggle switch to “ON” position. The main burner should light.

13. Close access panel door.

14. Turn on all electrical power to appliance.

NOTE: This unit may be used with an optional Wall Thermostat. If so, Wall
Thermostat needs to be set at a higher temperature than room temperature.

TO TURN OFF GAS TO

PILOT BURNER

APPLIANCE

SHUTTING OFF UNIT

1. Open access panel door located at bottom front of appliance.

2. “If equip with thermostat set to lowest setting.”

3. Turn control knob clockwise to “OFF” position.

4. Turn off all electric power to the appliance if service is to be performed.

5. Close access panel door.

SHUTTING OFF BURNER ONLY (Pilot stays lit.)
Turn control knob clockwise to “PILOT” position.

CAUTION

DO NOT TRY TO ADJUST HEATING LEVELS BY USING MANUAL
SHUTOFF VALVE.

Page 21

THERMOSTAT CONTROL OPERATION

 This valve operates off of millivolts produced by generator. You may choose to use an

optional Wall Thermostat or Remote control. If so, see Figure 2, page 11 for wiring diagram.

MANUAL LIGHTING PROCEDURE

1. If pilot cannot be lit with piezo, it can be manually lit with use of a paper match and a
lighter rod.

2. Open access panel door located at bottom front of appliance.

3. Place match in holder and light. With left hand, turn control knob counterclockwise to

“PILOT”position. Press in gas control knob for fifteen (15) seconds.

4. Use rod to light match and ignite pilot. The pilot is located in front of rear log and burner
on right hand side of appliance.

5. Continue to hold control knob for an additional one (1) minute to ensure pilot is lit.

6. Turn control knob counterclockwise to “ON” position. Push “ON/ OFF”
toggle switch to “ON” position. The main burner should light.

7. Close access panel door.

8. Turn on all electrical power to appliance.

NOTE: This unit may be used with an optional Wall Thermostat. If so, Wall Thermostat needs to be
set at a higher temperature than room temperature.

Page 22

LIGHTING INSTRUCTION

MODULATING VALVE (SIT)

OR MANUALVALVE (SIT)

FOR YOUR SAFETY READ BEFORE LIGHTING

WARNING

IF YOU DO NOT FOLLOW THESE INSTRUCTIONS EXACTLY, A FIRE OR
EXPLOSION MAY RESULT CAUSING PROPERTY DAMAGE, PERSONAL
INJURY OR LOSS OF LIFE.”

A. This appliance has a pilot which must be lit by hand. When lighting pilot, follow these in-

structions exactly.

B. BEFORE LIGHTING smell all around the appliance area for gas. Be sure to smell next to

floor because gas is heavier than air and will settle on floor.

WHAT TO DO IF YOU SMELL GAS:

 Do not try to light any appliance.
 Do not touch any electric switch; do not use any phone in your building.
 Immediately call your gas supplier from a neighbor’s phone. Follow gas sup-

plier’s instructions.

 If you cannot reach your gas supplier, call fire department.”

C. Use only your hand to push in or turn gas control knob. Never use tools. If knob will not

push in or turn by hand, don’t try to repair it’ call a qualified service technician. Force or
attempted repair may result in a fire or explosion.”

D. Do not use this appliance if any part has been under water. Immediately call a qualified ser-

vice technician to inspect the appliance and to replace any part of the control system and
any gas control which has been under water.”

Page 23

LIGHTING INSTRUCTION

1. STOP! Read the safety information on preceding page 19.

2. Make sure manual shutoff valve is fully closed.

3. Turn off all electrical power to appliance.

4. Open access panel door located at bottom front of appliance.

5. Turn control knob clockwise to full “OFF” position.

6. Wait five (5) minutes to clear out any gas. Then smell for gas, including near floor. If you

smell gas, STOP! Follow “B” on preceding page in Safety Information. If you don’t smell
gas, go to next step.

7. Find Pilot: The pilot is located in front of rear log and burner on right hand side of appli­ance. Fully open manual shutoff valve.

8. Press in and turn gas control knob counterclockwise to “PILOT” position
continue pressing in control knob for fifteen (15) seconds.

9. With control knob pressed in, push down (in) and release the ignitor button (ignitor button
is located on left hand side of gas control valve) . This will light pilot. If needed, keep re­peating this step until pilot lights.

10. Keep control knob pressed in for one (1) minute after lighting pilot. After one (1) minute,
release control knob and it will pop back out. Pilot should remain lit. If pilot goes out, re­peat steps 1 through 9.

 If the knob does not pop out when released, stop and immediately call your service techni-

cian or gas supplier.

 “If pilot will not stay lit after several tries, turn gas control knob to “OFF” and call your

services technician or gas supplier.”

Page 24

11. Turn gas control knob counterclockwise to “ON” position. Continue to turn
gas control knob counterclockwise to your desired setting.

12. Close access panel door.

13. Turn on all electrical power to appliance.

CAUTION

DO NOT TRY TO ADJUST HEATING LEVELS BY USING MANUAL SHUTOFF
VALVE.

TO TURN OFF GAS TOAPPLIANCE

SHUTTING OFF UNIT

1. Open access cover door.

2. Turn gas control knob clockwise to full “OFF” position.

3. Turn off all electric power to appliance if service is to be performed

4. Close access cover door.

SHUTTING OFF BURNER ONLY (pilot stays lit)

Turn control knob clockwise to “PILOT” position.

CAUTION: Hot while in operation. Do Not Touch. Keep children, clothing, furniture,

gasoline, and other liquids having flammable vapors away.

CAUTION: DO NOT TRY TO ADJUST HEATING LEVELS BY USING MANUAL

SHUTOFF VALVE.

WARNING: Improper installation, adjustment, alteration, service or maintenance can

cause property damage, personal injury or loss of life. Refer to owner’s information manual
provided with this appliance. Installation and service must be performed by a qualified
installer, service agency or the gas supplier.

IMPORTANT: Always operate the appliance at the completely “ON” or completely

“OFF” positions. Never use heater at a setting between these positions as this can result in
improper combustion and excessive carbon monoxide emissions.

Page 25

THERMOSTAT CONTROL OPERATION

1. The thermostat control on this heater differs from standard thermostats. Standard
thermostats simply turn burner on and off. The thermostat used on this heater senses
room temperature and adjusts amount of gas flow to burner. This will increase or
decrease flame height. At times, room may exceed set temperature, which will cause
burner to shut off. When room temperature drops below thermostat setting, burner
will cycle itself on again. The control knob can be set to any level between “LO” and
“HI”.

NOTE: The thermostat sensing bulb measures temperature of air near heater
cabinet. This may not always agree with room temperature (depending on
housing construction, installation location, room size, open air temperatures,
etc.). Frequent use of your heater will allow you to determine your personal
comfort levels.

MANUAL LIGHTING PROCEDURE

1. If pilot cannot be lit with piezo, it can be manually lit with the use of a paper match
and a lighter rod.

2. Open access panel door located at bottom front of appliance.

3. Place match in the holder and light. With left hand, turn control knob
counterclockwise to “PILOT”position. Press in gas control knob for fifteen
(15) seconds.

4. Use rod to light match and ignite pilot. The pilot is located in front of rear log and
burner on the right hand side of appliance.

5. Continue to hold control knob for an additional one (1) minute to ensure the pilot is

lit.

6. Turn control knob counterclockwise to “ON” position. Push “ON/
OFF” toggle switch to “ON” position. The main burner should light.

7. Close access panel door.

8. Turn on all electrical power to appliance.

NOTE: This unit may be used with an optional Wall Thermostat. If so, Wall Thermostat needs
to be set at a higher temperature than room temperature.

Page 26

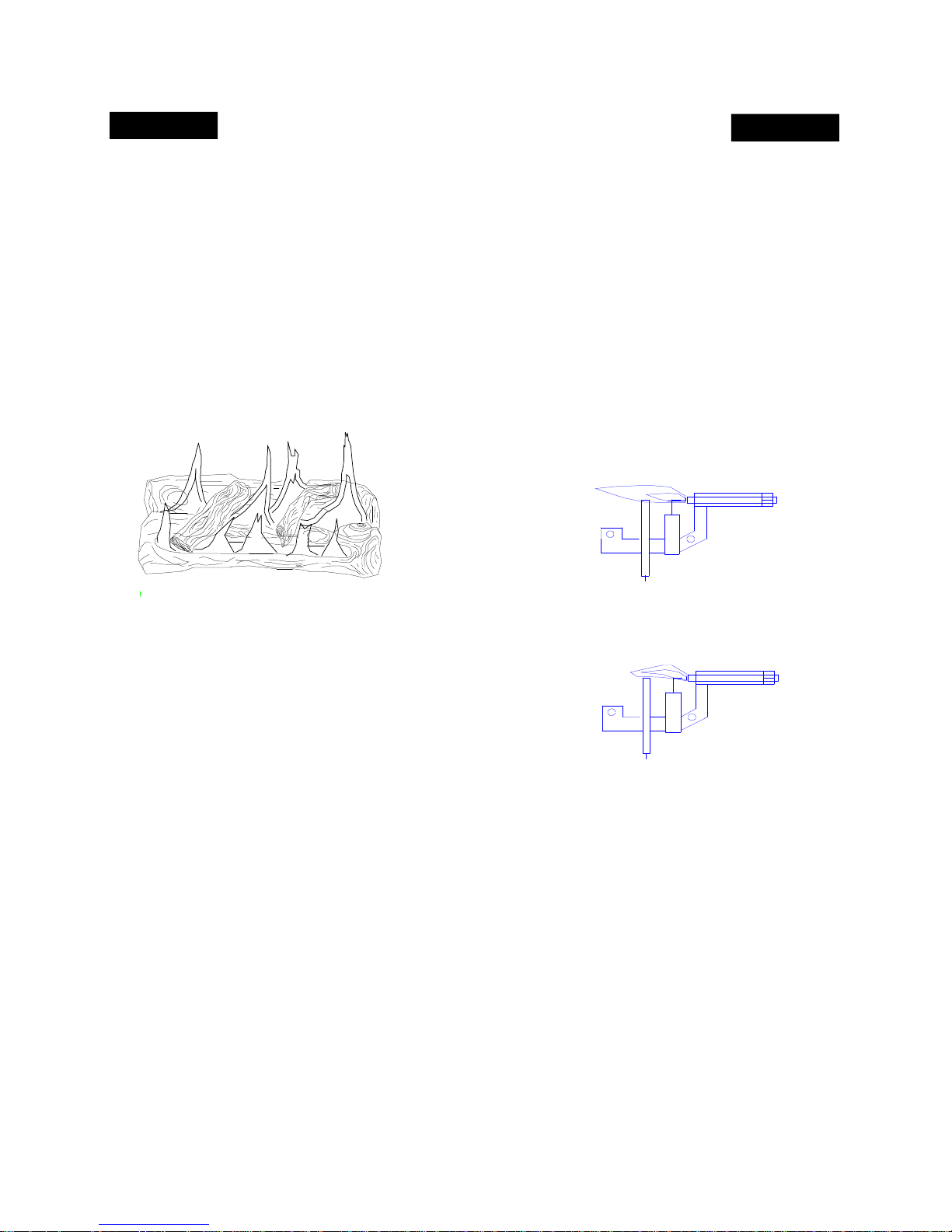

FLAME CHECK

A periodic check of flames should be made. The pilot flame should always be present when
gas logs are in operation. See Figure 11.

FLAME:

 Propane (LP) should produce a flame that is about 6" above rear log. This flame should be

yellow.

 Natural gas should produce a flame that is about 3" to 4" above rear log. This flame should

be mostly blue except foot top tips which should be yellow.

Natural

PILOT

Figure 11

Propane

PILOT

Page 27

WIRING DIAGRAM

RHEOSTAT

WARNING:

ELECTRICAL GROUNDING INSTRUCTION:
THIS APPLIANCE IS EQUIPPED WITH A THREE-PRONG (GROUNDING) PLUG FOR
YOUR PROTECTION AGAINST SHOCK HAZARD AND SHOULD BE PLUGGED
DIRECTLY INTO A PROPERLY GROUNDED THREE-PRONG RECEPTACLE.

NOTE: #PESBR084 Blower Motor

Rating: 120 volts/60HZ/1.1 Amps.

NOTE: For convenience, allow licensed electrician to install properly grounded

3-plug receptacle near unit.

THERMOSTAT

JUMPER

BLACK

BLACK

MOTOR

JUMPER

GREEN

POWER CORD

JUMPER

WHITE

WARNING: CHILDREN AND ADULTS SHOULD BE ALERTED TO

HAZARDS OF HIGH SURFACE TEMPERATURES AND SHOULD STAY AWAY TO
AVOID BURNS OR CLOTHING IGNITION. YOUNG CHILDREN SHOULD BE
CAREFULLY SUPERVISED WHEN THEY ARE IN SAME ROOM WITH
APPLIANCE

WARNING: DO NOT PLACE CLOTHING OR OTHER FLAMMABLE

MATERIAL ON OR NEAR THE APPLIANCE.

NOTE: “If any of original wire as supplied with gas appliance must be replaced,

it must be replaced with a wire of at least a 105oC. temperature rating.”

NOTE: Installation and repair should be done by a qualified service person.
This heater should be inspected before use and at least annually by a qualified
service person. More frequent cleaning may be required due to excessive lint
from carpeting, bedding material, etc. It is imperative that control compartments
and circulating air passageways of heater be kept clean.

CAUTION: Label all wires prior to disconnection when servicing controls. Wiring errors can
cause improper and dangerous operation.

Verify proper operation after servicing.

Page 28

IMPORTANT SAFEGUARDS

Although your gas logs are very realistic in appearance, it is not a real burning fireplace and must not be
used for burning rejected material.

 To avoid irreparable damage to heater or personal injury, matches, paper, garbage or any other

material must not be placed or thrown on top of logs or into flames.

 To avoid personal injury, do not touch hot surfaces when heater is operating.
 Close supervision is necessary when heater is being operated near children.

WARNING: THE LOGS MANUFACTURED FROM BONDED CERAMIC

FIBER. THIS IS A COMMONLY USED MATERIAL IN INDUSTRY WORLDWIDE.
IN EVENT THAT A LOG SHOULD BE REMOVED, CARE SHOULD BE TAKEN NOT
TO DAMAGE BONDED MATERIAL. INTENTIONAL MISUSE OR DELIBERATELY
FRAGMENTING MATERIAL COULD LEAD TO INHALING FIBERS AND BE
HAZARDOUS TO YOUR HEALTH.

THIS HEATER IS INTENDED FOR USE AS A GAS HEATER FIREPLACE AS
DESCRIBED IN THESE INSTRUCTIONS. IT SHOULD IT SHOULD NOT BE USED
FOR ANY OTHER PURPOSE.

CLEANING

CAUTION:BEFORE CLEANING OR MOVING THESE LOGS OR OTHER PARTS

OF THE HEATER, BE SURE TO READ THE ABOVE SECTIONS ON “IMPORTANT
SAFEGUARDS.”

The appliance must be turned “OFF” before cleaning inside firebox (burn area),
make sure the pilot is “OFF” completely and appliance has cooled.

 All cleaning should be carried out when heater is cold. Limited cleaning is required with

normal use. Dusting front of base, the top of piezo cover or control knob panel may be
required occasionally. Do not use cleaning fluids to clean logs or any other part of heater.

 If flames show unusual shapes or behavior, or if burner fails to ignite properly, burner

holes may require cleaning. If this occurs, contact your nearest dealer to service heater.

 The heater can be cleaned by removing logs. Lift logs gently, as not to damage fiber

pieces, use caution when removing. Lift each log by holding it carefully at each end. Use
a vacuum cleaner to remove dust and loose particles from base, logs and around burner
and ODS/Pilot. Gloves are recommended to prevent fibers from breaking the skin. If skin
is broken, clean with soap and water.

WARNING: Failure to keep the primary air openings of the burner clean may result in

soot and property damage.

Page 29

TROUBLE SHOOTING

WARNING:

TURN OFF, UNPLUG HEATER AND LET COOL BEFORE SERVICING. ONLY A
QUALIFIED SERVICE PERSON SHOULD SERVICE AND REPAIR HEATER.

CAUTION:

NEVER USE A WIRE, NEEDLE, OR SIMILAR OBJECT TO CLEAN ODS/PILOT. THIS
CAN DAMAGE ODS/PILOT.

OBSERVED
PROBLEM

Igniter button is pressed no
spark at ODS/Pilot

OBSERVED
PROBLEM

Igniter button is pressed
Spark at ODS/Pilot
No Ignition

POSSIBLE
CAUSE

1. Igniter electrode positioned
incorrectly.

2. Igniter electrode broken

3. Igniter electrode not
connected to igniter cable

4. Igniter cable pinched or wet

5. Piezo igniter nut is loose

6. Broken igniter cable

7. Bad piezo igniter

POSSIBLE
CAUSE

1. Gas supply turned off or
manual shutoff valve is
closed

2. Control knob not in PILOT
position

3. Control knob not pressed in
while in PILOT position

SOLUTION

1. Replace igniter

2. Replace igniter

3. Reconnect igniter cable

4. Free igniter cable if pinched
by any metal or tubing. Keep
igniter cable dry.

5. Tighten nut holding piezo
igniter to heater cabinet. Nut
is located inside heater
cabinet at top.

6. Replace igniter cable

7. Replace piezo igniter

SOLUTION

1. Turn on gas supply or open
manual shutoff valve

2. Turn control knob to PILOT
position

3. Press in control knob while in
PILOT position

Page 30

4. Air in gas lines when
installed

5. Depleted gas supply

6. ODS/Pilot is clogged

7. Gas regulator setting is not
correct

4. Continue to hold down control
knob. Repeat igniting
operation until air is removed.

5. Contact local propane gas
company

6. Clean ODS/Pilot or replace
ODS/Pilot assembly

7. Replace gas regulator

OBSERVED
PROBLEM

ODS/PILOT lights but flame
goes out when control knob is
released

POSSIBLE
PROBLEM

1. Control knob is not fully
pressed in

2. Control knob not pressed in
long enough

3. Safety interlock system has
been triggered (if equipped)

4. Manual shutoff valve not
fully open

5. Thermocouple connection
loose at control valve.

6. Pilot flame not touching
thermocouple, which allows
thermocouple to cool,
causing pilot flame to go
out. This problem can be
caused by one or both of the
following:

A) low gas pressure
B) dirty or partially

clogged ODS/Pilot

7. Control valve damaged

SOLUTION

1. Press control knob completely

2. After ODS/Pilot lights keep
control knob pressed 30
seconds.

3. Wait 1 minute for safety
interlock system to reset.

4. Fully open manual shutoff
valve.

5. Hand tighten until snug, then
tighten 1/4 turn

6. A) contact local propane gas
company
B) Clean ODS/Pilot (See
Cleaning and Maintenance),
or replace ODS/Pilot
assembly

7. Replace valve control

Page 31

OBSERVED
PROBLEM

POSSIBLE
CAUSE

SOLUTION

Burner does not light after ODS/
Pilot is lit

Delayed ignition of burner

Burner backfiring during
combustion

Slight smoke or odor during
initial operation

1. Burner orifice is clogged

2. Inlet gas pressure is too low

1. Manifold pressure is too low

2. Burner orifice is clogged

1. Burner orifice is clogged or
damaged

2. Burner damaged

3. Gas regulator defective

1. Residues from manufacturing
process

1. Clean burner (see Cleaning
and Maintenance) or replace
burner orifice

2. Contact local propane gas
company

1. Contact local propane gas
company.

2. Clean burner (see Cleaning
and Maintenance) or replace
burner orifice

1. Clean burner (see Cleaning
and Maintenance) or replace
burner orifice

2. Replace burner

3. Replace gas regulator

1. Problem will stop after a few
hours of operation

Heater produces a whistling
noise when burner is lit

1. Turning control knob to HI
position when burner is cold
(if equipped with this type of
valve)

2. Air in gas line

3. Air passageways on heater
blocked

4. Dirty or partially clogged
burner orifice

1. Turn control knob to LOW
position and allow to warm

2. Operate burner until air is
removed from line. Call
local propane company to
check gas line.

3. Observe minimum
installation clearances

4. Clean burner or replace
orifice

Page 32

WARNING

IF YOU SMELL GAS:

* SHUT OFF GAS SUPPLY
* DO NOT TRY TO LIGHT APPLIANCE
* DO NOT TOUCH ANY ELECTRICAL SWITCH; DO NOT USE ANY

PHONE IN YOUR BUILDING

* IMMEDIATELY CALL YOUR GAS SUPPLIER FROM A NEIGHBOR’S

PHONE. FOLLOW THE GAS SUPPLIER’S INSTRUCTIONS.

* IF YOU CANNOT REACH YOUR GAS SUPPLIER, CALL THE FIRE

DEPARTMENT.

IMPORTANT: Operating heater where impurities in the air exist may create odors. Cleaning

supplies, paint, paint remover, cigarette smoke, cements, glues and new carpet or textiles, etc. create
fumes. These fumes may mix with combustion air and create odors.

OBSERVED
PROBLEM

Heater produces a clinking/
ticking noise just after burner is lit
or shut off

Heater produces unwanted odors

Heater shuts off in use
(ODS operates)

Gas odor even when control knob
is in OFF position

POSSIBLE
CAUSE

1. Metal expands while heating
or contracts while cooling

1. Heater burning vapors from
paint, hairspray, glues, etc.
(See Important above)

2. Low fuel supply

3. Gas leak (See WARNING
above)

1. Not enough fresh air is
available.

2. Low line pressure

3. ODS/Pilot is partially clogged

1. Gas leak (See WARNING,
above)

2. Control valve defect

SOLUTION

1. This is common with most
heaters. If noise is excessive,
contact a qualified service
person.

1. Ventilate room. Stop using
odor causing products while
heater is running

2. Refill supply tank.

3. Locate and control all leaks
See Checking Gas
Connections

1. Open window/door for
ventilation

2. Contact local propane co.

3. Clean ODS/Pilot

1. Locate and correct all leaks
(see Checking Gas
Connections)

2. Replace control valve

Gas odor during combustion

1. Foreign matter between
control valve and burner

2. Gas leak (See WARNING,
above)

Page 33

1. Remove foreign matter from
gas tubing

2. Locate and correct all leaks
(see Checking Gas
Connections)

SERVICING

Repair and replacement work should only be performed by a qualified service technician.

Always shut off gas supply and make sure heater is cool before beginning any service
operation. Check for gas leaks after servicing.

REPAIR PARTS

A parts list with exploded view follows. Always include correct name, part number and model
number of heater when ordering service parts. Please contact your local dealer or Distributor
when orderin or if one is not available, you may contact:

New Buck Corporation

PO Box 69, 200 Ethan Allen Drive

Spruce Pine, NC 28777

(828)-765-6144

Page 34

REPLACEMENT PARTS

ITT VALVE 19GL BASE

(Picture on page 36)

KEY# PART DESCRIPTION PART NUMBER

1. Female Terminals PE 5X425

2. Regulator (LP) Maxitrol PE RV 12LF90

2. Regulator (NAT) Maxitrol PE RV 12LF30

3. Pilot (NAT) Copreci PE 2150053 - NAT

3. Pilot (LP) Copreci PE 2150054 - LP

4. Generator ITT PE G251F245

5. Carling Switch PE RA911VB

6. Piezo Striker PE 124461

7. Piezo 14" Igniter Wire PE UL3304

8. Pilot Tube 1/4" MF 147AL

9. Burner Tube 3/8" PO 38117ALMTUB

10. 3/8" Supply Tube PO 38812ALMTUB

11. 3/8" IPT Male & Female Connector PH 4866

12. 3/8" x 3/8" Elbow (Brass) PH 4966

13. Jumper Wire 6" PE 65 JUMPER

14. Burner PO DTBURN

15. Orifice Holder PO 54ORFHLD

16. Orifice PO ORIFICE

17. Valve (LP) ITT PE B67SA-233

17. Valve (NAT) ITT PE B67RA-234

18. Burner Base PO 300010

19. 1/8" x 1/4" Compression Adapter PH 6842

20. Regulator Tube 1/4" MF 147AL

21. Fan Motor PE SBRO84

22. Power Cord PE 400240

23. Strain Release PE 400320

24. Thermostat PE 400130

25. Male Terminals PE 5X428

26. Jumper Wire 12" PE 12JUMPER

27. Gas Log Set PO C-3329

28. Fan Speed Control Label PE KB9724

29. Rheostat PE BC 204

30. Rheostat Knob PE BC 204A

31. Heyco 1-1/4" Grommet PE HEYCO2883

OTHER PARTS (NOT SHOWN)

Page 35

ITT VALVE 19GL BASE

Page 36

REPLACEMENT PARTS

SIT MODULATING OR SIT MANUAL 19GL BASE

(Picture on page 38)

KEY# PART DESCRIPTION PART NUMBER

1. Pilot (NAT) Copreci PE 2150053 - NAT

1. Pilot (LP) Copreci PE 2150054 - LP

2. Thermcouple (Copreci) PE TPT100 / 90

3. Pilot Tube 1/4" MF 147AL

4. Burner Tube 3/8" PO 3817ALMTUB

5. 3/8" x 3/8" Elbow PH 4966

6. Burner PO DTBURN

7. Orifice Holder PO 54ORFHLD

8. Orifice PO ORIFICE

9. Valve (LP) SIT (Modulating) PE 0630504

9. Valve (NAT) SIT (Modulating) PE 0630504
9A. Valve (LP) SIT (Manual) PE0630.522
9A Valve (NAT) SIT (Manual) PE0630.522

10. Burner Base PO 300010

11. Valve Regulator (LP) Maxitrol PE RV20LF90

11. Valve Regulator (NAT) Maxitrol PE RV20LF35

Black Pipe:

12. 3/8" 90 Degree Elbows (2) PO 3890ELB

13. 3/8" x 1-1/2" Nipples (1) PO 38112BINIP

14. 3/8" x 3-1/2" Nipples (2) PO 38312BINIP

15. 3/8" Supply Tube PO 381434ALMTUB

16. 3/8" IPT Male & Female Connector PH 4866

17. Pilot Regulator (LP) Maxitrol PE RV 12LF90

17. Pilot Regulator (NAT) Maxitrol PE RV 12LF30

OTHER PARTS (NOT SHOWN)

18. Fan Motor PE SBRO84

19. Power Cord PE 400240

20. Strain Release PE 400320

21. Thermostat PE 400130

22. Male Terminals PE 5X428

23. Jumper Wire 12" PE 12JUMPER

24. Gas Log Set PO C-3329

25. Fan Speed Control Label PE KB9724

26. Rheostat PE BC 204

27. Rheostat Knob PE BC 204A

28. Heyco 1-1/4" Grommet PE HEYCO2883

Page 37

SIT MODULATING OR SIT MANUAL 19GL BASE

Page 38

NEW BUCK CORPORATION

We reserve the right to amend these specifications at any time without notice. The only
warranty applicable is our standard written warranty. We offer no other warranty, expressed or
implied.

LIMITED WARRANTY

MODEL FP-32

New Buck warrants this product to be free from defects in materials and components for two
(2) years from date of first purchase, provided that product has been properly installed,
operated and maintained in accordance with all applicable instructions. To make a claim under
this warranty Bill of Sale or canceled check must be presented.

This warranty is extended only to original retail purchaser and covers cost of parts required to
restore heater to proper condition. Warranty parts MUST be obtained through an authorized
Buck Stove dealer and/or New Buck, who will provide original factory replacement parts.
Failure to use original factory replacement parts voids this warranty. The heater must be
installed by a qualified installer in accordance with all local codes and instructions furnished
with unit.

Warranty does not apply to parts that are not in original condition, normal wear and tear or parts
that fail or become damaged as a result of misuse, accidents, lack of proper maintenance or
defects caused by improper installation.

WARRANTY DOES NOT COVER:

- Removal and re-installation cost

- Labor costs for replacements or repairs

- Transportation

- Cost of service call to diagnose trouble

- Painted surfaces

- Damage or defect caused by improper installation, accident, misuse, abuse, or alteration

TO THE FULL EXTENT ALLOWED BY LAW OF JURISDICTION THAT GOVERNS
SALE OF PRODUCT, THIS EXPRESS WARRANTY EXCLUDES ANY AND ALL
OTHER EXPRESSED WARRANTIES AND LIMITS DURATION OF ANY AND ALL
WARRANTIES, INCLUDING WARRANTIES OF MERCHANTABILITY AND FITNESS
FOR A PARTICULAR PURPOSE TO ONE (1) YEAR FROM DATE OF FIRST
PURCHASE. NEW BUCK LIABILITY IS HEREBY LIMITED TO PURCHASE PRICE OF
PRODUCT AND NEW BUCK SHALL NOT BE LIABLE FOR ANY OTHER DAMAGES
WHATSOEVER INCLUDING INCIDENTAL OR CONSEQUENTIAL DAMAGES.

Some states do not allow a limitation on how long an implied warranty lasts or an exclusion or
limitation of incidental or consequential damages, so above limitation on implied warranties or
exclusion on damages may not apply to you.

This warranty gives you specific legal rights. Other rights may vary from state to state.

OWNER REGISTRATION

The attached owner registration card must be completed in its entirety and mailed within 30
days from date of installation in order for warranty coverage to begin to:

New Buck Corporation
P.O. Box 69
Spruce Pine, NC 28777

PLEASE NOTE: Owner Registration Card must contain Authorized Buck Stove Dealer
Number and Certified Installer’s number (if applicable) for warranty coverage to begin.

NAME: ____________________________________________________
ADDRESS:_________________________________________________
CITY: _____________________________________________________
STATE:______________________ ZIP: ________________________

CUSTOMER EMAIL: ________________________________________

MODEL #:

FP-32

SERIAL #: __________________________

DATE OF INSTALLATION:___________________________________
INSTALLER’S NAME: _______________________________________
PURCHASED FROM: _______________________________________
