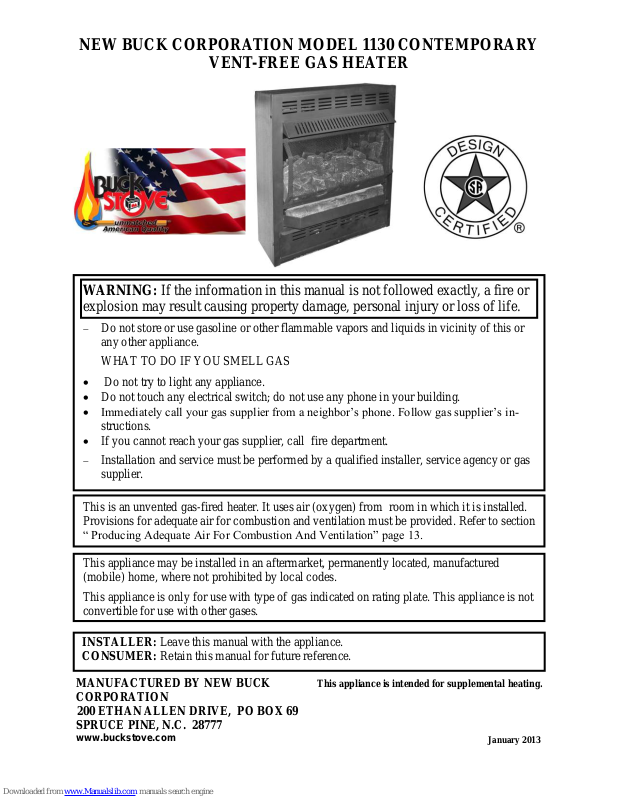

BuckMaster 1130 User Manual

NEW BUCK CORPORATION MODEL 1130 CONTEMPORARY

VENT-FREE GAS HEATER

WARNING: If the information in this manual is not followed exactly, a fire or

explosion may result causing property damage, personal injury or loss of life.

 Do not store or use gasoline or other flammable vapors and liquids in vicinity of this or

any other appliance.

WHAT TO DO IF YOU SMELL GAS

 Do not try to light any appliance.
 Do not touch any electrical switch; do not use any phone in your building.

 Immediately call your gas supplier from a neighbor’s phone. Follow gas supplier’s in-

structions.

 If you cannot reach your gas supplier, call fire department.

 Installation and service must be performed by a qualified installer, service agency or gas

supplier.

This is an unvented gas-fired heater. It uses air (oxygen) from room in which it is installed.
Provisions for adequate air for combustion and ventilation must be provided. Refer to section
“ Producing Adequate Air For Combustion And Ventilation” page 13.

This appliance may be installed in an aftermarket, permanently located, manufactured
(mobile) home, where not prohibited by local codes.

This appliance is only for use with type of gas indicated on rating plate. This appliance is not
convertible for use with other gases.

INSTALLER: Leave this manual with the appliance.
CONSUMER: Retain this manual for future reference.

MANUFACTURED BY NEW BUCK
CORPORATION

200 ETHAN ALLEN DRIVE, PO BOX 69

SPRUCE PINE, N.C. 28777

www.buckstove.com

This appliance is intended for supplemental heating.

January 2013

TABLE OF CONTENTS

Safety Information and Warnings ................................................................................................. 3

Product Identification .................................................................................................................... 6

Product Features ............................................................................................................................ 7

Unpacking ..................................................................................................................................... 7

Installation ..................................................................................................................................... 9

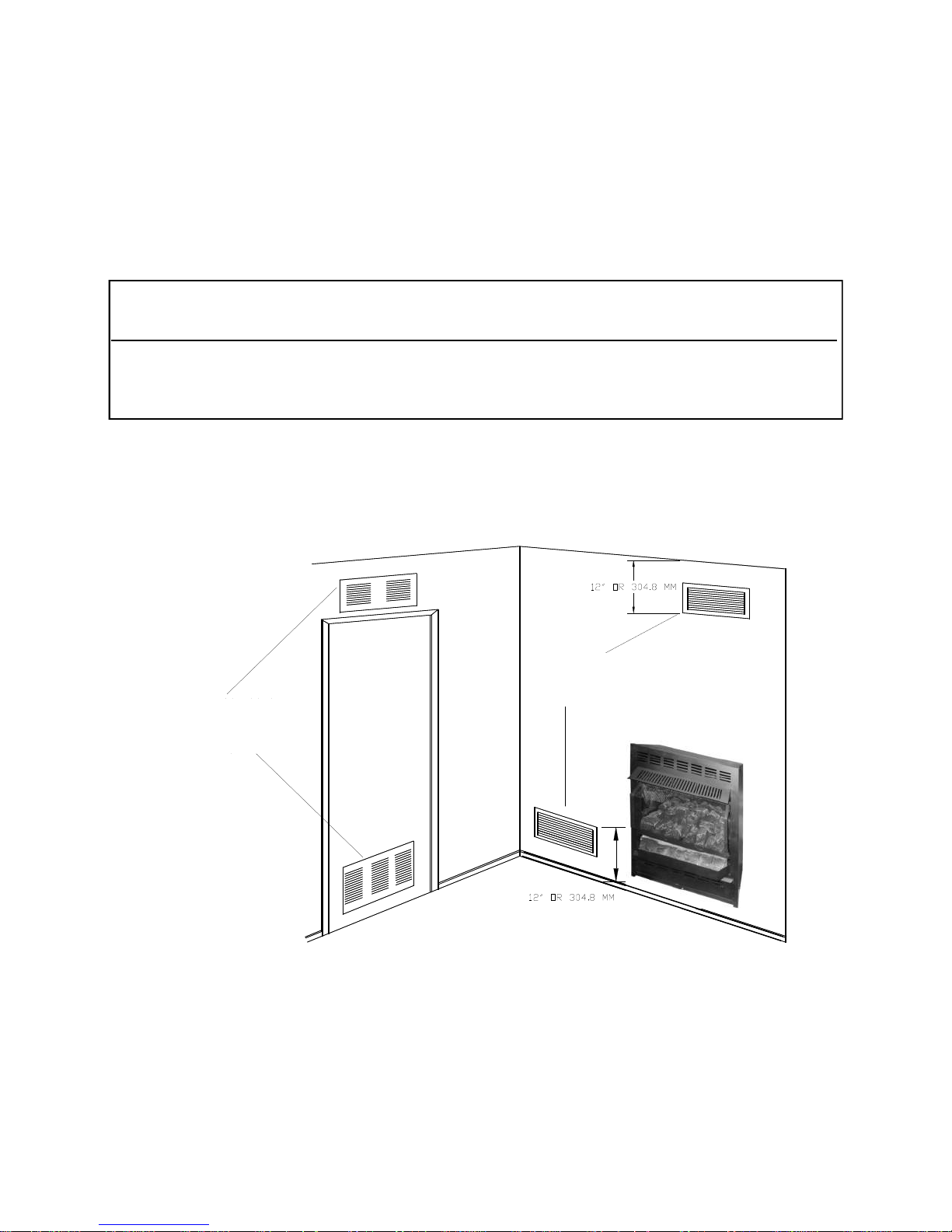

Producing Adequate Ventilation Air for Combustion and Ventilation ...................................... 13

Producing Adequate Ventilation Air for Combustion and Ventilation From Inside Building ... 15

Producing Adequate Ventilation Air for Combustion and Ventilation From Outdoors ............. 16

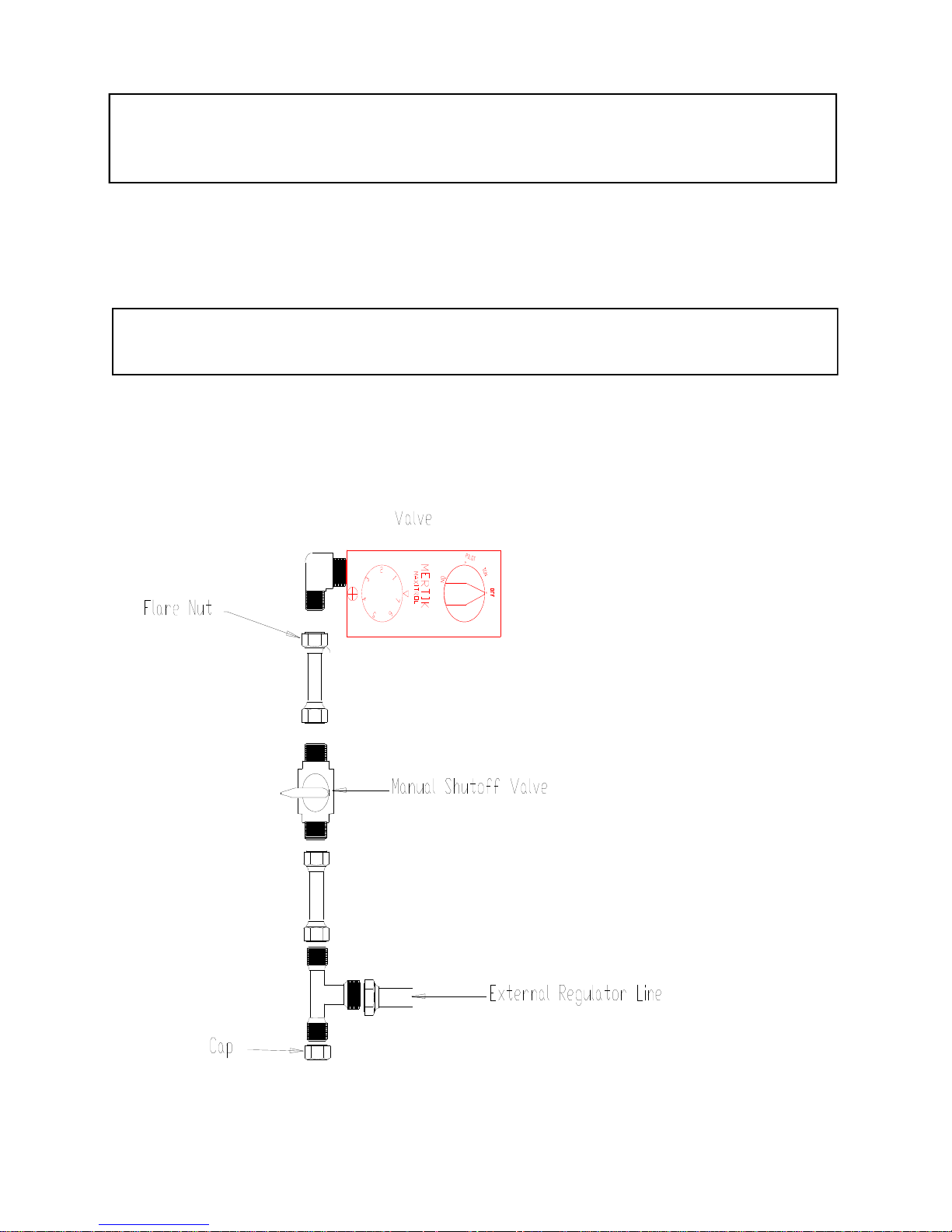

Gas Connection ........................................................................................................................... 17

Connecting to Gas Supply .......................................................................................................... 18

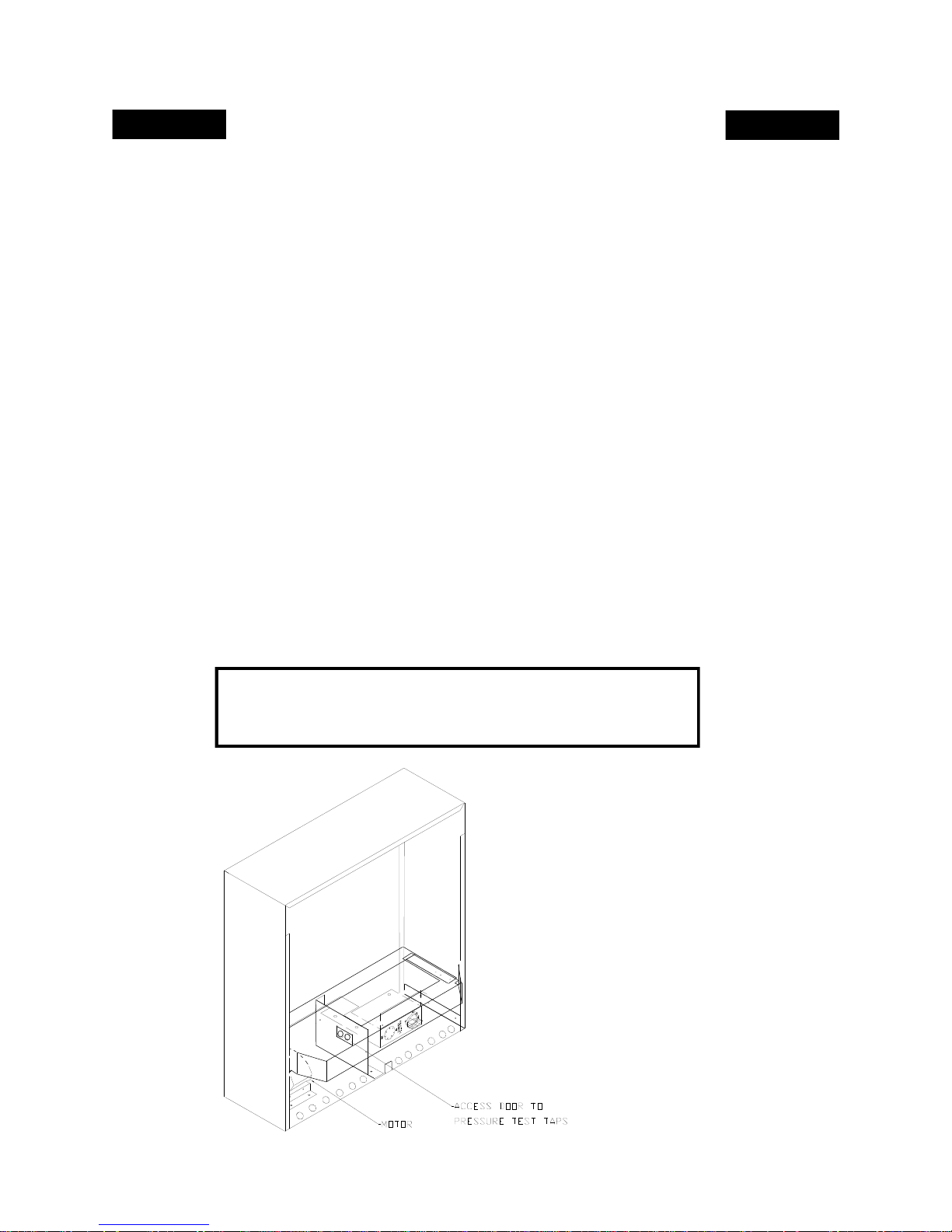

Gas Pressure Check ..................................................................................................................... 20

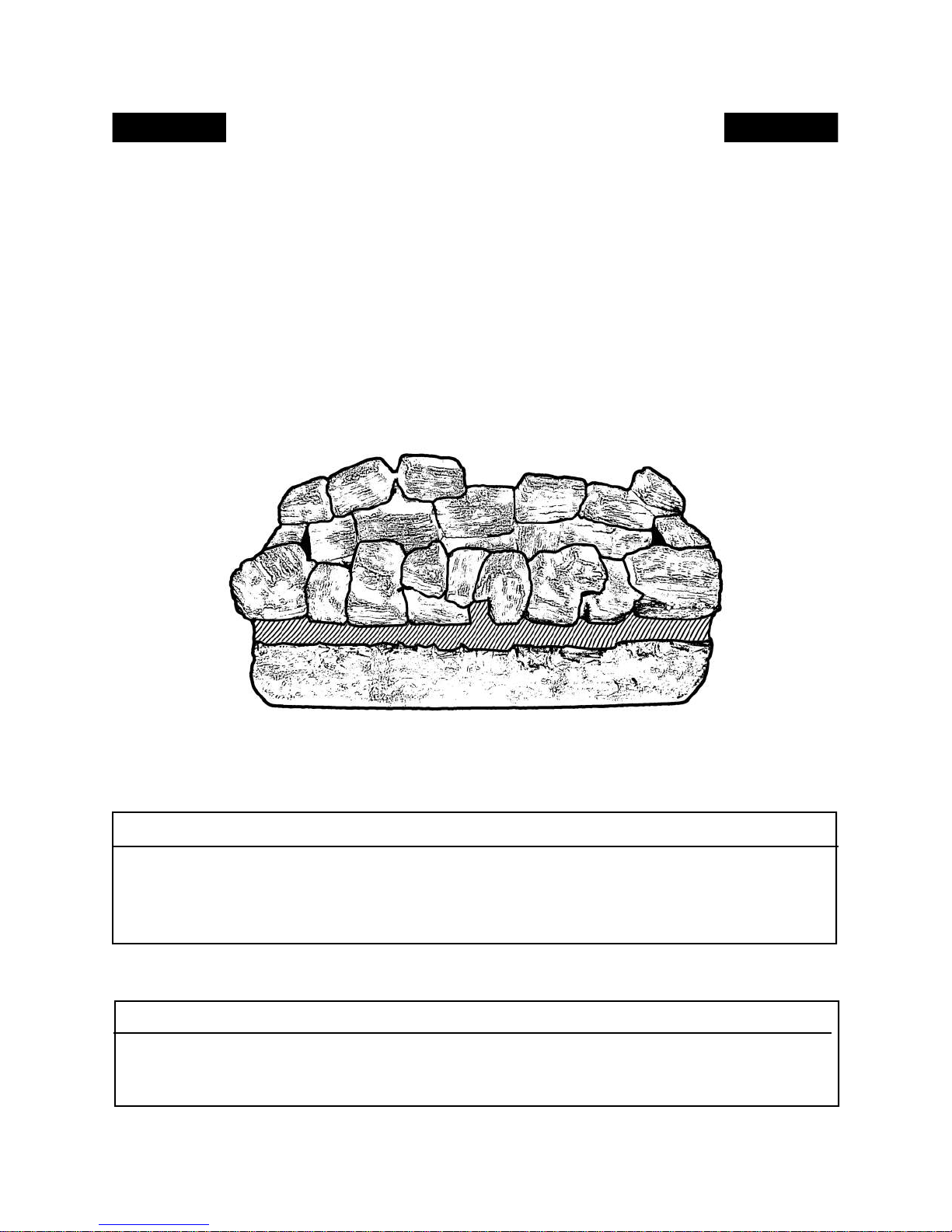

Log Placement ............................................................................................................................ 21

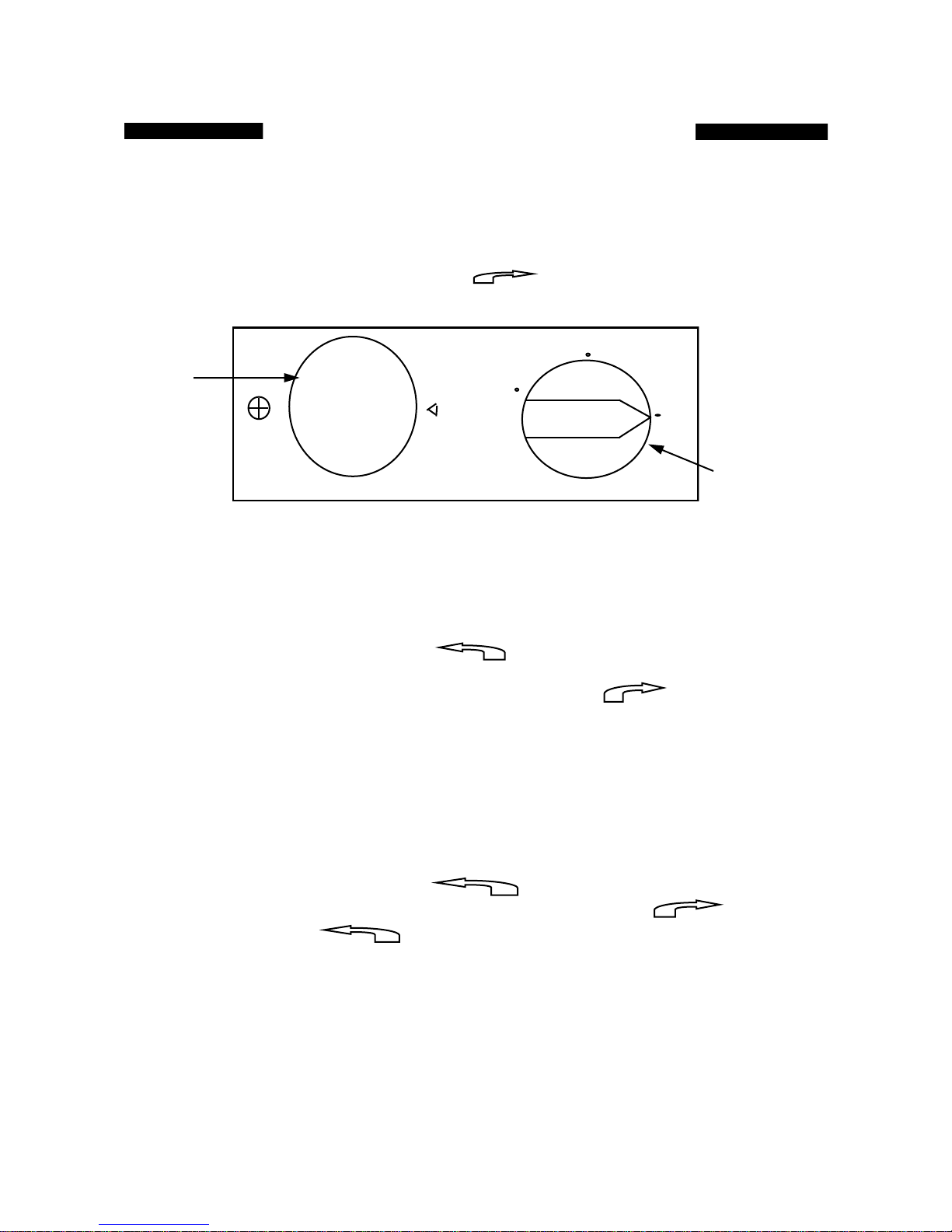

Lighting Instructions .................................................................................................................. 22

Flame Check .......................................................................................................................... 26-27

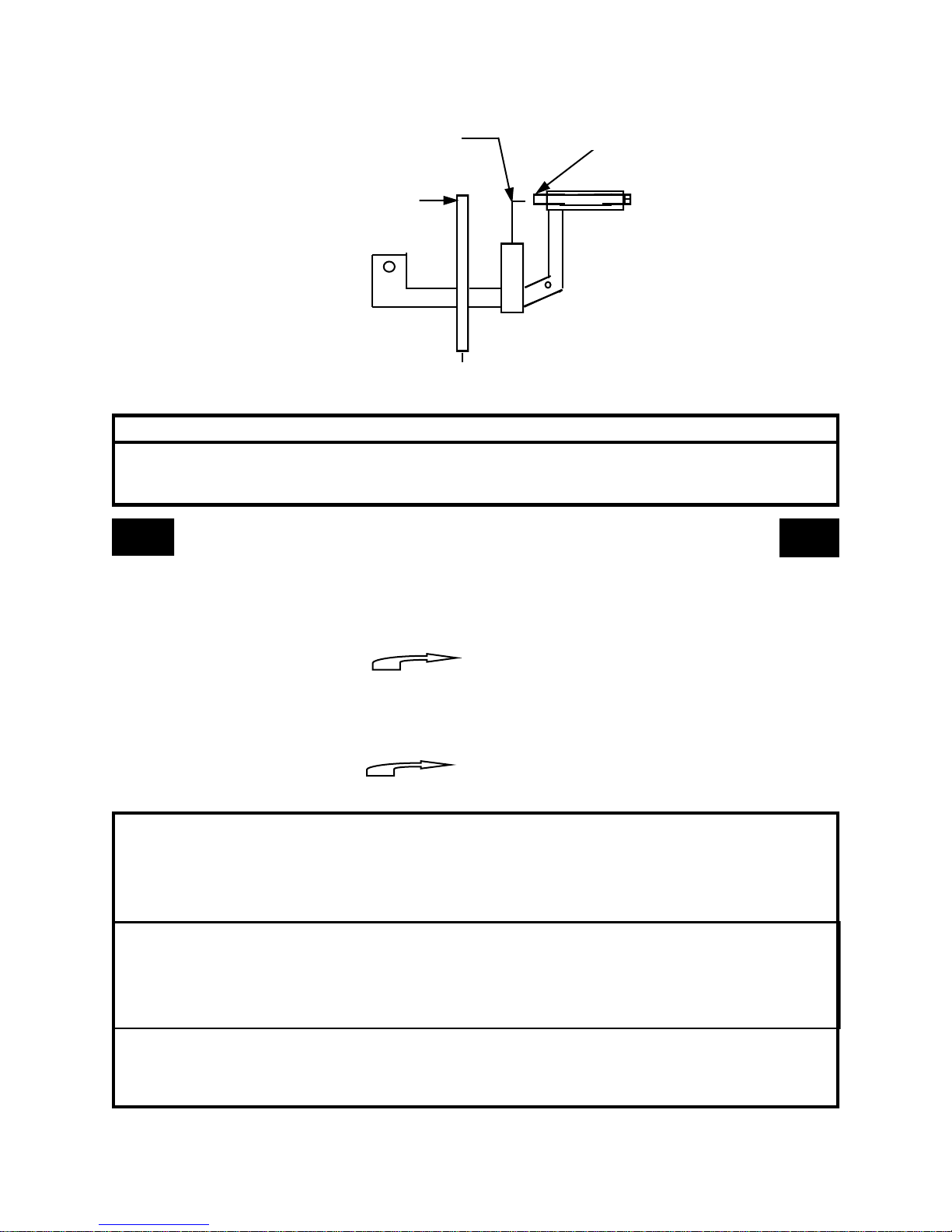

Inspecting Pilot ...................................................................................................................... 26-27

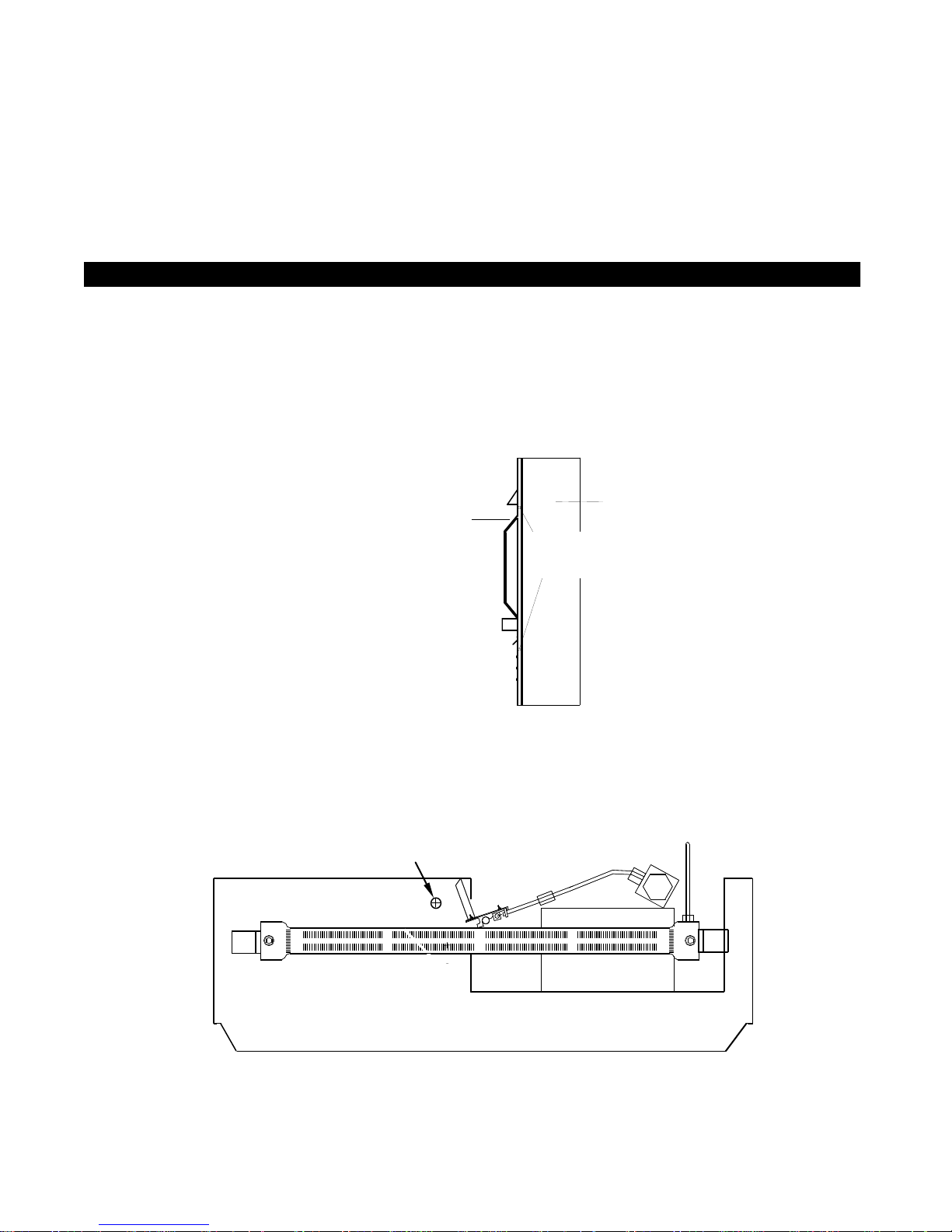

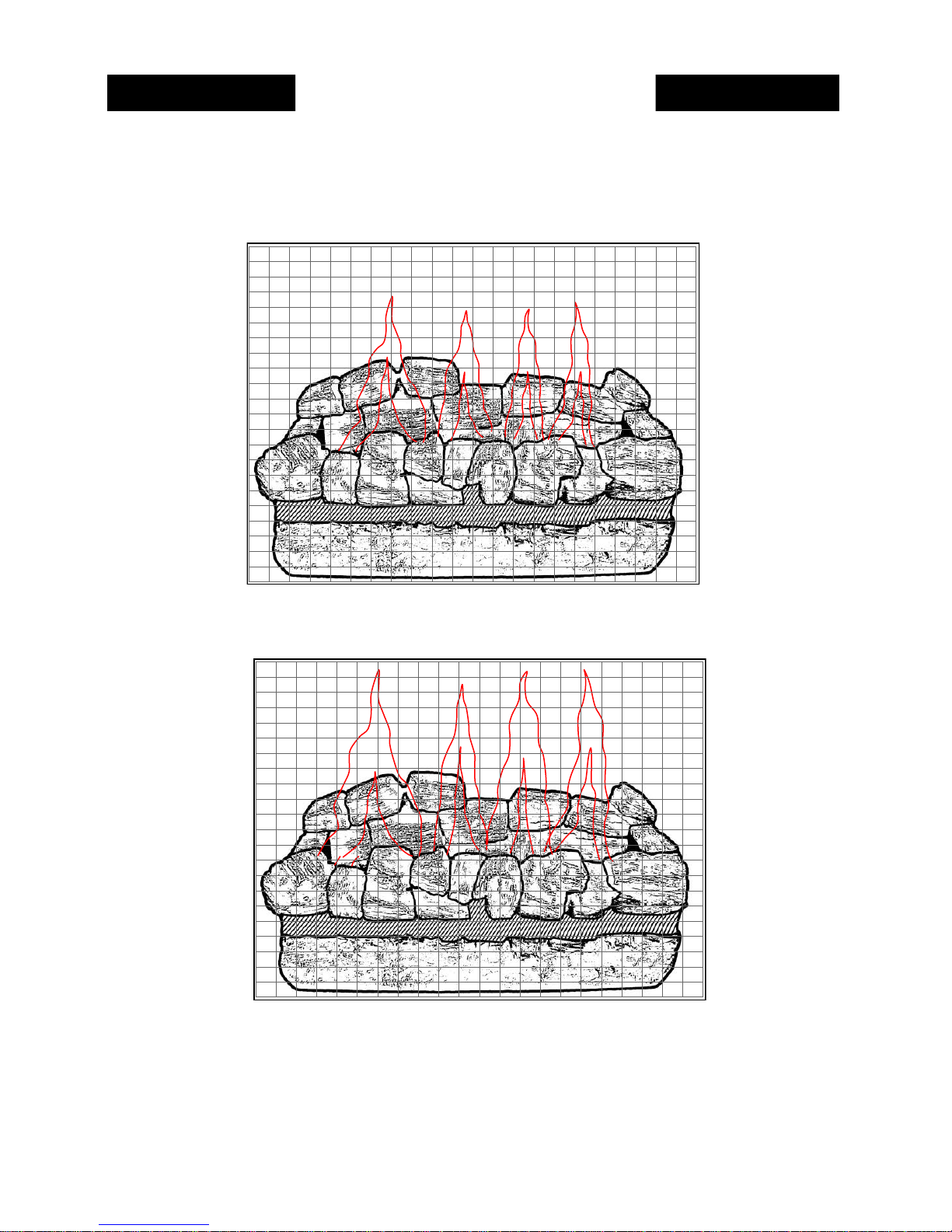

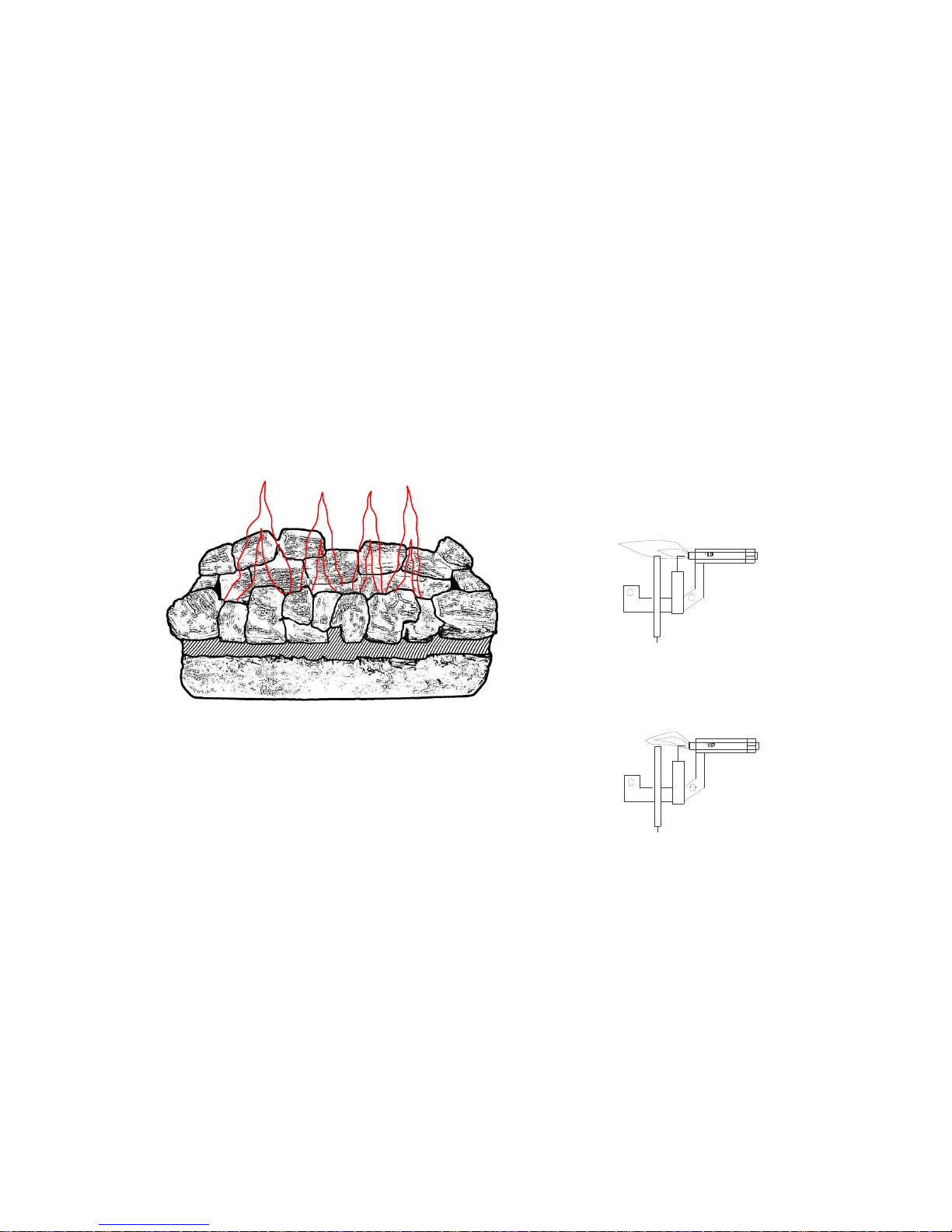

Burner Flame Pattern ............................................................................................................. 26-27

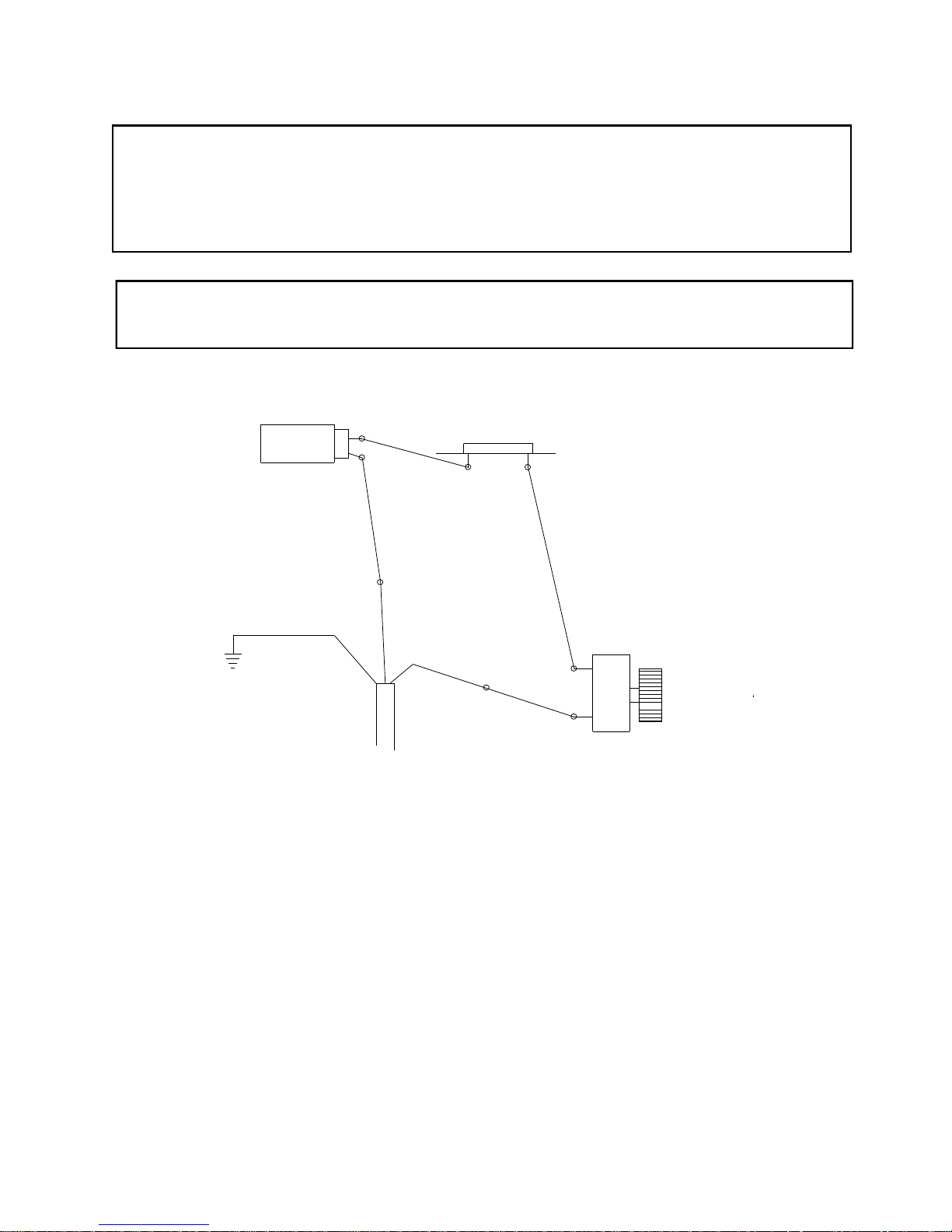

Wiring Diagram .......................................................................................................................... 28

Cleaning and Maintenance .......................................................................................................... 30

Troubleshooting .......................................................................................................................... 32

Technical Service ........................................................................................................................ 29

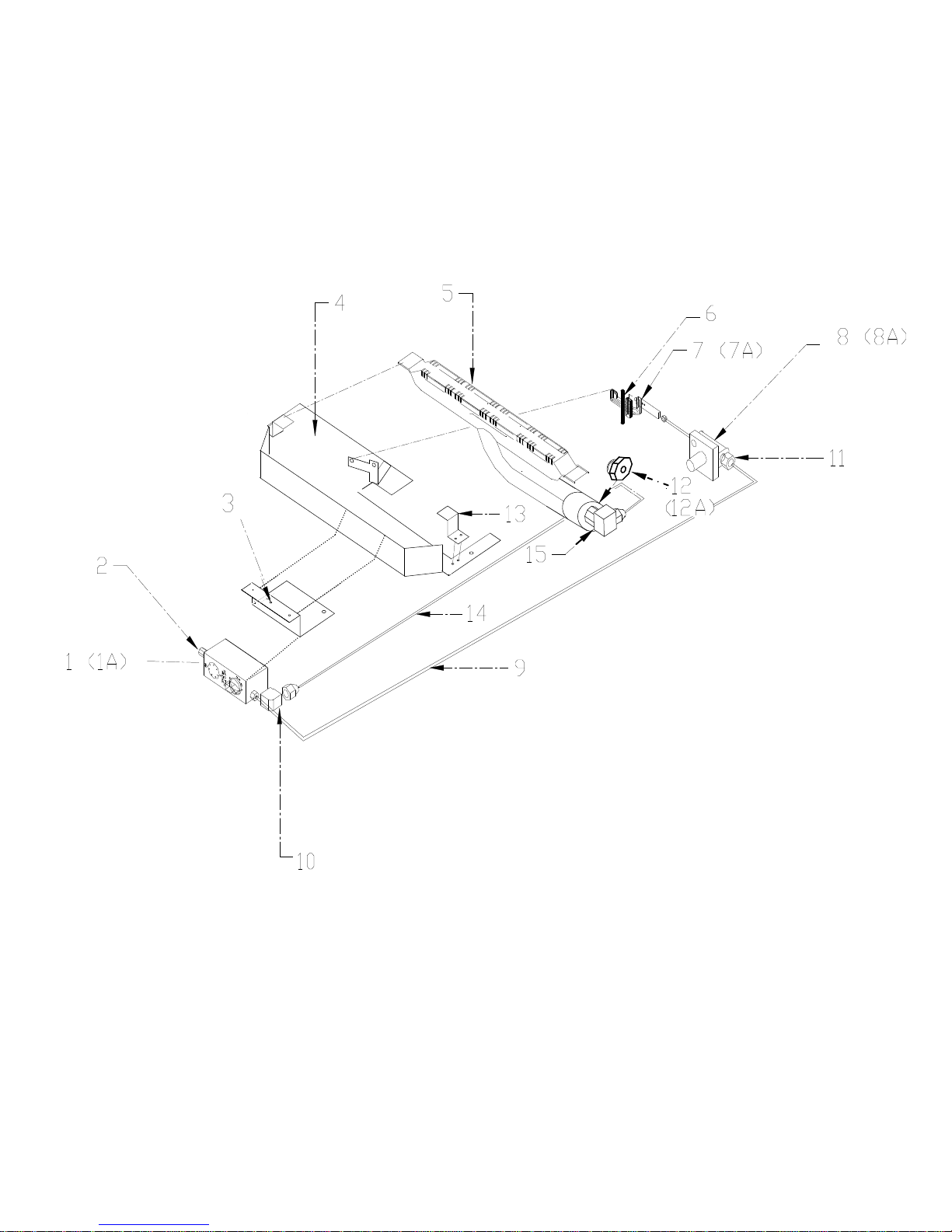

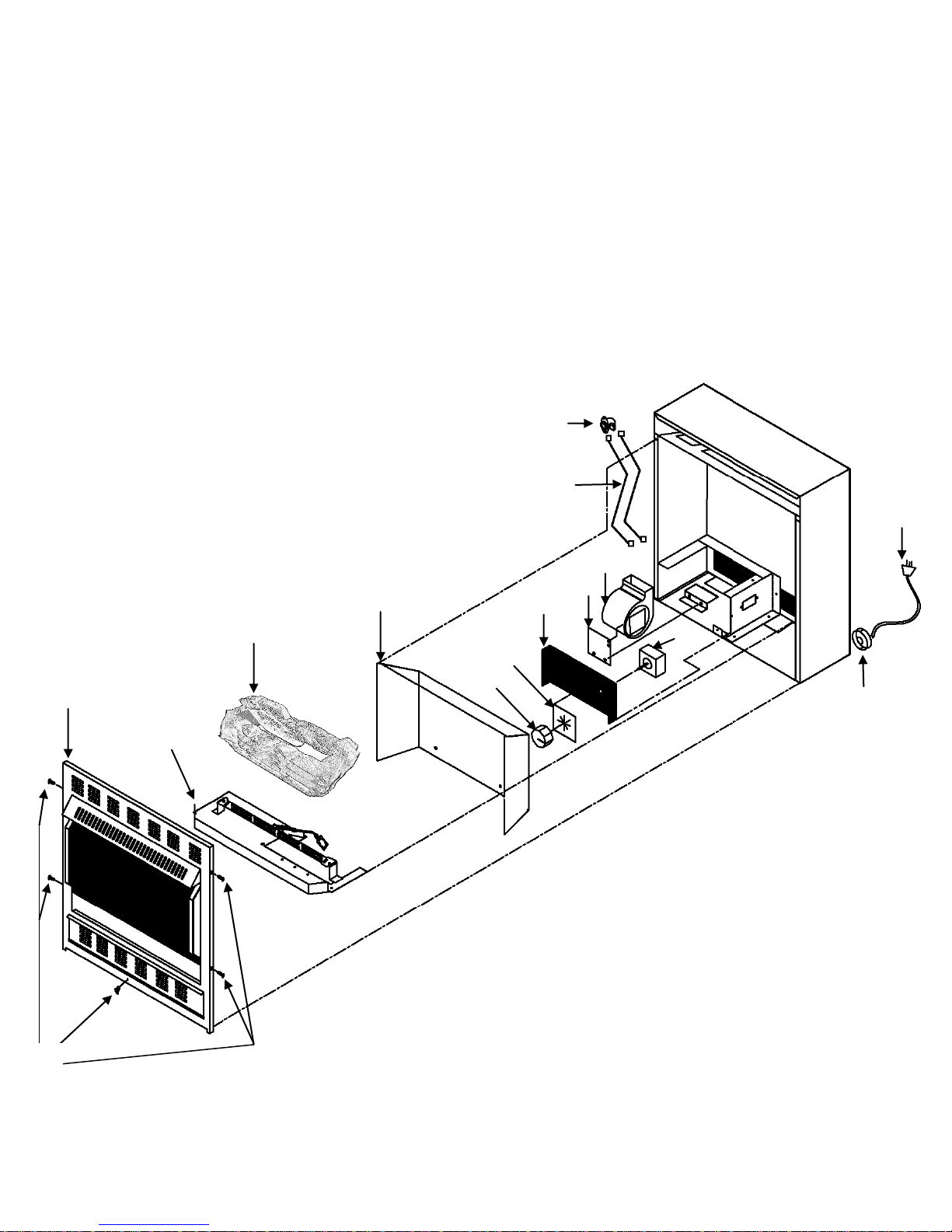

Parts List & Blown up View .................................................................................................. 36-40

Warranty ..................................................................................................................................... 41

SAFETY INFORMATION

WARNINGS

IMPORTANT: READ THIS OWNER’S MANUAL CAREFULLY AND COMPLETELY
BEFORE TRYING TO ASSEMBLE, OPERATE OR SERVICE THIS APPLIANCE.
IMPROPER USE OF THESE LOGS CAN CAUSE SERIOUS INJURY OR DEATH FROM
BURNS, FIRE, EXPLOSION AND CARBON MONOXIDE POISONING.

 NOTE: When burning any unit or appliance that combusts fuel for heat, such as

coal, oil, wood or natural and (L.P.) liquid petroleum gas. We highly recommend
the use of smoke and carbon monoxide detectors in your home.

Early signs of carbon monoxide poisoning resemble the flu, with headaches, dizziness and/or nausea. If
you have these signs, heater may not be working properly. Get fresh air at once! Have burner serviced.
Some people-pregnant women, persons with heart or lung disease, anemia, those under the influence of
alcohol, those at high altitudes-are more affected by carbon monoxide than others.
Make certain you understand and read all Warnings. Keep this manual for reference. It is your guide to
safe and proper operation of this heater and logs.

CAUTION: Strong drafts, such as a ceiling fan placed directly in front of heater

(pulling from either direction) may create sooting. Sooting will discolor walls.

1. The installation must conform with local codes or in absence of local codes, with National Fuel
Gas Code, ANSI Z223.1/NFPA54.

2. This appliance may be installed in an After-Market* Manufactured (Mobile) Home, where not
prohibited by state or local codes.

* (After-Market: Completion of sale, not for purpose of resale from manufacturer.)

This appliance is only for use with type of gas indicated on rating plate. This appliance is not
convertible for use with other gases.

NOTE: See Page 13, for “Producing Adequate Air For Combustion And Ventilation”.

IMPORTANT: VENT-FREE HEATERS ADD MOISTURE TO AIR. ALTHOUGH THIS IS

BENEFICIAL, INSTALLING HEATER IN ROOMS WITHOUT ADEQUATE VENTILATION
MAY CAUSE MILDEW TO FORM FROM TOO MUCH MOISTURE.

3. Never install this heater:

 In a recreational vehicle, bathroom.
 Where curtains, furniture, clothing or other flammable objects are less than 24" from the front of

heater

 In high traffic areas or in windy areas

4. Two models are available. One specific model for propane(LP) and one for natural gas. Use
correct type gas for your home. Do not convert from one gas type to another.

NOTE: This appliance complies with ANSI Z21.11.2b-2010 Unvented Room Heater.

WARNING

This appliance is equipped for (natural or propane) gas.
Field conversion is not permitted.

Page 2

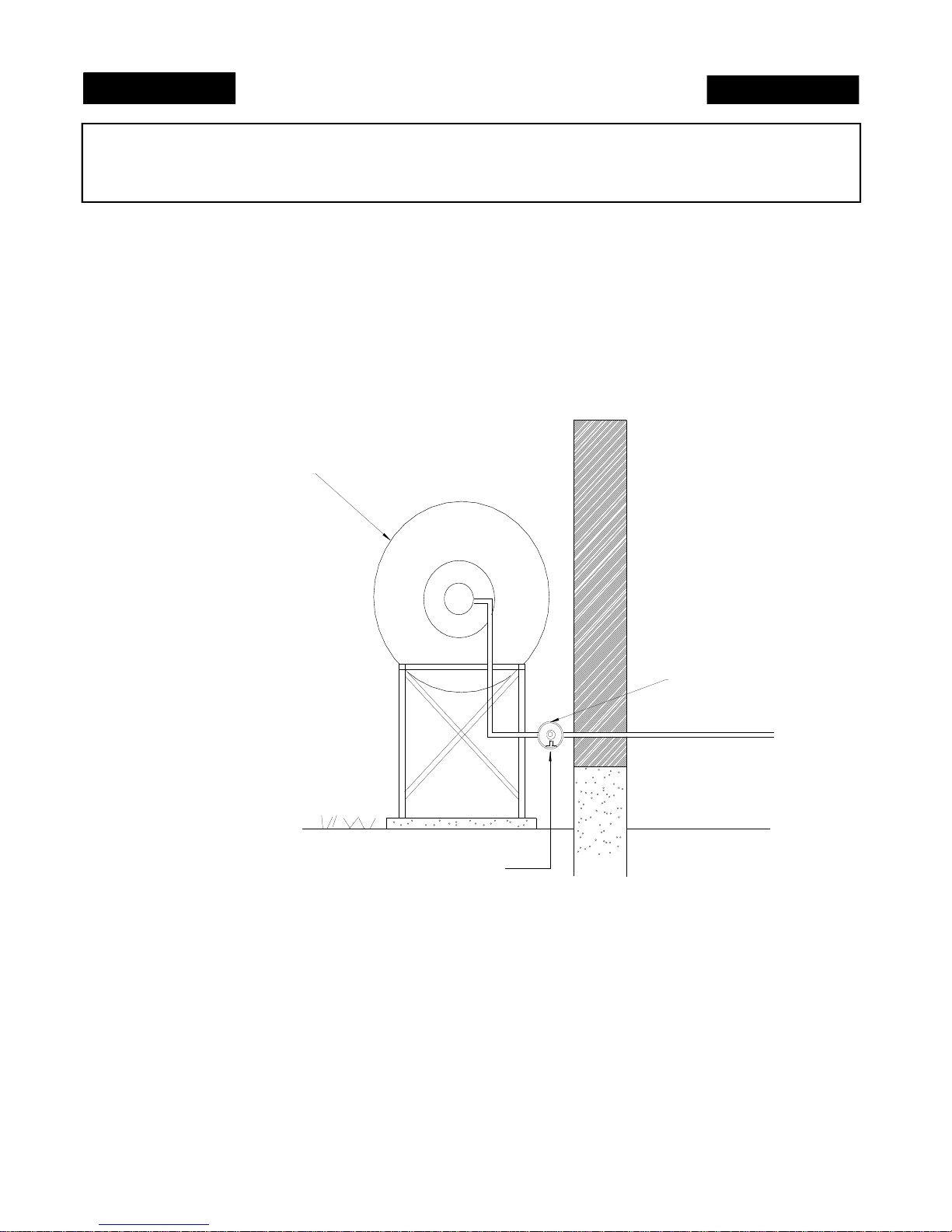

5. If this heater is used with propane gas, do not place propane supply tank (s) inside any structure.

6. What To Do IF You Smell Gas:

- Shut off gas supply.

- Do not try to light any appliance.

- Do not touch any electrical switch; do not use any phone in your building.

- Immediately call your gas supplier from a neighbor’s phone.

- Follow gas supplier’s instructions.

- If you cannot reach your gas supplier, call the department.

7. When operated for first time, the logs may emit a “paper burning” smell. This smell will gradually
diminish and will be totally eliminated after first few hours of operation. Do not use blower at this
time.

8. This heater shall not be installed in unusually tight construction unless provisions are provided for
adequate combustion and ventilation air. See Producing Adequate Air For Combustion And
Ventilation, page 13.

9. Surface of gas logs becomes very hot when operating. Keep children and adults away from hot
surface. Gas logs will remain hot for sometime after shutdown. Allow surface to cool before
touching.

10. Do not place clothing or other flammable material on or near appliance.

11. If equipped, fresh air damper must be closed.

12. Keep appliance area clean and free from combustible materials, gasoline and other flammable
flammable vapors and liquids.

13. If burner shuts off, do not relight until you provide fresh outside air. If burner continues to shut off,
have unit serviced.

14. Do not use this heater if any part has been under water. Immediately call qualified service technician
to inspect room heater and to replace any part of control system and any gas control which has been
under water.

15. Turn off heater and let cool before servicing.

16. These logs are made of bonded fiber. When removing logs and base, do not damage bonded
material. If the material is damaged extensively, loose fiber dust could be emitted into air.

17. Any safety screen or guard removed for servicing an appliance must be replaced prior to operating
heater.

18. This appliance is intended for supplemental heating.

18. WARNING: Any change to this heater or its controls can be dangerous.

19. Installation and repairs should be performed by a qualified service person. The appliance should be
inspected before use and at least annually by a professional service person. More frequent cleaning
may be required due to excessive lint from carpeting, bedding material, etc. It is imperative that
control compartments, burners and circulating air passageways of appliance be kept clean.

Page 3

20. All heater screens must be kept clean when operating gas logs.

21. WARNING: Failure to keep primary air opening of burner clean may result in soot and property
damage.

22. Do not use this heater for burning trash or cooking. Never place matches, paper, garbage or any
other material on top of logs or into flames.

23. Do not install or operate this heater in areas where impurities in air exist (such as tobacco smoke or

heavy cooking grease). Particles from impurities may discolor walls.

24. Due to high temperatures, appliance should be located out of traffic and away from furniture and

draperies.

25. Children and adults should be alerted to hazards of high surface temperature and should stay away to
avoid burns or clothing ignition.

26. Young children should be carefully supervised when they are in same room with appliance.

27. An unvented room heater having an input rating of more than 10,000 Btu per hour shall not be
installed in a bathroom or bedroom.

28. The appliance and its appliance main gas valve must be disconnected from the gas supply piping
system during any pressure testing of that system at test pressure in excess of 1/2 psi (3.5 kPa).

29. The appliance must be isolated from the gas supply piping system by closing its equipment shut-off
valve during any pressure testing of gas supply piping system at test pressures equal to or less than
1/2 psi (3.5 kPa).

30. WARNING: Do not allow fans to blow directly into fireplace. Avoid any drafts that alter burner
flame patterns.

31. WARNING: Do not use a blower insert, heat exchanger insert or other accessory not approved for
use with this heater.

Page 4

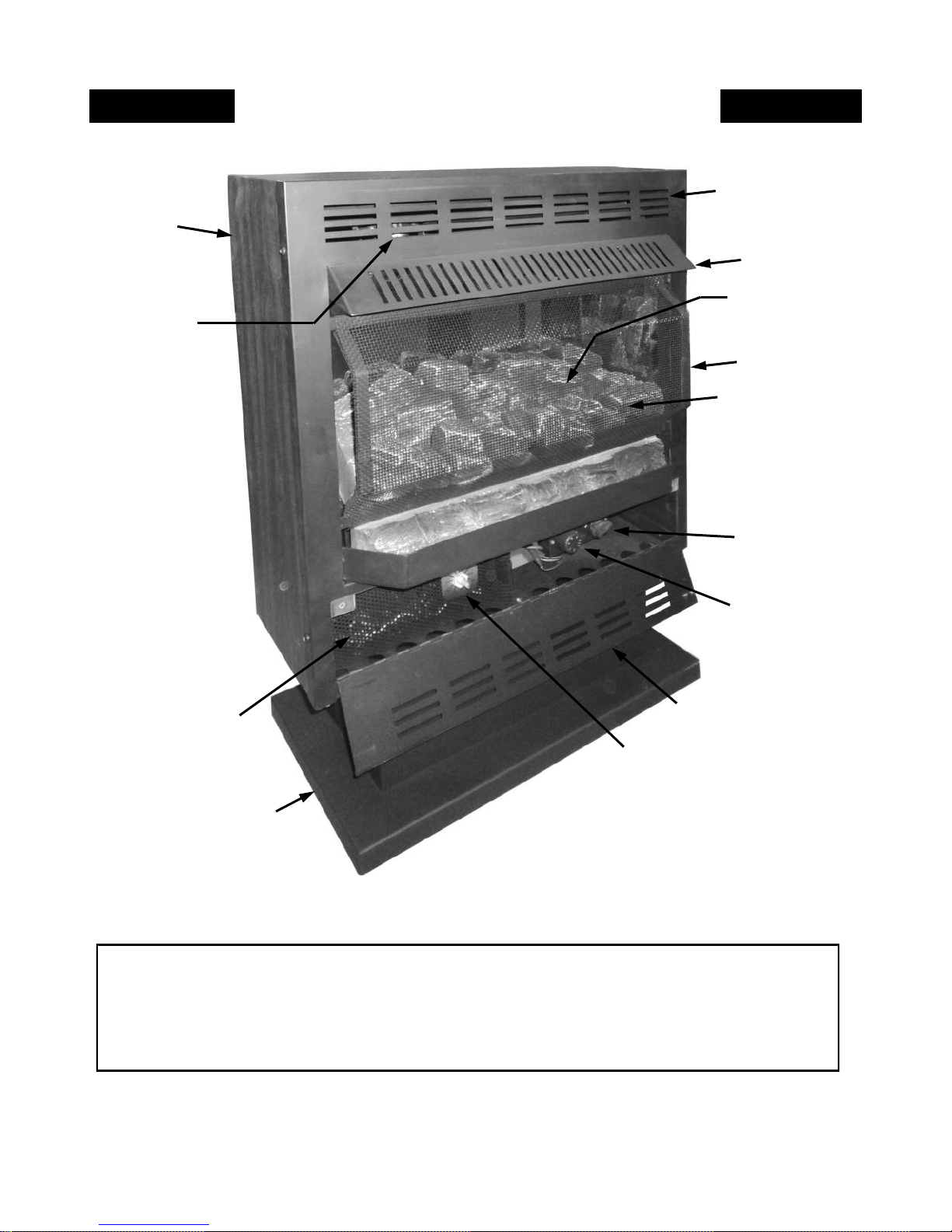

HEATER
CABINET

BLOWER
THERMOSTAT

PRODUCT IDENTIFICATION

HOT AIR
VENTS

HOOD

ODS PILOT

SCREEN

COAL BED

GAS ON
OFF KNOB

FLAME
CONTROL
KNOB

ROOM AIR FAN

RHEOSTAT

PEDESTAL

Figure 1

ACCESS DOOR

WARNING:Installation and repairs should be performed by a qualified service person. The
appliance should be inspected before use and at least annually by a professional service person.
More frequent cleaning may be required due to excessive lint from carpeting, bedding mate­rial, etc. It is imperative that control compartments, burners and circulating air passageways of
appliance be kept clean.

Page 5

PRODUCT FEATURES

SAFETY DEVICE

This heater has a pilot with an Oxygen Depletion Sensor Shutoff System (ODS). The ODS/pilot
is a required feature for vent-free room heaters. The ODS/pilot shuts off heater if there is not
enough (oxygen) fresh air.

PIEZO IGNITION SYSTEM

This heater has a piezo igniter. This system requires no matches, batteries or other sources to
light the heater.

This appliance is only for use with type of gas indicated on rating plate. This appliance is not
convertible for use with other gases.

Model 1130 CONTEMPORARY P* or N*- (Sensing or Modulating Bulb) - This heater has a
thermostat sensing bulb. This bulb will modulate flame up and down on demand of heat desired.

*P - Propane or LP (Liquid Petroleum) *N - Natural gas

UNPACKING

1. Remove all protective packaging applied to heater for shipment.

2. Check heater for any shipping damage. If heater is damaged, promptly inform dealer from
whom you made purchase.

3. Lift heater by each bottom corner.

WARNING: Any change to this heater or its controls can be dangerous.

Page 6

CAUTION

THIS HEATER CREATES WARM AIR CURRENTS. THESE CURRENTS MOVE HEAT
TO WALL SURFACES NEXT TO HEATER. DO NOT INSTALL HEATER WHERE
IMPURITIES IN AIR MAY EXIST.

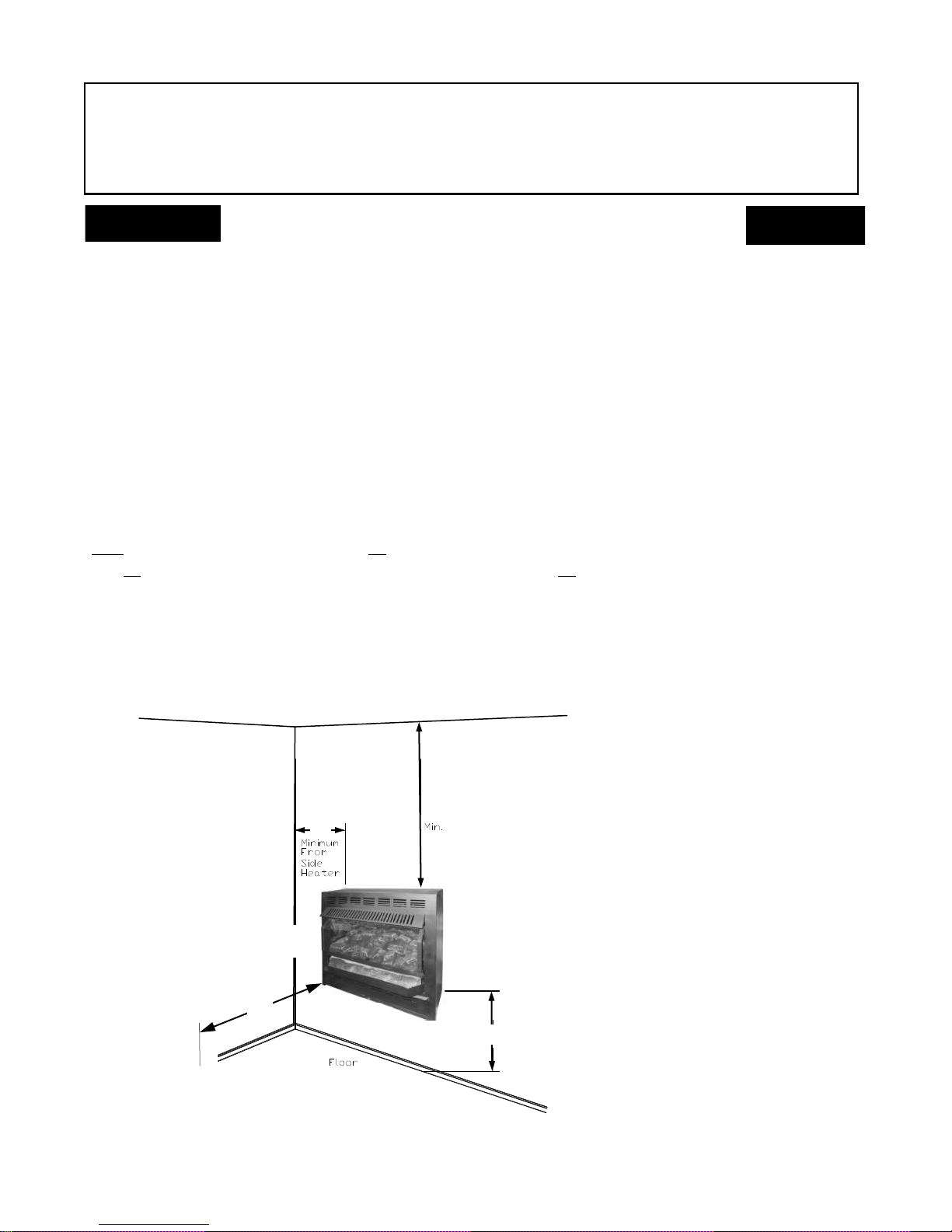

MINIMUM CLEARANCES TO

COMBUSTIBLE CONSTRUCTION

NOTE: FOR GARAGE INSTALLATION

 Heater Pilot and Burner must be at least 18" off floor.
 Locate heater AWAY FROM ANY MOVING VEHICLE.
 Keep appliance area clear and free from combustible materials, gasoline and other

flammable vapors and liquids.

For convenience and efficiency, install heater:

 in easy access locations
 in coolest part of room
 near an electrical outlet

Minimum Clearances are as follows:

42” from top of appliance to ceiling. 5” from right front corner of appliance to an adjacent side wall,
and 5” from left side of appliance to an adjacent side wall and 7” from bottom of appliance to top
surface of carpeting, tile or other combustible materials in area described. See figure 2 below.

 The installation must conform with local codes or in absence of local codes, with National

Fuel Gas Code, ANSI Z223.1/NFPA 54.

Note: Front Corner of heater
to an adjacent sidewall with
or without CSA listed
optional wooden mantel.

From the Front sur­face of the appliance
to any combustible
material.

24”

Figure 2

Left
Side

5"

42"

CAUTION: Do Not obstruct

air openings around appliance.
Improper operation will occur.

Right
Side

Front

7"

Page 7

Minimum to top surface of Carpeting,
Tile or other combustible material

INSTALLATION

FINISHED WALL

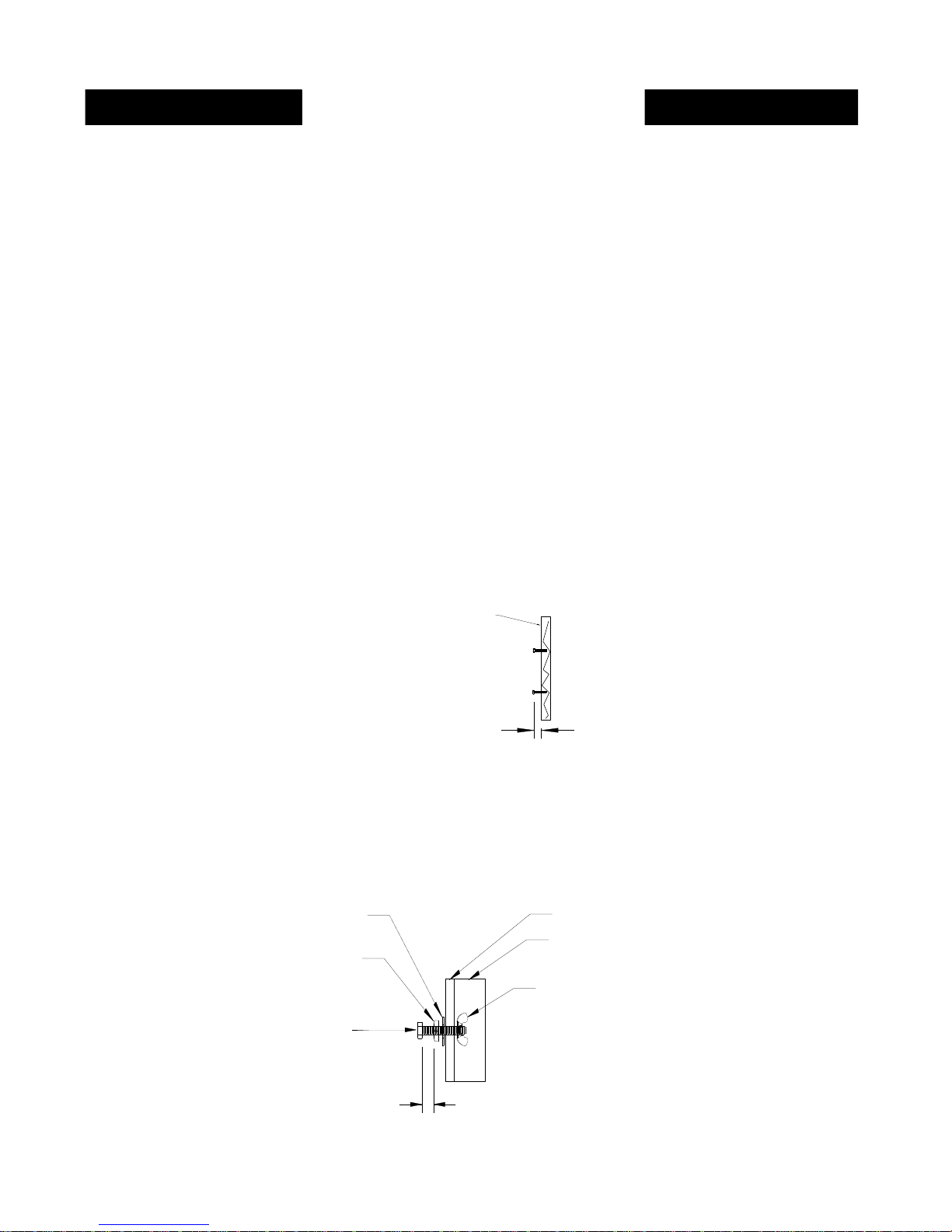

5/8" or 15.875 mm

FINISHED WALL

5/8" or 15.875 mm

5/8" or 15.875 mm

Stud Wall

Sheet Rock

Wing Nut

Washer

Nut

Toggle Bolt

NOTE: This heater may be installed three different ways:

1. Wall Mounted

2. Freestanding heater (with optional pedestal)

3. Freestanding (with optional wooden mantel)

WALL MOUNT INSTALLATION:

1. After determining location for heater, unfold template provided and place bottom of template a
minimum of 7" from bottom of unit to floor.

NOTE: Be sure to level template before punching holes.

2. With template in place and four black dots centered on studs, punch the four centers marked in
black dots with a sharp pointed object. Insert four wood screws provided with unit into four
punched holes.

NOTE: Leave 5/8" of the screw projecting from finished wall.

For sheet rock walls, use wing nuts or anchor wings. Remove wing nut from bolt. Place a nut and
washer with same thread and size on bolt. Push wing nut through wall surface allowing wings to
spread. Tighten nut that you placed on bolt, leaving required 5/8" between back of bolt head and
finished wall.

Figure 3

Figure 4

Page 8

3. Lift heater by each bottom corner and place round part of tear drop punch out over each screw
head. Gently push down until body of screw is at end of slot.

NOTE: Make sure unit is level.

4. Now you are ready to hook up gas line. The Model 1130 CONTEMPORARY allows for a rear or
bottom connection for gas line. See “Gas Connection” on page 17 for details.

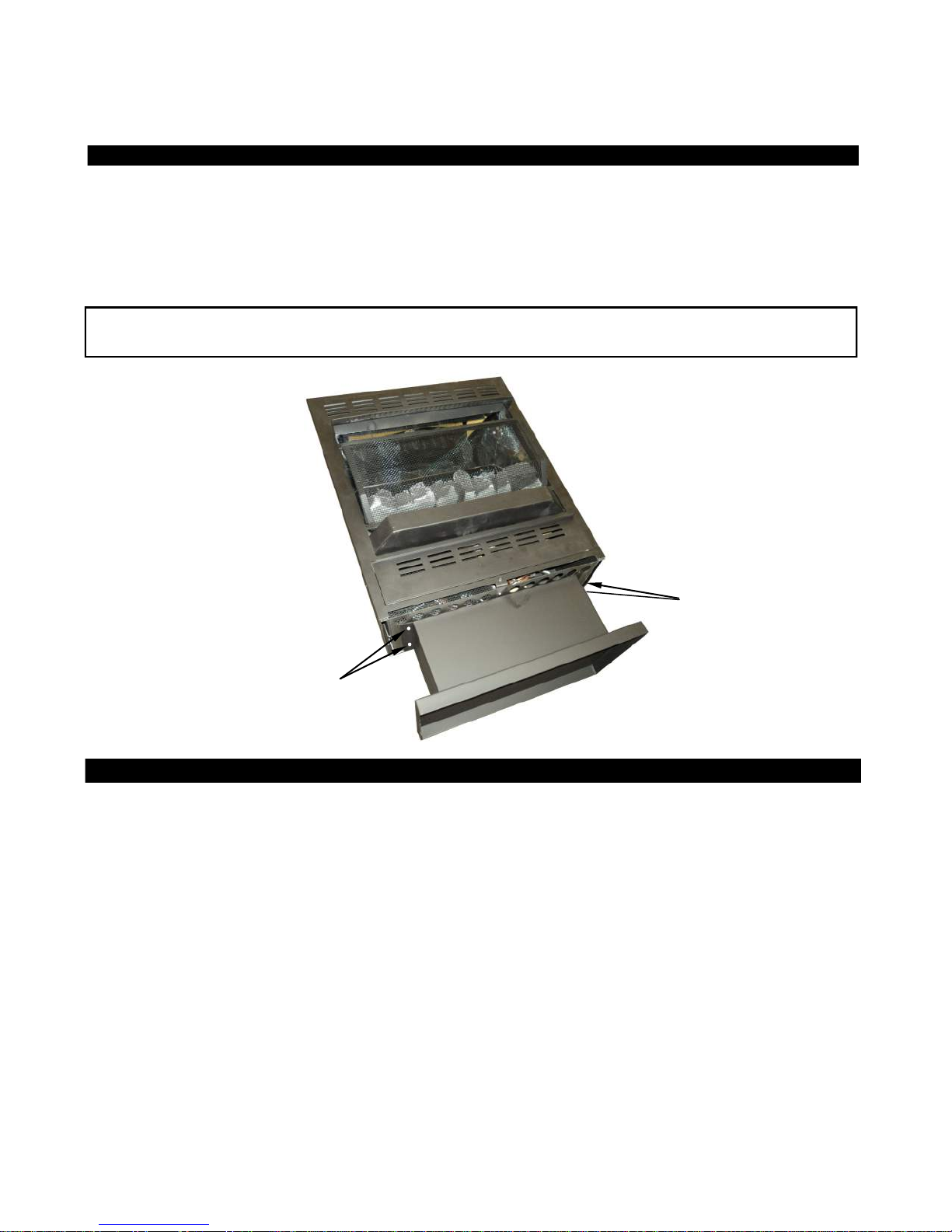

CLEANING INFORMATION:

Cleaning is a vital part of life of your stove. In order to properly clean unit, remove front. To
remove: use Phillips screwdriver to loosen four screws at front sides. You will find that front is easily
removed in one piece.
Next you must remove the logs from the burner base. Gently place your hands, one on each side of
logs and lift upward. Do not apply to much force on the logs, this may cause damage to fiber material.

Figure 5

Front

Body

Remove
Screws

A vacuum cleaner works well for removal of dust and debris from around burner and logs. To remove
burner, use a tool with an extension to loosen screw in base. The screw is located between log and
actual base. Simply slide base out of unit. NOTE: Do not use a pin or any sharp object to clean the
pilot.

Remove Screw

NOTE: Any parts that are removed while cleaning must be replaced before operating appliance.

Figure 6

Page 9

FREESTANDING WITH OPTIONAL PEDESTAL INSTALLATION

1. Place heater on backside and center pedestal on bottom. Mark the 4 pre-punched holes in
pedestal angle. Use the 4 self-tapping screws provided with pedestal to drill 4 marked spots.
Secure pedestal to bottom of unit.

NOTE: If the gas line is run through floor, you may want to drill a hole in bottom of pedestal.

2. The pedestal must be secured to floor. One option is to drill holes in top side of bottom of
pedestal. Use screws or “Ell” brackets to fasten pedestal to floor.

IMPORTANT: THE 1130 CONTEMPORARY FREESTANDING UNIT MUST BE NSTALLED
ON A FLAT SURFACE (SUCH AS A WOOD PANEL, METAL OR HARDWOOD FLOORS.)

MARK FOR DRILLING

MARK FOR DRILLING

Use the two (2) metal mounting Z-Brackets provided to secure the
wooden mantel, wood screws provided to secure brackets in place.

FREESTANDING OPTIONAL WOODEN MANTEL INSTALLATION

1130 CONTEMPORARY

into

IMPORTANT! The Z-Brackets must be properly installed. Failure to
install the Z-Brackets may cause property damage or personal injury.

Use the four (4) sheet metal screws provided to secure the mounting brackets to the rear of stove.
Insert the screws into back of unit.

With brackets secured to unit. From rear, slide unit into opening of mantel, centering from left to
right.

With four (4) wood screws provided secure brackets to rear of mantel. See Figure 7, page 12.
NOTE: Connect gas line and check for leaks before placing heater and mantel against wall.

See “Gas Connection” on page 17.

OPTION: Fasten wooden mantel to wall. Use “Ell” brackets at top or bottom corners.

Page 10

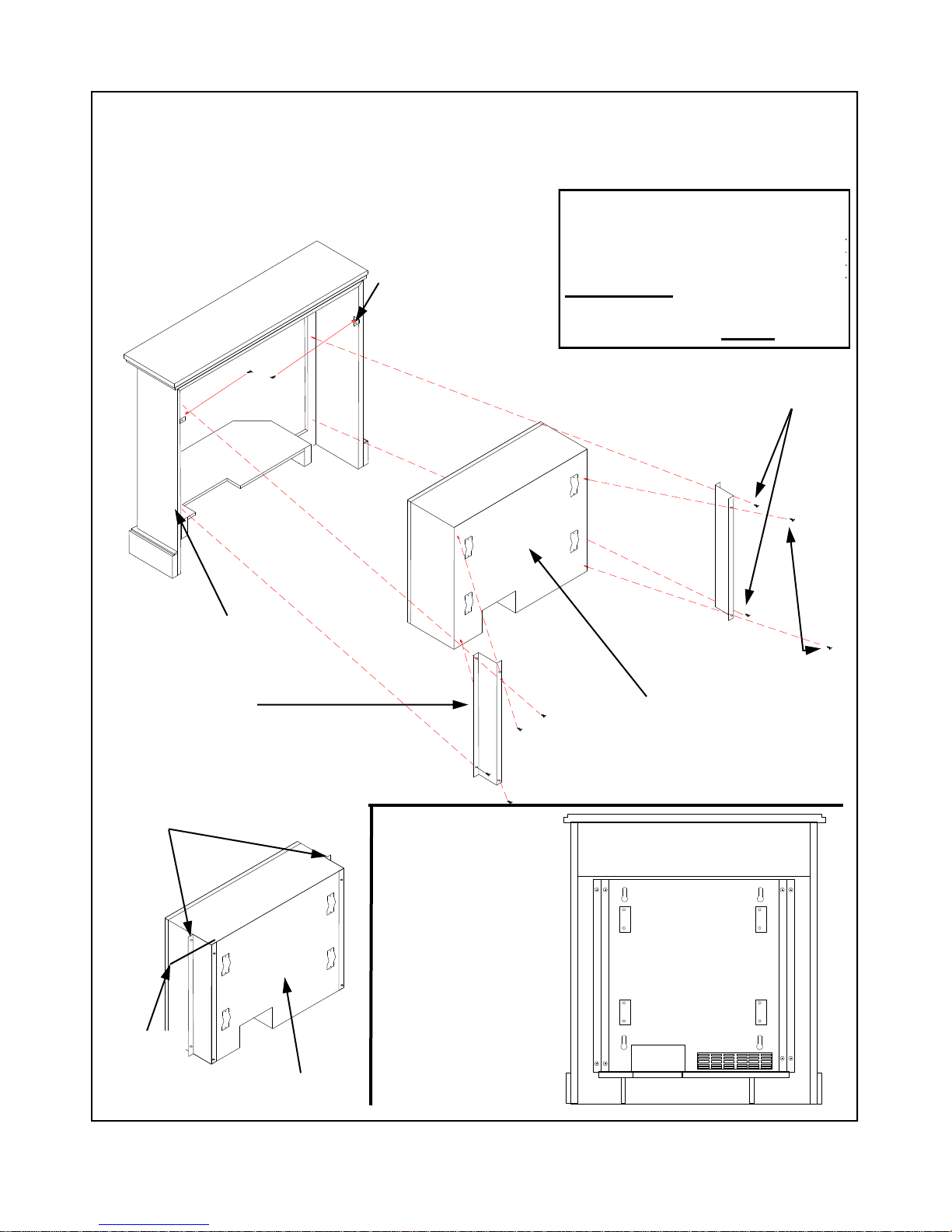

MOUNTING BRACKET VIEW

DISCRIPTION

DATEREV.

BY

APRVD

DATE

DISCRIPTION

DATEREV.

BY

APRVD

DATE

DISCRIPTION

DATEREV.

BY

APRVD

NEW RELEASE

M.B.DATE

FREE-STANDING

OPTIONAL DELUXE FINISHED MANTEL

REAR OF MANTEL

OPTIONAL “L”

BRACKETS (2) AND
SCREWS (2) PRO­VIDED WITH MAN­TEL, TO SECURE
MANTEL TO WALL IF
NEEDED.

NOTE: “MODEL 1130

TEMPORARY

TO BE USED

CON-

WITH NEW BUCK CORP.
MANTEL ONLY, PART #
PAKDM1127.” IF USED WITH
ANY OTHER MANTEL WAR­RANTY WILL BE VOID.

WOOD SCREWS

SHEET METAL SCREWS

Z BRACKETS

Z-BRACKET(S) PLACEMENT ON
STOVE

NOTE: FLUSH
BRACKET
WITH REAR
TOP OF UNIT.

REAR OF
STOVE

Z-BRACKETS
MOUNTED (SCREWED)
TO REAR OF STOVE
AND SECURED
(SCREWED) TO INSIDE
REAR OF FRONT OF
MANTEL.

Figure 7

REAR OF STOVE

Page 11

PRODUCING ADEQUATE AIR FOR

COMBUSTION AND VENTILATION

This heater shall not be installed unusually tight construction or unconfined space unless provi­sions are adequate for combustion and ventilation air.

NOTE: This heater shall not be installed in a room or space unless required volume of indoor
combustion air is provided by method in National Fuel Gas Code, ANSIZ223.1/NFPA 54, In-
ternational Fuel Gas Code or applicable codes.

The National Fuel Gas Code, ANSI Z223.1/NFPA 54 defines unusually tight construction or
unconfined space as a space whose volume is less than 50 cubic feet per per 1,000 BTU per
hour (4.8m 3 per kw) of aggregate input rating of all appliances installed in that space and an
unconfined space as a space whose volume is not less than 50 cubic feet per 1,000 BTU per
hour (4.8m 3 per kw) of aggregate input rating of all appliances installed in that space. Rooms
communicating directly with space in which appliances are installed, through openings not
furnished with doors, are considered a part of unconfined space.

WARNING: IF AREA IN WHICH THE HEATER MAY BE OPERATED DOES NOT
MEET REQUIRED VOLUME FOR INDOOR COMBUSTION AIR, COMBUSTION
AND VENTILATION AIR SHALL BE PROVIDED BY ONE OF METHODS DE­SCRIBED IN NATIONAL FUEL GAS CODE, ANSI Z223.1/NFPA 54, THE INTERNA-
TIONAL FUEL GAS CODE, OR APPLICABLE CODES.

WARNING: IF THE AREA IN WHICH HEATER MAY BE OPERATED IS SMALLER
THAN THAT DEFINED AS AN UNCONFINED SPACE OR IF BUILDING IS OF
UNUSUALLY TIGHT CONSTRUCTION, PROVIDE ADEQUATE AIR FOR
COMBUSTION AND VENTILATION BY ONE OF METHODS DESCRIBED IN
NATIONAL FUEL GAS CODE, ANSI Z223.1/NFPA 54 AIR FOR COMBUSTION AND
VENTILATION OR APPLICABLE LOCAL CODES.

Unusually tight construction is defined as construction where:
a) Walls and ceilings exposed to outside atmosphere have a continuous water vapor retarder

with a rating of 1 perm (6 x 10
b) Weather stripping has been added on openable windows and doors.
c) Caulking or sealants are applied to areas such as joints around window and door frames,

between sole plates and floors, between wall-ceiling joints, between wall panels, at
penetrations for plumbing, electrical, and gas lines and at other openings.

This section is for residential or manufactured (mobile) installation

-11

kg per pa-sec-m2) or less with openings gasketed or sealed.

NOTE: SOME AREAS IN THE UNITED STATES HAVE HIGHER REQUIREMENTS

FOR CUBIC FEET PER 1000 BTU/ HOUR INPUT. (EX. CINCINNATI, OHIO CODES
REQUIRE 70 CUBIC FEET). CHECK YOUR LOCAL CODE BEFORE
INSTALLATION.

DETERMINING FRESH-AIR FLOW FOR

DETERMINE IF YOU HAVE UNUSUALLY TIGHT CONSTRUCTION OR UNCONFINED SPACE
Use this worksheet to determine if you have confined or unconfined space.
SPACE: Includes room in which you will install heater plus adjoining rooms with doorless

passageways or ventilation grills between the rooms.

HEATER LOCATION

Page 12

1. Determine the volume of the space (length x width x height).
Length x Width x Height =_________cu.ft.(volume of space)
EXAMPLE: 20 ft.(Length) x 16 ft.(Width) x 8 ft.(ceiling Height)=
2560 cu. ft. (volume of space)
If additional ventilation to adjoining room is supplied with grills or openings, add volume of
these rooms to total volume of the space.

2. Divide space volume by 50 cubic feet to determine the maximum BTU/Hr space

can support.

_________(volume of space)/50 cu. ft. =maximum BTU/Hr the space can support)

EXAMPLE: 2560 cu. ft. (volume of space /50 cu. Ft .= 51.2 or
51200 (maximum BTU/Hr the space can support)

3. Add the BTU/Hr of all fuel burning appliances in space.

Vent-free heater _______________BTU/Hr
Gas water heater* _______________BTU/Hr
Gas furnace _______________BTU/Hr
Vented gas heater _______________BTU/Hr
Gas fireplace logs _______________BTU/Hr
Other gas appliances* + _______________BTU/Hr
Total = _______________BTU/Hr
Example: Gas water heater 40000 BTU/Hr
Vent-free heater + 18000 BTU/Hr
Total = 58000 BTU/Hr
*Does not include direct-vent gas appliances. Direct-vent draws combustion
air from outdoors and vents to outdoors.

4. Compare the maximum BTU/Hr the space can support with actual amount of BTU/Hr
used.
____________BTU/Hr (maximum the space can support)
____________BTU/Hr (actual amount of BTU/Hr used)
Example: 51200 BTU/Hr (maximum the space can support)
58000 BTU/Hr (actual amount of BTU/Hr used)
The space in above example is unusually tight construction because actual BTU/Hr used is
more than maximum BTU/Hr space can support. You must provide additional fresh air.
Your options are as follows: A. Rework worksheet, adding space of an adjoining room. If
extra space provides an unconfined space, remove door to adjoining room or add ventilation

grills between rooms. See “Ventilation Air For Combustion And Ventilation From Inside

Building”, page 21.

B. Vent room directly to outdoors. See “Ventilation Air For Combustion And
Ventilation From Outdoors”, page 22.
C. Install a lower BTU/Hr heater, if lower BTU/Hr size makes room unconfined.
If actual BTU/Hr used is less than maximum BTU/Hr space can support, space is an
unconfined space. You will need no additional fresh air ventilation.

WARNING: YOU MUST PROVIDE ADDITIONAL AIR FOR COMBUSTION AND

VENTILATION IN UNUSUALLY TIGHT CONSTRUCTION.

Page 13

VENTILATION AIR FOR COMBUSTION AND

VENTILATION FROM INSIDE BUILDING

This fresh air would come from an adjoining unconfined space. When venting to an adjoining
space, you must provide two permanent openings: one within 12" of ceiling and one within 12"
of floor on wall connecting two spaces (see Options 1 and 2, Figure 8). You can also remove
door into adjoining room (see Option 3, in Figure 8).

WARNING

REWORK WORKSHEET, ADDING SPACE OF ADJOINING UNCONFINED SPACE.
COMBINED SPACES MUST HAVE ADEQUATE AMOUNT OF AIR TO SUPPLY ALL
APPLIANCES IN BOTH SPACES.

NOTE: Each opening shall have a minimum free area of 1 square inch per 1000 BTU’s per hour

of total input rating of all gas utilization equipment in confined space, but not less than 100
square inches.

Ventilation Grills Into

Ventilation Grills
Into Adjoining
Rooms Option 1

Or Remove Door
Into Adjoining
Rooms Option 3

Figure 8

Adjoining Rooms Option 2

NOTE: This heater shall not be installed in a room or space unless required volume of indoor
combustion air is provided by the method in National Fuel Gas Code, ANSIZ223.1/NFPA 54,
International Fuel Gas Code, or applicable codes.

Page 14

WARNING

THIS HEATER MUST HAVE ADEQUATE AMOUNT OF AIR FOR PROPER
OPERATION. IF NOT, POOR FUEL COMBUSTION COULD RESULT. READ THE
FOLLOWING INSTRUCTIONS TO ENSURE PROPER AMOUNT OF AIR FOR THIS AND
OTHER FUEL-BURNING APPLIANCES IN YOUR HOME.

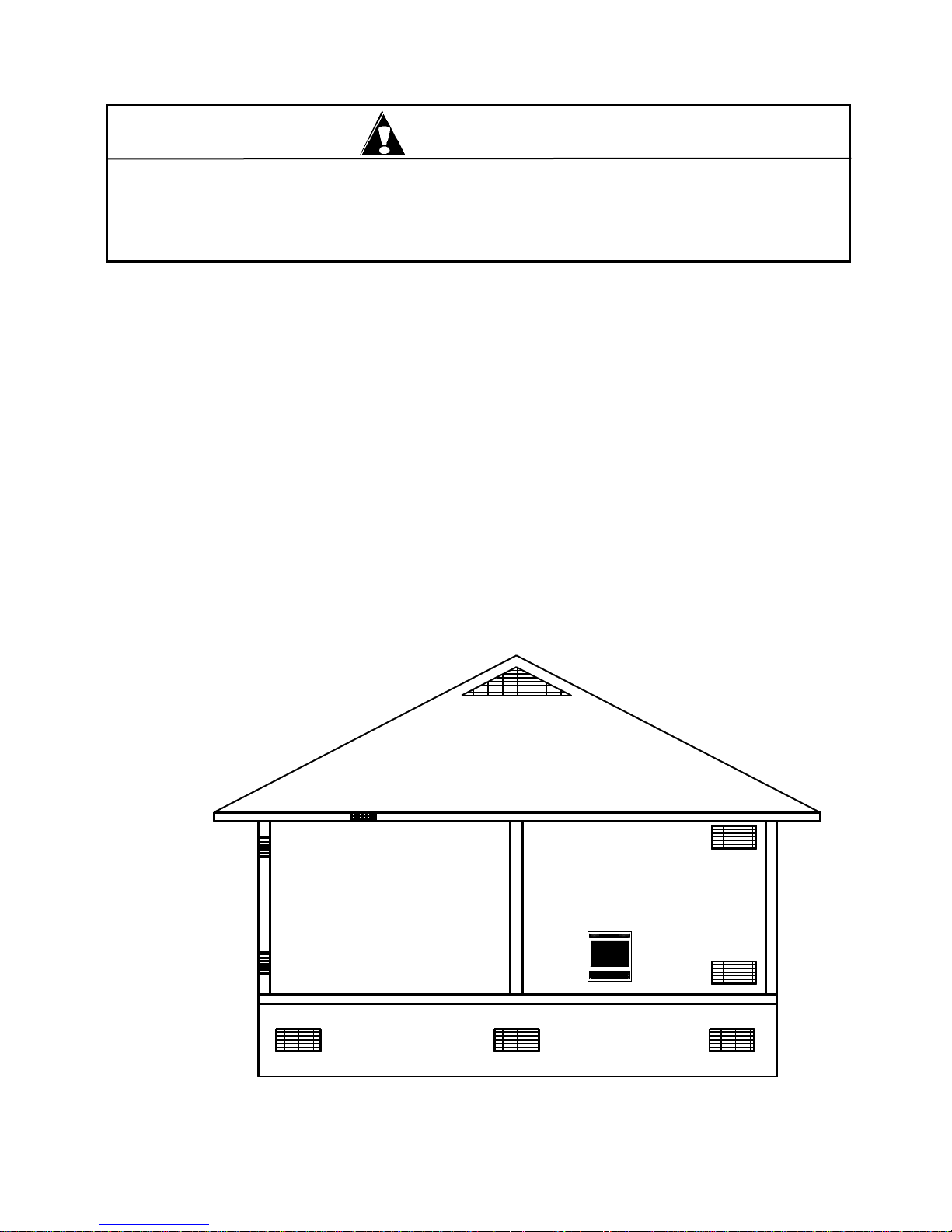

VENTILATION AIR FOR COMBUSTION AND

VENTILATION FROM OUTDOORS

Provide extra fresh air by using ventilation grills or ducts. You must provide two permanent
openings: one within 12" of ceiling and one within 12" of floor. Connect these items directly
to outdoors. These spaces include attics and crawl spaces. Follow National Fuel Gas Code
NFPA 54/ANSI Z223.1, Section 5.3, “Air For Combustion and Ventilation” for required size of
ventilation grills or ducts.

IMPORTANT: Do not provide openings for inlet air into attic if attic has controll power vent.

OUTLET AIR

INLET AIR

OUTLET AIR

INLET AIR

VENTILATED ATTIC

TO ATTIC

TO
CRAWL
SPACE

VENTILATED
CRAWL SPACE

Figure 9

Page 15

WARNING: ANY CHANGE TO THIS HEATER OR ITS CONTROLS CAN BE

DANGEROUS.

GAS CONNECTION

Check gas type. Use only type of gas indicated on valve rating plate. If type of gas listed on plate is
not your type of gas supply, DO NOT INSTALL. Contact your dealer for proper model.
Always use an external regulator for all LP heaters to reduce supply tank pressure to a maximum of 13"
W.C. This is in addition to regulator furnished with heater.

WARNING: CONNECTION DIRECTLY TO AN UNREGULATED LP TANK CAN CAUSE

AN EXPLOSION.

The normal gas connection is 3/8” N.P.T. made at left side (facing the front of appliance) of appliance.

If a right side connection is desired, connecting pipe may be led under rear of burner base to terminate
at right side for connection to inlet of valve.

NOTE: The connecting pipe must be internally tinned copper tubing for use with natural gas. Test for
leaks using a solution of soap and water after completing connection. DO NOT USE OPEN FLAME.

WARNING: Installation and repairs should be performed by a qualified service person. The

appliance should be inspected before use and at least annually by a professional service person.
More frequent cleaning may be required due to excessive lint from carpeting, bedding material,
etc. It is imperative that control compartments, burners and circulating air passageways of
appliance be kept clean.

Page 16

CONNECTING TO A GAS SUPPLY

Propane Supply Tank

Vent Pointing Down

External Regulator

CAUTION: NEVER CONNECT HEATER DIRECTLY TO PROPANE SUPPLY. THIS
HEATER REQUIRES AN EXTERNAL REGULATOR (NOT SUPPLIED). INSTALL
EXTERNAL REGULATOR BETWEEN HEATER AND PROPANE SUPPLY.

The installer must supply external regulator for liquid propane gas. The external regulator will reduce
incoming gas pressure.You must reduce incoming gas pressure to between 11" and 14" of water. If
incoming gas pressure is not reduced, heater regulator damage will occur. Install external regulator
with vent pointing down.

You must also install a sediment trap. Locate sediment trap where it is within reach for cleaning. A
sediment trap filters moisture and contaminates. This also helps to keep heater controls clean. If
sediment trap is missing or installed wrong, your unit will not run properly.

Figure 10

Page 17

CAUTION: Use only new black iron or steel pipe. Internally tinned copper tubing may be
used in certain areas. Check state and local codes. Use pipe of 1/2" or greater in diameter
to allow proper gas volume. If piping is too small, undue loss of pressure will occur.

Installation must include manual shutoff valve and plugged 1/2" NPT tap. Locate NPT tap
within reach for test gauge hook-up. NPT tap must be upstream from unit.

Apply pipe joint sealant lightly to male threads. This will prevent excess sealant from going
into pipe. Excess sealant in pipe could result in clogged heater valves.

CAUTION: USE PIPE JOINT SEALANT THAT IS RESISTANT
TO LIQUID PETROLEUM (LP) GAS.

Figure 11

Page 18

GAS PRESSURE CHECK

Check inlet pressure to the burner to insure that it is as shown in table below.

NOTE: The pressure check point is located on right side of valve facing burner.
The appliance and its appliance main gas valve must be disconnected from gas supply

piping system during any pressure testing of that system at test pressures in excess of 1/2
psi (3.5kPa).

The appliance must be isolated from gas supply piping system by closing its equipment
shut-off valve during any pressure testing of gas supply piping system at test pressures
equal to or less than 1/2 psi (3.5 kPa).

MODEL FP-BR10-ZC FP-BR10-ZC

Gas Natural Propane
Maximum Heat Input 10000 10000
Gas Inlet Pressure:
Maximum 10.5 ins. W.C. 13 ins. W.C.
Minimum * 5 ins. W.C. *11 ins. W.C.
Manifold Pressure 3.5 ins. W.C. 9 ins. W.C.

NOTE: On initial installation it may be necessary to bleed out air in gas lines. Do this by
holding control knob and turning knob to pilot position for about 30 seconds.

To check Regulator pressure, remove pressure tag plug at left side of Regulator facing heater.
The pressure should be checked with heater burning and control set on high. After measuring
pressure, replace pressure tap plug, ensuring that there are no leaks.

* For purpose of minimum input adjustment.

WARNING

This appliance is equipped for (natural or propane) gas.
Field conversion is not permitted.

Figure 12

.

Page 19

COAL BED PLACEMENT FOR 1130

Coal Bed is shipped secured in unit.

NOTE: When operated for first time, Coal Bed may emit a “paper burning” smell. This
smell will gradually diminish and will be totally eliminated after first few hours of
operation. Do not use blower at this time.

Front View of Coal Bed

FAILURE TO POSITION PARTS IN ACCORDANCE WITH THESE DIAGRAMS OR
FAILURE TO USE ONLY PARTS SPECIFICALLY APPROVED WITH HEATER
MAY RESULT IN PROPERTY DAMAGE OR PERSONAL INJURY.

DO NOT ALLOW FANS TO BLOW DIRECTLY INTO FIREPLACE. AVOID ANY
DRAFTS THAT ALTER BURNER FLAME PATTERN.

WARNING

WARNING

Page 20

OPERATING INSTRUCTIONS

Before operating this appliance, proceed through following checklist.

1. Read and understand these instructions before operating this appliance.

2. Check that there no leaks. If you smell gas do not attempt to light this appliance.

LIGHTING INSTRUCTIONS
MODULATING VALVE(MAXITROL)

FOR YOUR SAFETY, READ BEFORE LIGHTING

WARNING

IF YOU DO NOT FOLLOW THESE INSTRUCTIONS EXACTLY, A FIRE OR EX­PLOSION MAY RESULT CAUSING PROPERTY DAMAGE, PERSONAL INJURY
OR LOSS OF LIFE.

A. This appliance has a pilot which must be lit by hand. When lighting pilot,
follow these instructions exactly.

B. BEFORE LIGHTING: Smell all around appliance for gas. Be sure to smell next
to floor because gas is heavier than air and will settle on floor.

WHAT TO DO IF YOU SMELL GAS
* Do not try to light any appliance.
* Do not touch any electrical switch; do not use any phone in your building.
* Immediately call your gas supplier from a neighbor’s phone. Follow gas
supplier’s instructions.
* If you cannot reach your gas supplier, call your local fire department.

C. Use only your hand to push in or turn gas control knob. Never use tools. If knob
will not push in or turn by hand, don’t try to repair it, call a qualified service technician.
Force or attempted repair may result in fire or explosion.

D. Do not use this appliance if any part has been under water. Immediately call a qualified
service technician to inspect appliance and to replace any part of control system

and any gas control which has been under water.

Page 21

LIGHTING INSTRUCTIONS

1. STOP! Read the safety information on previous page.

2. Make sure manual shutoff valve is fully closed.

3. Open access panel door, located in lower front center of base for access to control knobs.

4. Turn off all electric power to appliance.

5. Set thermostat (flame control) to lowest setting.

6. Push in and turn control knob clockwise to “OFF” position.

PILOT

IGNITE

OFF

CONTROL
KNOB

FLAME
CONTROL

1

2

3

4

5

FIGURE 3

7

6

MERTIK

MAXITROL

ON

7. Wait (5) five minutes to clear out any gas. Then smell for gas, including near floor. If you

smell gas, STOP! Follow step “B” in safety information on previous page. If you don’t

smell gas, go to next step.

8. Find Pilot: follow small metal tub from right hand rear of gas control valve. The pilot is

located behind burner tub and in front of rear log. Fully open the manual shut-off valve.

9. Turn control knob counterclockwise to “PILOT” position. Press in
control knob for (15) fifteen seconds (see figure 3).

10. With control knob pressed in, turn control knob clockwise to IGNITE and
then immediately back to PILOT with button still pressed in. This will light pilot. If
needed, keep repeating this step until pilot lights.

11. Keep control knob pressed in for one (1) minute after lighting pilot. After (1) minute,

release control knob. If pilot goes out, repeat steps 1 through 9.

 If the knob does not pop out when released, stop and immediately call your service techni-

cian or gas supplier.

 If pilot will not stay lit after several tries, turn gas control knob to “OFF” and call your

service technician or gas supplier.

12. Turn control knob counterclockwise to “ON” position.

13. Set thermostat (flame control) to desired setting. Turn clockwise for “LOW”
and counterclockwise for “HIGH”.

Page 22

IGNITER ELECTRODE

O.D.S

PILOT BURNER

THERMO-COUPLE

14. Close access panel door.

15. Turn on all electric power to appliance.

PILOT

CAUTION

DO NOT TRY TO ADJUST HEATING LEVELS BY USING
MANUAL SHUTOFF VALVE.

TO TURN OFF GAS TO APPLIANCE

SHUTTING OFF UNIT:

1. Open access panel door, located in lower front center of base for access to control knobs.

2. Set thermostat (flame control) to lowest setting.

3. Turn control knob clockwise to full “OFF” position.

4. Turn off all electrical power to appliance if service is to be performed.

5. Close access panel door.
SHUTTING OFF BURNER ONLY (pilot stays lit)

1. Open access panel door, located in lower front center of base for access to control knobs.

2. Turn control knob clockwise to “PILOT” position.

3. Close access panel door.

CAUTION: Hot while in operation. Do Not Touch. Keep children, clothing, furniture,

gasoline, and other liquids having flammable vapors away.

CAUTION: DO NOT TRY TO ADJUST HEATING LEVELS BY USING MANUAL

SHUTOFF VALVE.

WARNING: Improper installation, adjustment, alteration, service or maintenance can

cause property damage, personal injury or loss of life. Refer to owner’s information manual
provided with this appliance. Installation and service must be performed by a qualified
installer, service agency or the gas supplier.

IMPORTANT: Always operate appliance at completely “ON” or completely “OFF”

positions. Never use heater at a setting between these positions as this can result in improper
combustion and excessive carbon monoxide emissions.

Page 23

THERMOSTAT CONTROL OPERATION

The thermostat control used on this heater differs from standard thermostats. Standard
thermostats simply turn burner on and off. The thermostat used on this heater senses room
temperature and adjusts amount of gas flow to burner. This will increase
or decrease the flame height. At times, room may exceed set temperature, which will cause
burner to shut off. When room temperature drops below thermostat setting, burner will cy­cle itself on again. The flame control knob can be set to any level between 2 and 7.

NOTE: The thermostat sensing bulb measures the temperature of air near heater cabinet.
This may not always agree with room temperature ( depending on housing construction,
installation location , room size, open air temperature etc.). Frequent use of your heater
will allow you to determine your personal comfort levels.

MANUAL LIGHTING PROCEDURE

1. If the pilot cannot be ignited with the igniter on the control valve, it can be manually lit
with use of a paper match and a lighter rod.

2. Place the match in holder and light. With other hand, depress control knob

counterclockwise to PILOT.

3. Use rod to light match and ignite pilot. The pilot is located behind burner tube and in
front of rear log. Fully open manual shut-off valve.

4. Continue to hold control knob for an additional (1) one minute to ensure pilot

is completely on.

 If the knob does not pop out when released, stop and immediately call your service tech-

nician or gas supplier.

 If pilot will not stay lit after several tries, turn gas control knob to “OFF” and call your

service technician or gas supplier.

5. Turn control knob counterclockwise to “ON” position.

-Set thermostat (flame control) to desired setting. Turn clockwise for “LOW”

and counterclockwise for “HIGH”.

6. Close the access panel door.

7. Turn on all electric power to appliance.

Page 24

FLAME CHECK

A periodic check of flames should be made. The pilot flame should always be present when unit is in
operation. See Figure 17.

FLAME: Propane (LP) should produce a flame that is about 6" above rear of Coal Bed. This flame
should be yellow.

Natural gas should produce a flame that is about 3" to 4" above rear of Coal Bed. This flame should be
mostly blue except for top tips which should be yellow.

NATURAL PILOT

PROPANE PILOT

BURNER

Figure 17

Page 25

BURNER FLAME PATTERN

Figure 18 shows a correct burner flame pattern. Figure 19 shows an incorrect burner flame
pattern.

NOTE: When using heater first time, Coal Bed will emit a paper like odor for about one
hour.

CORRECT FLAME PATTERN AT HIGH POSITION

Figure 18 - Correct Burner Flame pattern

INCORRECT FLAME PATTERN AT HIGH POSITION

Figure 19 - Incorrect Burner Flame pattern

If burner flame pattern is incorrect, as shown in Figure 19:
*turn heater OFF (see “To Turn Off Gas to Appliance”, page 28.
*see “Troubleshooting”, pages 35 through 39.

Page 26

WARNING: CHILDREN AND ADULTS SHOULD BE ALERTED TO HAZARDS

MOTOR

RHEOSTAT

THERMOSTAT

GREEN

JUMPER

WHITE

BLACK

BLACK

JUMPER

JUMPER

POWER CORD

OF HIGH SURFACE TEMPERATURE AND SHOULD STAY AWAY TO AVOID
BURNS OR CLOTHING IGNITION. YOUNG CHILDREN SHOULD BE
CAREFULLY SUPERVISED WHEN THEY ARE IN SAME ROOM WITH
APPLIANCE.

WARNING: DO NOT PLACE CLOTHING OR OTHER FLAMMABLE

MATERIALS ON OR NEAR APPLIANCE.

WIRING DIAGRAM

NOTE: If any of original wire as supplied with appliance must be replaced, it must be

replaced with a wire of at least a 105o C. temperature rating.

NOTE: Installation and repair should be done by a qualified service person. This heater should
be inspected before use and at least annually by a qualified service person. More frequent
cleaning may be required due to excessive lint from carpeting, bedding material, etc. It is
imperative that control compartments and circulating air passageways of heater be kept clean.

CAUTION: Label all wires prior to disconnection when servicing controls. Wiring errors can
cause improper and dangerous operation.

Verify proper operation after servicing.

Figure 10

Page 27

WARNING: ELECTRICAL GROUNDING INSTRUCTION: THIS APPLIANCE

IS EQUIPPED WITH A THREE-PRONG (GROUNDING) PLUG FOR YOUR
PROTECTION AGAINST SHOCK HAZARD AND SHOULD BE PLUGGED
DIRECTLY INTO A PROPERLY GROUNDED THREE-PRONG RECEPTACLE.

NOTE: #PE A24001 Blower Motor

Rating: 120 volts/60MZ/0.54 Amps. 1 P.H.

Blower Motor is standard on all Model 1130 CONTEMPORARY. See page 38 for blower
motor location.

NOTE: For convenience, allow licensed electrician to properly install a grounded 3-plug
receptacle near unit.

SERVICING

Repair and replacement work should only be performed by a qualified service technician.

Always shut off gas supply and make sure heater is cool before beginning any service operation.
Check for gas leaks after servicing.

REPAIR PARTS

A parts list with exploded view follows. Always include correct name, part number and model
number of the heater when ordering service parts. Please contact your local dealer or distributor
when ordering. If one is not available, you may contact:

New Buck Corporation
200 Ethan Allan Dr.
Spruce Pine, NC 28777
828-765-6144

Page 28

IMPORTANT SAFEGUARDS

Although your gas logs are very realistic in appearance, it is not a real burning fireplace and must not be
used for burning rejected material.

 To avoid irreparable damage to heater or personal injury, matches, paper, garbage or any other

material must not be placed or thrown on top of logs or into flames.

 To avoid personal injury, do not touch hot surfaces when heater is operating.
 Close supervision is necessary when heater is being operated near children.

WARNING: THE COAL BED ARE MANUFACTURED FROM

BONDED CERAMIC FIBER. THIS IS A COMMONLY USED
MATERIAL IN INDUSTRY WORLDWIDE. IN EVENT THAT COAL
BED SHOULD BE REMOVED, CARE SHOULD BE TAKEN NOT TO
DAMAGE BONDED MATERIAL. INTENTIONAL MISUSE OR
DELIBERATELY FRAGMENTING MATERIAL COULD LEAD TO
INHALING FIBERS AND BE HAZARDOUS TO YOUR HEALTH.

THIS HEATER IS INTENDED FOR USE AS A GAS HEATER
FIREPLACE AS DESCRIBED IN THESE INSTRUCTIONS. IT SHOULD
NOT BE USED FOR ANY OTHER PURPOSE.

CLEANING

CAUTION: BEFORE CLEANING OR MOVING THESE LOGS OR

OTHER PARTS OF HEATER, BE SURE TO READ ABOVE SECTIONS
ON “IMPORTANT SAFEGUARDS.

See Page 10, figure 6 before cleaning. The appliance must be turned “OFF” before cleaning

inside firebox (burn area), make sure pilot is “OFF” and appliance has cooled.

 All cleaning should be carried out when heater is cold. Limited cleaning is required with

normal use. Dusting front of base, top of piezo cover, or control knob panel may be
required occasionally. Do not use cleaning fluids to clean logs or any other part of heater.

 If flames show unusual shapes or behavior, or if burner fails to ignite properly, burner holes

may require cleaning. If this occurs, contact your nearest dealer to service heater.

 The heater can be cleaned by removing logs. Lift logs gently, as not to damage fiber pieces.

use caution when removing. Lift each log by holding it carefully at each end. Use a vacuum
cleaner to remove dust and loose particles from the base, logs and around the burner and
ODS/Pilot. Gloves are recommended to prevent fibers from breaking the skin. If skin is
broken, clean with soap and water.

WARNING: Failure to keep the primary air openings of the burner clean may result in soot

and property damage.

Page 29

TROUBLE-SHOOTING

WARNING

TURN OFF AND UNPLUG HEATER AND LET COOL BEFORE SERVICING. ONLY
A QUALIFIED SERVICE PERSON SHOULD SERVICE AND REPAIR HEATER.

CAUTION

NEVER USE A WIRE, NEEDLE, OR SIMILAR OBJECT TO CLEAN ODS/PILOT.
THIS CAN DAMAGE ODS/PILOT.

WARNING:Installation and repairs should be performed by a qualified
service person. The appliance should be inspected before use and at least
annually by a professional service person. More frequent cleaning may be
required due to excessive lint from carpeting, bedding material, etc. It is
imperative that control compartments, burners and circulating air
passageways of appliance be kept clean.

See pages 32 through 35 for Trouble Shooting.

Page 30

OBSERVED

PROBLEM

1. Igniter button is pressed. No
spark at ODS/Pilot

2. Igniter button is pressed
Spark at ODS/Pilot
No Ignition

POSSIBLE

CAUSE

1. Igniter electrode positioned
incorrectly

2. Igniter electrode broken

3. Igniter electrode not
connected to igniter cable

4. Igniter cable pinched or wet

5. Piezo igniter nut is loose

6. Broken igniter cable

7. Bad piezo igniter

1. Gas supply turned off or
manual shutoff valve is
closed

2. Control knob not in “PILOT”
position

3. Control knob not pressed in
while in “PILOT” position

4. Air in gas lines when installed

5. Depleted gas supply

6. ODS/Pilot is clogged

7. Gas regulator setting is not
correct

SOLUTION

1. Replace igniter

2. Replace igniter

3. Reconnect igniter cable

4. Free igniter cable if pinched
by any metal or tubing. Keep
igniter cable dry

5. Tighten nut holding piezo
igniter to heater cabinet. Nut
is located inside heater
cabinet at top

6. Replace igniter cable

7. Replace piezo igniter

1. Turn on gas supply or open
manual shutoff valve

2. Turn control knob to “PILOT”
position

3. Press in control knob while in
“PILOT” position.

4. Continue to hold down control
knob. Repeat igniting
operation until air is removed.

5. Contact local propane gas
company

6. Clean ODS/Pilot or replace
ODS/Pilot assembly

7. Replace gas regulator

Page 31

OBSERVED

PROBLEM

3. ODS/PILOT lights but flame
goes out when control knob
is released

4. Burner does not light after
ODS/Pilot is lit

POSSIBLE

PROBLEM

1. Control knob is not fully
pressed in

2. Control knob not pressed in
long enough

3. Safety interlock system has
been triggered (if equipped)

4. Manual shutoff valve not
fully open

5. Thermocouple connection
loose at control valve.

6. Pilot flame not touching
thermocouple, which allows
thermocouple to cool,
causing pilot flame to go
out. This problem can be
caused by one or both of the
following:

A) low gas pressure
B) dirty or partially

clogged ODS/Pilot

7. Control valve damaged

1. Burner orifice is clogged

2. Inlet gas pressure is too low

SOLUTION

1. Press control knob completely

2. After ODS/Pilot lights keep
control knob pressed 30
seconds

3. Wait 1 minute for safety
interlock system to reset.

4. Fully open manual shutoff
valve

5. Hand tighten until snug, then
tighten 1/4 turn

6. A) Contact local propane gas
company

B) Clean ODS/Pilot (See

“Cleaning and Maintenance”),
or replace ODS/Pilot
assembly

7. Replace valve control

1. Clean burner (see “Cleaning
and Maintenance”) or replace
burner orifice

2. Contact local propane gas
company

Page 32

OBSERVED

PROBLEM

5. Delayed ignition of burner

6. Burner backfiring during
combustion

7. Slight smoke or odor during
initial operation

8. Heater produces a whistling
noise when burner is lit

POSSIBLE

CAUSE

1. Manifold pressure is too low

2. Burner orifice is clogged

1. Burner orifice is clogged or
damaged

2. Burner damaged

3. Gas regulator defective

1. Residues from manufacturing
process

1. Turning control knob to “HI”
position when burner is cold
(if equipped with this type of
valve)

2. Air in gas line

3. Air passageways on heater
blocked

4. Dirty or partially clogged
burner orifice

SOLUTION

1. Contact local propane gas
company

2. Clean burner (see “Cleaning
and Maintenance”) or replace
burner orifice

1. Clean burner (see “Cleaning
and Maintenance”) or replace
burner orifice

2. Replace burner

3. Replace gas regulator

1. Problem will stop after a few
hours of operation

1. Turn control knob to “LOW”
position and allow to warm

2. Operate burner until air is
removed from line. Call
local propane company to
check gas line

3. Observe minimum
installation clearances

4. Clean burner or replace
orifice

Page 33

WARNING

IF YOU SMELL GAS:
* SHUT OFF GAS SUPPLY
* DO NOT TRY TO LIGHT APPLIANCE
* DO NOT TOUCH ANY ELECTRICAL SWITCH; DO NOT USE ANY
PHONE IN YOUR BUILDING
* IMMEDIATELY CALL YOUR GAS SUPPLIER FROM A
NEIGHBOR’S PHONE. FOLLOW THE GAS SUPPLIER’S
INSTRUCTIONS.
* IF YOU CANNOT REACH YOUR GAS SUPPLIER, CALL THE FIRE
DEPARTMENT.

IMPORTANT: Operating heater where impurities in the air exist may create odors. Cleaning

supplies, paint, paint remover, cigarette smoke, cements and glues, new carpet or textiles, etc.
create fumes. These fumes may mix with combustion air and create odor.

OBSERVED

PROBLEM

1. Heater produces a clinking/
ticking noise just after burner
is lit or shut off

2. Heater produces unwanted
odors

3. Heater shuts off in use

(ODS operates)

4. Gas odor even when control
knob is in “OFF” position

5. Gas odor during combustion

POSSIBLE

CAUSE

1. Metal expands while
heating or contracts while
cooling

1. Heater burning vapors
from paint, hairspray,
glues, etc (See
Important above)

2. Low fuel supply

3. Gas leak (See WARNING
above)

1. Not enough fresh air is
available.

2. Low line pressure

3. ODS/Pilot is partially
clogged

1. Gas leak (See
WARNING, above).

2. Control valve defect

1. Foreign matter between
control valve and burner

2. Gas leak (See WARNING
above).

SOLUTION

1. This is common with most
heaters. If noise is
excessive, contact a
qualified service person.

1. Ventilate room. Stop using
odor causing products
while heater is running.

2. Refill supply tank

3. Locate and control all

leaks. See “Checking Gas

Connections”

1. Open window/door for
ventilation

2. Contact local propane co.

3. Clean ODS/Pilot

1. Locate and correct all leaks
(see Checking Gas
Connections)

2. Replace control valve

1. Remove foreign matter
from gas tubing

2. Locate and correct all leaks
(see “Checking Gas
Connections”)

Page 34

TECHNICAL SERVICE

MODEL 1130 CONTEMPORARY - MODULATING VALVE

BTU(Variable) 11000/27000 11000/27000
Type Gas Propane (LP) Natural
Ignition Piezo
Pressure Regulator Setting 9" W.C. 3.5" W.C.
Inlet Gas Pressure (in. of water)*
Maximum 14" 10.5" W.C.
Minimum 11" 5.0" W.C.
Dimensions, Inches (HxWxD)
Heater 22" x 20 - 1/8" x 7"
Weight (pounds)
Heater 45 pounds
Shipping

* For purposes of input adjustment

Page 35

PARTS LIST

KEY NO. PART NUMBER DESCRIPTION QUANTITY

1 PO PNPSNH50JT FRONT 1

2 MA1130BA-MAX-L (LP) BURNER BASE OPTIONAL 1
MA1130BA-MAX-L (NAT) BURNER BASE OPTIONAL 1

3 PO1130COAL COAL BED 1

4 MA1130 INNER SHIELD CHROME 1

5 A2-40-01 FAN MOTOR 1

6 PS 112724 MOTOR BRACE 1

7 PS 112740 SCREEN MOTOR COVER 1

8 PE KB9724 FAN SPEED CONTROL LABEL 1

9 PE BC204 RHEOSTAT 1

10 PE BC204A RHEOSTAT KNOB 1

11 PE 400132 110 DEG. DISC THERMOSTAT 1

12 PE 30JUMPER THERMO JUMPER WIRE 2

13 PE 400320 STRAIN RELIEF 1

14 PE 400240 POWER CORD 1

15 PH838TRHDBL PHIL TRUSS SHEET METAL SCREW # 8 X 3/8 5

Page 36

BLOWN UP VIEW OF HEATER, FAN

MOTOR AND ALL REMOVABLE PARTS

11

12

14

1

2

3

4

5

6

7

9

8

10

13

15

Page 37

PARTS LIST

MAXITROL VALVE

BURNER SYSTEM

KEY PART
NO. NUMBER DESCRIPTION QUANTITY

1 PE GV30B5A2L7B MAXITROL LP VALVE OPTIONAL 1
1A PE GV30B5A2N7B MAXITROL NATURAL VALVE OPTIONAL 1

2 PE 4966 3/8" - 3/8" ELBOW 1

3 PS 112736 MAXITROL REGULATOR HOLDER 1

4 PS 113001 INNER BOTTOM/BURNER BASE 1

5 PO TBURN SINGLE BURNER 1

6 PE TPT100/433 THERMOCOUPLE (COPRECI) 1

7 PE 2150053 COPRECI ODS NAT PILOT OPTIONAL 1
7A PE 2150054 COPRECI ODS LP PILOT OPTIONAL 1

8 PE RV12LF30 MAXITROL REGULATOR-NAT OPTIONAL 1
8A PE RV12LF90 MAXITROL REGULATOR-LP OPTIONAL 1

9 RF 14ALMTUB 1/4" ALUMINUM TUBING 1

10 PH 1166 3/8" STREET ELBOW 1

11 PE 6482 1/4" - 1/8" COMPRESSION ADAPTER 2

12 PO 54ORF-LP ORIFICE / LP OPTIONAL 1
12A PO 42ORF-NAT ORIFICE / NATURAL OPTIONAL 1

13 PS 112726 M1127 BURNER SUPPORTS 2

14 PO 38634ALMTUB 3/8" x 6 - 3/4" BURNER TUBE 1

15 PO 54ORFHLD ANGLED ORIFICE HOLDER 1

Page 38

BLOWN UP VIEW OF BURNER ASSEMBLY

Page 39

NEW BUCK CORPORATION

We reserve right to amend these specifications at any time without notice. The only warranty
applicable is our standard written warranty. We offer no other warranty, expressed or implied.

LIMITED WARRANTY

ON VENT-FREE GAS COAL BED HEATER

New Buck warrants this product to be free from defects in materials and components for two (2)
years from date of first purchase, provided that product has been properly installed, operated and
maintained in accordance with all applicable instructions. To make a claim under this warranty
Bill of Sale or canceled check must be presented.

This warranty is extended only to original retail purchaser and covers cost of parts required to
restore heater to proper condition. Warranty parts MUST be obtained through an authorized Buck
Stove dealer and/or New Buck, who will provide original factory replacement parts. Failure to use
original factory replacement parts voids this warranty. The heater must be installed by a qualified
installer in accordance with all local codes and instructions furnished with unit.

Warranty does not apply to parts that are not in original condition, normal wear and tear or parts
that fail or become damaged as a result of misuse, accidents, lack of proper maintenance or defects
caused by improper installation.

WARRANTY DOES NOT COVER:

- Removal and re-installation cost

- Labor costs for replacements or repairs

- Transportation

- Cost of service call to diagnose problem

- Painted surfaces

- Damage or defect caused by improper installation, accident, misuse, abuse or alteration

TO FULL EXTENT ALLOWED BY LAW OF JURISDICTION THAT GOVERNS SALE OF
PRODUCT, THIS EXPRESS WARRANTY EXCLUDES ANY AND ALL OTHER EXPRESSED
WARRANTIES AND LIMITS DURATION OF ANY AND ALL WARRANTIES, INCLUDING
WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE
TO ONE (1) YEAR FROM DATE OF FIRST PURCHASE. NEW BUCK LIABILITY IS
HEREBY LIMITED TO PURCHASE PRICE OF PRODUCT AND NEW BUCK SHALL NOT
BE LIABLE FOR ANY OTHER DAMAGES WHATSOEVER INCLUDING INCIDENTAL OR
CONSEQUENTIAL DAMAGES.

Some states do not allow a limitation on how long an implied warranty lasts or an exclusion or
limitation of incidental or consequential damages, so above limitation on implied warranties or
exclusion on damages may not apply to you.

This warranty gives you specific legal rights. Other rights may vary from state to state.

Page 40

OWNER REGISTRATION

The attached owner registration card must be completed in its entirety and mailed within 30
days from date of installation in order for warranty coverage to begin to:

New Buck Corporation
P.O. Box 69
Spruce Pine, NC 28777
Email:[email protected]
PLEASE NOTE: Owner Registration Card must contain Authorized Buck Stove Dealer
Number and Certified Installer’s number (if applicable) for warranty coverage to begin.

NAME: ____________________________________________________
ADDRESS: ________________________________ _________________
CITY: _____________________________________________________
STATE: ______________________ ZIP: ________________________

CUSTOMER EMAIL: ________________________________________

MODEL #:

1130 CONTEMPORARY

SERIAL #: _________________________________________________
DATE OF PURCHASE: ______________________________________
DATE OF INSTALLATION: ___________________________________
INSTALLER’S NAME: _______________________________________
PURCHASED FROM: _______________________________________
