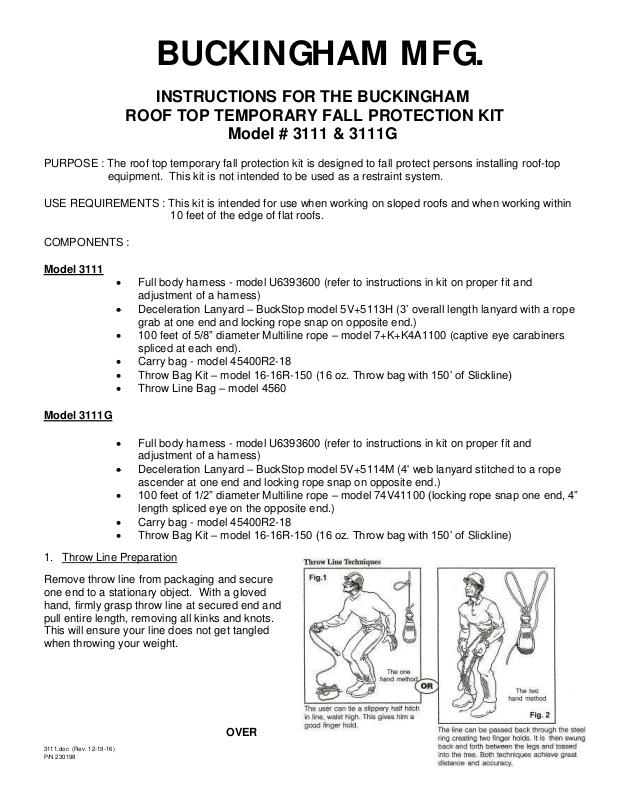

BUCKINGHAM MFG.
INSTRUCTIONS FOR THE BUCKINGHAM
ROOF TOP TEMPORARY FALL PROTECTION KIT
Model # 3111 & 3111G
PURPOSE : The roof top temporary fall protection kit is designed to fall protect persons installing roof-top
equipment. This kit is not intended to be used as a restraint system.
USE REQUIREMENTS : This kit is intended for use when working on sloped roofs and when working within
10 feet of the edge of flat roofs.
COMPONENTS :
Model 3111
Full body harness - model U6393600 (refer to instructions in kit on proper fit and
adjustment of a harness)
Deceleration Lanyard – BuckStop model 5V+5113H (3’ overall length lanyard with a rope
grab at one end and locking rope snap on opposite end.)
100 feet of 5/8” diameter Multiline rope – model 7+K+K4A1100 (captive eye carabiners
spliced at each end).
Carry bag - model 45400R2-18
Throw Bag Kit – model 16-16R-150 (16 oz. Throw bag with 150’ of Slickline)
Throw Line Bag – model 4560
Model 3111G
Full body harness - model U6393600 (refer to instructions in kit on proper fit and
adjustment of a harness)
Deceleration Lanyard – BuckStop model 5V+5114M (4' web lanyard stitched to a rope
ascender at one end and locking rope snap on opposite end.)
100 feet of 1/2” diameter Multiline rope – model 74V41100 (locking rope snap one end, 4”
length spliced eye on the opposite end.)
Carry bag - model 45400R2-18
1. Throw Line Preparation
Remove throw line from packaging and secure
one end to a stationary object. With a gloved
hand, firmly grasp throw line at secured end and
pull entire length, removing all kinks and knots.
This will ensure your line does not get tangled
when throwing your weight.
OVER
3111.doc (Rev. 12-19-16)
P/N 230198
Throw Bag Kit – model 16-16R-150 (16 oz. Throw bag with 150’ of Slickline)
Page 2
2. Proper storage of Throw Line (Model 3111 Only)
Take one end of the throw line and secure to the web loop in the bottom of the throw bag (model 4560).
At this point the throw line is simply “Flaked” or “piled” end for end into the bag. Secure opposite end to
the steel ring on the bag and close the bag using draw string closure.
TO INSTALL THE ROOF TOP TEMPORARY FALL PROTECTION KIT:

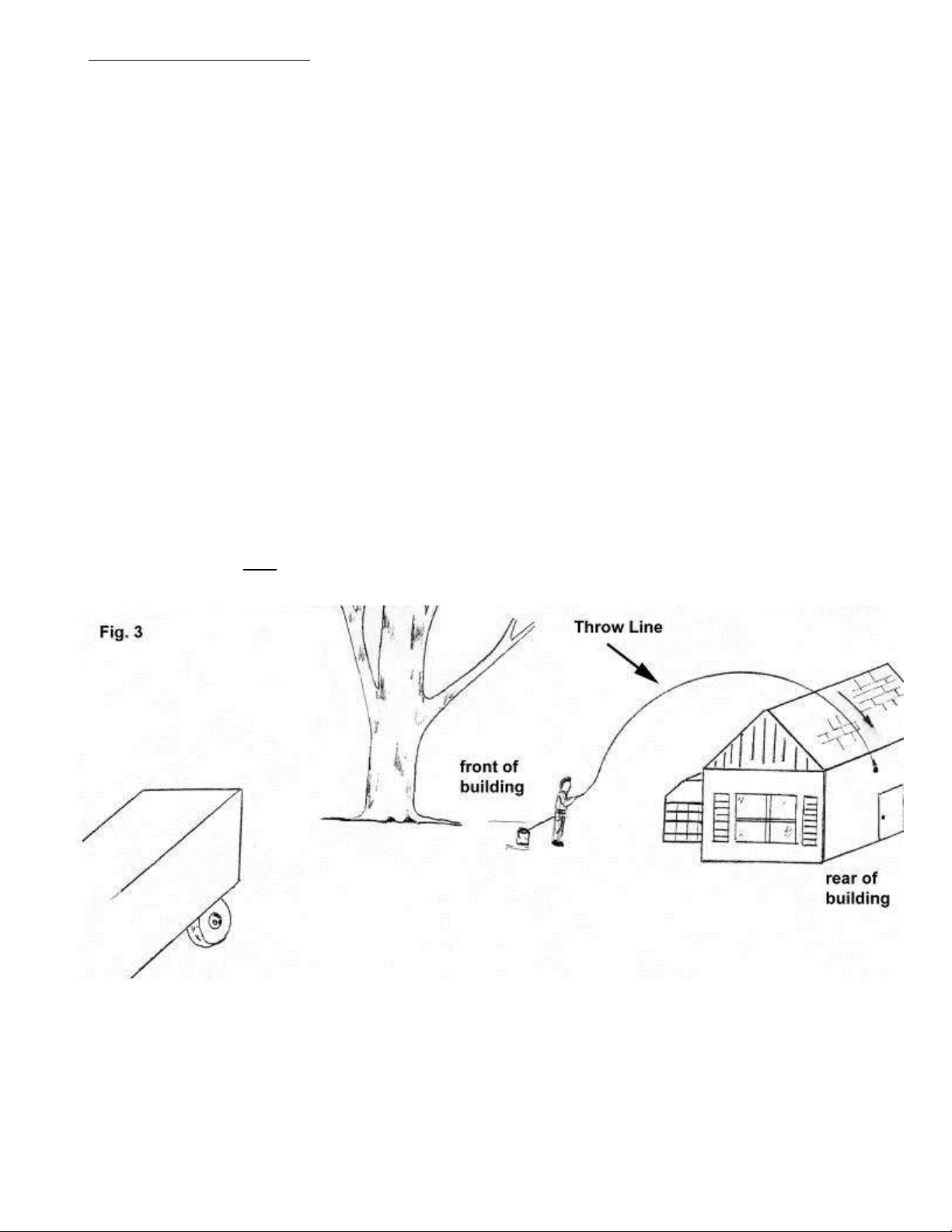

1 . Determine the safest direction in which to throw the throwbag weight. (ie. If hazards exist at the rear of
the building such as vehicles, power lines or trees it will be necessary to throw the throwbag from the rear
to the front.) See figure 3.
2. Place throw line bag between you and your intended target. Open bag, untie end of throw line from steel
ring and secure throwing weight (model 3111 only). If not already attached, securely tie the throwbag to
the throwline.

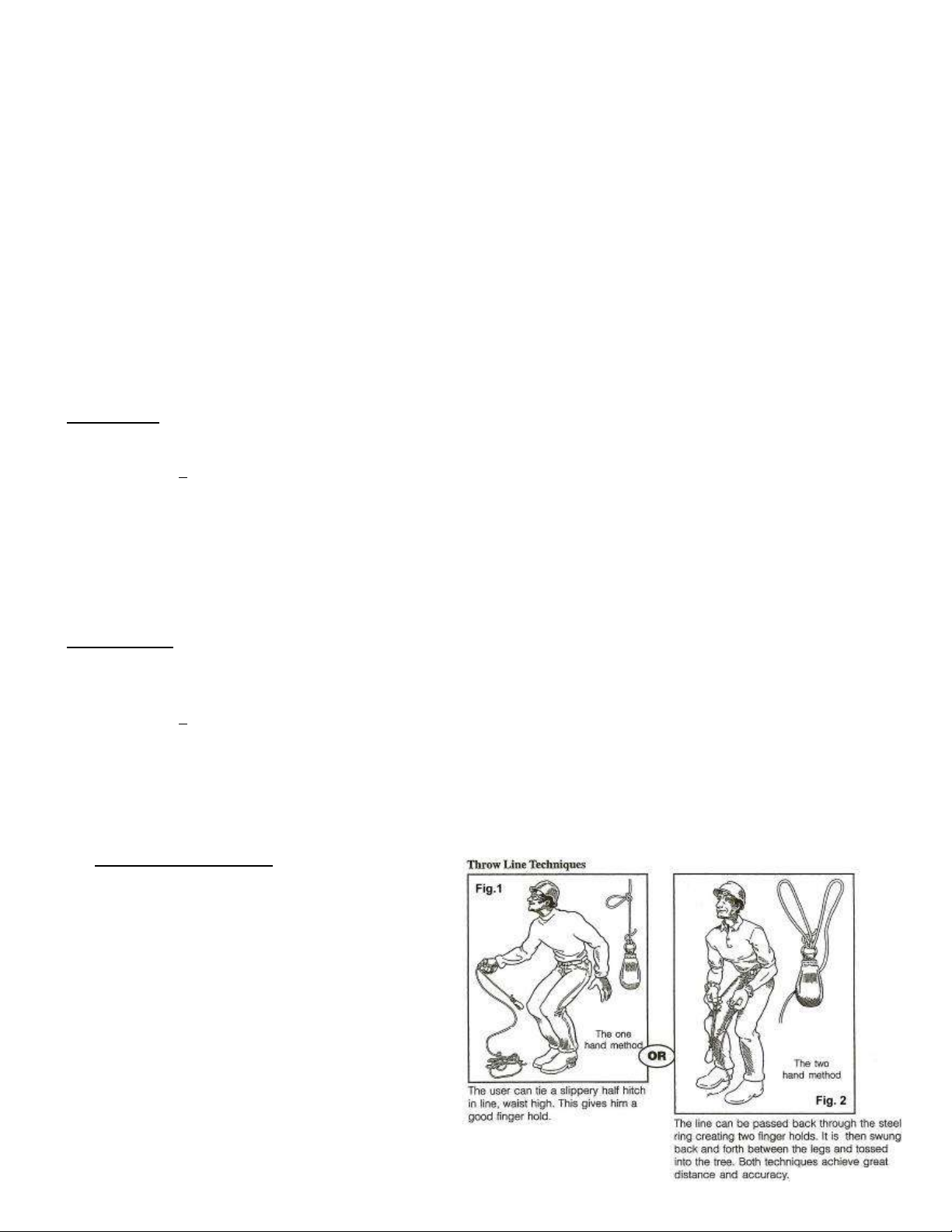

The weight can be thrown using either a one or two hand method. See figures 1 & 2. Prior
to throwing weight, alert others with a verbal warning by shouting “Stand Clear”. Throw weight over
building being careful not to come in contact with windows or other hazards on or on opposite side of
building.

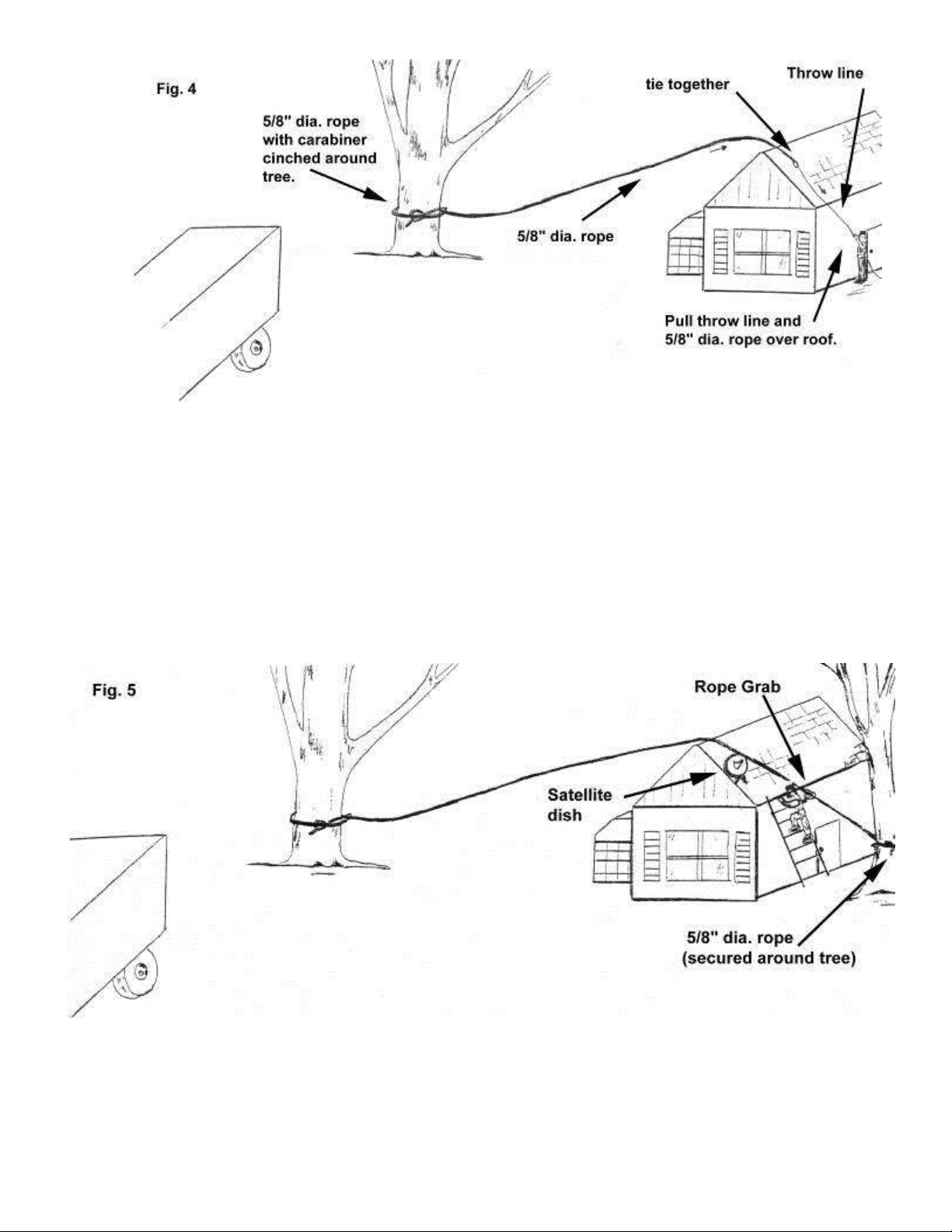

3. Once throw line is in place over the building, untie weight and secure one end of lifeline to throw line and
carefully pull lifeline over the building. See figure 4.
4. At this point it will be necessary to determine the area of the roof on which you will be working. If you
will be working on the rear side of the peak, you will need to attach your lifeline to a suitable anchor point
on the front side of the building. If you will be working on the front side of the peak, you will need to
attach your lifeline to a suitable anchor point on the rear side of the building.
*NOTE: If you will be working on both sides of the peak, the lifeline must be attached to a suitable
anchorage on both sides of the building. It will also be necessary to have second deceleration
lanyard/rope grab. This will ensure you are never disconnected from the lifeline at any point.
5. Anchor points (a tree, pole, or truck are all possibilities) must support a minimum of 5000 lbs. per attached
worker. The technician needs to assess the complete working environment and make a judgment that the
anchor point to be chosen is properly located, rigid, in good condition and adequate to meet the 5000 lb.
anchor requirements. General guidelines for tying off to a tree include but are not limited to: Tree must be
a healthy, sound tree with a minimum of 10" diameter; Tie off must be low to the base of the tree; Ensure
the tree has no excessive decay, root rot, etc. If unsure that the anchorage point is capable of supporting
the required loads, have verified by a qualified person before use. Once chosen, connect one of the
connectors attached to the lifeline to the anchorage.
3111.doc (Rev. 12-19-16) P/N 230198
Page 3
6. Place ladder against the building or house on the side the equipment is to be installed.
7. Put on your harness and adjust it for proper fit. Attach the rope grab to the lifeline.
Connect the deceleration lanyard snaphook to harness dee ring.
8. Before you climb, ensure the lifeline is secured to a suitable anchorage near the base of the ladder
(do not tie or secure to ladder) or tied to a heavy object to ensure the rope grab travels up the rope.
9. If you should fall from an elevated position, the rope grab will lock, preventing serious injury or fatality.
10. To aid in allowing the rope grab to easily slide down the rope as you come down the roof and ladder,
you can hold the trip lever cam on the rope grab open. If you slip, remove your hand and the
ascender rope grab will lock, stopping your fall.
3111.doc (Rev. 12-19-16) P/N 230198
Page 4
WARNINGS:
Read understand and follow these and all other instructions and warnings attached and/or
packed with this product before use.
This product is designed to be used by a person with a maximum weight of 350 lbs. when fully
equipped.
This equipment is intended for use by properly trained professionals only.
Consult your doctor if there is any reason to doubt your fitness to safely absorb the shock from
a fall arrest. Age and fitness seriously affect a worker’s ability to withstand falls.
Fall protection equipment, (i.e. fall arrest, work positioning belts, retrieval, suspension etc.)
should not be resold or provided to others for re-use after use by original user.
Avoid rubbing against abrasive surfaces and sharp edges.
Use Caution when using this equipment around moving machinery and electrical wires.
Use this product only in combination with compatible equipment.
Equipment subjected to impact loading must be immediately removed from service, destroyed
and discarded or contact manufacturer for information regarding possible repair or
recertification.
Always visually check that the carabiner or snaphook freely engages the anchor point and the
gate is completely closed. Never rely on the feel or sound of a carabiner or snaphook
engaging.
Never disable the locking mechanism on the carabiner or snaphook, punch holes in or alter a
connecting device or any part of this kit in any way.
Do not let any part of this kit come into contact with any chemicals, corrosive materials, acids
or basic solvents.
Avoid working where components of this kit will be in contact with, or abrade against
unprotected sharp edges. If working near sharp edges is unavoidable, protection against
cutting must be provided by using a heavy pad or other means over the exposed sharp edge.
Product covered under these instructions / warnings should not be resold / redistributed or
re-used after use by original user.
Employer - instruct employees as to proper use, warnings and cautions before use of this
equipment.
MAINTAINANCE:
Proper maintenance and storage of your equipment will prolong its useful life and contribute
toward its performance. Clean equipment with water and mild soap and allow to dry
thoroughly without using excessive heat. Lubricate as necessary.
Apart from visual examination of product before and after each use, it should be inspected at
least once a year by an authorized person.
INSPECTION:
Prior to and after each use, carefully inspect each component. The inspection should include, but not be
limited to information contained in individual component instructions packed with this product.
NOTE: Ensure proper fit / size of product before use. This product can not be returned unless it is in
new / unused condition.
BUCKINGHAM MFG. CO
BINGHAMTON, NY
www.buckinghammfg.com
1-800-937-2825
3111.doc (Rev. 12-19-16) P/N 230198
