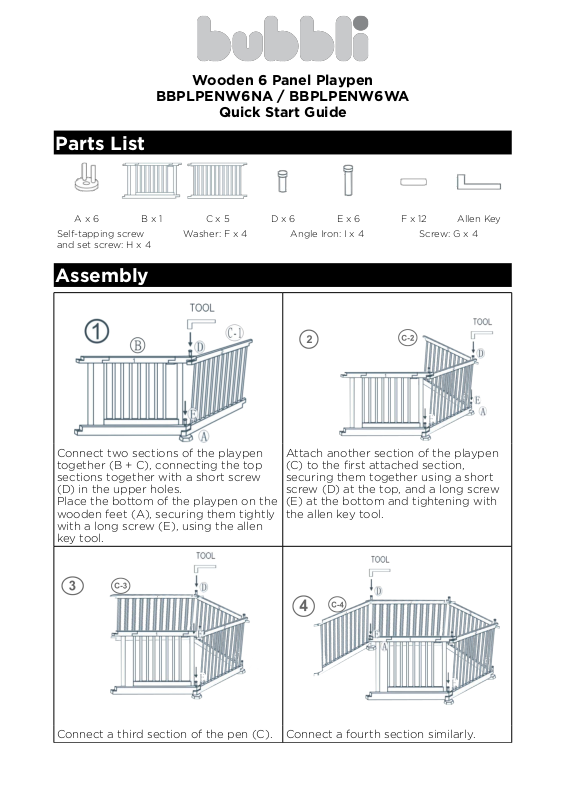

Wooden 6 Panel Playpen
BBPLPENW6NA / BBPLPENW6WA
Quick Start Guide
Parts List
A x 6 B x 1 C x 5 D x 6 E x 6 F x 12 Allen Key
Self-tapping screw
and set screw: H x 4
Washer: F x 4 Angle Iron: I x 4 Screw: G x 4
Assembly
Connect two sections of the playpen
together (B + C), connecting the top
sections together with a short screw
(D) in the upper holes.
Place the bottom of the playpen on the
wooden feet (A), securing them tightly
with a long screw (E), using the allen
key tool.
Attach another section of the playpen
(C) to the first attached section,
securing them together using a short
screw (D) at the top, and a long screw
(E) at the bottom and tightening with
the allen key tool.
Connect a third section of the pen (C). Connect a fourth section similarly.
Page 2
Attach the final section (C) and tighten
screws using the allen key tool.
Once the pen is secured tightly, check
each join to ensure that the playpen is
hexagonal and sturdy.
Move the small wooden segment in the
door section (B) to the open position.
Grasping the top of the (B) section, lift
it upwards on the right side.
Door can now be opened.
Wooden Foot Configuration
Using the wooden feet with the
different foot holes, you can create a
variety of shapes for the playpen
including squares and rectangles.
To create the hexagonal playpen as
shown above, please use the two foot
holes as shown on the diagram to the
right.
Foot hole
Foot
hole
Page 3
Wall attachment
If being used as a gate or as a permanent playpen area, please ensure that you
securely attach the playpen to the wall using the wall attachment accessories.
Safety
• The playpen is designed for children over 3 years old. If the child is under the age of 3, please have
parental supervision at all times.
• Do not rest heavy items on the playpen. It is made of natural wood and is not designed to support
weights. Do not place cushions or other items into the playpen that may allow the child to climb up
onto the sides or risk suffocation or strangulation.
• All of the assembly parts must be securely tightened before use.
• Do not place the playpen near an open fire or near any other strong heat sources such as a radiator
heater, gas oven etc...
• Do not use playpen if any parts are worn, broken or missing.
• Make sure that all screws are tightly secured and cannot be removed by the child in order to remove
the risk of small parts being swallowed.
