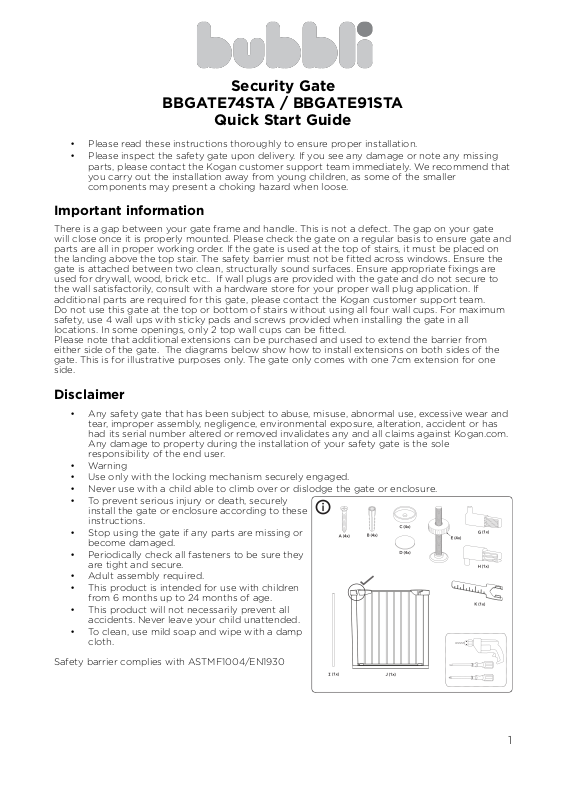

Page 1
Security Gate
BBGATE74STA / BBGATE91STA
Quick Start Guide
• Please read these instructions thoroughly to ensure proper installation.
• Please inspect the safety gate upon delivery. If you see any damage or note any missing
parts, please contact the Kogan customer support team immediately. We recommend that
you carry out the installation away from young children, as some of the smaller
components may present a choking hazard when loose.
Important information
There is a gap between your gate frame and handle. This is not a defect. The gap on your gate
will close once it is properly mounted. Please check the gate on a regular basis to ensure gate and

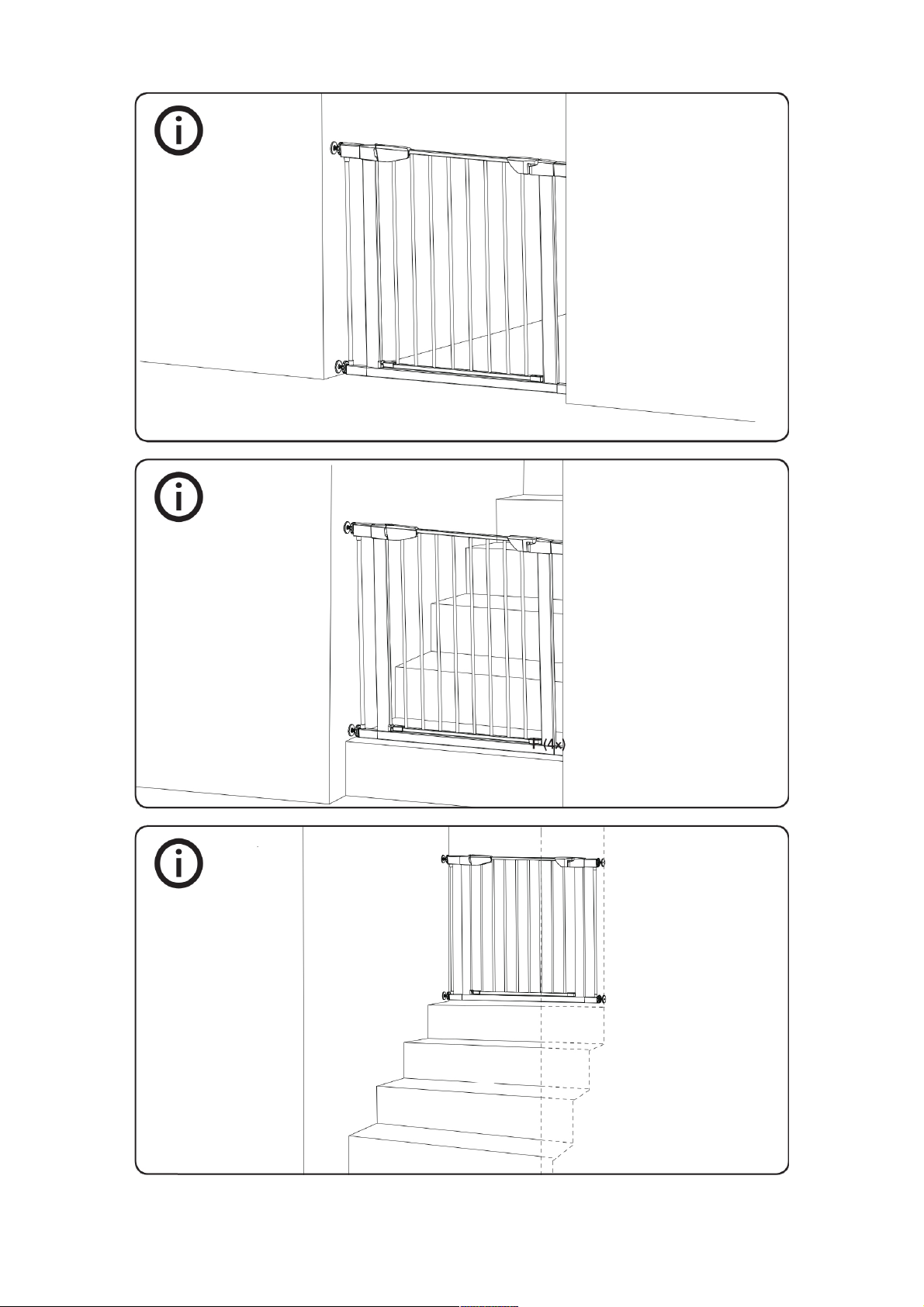

parts are all in proper working order. If the gate is used at the top of stairs, it must be placed on
the landing above the top stair. The safety barrier must not be fitted across windows. Ensure the
gate is attached between two clean, structurally sound surfaces. Ensure appropriate fixings are
used for drywall, wood, brick etc.. If wall plugs are provided with the gate and do not secure to
the wall satisfactorily, consult with a hardware store for your proper wall plug application. If
additional parts are required for this gate, please contact the Kogan customer support team.

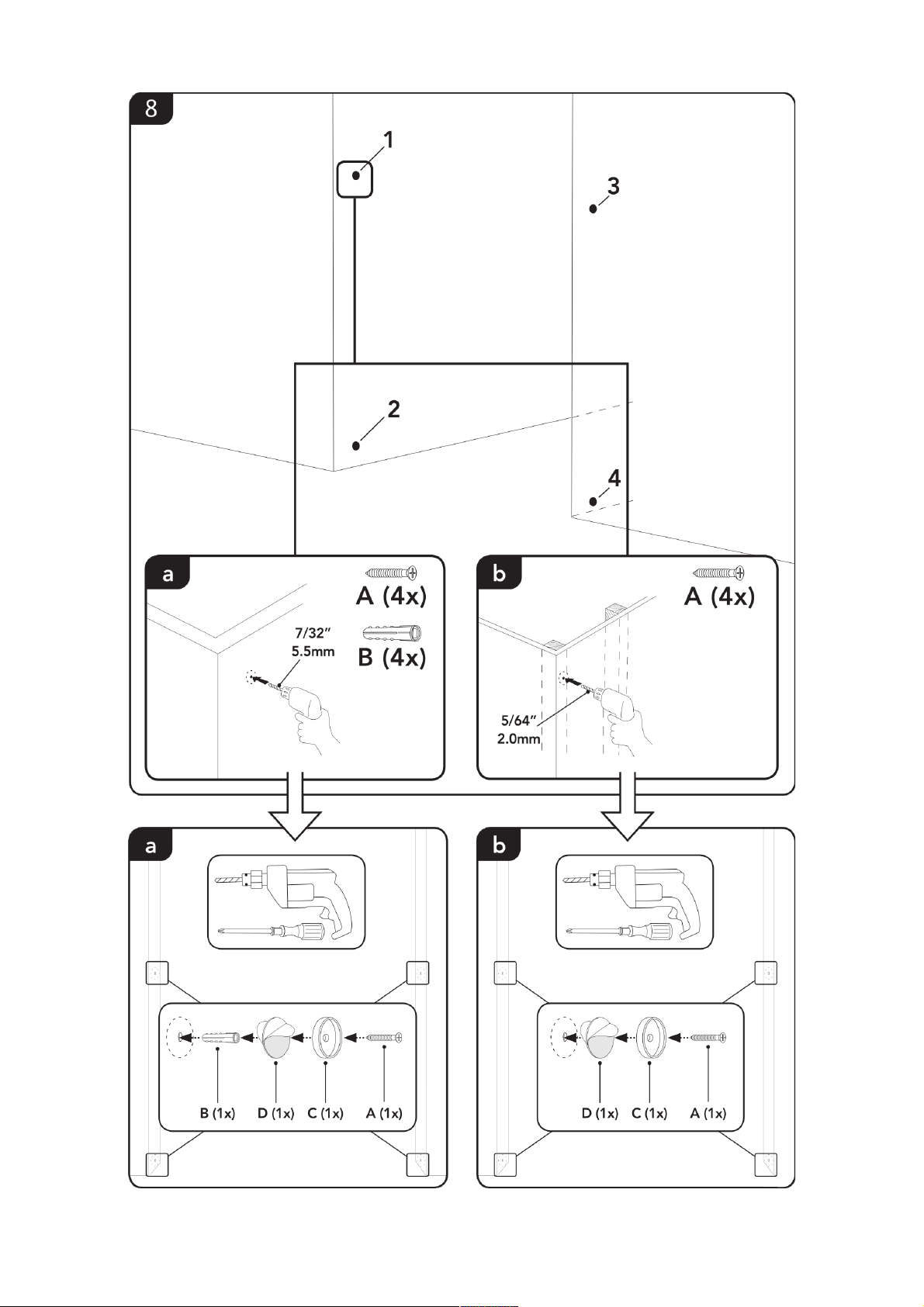

Do not use this gate at the top or bottom of stairs without using all four wall cups. For maximum
safety, use 4 wall ups with sticky pads and screws provided when installing the gate in all
locations. In some openings, only 2 top wall cups can be fitted.

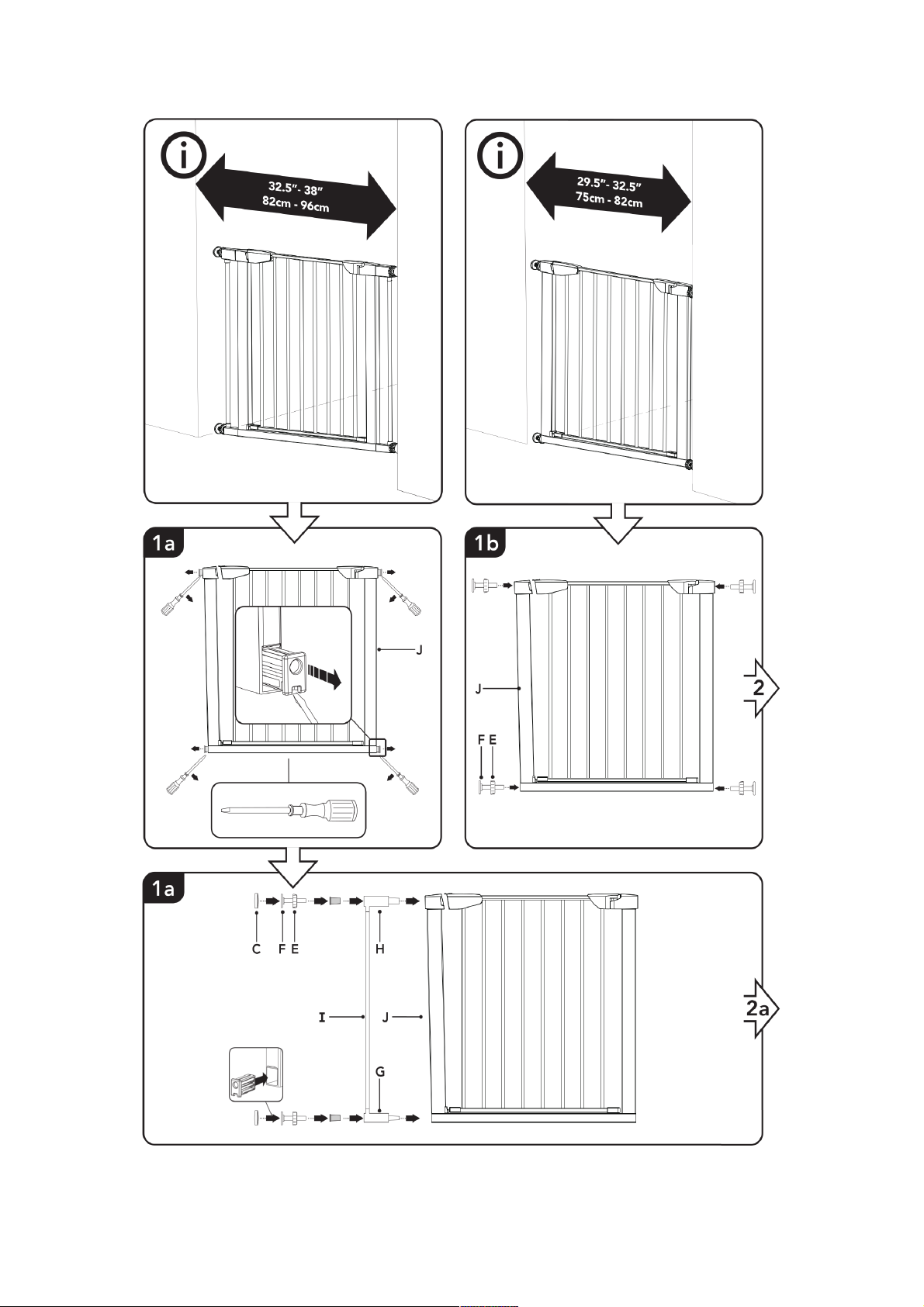

Please note that additional extensions can be purchased and used to extend the barrier from
either side of the gate. The diagrams below show how to install extensions on both sides of the
gate. This is for illustrative purposes only. The gate only comes with one 7cm extension for one
side.
Disclaimer
• Any safety gate that has been subject to abuse, misuse, abnormal use, excessive wear and
tear, improper assembly, negligence, environmental exposure, alteration, accident or has
had its serial number altered or removed invalidates any and all claims against Kogan.com.
Any damage to property during the installation of your safety gate is the sole
responsibility of the end user.
• Warning
• Use only with the locking mechanism securely engaged.
• Never use with a child able to climb over or dislodge the gate or enclosure.
• To prevent serious injury or death, securely
install the gate or enclosure according to these
instructions.
• Stop using the gate if any parts are missing or
become damaged.
• Periodically check all fasteners to be sure they
are tight and secure.
• Adult assembly required.
• This product is intended for use with children
from 6 months up to 24 months of age.
• This product will not necessarily prevent all
accidents. Never leave your child unattended.
• To clean, use mild soap and wipe with a damp
cloth.
Safety barrier complies with ASTMF1004/EN1930
1234567
Page 2
Page 3
Page 4
Page 5
Page 6
Page 7
Page 8
8
Page 9
Gate operating widths
Measure the width of the gap that you wish to install the gate, and check below
as to whether the gate will need an extension to operate.
Additional 7cm, 14cm and 28cm extensions are available from Kogan.com
Width Operating condition
< 75cm Unable to use gate
75 – 82cm Use the standard gate
> 82cm Use the standard gate with extensions
If you have any further questions or queries, please contact the Kogan
customer support team.
9
