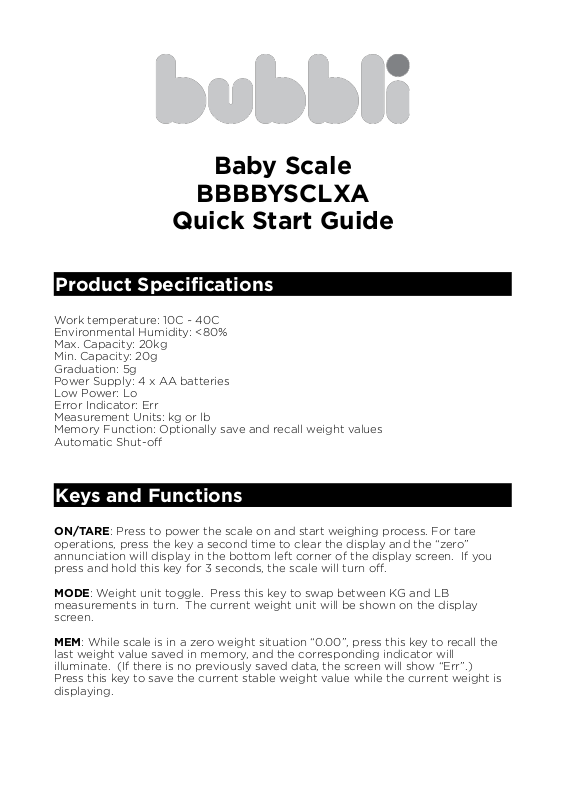

Baby Scale
BBBBYSCLXA
Quick Start Guide
Product Specifications
Work temperature: 10C ~ 40C
Environmental Humidity: <80%
Max. Capacity: 20kg
Min. Capacity: 20g
Graduation: 5g
Power Supply: 4 x AA batteries
Low Power: Lo
Error Indicator: Err
Measurement Units: kg or lb
Memory Function: Optionally save and recall weight values
Automatic Shut-off
Keys and Functions
ON/TARE: Press to power the scale on and start weighing process. For tare
operations, press the key a second time to clear the display and the “zero”
annunciation will display in the bottom left corner of the display screen. If you
press and hold this key for 3 seconds, the scale will turn off.
MODE: Weight unit toggle. Press this key to swap between KG and LB
measurements in turn. The current weight unit will be shown on the display
screen.
MEM: While scale is in a zero weight situation “0.00”, press this key to recall the
last weight value saved in memory, and the corresponding indicator will
illuminate. (If there is no previously saved data, the screen will show “Err”.)
Press this key to save the current stable weight value while the current weight is
displaying.
Page 2
Operations
Place the batteries in the battery compartment and press “ON/TARE” to start the
scale. Wait until “0.00” is displayed.
Gently place the baby in the pan, and the weight will be displayed in the display
screen after a few seconds. If the baby is left lying in the pan after its weight
value has been shown, the weight will continue to display for 5 minutes before
the unit turns itself off.
If the baby is removed from the pan after the weight has been displayed, the
scale will return to “0.00” and will turn off automatically after 5 minutes.
To check the former saved value, press the “MEM” key while the scale is
displaying “0.00”. The scale will save the option value during each weight
operation.
Cautions
The scale should be placed on a steady, flat, hard surface to ensure the utmost
safety for the baby.
You must replace the batteries immediately when the window displays “Lo”.
Keep the scale clean to ensure normal working operations.
If the scale will not be used for an extended period of time, the batteries should
be removed.
Please place the baby in the center of the pan to ensure the accuracy of the
weight operation.
Do not place anything or anyone heavier than 20.5kg onto the scale.
