BTX MMCKFB002 Users Manual

MMC User Guide

This device complies with Part 15 of the FCC Rules. Operation is subject to the fol­lowing two conditions: (1) This device may not cause harmful interference, and (2)
This device must accept any interference received, including interference that may
cause undesired operation. Changes or modifications not expressly approved by the

manufacturer could void the user’s authority to operate the equipment.

This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to part 15 of the FCC Rules.
provide a reasonable protection against harmful interference in a residential instal
lation. This equipment generates, uses, and can radiate radio frequency energy
and if not installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that interfer
ence will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the interference by
one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet or a circuit different from that to which
the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

These limits are designed to

-

-

Operation is subject to the following two conditions: (1) This device may not cause
interference, and (2) this device must accept any interference, including interference
that may cause undesired operation of the device.

Dip Switch Table for MMC RF Board

Switch 3 is the Motor Direction Selector.

If Switch 3 is ON = action is “Open is Open” and “Close is Close”
If Switch 3 is OFF = action is “Open is Close” and “Close is Open”

off Maintained Action

on 1 1 1 Open is Open

1 2 3 Close is Close

off 1 Momentary to Maintained

on 1 1 Open is Open

1 2 3 Close is Close

off 1 Momentary

on 1 1 Open is Open

1 2 3 Close is Close

off 1 1 Momentary

off 1 Maintained Action

on 1 1 Open is Close

1 2 3 Close is Open

off 1 1

on 1 Open is Close

1 2 3 Close is Open

off 1 1 Momentary Action

on 1 Open is Close

1 2 3 Close is Open

off 1 1 1 Momentary Action

Momentary to
Maintained Action

on 1 Open is Open

1 2 3 Close is Close

on Open is Close

1 2 3 Close is Open

If Switch 1 & 2 are ON = action is Maintained on Switch and Key Fob.

If Switch 1 is ON & Switch 2 is OFF = action is Momemtary to Maintained for switches only, Key Fob is
Maintained.

If Switch 1 is OFF & Switch 2 if ON = action is Momentary on Switch, Key Fob is Maintained only.

If Switch 1 is OFF & Switch 2 is OFF = action is Momentary on Switches only, Key Fob is Maintained only.

* NOTE: Key Fob and 10 Channel Transmitter are always Maintained Action no matter
where the switches are located.

Dip Switches

RJ Jack for

Contact Closure

or

SPDT Switch

(low voltage)

120V

AC

L1

N

GND

Red (DIR)
Black (DIR)
White (N)
Green (GRD)

To Motor

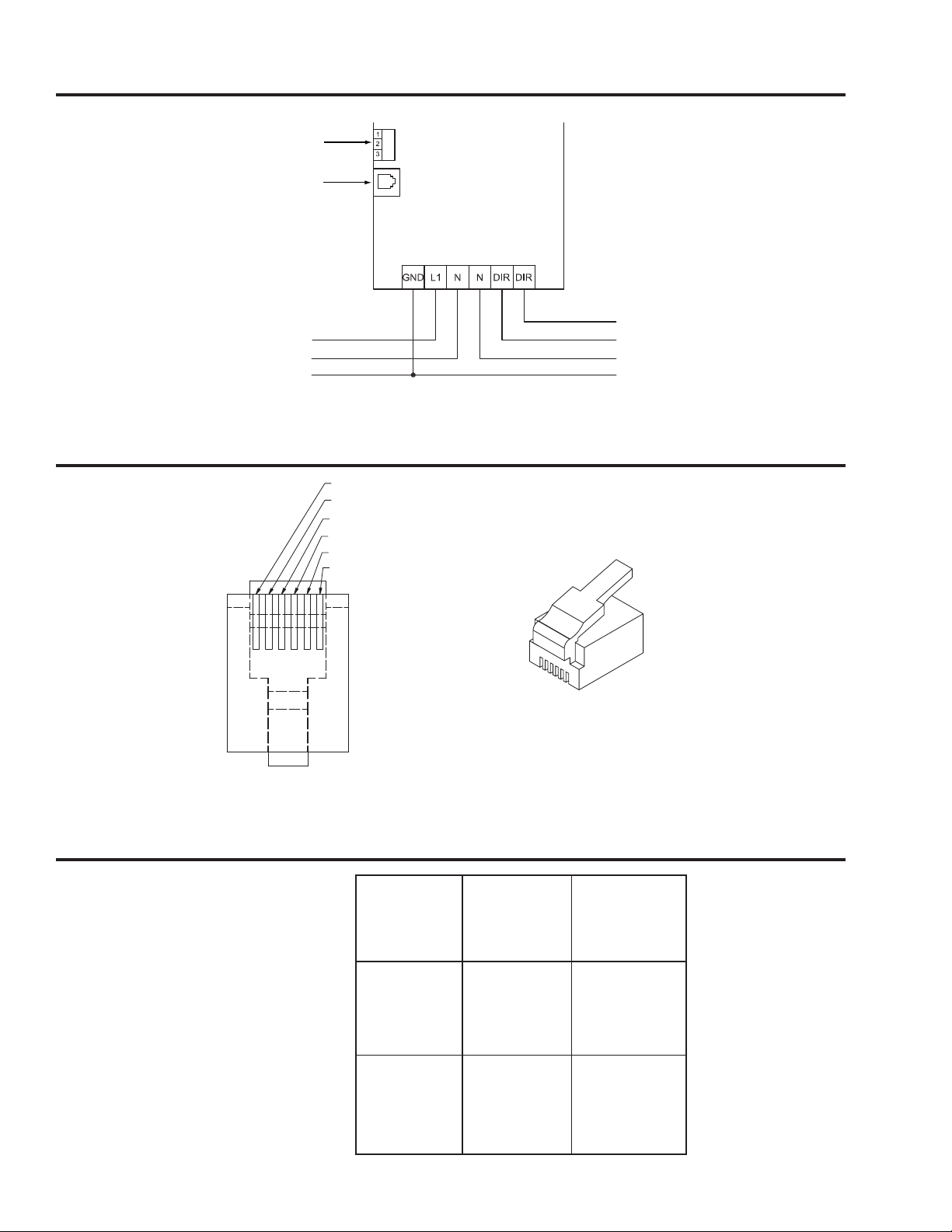

Basic Wiring of MMC-RF Board

eul

B

)

nommoC( wolleY

n

eerG

)lano

itceriD( deR

)

lanoitceriD( kcal

B

e

tihW

rotcennoC 11JR

6/6

Switch Pin Out for MMC

Functional Explanation for Dip Switch

1

off

on

Momentary Momentary

Momentary

to

Maintained

Momentary

to

Maintained

1 2 3

Open is Close
Close is Open

1
Open is Open
Close is Close

MMC Programming

D

EL

d

e

R

n

epO

pot

S

e

s

ol

C

e

doC

nottuB

eloH

not

tuB e

doC

5 4

3

2 1

01 9 8 7 6

tc

eleS

tceleS

llA

p

U

nwo

D

potS

yrettaB

tnemtrapmoC

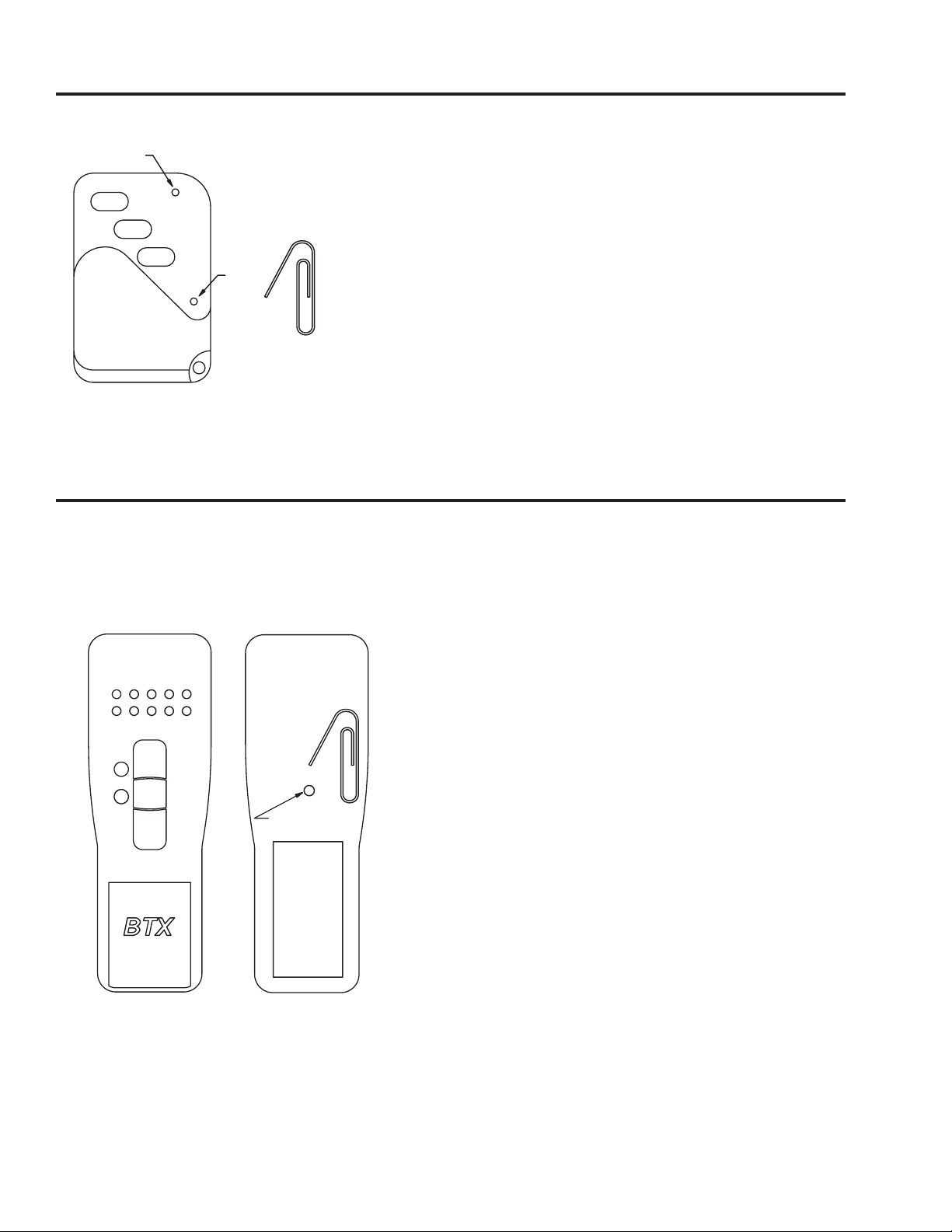

Key Fob

Plug MMC into 120 V AC/220 V AC power.

Take Key Fob slide cover downward to expose its buttons. At lower
right hand side of Key Fob there is a small opening. It is the Key Fob
code button. Take a small paper clip and slide it into the code button
hole. Hold the code button until the red LED comes on. Key Fob is
now coded for this MMC. Try it and make sure it works.

Radio Multi-Channel Handsender

Plug MMC into 120 V AC/220 V AC power.

To select the channel you want MMC to be, push the select

button until the LED above the channel is lit and flashing.

Turn over the handsender and look for a small opening in
the center. This is the code button hole. Take a small paper
clip and place one end in the hole. Depress the code button

until the LED on the channel you have selected flashes.

The MMC is now coded to this channel. Unplug the MMC
you have just coded on move on to the next MMC.

Note: If you leave the last MMC plugged in, when you code
another board, the previous MMC will listen to the code and
respond to the new code for the current MMC you are work­ing on.

Note: Key Fob code is kept in memory also. You can work
Radio Board from the Multi-Channel and Key Fob as well as
the “Select All” button on Multi-Handsender.

Warranty & Return Policy

1. Contract

All offers, quotes and sales by BTX Window
Automation, Inc. (BTX) are subject to these
Terms and Conditi on s of Sale . No other
agreements have been made or will be valid

unless expressly confirmed in writing by BTX.

2. ACCEPTANCE
BY TAKING DELIVERY OF BTX PRODUCTS,
PURCHASER ASSENTS TO THE TERMS AND
CON DITIO NS STATED H EREIN , UNLE SS
OT H E RW I S E EX P RES S LY AGRE E D IN
WRITING BY BTX. BTX HEREBY OBJECTS
TO AN Y D I FFE R E NT OR ADDIT I O NAL
TERMS AND CONDITIONS WHICH MAY BE
PROPOSED OR HAVE BEEN PROPOSED BY
PURCHASER IN ANY PURCHASE ORDER
FO RM S OR OTHE R DOCUM ENT S. THE
TERMS AND CONDITIONS STATED HEREIN
SHALL PREVAIL OVER ANY DIFFERENT
OR ADDITIONAL TERMS AND CONDITIONS
PROPOSED BY PURCHASER AND SHALL
APPLY TO THE SALE OR SHIPMENT OF ANY
GOODS IN RESPONSE TO PURCHASER'S
ORDER.

3. Prices and Delivery

All quoted prices are valid for a period of 60
days from the date of issue, unless otherwise
agreed by BTX in writing. Prices on accepted

orders remain firm for a period of four months
from the date of order acceptance, provided final

delivery occurs within that period. If delivery is
to occur more than four months from the date of
order acceptance, prices are subject to change
in accordance with any changes in the published
BTX price list which occur after the date of order
acceptance. All prices quoted are FOB Dallas,
excluding all freight, packaging and taxes. All
delivery dates are approximate.

4. Payment Terms
(a) Open account payment terms may be

establ is he d from time to tim e at the sol e
discretion of BTX, and are subject to credit
approval in writing. Terms on open accounts
are payment in full, net 30 days from date of
invoice. Payment terms for single transactions
and transactions other than on open account are

net C.O.D. or prepay unless confirmed otherwise

in writing by BTX.

(b) Amounts past due are subject to a finance

charge of 1.5% per month to the legal limit, and

the finance charge will apply without further prior

notice. In case of purchaser's delinquency in
payment or insolvency, BTX retains the right to
halt or interrupt all further deliveries and service
to the purchaser until all past due amounts have
been paid, and to require payment in advance
for orders not yet delivered, without any liability
resulting for BTX. Purchaser expressly agrees
to indemnify BTX and hold BTX harmless from
all charges and liability which might arise in any
manner from purchaser's nonpayment.

5. Inspection, Acceptance and Claims

Al l cl aim s by pu rc h as er ag ain st BT X fo r
shortages must be made in writing to BTX within
fourteen days from date of shipment from BTX's
Dallas base or they are waived. Any claims for
transport damage are the responsibility of the

recipient and must therefore be filed with the

carrier by the recipient.

6. Risk of Loss

Full risk of loss, damage or destruction of the
goods shall pass to purchaser upon delivery of
the goods to the carrier at the point of shipment
or upon
delivery at storage, whichever applies.

7. Force Majeure

If an order cannot be completed due to causes
beyond BTX's control, BTX retains the right to

10763 Sanden Dr. • Dallas, TX 75238 • [phone] • [phone] • FAX [phone] • www.btxinc.com

either cancel the uncompleted portion of the
order or complete the order if and when this
becomes possible. Purchaser shall not have
the right to withhold payment on delivered goods
and/or services, nor to unilaterally change the
order or cancel same. Force majeure includes
but is not limited to strikes, lock-outs, storms,

floods and the like, terrorism, wars, revolutions,

major equipment failures or fire damage at
production facilities, etc.

8. Warranty

BTX extends a three-year limited warranty for
its MotorDrape™ DC systems and controls.
BTX warrants its other systems and 110/220V
mot or s and hardware acc es so ries again st
defects in material and workmanship for a period

of five years from date of shipment from BTX's

Dallas base; however, pull chains and cords
for roller shades are excluded. BTX controls
and electric and electronic components carry
a one-year warranty against defects in material
and workmanship from date of shipment from
BTX's Dallas base. BTX does not warrant cords
and tapes for lift systems, nor customer’s own
materials, and BTX disclaims any written, oral
or implied warranties for such materials. If any
item to which a warranty applies proves to be

defective during the specified warranty period

under normal and proper use and provided the
equipment or part has been properly stored,
installed and maintained with due regard to any
directives, instructions and operating procedures
provided, BTX shall, upon presentation of proof
of purchase, repair or replace the item at the sole
option of BTX, F.O.B. Dallas. Application of the
warranty will be determined by BTX technical
staff after return of the item, its inspection and
any nece ssa ry investi gat ion . This warranty
does not apply in case of defect s resulting
from faulty installation, misuse, misapplication,
abuse, mishandling, shipping or failure to follow
instructions. This warranty does not cover any
incidental, special or consequential damages,
labor on location, service calls, reinstallation,
or expen ses involv ed in shipping, packing,
and return ing the goods . It also does not

cover damages caused by fire, flood, or act of

God. BTX warrants items repaired or replaced
pursuant to the above warranty, under normal
and proper use , stor ag e, ins talla ti on and
maintenance, against defects in material and
workmanship for a period of 30 days from date
of start-up of such repaired or replaced item or
the expiration of the original warranty, whichever
is longer. Correction of nonconformities in the

manner and for the period of time specified

herein shall be purchaser's exclusive remedy

and shall constitute fulfillment of all liabilities of

BTX, whether in warranty, contract, negligence,
tort, or otherwise with respect to the item
delivered. In no event shall BTX be responsible
for providing access to the allegedly defective
item or for disassembly or reinstallation of such
item or parts.

9. DISCLAIMER
THE FOREGOING EXPRESS WARRANTIES
ARE EXCLUSIVE AND IN LIEU OF ALL OTHER
WARRANTIES, WRITTEN, ORAL OR IMPLIED.
ALL OTHER WARRANTIES, INCLUDING ANY
WARR AN TY OF MERCHANTABILITY OR
FITNESS FOR A PARTICULAR PURPOSE,
ARE HEREBY DISCLAIMED.

10. LIMITED LIABILITY
BT X ' S L IABIL I T Y FOR A N Y AN D AL L
CLAIMS, CHARGES, EXPENSES, DAMAGES,
LOSSES AND INJURIES ARISING OUT OF
OR RELATING TO ITS PERFORMANCE OR
BREACH OF ANY AGREEMENT OF SALE

FOR GOODS AND/OR THE MANUFACTURE,
SAL E, DELI VERY, RESAL E, REPAIR OR
USE OF ANY GOODS SHALL NOT EXCEED
THE PURCHASE PRICE OF SUCH GOODS,
REGARDL ESS WHETHER THE CLAIM IS
BASED ON CONTRACT, TORT, NEGLIGENCE,
STATUTE, STRICT LIABILITY, WILLFUL OR
WANTON CONDUCT, WARRANTY (EXPRESS
OR IMPLIED), OR OTHERWISE. THIS SHALL
BE PURCHASER'S SOLE AND EXCLUSIVE
RE M EDY AGA I NST BT X OTHE R TH AN
TH E REM E DY PROV I DE D FOR UN DER
TH E EX PRE SS BT X WARR ANT IES . IN
NO EVENT SHALL BTX BE LI ABL E FOR
INCIDENTAL, SPECIAL, CONSEQUENTIAL
OR EXEMPLARY DAMAGES.

11. ARBITRATION
BTX AND PURCHASER AGREE THAT THIS
TRANSACTION INV OLVES INTE RS TATE
COMMERCE AND THAT AT THE OPTION OF
BTX, ANY DISPUTE RELATING TO IT IN ANY
MANNER SHALL BE SUBMITTED TO BINDING
ARBITR ATION BEFORE THE AM ERICA N
ARBITRATION ASSOCIATION AND SHALL BE
GOVERNED BY THE FEDERAL ARBITRATION
ACT OR, IF THAT STATUTE IS INAPPLICABLE,
ANY DISPUTE SHALL BE GOVERNED BY
THE TEXAS ARBITRATION ACT; HOWEVER,
NO ARBITRATOR MAY AWARD PUNITIVE
DA MA G ES . P UR C HA SER AGR EES TO
PAY AL L CO S T S IN C U RRED B Y B T X,
INCLUDING BUT NOT LIMITED TO COSTS OF
ARBITRATION, COLLECTION, REASONABLE
ATTORNEY'S FEES, EXPENSES AND ANY
COURT COSTS.

12. Return

No goods may be returned without the express
written approval of BTX and the receipt of
an BTX RG A identification nu mber. Goods
approved for return must be returned in original
packaging, freight prepaid, clearly marked with
the BTX RGA identification number and be
accompanied by a copy of the original invoice.
Application of the warranty will be determined
by BTX technical staff after return of the item,
its inspection, and any necessary investigation.
A restocking charge of 25% of invoice value will
apply on all items accepted for return.

13. Liens and Security Interest

Purchaser will not permit to be created or to
remain undischarged any lien, encumbrance
or charge upon the goods supplied by BTX
until B TX h as r eceiv ed payment in full for
such goods. If any liens, encumbrances or

charges shall be filed against BTX goods prior

to payment in full, purchaser shall discharge
the liens, encumbrances or charges within ten
days and reimburse BTX for expenses incurred
in defending its security interest. Title to the
goods shall remain with BTX until payment in
full has been received.

14. Statute of Limitations

Any action against BTX shall be commenced
within one year after the cause of action has
arisen.

15. Choice of Law and Venue

The rights and duties of the parties hereunder
and the construction and effect of these terms
an d co nd iti ons sha ll be go ve rne d by the
laws of the State of Texas. Venue shall lie in
Dallas, Texas, to the exclusion of any other
jurisdiction.

16. This agreement supersedes any inconsistent
or additional promises made by any employee,
representative, agent or dealer of BTX.

17. If any part of this agreement is found
invalid, the balance of the agreement remains
enforceable.

WTY-030806
