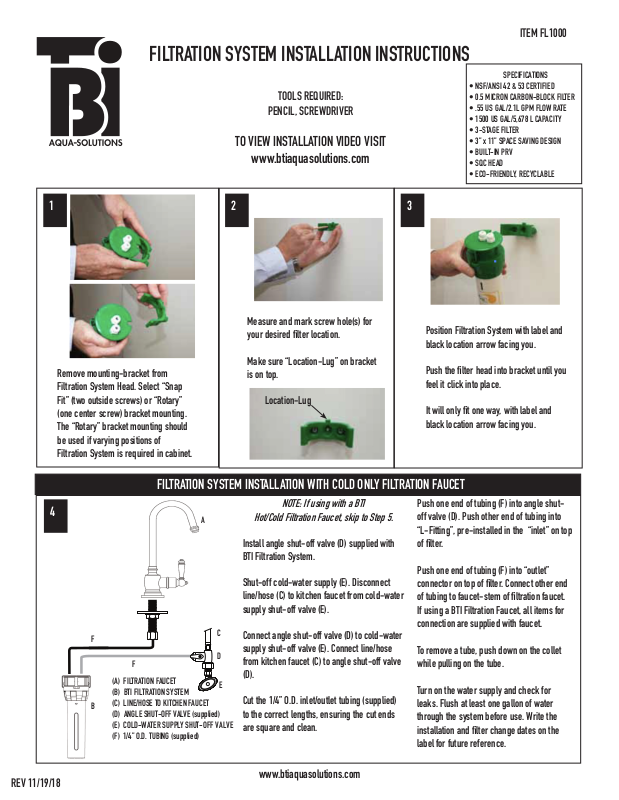

FILTRATION SYSTEM INSTALLATION INSTRUCTIONS
TOOLS REQUIRED:
PENCIL, SCREWDRIVER
TO VIEW INSTALLATION VIDEO VISIT
www.btiaquasolutions.com
ITEM FL1000
SPECIFICATIONS
• NSF/ANSI 42 & 53 CERTIFIED
• 0.5 MICRON CARBON-BLOCK FILTER
• .55 US GAL/2.1L GPM FLOW RATE
• 1500 US GAL/5,678 L CAPACITY
• 3-STAGE FILTER
• 3” x 11” SPACE SAVING DESIGN
• BUILT-IN PRV
• SQC HEAD
• ECO-FRIENDLY, RECYCLABLE
1 2
Remove mounting-bracket from
Filtration System Head. Select “Snap
Fit” (two outside screws) or “Rotary”
(one center screw) bracket mounting.
The “Rotary” bracket mounting should
be used if varying positions of
Filtration System is required in cabinet.
FILTRATION SYSTEM INSTALLATION WITH COLD ONLY FILTRATION FAUCET
Measure and mark screw hole(s) for
your desired lter location.
Make sure “Location-Lug” on bracket
is on top.
Location-Lug
3
Position Filtration System with label and
black location arrow facing you.
Push the lter head into bracket until you
feel it click into place.
It will only t one way, with label and
black location arrow facing you.
4
REV 11/19/18
A
F
F
(A) FILTRATION FAUCET
(B) BTI FILTRATION SYSTEM
(C) LINE/HOSE TO KITCHEN FAUCET
B
(D) ANGLE SHUT-OFF VALVE (supplied)
(E) COLD-WATER SUPPLY SHUT-OFF VALVE
(F) 1/4” O.D. TUBING (supplied)
NOTE: If using with a BTI
A
Hot/Cold Filtration Faucet, skip to Step 5.
Push one end of tubing (F) into angle shutoff valve (D). Push other end of tubing into
“L-Fitting”, pre-installed in the “inlet” on top
Install angle shut-off valve (D) supplied with
of lter.
BTI Filtration System.
Push one end of tubing (F) into “outlet”
Shut-off cold-water supply (E). Disconnect
line/hose (C) to kitchen faucet from cold-water
supply shut-off valve (E).
connector on top of lter. Connect other end
of tubing to faucet-stem of ltration faucet.
If using a BTI Filtration Faucet, all items for
connection are supplied with faucet.
C
Connect angle shut-off valve (D) to cold-water
supply shut-off valve (E). Connect line/hose
D
from kitchen faucet (C) to angle shut-off valve
To remove a tube, push down on the collet
while pulling on the tube.
(D).
E
Cut the 1/4” O.D. inlet/outlet tubing (supplied)
to the correct lengths, ensuring the cut ends
are square and clean.
Turn on the water supply and check for
leaks. Flush at least one gallon of water
through the system before use. Write the
installation and lter change dates on the
label for future reference.
www.btiaquasolutions.com
FILTRATION SYSTEM INSTALLATION INSTRUCTIONS, continued
FILTRATION SYSTEM INSTALLATION W/ BTI AQUA-SOLUTIONS HOT/COLD FILTRATION FAUCET
ITEMS:
HC2100, HC2200, HC2400
ITEM FL1000
5
A
G
F
B
(A) FILTRATION FAUCET
(B) BTI FILTRATION SYSTEM
(C) LINE/HOSE TO KITCHEN FAUCET
(D) ANGLE SHUT-OFF VALVE (supplied)
(E) COLD-WATER SUPPLY SHUT-OFF VALVE
(F) 1/4” O.D. TUBING (supplied)
(G) 3/8” / 1/4” ADAPTER (supplied w/faucet)
Install angle shut-off valve (D) supplied with
BTI Filtration System.
Connect 3/8” Female-Side of adapter (G)
(supplied) to braided blue label
cold-water in hose. Push one end of tubing
Shut-off cold-water supply (E). Disconnect
line/hose (C) to kitchen faucet from cold-water
C
D
F
E
supply shut-off valve (E).
Connect angle shut-off valve (D) to cold-water
supply shut-off valve (E). Connect line/hose
(F) into 1/4” Push-Fit Side of adapter (G).
Push other end of tubing (F) into “outlet”
connector on top of filter.
To remove a tube, push down on the collet
while pulling on the tube.
from kitchen faucet (C) to angle shut-off valve
(D).
Turn on the water supply and check for
leaks. Flush at least one gallon of water
Cut the 1/4” O.D. inlet/outlet tubing (supplied)
through the system before use.
to the correct lengths, ensuring the cut ends
are square and clean.
Write the installation and filter change dates
on the label for future reference.
Push one end of tubing (F) into angle shut-
off valve (D). Push other end of tubing into
“L-Fitting”, pre-installed in the “inlet” on top
of lter.
REV 11/19/18
www.btiaquasolutions.com
