Page 1
BT10
HI-LOGIC PLUS™ SPEAKER FLOOR STANDS
INSTALLATION GUIDE & PARTS LIST
This Pack Contains 2 Speaker Stands
B-TECH AUDIO VIDEO MOUNTS
www.btechavmounts.com
CONTENTS
INSTALLATION TOOLS REQUIRED
FEATURES
Crosshead
screwdriver
Installation Safety Notes.....................................................................................................................2
Parts List.............................................................................................................................................4
Installation Instructions.......................................................................................................................6
Product Dimensions..........................................................................................................................11
B-Tech Contact Details.....................................................................................................................12
PLEASE KEEP THIS FOR FUTURE REFERENCE
4mm Hex Key
(Supplied)
REG DESIGN NO: 3003354
● Designed for home cinema speakers up to 10kg (22lbs)
● Die-cast base for greater stability, esoteric performance
and to curb unwanted vibration
● Adjustment height: 660mm (26”) – 1200mm (47.2”)
● Suitable for speakers with single point, du al point
and keyhole fixings
● Alternative speaker clamp supplied for speakers
without fixing holes
● Comprehensive mounting kit included
● Integrated cable management with
speaker cable pull-through wire
● Simple assembly and speaker mounting
● This pack contains 2 floor stands
Page 2
BT10
PARTS LIST
4
Suitable for loads
up to
10kg (22lbs)
TUBE ASSEMBLY
1
2
3
4
5
6
7
8
9
CLAMP ASSEMBLY
10
Page 3
5
PLEASE KEEP THIS FOR FUTURE REFERENCE
14
12
A
B
C
D E
11
13
REF PART NAME QTY
1 TUBE ASSEMBLY 2
2 HEIGHT ADJUSTMENT COLLAR 2
3 FLOOR BASE 2
4 M22 NUT 2
5 RUBBER FEET 6
6 M6 X 25mm HEX SCREW 2
7 CLAMP BRACKET 2
8 SPEAKER CLAMP 4
9 M6 x 60mm SCREW 4
10 FOAM PAD 4
11 DUAL POINT SPEAKER FIXING 2
12 SINGLE POINT SPEAKER FIXING 2
13 SPEAKER CABLE PULL-THROUGH WIRE 1
14 4mm HEX KE Y (FOR PART 6) 1
INTERFACE KIT
A M5 X 12mm SCREW 4
B M6 X 12mm SCREW 4
C ¼” X ½” UNC SCREW 4
D ¼” X ½” UNC SCREW (FOR PART E) 2
E THUMB WHEEL (FOR PART D) 2
Page 4
6
INSTALLATION INSTRUCTIONS
1
Attach tube to the floor base.
2
3
4
1
3
4
1
Page 5
7
2
Stick the rubber feet to the bottom of the floor base.
3
5
5
3
Page 6
8
3
i. Feed the pull-through wire through the hole at the top of the tube down
to the floor base.
ii. Attach the speaker cable to the top of the pull-through wire, then pull the
cable all the way through the tube.
13
SPEAKER
CABLE
SPEAKER
CABLE
1
3
13
13
Page 7
9
4
Choose an adaptor for the speaker.
Speaker Clamp
Horizontal dual point fixing
Vertical dual point fixing
11
6
6
11
6
11
1
6
14
14
14
C
B
A
C
B
A
A
B
C
14
6
1
12
12
6
Single point fixing
D
E
14
6
1
11
6
11
Keyhole fixing
10
8
7
1
11
6
6
8
1
7
Page 8
10
5 Loosen the height adjustment collar, adjust height then retighten.
2
Page 9
11
BT10

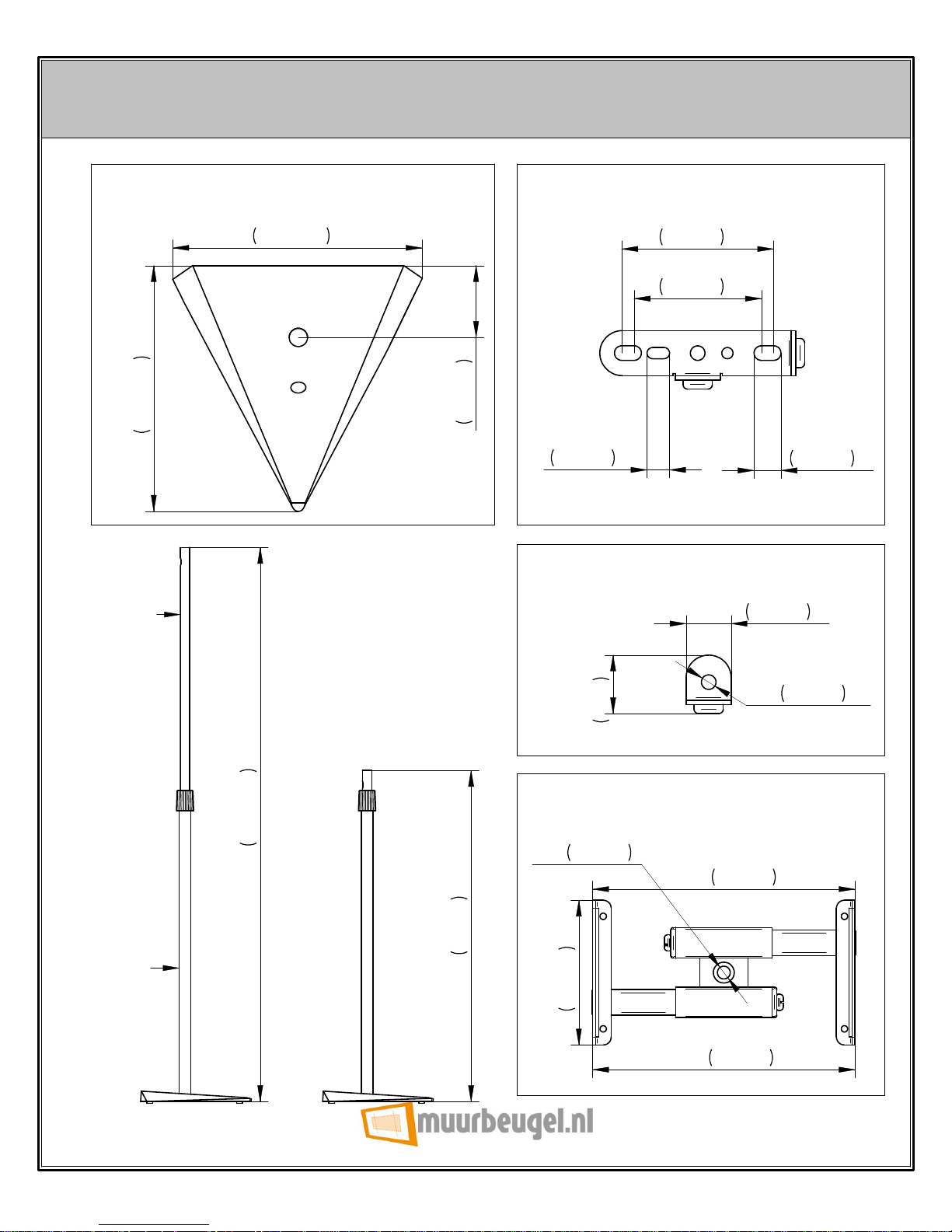

PRODUCT DIMENSIONS
THESE INSTRUCTIONS ARE INTENDED AS A GUIDE ONLY AND B-TECH ACCEPTS NO
LIABILITY FOR THE ACCURACY OF THE INFORMATION CONTAINED IN THIS DOCUMENT.
68mm
2.7"
FLOOR BASE
DUAL ADAPTOR
56mm
2.2"
20mm
0.8"
26mm
1"
O
6.5mm
0.3"
SINGLE ADAPTOR
ADJUSTABLE CLAMP
10mm
0.4"
12mm
0.5"
1200mm
47.2"MAX
660mm
26"MIN
O18mm
(0.7")
O23mm
(0.9")
90mm
3.5"
165mm
6.5"MAX
90mm
3.5"MIN
O
8mm
0.3"
290mm
11.4"
300mm
11.8"
86mm
3.4"
