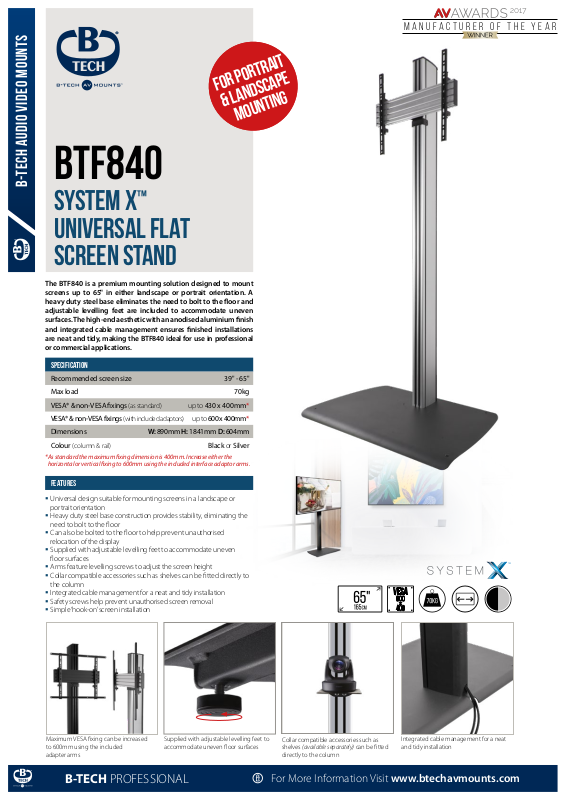

BTF840
TM
B-TECH audio video mounts
system x
Universal FLAT
SCREEN STAND
The BTF840 is a premium mounting solution designed to mount
screens up to 65" in either landscape or portrait orientation. A
heavy duty steel base eliminates the need to bolt to the oor and
adjustable levelling feet are included to accommodate uneven
surfaces. The high-end aesthetic with an anodised aluminium nish
and integrated cable management ensures nished installations
are neat and tidy, making the BTF840 ideal for use in professional
or commercial applications.
™
MANUFACTURER OF THE YEAR
For Portrait
& Landscape
Mounting
SPECIFICATION
Recommended screen size 39" - 65"
Max load 70kg
VESA® & non-VESA xings (as standard) up to 430 x 400mm*
VESA® & non-VESA fixings (with included adaptors) up to 600 x 400mm*
Dimensions W: 890mm H: 1841mm D: 604mm
Colour (column & rail) Black or Silver
* As standard the maximum xing dimension is 400mm. Increase either the
horizontal or vertical xing to 600mm using the included interface adaptor arms.
FEATURES
Universal design suitable for mounting screens in a landscape or
portrait orientation
Heavy duty steel base construction provides stability, eliminating the
need to bolt to the oor
Can also be bolted to the oor to help prevent unauthorised
relocation of the display
Supplied with adjustable levelling feet to accommodate uneven
oor surfaces
Arms feature levelling screws to adjust the screen height
Collar compatible accessories such as shelves can be tted directly to
the column
Integrated cable management for a neat and tidy installation
Safety screws help prevent unauthorised screen removal
Simple ‘hook-on’ screen installation
Maximum VESA xing can be increased
to 600mm using the included
adapter arms
B-TECH PROFESSIONAL
Supplied with adjustable levelling feet to
accommodate uneven oor surfaces
Collar compatible accessories such as
shelves (available separately) can be tted
directly to the column
Integrated cable management for a neat
and tidy installation
For More Information Visit www.btechavmounts.com
technical drawings
160mm
39mm
68mm
1841mm
158mm
86mm
141mm
80mm
28mm
100mm
200mm
300mm
400mm
428mm
Ø8.4mm
160mm
39mm
68mm
1841mm
158mm
86mm
141mm
600mm
600mm
600mm
80mm
158mm
86mm
141mm
600mm
600mm
600mm
80mm
160mm
39mm
68mm
1841mm
158mm
86mm
141mm
80mm
28mm
890mm
100mm
200mm
300mm
400mm
428mm
500mm
504mm
600mm
120mm
Ø8.2mm
620mm
Ø8.4mm
TOP VIEW
FRONT VIEW
FRONT VIEW
WITH ADAPTOR ARMS
SIDE VIEW
WITH ADAPTOR ARMS
REAR VIEW
100mm
28mm
Ø8.4mm
200mm
300mm
400mm
428mm
620mm
600mm
504mm
500mm
68mm
160mm
B-TECH audio video mounts
600mm
86mm
158mm
141mm
1841mm
80mm
600mm
600mm
39mm
890mm
PACKING INFORMATION
PLEASE NOTE, THIS IS A MULTI-BOX ITEM
Colour: Order Ref: EAN Code: Master Carton Qty: Carton Qty: Master Carton Weight: Master Carton Cube:
356mm
630mm
810mm
890mm
492mm
604mm
Black BTF840/BB 5019318087547 N/A 3 20.5kg / 12.5kg/ /5.5kg x2 0.07cbm / x0.01cbm
BTF841
Silver BTF840/BS 5019318087554 N/A 3 20.5kg / 12.5kg/ /5.5kg x2 0.07cbm / x0.01cbm
ACCESSORIES and RELATED PRODUCTS
BT7032
Bt7863
BT8390-VESA400T
© 2019 B-Tech International Design & Manufacturing Limited. All rights reserved.
The information in this specication sheet reects the current technical specications at the time of print.
We reserve the right to change the technical or physical specications without prior notice. The B-Tech name and the B-Tech logo are reg istered trademark s of B-Tech International Design & Manufacturing Limited.
All other brands and pro ducts are trademarks of their respective own ers. All B-Tech images and symbols are exclusive property of B-Tech International Design & Manufacturing Limited.
B-Tech accept no liability for loss or damage caused by improper installation or mounting on unstable structures. Any reproduction or retransmission or republication of any part of this
specication sheet is strictly prohibited, unless prior written permission has been granted by B-Tech International Design & Manufacturing Limited. E&OE.
SS-V2-BTF840-060819
Large AV Accessory Shelf is ideal for
adding AV accessories such as a Blu-Ray
player or laptop to an installation or a wall
B-TECH PROFESSIONAL
VC Camera Shelf is ideal for adding VC
cameras or small media players to an
installation or directly to the wall
VESA 400 Interface Arms designed to
mount medium / large sized screens in a
tilted position
For More Information Visit www.btechavmounts.com
System X Dual Stack Floor Stand - 1.8m
designed to mount two screens, one above
the other, in portrait or landscape style
