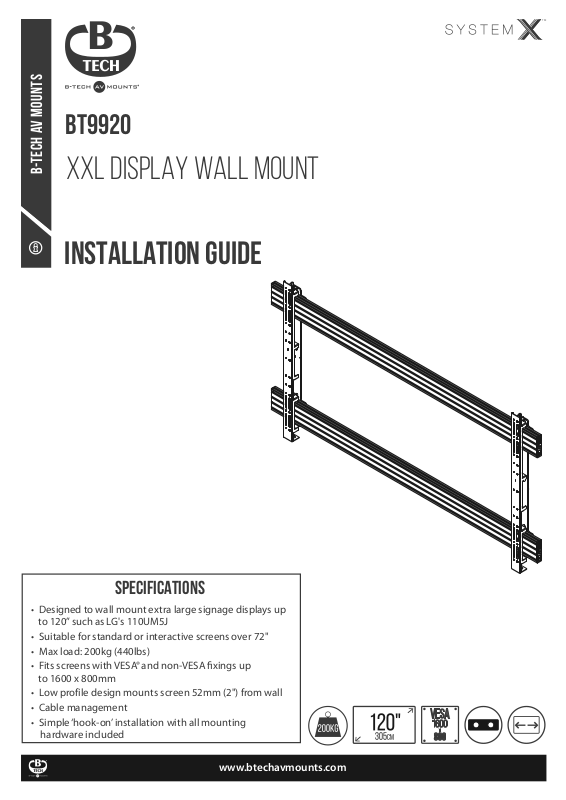

Page 1
BT9920
B-TECH AV mounts
XXL DISPLAY Wall Mount
INSTALLATION GUIDE
TM
SPECIFICATIONS
• Designed to wall mount extra large signage displays up
to 120” such as LG's 110UM5J
• Suitable for standard or interactive screens over 72"
• Max load: 200kg (440lbs)
• Fits screens with VESA
to 1600 x 800mm
• Low profile design mounts screen 52mm (2") from wall
• Cable management
• Simple ‘hook-on’ installation with all mounting
hardware included
®
and non-VESA xings up
www.btechavmounts.com
Page 2
CONTENTS
Installation Safety Notes......................................................................................................................
Parts List....................................................................................................................................................
Installation Instructions.......................................................................................................................
Pole Mounting.......................................................................................................................................
Product Dimensions............................................................................................................................
B-Tech Contact Details........................................................................................................................
2
4
6
10
11
12
INSTALLATION SAFETY INSTRUCTIONS
This mount is intended for use only with the
CAUTION:
maximum weights indicated. Use with equipment heavier than the maximum
indicated may result in instability causing possible injury.
Do not attempt to install this product until all instructions and warnings have been read and properly understood.
Please keep these instructions for future reference.
Please check carefully to make sure there are no missing or defective parts - defective parts must never be used.
B-Tech AV Mounts, its distributors and dealers are not liable or responsible for damage or injury caused by improper
installation, improper use or failure to observe these safety instructions. In such cases, all guarantees will expire.
General
the
B-Tech AV Mounts recommends that a professional AV installer or o
Great care must always be taken during installation as most AV equipment is of a fragile nature, possibly heavy and
easily damaged if dropped.
If you do not fully understand the instructions or are not sure how to install this product safely, then please consult a
professional for advice and/or to install this product for you. Failure to mount this product correctly may cause serious
tion
injury or death both during installa
Do not mount any AV equipment that exceeds the specic weight limit of the product you are installing.
This weight limit will be clearly stated on each product and its packaging and will vary from product to product.
and at any time thereafter.
r suitably qualied person install this product.
Product location
Please pay careful attention to where this product is located. Check load capacity of the wall prior to installation as
some surfaces are not suitable for installation. Designed for indoor use, this mount is suitable for public or home installation.
If located in a public or frequently populated area ensure that the product is out of the immediate reach of people.
If any AV equipment is to be suspended over the likely path or location of people then great care should be taken to
secure all parts of the installation from falling.
When drilling holes it is essential to avoid contact with electrical cables and water or gas pipes contained within.
Use of a good quality live wire detector and hidden object locator is therefore recommended.
Only drill into structures when you are sure it is safe to do so.
Fixing hardware
It is highly recommended that all xing screws be used where supplied and that the purpose of all other xing hardware
is fully understood. In some cases more AV equipment xing hardware will be supplied to accommodate dierent models
of equipment and set up congurations. The installer must be satised that any supplied xing hardware is suitable for
each specic installation. The xing kit supplied with the product may not be suitable for all walls.
If any xing screws or included hardware are deemed not sucient for a safe installation then plea
or your local hardware store.
Hazard limitation
When routing cables take advantage of any built in cable management features that the product might provide and ensure
that all cables are tidy and secure. Check to see that any moving aspect of the product can do so unhindered by any cabling.
Some products have moving parts and the potential to cause injury through the crushing or trapping of ngers or other
body parts.
during set up.
necessary xings are present and are of ample tightness.
It is recommended that periodic inspections of the product and its xing points are made as frequently as possible (no more
than 6 months apart) to ensure that safety is maintained.
If in doubt consult a professional AV installer or other suitably qualied person.
Particular attention to the nature of moving parts is required especially when assembling installing and adjusting
Immediately after installation double-check that the work done is safe and secure. Double-check all
se consult a professional
2
Page 3
Page 4
BT9920 PARTS LIST
PLEASE KEEP THIS FOR FUTURE REFERENCE
1
4
3
2
7
5
6
4
Page 5
2
3
9
8
10
ITEM
WALL PLATE
12
M8 SLIDING INSERT
2
3
M8 x 12mm CSK SCREW
4
MOUNTING RAIL
5
RAIL END CAP
6
INTERFACE ARM
7
CABLE MANAGEMENT CLIP
M8 x 10mm HEX SCREW
8
9
5AF HEX KEY
5AF LONG HEX KEY
10
DESCRIPTION
QTY
19
16
2
4
2
3
3
1
1
A1
A
D
J
B
E
K
C
F
L
A2
M
A
M6 x 16mm CROSS SCREW
B
M6 x 25mm CROSS SCREW
C
M6 x 40mm CROSS SCREW
D
M8 x 16mm CROSS SCREW
E
M8 x 25mm CROSS SCREW
F
M8 x 40mm CROSS SCREW
G
M10 x 16mm CROSS SCREW
H
M10 x 25mm CROSS SCREW
I
M10 x 40mm CROSS SCREW
J
ID8.1 T5mm SPACER
G
H
I
N
K
ID8.1 T13mm SPACER
L
ID8.1 T24mm SPACER
M
ID10.3 T7mm SPACER
MULTIWASHER
N
A1
ST8 x 45 WOOD SCREW
No.10 WALL PLUG
A2
SCREEN FIXING KIT
4
4
4
4
4
4
4
4
4
4
4
4
4
4
WALL FIXINGS KIT
12
12
Drill
10mm (7/16”) masonry bit
or 6mm (1/4”) wood bit
Suitable for loads up to 200kg (440lbs)
INSTALLATION TOOLS REQUIRED
Pencil
Screwdriver
5
Level
(Optional)
Stud Finder
(Optional)
Page 6
INSTALLATION INSTRUCTIONS
ATTACH MOUNTING RAILS TO WALL PLATES
1.
i. Insert 4x item 2 in both ends of item 4. 2 in the top channel
and 2 in the bottom channel and set approx.1500mm apart.
Repeat for both rails.
4
2
108mm
(4.25")
2
1500mm (59")
Middle of Wall Plates (item 1)
4
2
ii. Attach item 1 to item 4 by fastening item 3 into item 3.
iii. Fit item 5 to the ends of item 4.
4
3
9
2
1
5
4
1
6
2
3
Page 7
FIX MOUNT TO WALL
1
A1
2.
i. Pre-drill holes for the wall xings and insert 16x item A2*, assemble 4x item A1
into the top holes and leave approx. 10mm gap to hook on item 1.
24mm
(0.95")
600mm (23.62")
158mm (6.22")
A2*
A1
WALL
1476mm (58.11")
*Not required for wooden stud walls.
ii. Hook item 1 onto the top item A1 using the keyholes xings.
iii. Add the remaining item A1 and secure all xings.
LEVEL
~10mm
(0.4")
iii.
A1
A1
1
7
Page 8
FIX CABLE MANAGEMENT CLIPS TO RAILS
3.
i. In suitable postions along the bottom of
the rail, insert item 2 into item 4.
ii Fix item 7 to item 4 using items 2 & 8.
2
8
7
ATTACH INTERFACE ARMS TO SCREEN
4.
Fix item 6 to the rear of the screen using the interface kit provided (items A - N).
Note: Ensure interface arms are positioned the correct way round and the same
holes are used on both arms.
4
4
7
A-I
TOP
J
6
K-N*
BOTTOM
*Note: Use spacers (items K-N)
for screens with recess xings.
SCREEN
8
Page 9
HOOK SCREEN ONTO RAILS
5.
Using item 6, hook the screen onto both
mounting rails (item 4).
Note: This procedure may require two people.
WALL
6
SCREEN
4
4
LEVEL SCREEN & SECURE MOUNT
6.
i. Optional: Ensure the screen is level using the height adjustment screws on top of item 6.
ii. Secure mount by tightening the safety screws on the bottom item 6.
iii. Tidy any screen cables to the mount using item 7.
10
HEIGHT
ADJUSTMENT
SCREW
6
SAFETY SCREW
10
7
CABLE
9
Page 10
alternative pole mounted INSTALLATIONS
FLOOR-TO-CEILING
CEILING
BT7052 (X8)
BT9920 (X1)
BT7850-200 (X2)
BT7807 (X2)
Additional M8 x 12mm CSK screws & M8 sliding nuts (BT6183) required for installation
FLOOR-TO-WALL
BT7831 (X1)
BT7052 (X8)
WALL
BT9920 (X1)
BT7850-200 (X2)
BT7807 (X1)
Additional M8 x 12mm CSK screws & M8 sliding nuts (BT6183) required for installation
10
Page 11
BT9920 DIMENSIONS
PLEASE KEEP THIS FOR FUTURE REFERENCE
24mm
10.4mm
10.4mm
FRONT VIEW
Max. 1600mm
889.5mm
SIDE VIEW
900mm
Mount Height
400mm
600mm
800mm
600mm
758mm
200mm
300mm
24mm
14mm
379mm 221mm
158mm
8.4mm
8.4mm
8.4mm
REAR VIEW
1500mm ±100
Middle Of Wall Plates
600mm
24mm
8.4mm
221mm 379mm
600mm 172mm
51.8mm
CABLE MANAGEMENT CLIP
44mm
51mm
20mm
30mm
TOP VIEW
1755mm
1750mm
30mm
THESE INSTRUCTIONS ARE INTENDED AS A GUIDE ONLY AND B-TECH ACCEPTS NO
LIABILITY FOR THE ACCURACY OF THE INFORMATION CONTAINED IN THIS DOCUMENT.
11
