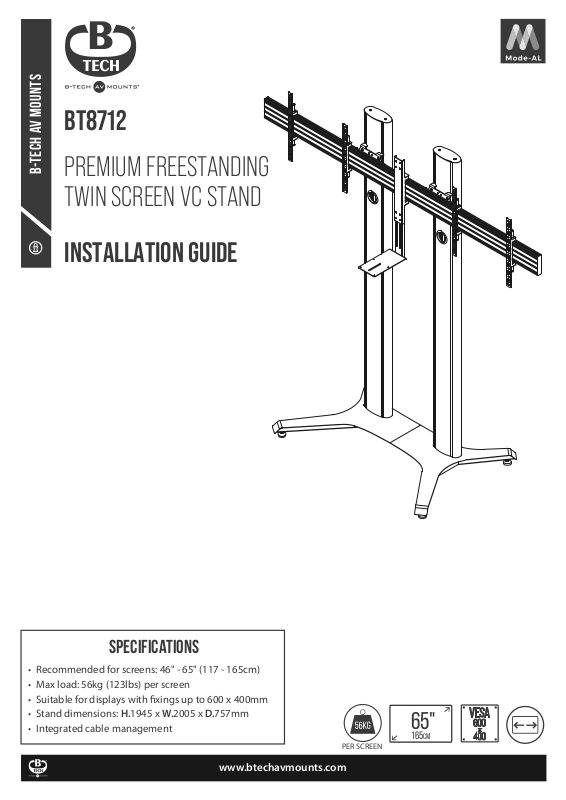

BT8712
B-TECH AV mounts
PREMIUM FREESTANDING
TWIN SCREEN VC STAND
INSTALLATION GUIDE
SPECIFICATIONS
• Recommended for screens: 46" - 65" (117 - 165cm)
• Max load: 56kg (123lbs) per screen
• Suitable for displays with xings up to 600 x 400mm
• Stand dimensions: H.1945 x W.2005 x D.757mm
• Integrated cable management
www.btechavmounts.com
65"
165CM
PER SCREEN
Page 2
CONTENTS
Installation Safety Notes......................................................................................................................
Parts List....................................................................................................................................................
Installation Instructions.......................................................................................................................
Product Dimensions............................................................................................................................
B-Tech Contact Details........................................................................................................................
2
4
6
14
16
INSTALLATION SAFETY INSTRUCTIONS
This stand is intended for use only with the
CAUTION:
maximum weights indicated. Use with screens heavier than the maximum
indicated may result in instability causing possible injury.
Do not attempt to install this product until all instructions and warnings have been read and properly understood.
Please keep these instructions for future reference.
Please check carefully to make sure there are no missing or defective parts - defective parts must never be used.
B-Tech AV Mounts, its distributors and dealers are not liable or responsible for damage or injury caused by improper
installation, improper use or failure to observe these safety instructions. In such cases, all guarantees will expire.
General
r suitab
B-Tech AV Mounts recommends that a professional AV installer or othe
Great care must always be taken during installation as most AV equipment is of a fragile nature, possibly heavy and
easily damaged if dropped.
If you do not fully understand the instructions or are not sure how to install this product safely, then please consult a
professional for advice and/or to install this product for you. Failure to mount this product correctly may cause serious
on and
injury or death both during installati
Do not mount any AV equipment that exceeds the specic weight limit of the product you are installing.
This weight limit will be clearly stated on each product and its packaging and will vary from product to product.
at any time thereafter.
ly qualied person install this product.
Product location
Please pay careful attention to where this product is located. Check load capacity of oor prior to installation as some
surfaces are not suitable for installation. Designed for indoor use, this mount is suitable for public or home installation
If located in a public or frequently populated area ensure that the product is out of the immediate reach of people.
If any AV equipment is to be suspended over the likely path or location of people then great care should be taken to
secure all parts of the installation from falling.
When drilling holes it is essential to avoid contact with electrical cables and water or gas pipes contained within.
Use of a good quality live wire detector and hidden object locator is therefore recommended.
Only drill into structures when you are sure it is safe to do so.
Fixing hardware
It is highly recommended that all xing screws be used where supplied and that the purpose of all other xing hardware
is fully understood. In some cases more AV equipment xing hardware will be supplied to accommodate dierent models
of equipment and set up congurations. The installer must be satised that any supplied xing hardware is suitable for
each specic installation. If any xing screws or included hardware are deemed not sucient for a safe installation then
lea
se consult a professional or your local hardware store.
p
Hazard limitation
When routing cables take advantage of any built in cable management features that the product might provide and ensure
that all cables are tidy and secure. Check to see that any moving aspect of the product can do so unhindered by any cabling.
Some products have moving parts and the potential to cause injury through the crushing or trapping of ngers or other
body parts.
during set up.
necessary xings are present and are of ample tightness.
It is recommended that periodic inspections of the product and its xing points are made as frequently as possible (no more
than 6 months apart) to ensure that safety is maintained.
If in doubt consult a professional AV installer or other suitably qualied person.
Particular attention to the nature of moving parts is required especially when assembling installing and adjusting
Immediately after installation double-check that the work done is safe and secure. Double-check all
2
Page 3
Page 4

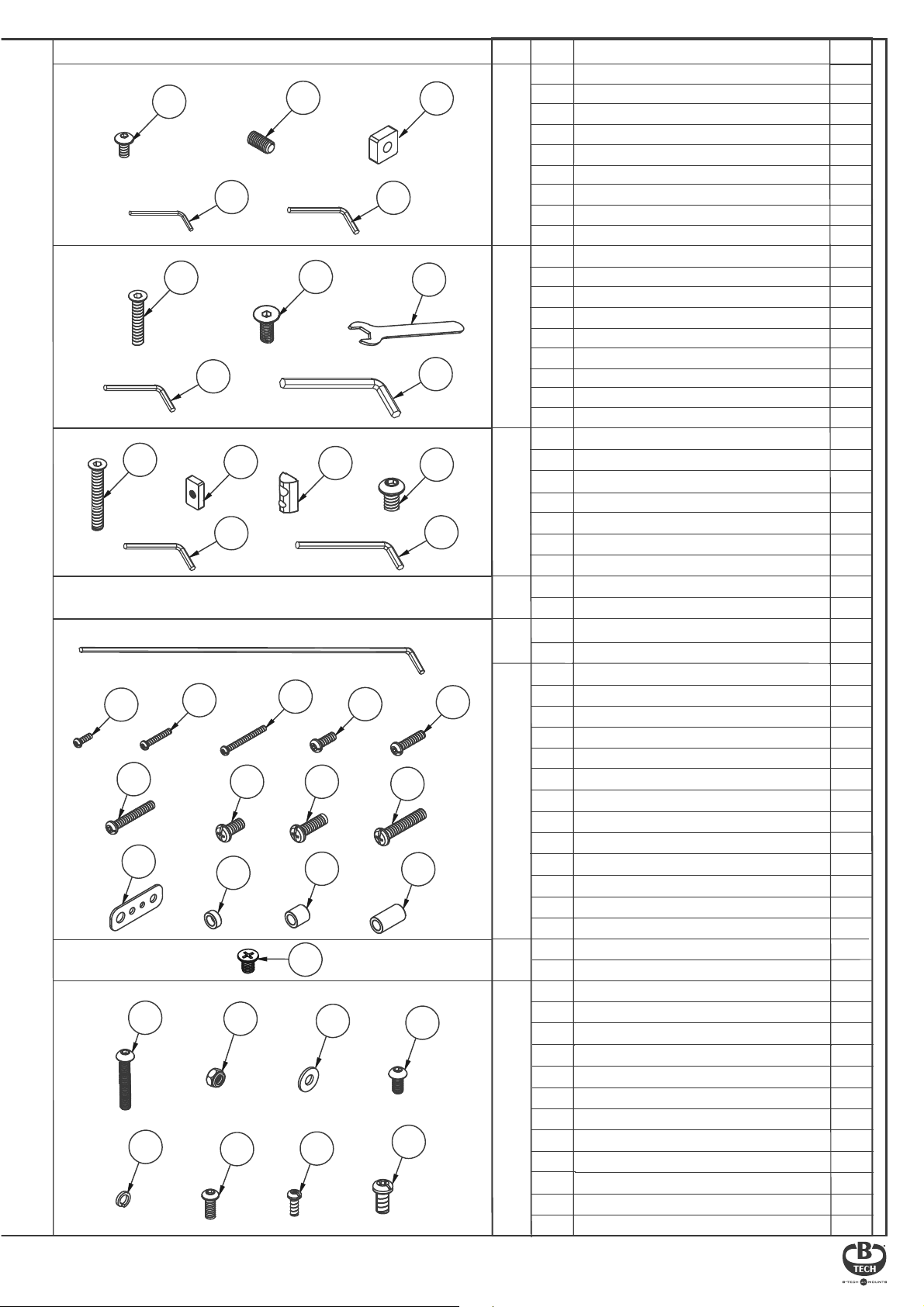

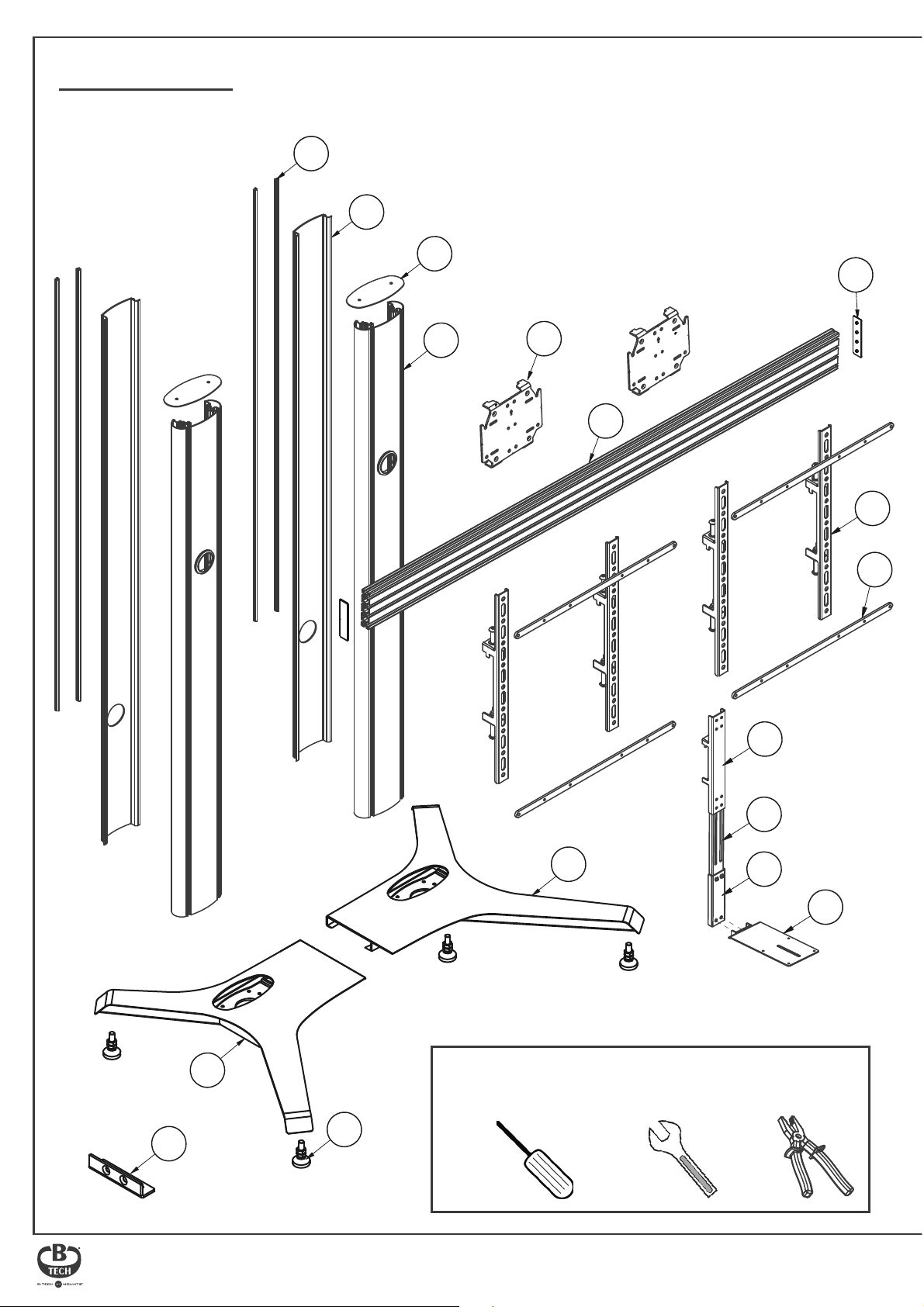

BT8712 PARTS LIST
PLEASE KEEP THIS FOR FUTURE REFERENCE
A7
A3
A2
D2
A1
C1
D1
E1
F1
G1
B3
B2
B4
B1
INSTALLATION TOOLS REQUIRED
Crosshead screwdriver
4
13mm Spanner
G2
G3
G10
Pliers/Cutter
Page 5
E3
C2
E8
E12
G4
G8
A4
B5
E4
B7
A8
C3
C6
E13
G5
G9
ITEM
E9
E5
A5
F2
B6
E10
E14
G11
C4
G6
E6
A9
E11
E15
G12
B9
G7
A6
B8
C5
C7
E7
PART REF
A1
1.9M COLUMN
END CAP
A2
A3
COLUMN REAR COVER
M6 x 12mm HEX SCREW
A4
M6 x 12mm GRUB SCREW (OPTIONAL)
A5
SQUARE NUT (OPTIONAL)
A6
COLUMNBASE
COVER STRIP
A7
A8
3AF HEX KEY
4AF HEX KEY
A9
B1
BASE - LEFT SIDE
B2
BASE - RIGHT SIDE
BASE CONNECTOR
B3
ADJUSTABLE LEVELLING FEET
B4
M6 x 30mm CSK HEX SCREW
B5
M10 x 25mm CSK HEX SCREW
B6
4AF HEX KEY
B7
6AF HEX KEY
B8
19mm SPANNER
B9
C1
RAIL-TO-COLUMN MOUNTING BRACKET
M6 x 40mm CSK HEX SCREW
C2
C3
RECTANGLE NUT
M8 SLIDING INSERT
C4
M8 x 12mm SCREW
C5
4AF HEX KEY
C6
MOUNTING BRACKET
RAIL
ARMS
SCREEN FIXING KITVC SHELF
TORS
ADAP-
5AF HEX KEY
C7
MOUNTING RAIL
D1
D2
END CAP
SCREEN INTERFACE ARM
E1
5AF LONG HEX KEY
E2
E3
M4 x 12mm SCREW
M4 x 25mm SCREW
E4
M4 x 40mm SCREW
E5
M6 x 16mm SCREW
E6
E7
M6 x 25mm SCREW
M6 x 40mm SCREW
E8
M8 x 16mm SCREW
E9
E10
M8 x 25mm SCREW
M8 x 40mm SCREW
E11
MULTIWASHER
E12
5mm SPACER
E13
13mm SPACER
E14
24mm SPACER
E15
F1
600mm ADAPTOR ARM
M8 x 12mm SCREW
F2
G1
HOOK ARM
SLIDING BRACKET
G2
G3
EXTENSION BRACKET
M8 x 55mm HEX SCREW
G4
M8 NUT
G5
G6
WASHER
G7
M8 x 16mm HEX SCREW
G8
M8 SPRING WASHER
G9
M8 x 20mm HEX SCREW
SHELF
G10
M4 x 10mm SCREW
G11
G12
UNC 1/4" x 1/2" SCREW
DESCRIPTION QTY
2
2
2
4
8
8
8
2
2
1
1
2
4
8
8
1
1
1
2
8
8
8
8
2
2
1
2
4
2
8
8
8
8
8
8
8
8
8
8
8
8
8
4
8
1
1
1
2
4
4
4
4
2
1
4
1
5
Page 6
Installation Instructions

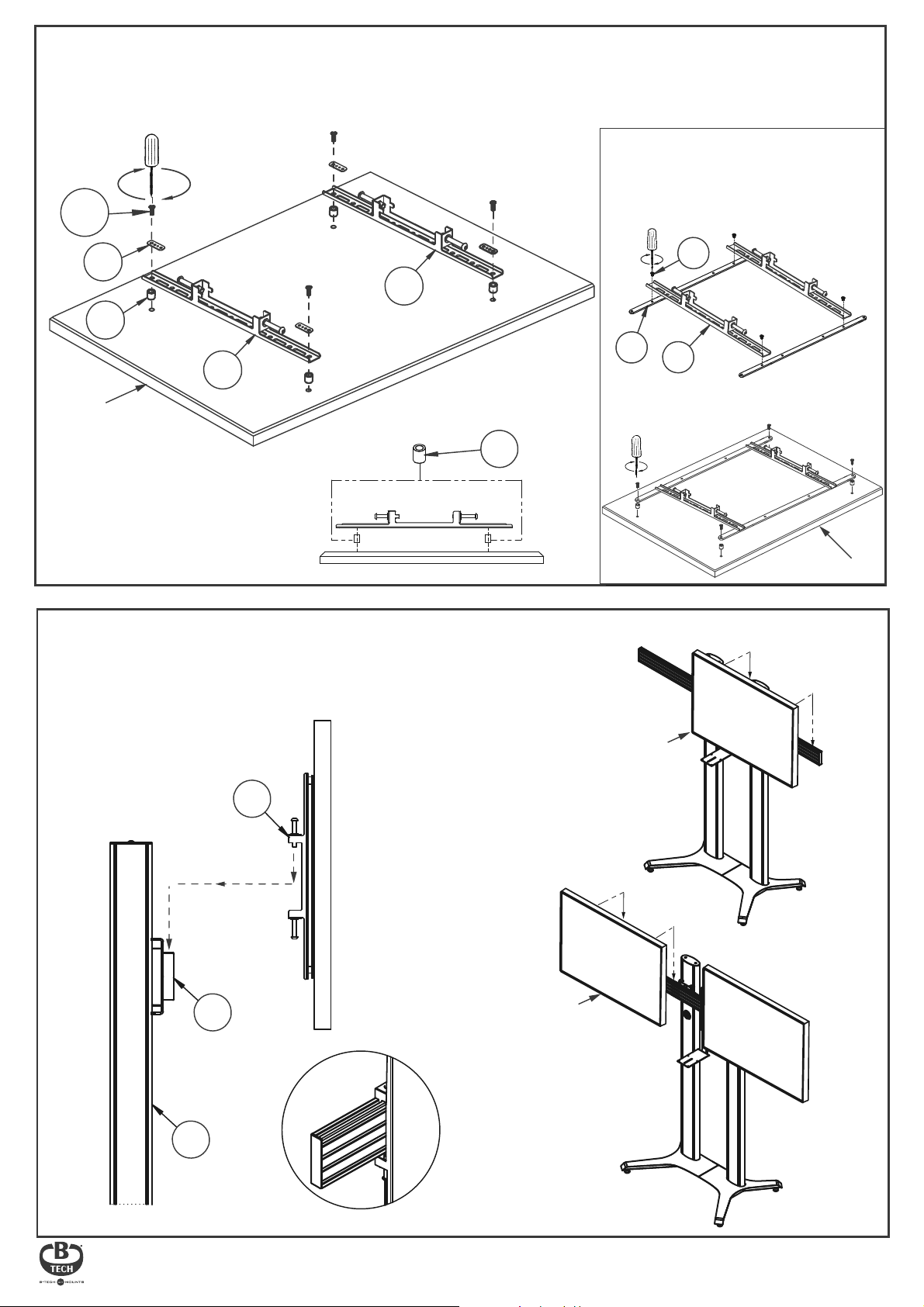

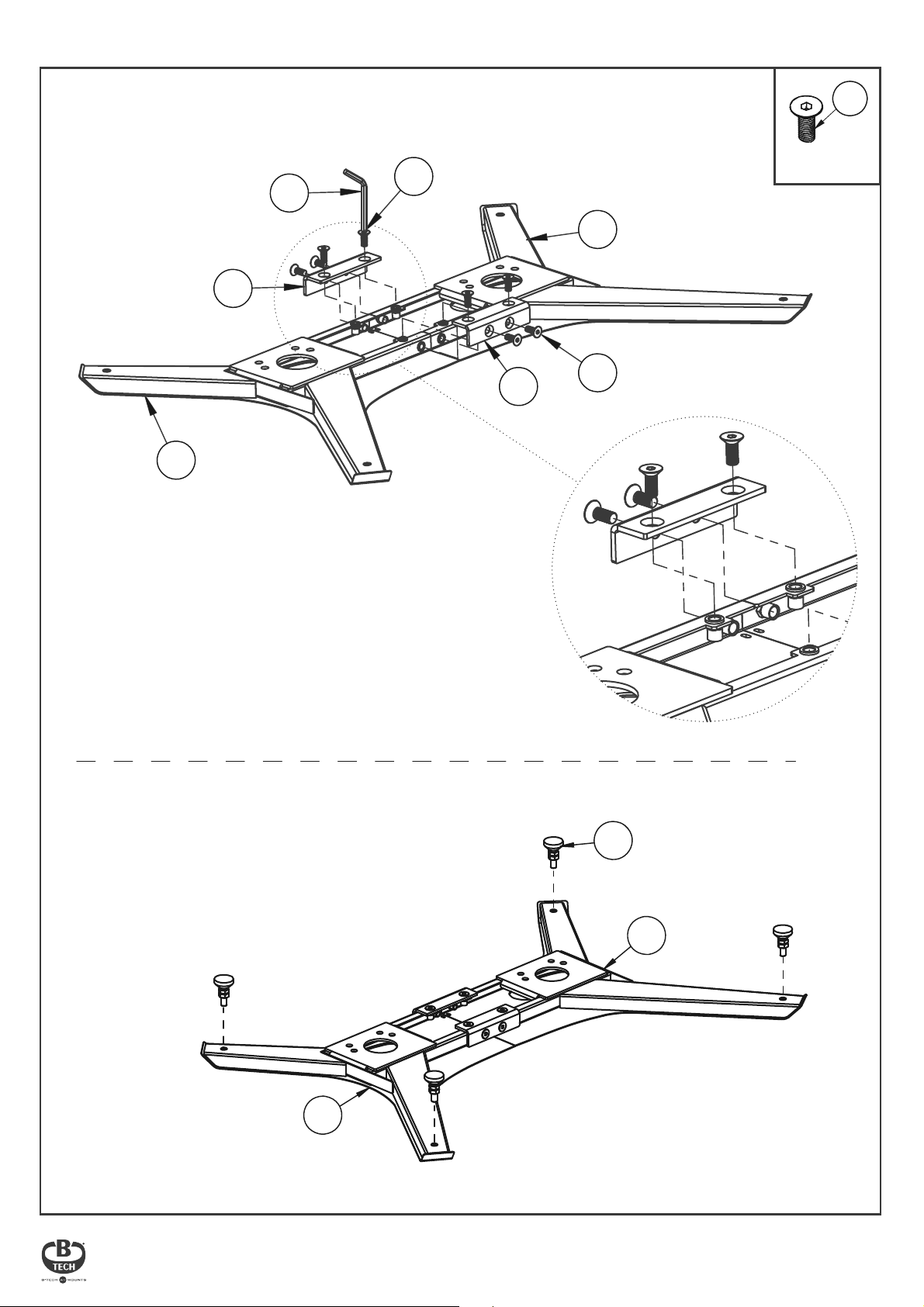

ASSEMBLE BASE
1.
i. Fix item B1 to item B2 using items B3 & B6 on the front and back.
B6
B8
B3
B1
B6
M10 x 25mm
HEX SCREW
B2
B6
B3
ii. Screw item B4 into items B1 & B2.
B4
B2
B1
6
Page 7

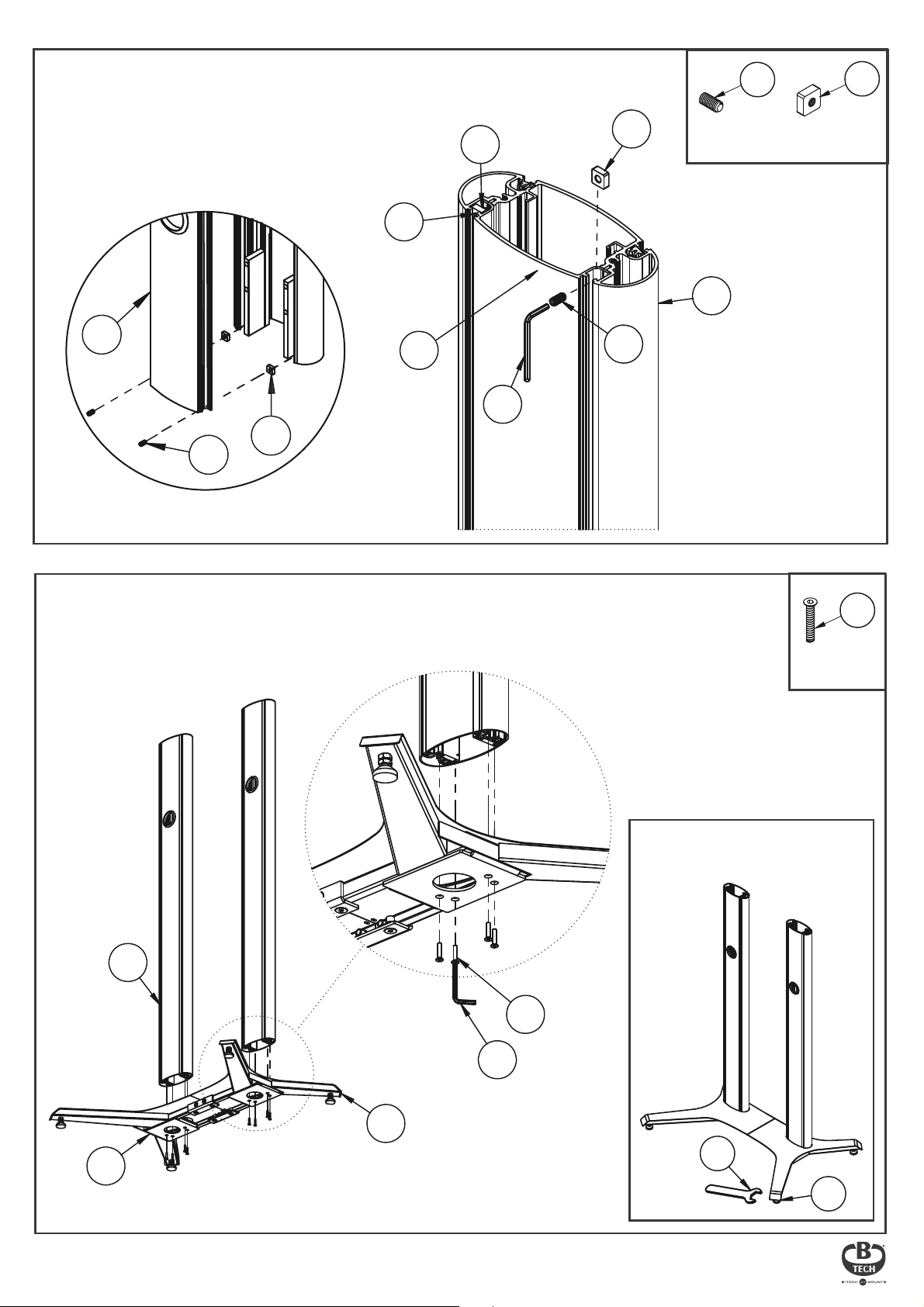

OPTIONAL - FIX REAR COVERS TO COLUMNS
Place item A3 into the back of item A1.
Use items A5 & A6 at the top and bottom
of the column slot to secure rear cover.
A5
REAR
A6
A6
A5
M6 x 12mm
GRUB SCREW
A1
A6
SQUARE
NUT
A3
REAR
A6
A5
ATTACH COLUMNS TO BASE
2.
Mount items A1 onto items B1 & B2 and x in place
using items B5.
A3
A5
A8
B5
M6 x 30mm
CSK HEX SCREW
B2
OPTIONAL: To level the stand,
adjust item B4 using item B9.
A1
B5
B7
B1
B9
B4
7
Page 8

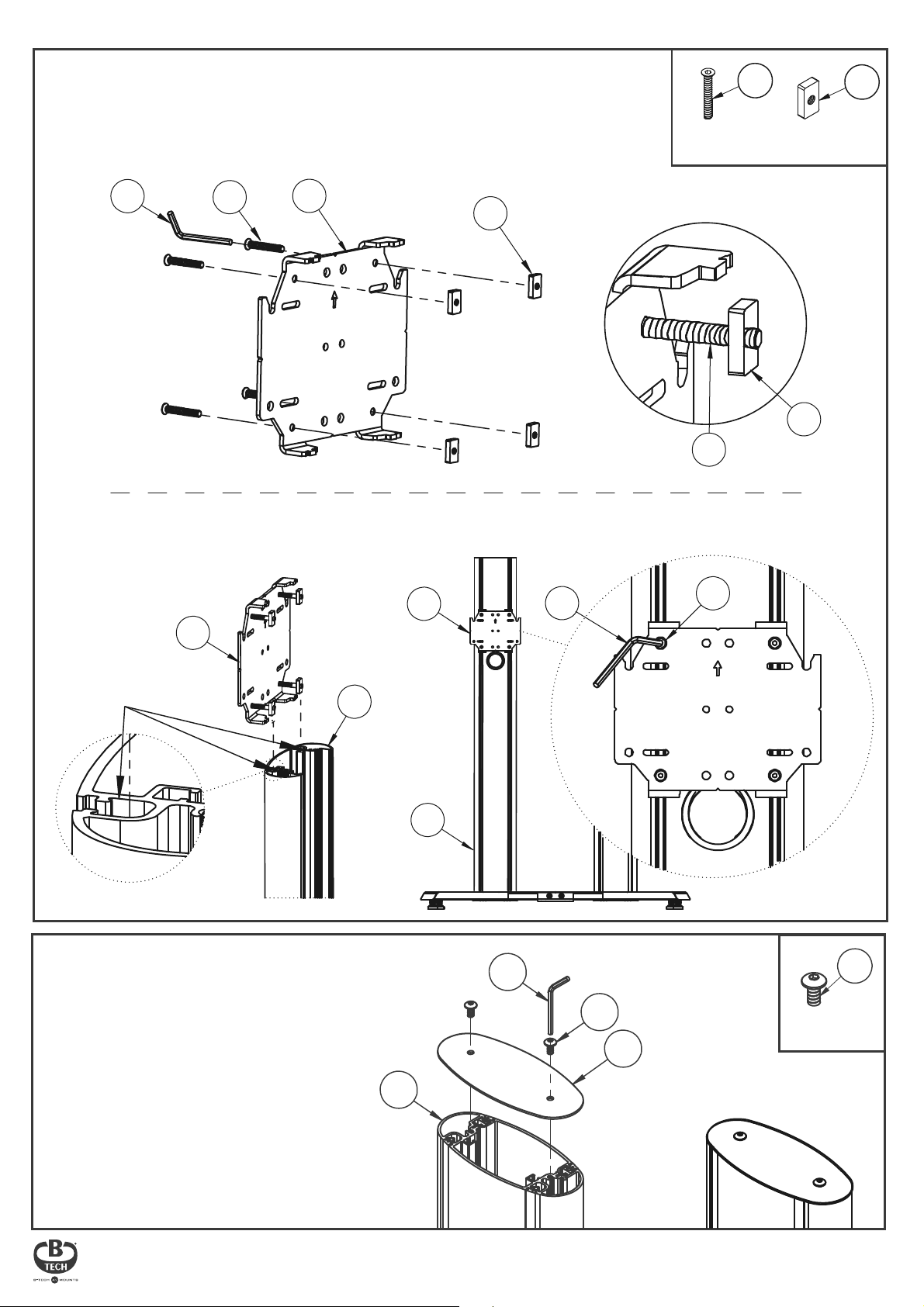

ATTACH MOUNTING BRACKETS TO COLUMNS
3.
i. Insert 4 x item C2 into item C1 and attach item C3.
Screw two full turns to leave item C3 at the end of item C2.
Repeat for all 4 mounting plates.
C2
M6 x 40mm
CSK HEX SCREW
C3
RECTANGLE
NUT
C6
ii. Slide 2 x item C1 down the front slots of each item A1 and space apart by 600mm.
Once height is set tighten all items C2.
C2
C1
C1
C1
C3
C6
C3
C2
C2
SLOTS
FIX END CAP TO COLUMNS
4.
Fix item A2 onto the top of item A1
using item A4.
A1
A1
A1
A8
A4
A4
M6 x 12mm
HEX SCREW
A2
TOP
8
Page 9

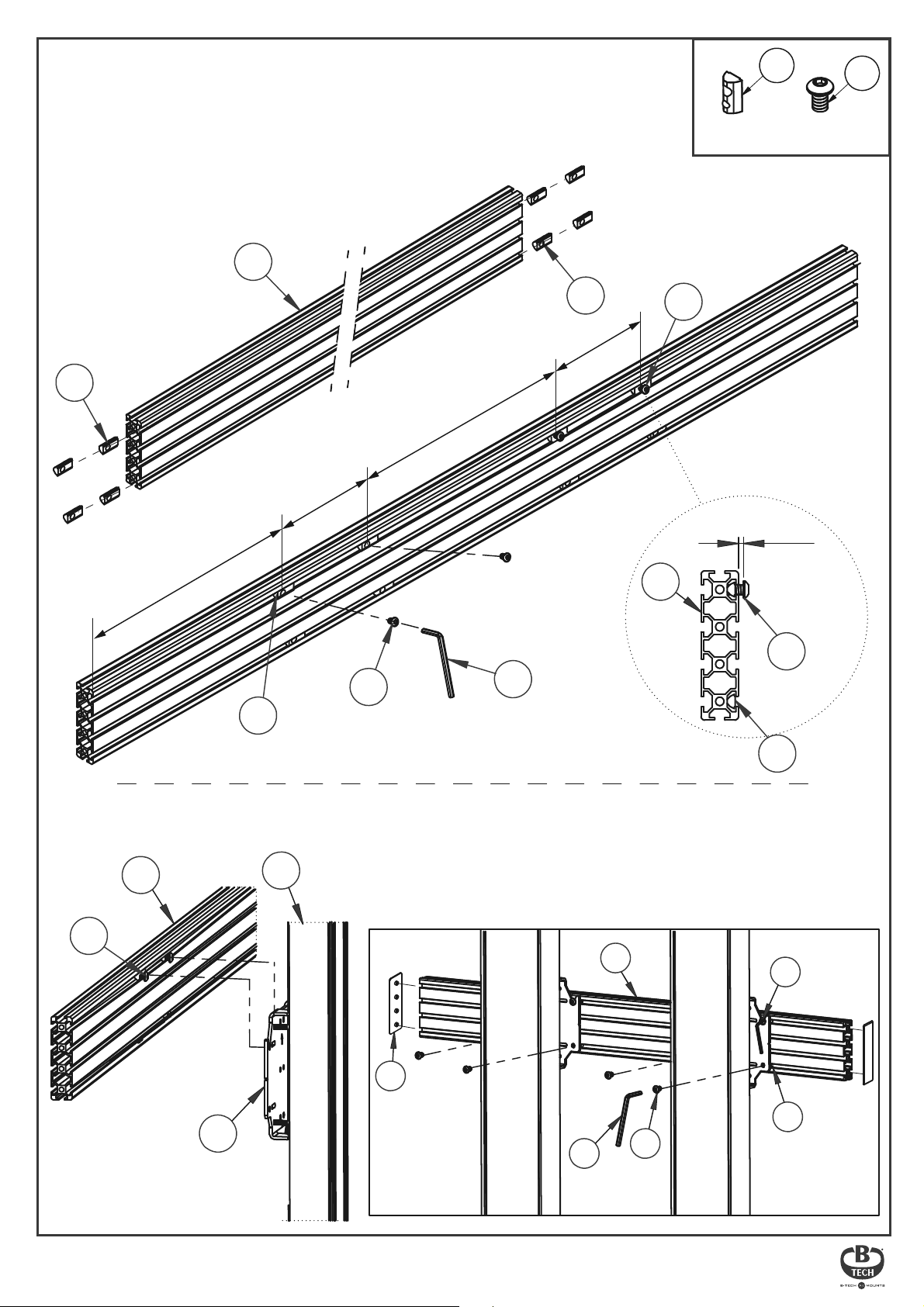

HOOK RAIL ONTO MOUNTING BRACKET
5.
i. Insert 4 x item C4 into item D1 (2 in the top channel, 2 in the bottom channel)
on each side of the rail.
ii. Screw 2 x item C5 into item C4 in the top channel - allow at least a 6mm gap
so the rail can be hooked on to item C1.
D1
M8 SLIDING
INSERT
C4
C5
M8 x 12mm
HEX SCREW
C4
655mm
C4
185mm
C5
321mm
C7
C4
185mm
C5
6mm+
D1
C5
iii. Hook item D1 onto items C1 and x with in place with item C5.
iv. Attach item D2 to the ends of items D1.
D1
A1
C5
D2
C1
C7
C4
D1
C7
C4
C5
9
Page 10

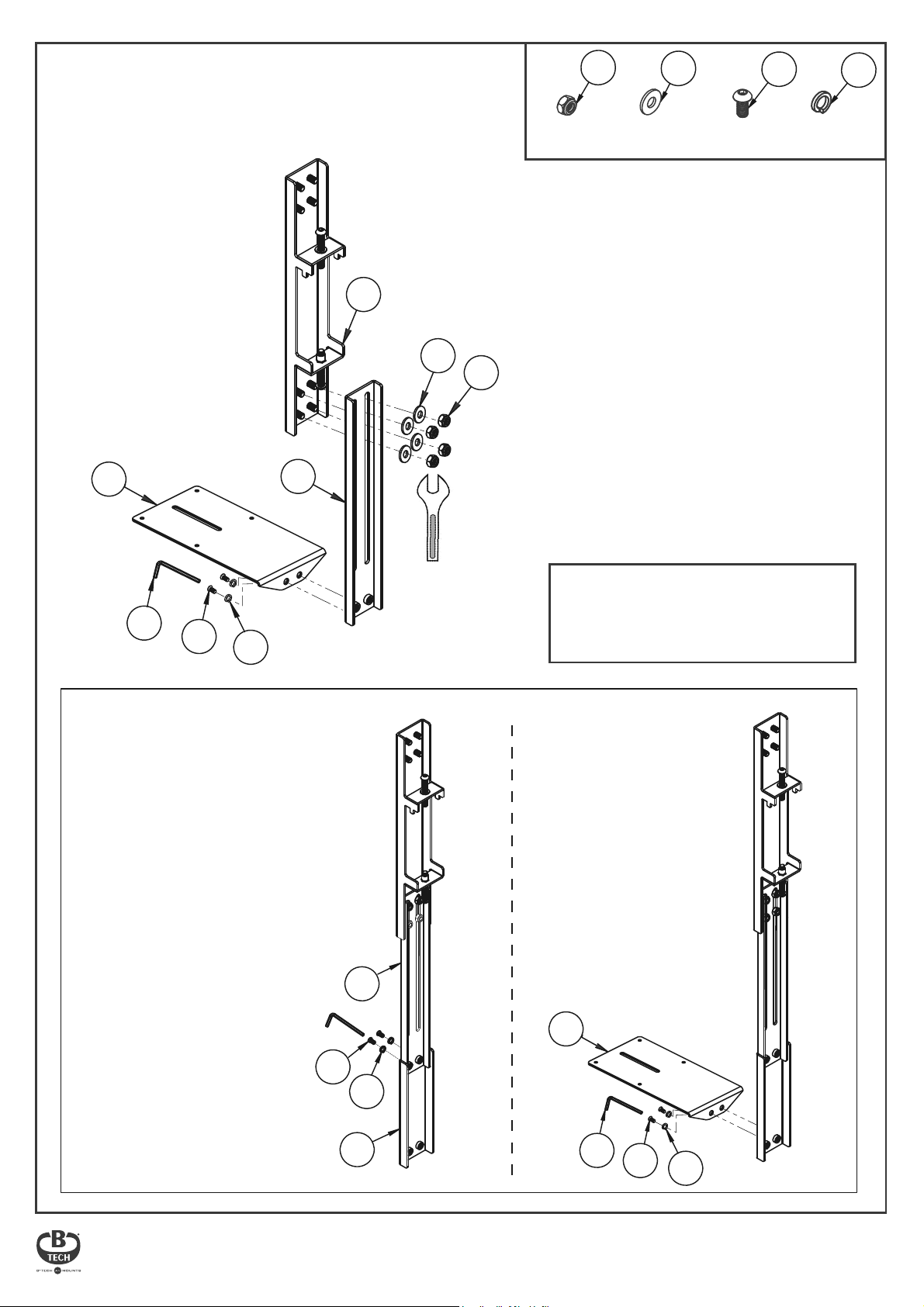

ASSEMBLE VC SHELF
6.
i. Attach item G2 to item G1 using items G5 & G6.
ii. Attach item G10 to item G2. using items G7 & G8.
G1
G6
G5
M8 NYLOC
NUT
G5
M8 METAL
WASHER
G6
M8 x16mm
HEX SCREW
G7
G8
M8 SPRING
WASHER
G10
C5
G7
G8
Optional
Add extension bar
For an extended reach
attach item G3 onto item G2
using items G7 & G8.
G2
13mm Spanner
Note: The shelf adaptor can mount the
shelf above or below the screens.
Assembly shows shelf mounted below
the rail / screens.
G7
G2
G8
G3
10
G10
C5
G7
G8
Page 11

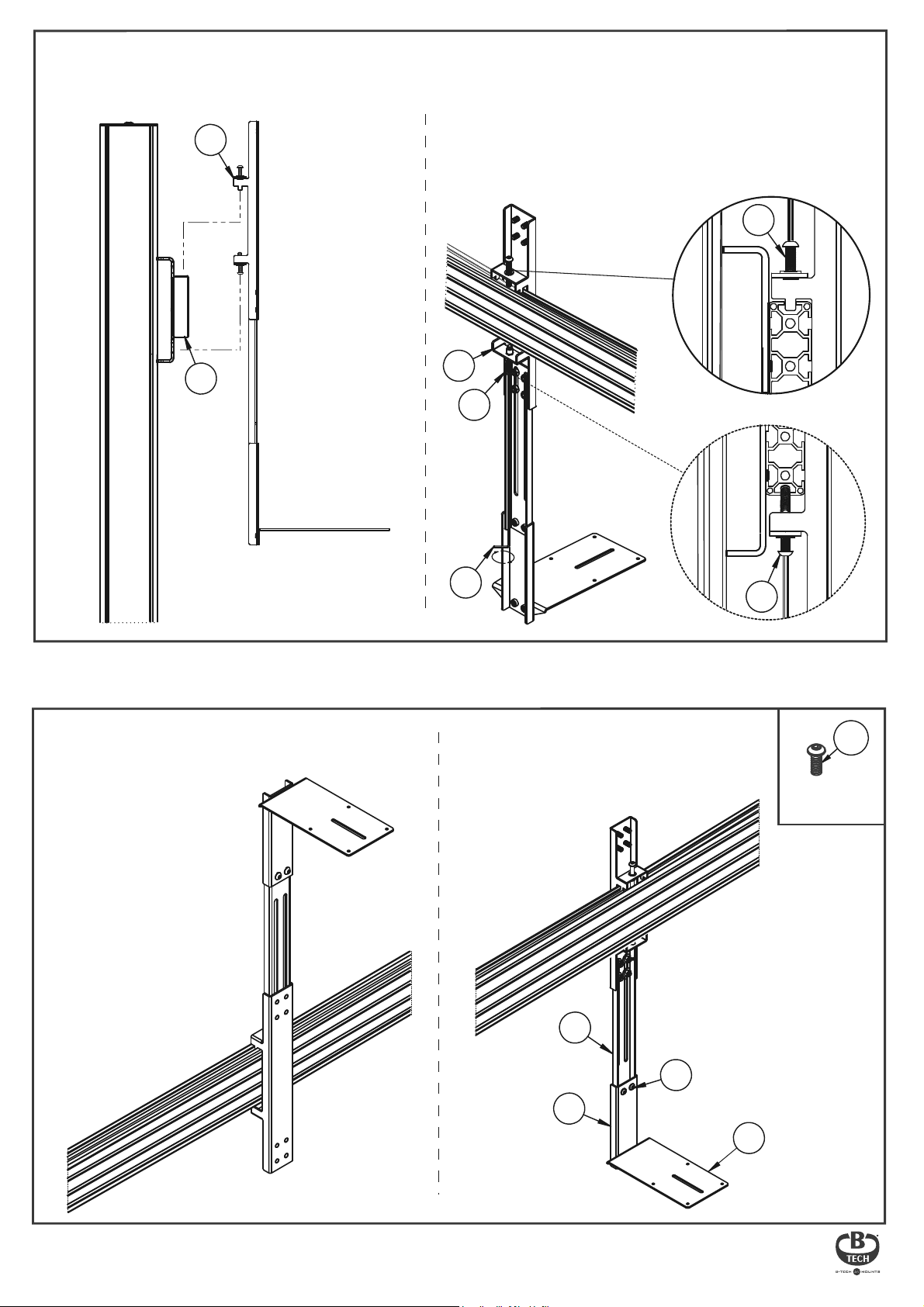

HOOK SHELF ONTO MOUNTING RAIL
7.
i. Hook item G1 onto item D1.
G1
ii. Secure shelf to rail.
Use item G4 on the bottom of item G1
to secure the shelf to item D1.
Optional: Level the shelf bracket by adjusting
item G4 on top of item G1.
G4
D1
Shelf shown mounted
above the rail.
G1
G4
E2
ALTERNATIVE SHELF MOUNTING OPTIONS
REVERSE MOUNTINGABOVE THE SCREEN MOUNTING
To reverse mount the shelf, use item G9 to
mount item G10 onto the back of item G3.
G4
G9
M8 x 20mm
HEX SCREW
11
G2
G9
G3
G10
Page 12
ATTACH INTERFACE ARMS TO SCREENS
8.
Fix item E1 to the rear of the screens using items E3 - E15.
Note: Ensure the arms are facing the correct way round and the same holes are used on all arms.
600mm ADAPTOR ARMS
Note: Use (if required) for 65”screens
with VESA 600 x 400mm xings
E3-E11
i. Attach item F1 to item E1 using item F2.
TOP
E12
E14
E1
SCREEN
Note: 13mm (item E14) spacers are not
required if reverse mounting the VC shelf
HOOK SCREEN ONTO RAIL
9.
Use items E1 to hook the screen onto item D1.
E1
BOTTOM
INTERFACE ARM
SCREEN
E14
F2
F1
E1
ii. Fix item F1 to rear of screen
using the interface kit (items E3-E14).
SCREEN
A1
D1
SCREEN
E1
SCREEN
SCREEN
12
Page 13

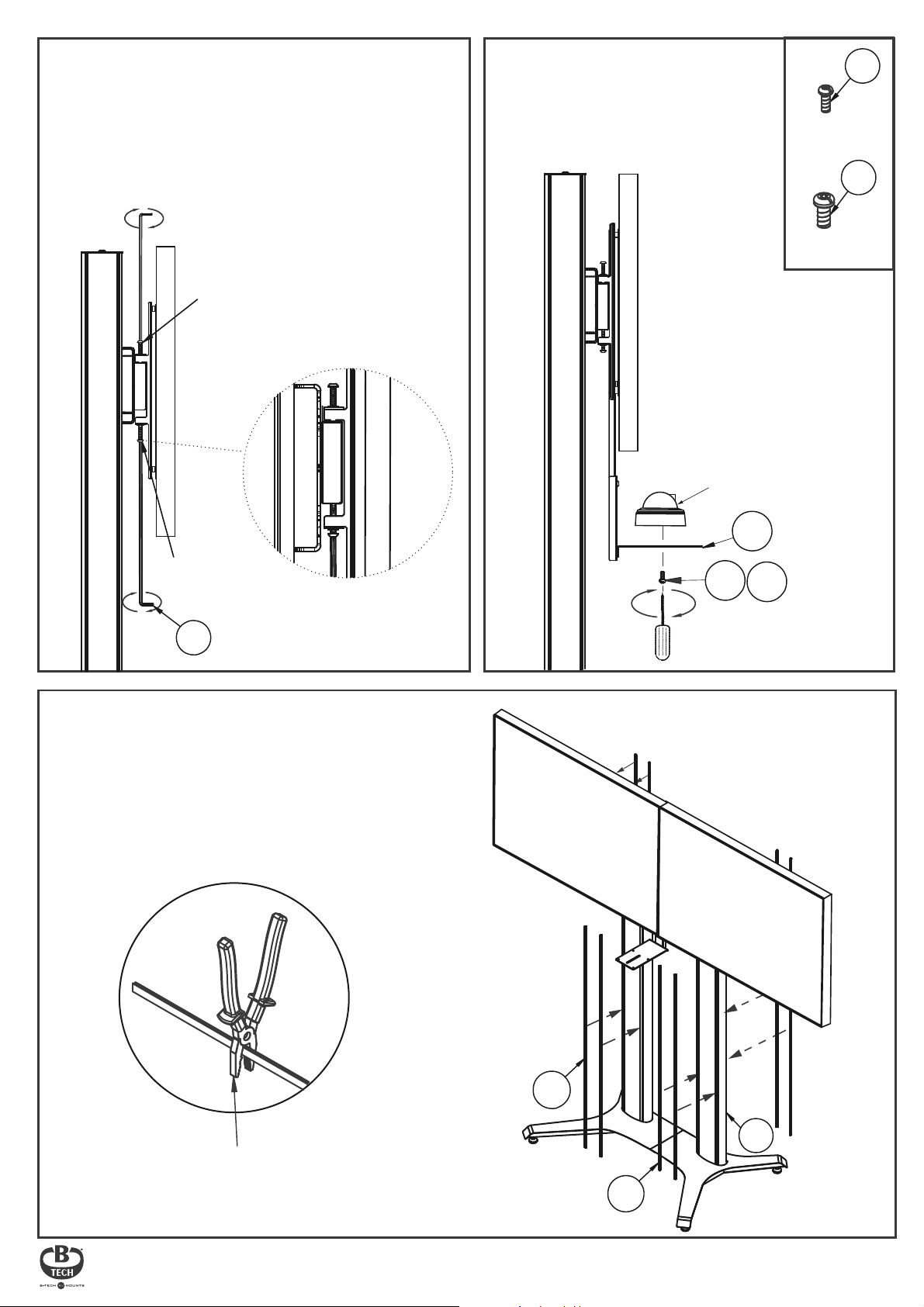

LOCK SCREENS TO RAIL
10.
Tighten the safety screws on the bottom
of item E1 securing the screens to item D1.
Note: If necessary, adjust the height adjustment
screws on top of item E1 to level the screen.
Optional:
HEIGHT ADJUSTMENT
SCREW
SCREEN
11.
ATTACH CAMERA
TO SHELF
Fix camera to item G10 using
either item G11 or item G12.
SCREEN
G11
M4 x 10mm
SCREW
G12
UNC 1/4” x 1/2”
SCREW
12.
SCREEN
SAFETY
SCREW
E2
Safety Screw
Engaged
ATTACH STRIPS
Insert item A7 to the front and back of item A1.
Note: Item A7 may have to be cut down to size
to be able to t into the front of item A1.
VC CAMERA
G10
G11
G12
Use pliers to cut item A7
to correct size
A7
A1
A7
13
Page 14

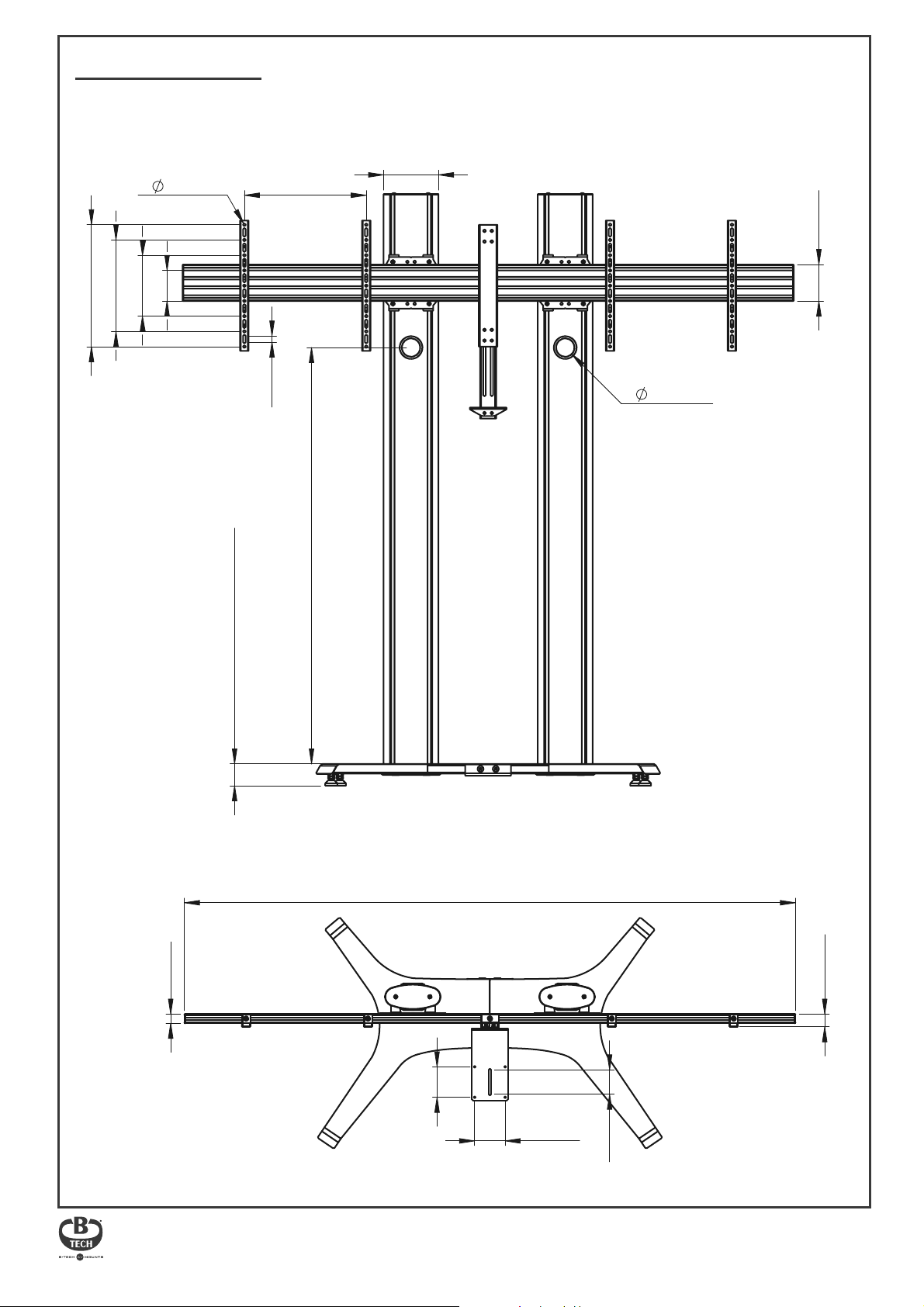

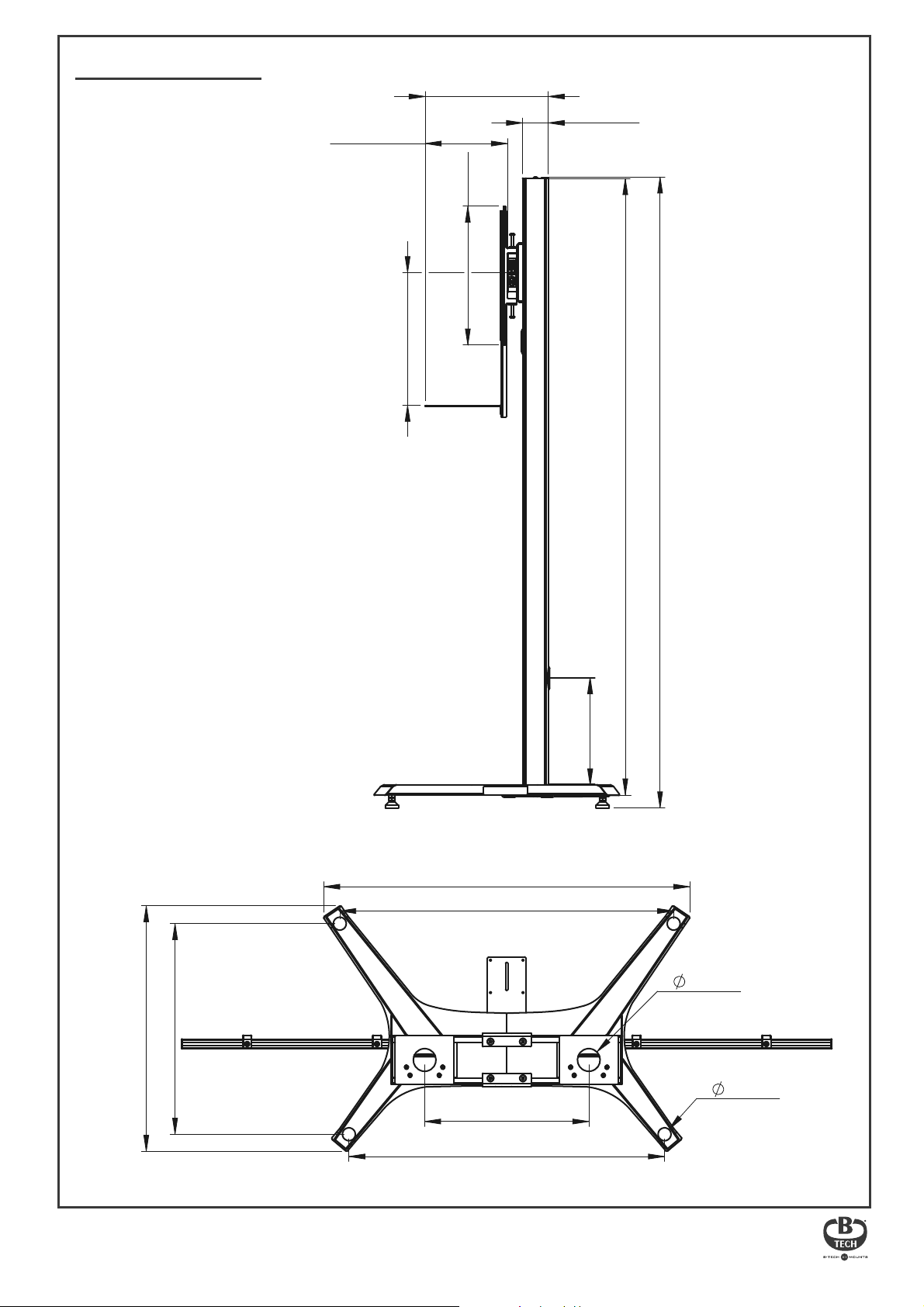

BT8712 DIMENSIONS
PLEASE KEEP THIS FOR FUTURE REFERENCE
8.4mm
400mm
300mm
100mm
200mm
400mm
20mm
180mm
FRONT VIEW
60.8mm
120mm
30mm
1366.5mm
71.5mm + 10mm adjustment
TOP VIEW
2005mm
42mm
100mm
100mm
80mm
These instructions are intended as a guide only and B-Tech accepts no liability for the accuracy of the information contained in this document.
14
Page 15
BT8712 DIMENSIONS
PLEASE KEEP THIS FOR FUTURE REFERENCE
SIDE VIEW
253.1mm
Min - 231mm
379.6mm
428mm
Max - 627.5mm
79.5mm
1900mm
1945mm
328.5mm
BOTTOM VIEW
1127.7mm
1029.1mm
70mm
756.5mm
649.3mm
40mm
506mm
973mm
These instructions are intended as a guide only and B-Tech accepts no liability for the accuracy of the information contained in this document.
15
Page 16
B-TECH AV mounts
CONTACT:
©2020 B-Tech AV Mounts. All rights reserved.
B-Tech AV Mounts is a division of B-Tech International Design and Manufacturing Ltd.
B-Tech AV Mounts and the B-Tech logo are registered trade marks.
All other brands and product names are trademarks of their respective owners.
Photographs are for illustrative purposes only. E&OE.
AMA-BT8712-V1-0920-110 MADE IN VIETNAM
For More Information Visit www.btechavmounts.com
Loading...
