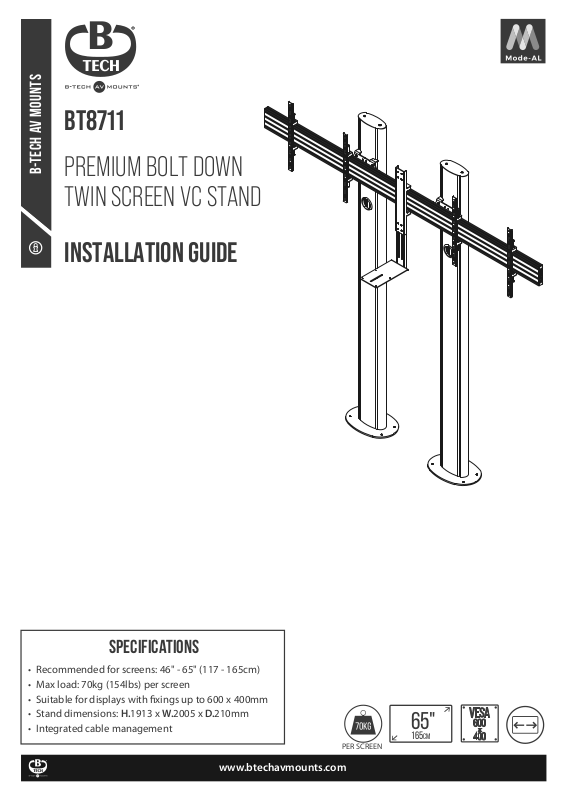

Page 1
BT8711
B-TECH AV mounts
PREMIUM BOLT DOWN
TWIN SCREEN VC STAND
INSTALLATION GUIDE
SPECIFICATIONS
• Recommended for screens: 46" - 65" (117 - 165cm)
• Max load: 70kg (154lbs) per screen
• Suitable for displays with xings up to 600 x 400mm
• Stand dimensions: H.1913 x W.2005 x D.210mm
• Integrated cable management
www.btechavmounts.com
65"
165CM
PER SCREEN
Page 2
CONTENTS
Installation Safety Notes......................................................................................................................
Parts List....................................................................................................................................................
Installation Instructions.......................................................................................................................
Product Dimensions............................................................................................................................
B-Tech Contact Details........................................................................................................................
2
4
6
14
16
INSTALLATION SAFETY INSTRUCTIONS
This stand is intended for use only with the
CAUTION:
maximum weights indicated. Use with screens heavier than the maximum
indicated may result in instability causing possible injury.
Do not attempt to install this product until all instructions and warnings have been read and properly understood.
Please keep these instructions for future reference.
Please check carefully to make sure there are no missing or defective parts - defective parts must never be used.
B-Tech AV Mounts, its distributors and dealers are not liable or responsible for damage or injury caused by improper
installation, improper use or failure to observe these safety instructions. In such cases, all guarantees will expire.
General
r suitab
B-Tech AV Mounts recommends that a professional AV installer or othe
Great care must always be taken during installation as most AV equipment is of a fragile nature, possibly heavy and
easily damaged if dropped.
If you do not fully understand the instructions or are not sure how to install this product safely, then please consult a
professional for advice and/or to install this product for you. Failure to mount this product correctly may cause serious
on and
injury or death both during installati
Do not mount any AV equipment that exceeds the specic weight limit of the product you are installing.
This weight limit will be clearly stated on each product and its packaging and will vary from product to product.
at any time thereafter.
ly qualied person install this product.
Product location
Please pay careful attention to where this product is located. Check load capacity of oor prior to installation as some
surfaces are not suitable for installation. Designed for indoor use, this mount is suitable for public or home installation
If located in a public or frequently populated area ensure that the product is out of the immediate reach of people.
If any AV equipment is to be suspended over the likely path or location of people then great care should be taken to
secure all parts of the installation from falling.
When drilling holes it is essential to avoid contact with electrical cables and water or gas pipes contained within.
Use of a good quality live wire detector and hidden object locator is therefore recommended.
Only drill into structures when you are sure it is safe to do so.
Fixing hardware
It is highly recommended that all xing screws be used where supplied and that the purpose of all other xing hardware
is fully understood. In some cases more AV equipment xing hardware will be supplied to accommodate dierent models
of equipment and set up congurations. The installer must be satised that any supplied xing hardware is suitable for
each specic installation. If any xing screws or included hardware are deemed not sucient for a safe installation then
lea
se consult a professional or your local hardware store.
p
Hazard limitation
When routing cables take advantage of any built in cable management features that the product might provide and ensure
that all cables are tidy and secure. Check to see that any moving aspect of the product can do so unhindered by any cabling.
Some products have moving parts and the potential to cause injury through the crushing or trapping of ngers or other
body parts.
during set up.
necessary xings are present and are of ample tightness.
It is recommended that periodic inspections of the product and its xing points are made as frequently as possible (no more
than 6 months apart) to ensure that safety is maintained.
If in doubt consult a professional AV installer or other suitably qualied person.
Particular attention to the nature of moving parts is required especially when assembling installing and adjusting
Immediately after installation double-check that the work done is safe and secure. Double-check all
2

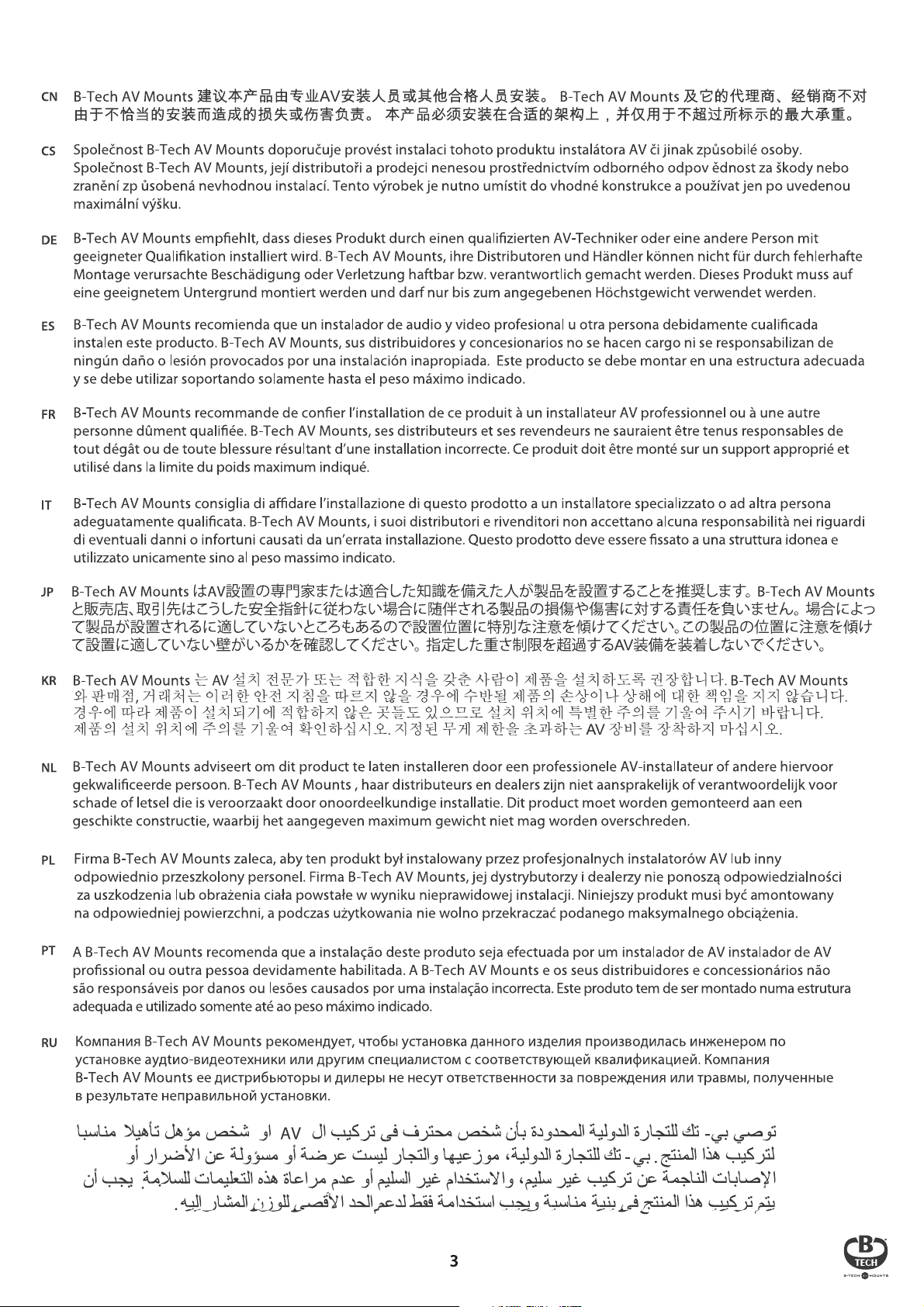

Page 3
Page 4
BT8711 PARTS LIST
PLEASE KEEP THIS FOR FUTURE REFERENCE
A7
A3
A2
D2
A1
C1
D1
F1
E1
G1
Drill
B1
INSTALLATION TOOLS REQUIRED
Pencil
Crosshead Screwdriver
Spanner
G2
G3
G10
Pliers/Cutter
4
Page 5
A4
C2
E3
E12
E8
G4
G8
C3
E4
A5
E13
ITEM REFPART DESCRIPTION QTY
A1
1.9M COLUMN
END CAP
A2
E9
B2
E5
G9
C4
G5
A6
E10
E14
C5
E6
F2
G6
G11
A8
E11
E15
C6
E7
A9
B3
C7
E2
G7
G12
A3
COLUMN REAR COVER
M6 x 12mm HEX SCREW
A4
M6 x 12mm GRUB SCREW (OPTIONAL)
A5
SQUARE NUT (OPTIONAL)
A6
COLUMNBASE
COVER STRIP
A7
A8
3AF HEX KEY
4AF HEX KEY
A9
B1
BOLT DOWN BASE
M6 x 35mm CSK HEX SCREW
B2
4AF HEX KEY
B3
C1
RAIL-TO-COLUMN MOUNTING BRACKET
M6 x 40mm CSK HEX SCREW
C2
C3
RECTANGLE NUT
M8 SLIDING INSERT
C4
M8 x 12mm SCREW
C5
4AF HEX KEY
C6
MOUNTING BRACKET
RAIL
ARMS
SCREEN FIXING KITVC SHELF
TORS
ADAP-
5AF HEX KEY
C7
MOUNTING RAIL
D1
D2
END CAP
SCREEN INTERFACE ARM
E1
E2
5AF LONG HEX KEY
E3
M4 x 12mm SCREW
M4 x 25mm SCREW
E4
M4 x 40mm SCREW
E5
M6 x 16mm SCREW
E6
E7
M6 x 25mm SCREW
M6 x 40mm SCREW
E8
M8 x 16mm SCREW
E9
M8 x 25mm SCREW
E10
M8 x 40mm SCREW
E11
MULTIWASHER
E12
5mm SPACER
E13
13mm SPACER
E14
24mm SPACER
E15
F1
600mm ADAPTOR ARM
M8 x 12mm SCREW
F2
G1
HOOK ARM
SLIDING BRACKET
G2
G3
EXTENSION BRACKET
M8 x 55mm HEX SCREW
G4
M8 NUT
G5
G6
WASHER
G7
M8 x 16mm HEX SCREW
G8
M8 SPRING WASHER
G9
M8 x 20mm HEX SCREW
SHELF
G10
M4 x 10mm SCREW
G11
G12
UNC 1/4" x 1/2" SCREW
2
2
2
4
8
8
8
2
2
2
8
2
2
8
8
8
8
2
2
1
2
4
2
8
8
8
8
8
8
8
8
8
8
8
8
8
4
8
1
1
1
2
4
4
4
4
2
1
4
1
5
Page 6
INSTALLATION INSTRUCTIONS
OPTIONAL FIX REAR COVER TO COLUMNS
Place item A3 into the back of item A1.
Use items A5 & A6 at the top and bottom of
the column slot to secure rear cover.
A6
A6
A3
REAR
A6
A5
FIX BASES TO COLUMNS
1.
Fix item B1 to the bottom of item A1 using item B2.
A5
A3
REAR
A8
FRONT
A1
A5
A1
B1
A1
B2
B3
B1
B2
6
Page 7
ATTACH MOUNTING BRACKET TO COLUMNS
2.
i. Insert 4 x item C2 into item C1 and attach item C3.
Screw two full turns to leave item C3 at the end of item C2.
C6
ii. Slide item C1 down the front slots of item A1 to the correct height and tighten items C2.
SLOTS
C2
C1
C1
C3
C3
C2
C2
C3
A1
C6
C1
A1
C2
7
Page 8
HOOK RAIL ONTO MOUNTING BRACKETS
3.
i. Insert 4 x item C4 into item D1 (2 in the top channel, 2 in the bottom channel)
on each side of the rail.
ii. Screw 2 x item C5 into item C4 in the top channel - allow at least a 6mm gap
so the rail can be hooked on to item C1.
D1
M8 SLIDING
INSERT
C4
C5
M8 x 12mm
HEX SCREW
C4
608mm
C4
185mm
C5
415mm
C7
C4
185mm
C5
6mm+
D1
C5
iii. Hook item D1 onto items C1 and x with in place with item C5.
D1
C5
C1
A1
C7
C4
D1
C7
C4
C5
8
Page 9
4.
5.
ATTACH END CAPS
Fix item A2 onto the top of item A1
using item A4.
BOLT STAND TO THE FLOOR
Pre-drill holes in oor and using suitable
ground anchor xings (not supplied), x stand to oor.
A8
A4
A2
A1
TOP
BASE PLATE FIXING DIMENSIONS
230mm
4 x
FRONT
GROUND ANCHOR
B1
Ø10.5
B1
95mm
GROUND ANCHORS
(not supplied)
CONCRETE FLOOR
B1
9
Page 10
ASSEMBLE VC SHELF
6.
i. Attach item G2 to item G1 using items G5 & G6.
ii. Attach item G10 to item G2. using items G7 & G8.
G1
G6
G5
M8 NYLOC
NUT
G5
M8 METAL
WASHER
G6
M8 x16mm
HEX SCREW
G7
F8
M8 SPRING
WASHER
G10
C5
G7
G8
Optional
Add extension bar
For an extended reach
attach item G3 onto item G2
using items G7 & G8.
G2
13mm Spanner
Note: The shelf adaptor can mount the
shelf above or below the screens.
Assembly shows shelf mounted below
the rail / screens.
G7
G2
G3
G8
10
G10
C5
G7
G8
Page 11
HOOK SHELF ONTO MOUNTING RAIL
7.
i. Hook item G1 onto item D1.
G1
ii. Secure shelf to rail.
Use item G4 on the bottom of item G1
to secure the shelf to item D1.
Optional: Level the shelf bracket by adjusting
item G4 on top of item G1.
G4
D1
Shelf shown mounted
above the rail.
G1
G4
E2
ALTERNATIVE SHELF MOUNTING OPTIONS
REVERSE MOUNTINGABOVE THE SCREEN MOUNTING
To reverse mount the shelf, use item G9 to
mount item G10 onto the back of item G3.
G4
G9
M8 x 20mm
HEX SCREW
11
G2
G9
G3
G10
Page 12
ATTACH INTERFACE ARMS TO SCREENS
8.
Fix item E1 to the rear of the screens using items E3 - E15.
Note: Ensure the arms are facing the correct way round and the same holes are used on all arms.
600mm ADAPTOR ARMS
Note: Use (if required) for 65”screens
with VESA 600 x 400mm xings
E3-E11
i. Attach item F1 to item E1 using item F2.
TOP
E12
E14
E1
SCREEN
Note: 13mm (item E14) spacers are not
required if reverse mounting the VC shelf
HOOK SCREEN ONTO RAIL
9.
Use items E1 to hook the screen onto item D1.
E1
BOTTOM
INTERFACE ARM
SCREEN
E14
F2
F1
E1
ii. Fix item F1 to rear of screen
using the interface kit (items E3-E14).
SCREEN
A1
D1
SCREEN
E1
SCREEN
SCREEN
12
Page 13
LOCK SCREENS TO RAIL
10.
Tighten the safety screws on the bottom
of item E1 securing the screens to item D1.
Note: If necessary, adjust the height adjustment
screws on top of item E1 to level the screen.
Optional:
HEIGHT ADJUSTMENT
SCREW
SCREEN
11.
ATTACH CAMERA
TO SHELF
Fix camera to item G10 using
either item G11 or item G12.
SCREEN
G11
M4 x 10mm
SCREW
G12
UNC 1/4” x 1/2”
SCREW
12.
SCREEN
SAFETY
SCREW
E2
Safety Screw
Engaged
ATTACH STRIPS
Insert item A7 to the front and back of item A1.
Note: Item A7 may have to be cut down to size
to be able to t into the front of item A1.
VC CAMERA
G10
G11
G12
Use pliers to cut item A7
to correct size
A7
A1
A7
13
Page 14
BT8711 DIMENSIONS
PLEASE KEEP THIS FOR FUTURE REFERENCE
8.4mm
400mm
300mm
200mm
100mm
400mm
20mm
180mm
FRONT VIEW
60.8mm
120mm
1406mm
95mm
BOTTOM VIEW
10.5mm
230mm
These instructions are intended as a guide only and B-Tech accepts no liability for the accuracy of the information contained in this document.
60mm
14
Page 15
BT8711 DIMENSIONS
PLEASE KEEP THIS FOR FUTURE REFERENCE
379.6mm
253.1mm
428mm
Min - 231mm
Max - 627.5mm
REAR VIEWSIDE VIEW
79.5mm
5mm
209.5mm
1900mm
8mm
310mm
TOP VIEW
2005mm
60.8mm
368mm
30mm
100mm
100mm
80mm
These instructions are intended as a guide only and B-Tech accepts no liability for the accuracy of the information contained in this document.
42mm
15
Page 16
B-TECH AV mounts
CONTACT:
©2020 B-Tech AV Mounts. All rights reserved.
B-Tech AV Mounts is a division of B-Tech International Design and Manufacturing Ltd.
B-Tech AV Mounts and the B-Tech logo are registered trade marks.
All other brands and product names are trademarks of their respective owners.
Photographs are for illustrative purposes only. E&OE.
AMA-BT8711-V1-1020-104 MADE IN VIETNAM
For More Information Visit www.btechavmounts.com
Loading...
