BT8710

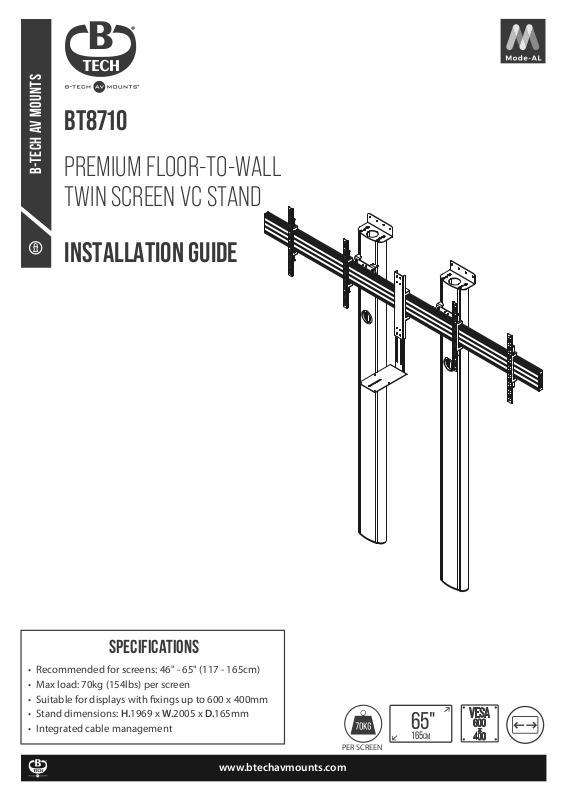

B-TECH AV mounts
PREMIUM FLOOR-TO-WALL
TWIN SCREEN VC STAND
INSTALLATION GUIDE
SPECIFICATIONS
• Recommended for screens: 46" - 65" (117 - 165cm)
• Max load: 70kg (154lbs) per screen
• Suitable for displays with xings up to 600 x 400mm
• Stand dimensions: H.1969 x W.2005 x D.165mm
• Integrated cable management
www.btechavmounts.com
65"
165CM
PER SCREEN
Page 2
CONTENTS
Installation Safety Notes......................................................................................................................
Parts List....................................................................................................................................................
Installation Instructions.......................................................................................................................
Product Dimensions............................................................................................................................
B-Tech Contact Details.......................................................................................................................
2
4
6
18
20
INSTALLATION SAFETY INSTRUCTIONS
This stand is intended for use only with the
CAUTION:
maximum weights indicated. Use with screens heavier than the maximum
indicated may result in instability causing possible injury.
Do not attempt to install this product until all instructions and warnings have been read and properly understood.
Please keep these instructions for future reference.
Please check carefully to make sure there are no missing or defective parts - defective parts must never be used.
B-Tech AV Mounts, its distributors and dealers are not liable or responsible for damage or injury caused by improper
installation, improper use or failure to observe these safety instructions. In such cases, all guarantees will expire.

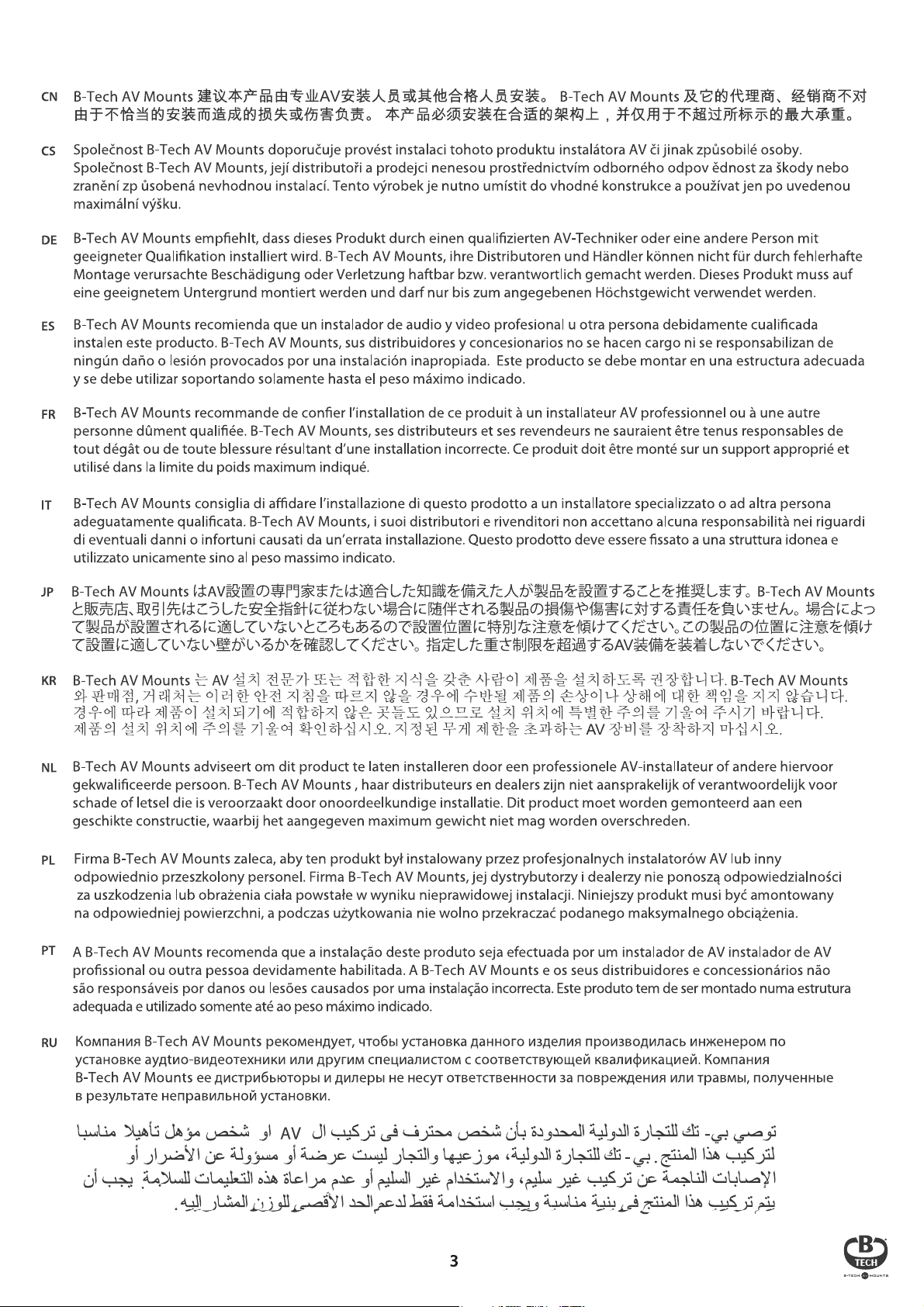

General
r suitab
B-Tech AV Mounts recommends that a professional AV installer or othe
Great care must always be taken during installation as most AV equipment is of a fragile nature, possibly heavy and
easily damaged if dropped.
If you do not fully understand the instructions or are not sure how to install this product safely, then please consult a
professional for advice and/or to install this product for you. Failure to mount this product correctly may cause serious
on and
injury or death both during installati
Do not mount any AV equipment that exceeds the specic weight limit of the product you are installing.
This weight limit will be clearly stated on each product and its packaging and will vary from product to product.
at any time thereafter.
ly qualied person install this product.
Product location
Please pay careful attention to where this product is located. Check load capacity of oor prior to installation as some
surfaces are not suitable for installation. Designed for indoor use, this mount is suitable for public or home installation
If located in a public or frequently populated area ensure that the product is out of the immediate reach of people.
If any AV equipment is to be suspended over the likely path or location of people then great care should be taken to
secure all parts of the installation from falling.
When drilling holes it is essential to avoid contact with electrical cables and water or gas pipes contained within.
Use of a good quality live wire detector and hidden object locator is therefore recommended.
Only drill into structures when you are sure it is safe to do so.
Fixing hardware
It is highly recommended that all xing screws be used where supplied and that the purpose of all other xing hardware
is fully understood. In some cases more AV equipment xing hardware will be supplied to accommodate dierent models
of equipment and set up congurations. The installer must be satised that any supplied xing hardware is suitable for
each specic installation. If any xing screws or included hardware are deemed not sucient for a safe installation then
lea
se consult a professional or your local hardware store.
p
Hazard limitation
When routing cables take advantage of any built in cable management features that the product might provide and ensure
that all cables are tidy and secure. Check to see that any moving aspect of the product can do so unhindered by any cabling.
Some products have moving parts and the potential to cause injury through the crushing or trapping of ngers or other
body parts.
during set up.
necessary xings are present and are of ample tightness.
It is recommended that periodic inspections of the product and its xing points are made as frequently as possible (no more
than 6 months apart) to ensure that safety is maintained.
If in doubt consult a professional AV installer or other suitably qualied person.
Particular attention to the nature of moving parts is required especially when assembling installing and adjusting
Immediately after installation double-check that the work done is safe and secure. Double-check all
2
Page 3
Page 4
BT8710 PARTS LIST
PLEASE KEEP THIS FOR FUTURE REFERENCE
NOT REQUIRED
A2
A7
A3
B1
D2
A1
C1
D1
F1
E1
G1
Drill
Drill bit
B2
INSTALLATION TOOLS REQUIRED
Pencil10mm Masonry
Crosshead Screwdriver
4
Spanner
G2
G3
G10
Pliers/Cutter
Page 5
A4
B3
C2
E3
E12
E8
G4
G8
C3
E4
A5
B4
E13
ITEM PART REF DESCRIPTION QTY
A1
1.9M COLUMN
END CAP
A2
A3
COLUMN REAR COVER
M6 x 12mm HEX SCREW
A4
M6 x 12mm GRUB SCREW (OPTIONAL)
A5
SQUARE NUT (OPTIONAL)
A6
COVER STRIP
A7
A8
3AF HEX KEY
4AF HEX KEY
A9
WALL PLATE
B1
BASE PLATE
B2
B3
M6 x 12mm SCREW
M8 x 50mm COACH SCREW
B4
N°.10 x 50mm WALL PLUG
B5
B6
M8 T1.5mm METAL WASHER
4AF HEX KEY
B7
C1
RAIL-TO-COLUMN MOUNTING BRACKET
M6 x 40mm CSK HEX SCREW
C2
C3
RECTANGLE NUT
M8 SLIDING INSERT
C4
M8 x 12mm SCREW
C5
4AF HEX KEY
C6
5AF HEX KEY
C7
MOUNTING RAIL
D1
D2
END CAP
E1
SCREEN INTERFACE ARM
5AF LONG HEX KEY
E2
E3
M4 x 12mm SCREW
M4 x 25mm SCREW
E4
M4 x 40mm SCREW
E5
M6 x 16mm SCREW
E6
E7
M6 x 25mm SCREW
M6 x 40mm SCREW
E8
M8 x 16mm SCREW
E9
E10
M8 x 25mm SCREW
M8 x 40mm SCREW
E11
MULTIWASHER
E12
5mm SPACER
E13
13mm SPACER
E14
24mm SPACER
E15
600mm ADAPTOR ARM
F1
M8 x 12mm SCREW
F2
G1
HOOK ARM
SLIDING BRACKET
G2
G3
EXTENSION BRACKET
M8 x 55mm HEX SCREW
G4
M8 NUT
G5
G6
WASHER
G7
M8 x 16mm HEX SCREW
G8
M8 SPRING WASHER
G9
M8 x 20mm HEX SCREW
SHELF
G10
M4 x 10mm SCREW
G11
G12
UNC 1/4" x 1/2" SCREW
E9
C4
E5
G5
G9
A6
B5
E14
E10
C5
E6
F2
G11
G6
A8
B6
E11
E15
C6
E7
G7
G12
A9
B7
C7
E2
COLUMNFLOOR TO WALL KITMOUNTING BRACKETRAIL
ARMSSCREEN FIXING KITVC SHELF
TORS
ADAP-
2
2
2
4
8
8
8
2
2
2
2
4
8
8
8
2
2
8
8
8
8
2
2
1
2
4
2
8
8
8
8
8
8
8
8
8
8
8
8
8
4
8
1
1
1
2
4
4
4
4
2
1
4
1
5
Page 6
Installation Instructions
ATTACH MOUNTING BRACKETS TO COLUMNS
1.
i. Insert 4 x item C2 into item C1 and attach item C3.
Screw two full turns to leave item C3 at the end of item C2.
C2
C6
ii. Slide item C1 down the front slots of item A1 to the correct height and tighten item C2.
Repeat for both columns.
C1
C3
C2
C2
M6 x 40mm
CSK HEX SCREW
C3
RECTANGLE
NUT
C3
C1
A1
SLOTS
C1
A1
OPTIONAL - FIX REAR COVER TO COLUMNS
Place item A3 into the back of item A1.
Use items A5 & A6 at the top and bottom of the
column slot to secure rear cover.
A5
A6
C6
A6
FRONT
C2
A5
M6 x 12mm
GRUB SCREW
A6
SQUARE
NUT
A3
A5
REAR
A6
A3
REAR
A1
A5
A8
6
Page 7
ATTACH WALL PLATES TO COLUMNS
2.
Fix item B1 to the top of item A1 using item B3.
B3
B1
A1
B3
M6 x 12mm
HEX SCREW
B7
B1
A1
FIX FLOOR PLATES TO FLOOR
3.
Fix item B2 to oor (xings not included).
Note: Fixing points are 60mm away from the wall and
the oor plates should be set 600mm apart.
GROUND ANCHORS
(not supplied)
B2
GROUND ANCHOR
B2
FLOOR
6.5mm
150mm
B2
TOP VIEW
60mm
WALL
WALL
CONCRETE FLOOR
7
600mm
Page 8
MARK WALL FIXING HOLES
4.
Using the guide pins, place item A1 onto item B2.
Mark the 4 xing holes from item B1 onto the wall for each column.
WALL
B1
A1
B2
GUIDE PINS
8
Page 9
DRILL HOLES AND INSERT WALL PLUGS
5.
Remove item A1 and drill marked holes.
Insert 4 x item B6 for each column
(Not required for wood/stud walls).
10mm Masonary
Drill Bit
WALL
MASONARY WALL
B6
9
Page 10
HOOK RAIL ONTO MOUNTING BRACKETS
6.
i. Insert 4 x item C4 into item D1 (2 in the top channel, 2 in the bottom channel)
on each side of the rail.
ii. Screw 2 x item C5 into item C4 in the top channel - allow at least a 6mm gap
so the rail can be hooked on to item C1.
D1
M8 SLIDING
INSERT
C4
C5
M8 x 12mm
HEX SCREW
C4
608mm
C4
185mm
C5
415mm
C7
C4
185mm
C5
6mm+
D1
C5
iii. Hook item D1 onto items C1 and x with in place with item C5.
D1
C5
C1
A1
C7
C4
D1
C7
C4
C5
10
Page 11
FIX COLUMN TO WALL
7.
i. Place item A1 onto item B2.
A1
B2
11
Page 12
ii. Fix item B1 to the wall using items B4 & B5.
iii. Attach item D2 to the ends of items D1.
B1
B5
B4
B1
D2
D1
WALL
B5
B4
12
Page 13
ASSEMBLE VC SHELF
8.
i. Attach item G2 to item G1 using items G5 & G6.
ii. Attach item G10 to item G2. using items G7 & G8.
G1
G6
G5
M8 NYLOC
NUT
G5
M8 METAL
WASHER
G6
M8 x16mm
HEX SCREW
G7
G8
M8 SPRING
WASHER
G10
C5
G7
G8
Optional
Add extension bar
For an extended reach
attach item G3 onto item G2
using items G7 & G8.
G2
13mm Spanner
Note: The shelf adaptor can mount the
shelf above or below the screens.
Assembly shows shelf mounted below
the rail / screens.
G7
G2
G3
G8
13
G10
C5
G7
G8
Page 14
HOOK SHELF ONTO MOUNTING RAIL
9.
i. Hook item G1 onto item D1.
G1
ii. Secure shelf to rail.
Use item G4 on the bottom of item G1
to secure the shelf to item D1.
Optional: Level the shelf bracket by adjusting
item G4 on top of item G1.
G4
D1
Shelf shown mounted
above the rail.
G1
G4
E2
ALTERNATIVE SHELF MOUNTING OPTIONS
REVERSE MOUNTINGABOVE THE SCREEN MOUNTING
To reverse mount the shelf, use item G9 to
mount item G10 onto the back of item G3.
G4
G9
M8 x 20mm
HEX SCREW
14
G2
G9
G3
G10
Page 15
10.
ATTACH INTERFACE ARMS TO SCREENS
Fix item E1 to the rear of the screens using items E3 - E15.
Note: Ensure the arms are facing the correct way round and the same holes are used on all arms.
E3-E11
TOP
E12
E1
E14
E1
SCREEN
Note: 13mm spacers are not required if the VC shelf
is not being installed or if reverse mounting
the shelf.
600mm ADAPTOR ARMS
Note: Use (if required) for 65”screens
with VESA 600 x 400mm xings
BOTTOM
13mm SPACER
E14
INTERFACE ARM
SCREEN
i. Attach item F1 to item E1 using item F2.
F2
F1
E1
ii. Fix item F1 to rear of screen
using the interface kit (items E3-E14).
SCREEN
15
Page 16
11.
HOOK SCREENS ONTO RAIL
Use items E1 to hook the screens onto item D1.
A1
D1
E1
SCREEN
SCREEN
SCREEN
12.
LOCK SCREENS TO RAIL
Tighten the safety screws on the bottom
of item E1 securing the screens to item D1.
Note: If necessary, adjust the height adjustment
screws on top of item E1 to level the screen.
Optional:
HEIGHT ADJUSTMENT
SCREW
SCREEN
SAFETY
SCREW
E2
SCREEN
Safety Screw
Engaged
16
Page 17
12.
ATTACH CAMERA
TO SHELF
G11
G12
Fix camera to item G10 using
either item G11 or item G12.
SCREEN
VC CAMERA
G10
G11
G12
M4 x 10mm
SCREW
UNC 1/4” x 1/2”
SCREW
13.
ATTACH STRIPS
Insert item A7 to the front and back of item A1.
Note: Item A7 may have to be cut down to size
to be able to t into the front of item A1.
Use pliers to cut item A7
to correct size
A7
A1
17
A7
Page 18
BT8710 DIMENSIONS
PLEASE KEEP THIS FOR FUTURE REFERENCE
8.4mm
400mm
300mm
200mm
100mm
FRONT VIEW
180mm
120mm
20mm
1404mm
60.8mm
BOTTOM VIEW
51mm
6.5mm
66mm
150mm
These instructions are intended as a guide only and B-Tech accepts no liability for the accuracy of the information contained in this document.
9mm
18
Page 19
BT8710 DIMENSIONS
PLEASE KEEP THIS FOR FUTURE REFERENCE
400.1mm
159mm
20.5mm
428mm
Max - 627.5mm
Min - 231mm /
253.1mm
50mm
50mm
50mm
15mm
20mm
REAR VIEWSIDE VIEW
8.5mm
30mm
1900mm
6mm
1949mm
90mm
TOP VIEW
2005mm
51mm
60.8mm
366mm
42mm
60.3mm
100mm
100mm
80mm
These instructions are intended as a guide only and B-Tech accepts no liability for the accuracy of the information contained in this document.
19
Page 20
B-TECH AV mounts
CONTACT:
©2020 B-Tech AV Mounts. All rights reserved.
B-Tech AV Mounts is a division of B-Tech International Design and Manufacturing Ltd.
B-Tech AV Mounts and the B-Tech logo are registered trade marks.
All other brands and product names are trademarks of their respective owners.
Photographs are for illustrative purposes only. E&OE.
AMA-BT8710-V1-1020-104 MADE IN VIETNAM
For More Information Visit www.btechavmounts.com
Loading...
