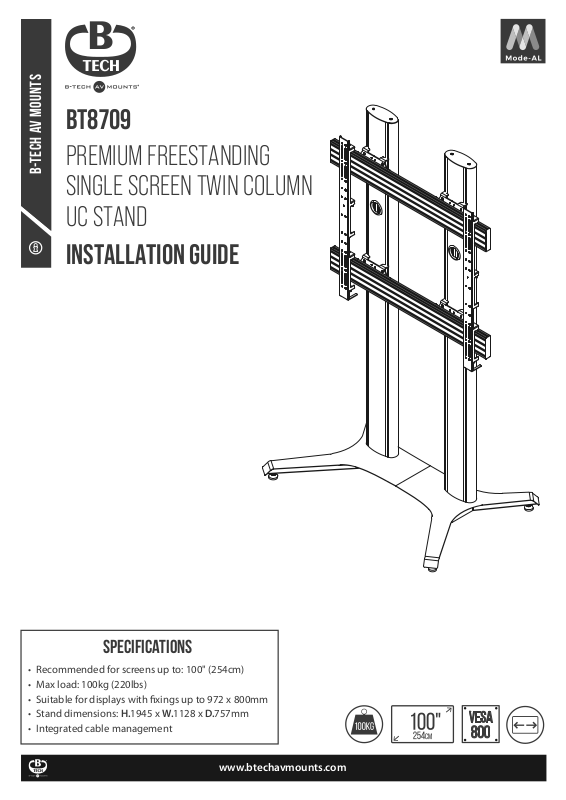

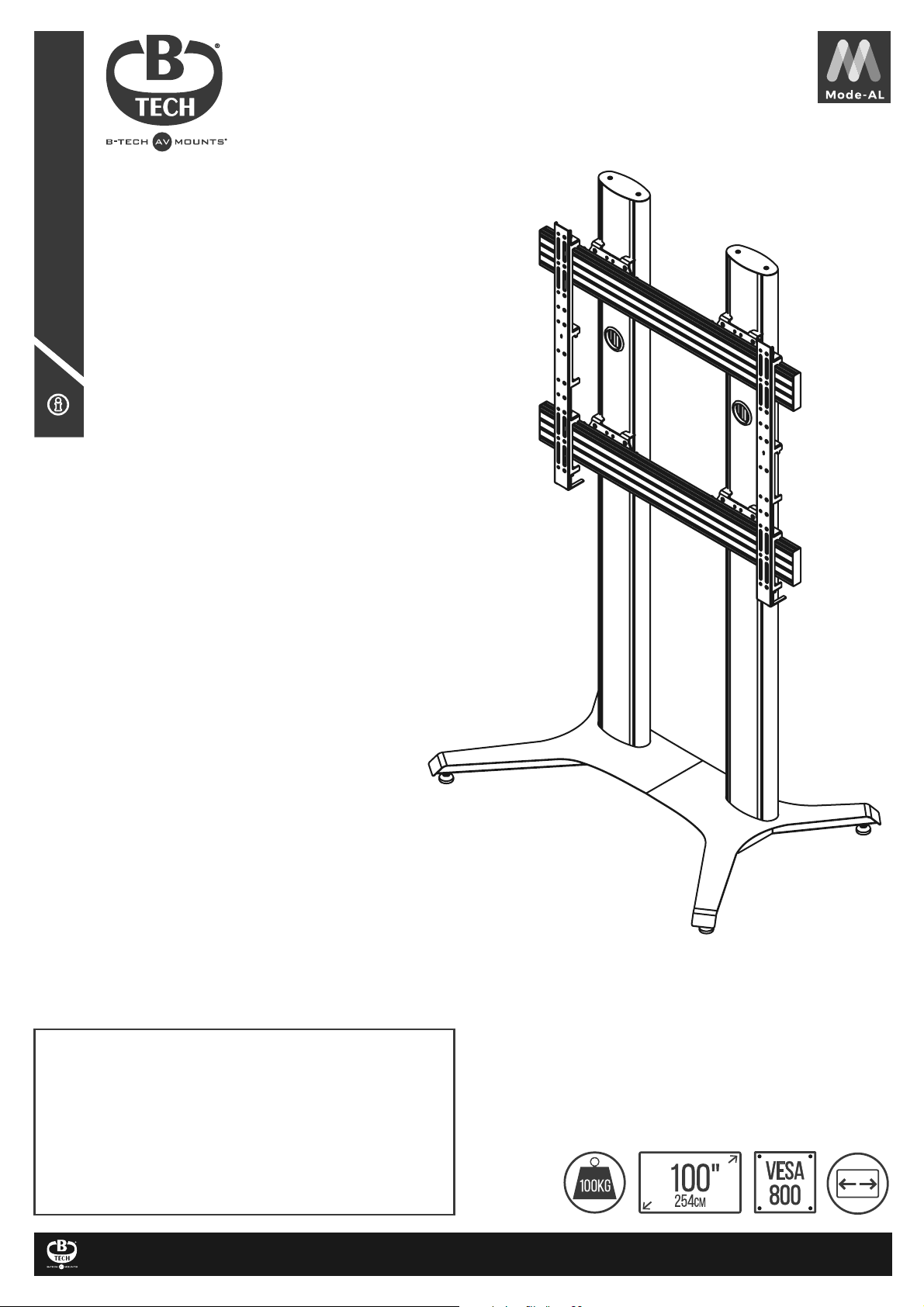

BT8709
PREMIUM FREESTANDING
B-TECH AV mounts
SINGLE SCREEN TWIN COLUMN
UC STAND
INSTALLATION GUIDE
SPECIFICATIONS
• Recommended for screens up to: 100" (254cm)
• Max load: 100kg (220lbs)
• Suitable for displays with xings up to 972 x 800mm
• Stand dimensions: H.1945 x W.1128 x D.757mm
• Integrated cable management
www.btechavmounts.com
Page 2
CONTENTS
Installation Safety Notes......................................................................................................................
Parts List....................................................................................................................................................
Installation Instructions.......................................................................................................................
Product Dimensions............................................................................................................................
B-Tech Contact Details........................................................................................................................
2
4
6
11
12
INSTALLATION SAFETY INSTRUCTIONS
This stand is intended for use only with the
CAUTION:
maximum weights indicated. Use with screens heavier than the maximum
indicated may result in instability causing possible injury.
Do not attempt to install this product until all instructions and warnings have been read and properly understood.
Please keep these instructions for future reference.
Please check carefully to make sure there are no missing or defective parts - defective parts must never be used.
B-Tech AV Mounts, its distributors and dealers are not liable or responsible for damage or injury caused by improper
installation, improper use or failure to observe these safety instructions. In such cases, all guarantees will expire.
General
r suitab
B-Tech AV Mounts recommends that a professional AV installer or othe
Great care must always be taken during installation as most AV equipment is of a fragile nature, possibly heavy and
easily damaged if dropped.
If you do not fully understand the instructions or are not sure how to install this product safely, then please consult a
professional for advice and/or to install this product for you. Failure to mount this product correctly may cause serious
on and
injury or death both during installati
Do not mount any AV equipment that exceeds the specic weight limit of the product you are installing.
This weight limit will be clearly stated on each product and its packaging and will vary from product to product.
at any time thereafter.
ly qualied person install this product.
Product location
Please pay careful attention to where this product is located. Check load capacity of oor prior to installation as some
surfaces are not suitable for installation. Designed for indoor use, this mount is suitable for public or home installation
If located in a public or frequently populated area ensure that the product is out of the immediate reach of people.
If any AV equipment is to be suspended over the likely path or location of people then great care should be taken to
secure all parts of the installation from falling.
When drilling holes it is essential to avoid contact with electrical cables and water or gas pipes contained within.
Use of a good quality live wire detector and hidden object locator is therefore recommended.
Only drill into structures when you are sure it is safe to do so.
Fixing hardware
It is highly recommended that all xing screws be used where supplied and that the purpose of all other xing hardware
is fully understood. In some cases more AV equipment xing hardware will be supplied to accommodate dierent models
of equipment and set up congurations. The installer must be satised that any supplied xing hardware is suitable for
each specic installation. If any xing screws or included hardware are deemed not sucient for a safe installation then
lea
se consult a professional or your local hardware store.
p
Hazard limitation
When routing cables take advantage of any built in cable management features that the product might provide and ensure
that all cables are tidy and secure. Check to see that any moving aspect of the product can do so unhindered by any cabling.
Some products have moving parts and the potential to cause injury through the crushing or trapping of ngers or other
body parts.
during set up.
necessary xings are present and are of ample tightness.
It is recommended that periodic inspections of the product and its xing points are made as frequently as possible (no more
than 6 months apart) to ensure that safety is maintained.
If in doubt consult a professional AV installer or other suitably qualied person.
Particular attention to the nature of moving parts is required especially when assembling installing and adjusting
Immediately after installation double-check that the work done is safe and secure. Double-check all
2

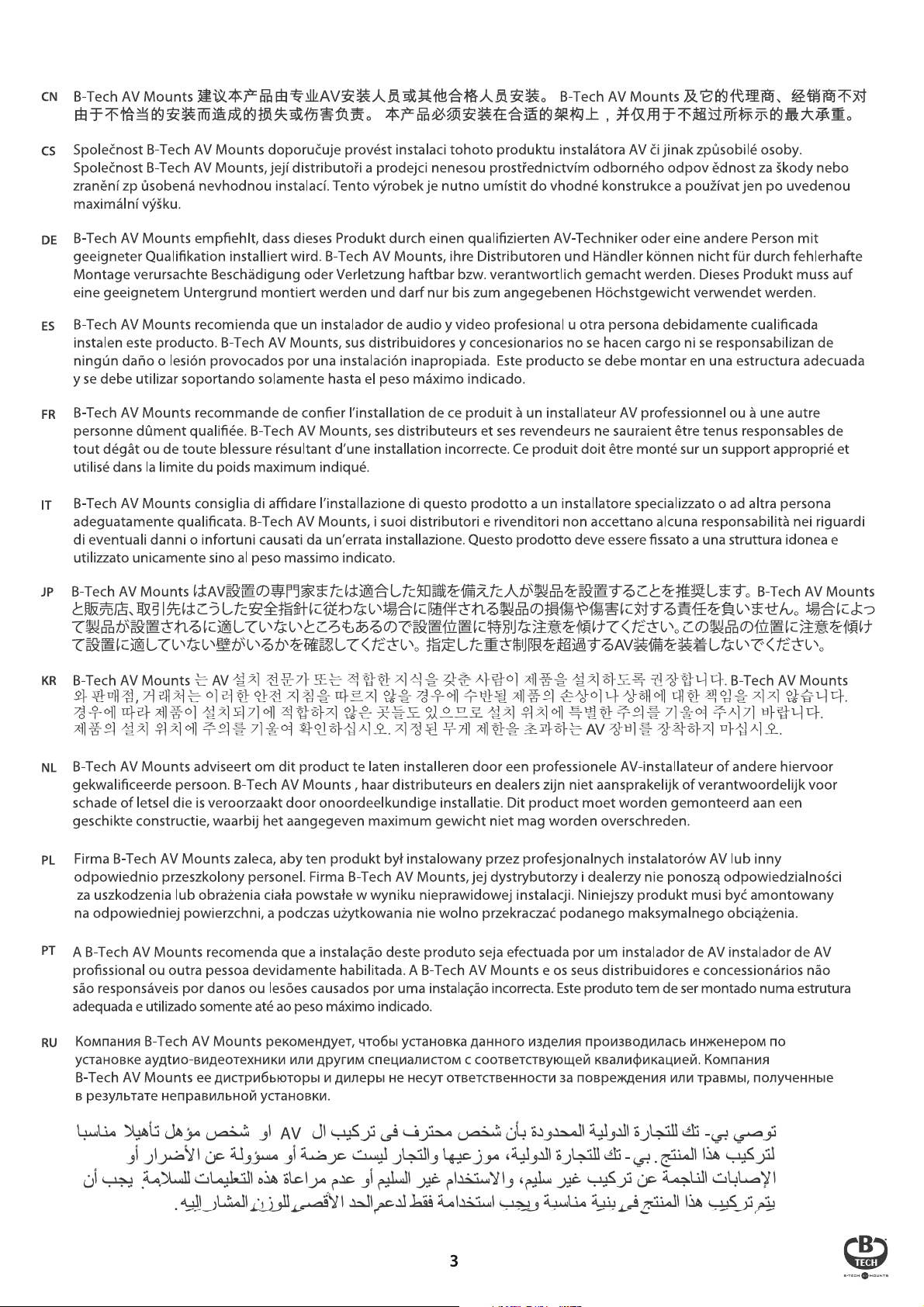

Page 3
Page 4

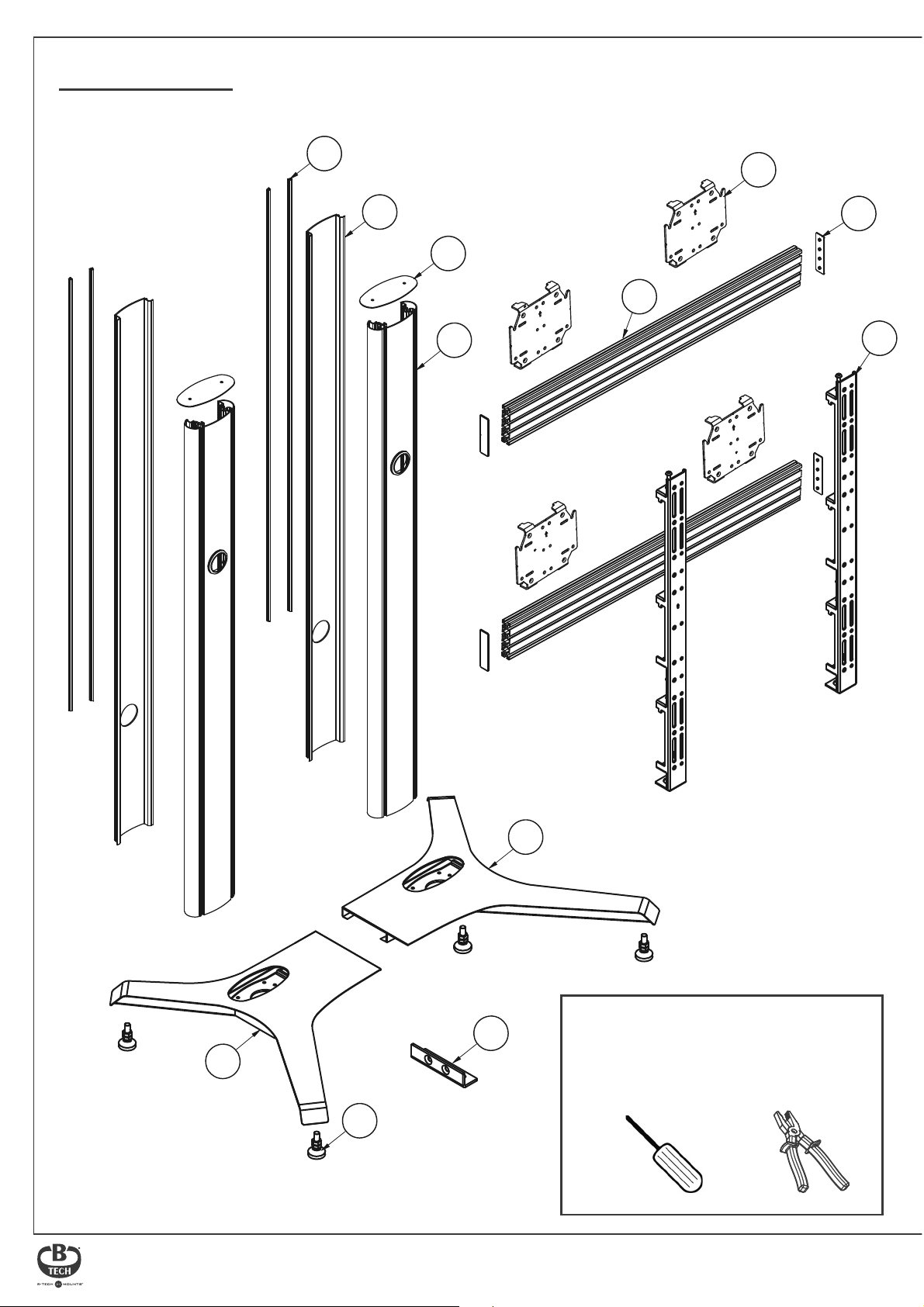

BT8709 PARTS LIST
PLEASE KEEP THIS FOR FUTURE REFERENCE
A7
C1
A3
A2
A1
D2
D1
E1
B2
B4
B1
B3
4
INSTALLATION TOOLS REQUIRED
Pliers/CutterCrosshead screwdriver
Page 5
E3
E8
E12
A4
B5
C2
E4 E5
A8
B7
C6
E13
C3
ITEM
E9
A5
B6
E14
C4
E10
E6
A9
E15
B9
E7
E11
A6
B8
C7
C5
E2
E16

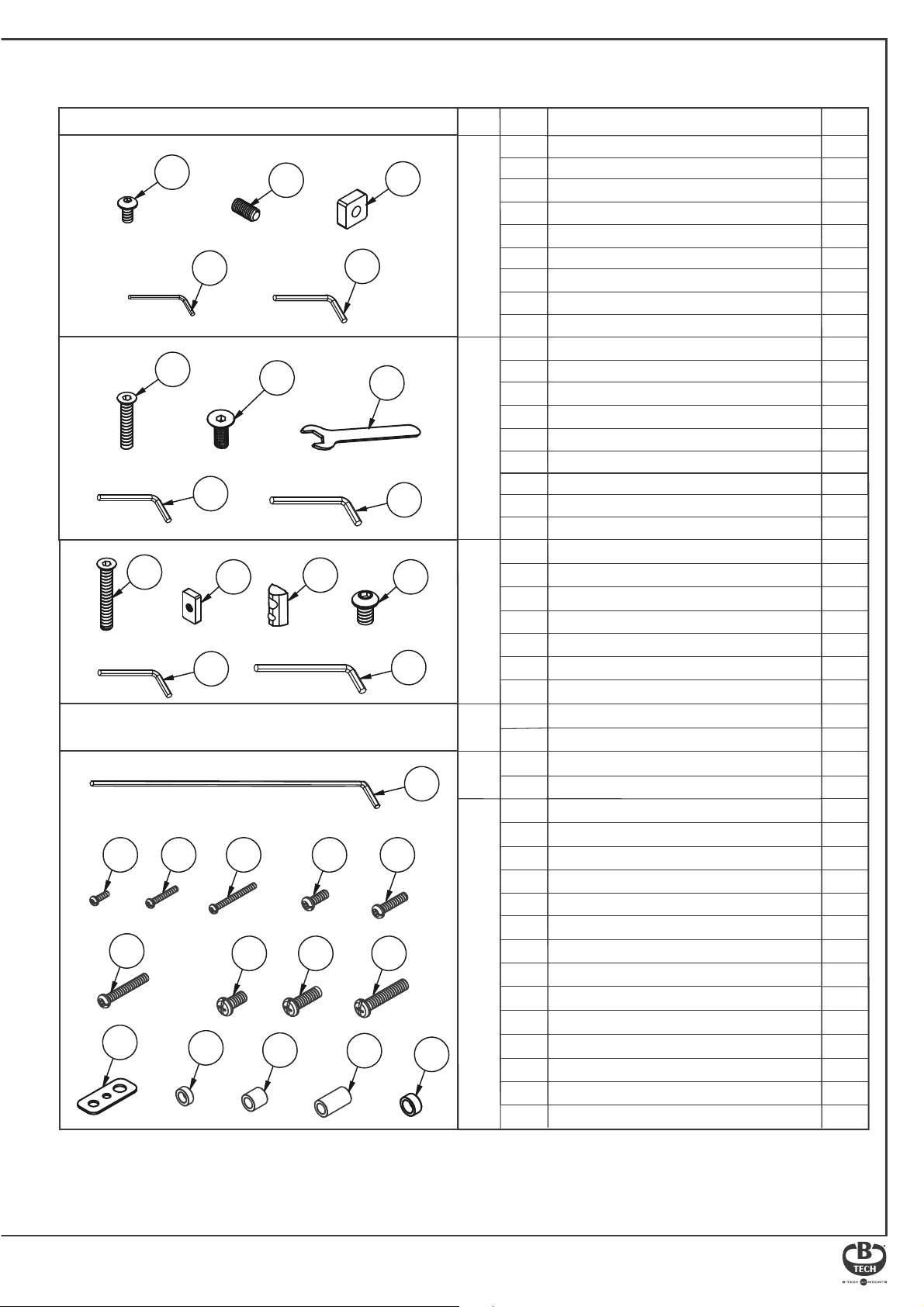

REFPART DESCRIPTION QTY
A1
1.9M COLUMN
END CAP
A2
A3
COLUMN REAR COVER
M6 x 12mm HEX SCREW
A4
M6 x 12mm GRUB SCREW (OPTIONAL)
A5
SQUARE NUT (OPTIONAL)
A6
COLUMNBASEMOUNTING BRACKET
A7
COVER STRIP
A8
3AF HEX KEY
4AF HEX KEY
A9
B1
BASE - LEFT SIDE
B2
BASE - RIGHT SIDE
BASE CONNECTOR
B3
ADJUSTABLE LEVELLING FEET
B4
M6 x 30mm CSK HEX SCREW
B5
M10 x 25mm CSK HEX SCREW
B6
4AF HEX KEY
B7
6AF HEX KEY
B8
19mm SPANNER
B9
C1
RAIL-TO-COLUMN MOUNTING BRACKET
M6 x 40mm CSK HEX SCREW
C2
C3
RECTANGLE NUT
M8 SLIDING INSERT
C4
M8 x 12mm SCREW
C5
4AF HEX KEY
C6
5AF HEX KEY
C7
MOUNTING RAIL
D1
RAIL
D2
END CAP
E1
SCREEN INTERFACE ARM
5AF LONG HEX KEY
E2
ARMS
E3
M6 x 16mm SCREW
E4
M6 x 25mm SCREW
M6 x 40mm SCREW
E5
E6
M8 x 16mm SCREW
E7
M8 x 25mm SCREW
M8 x 40mm SCREW
E8
M10 x 16mm SCREW
E9
M10 x 25mm SCREW
E10
SCREEN FIXING KIT
M10 x 40mm SCREW
E11
MULTIWASHER
E12
M8 5mm SPACER
E13
M8 13mm SPACER
E14
M8 24mm SPACER
E15
M10 7mm SPACER
E16
2
2
2
4
8
8
8
2
2
1
1
2
4
8
8
1
1
1
4
16
16
16
16
4
4
2
4
2
1
4
4
4
4
4
4
4
4
4
4
4
4
4
4
5
Page 6
Installation Instructions

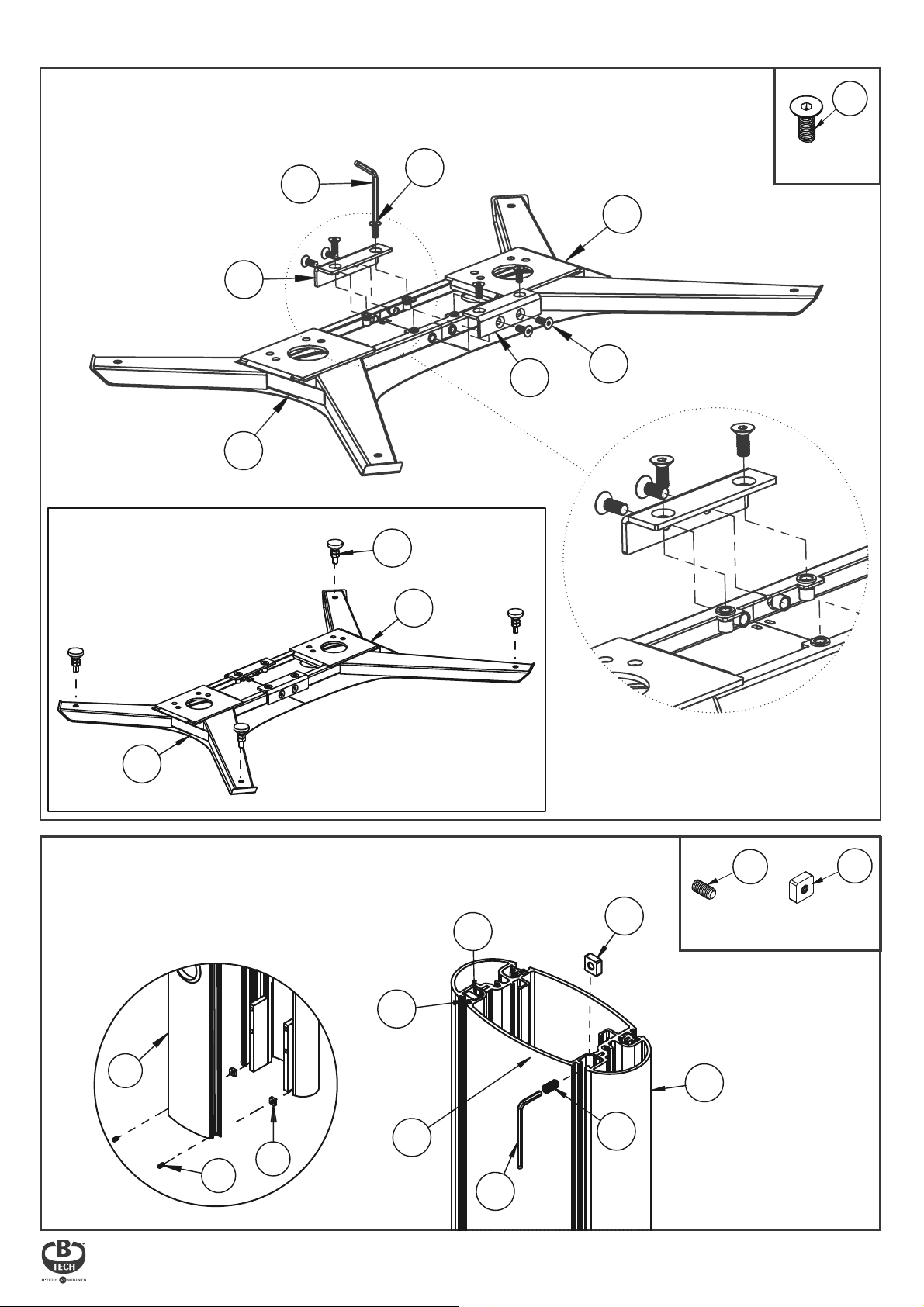

ASSEMBLE BASE
1.
i. Fix item B1 to item B2 using items B3 & B6 on the front and back.
B8
B3
B1
ii. Screw item B4 into items B1 & B2.
B4
B6
B6
M10 x 25mm
HEX SCREW
B2
B6
B3
B2
B1
OPTIONAL - FIX REAR COVERS TO COLUMNS
Place item A2 into the back of item A1.
Use items A5 & A6 at the top and bottom
of the column slot to secure rear cover.
A5
REAR
A2
REAR
A6
A6
A5
M6 x 12mm
GRUB SCREW
A1
A6
SQUARE
NUT
A5
A6
A2
A5
A8
6
Page 7
ATTACH COLUMNS TO BASE
2.
Mount items A1 onto items B1 & B2 and x in place
using item B5.
A1
B2
B1
B5
B5
M6 x 30mm
CSK HEX SCREW
OPTIONAL: To level the stand,
adjust item B4 using item B9.
B9
B7

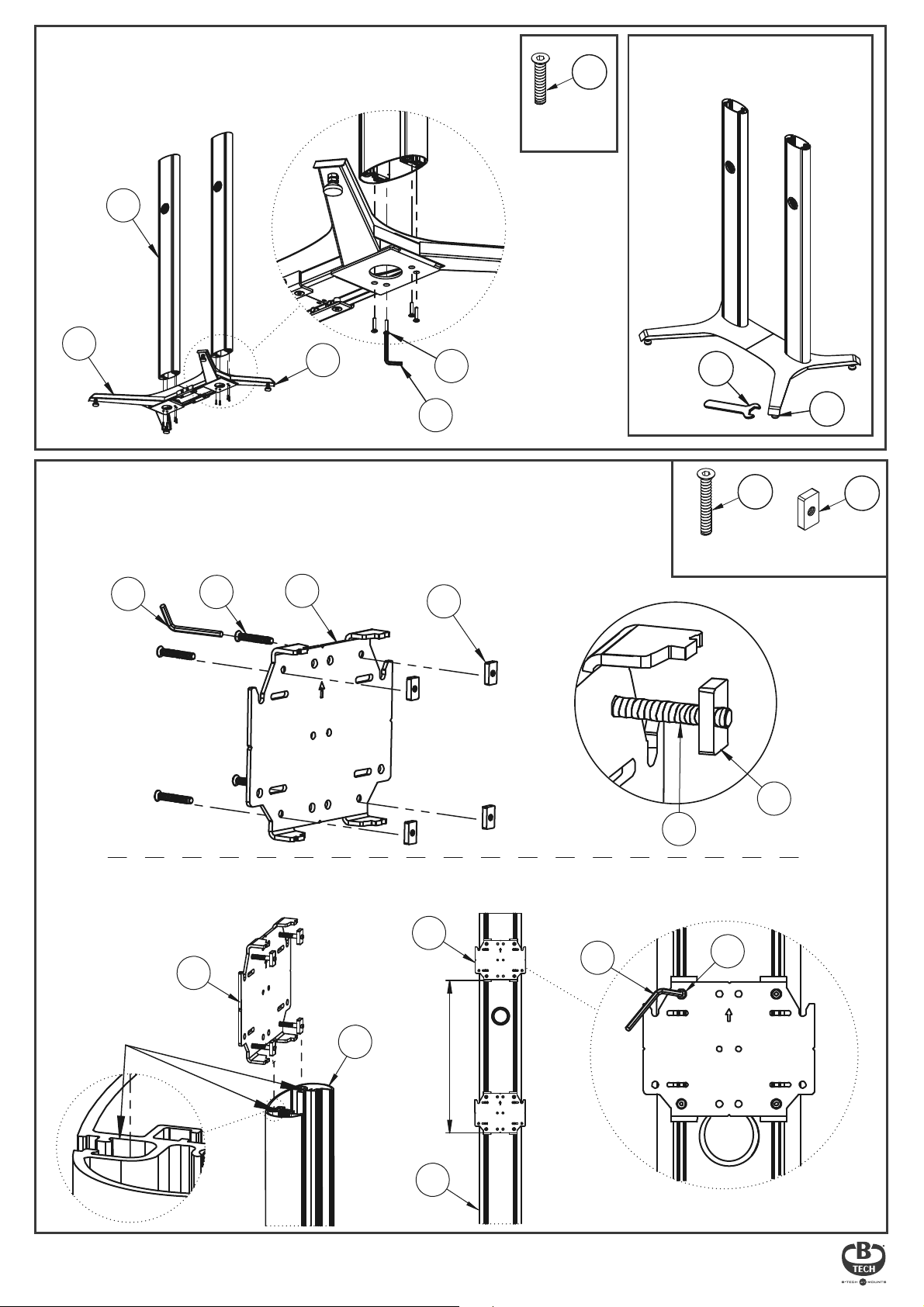

ATTACH MOUNTING BRACKETS TO COLUMNS
3.
i. Insert 4 x item C2 into item C1 and attach item C3.
Screw two full turns to leave item C3 at the end of item C2.
Repeat for all 4 mounting plates.
C6
C2
C1
C3
M6 x 40mm
CSK HEX SCREW
C2
C2
B4
C3
RECTANGLE
NUT
C3
ii. Slide 2 x item C1 down the front slots of each item A1 and space apart by 600mm.
Once height is set tighten all items C2.
C1
C6
C1
SLOTS
A1
600mm
A1
7
C2
Page 8

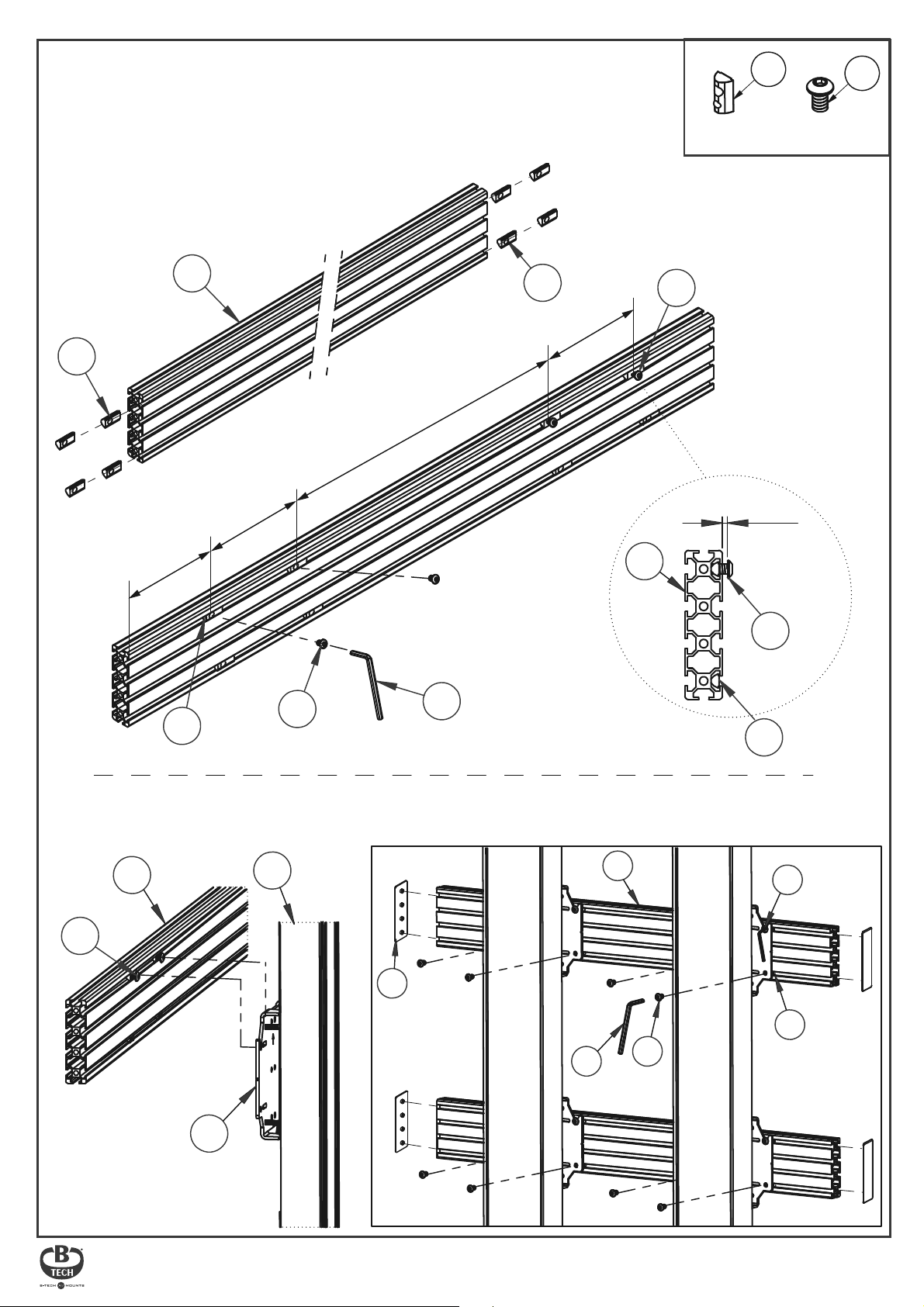

HOOK RAILS ONTO MOUNTING BRACKETS
4.
i. Insert 4 x item C4 into item D1 (2 in the top channel, 2 in the bottom channel)
on each side of the rails.
ii. Screw 2 x item C5 into item C4 in the top channel - allow at least a 6mm gap
so the rail can be hooked on to item C1.
M8 SLIDING
INSERT
C4
C5
M8 x 12mm
HEX SCREW
C4
D1
155mm
C4
185mm
C5
321mm
C7
C4
C5
185mm
6mm+
D1
C5
C4
iii. Hook items D1 onto items C1 and x with in place with item C5.
iv. Attach item D2 to the ends of items D1.
D1
A1
C5
D2
C1
C7
D1
C7
C4
C5
8
Page 9
FIX END CAP TO COLUMNS
5.
Fix item A2 onto the top of items A1
using item A4.

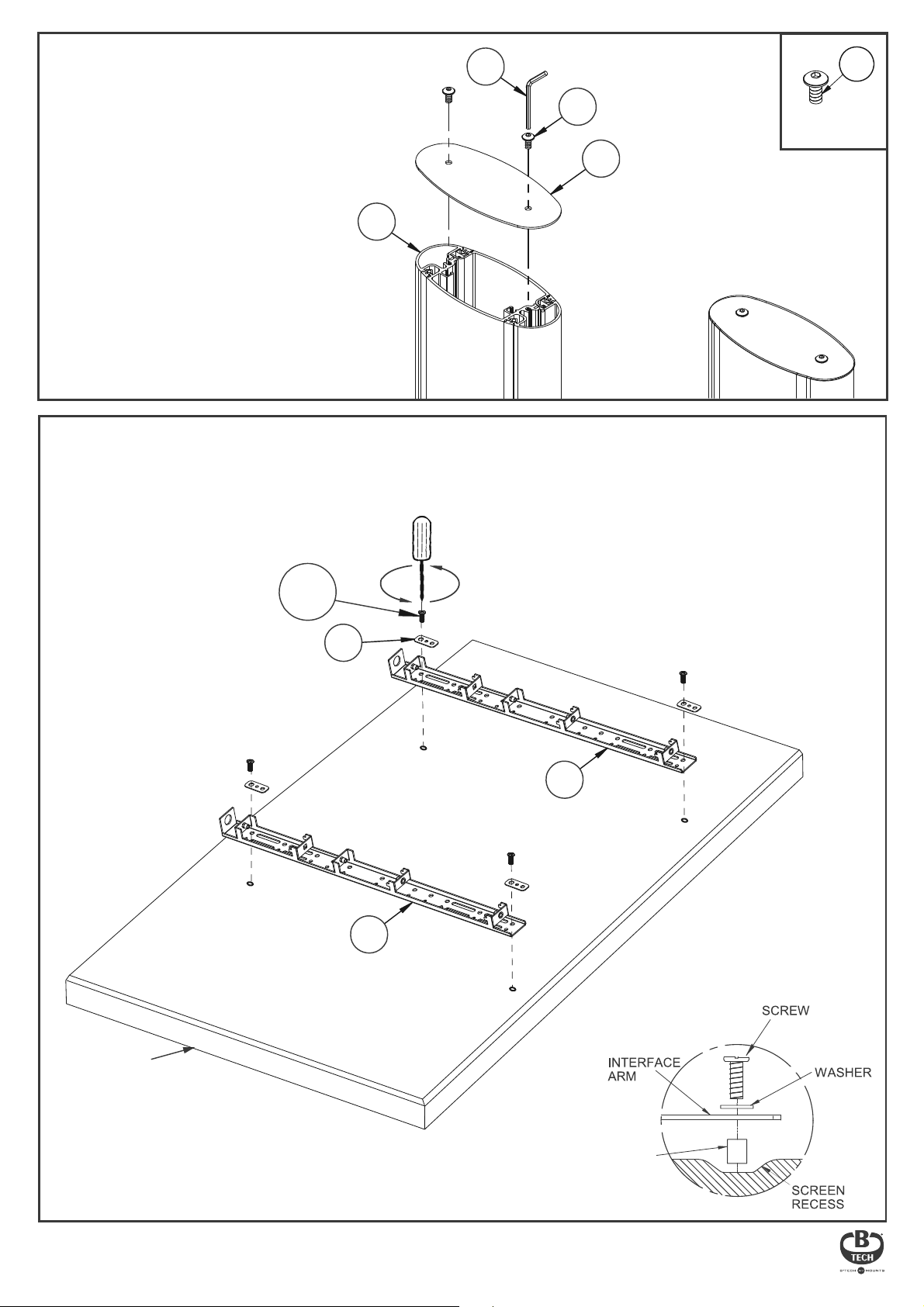

ATTACH INTERFACE ARMS TO SCREEN
6.
Fix items E1 to the rear of the screen using items E3 - E16.
Note: Ensure the arms are facing the correct way round and the same holes are used on both arms.
A1
A8
A4
TOP
A4
M6 x 12mm
HEX SCREW
A2
E3-E11
E12
BOTTOM
E1
TOP
E1
SCREEN
Use spacers (items E13-E16)
for screens with recessed xings.
9
Page 10
HOOK SCREEN ONTO RAIL
7.
Use items E1 to hook the screen
onto item D1.
E1
LOCK SCREEN TO RAIL
8.
Tighten the safety screws on the bottom
of item E1 securing the screen to item D1.
Note: If necessary, adjust the height adjustment
screws on top of item E1 to level the screen.
Optional:
HEIGHT ADJUSTMENT
SCREW
D1
D1
A1
SCREEN

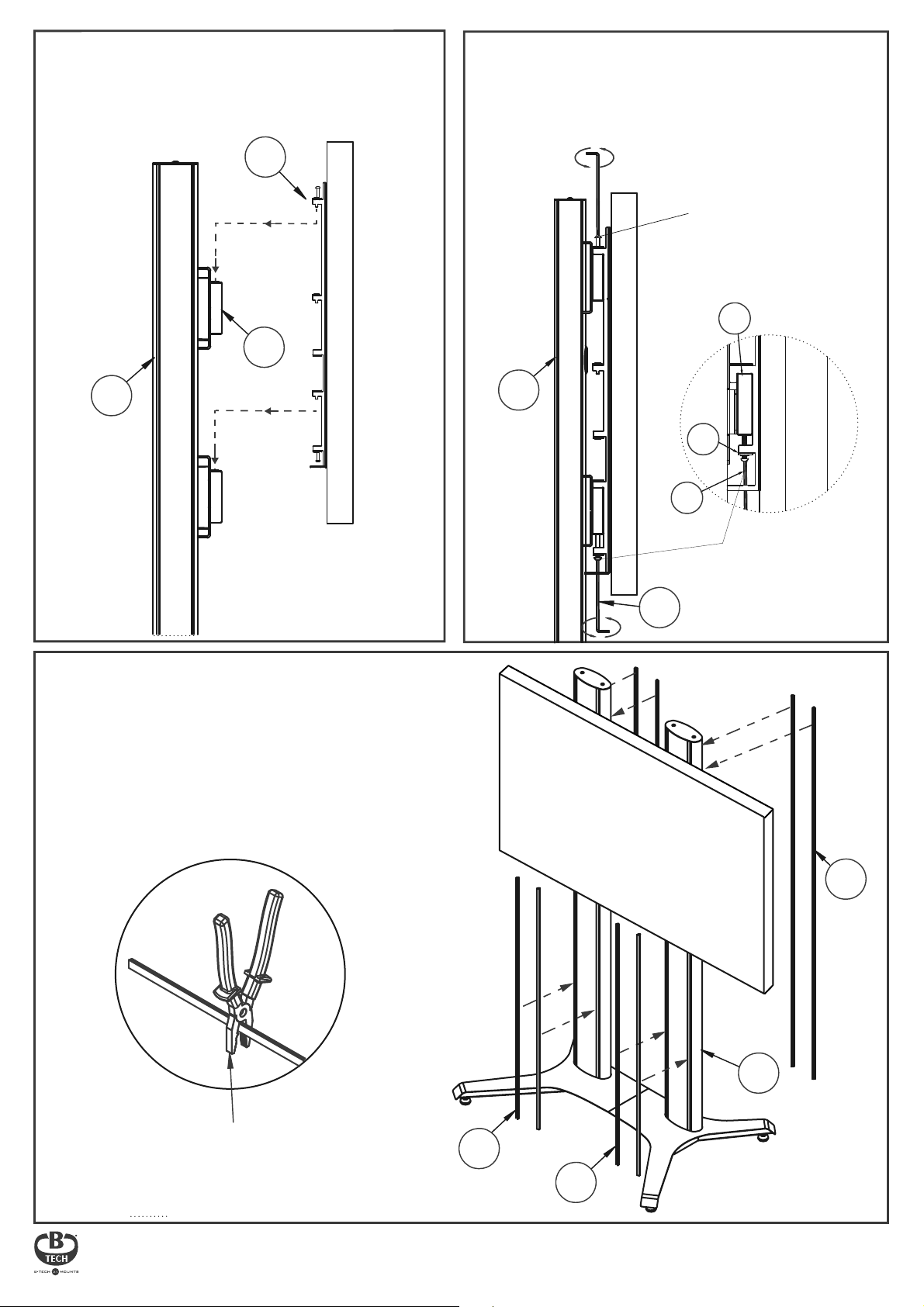

ATTACH STRIPS
9.
Insert item A7 to the front and back of items A1.
Note: Item A7 may have to be cut down to size
to be able to t into the front of item A1.
A1
SCREEN
E2
E2
E1
SAFETY
SCREW
SCREEN
Use pliers to cut item A7
to correct size
A7
A1
A7
A7
10
Page 11

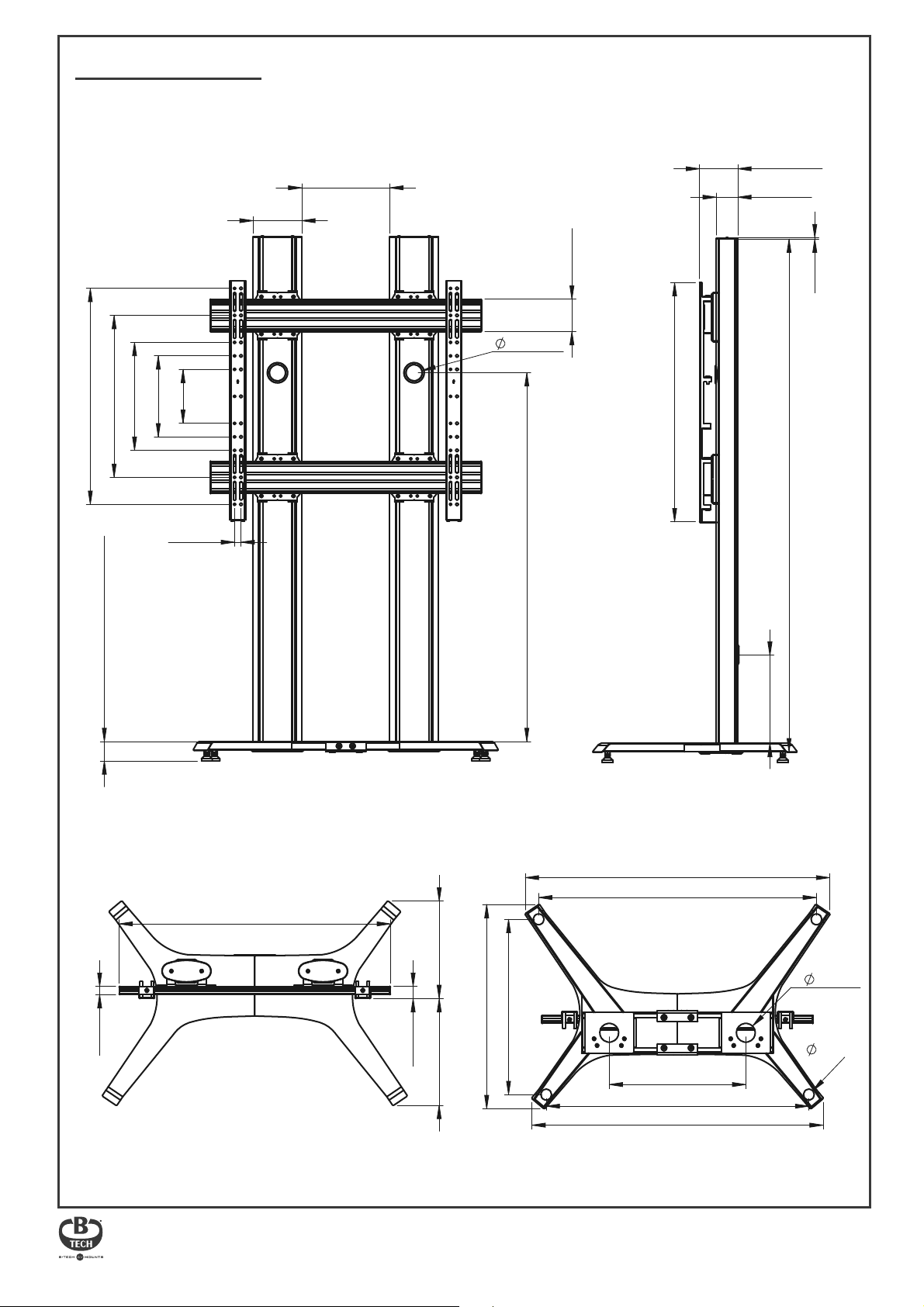

BT8709 DIMENSIONS
PLEASE KEEP THIS FOR FUTURE REFERENCE
180mm
FRONT VIEW SIDE VIEW
141.5mm
326mm
79.5mm
800mm
600mm
400mm
300mm
200mm
24mm
71.5mm + 10mm adjustment
60.8mm
120mm
1366.5mm
5mm
886mm
1900mm
328.5mm
BOTTOM VIEWTOP VIEW
1127.7mm
1029.1mm
1005mm
360.9mm
756.5mm
649.3mm
30mm
These instructions are intended as a guide only and B-tTech accepts no liability for the accuracy of the information contained in this document.
