Page 1
BT8708
PREMIUM BOLT DOWN
B-TECH AV mounts
SINGLE SCREEN TWIN COLUMN
UC STAND
INSTALLATION GUIDE
SPECIFICATIONS
• Recommended for screens up to: 100" (254cm)
• Max load: 140kg (308lbs)
• Suitable for displays with xings up to 972 x 800mm
• Stand dimensions: H.1910 x W.1005 x D.210mm
• Integrated cable management
www.btechavmounts.com
Page 2
CONTENTS
Installation Safety Notes......................................................................................................................
Parts List....................................................................................................................................................
Installation Instructions.......................................................................................................................
Optional Accessories...........................................................................................................................
Product Dimensions............................................................................................................................
B-Tech Contact Details........................................................................................................................
2
4
6
13
14
16
INSTALLATION SAFETY INSTRUCTIONS
This stand is intended for use only with the
CAUTION:
maximum weights indicated. Use with screens heavier than the maximum
indicated may result in instability causing possible injury.
Do not attempt to install this product until all instructions and warnings have been read and properly understood.
Please keep these instructions for future reference.
Please check carefully to make sure there are no missing or defective parts - defective parts must never be used.
B-Tech AV Mounts, its distributors and dealers are not liable or responsible for damage or injury caused by improper
installation, improper use or failure to observe these safety instructions. In such cases, all guarantees will expire.
General
the
B-Tech AV Mounts recommends that a professional AV installer or o
Great care must always be taken during installation as most AV equipment is of a fragile nature, possibly heavy and
easily damaged if dropped.
If you do not fully understand the instructions or are not sure how to install this product safely, then please consult a
professional for advice and/or to install this product for you. Failure to mount this product correctly may cause serious
tion
injury or death both during installa
Do not mount any AV equipment that exceeds the specic weight limit of the product you are installing.
This weight limit will be clearly stated on each product and its packaging and will vary from product to product.
and at any time thereafter.
r suitably qualied person install this product.
Product location
Please pay careful attention to where this product is located. Check load capacity of wall/oor prior to installation as some
surfaces are not suitable for installation. Designed for indoor use, this mount is suitable for public or home installation
If located in a public or frequently populated area ensure that the product is out of the immediate reach of people.
If any AV equipment is to be suspended over the likely path or location of people then great care should be taken to
secure all parts of the installation from falling.
When drilling holes it is essential to avoid contact with electrical cables and water or gas pipes contained within.
Use of a good quality live wire detector and hidden object locator is therefore recommended.
Only drill into structures when you are sure it is safe to do so.
Fixing hardware
It is highly recommended that all xing screws be used where supplied and that the purpose of all other xing hardware
is fully understood. In some cases more AV equipment xing hardware will be supplied to accommodate dierent models
of equipment and set up congurations. The installer must be satised that any supplied xing hardware is suitable for
each specic installation. The xing kit supplied with the product may not be suitable for all walls/oors.
If any xing screws or included hardware are deemed not sucient for a safe installation then plea
professional or your local hardware store.
Hazard limitation
When routing cables take advantage of any built in cable management features that the product might provide and ensure
that all cables are tidy and secure. Check to see that any moving aspect of the product can do so unhindered by any cabling.
Some products have moving parts and the potential to cause injury through the crushing or trapping of ngers or other
body parts.
during set up.
necessary xings are present and are of ample tightness.
It is recommended that periodic inspections of the product and its xing points are made as frequently as possible (no more
than 6 months apart) to ensure that safety is maintained.
If in doubt consult a professional AV installer or other suitably qualied person.
Particular attention to the nature of moving parts is required especially when assembling installing and adjusting
Immediately after installation double-check that the work done is safe and secure. Double-check all
se consult a
2
Page 3
Page 4

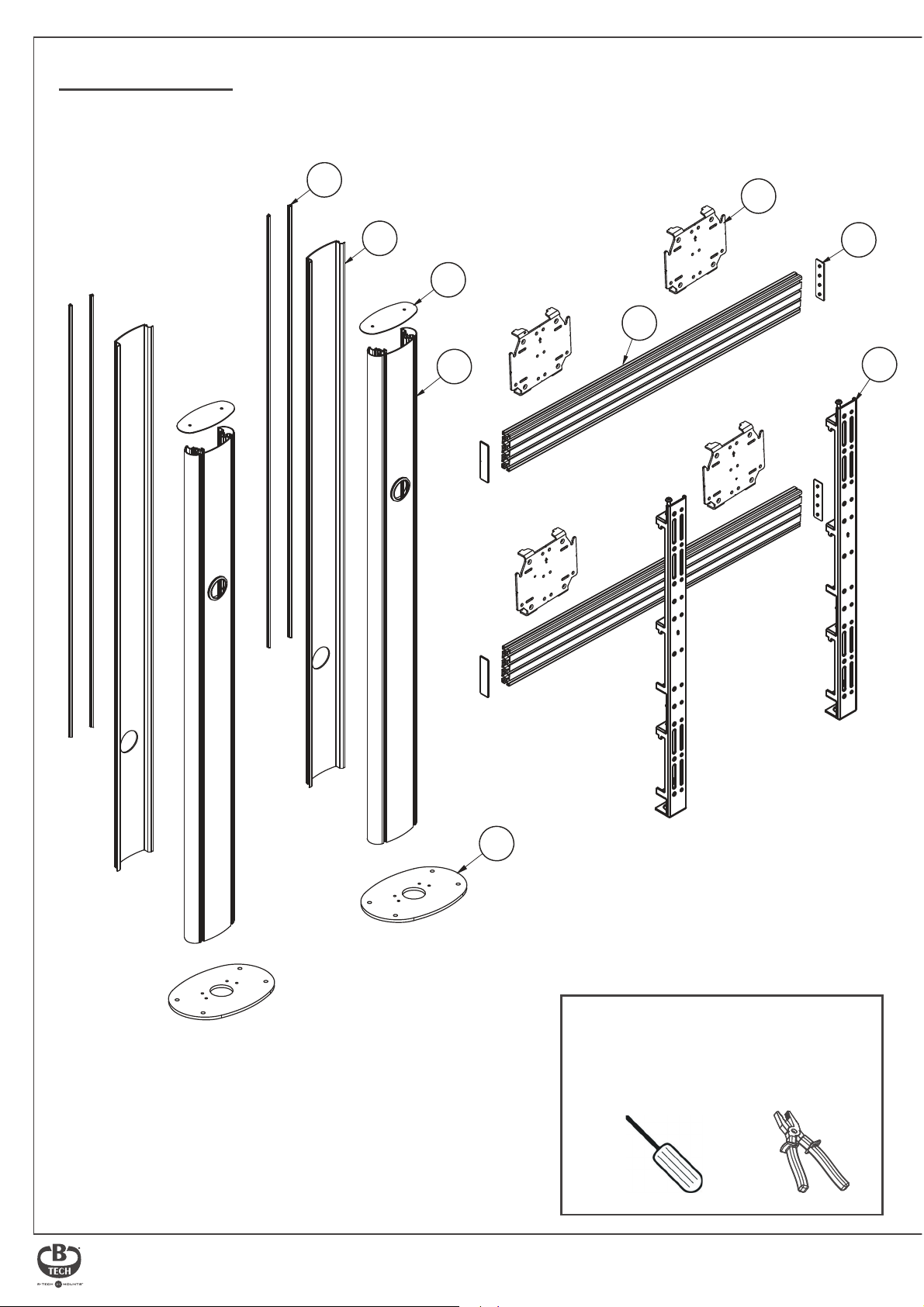

BT8708 PARTS LIST
PLEASE KEEP THIS FOR FUTURE REFERENCE
A7
C1
A3
A2
A1
D2
D1
E1
B1
INSTALLATION TOOLS REQUIRED
Pliers/CutterCrosshead screwdriver
4
Page 5
E3
E8
E12
C2
A4
E4
A8
B2
C6
E13
C3
E5
E9

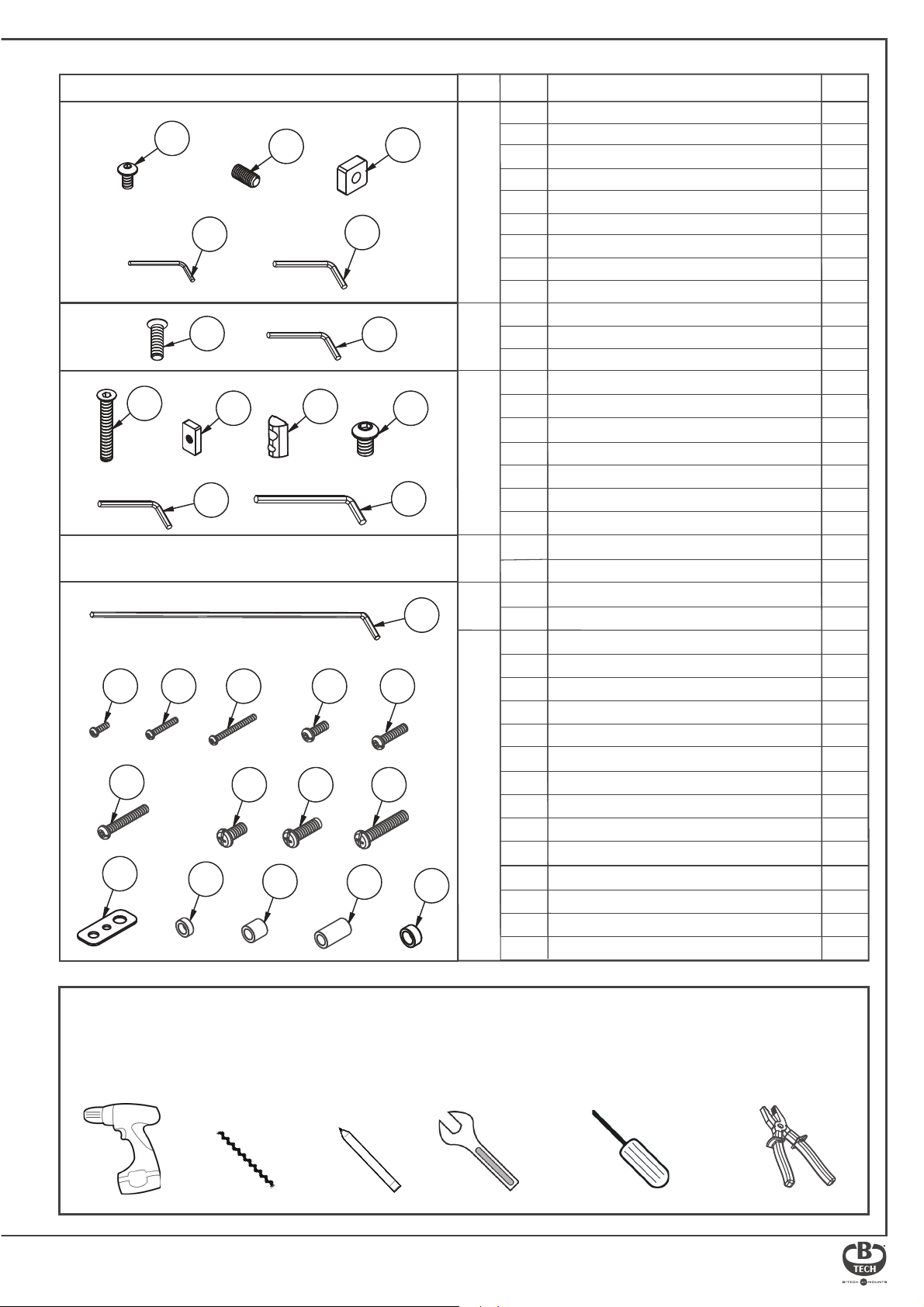

ITEM
A5
E14
C4
E10
E6
A9
E15
B3
E11
A6
E7
C5
C7
E2
E16
REFPART DESCRIPTION QTY
A1
1.9M COLUMN
END CAP
A2
A3
COLUMN REAR COVER
M6 x 12mm HEX SCREW
A4
M6 x 12mm GRUB SCREW (OPTIONAL)
A5
SQUARE NUT (OPTIONAL)
A6
COLUMNMOUNTING BRACKET
A7
COVER STRIP
A8
3AF HEX KEY
4AF HEX KEY
A9
BOLT DOWN BASE
B1
M6 x 35mm CSK HEX SCREW
B2
BASE
RAIL
ARMS
E10
SCREEN FIXING KIT
E11
E12
E13
E14
E15
E16
4AF HEX KEY
B3
C1
RAIL-TO-COLUMN MOUNTING BRACKET
M6 x 40mm CSK HEX SCREW
C2
C3
RECTANGLE NUT
M8 SLIDING INSERT
C4
M8 x 12mm SCREW
C5
4AF HEX KEY
C6
5AF HEX KEY
C7
MOUNTING RAIL
D1
D2
END CAP
E1
SCREEN INTERFACE ARM
5AF LONG HEX KEY
E2
E3
M6 x 16mm SCREW
E4
M6 x 25mm SCREW
M6 x 40mm SCREW
E5
E6
M8 x 16mm SCREW
E7
M8 x 25mm SCREW
M8 x 40mm SCREW
E8
M10 x 16mm SCREW
E9
M10 x 25mm SCREW
M10 x 40mm SCREW
MULTIWASHER
M8 5mm SPACER
M8 13mm SPACER
M8 24mm SPACER
M10 7mm SPACER
2
2
2
4
8
8
8
2
2
2
8
2
4
16
16
16
16
4
4
2
4
2
1
4
4
4
4
4
4
4
4
4
4
4
4
4
4
Drill
INSTALLATION TOOLS REQUIRED
Drill bit Spanner
Pencil
5
Pliers/CutterCrosshead screwdriver
Page 6
INSTALLATION INSTRUCTIONS

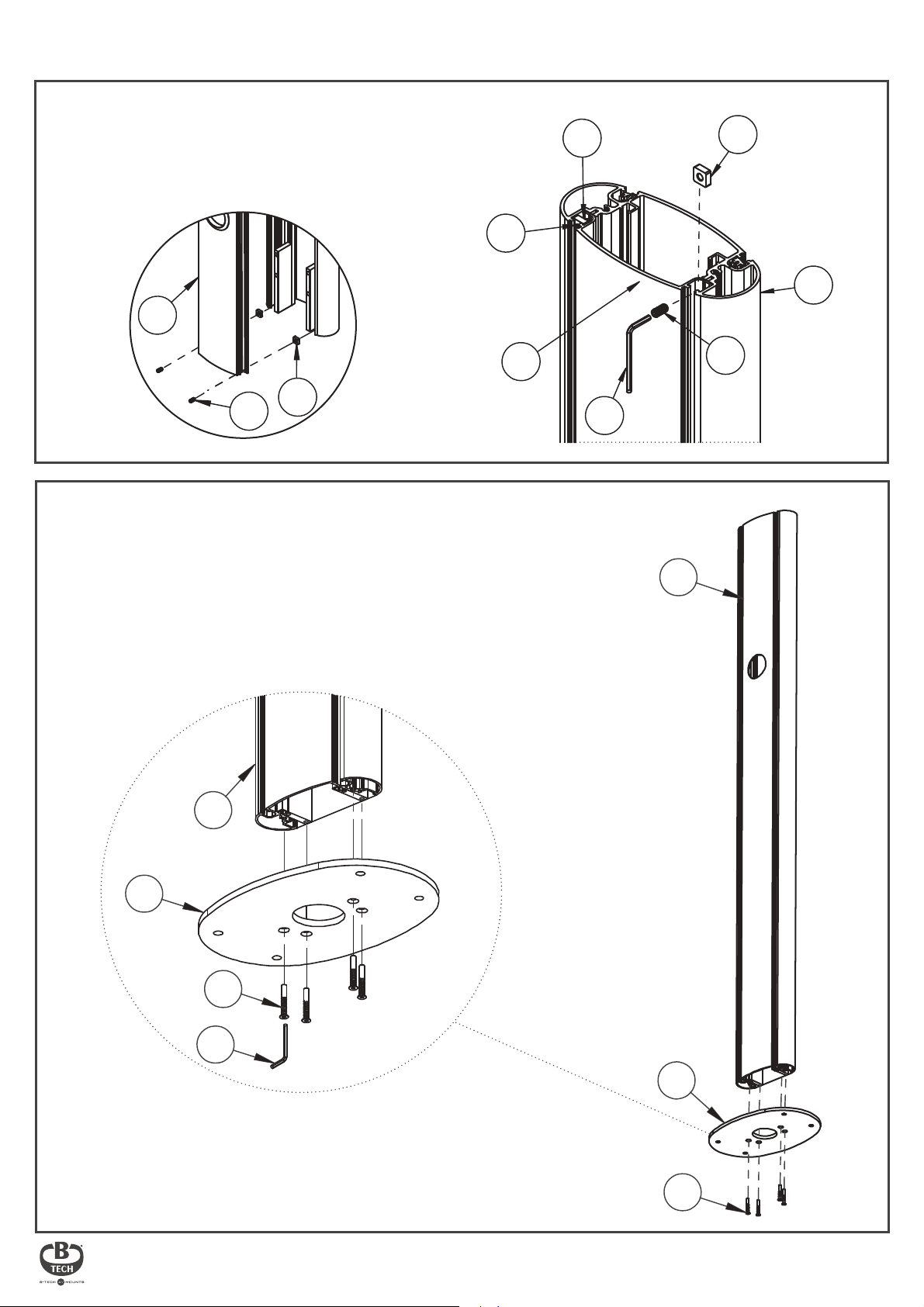

OPTIONAL FIX REAR COVER TO COLUMNS
Place item A3 into the back of item A1.
Use items A5 & A6 at the top and bottom of
the column slot to secure rear cover.
A6
A6
A3
REAR
A6
A5
FIX BASES TO COLUMNS
1.
Fix item B1 to the bottom of item A1 using item B2.
A5
A3
REAR
A8
FRONT
A1
A5
A1
B1
A1
B2
B3
B1
B2
6
Page 7

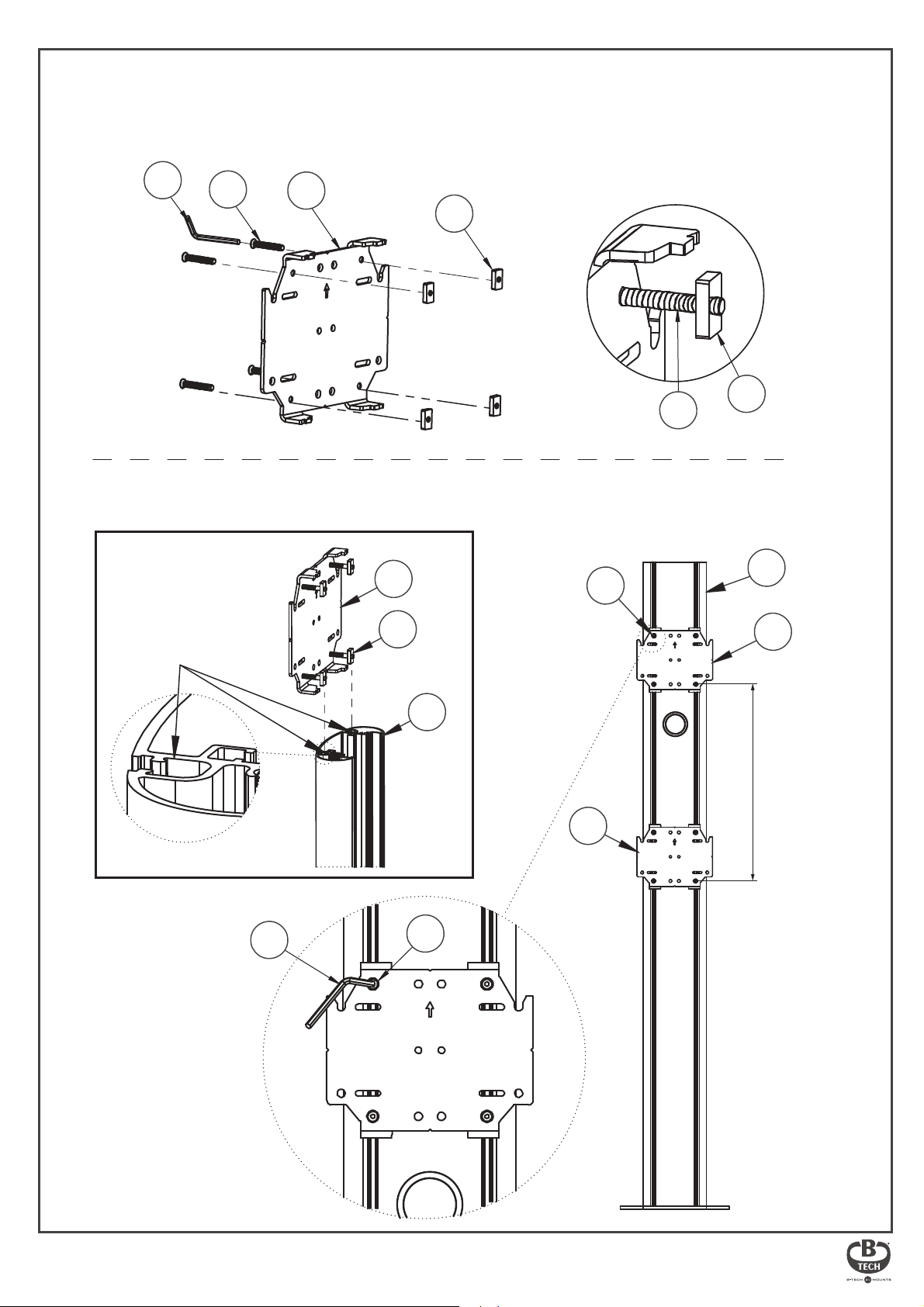

ATTACH MOUNTING BRACKETS TO COLUMNS
2.
i. Insert 4 x item C2 into item C1 and attach item C3.
Screw two full turns to leave item C3 at the end of item C2.
C6
ii. Slide item C1 down the front slots of item A1 to the correct height and tighten items C2.
Note: Space the 2 mounting plates (item C1) 600mm apart on each column.
SLOTS
C2
C1
C1
C3
C3
C2
C2
C3
A1
C1
C6
A1
600mm
C1
C2
7
Page 8

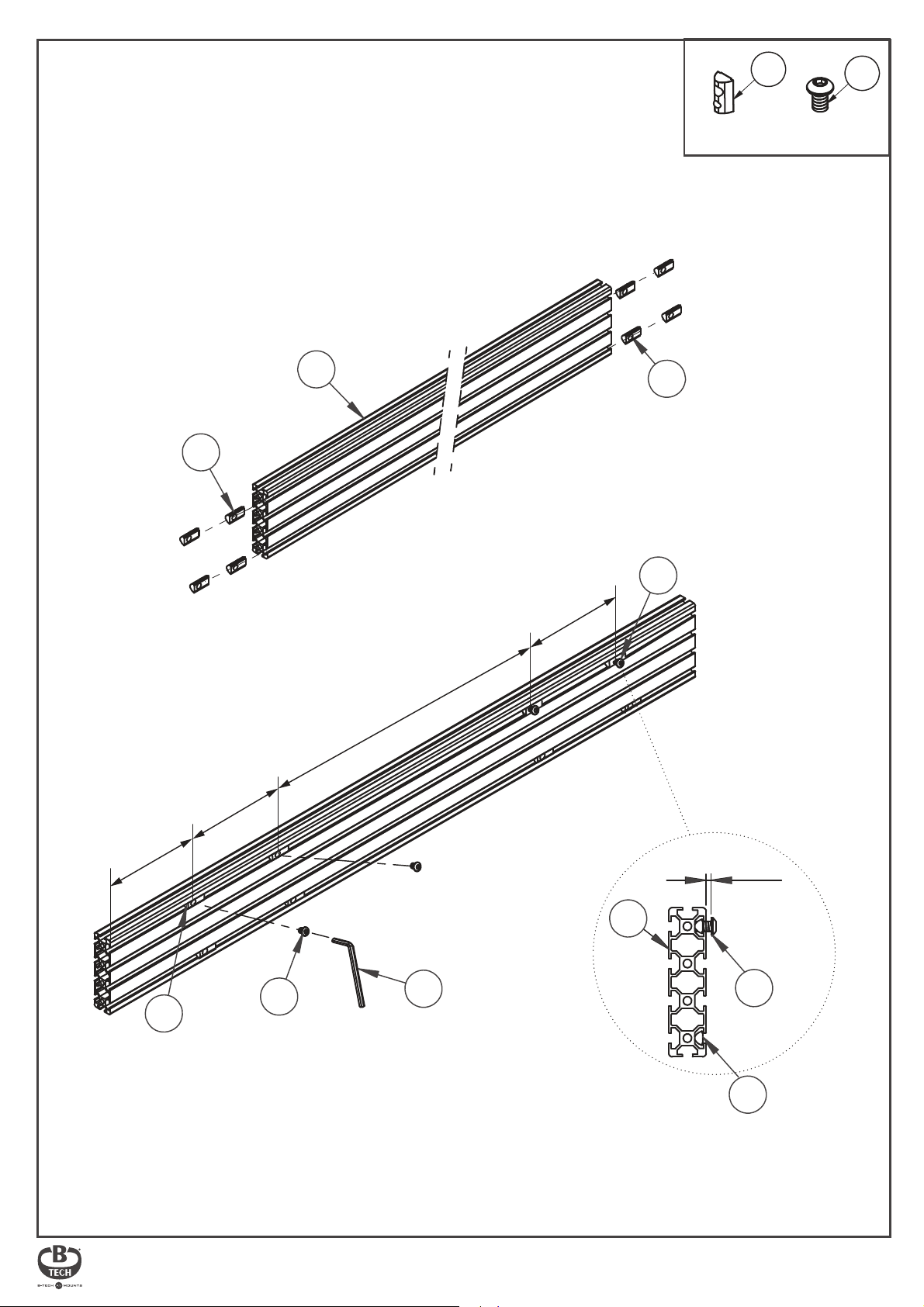

HOOK RAILS ONTO MOUNTING BRACKETS
3.
i. Insert 4 x item C4 into item D1 (2 in the top channel, 2 in the bottom channel)
on each side of the rails.
ii. Screw 2 x item C5 into item C4 in the top channel - allow at least a 6mm gap
so the rail can be hooked on to item C1.
M8 SLIDING
INSERT
C4
C5
M8 x 12mm
HEX SCREW
C4
185mm
D1
C4
185mm
C5
315mm
158mm
C4
C5
C7
6mm+
D1
C5
C4
8
Page 9

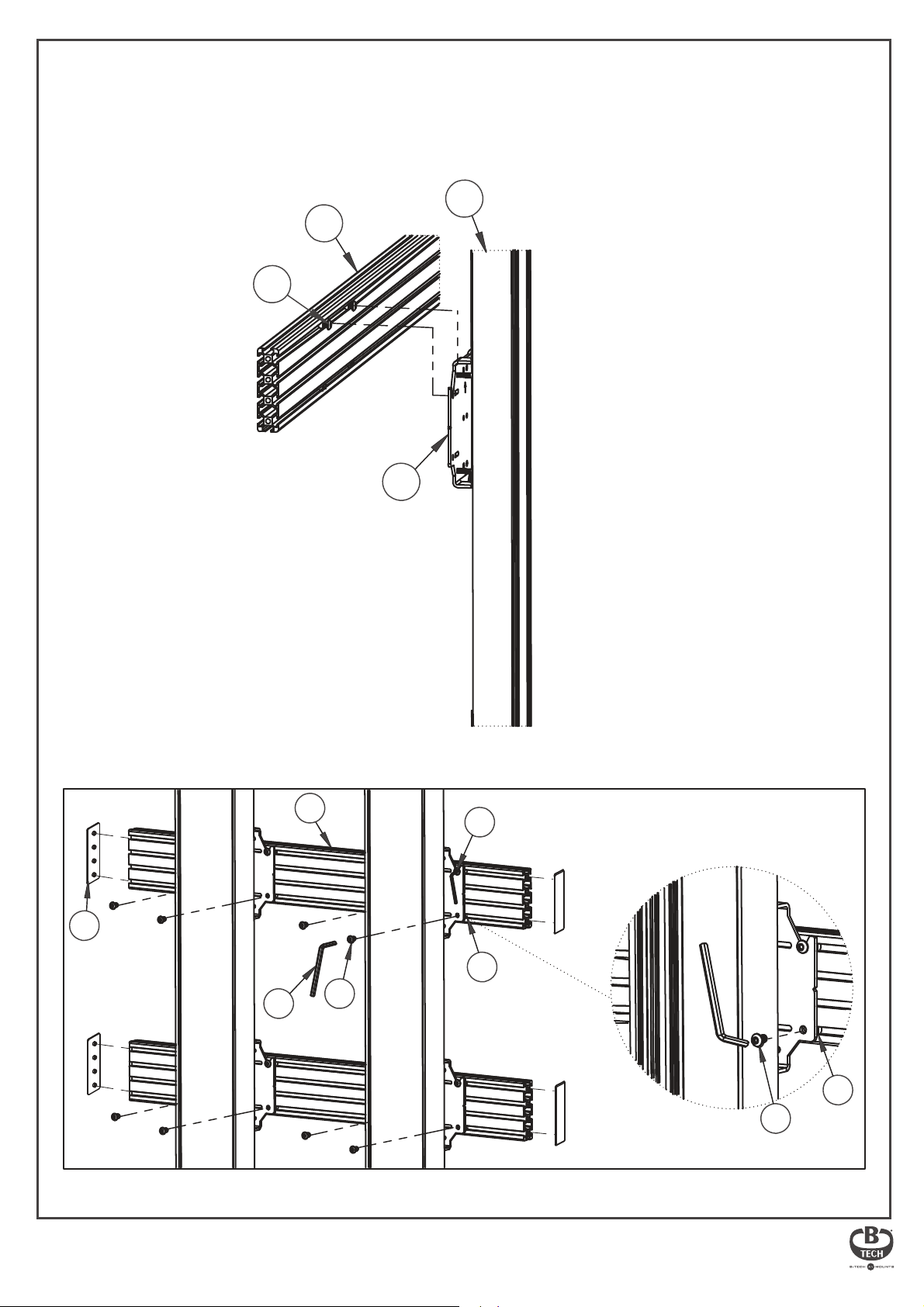

iii. Hook items D1 onto items C1 and x with in place with item C5.
iv. Attach item D2 to the ends of items D1.
Note: The rear cover strips (item A7) can also be inserted into the back of the columns at this point.
A1
D1
C5
C1
D2
C7
D1
C7
C4
C5
C4
C5
9
Page 10

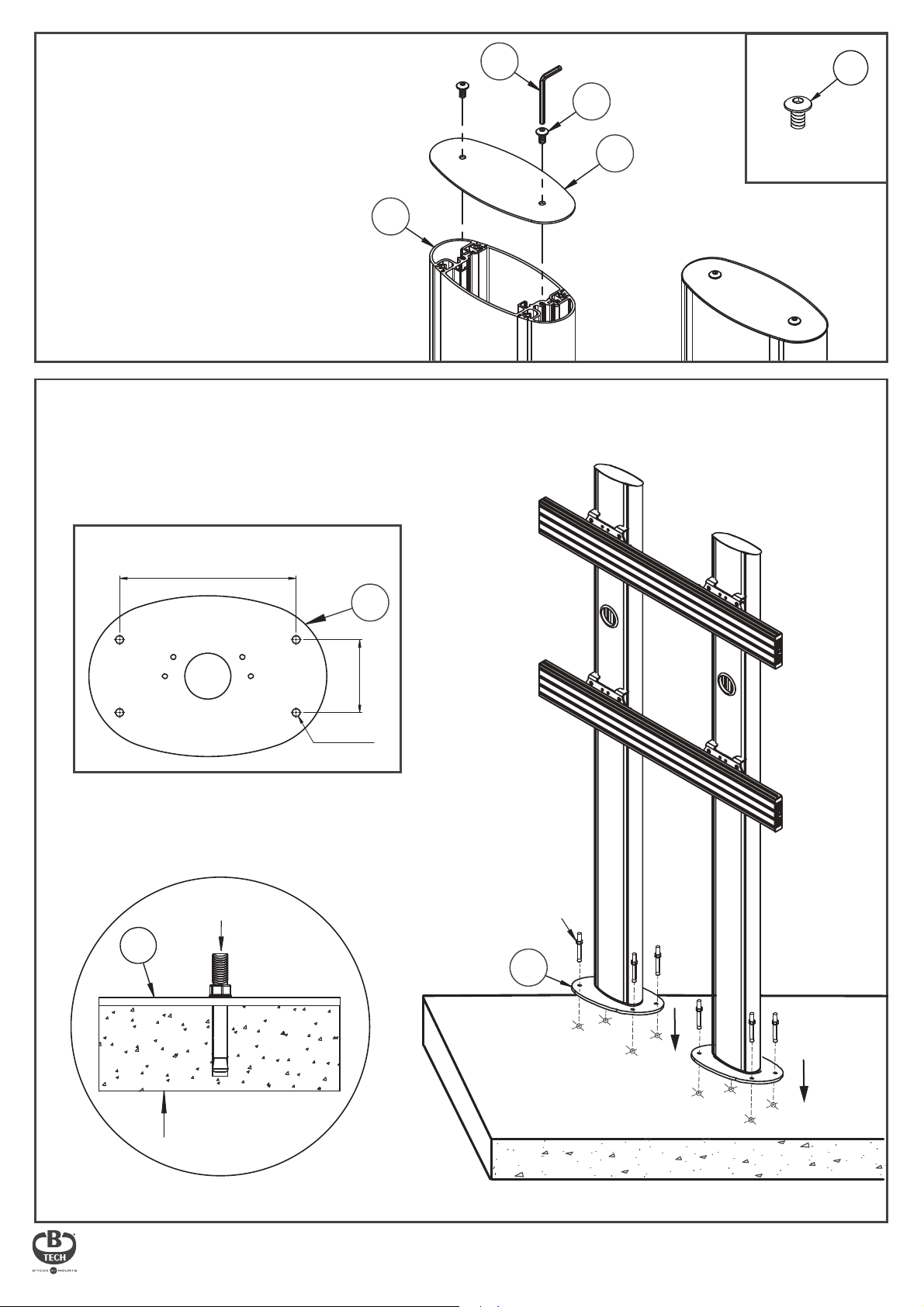

4.
ATTACH END CAPS
Fix item A2 onto the top of item A1
using item A4.
A8
A4
A4
BOLT STAND TO THE FLOOR
5.
Pre-drill holes in oor and using suitable
ground anchor xings (not supplied), x stand to oor.
BASE PLATE FIXING DIMENSIONS
230mm
A1
TOP
A2
M6 x 12mm
HEX SCREW
FRONT
GROUND ANCHOR
B1
4 x
B1
95mm
Ø10.5
GROUND ANCHORS
(not supplied)
B1
CONCRETE FLOOR
10
Page 11

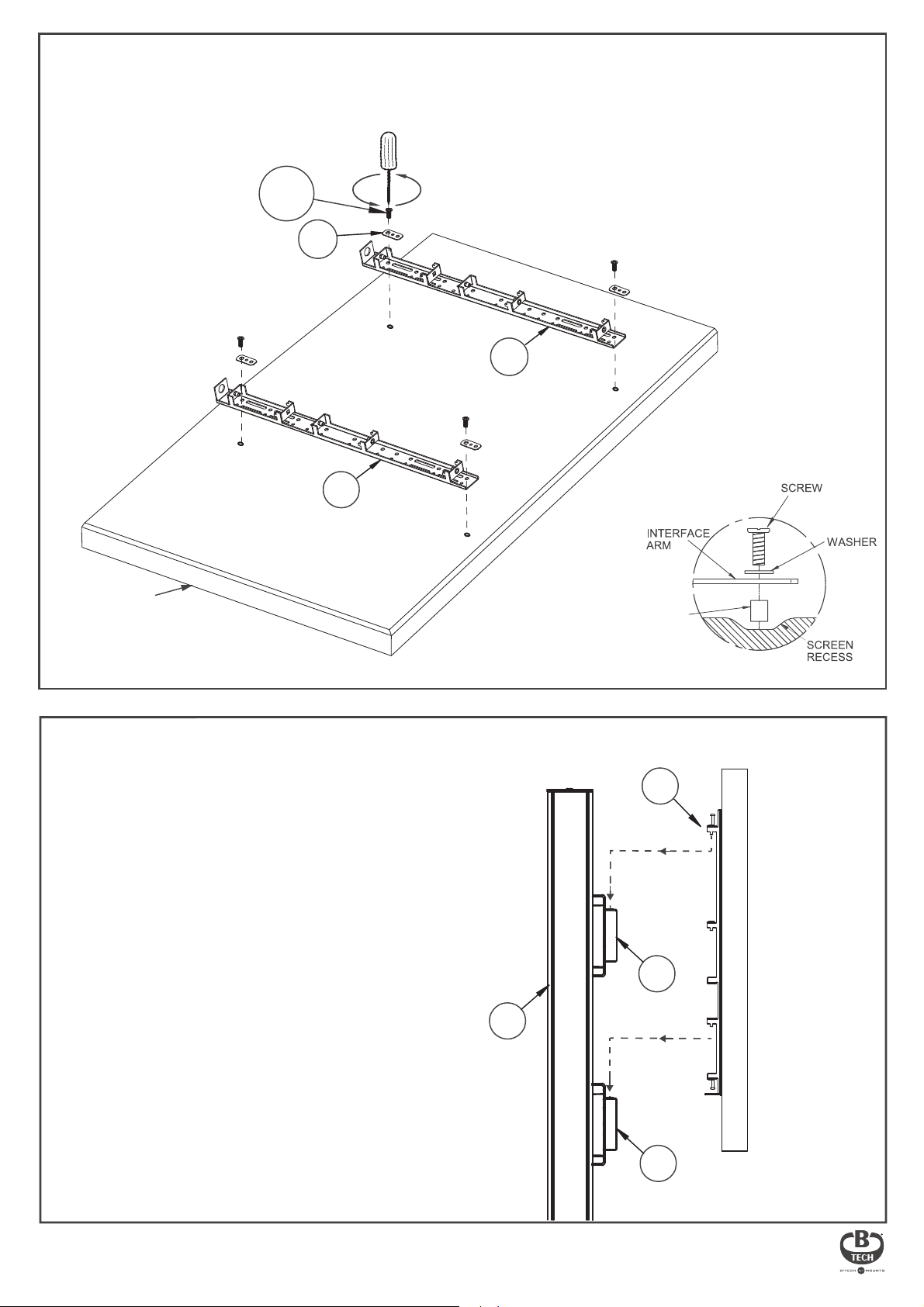

6.
ATTACH INTERFACE ARMS TO SCREEN
Fix items E1 to the rear of the screen using items E3 - E16.
Note: Ensure the arms are facing the correct way round and the same holes are used on both arms.
E3-E11
E12
BOTTOM
E1
TOP
E1
7.
SCREEN
HOOK SCREEN ONTO RAIL
Use item E1 to hook the screen onto items D1.
Use spacers (items E13-E16)
for screens with recessed xings.
E1
D1
A1
SCREEN
11
D1
Page 12

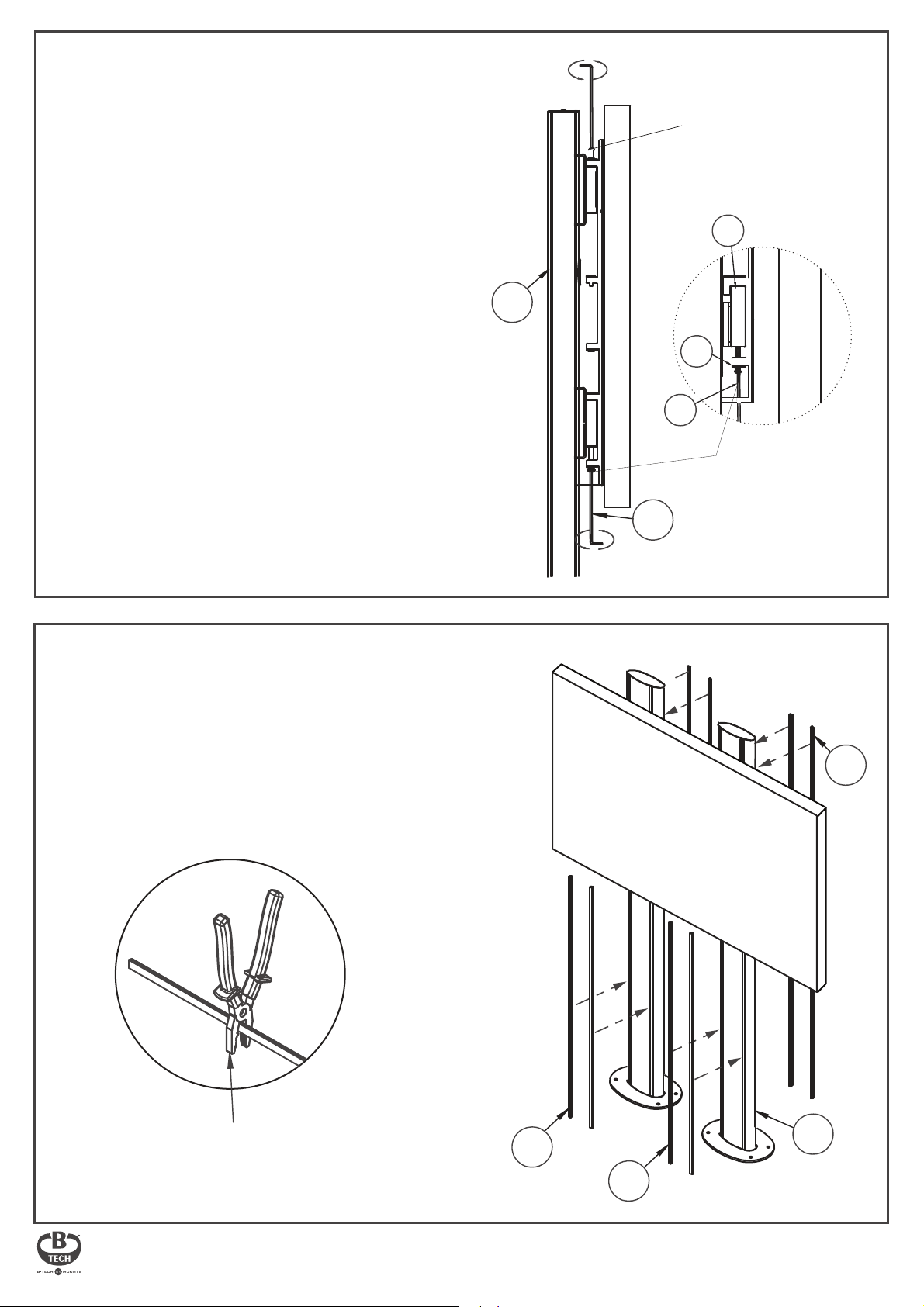

LOCK SCREEN TO RAIL
8.
Tighten the safety screws on the bottom
of item E1 securing the screen to item D1.
Note: If necessary, adjust the height adjustment
screws on top of item E1 to level the screen.
A1
SCREEN
E2
Optional:
HEIGHT ADJUSTMENT
SCREW
D1
E1
SAFETY
SCREW
SCREEN
ATTACH STRIPS
9.
Insert item A7 to the front and back of items A1.
Note: Item A7 may have to be cut down to size
to be able to t into the front of item A1.
E2
A7
Use pliers to cut item A7
to correct size
A7
A1
A7
12
Page 13

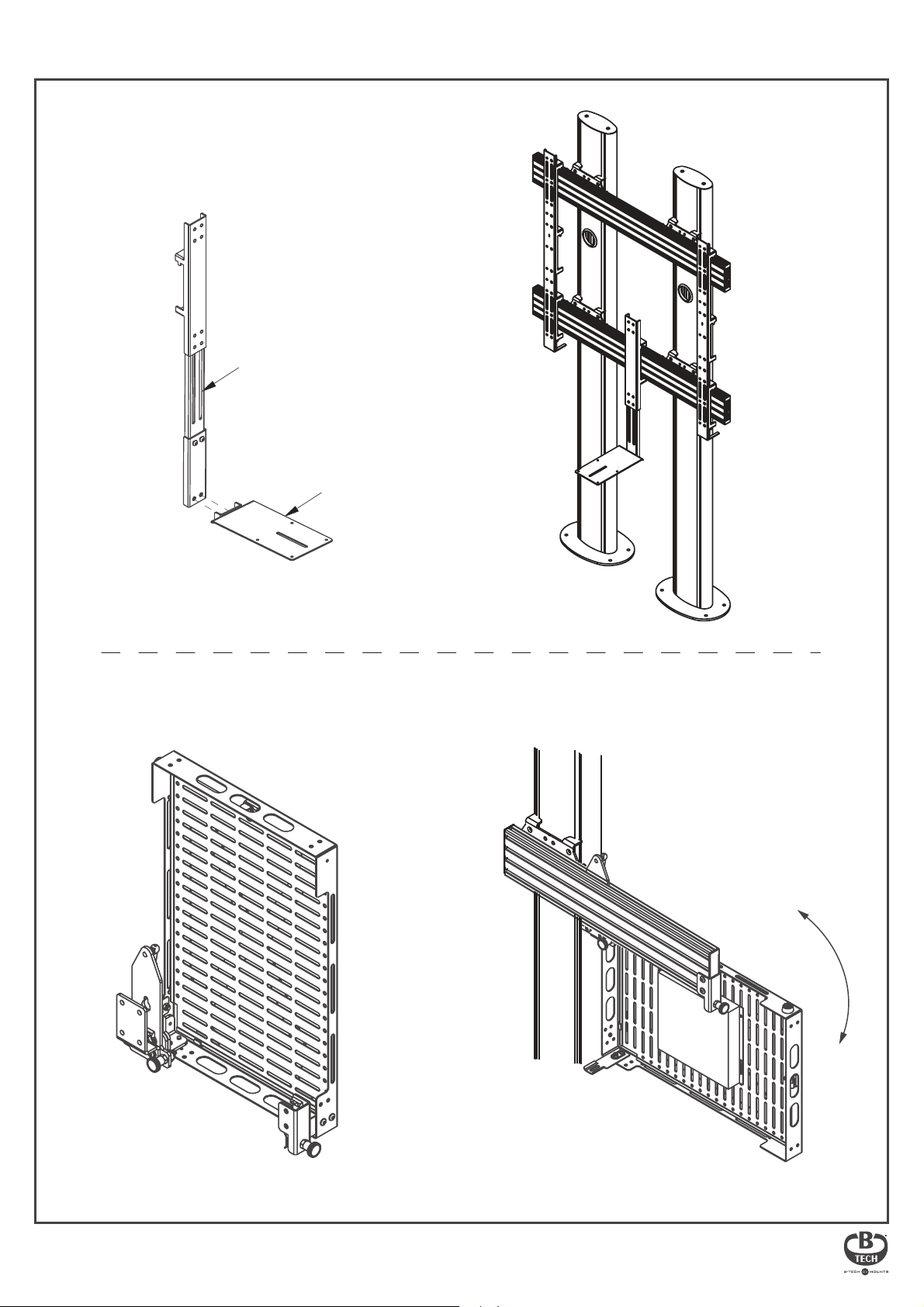

OPTIONAL ACCESSORIES
BT8390-SA + BT7863
CAMERA SHELF AND ADAPTOR
BT8390-SA
BT7863
BT7884
FLIP DOWN STORAGE TRAY
13
Page 14

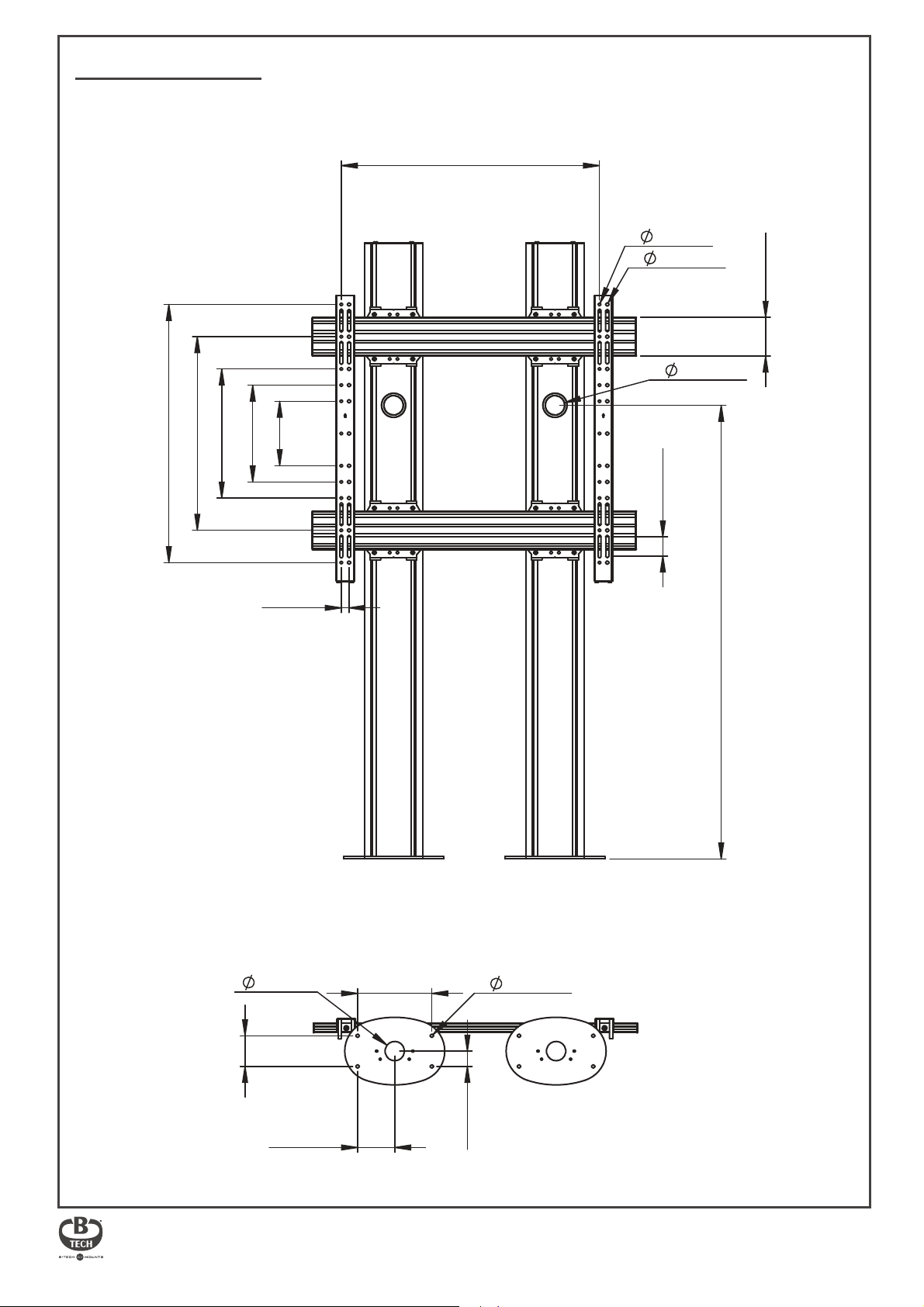

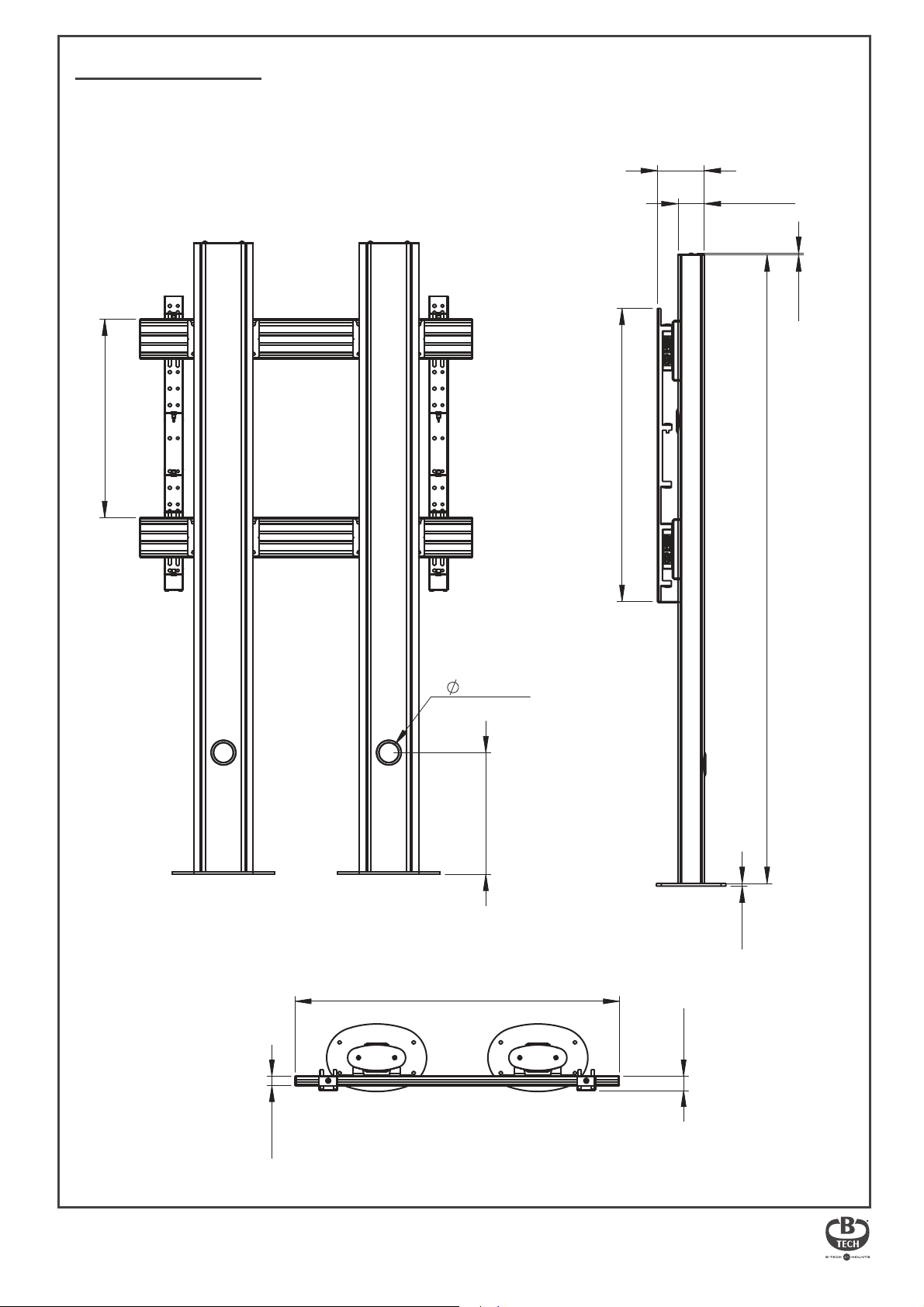

BT8708 DIMENSIONS
PLEASE KEEP THIS FOR FUTURE REFERENCE
800mm
600mm
400mm
300mm
200mm
FRONT VIEW
Max 972mm
8.4mm
10.4mm
59.2mm
120mm
60.8mm
24mm
60mm
230mm
BOTTOM VIEW
10.5mm
1406mm
95mm
115mm
These instructions are intended as a guide only and B-Tech accepts no liability for the accuracy of the information contained in this document.
47.5mm
14
Page 15
BT8708 DIMENSIONS
PLEASE KEEP THIS FOR FUTURE REFERENCE
SIDE VIEW
141.5mm
600mm
BACK VIEW
79.5mm
5mm
886mm
1900mm
60.8mm
TOP VIEW
1005mm
368mm
8mm
45mm
30mm
These instructions are intended as a guide only and B-Tech accepts no liability for the accuracy of the information contained in this document.
15
Page 16
B-TECH AV mounts
CONTACT:
©2021 B-Tech International Design and Manufacturing Ltd. All rights reserved.
B-Tech AV Mounts is a division of B-Tech International Design and Manufacturing Ltd.
B-Tech AV Mounts and the B-Tech logo are registered trade marks.
All other brands and product names are trademarks of their respective owners.
Photographs are for illustrative purposes only. E&OE.
AMA-BT8708-V1-0521-104 MADE IN VIETNAM
