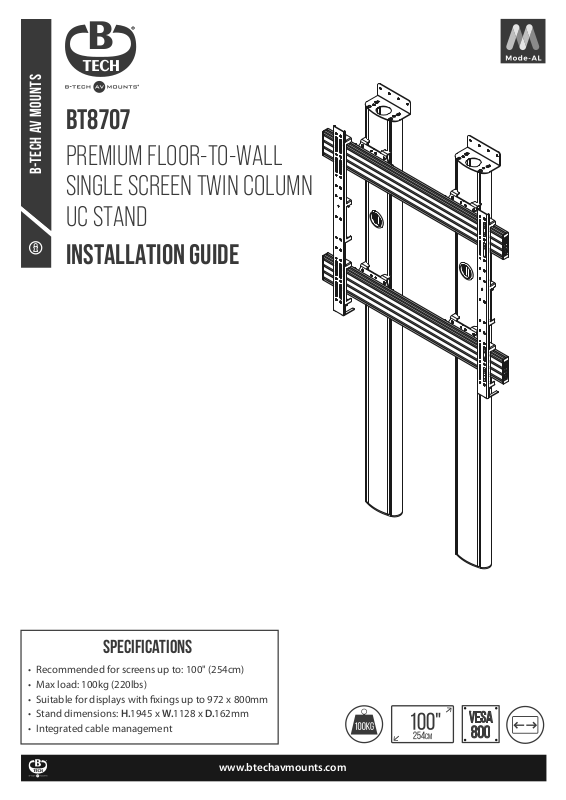

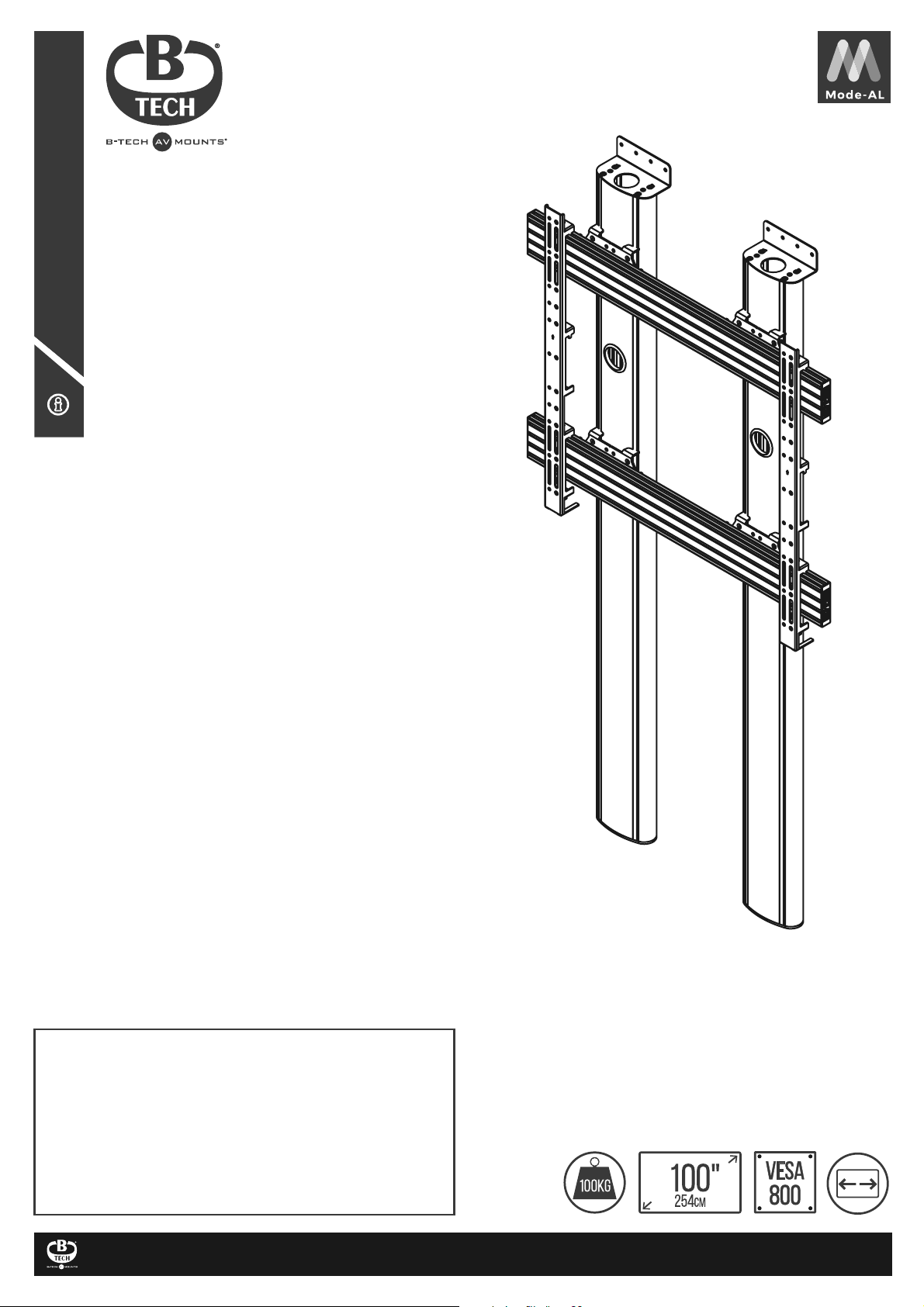

Page 1
BT8707
PREMIUM FLOOR-TO-WALL
B-TECH AV mounts
SINGLE SCREEN TWIN COLUMN
UC STAND
INSTALLATION GUIDE
SPECIFICATIONS
• Recommended for screens up to: 100" (254cm)
• Max load: 100kg (220lbs)
• Suitable for displays with xings up to 972 x 800mm
• Stand dimensions: H.1945 x W.1128 x D.162mm
• Integrated cable management
www.btechavmounts.com
Page 2
CONTENTS
Installation Safety Notes......................................................................................................................
Parts List....................................................................................................................................................
Installation Instructions.......................................................................................................................
Product Dimensions............................................................................................................................
B-Tech Contact Details........................................................................................................................
2
4
6
14
16
INSTALLATION SAFETY INSTRUCTIONS
This stand is intended for use only with the
CAUTION:
maximum weights indicated. Use with screens heavier than the maximum
indicated may result in instability causing possible injury.
Do not attempt to install this product until all instructions and warnings have been read and properly understood.
Please keep these instructions for future reference.
Please check carefully to make sure there are no missing or defective parts - defective parts must never be used.
B-Tech AV Mounts, its distributors and dealers are not liable or responsible for damage or injury caused by improper
installation, improper use or failure to observe these safety instructions. In such cases, all guarantees will expire.
General
r suitab
B-Tech AV Mounts recommends that a professional AV installer or othe
Great care must always be taken during installation as most AV equipment is of a fragile nature, possibly heavy and
easily damaged if dropped.
If you do not fully understand the instructions or are not sure how to install this product safely, then please consult a
professional for advice and/or to install this product for you. Failure to mount this product correctly may cause serious
on and
injury or death both during installati
Do not mount any AV equipment that exceeds the specic weight limit of the product you are installing.
This weight limit will be clearly stated on each product and its packaging and will vary from product to product.
at any time thereafter.
ly qualied person install this product.
Product location
Please pay careful attention to where this product is located. Check load capacity of wall/oor prior to installation as some
surfaces are not suitable for installation. Designed for indoor use, this mount is suitable for public or home installation
If located in a public or frequently populated area ensure that the product is out of the immediate reach of people.
If any AV equipment is to be suspended over the likely path or location of people then great care should be taken to
secure all parts of the installation from falling.
When drilling holes it is essential to avoid contact with electrical cables and water or gas pipes contained within.
Use of a good quality live wire detector and hidden object locator is therefore recommended.
Only drill into structures when you are sure it is safe to do so.
Fixing hardware
It is highly recommended that all xing screws be used where supplied and that the purpose of all other xing hardware
is fully understood. In some cases more AV equipment xing hardware will be supplied to accommodate dierent models
of equipment and set up congurations. The installer must be satised that any supplied xing hardware is suitable for
each specic installation. The xing kit supplied with the product may not be suitable for all walls/oors.
If any xing screws or included hardware are deemed not sucient for a safe installation then plea
professional or your local hardware store.
Hazard limitation
When routing cables take advantage of any built in cable management features that the product might provide and ensure
that all cables are tidy and secure. Check to see that any moving aspect of the product can do so unhindered by any cabling.
Some products have moving parts and the potential to cause injury through the crushing or trapping of ngers or other
body parts.
during set up.
necessary xings are present and are of ample tightness.
It is recommended that periodic inspections of the product and its xing points are made as frequently as possible (no more
than 6 months apart) to ensure that safety is maintained.
If in doubt consult a professional AV installer or other suitably qualied person.
Particular attention to the nature of moving parts is required especially when assembling installing and adjusting
Immediately after installation double-check that the work done is safe and secure. Double-check all
se consult a
2
Page 3

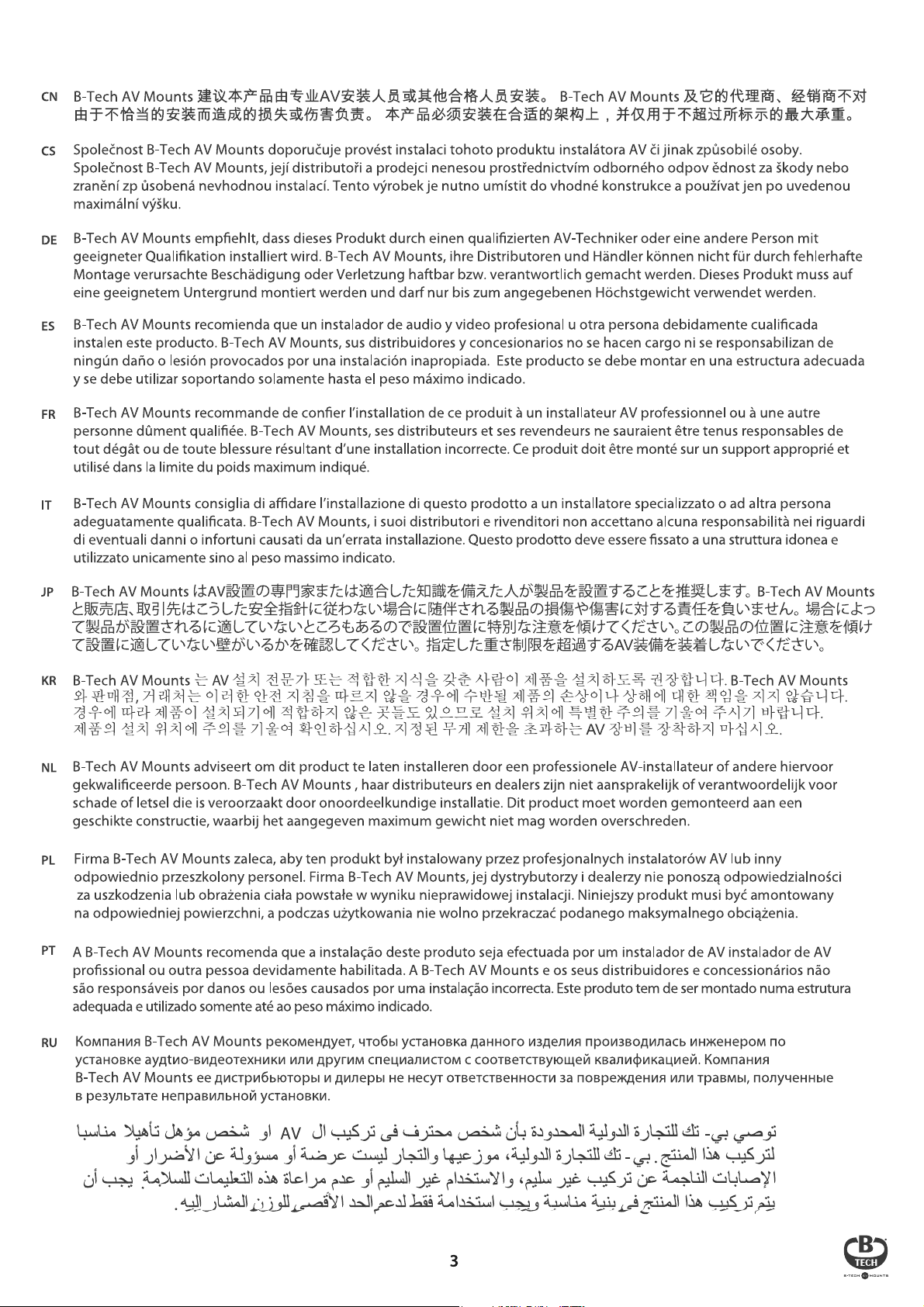

Page 4

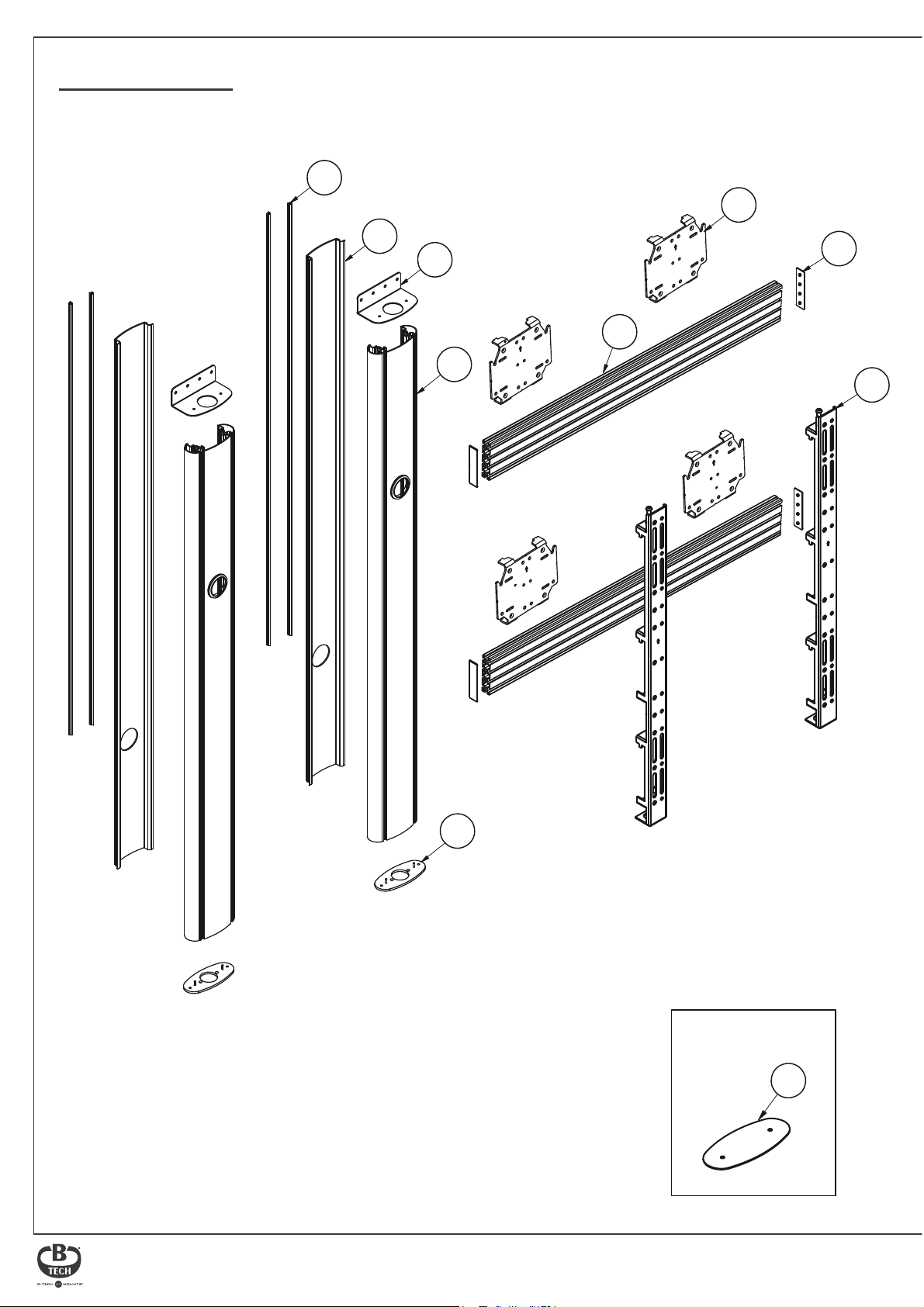

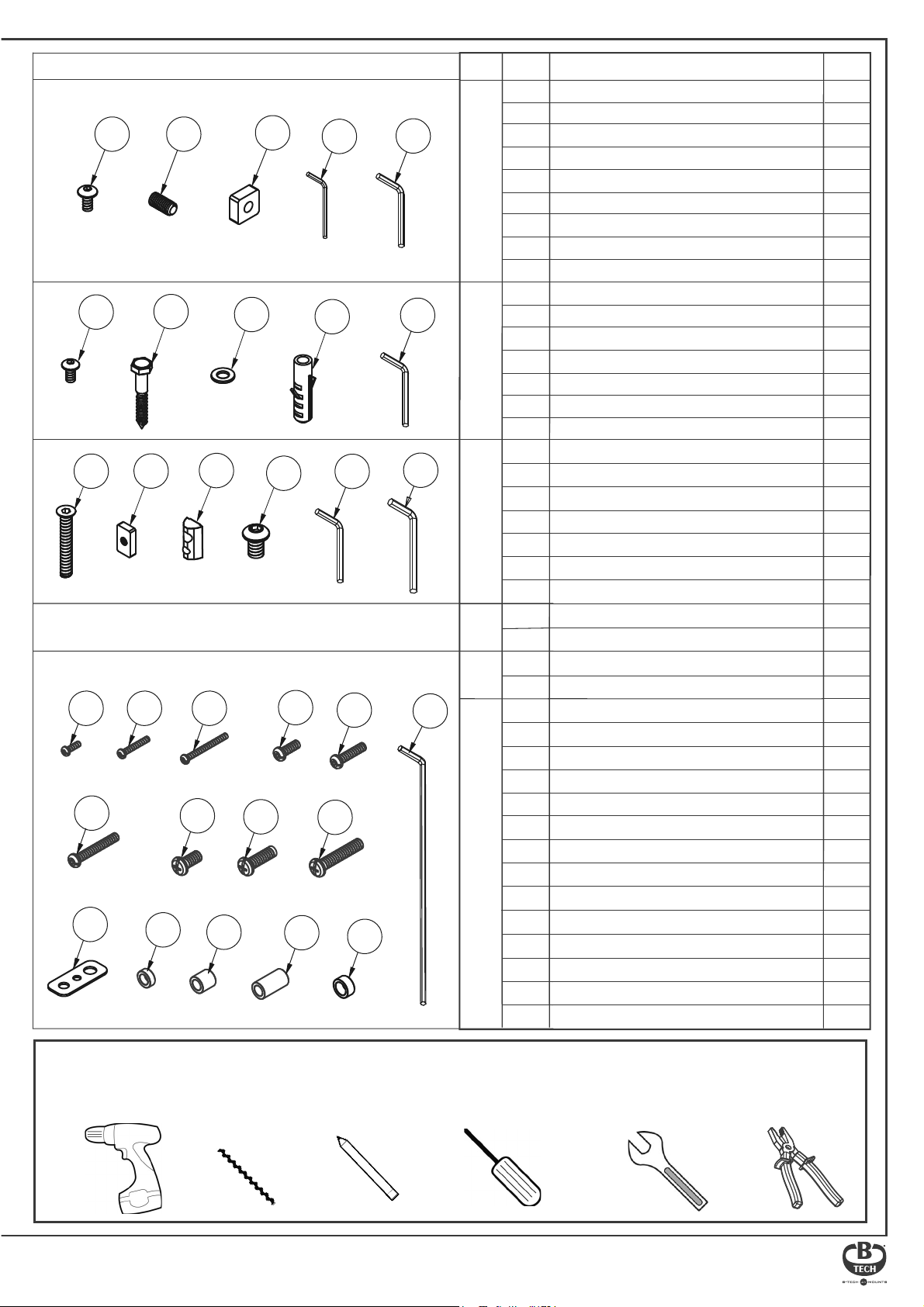

BT8707 PARTS LIST
PLEASE KEEP THIS FOR FUTURE REFERENCE
A7
C1
A3
B1
D2
D1
A1
E1
B2
NOT REQUIRED
A2
4
Page 5
B3
C2
E3
E8
E12
A4
E4 E5
C3
B4
E13
A5
ITEM PART
E9
C4
E14
A6
B5
C5
E10
E6
E15
A8
B6
E11
A9
C6
E7
E16
B7
C7
E2
REF
A1
1.9M COLUMN
END CAP
A2
A3
COLUMN REAR COVER
M6 x 12mm HEX SCREW
A4
M6 x 12mm GRUB SCREW (OPTIONAL)
A5
SQUARE NUT (OPTIONAL)
A6
COLUMN
A7
COVER STRIP
A8
3AF HEX KEY
A9
4AF HEX KEY
WALL PLATE
B1
B2
BASE PLATE
M6 x 12mm SCREW
B3
M8 x 50mm COACH SCREW
B4
M8 T1.5mm METAL WASHER
B5
N°.10 x 50mm WALL PLUG
B6
FLOOR TO WALL KIT
B7
4AF HEX KEY
C1
RAIL-TO-COLUMN MOUNTING BRACKET
M6 x 40mm CSK HEX SCREW
C2
C3
RECTANGLE NUT
M8 SLIDING INSERT
C4
M8 x 12mm SCREW
C5
4AF HEX KEY
C6
MOUNTING BRACKET
RAIL
ARMS
SCREEN FIXING KIT
5AF HEX KEY
C7
MOUNTING RAIL
D1
D2
END CAP
SCREEN INTERFACE ARM
E1
5AF LONG HEX KEY
E2
E3
M6 x 16mm SCREW
M6 x 25mm SCREW
E4
M6 x 40mm SCREW
E5
M8 x 16mm SCREW
E6
E7
M8 x 25mm SCREW
M8 x 40mm SCREW
E8
M10 x 16mm SCREW
E9
M10 x 25mm SCREW
E10
M10 x 40mm SCREW
E11
MULTIWASHER
E12
M8 5mm SPACER
E13
M8 13mm SPACER
E14
M8 24mm SPACER
E15
M10 7mm SPACER
E16
DESCRIPTION QTY
2
2
2
4
8
8
8
2
2
2
2
4
8
8
8
2
4
16
16
16
16
4
4
2
4
2
1
4
4
4
4
4
4
4
4
4
4
4
4
4
4
INSTALLATION TOOLS REQUIRED
Drill Pencil
10mm Masonry
Drill Bit
Spanner
Pliers/CutterCrosshead Screwdriver
5
Page 6
Installation Instructions

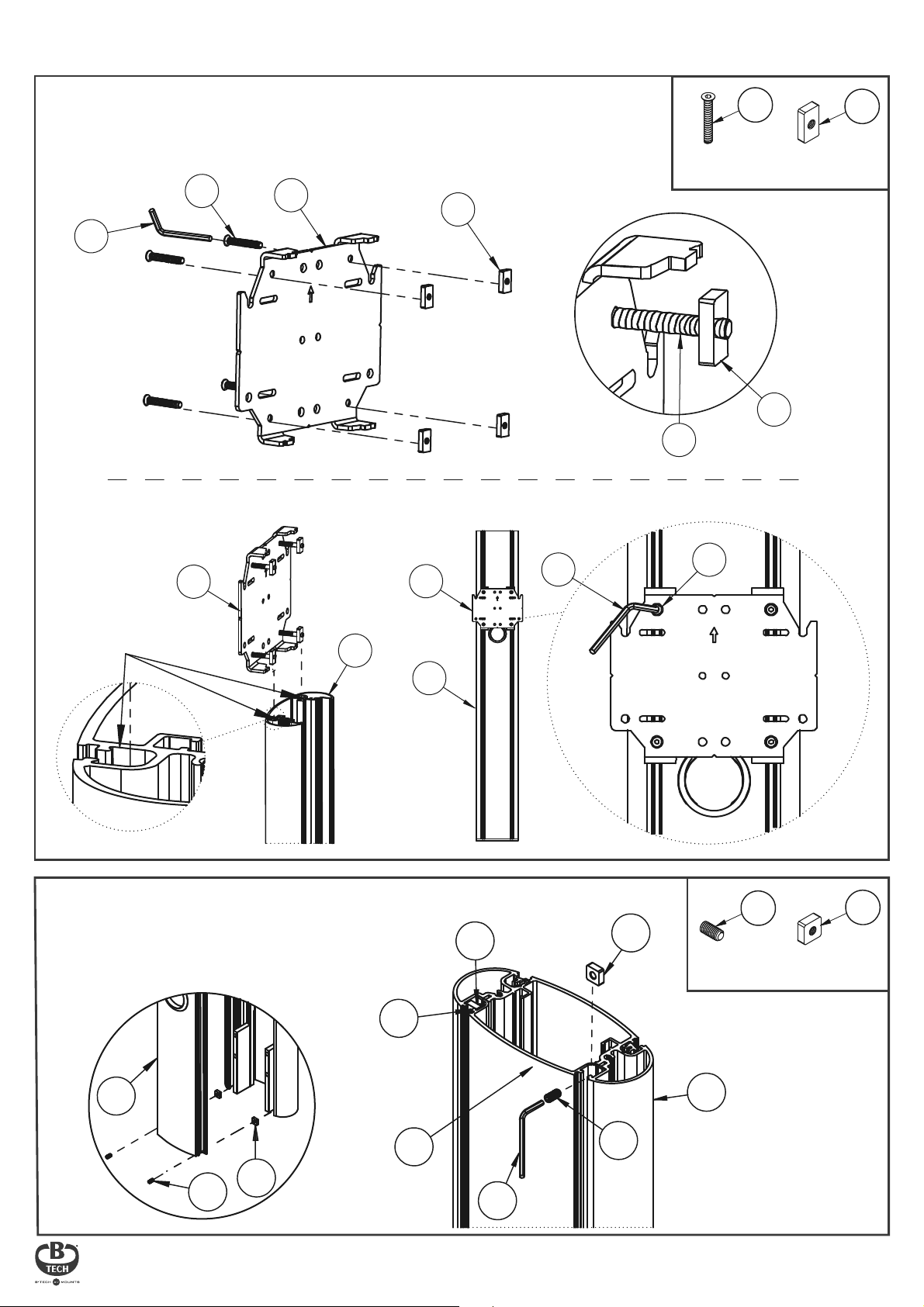

ATTACH MOUNTING BRACKETS TO COLUMNS
1.
i. Insert 4 x item C2 into item C1 and attach item C3.
Screw two full turns to leave item C3 at the end of item C2.
C2
C6
ii. Slide item C1 down the front slots of item A1 to the correct height and tighten item C2.
Repeat for both columns.
C1
C3
C2
C2
M6 x 40mm
CSK HEX SCREW
C3
RECTANGLE
NUT
C3
C1
A1
SLOTS
C1
A1
OPTIONAL - FIX REAR COVER TO COLUMNS
Place item A3 into the back of item A1.
Use items A5 & A6 at the top and bottom of the
column slot to secure rear cover.
A5
A6
C6
A6
FRONT
C2
A5
M6 x 12mm
GRUB SCREW
A6
SQUARE
NUT
A3
A5
REAR
A6
A3
REAR
A1
A5
A8
6
Page 7

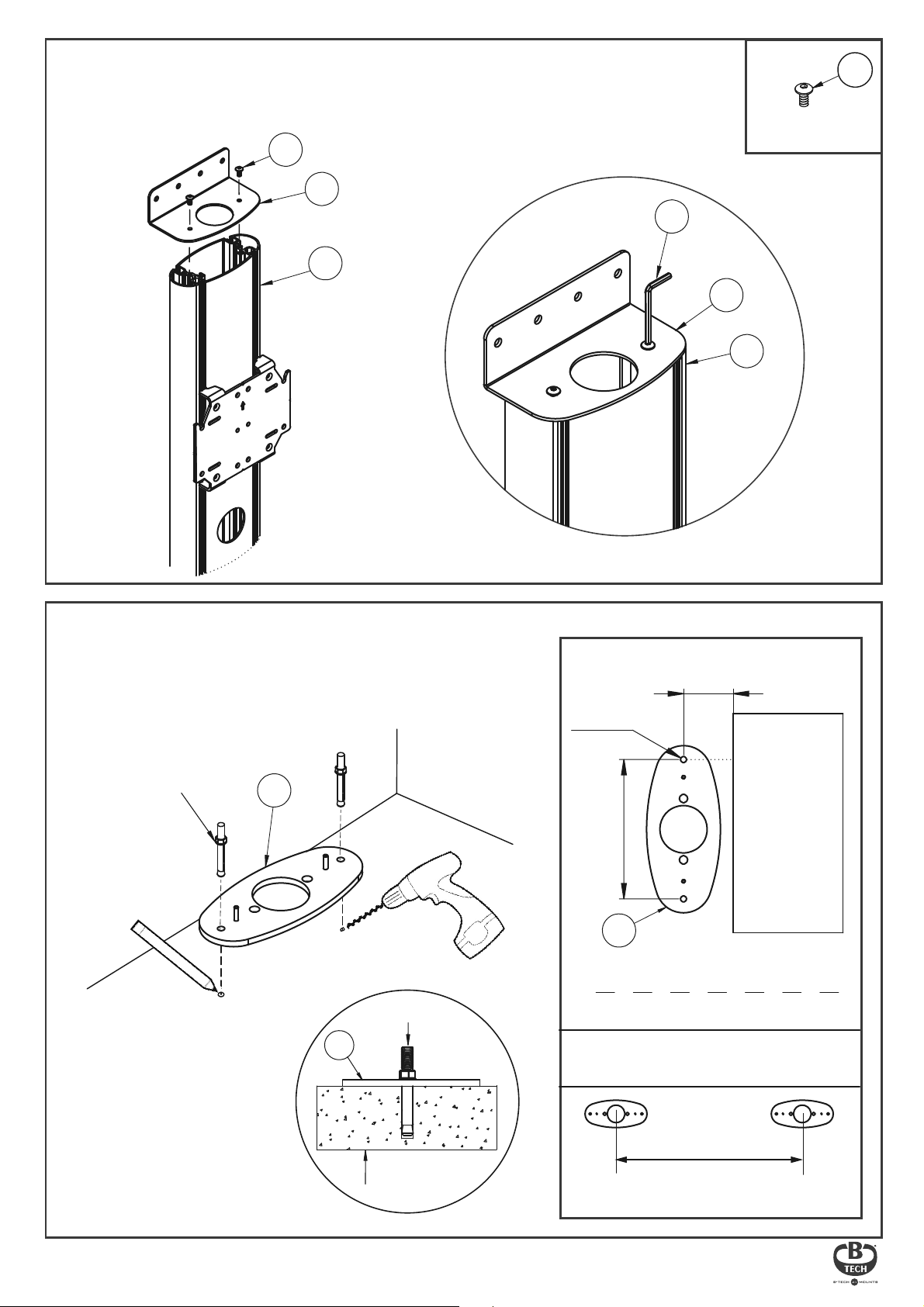

ATTACH WALL PLATE TO COLUMNS
2.
Fix item B1 to the top of item A1 using item B3.
B3
B1
B3
M6 x 12mm
HEX SCREW
B7
A1
FIX FLOOR PLATES TO THE FLOOR
3.
Fix item B2 to oor (xings not included).
Note: Fixing points are 60mm away from the wall.
The oor plates should be set 600mm apart.
B1
A1
TOP VIEW
60mm
6.5mm
GROUND ANCHORS
(not supplied)
B2
FLOOR
B2
GROUND ANCHOR
CONCRETE FLOOR
150mm
B2
WALL
WALL
600mm
7
Page 8

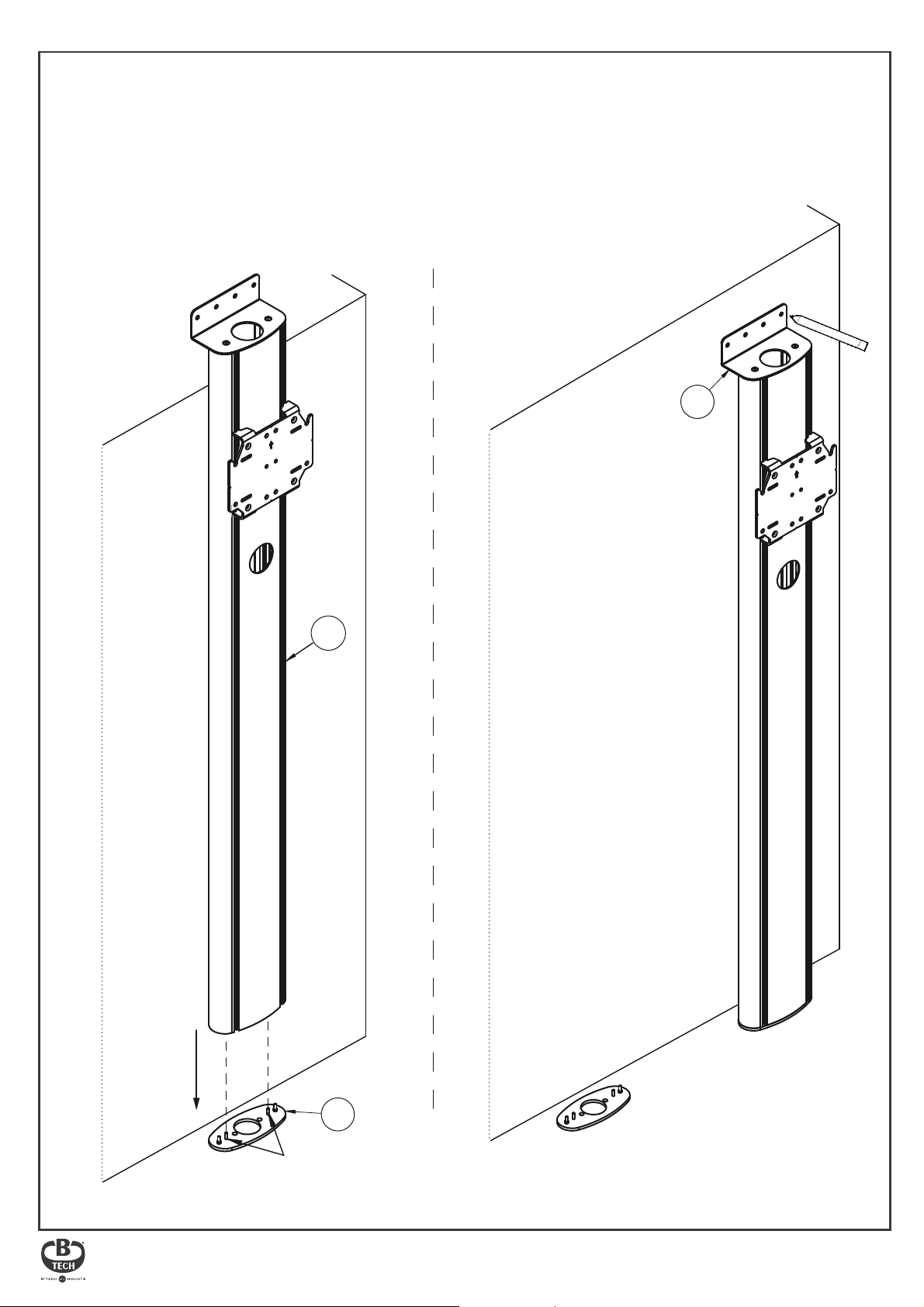

MARK WALL FIXING HOLES
4.
Using the guide pins, place item A1 onto items B2.
Mark the 4 xing holes from item B1 onto the wall.
WALL
A1
x
x
x
x
B1
B2
GUIDE PINS
8
Page 9

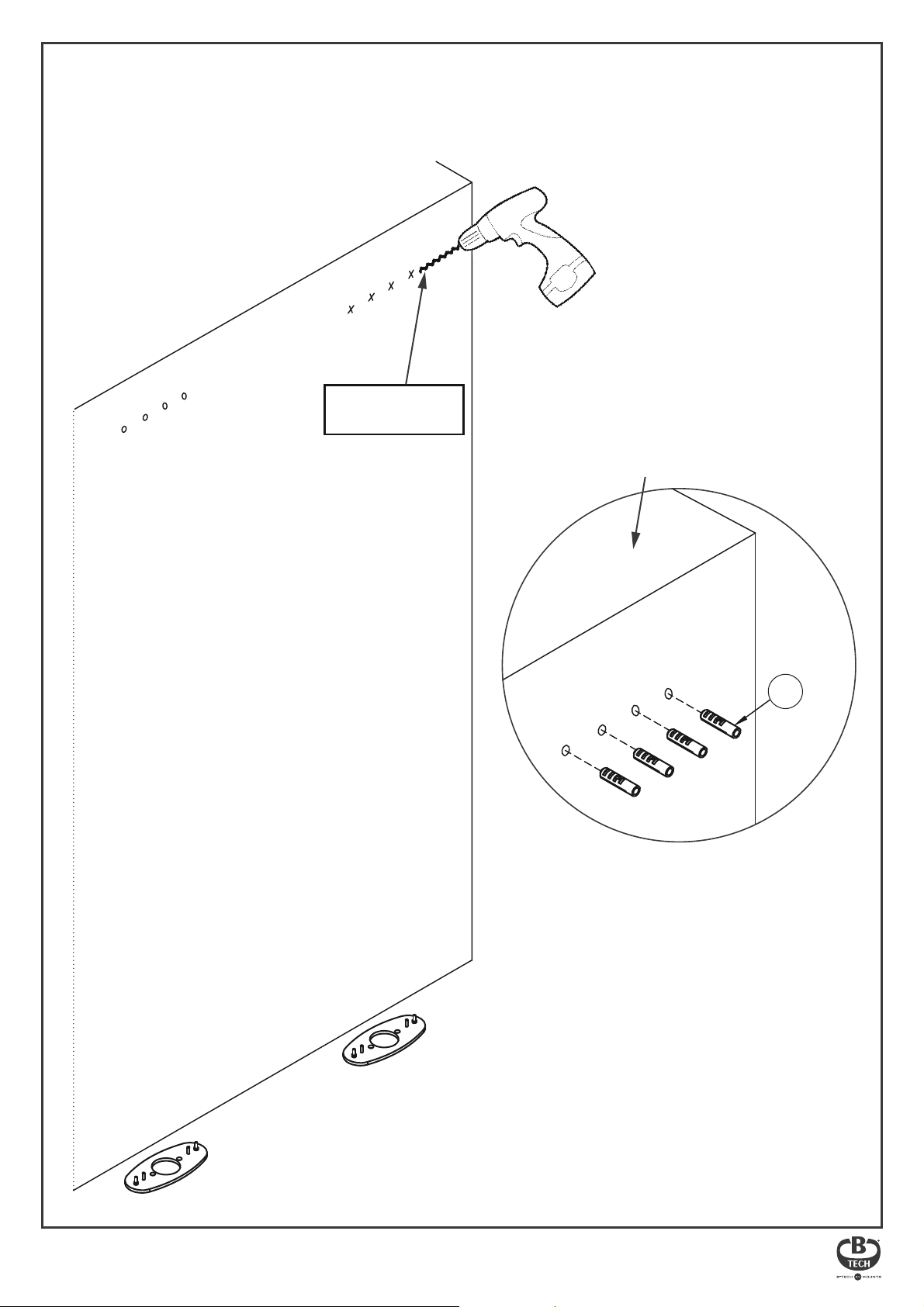

DRILL HOLES AND INSERT WALL PLUGS
5.
Remove item A1 and drill marked holes.
Insert 4 x item B6 (Not required for stud/wood walls).
WALL
10mm Masonary
Drill Bit
MASONARY WALL
B6
9
Page 10

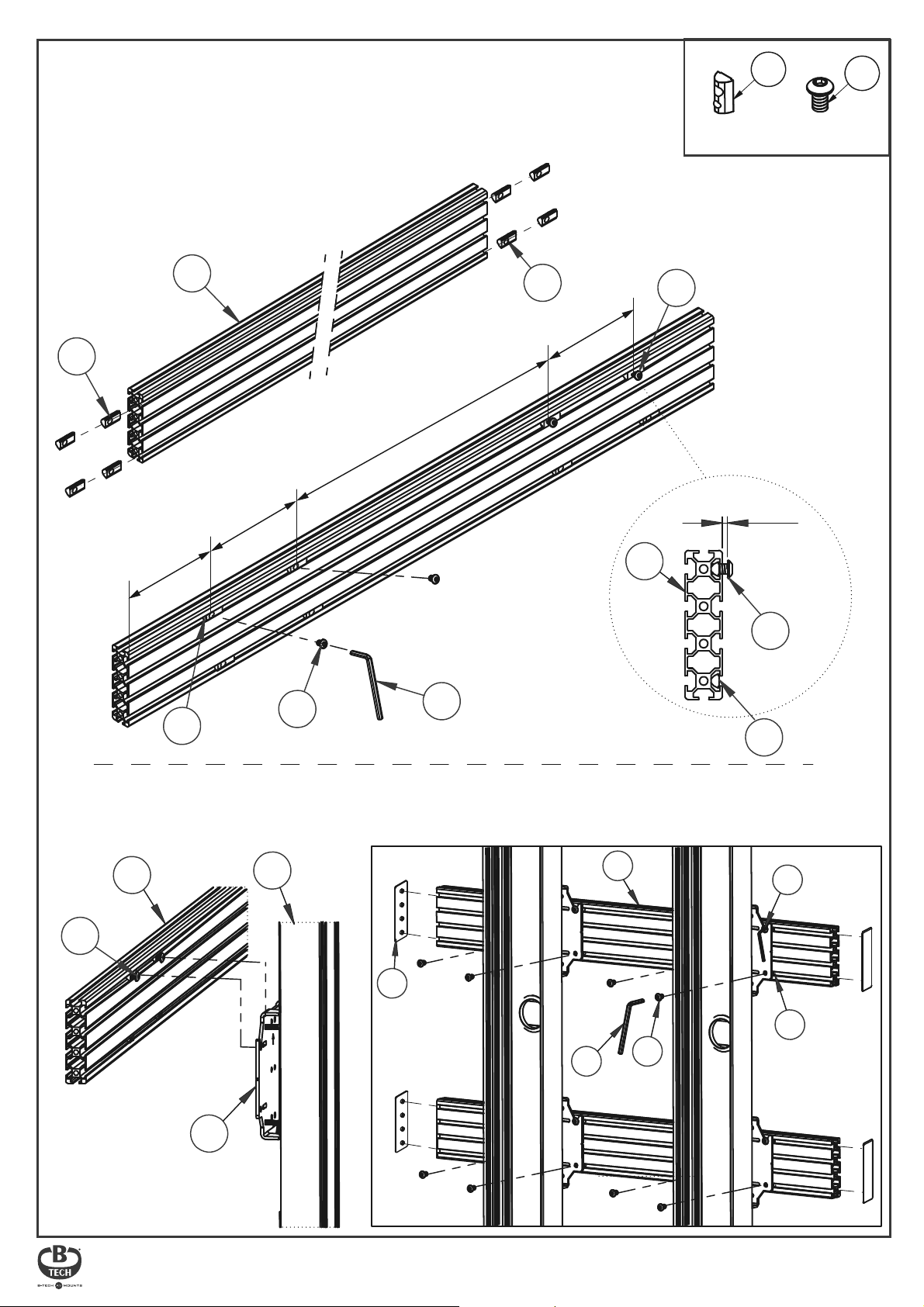

HOOK RAILS ONTO MOUNTING BRACKETS
6.
i. Insert 4 x item C4 into item D1 (2 in the top channel, 2 in the bottom channel)
on each side of the rails.
ii. Screw 2 x item C5 into item C4 in the top channel - allow at least a 6mm gap
so the rail can be hooked on to item C1.
M8 SLIDING
INSERT
C4
C5
M8 x 12mm
HEX SCREW
C4
D1
158mm
C4
185mm
C5
315mm
C7
C4
C5
185mm
6mm+
D1
C5
C4
iii. Hook items D1 onto items C1 and x with in place with item C5.
iv. Attach item D2 to the ends of items D1.
Note: The rear cover strips (item A7) can also be inserted into the back of the columns at this point).
D1
A1
D1
C5
D2
C7
C5
C1
C7
C4
10
Page 11

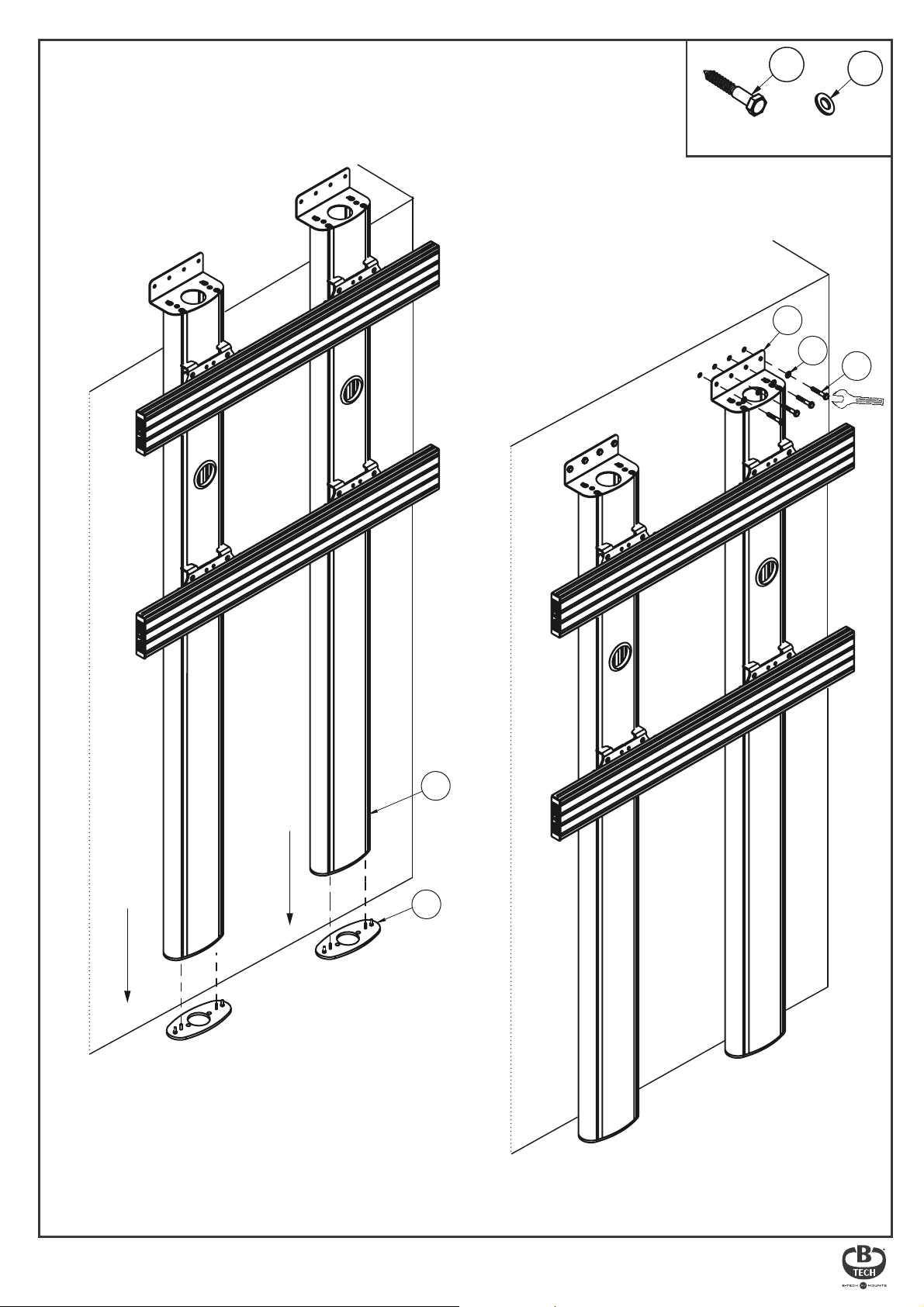

FIX COLUMN TO WALL
7.
Place item A1 onto item B2 and x item B1 to the wall using items B4 & B5.
WALL
M8 x 50mm
COACH SCREW
B4
B1
B5
M8
WASHER
B5
B4
B2
A1
11
Page 12

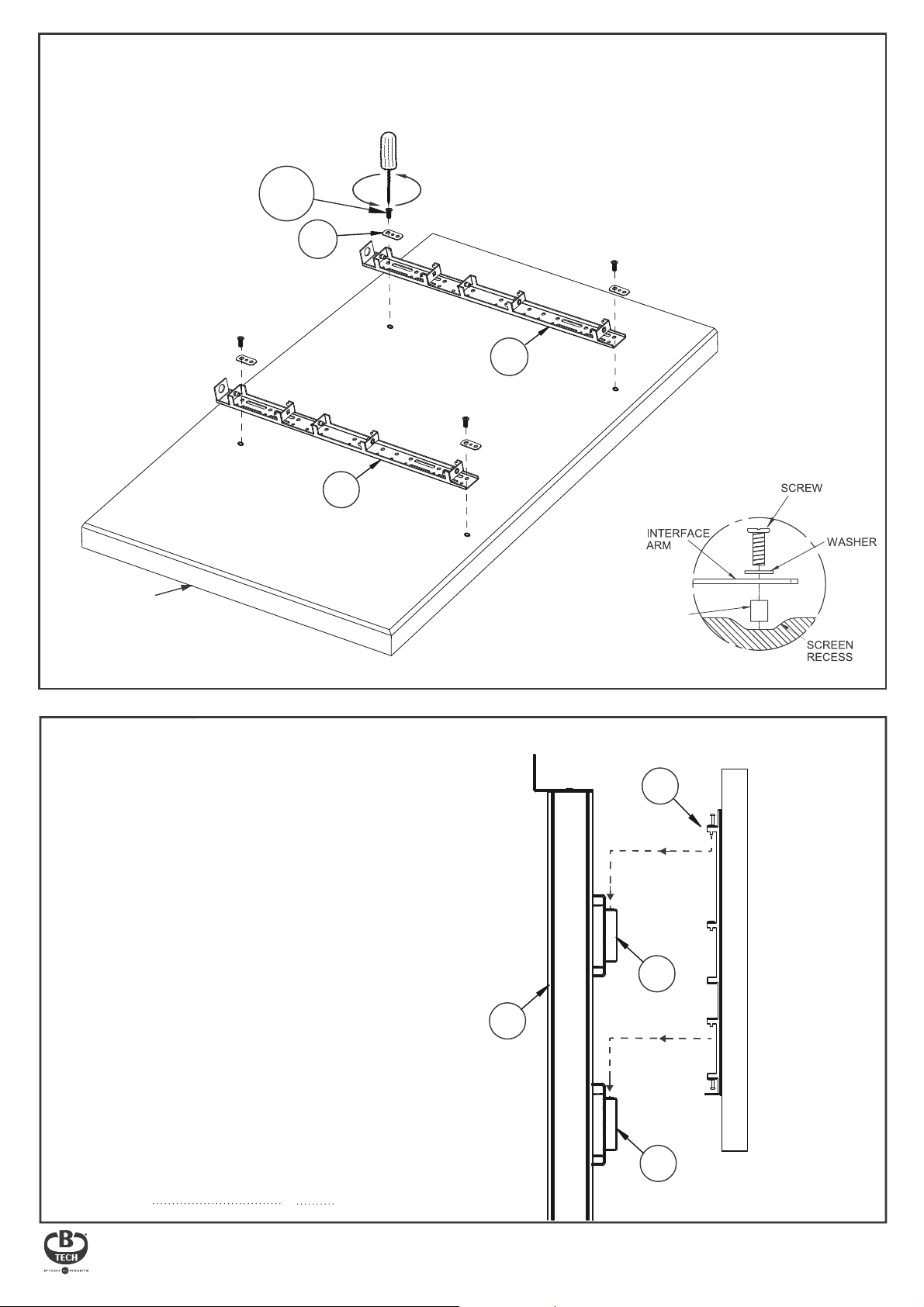

ATTACH INTERFACE ARMS TO SCREEN
8.
Fix items E1 to the rear of the screen using items E3 - E16.
Note: Ensure the arms are facing the correct way round and the same holes are used on both arms.
E3-E11
E12
BOTTOM
E1
TOP
E1
SCREEN
HOOK SCREEN ONTO RAIL
9.
Use item E1 to hook the screen onto items D1.
Use spacers (items E13-E16)
for screens with recessed xings.
E1
D1
A1
SCREEN
12
D1
Page 13

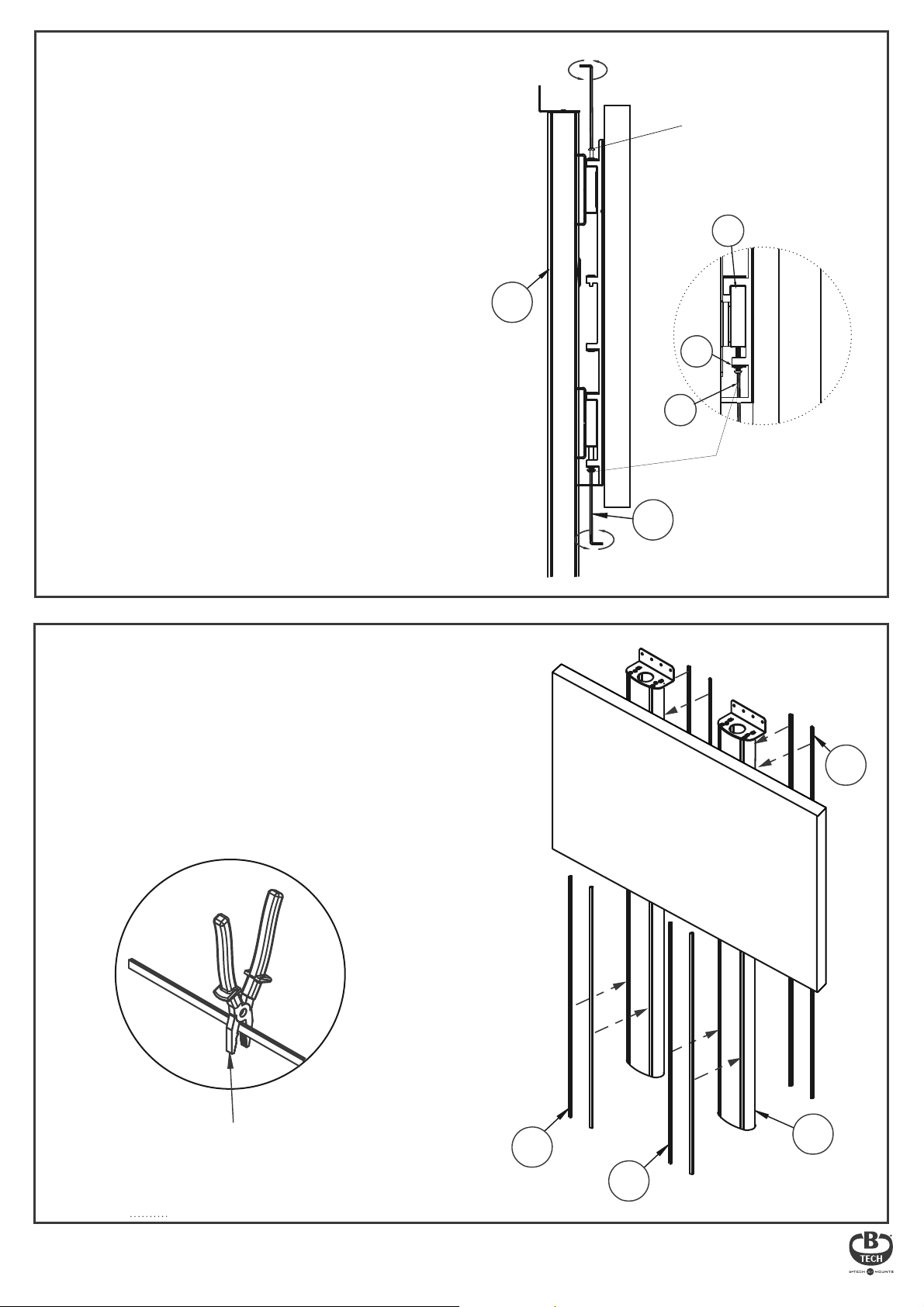

10.
LOCK SCREEN TO RAIL
Tighten the safety screws on the bottom
of item E1 securing the screen to item D1.
Note: If necessary, adjust the height adjustment
screws on top of item E1 to level the screen.
A1
SCREEN
E2
Optional:
HEIGHT ADJUSTMENT
SCREW
D1
E1
SAFETY
SCREW
SCREEN
11.
E2
ATTACH STRIPS
Insert item A7 to the front and back of items A1.
Note: Item A7 may have to be cut down to size
to be able to t into the front of item A1.
A7
Use pliers to cut item A7
to correct size
A7
A1
A7
13
Page 14

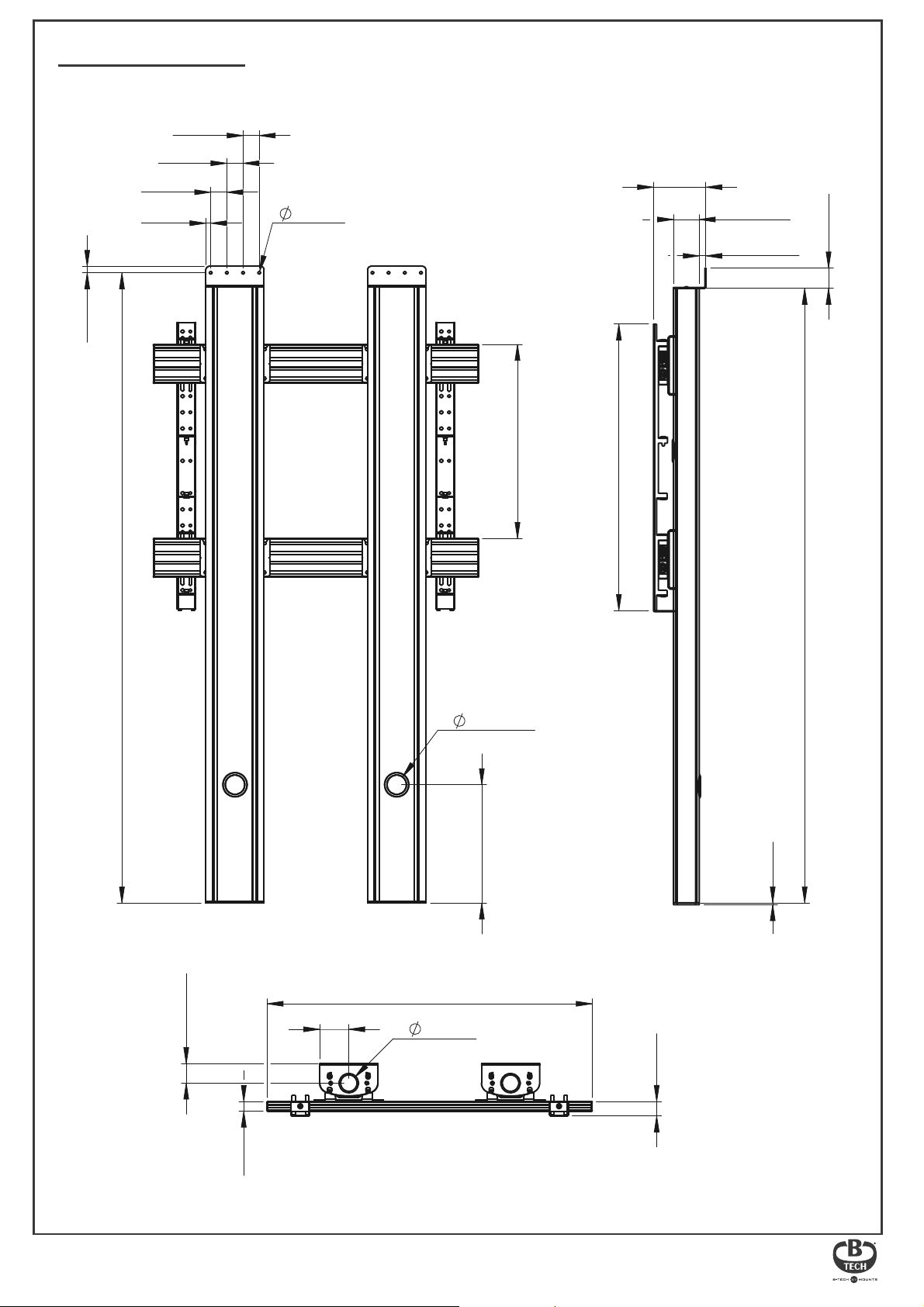

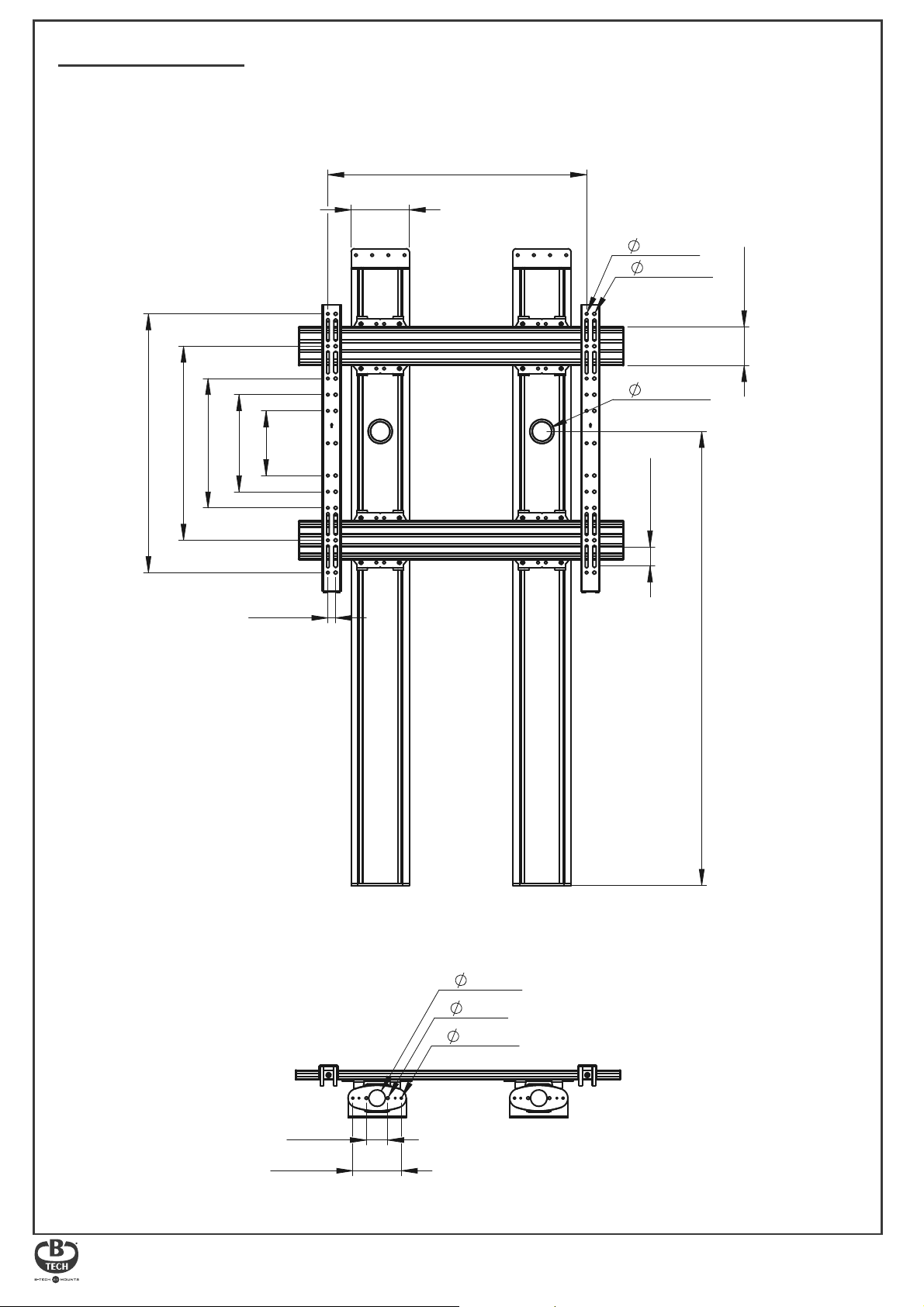

BT8707 DIMENSIONS
PLEASE KEEP THIS FOR FUTURE REFERENCE
800mm
600mm
400mm
300mm
200mm
180mm
FRONT VIEW
Max 972mm
8.4mm
60.8mm
10.4mm
120mm
24mm
59.2mm
1404mm
BOTTOM VIEW
51mm
9mm
6.5mm
66mm
150mm
THESE INSTRUCTIONS ARE INTENDED AS A GUIDE ONLY AND B-TECH ACCEPTS NO
LIABILITY FOR THE ACCURACY OF THE INFORMATION CONTAINED IN THIS DOCUMENT.
14
Page 15
BT8707 DIMENSIONS
PLEASE KEEP THIS FOR FUTURE REFERENCE
20mm
50mm
50mm
50mm
15mm
REAR VIEW
8.5mm
600mm
SIDE VIEW
162mm
886mm
79.5mm
20.5mm
63mm
1949mm
60.3mm
90mm
TOP VIEW
1005mm
51mm
60.8mm
1900mm
366mm
6mm
45mm
30mm
THESE INSTRUCTIONS ARE INTENDED AS A GUIDE ONLY AND B-TECH ACCEPTS NO
LIABILITY FOR THE ACCURACY OF THE INFORMATION CONTAINED IN THIS DOCUMENT.
15
Page 16
B-TECH AV mounts
CONTACT:
©2020 B-Tech AV Mounts. All rights reserved.
B-Tech AV Mounts is a division of B-Tech International Design and Manufacturing Ltd.
B-Tech AV Mounts and the B-Tech logo are registered trade marks.
All other brands and product names are trademarks of their respective owners.
Photographs are for illustrative purposes only. E&OE.
AMA-BT8707-V1-1020-104 MADE IN VIETNAM
