B-Tech BT8442 User Manual
avb-tech mounts
B-TECH av mounts

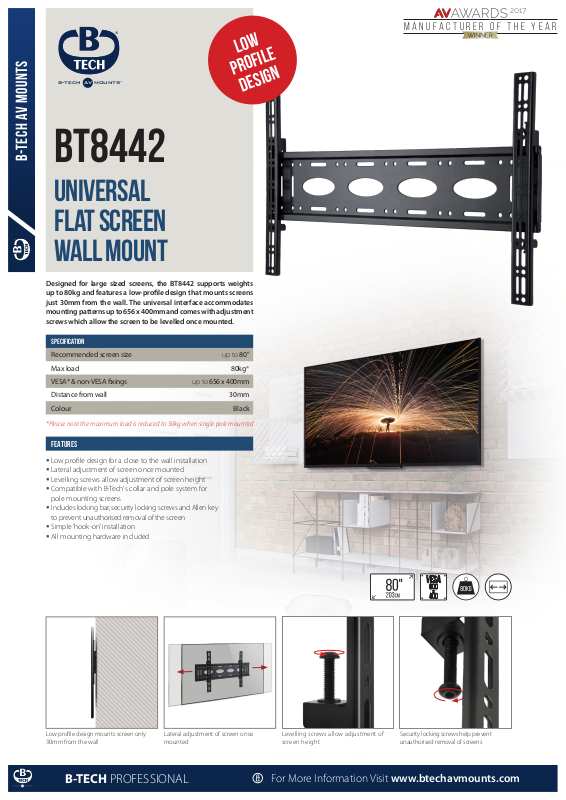

BT8442
Universal
Flat Screen
Wall Mount
Designed for large sized screens, the BT8442 supports weights
up to 80kg and features a low-prole design that mounts screens
just 30mm from the wall. The universal interface accommodates
mounting patterns up to 656 x 400mm and comes with adjustment
screws which allow the screen to be levelled once mounted.
MANUFACTURER OF THE YEAR
low
profile
design
SPECIFICATION
Recommended screen size up to 80"
Max load 80kg*
VESA® & non-VESA xings up to 656 x 400mm
Distance from wall 30mm
Colour Black
*Please note the maximum load is reduced to 50kg when single pole mounted
FEATURES
Low prole design for a close to the wall installation
Lateral adjustment of screen once mounted
Levelling screws allow adjustment of screen height
Compatible with B-Tech's collar and pole system for
pole mounting screens
Includes locking bar, security locking screws and Allen key
to prevent unauthorised removal of the screen
Simple ‘hook-on’ installation
All mounting hardware included
Low prole design mounts screen only
30mm from the wall
B-TECH PROFESSIONAL
Lateral adjustment of screen once
mounted
Levelling screws allow adjustment of
screen height
Security locking screws help prevent
unauthorised removal of screens
For More Information Visit www.btechavmounts.com
technical drawings
400mm
2mm
FRONT VIEW
656mm (Max)
400mm
420mm
5.5mm
8.5mm
39mm
2mm
SIDE VIEW
TOP VIEW
REAR VIEW
656mm (Max)
400mm
420mm
5.5mm
8.5mm
39mm
2mm
157mm
100mm
Technical drawings
30mm
5.5mm
420mm
2mm
8.5mm
41.5mm
24mm
656mm (Max)
700mm
8.5mm
39mm
avb-tech mounts
avb-tech mounts
B-TECH av mounts
41.5mm
138mm
252mm
300mm
414mm
528mm
576mm
648.5mm
PACKING INFORMATION
Colour: Order Ref: EAN Code: Master Carton Qty: Inner Carton Qty: Master Carton Weight: Master Carton Cube:
Black BT8442/B 5019318651229 4 0 16kg 0.0211cbm
RELATED PRODUCTS
BT7822
BT8311 BT8311BT8441
BT7850 BT8432
© 2019 B-Tech International Design & Manufacturing Ltd. All rights reserved.
The information in this specication sheet reects the current technical specications at the time of print.
We reserve the right to change the technical or physical specications without prior notice. The B-Tech name and the B-Tech logo are registered trademarks of B-Tech International Design & Manufacturing Ltd.
All other brands and pro ducts are trademarks of their respective own ers. All B-Tech images and symbols are exclusive property of B-Tech International Design & Manufacturing Ltd.
B-Tech accept no liability for loss or damage caused by improper installation or mounting on unstable structures. Any reproduction or retransmission or republication of any part of this
specication sheet is strictly prohibited, unless prior written permission has been granted by B-Tech International Design & Manufacturing Ltd. E&OE.
SS-V2-BT8442-050819
