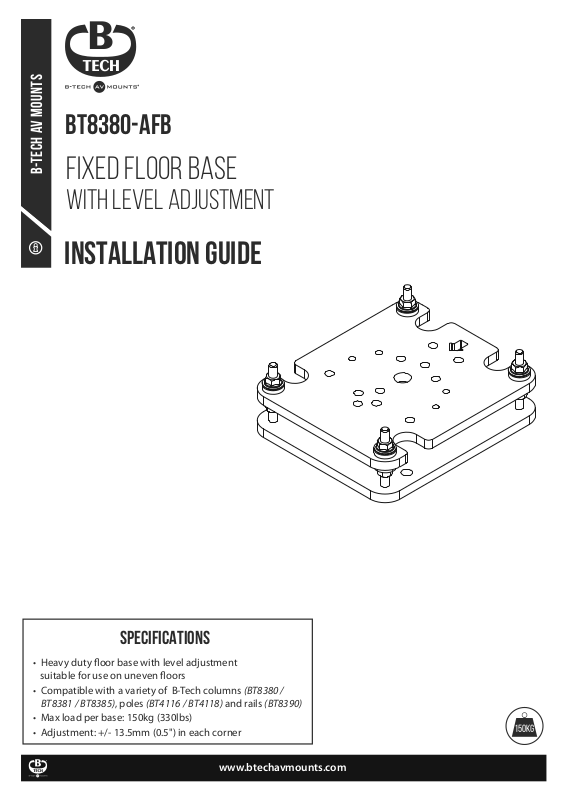

Page 1
BT8380-afb
B-TECH AV mounts
FIXED FLOOR BASE
with level adjustment
INSTALLATION GUIDE
SPECIFICATIONS
• Heavy duty oor base with level adjustment
suitable for use on uneven oors
• Compatible with a variety of B-Tech columns (BT8380 /
BT8381 / BT8385), poles (BT4116 / BT4118) and rails (BT8390)
• Max load per base: 150kg (330lbs)
• Adjustment: +/- 13.5mm (0.5") in each corner
www.btechavmounts.com
Page 2
CONTENTS
Installation Safety Notes......................................................................................................................
Parts List....................................................................................................................................................
Product Dimensions.............................................................................................................................
Installation Instructions.......................................................................................................................
B-Tech Contact Details.........................................................................................................................
2
4
4
5
8
INSTALLATION SAFETY INSTRUCTIONS
This mount is intended for use only with the
CAUTION:
maximum weights indicated. Use with equipment heavier than the
maximum indicated may result in instability causing possible injury.
Do not attempt to install this product until all instructions and warnings have been read and properly understood.
Please keep these instructions for future reference.
Please check carefully to make sure there are no missing or defective parts - defective parts must never be used.
B-Tech AV Mounts, its distributors and dealers are not liable or responsible for damage or injury caused by improper
installation, improper use or failure to observe these safety instructions. In such cases, all guarantees will expire.
General
B-Tech AV Mounts recommends that a professional AV installer or othe
Great care must always be taken during installation as most AV equipment is of a fragile nature, possibly heavy and
easily damaged if dropped.
If you do not fully understand the instructions or are not sure how to install this product safely, then please consult a
professional for advice and/or to install this product for you. Failure to mount this product correctly may cause serious
on and
injury or death, both during installati
Do not mount any AV equipment that exceeds the specic weight limit of the product you are installing.
This weight limit will be clearly stated on each product and its packaging and will vary from product to product.
at any time thereafter.
r suitably qualied person install this product.
Product location
Please pay careful attention to where this product is located. Designed for indoor use, this mount is suitable for public or
home installation. Check load capacity of the oor prior to installation as some surfaces are not suitable for installation.
When verifying the stability of the structure, consider the following external factors: The strength of the oor, exposure to
sudden and severe wind and danger arising from contact with people and / or objects (eg installations in passageways,
emergency exits), if located in a public or frequently populated area ensure that the product is out of the immediate reach
of people. When drilling holes it is essential to avoid contact with electrical cables and water or gas pipes contained within.
Use of a good quality live wire detector and hidden object locator is therefore recommended. Only drill into structures
when you are sure it is safe to do so.
Fixing hardware
It is highly recommended that all xing screws be used where supplied and that the purpose of all other xing hardware
is fully understood. In some cases more AV equipment xing hardware will be supplied to accommodate dierent models
of equipment and set up congurations. The installer must be satised that any supplied xing hardware is suitable for
each specic installation.
If any xing screws or included hardware are deemed not sucient for a safe installation then plea
or your local hardware store.
Hazard limitation
When routing cables take advantage of any built in cable management features that the product might provide and ensure
that all cables are tidy and secure. Check to see that any moving aspect of the product can do so unhindered by any cabling.
Some products have moving parts and the potential to cause injury through the crushing or trapping of ngers or other
body parts.
during set up.
necessary xings are present and are of ample tightness.
It is recommended that periodic inspections of the product and its xing points are made as frequently as possible (no more
than 6 months apart) to ensure that safety is maintained.
If in doubt consult a professional AV installer or other suitably qualied person.
Particular attention to the nature of moving parts is required especially when assembling installing and adjusting
Immediately after installation double-check that the work done is safe and secure. Double-check all
se consult a professional
2
Page 3
Page 4
BT8380-AFB PARTS LIST
PLEASE KEEP THIS FOR FUTURE REFERENCE
6
ITEM PART NAME QTY
1
BASE PLATE
2
LEVELLING PLATE
3
M8 NUT
4
CUP WASHER
5
DOME WASHER
6
M6 x 40mm CAP HEAD SCREW
7
M8 x 40mm BUTTON HEAD SCREW
8
5AF HEX KEY
7
8
1
1
8
8
8
4
4
1
3
5
4
2
3
1
BT8380-AFB DIMENSIONS
PLEASE KEEP THIS FOR FUTURE REFERENCE
16.5mm
TOP
VIEW
45.5mm
151mm
45.5mm
16.5mm
150mm
BASE
92mm
FRONT VIEW SIDE VIEW
45.5mm
16.5mm
11mm x4
13.5mm
PLATE FIXING POINTS
FRONT OF PLATE
BT8390 x4
BT8380 x4
BT8381 x4
BT4116/BT4118
M16 x1
BT8385 x4
75mm
47.5mm ±13.5
183mm
THESE INSTRUCTIONS ARE INTENDED AS A GUIDE ONLY AND B-TECH ACCEPTS NO
LIABILITY FOR THE ACCURACY OF THE INFORMATION CONTAINED IN THIS DOCUMENT.
13.5mm
213mm
4
10mm
10mm
Page 5
INSTALLATION INSTRUCTIONS
BOLT BASE ONTO FLOOR
1.
i. Pre-drill holes in oor and using suitable ground anchor
xings (not supplied), x item 1 to the oor.
1
11mm x4
FRONT
GROUND
ANCHORS
(not supplied)
INSTALLATION TOOLS REQUIRED
Drill
Pencil
Level
GROUND ANCHORS
13mm
Spanner
ii. Add items 4 & 5 onto the stems of item 1.
5
4
3
FLOOR
5
4
1
CONCRETE FLOOR
5
Page 6
ATTACH COLUMN/POLE/RAIL TO PLATE
2.
A. BT8380 COLUMN
FRONT OF PLATE
2
7
M8 x 40mm
Hex Socket Button Head
2
B. BT8385 COLUMN
2
FRONT OF PLATE
6
M6 x 40mm
Cap Head Socket Screw
BT8380 x4
C. BT8381 COLUMN D. BT4116/BT4118 POLE
2
M8 x 35mm
(Supplied with BT8381)
FRONT OF PLATE
(Supplied with BT4116/BT4118)
FRONT OF PLATE
M16 x 50mm
BT8385 x4
E. BT8390 RAIL
Note: Holes must be threaded on rail
2
2
7
FRONT OF PLATE
BT8381 x4
6
M16 x1
BT8390 x 4
Page 7
FIX PLATE & COLUMN ONTO BASE
3.
i. Mount item 2 onto item 1.
ii Fix items 3, 4 & 5 to item 1.
2
3
5
4
1
13mm
SPANNER
1
LEVEL BASE
4.
Using a 13mm spanner, loosen the top nut (item 3)
and adjust the bottom nut (item 3) up or down to
level item 2. Once level, fully tighten the top nut.
Note: +/-13.5mm adjustment available in each corner.
13mm
SPANNER
LEVEL
Loosen
Nut
Adjust
Nut
7
13mm
SPANNER
UP
DOWN
Page 8
B-TECH AV mounts
CONTACT:
©2021 B-Tech International Design and Manufacturing Ltd. All rights reserved.
B-Tech AV Mounts is a division of B-Tech International Design and Manufacturing Ltd.
B-Tech AV Mounts and the B-Tech logo are registered trade marks.
All other brands and product names are trademarks of their respective owners.
Photographs are for illustrative purposes only. E&OE.
AMA-BT8380-AFB-V1-1121-50 MADE IN THE UK
For More Information Visit www.btechavmounts.com
