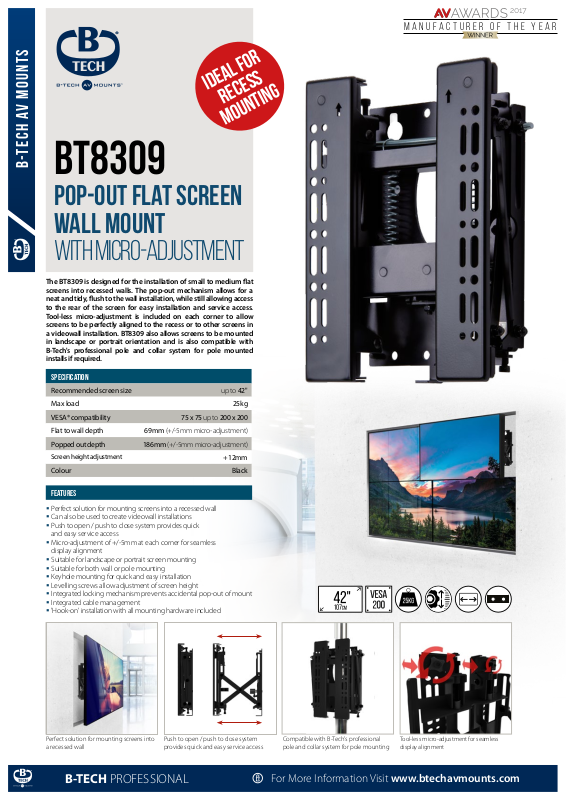

ideal for
B-TECH av mounts
BT8309
pop-out flat screen
wall mount
WITH MICRO-ADJUSTMENT
The BT8309 is designed for the installation of small to medium at
screens into recessed walls. The pop-out mechanism allows for a
neat and tidy, ush to the wall installation, while still allowing access
to the rear of the screen for easy installation and service access.
Tool-less micro-adjustment is included on each corner to allow
screens to be perfectly aligned to the recess or to other screens in
a videowall installation. BT8309 also allows screens to be mounted
in landscape or portrait orientation and is also compatible with
B-Tech's professional pole and collar system for pole mounted
installs if required.
MANUFACTURER OF THE YEAR
recess
mounting
SPECIFICATION
Recommended screen size up to 42"
Max load 25kg
VESA® compatibility 75 x 75 up to 200 x 200
Flat to wall depth 69mm (+/-5mm micro-adjustment)
Popped out depth 186mm (+/-5mm micro-adjustment)
Screen height adjustment
Colour Black
FEATURES
Perfect solution for mounting screens into a recessed wall
Can also be used to create videowall installations
Push to open / push to close system provides quick
and easy service access
Micro-adjustment of +/-5mm at each corner for seamless
display alignment
Suitable for landscape or portrait screen mounting
Suitable for both wall or pole mounting
Keyhole mounting for quick and easy installation
Levelling screws allow adjustment of screen height
Integrated locking mechanism prevents accidental pop-out of mount
Integrated cable management
'Hook-on' installation with all mounting hardware included
+12mm
Perfect solution for mounting screens into
a recessed wall
B-TECH PROFESSIONAL
Push to open / push to close system
provides quick and easy service access
Compatible with B-Tech's professional
pole and collar system for pole mounting
Tool-less micro-adjustment for seamless
display alignment
For More Information Visit www.btechavmounts.com
technical drawings
REAR VIEW
SIDE VIEW EXTENDED
SIDE VIEW CLOSED
Max: 191mm +/-1.5mm
Min: 64mm +/- 1.5mm
4mm
Interface arms are set at the lowest point.
VESA 200
Adpator Arms
Max: 191mm +/-1.5mm
4mm
VESA 200
Adpator Arms
Top View
FRONT VIEW
220mm
200mm
Min 75mm
200mm
100mm
57mm
8.2mm
8.4mm
6.4mm
50mm
287mm
Min: 64mm +/- 1.5mm
4mm
Interface arms are set at the lowest point.
Height adjustment range: 12mm
VESA 200
Adpator Arms
230mm
Max: 191mm +/-1.5mm
4mm
VESA 200
Adpator Arms
Top View
B-Tech International Design & Manufacturing Limited
BT8309
B-Tech No:
Height adjustment range: 12mm
Max: 191mm +/-1.5mm
B-TECH av mounts
20mm
4mm
220mm
200mm
Min 75mm
57mm
8.2mm
8.4mm
6.4mm
50mm
200mm
100mm
287mm
90mm
100mm
Min: 64mm +/- 1.5mm
4mm
140mm
100mm
94mm
24mm
80mm
R10mm
10 x
125mm 125mm
20mm
8.5mm THRU
4mm
VESA 200
Adpator Arms
accesories and related PRODUCTS to bt8309
BT7850
BT7841
BT8308
VESA 200
Adpator Arms
VESA 200
Adpator Arms
Interface arms are set at the lowest point.
BT8310
© 2019 B-Tech International Design & Manufacturing Limited. All rights reserved.
The information in this specication sheet reects the current technical specications at the time of print.
We reserve the right to change the technical or physical specications without prior notice. The B-Tech name and the B-Tech logo are reg istered trademark s of B-Tech International Design & Manufacturing Limited.
All other brands and pro ducts are trademarks of their respective own ers. All B-Tech images and symbols are exclusive property of B-Tech International Design & Manufacturing Limited.
B-Tech accept no liability for loss or damage caused by improper installation or mounting on unstable structures. Any reproduction or retransmission or republication of any part of this
specication sheet is strictly prohibited, unless prior written permission has been granted by B-Tech International Design & Manufacturing Limited. E&OE.
SS-BT8309-V2.1-100919
50mm diameter poles available in
dierent lengths up to 3m
B-TECH PROFESSIONAL
50mm Accessory Collar for fixing mounts
& accessories to Ø50mm poles
For More Information Visit www.btechavmounts.com
Professional Pop-In, Pop-Out wall
mount for screens with VESA xings from
75 x 75 to 200 x 200
Professional Pop-In, Pop-Out Video Wall
Mount
for video walls or recess mounting
larger screens
