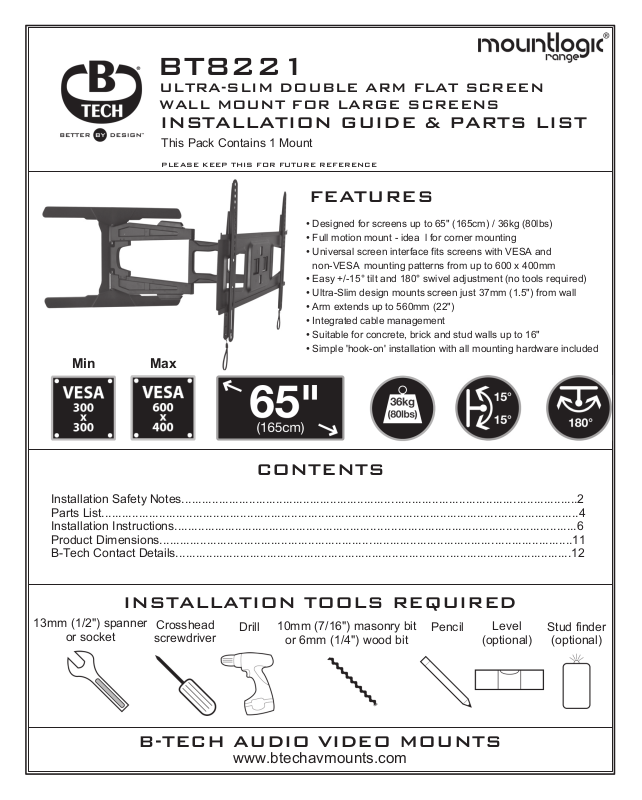

B-Tech BT8221 operation manual

BT8221

ULTRA-SLIM DOUBLE ARM FLAT SCREEN
WALL MOUNT FOR LARGE SCREENS

INSTALLATION GUIDE & PARTS LIST

This Pack Contains 1 Mount

PLEASE KEEP THIS FOR FUTURE RE FERENCE

FEATURES

• Designed for screens up to 65" (165cm) / 36kg (80lbs)

• Full motion mount - idea l for corner mounting

• Universal screen interface fits screens with VESA and

non-VESA mounting patterns from up to 600 x 400mm

• Easy +/-15° tilt and 180° swivel adjustment (no tools required)

• Ultra-Slim design mounts screen just 37mm (1.5") from wall

• Arm extends up to 560mm (22")

• Integrated cable management

• Suitable for concrete, brick and stud walls up to 16"

• Simple 'hook-on' installation with all mounting hardware included

Min Max

CONTENTS

Installation Safety Notes.....................................................................................................................2

Parts List.............................................................................................................................................4

Installation Instructions.......................................................................................................................6

Product Dimensions..........................................................................................................................11

B-Tech Contact Details.....................................................................................................................12

INSTALLATION TOOLS REQUIRED

13mm (1/2") spanner

or socket

Crosshead

screwdriver

10mm (7/16") masonry bit

Drill

or 6mm (1/4") wood bit

Pencil

(optional)

B-TECH AUDIO VIDEO MOUNTS

www.btechavmounts.com

Level

Stud finder

(optional)

INSTALLATION SAFETY INSTRUCTIONS

This wall mount is intended for

If you do not fully understand the instructions or are not sure how to install this product safely, then please

wei

possible to ensure that safety is maintained. If in doubt consult a professional AV installer or other suitably

CAUTION:

use only with the maximum weights indicated. Use
with flat screens heavier than the maximum indicated may
result in instability causing possible injury.

Do not attempt to install this product until all instructions and warnings have been read and properly
understood. Please keep these instructions for future reference.
B-Tech International Limited, its distributors and dealers are not liable or responsible for damage or injury
caused by improper installation, improper use or failure to observe these safety instructions. In such
cases, all guarantees will expire.

General

B-Tech International Ltd recommends that a professional AV installer or other suitably qualified person
install this product. Great care must always be taken during installation as most AV equipment is of a
fragile nature, possibly heavy and easily damaged if dropped.

consult a professional for advice and/or to install this product for you. Failure to mount this product
correctly may cause serious injury or death both during installation and at any time thereafter.
Do not mount any AV equipment that exceeds the specific weight limit of the product you are installing.
This weight limit will be clearly stated on each product and its packaging and will vary from product to
product.

Product location

Please pay careful attention to where this product is located. Some walls are not suitable for installation.
If located in a public or frequently populated area ensure that the product is out of the immediate reach of
people. If any AV equipment is to be suspended over the likely path or location of people then great care
should be taken to secure all parts of the installation from falling.
If you install this product on drywall it must be securely fixed to a wooden stud, concrete block or other
permanent structure behind the drywall board. Installing on drywall boards alone will not support the

ght of most AV equipment.
When drilling holes in walls it is essential to avoid contact with electrical cables and water or gas pipes
contained within. Use of a good quality live wire detector and hidden object locator is therefore
recommended. Only drill into structures when you are sure it is safe to do so.

Fixing hardware

It is highly recommended that all wall fixing screws be used where supplied and that the purpose of all
other fixing hardware is fully understood. In some cases more AV equipment fixing hardware will be
supplied to accommodate different models of equipment and set up configurations.
The installer must be satisfied that any supplied fixing hardware is suitable for each specific installation. If
any fixing screws or included hardware are deemed not sufficient for a safe installation then please
consult a professional or your local hardware store.

Hazard limitation

When routing cables take advantage of any built in cable management features that the product might
provide and ensure that all cables are tidy and secure. Check to see that any moving aspect of the
product can do so unhindered by any cabling.
Some products have moving parts and the potential to cause injury through the crushing or trapping of
fingers or other body parts.
Particular attention to the nature of moving parts is required especially when assembling installing and
adjusting during set up.
Immediately after installations double-check that the work done is safe and secure. Double-check all
necessary fixings are present and are of ample tightness.
It is recommended that periodic inspections of the product and its fixing points are made as frequently as

qualified person.

2

CS

Tech International Ltd. recomienda que un instalador de audio y video profesional u otra persona debidamente

tuali danni o infortuni causati da un’errata installazione. Questo prodotto

., ее дистрибьюторы и дилеры не несут ответственности

Společnost B-Tech International Ltd. doporučuje provést instalaci tohoto produktu prostřednictvím odborného
instalátora AV či jinak způsobilé osoby. Společnost B-Tech International Ltd, její distributoři a prodejci nenesou
odpovědnost za škody nebo zranění způsobená nevhodnou instalací. Tento výrobek je nutno umístit do vhodné
konstrukce a používat jen po uvedenou maximální výšku.

DE
B-Tech International Ltd. empfiehlt, dass dieses Produkt durch einen qualifizierten AV-Techniker oder eine
andere Person mit geeigneter Qualifikation installiert wird. B-Tech International Ltd, ihre Distributoren und
Händler können nicht für durch fehlerhafte Montage verursachte Beschädigung oder Verletzung haftbar bzw.
verantwortlich gemacht werden. Dieses Produkt muss auf eine geeignetem Untergrund montiert werden und darf
nur bis zum angegebenen Höchstgewicht verwendet werden.

ES
B­cualificada instalen este producto. B-Tech International Ltd, sus distribuidores y concesionarios no se hacen
cargo ni se responsabilizan de ningún daño o lesión provocados por una instalación inapropiada. Este producto
se debe montar en una estructura adecuada y se debe utilizar soportando solamente hasta el peso máximo
indicado.

FR
B-Tech International Ltd. recommande de confier l’installation de ce produit à un installateur AV professionnel ou
à une autre personne dûment qualifiée. B-Tech International Ltd, ses distributeurs et ses revendeurs ne
sauraient être tenus responsables de tout dégât ou de toute blessure résultant d’une installation incorrecte. Ce
produit doit être monté sur un support approprié et utilisé dans la limite du poids maximum indiqué.

IT
B-Tech International Ltd. consiglia di affidare l’installazione di questo prodotto a un installatore specializzato o ad
altra persona adeguatamente qualificata. B-Tech International Ltd, i suoi distributori e rivenditori non accettano
alcuna responsabilità nei riguardi di even
deve essere fissato a una struttura idonea e utilizzato unicamente sino al peso massimo indicato.

NL
B-Tech International Ltd. adviseert om dit product te laten installeren door een professionele AV-installateur of
andere hiervoor gekwalificeerde persoon. B-Tech International Ltd, haar distributeurs en dealers zijn niet
aansprakelijk of verantwoordelijk voor schade of letsel die is veroorzaakt door onoordeelkundige installatie. Dit
product moet worden gemonteerd aan een geschikte constructie, waarbij het aangegeven maximum gewicht niet
mag worden overschreden.

PL
Firma B-Tech International Ltd. zaleca, aby ten produkt był instalowany przez profesjonalnych instalatorów AV
lub inny odpowiednio przeszkolony personel. Firma B-Tech International Ltd, jej dystrybutorzy i dealerzy nie
ponoszą odpowiedzialności za uszkodzenia lub obrażenia ciała powstałe w wyniku nieprawidłowej instalacji.
Niniejszy produkt musi być zamontowany na odpowiedniej powierzchni, a podczas użytkowania nie wolno
przekraczać podanego maksymalnego obciążenia.

PT
A B-Tech International Ltd. recomenda que a instalação deste produto seja efectuada por um instalador de AV
profissional ou outra pessoa devidamente habilitada. A B-Tech International Ltd. e os seus distribuidores e
concessionários não são responsáveis por danos ou lesões causados por uma instalação incorrecta. Este
produto tem de ser montado numa estrutura adequada e utilizado somente até ao peso máximo indicado.

RU

Компания B-Tech International Ltd. рекомендует, чтобы установка данного изделия производилась
инженером по установке аудио-видеотехники или другим специалистом с соответствующей
квалификацией. Компания B-Tech International Ltd
за повреждения или травмы, полученные в результате неправильной установки. Данное изделие должно

3

BT8221

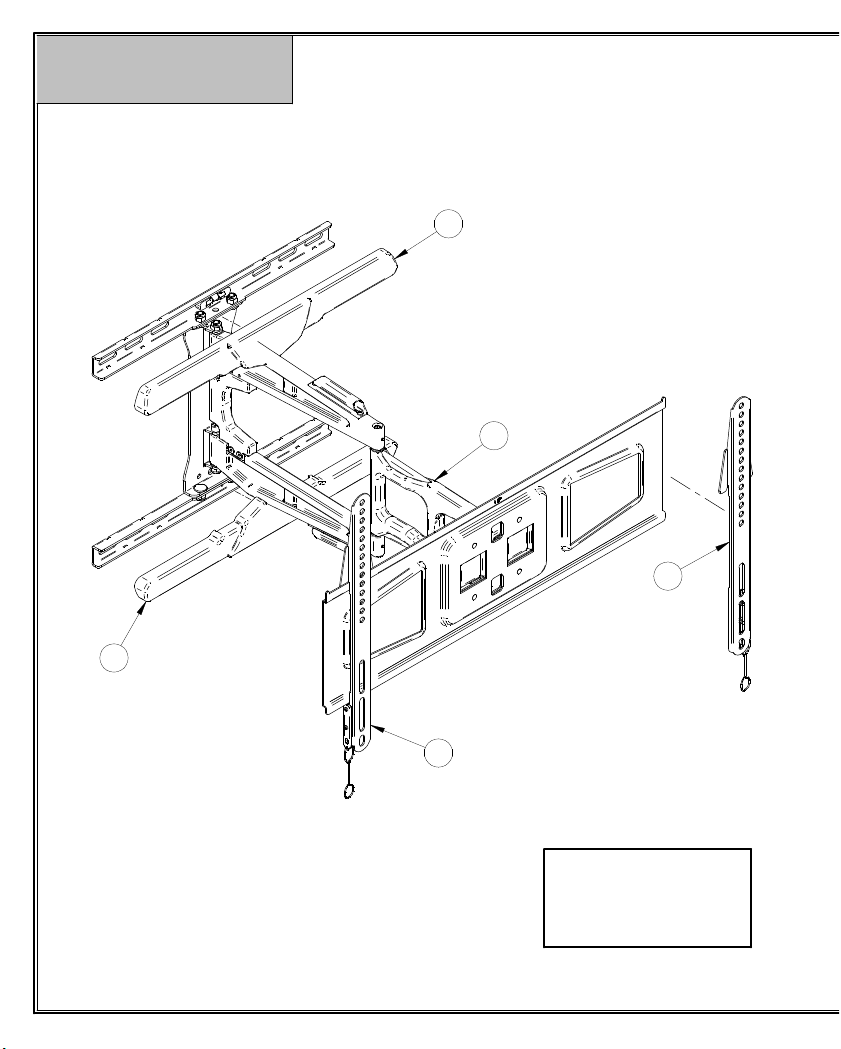

PARTS LIST

2

1

4

2

3

Suitable for loads

up to

36kg (80lbs)

4

FLAT SCREEN

INTERFACE KIT

(FOR ATTACHING MOUNT TO

BACK OF FLAT SCREEN)

A

B

D

C

E

F

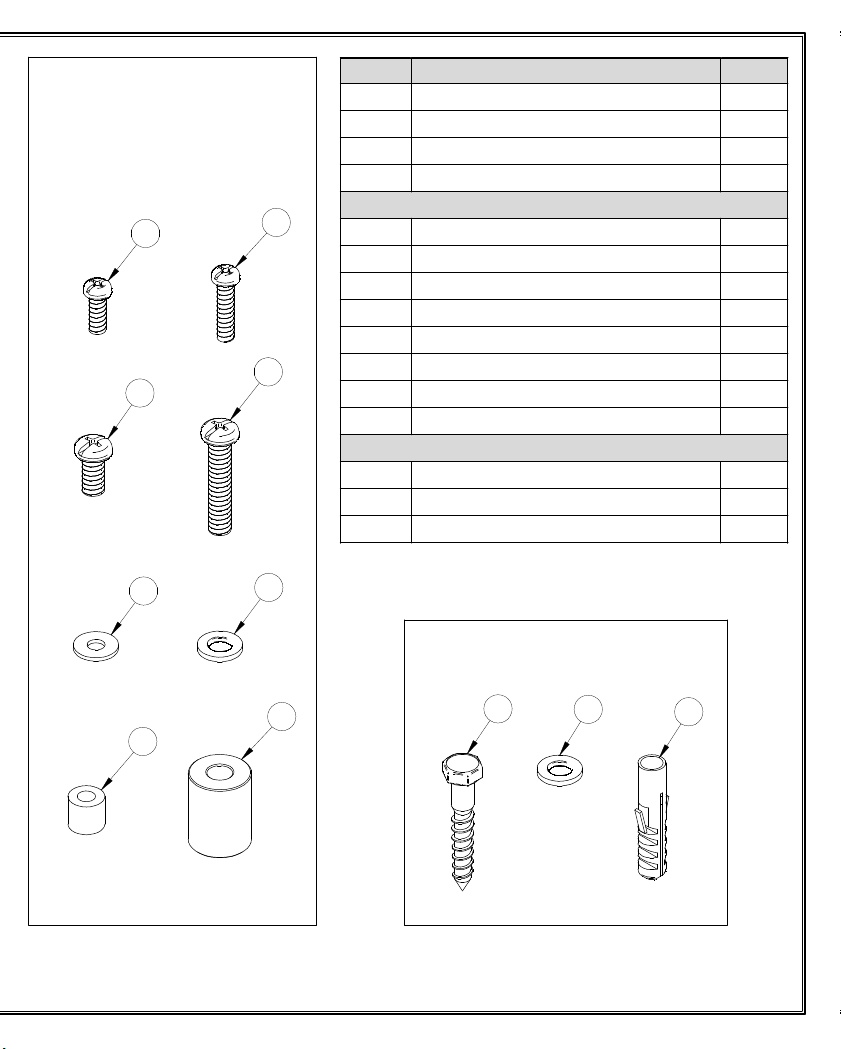

REF PART NAME QTY

1 WALL MOUNT 1
2 WALL PLATE COVER 2
3 LEFT INTERFACE ARM 1
4 RIGHT INTERFACE ARM 1

INTERFACE KIT

A M6 x 16mm SCREW 4
B M6 x 30mm SCREW 4
C M8 x 16mm SCREW 4
D M8 x 35mm SCREW 4
E M6 WASHER (FOR PARTS A & B) 4

F M8 WASHER (FOR PARTS C & D) 4
G M6 x 12.7mm SPACER (FOR PART B) 4
H M8 x 19.6mm SPACER (FOR PART D) 4

WALL FIXING KIT

A1 M8 x 70mm COACH SCREW 4
A2 M8 WASHER (FOR PART A1) 4
A3 WALL PLUG (FOR PART A1) 4

WALL FIXING KIT

(FOR FIXING MOUNT TO WALL)

H

A1

G

PLEASE KEEP THIS FOR FUTURE REFERENCE

A2

A3

5

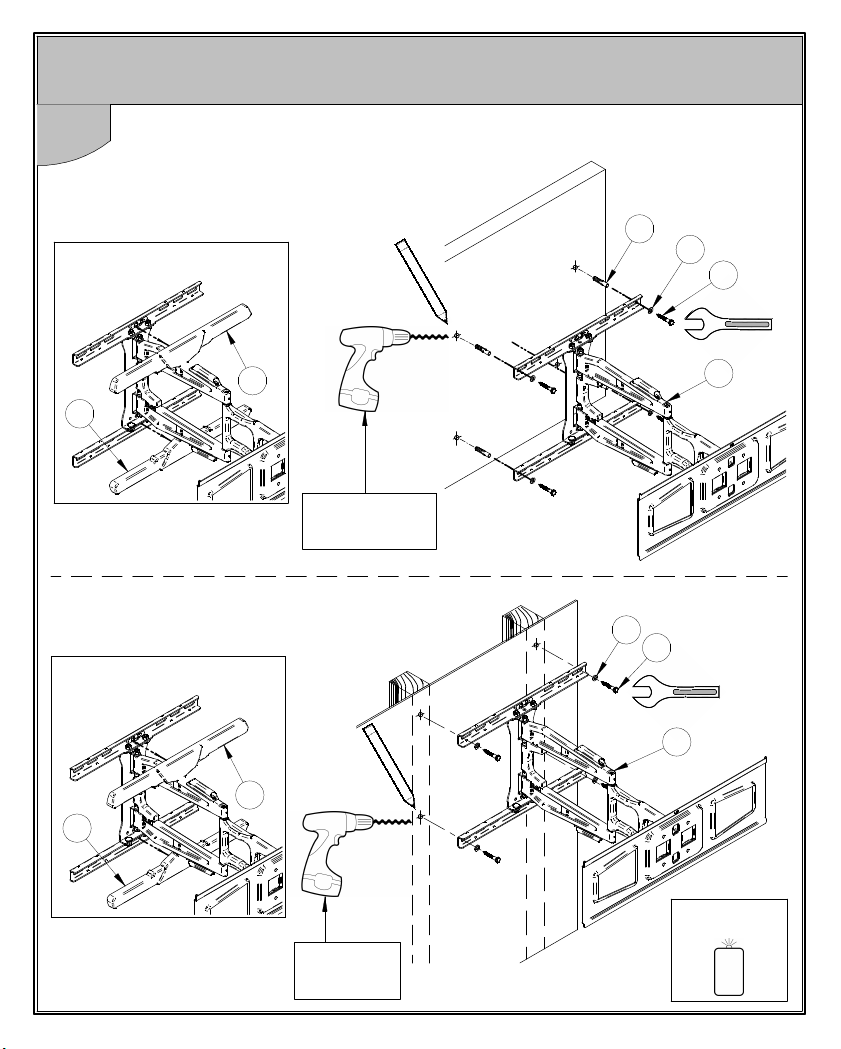

INSTALLATION INSTRUCTIONS

1

i. Concrete / brick walls.

ii. Wood / stud walls.

Fix wall plate to the wall using one of the following methods.

Remove the wall plate
covers first.

2

Remove the wall plate
covers first.

A3

A2

A1

2

10mm (7/16")

masonry bit

A2

A1

1

1

2

2

STUD FINDER

(Optional)

6

6mm (1/4")

wood bit

2

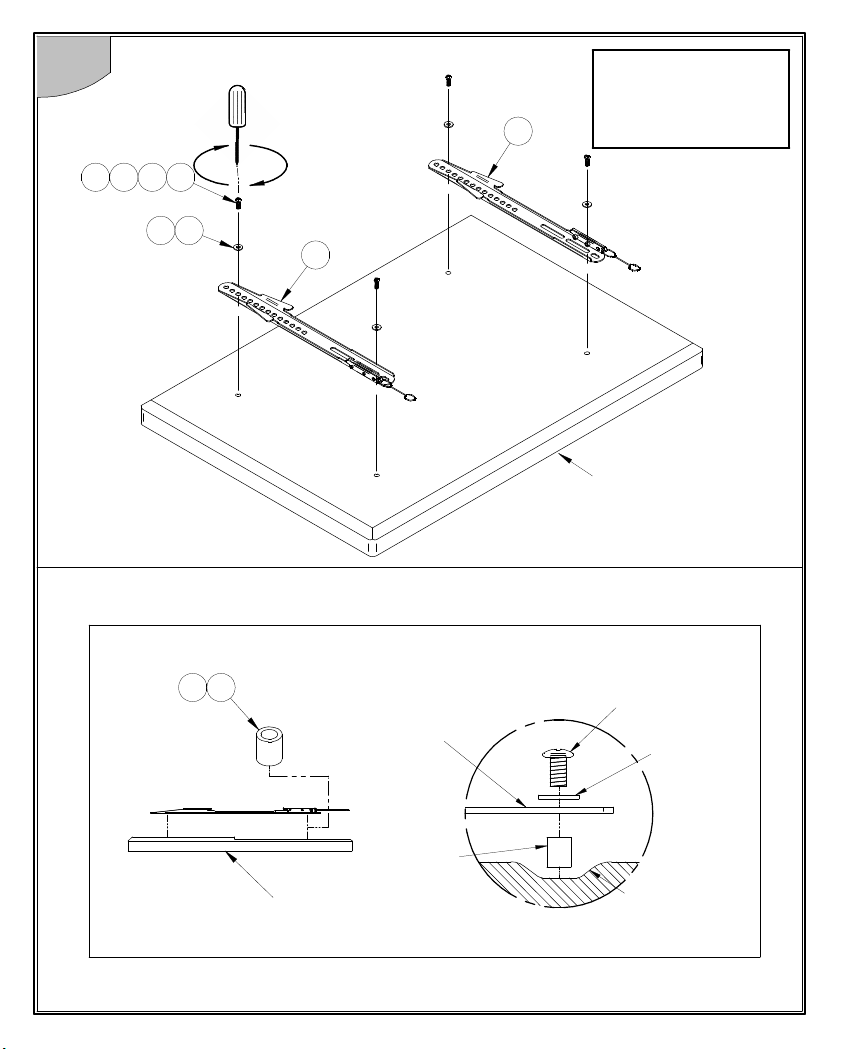

Attach the interface arms to the flat screen.

DCBA

F

E

4

P

O

T

T

O

B

NOTE: Ensure the

same holes are used

on both of the

3

M

O

T

interface arms.

FLAT
SCREEN

FOR SCREENS WITH RECESS FIXINGS

H

G

INTERFACE
ARM

SPACER

FLAT
SCREEN

SCREW

WASHER

FLAT
SCREEN
RECESS

7

3

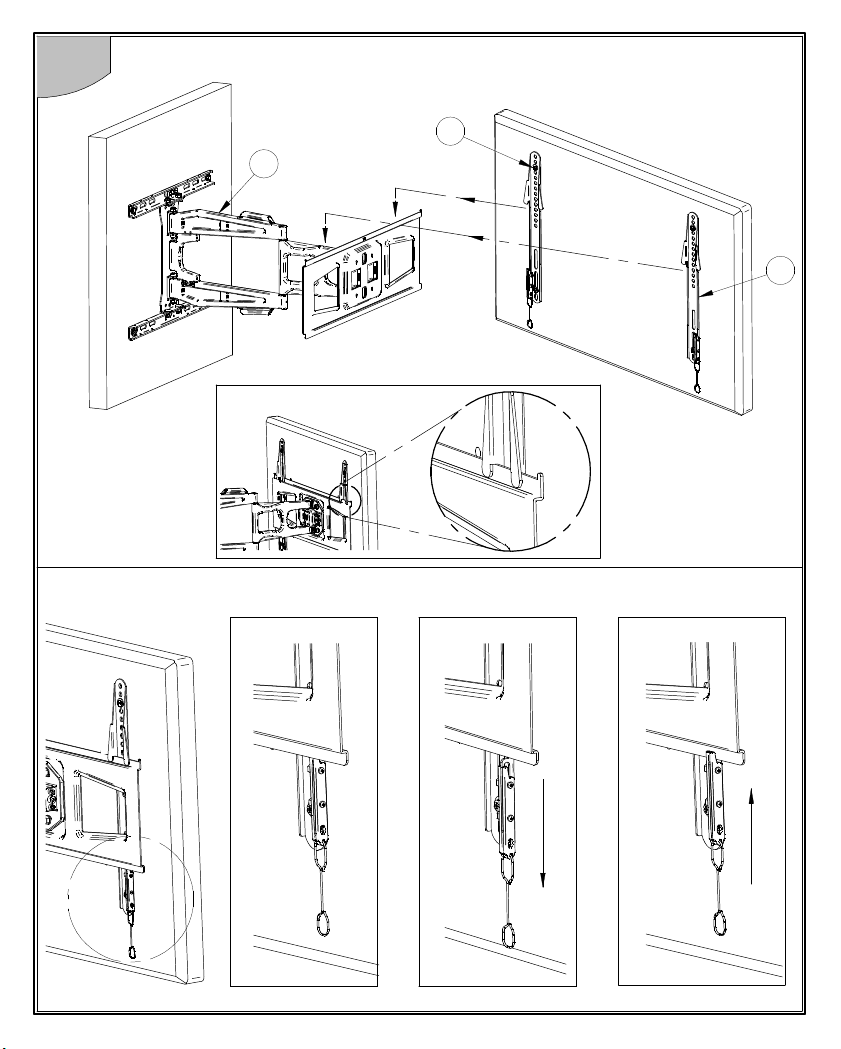

Secure the interface arms to the mount using the locking tabs on both interface arms.

Hook the screen with interface arms onto the mount.

4

1

3

A)

8

B)

C)

4

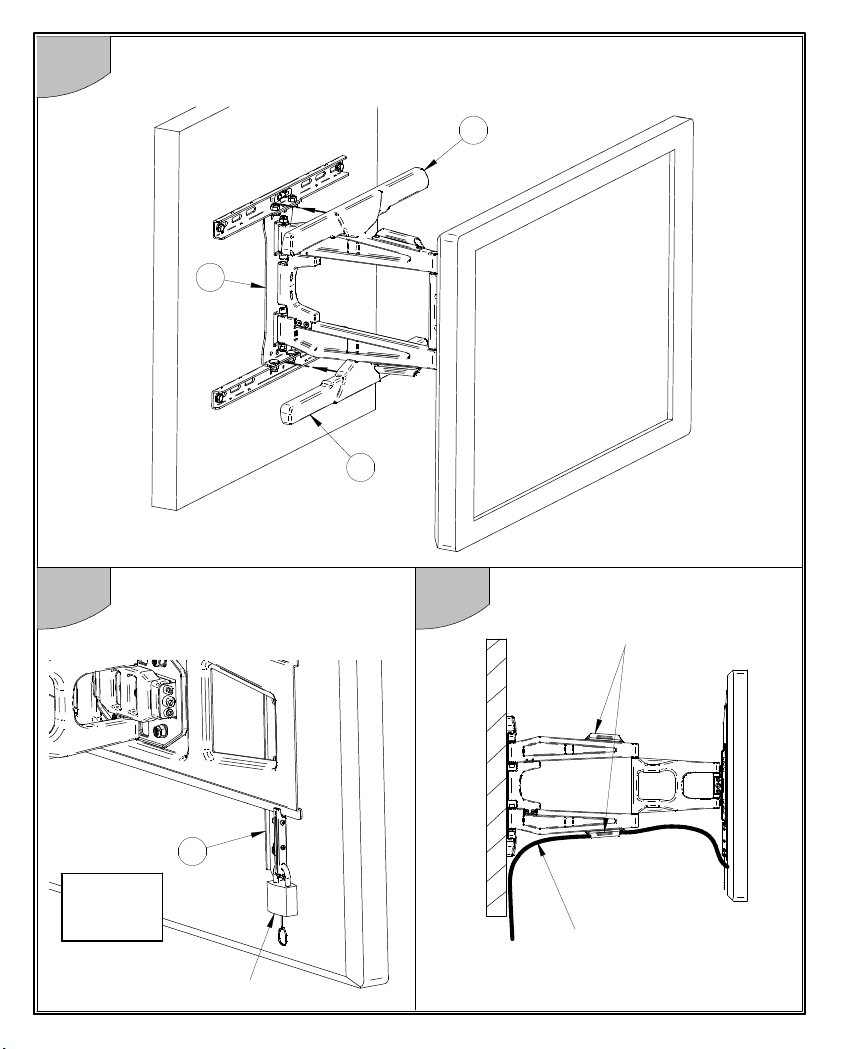

Attach the wall plate covers onto the wall plate.

2

1

2

5

A small padlock can be used
to prevent the interface arms
being removed.

Hole for

padlock is

Ø5mm

3

PADLOCK

6

Cable management.

CABLE CLIPS

CABLES

9

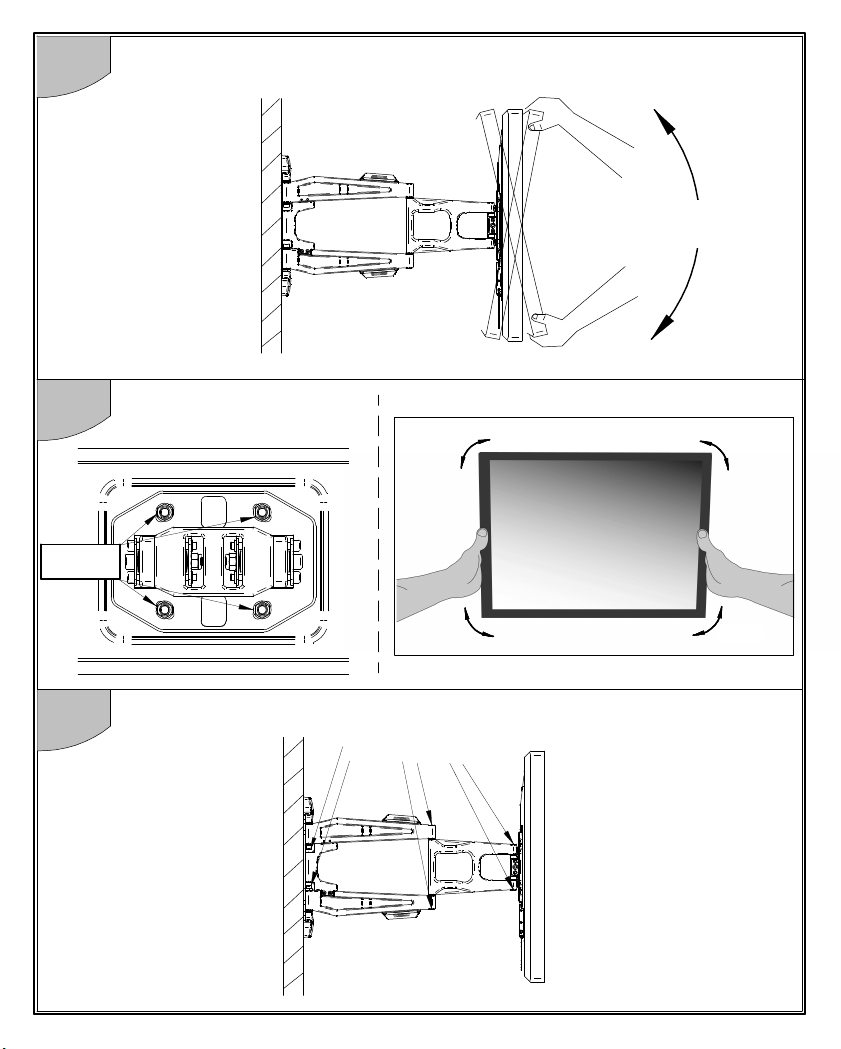

7 Adjust the tilt by hand (no tools required).

+/- 15°

8

Adjust

9

10

Screen Leveling.

+/- 5°

+/- 5°

Increase the arm tension if required.

ADJUST SCREW

353mm

BT8221

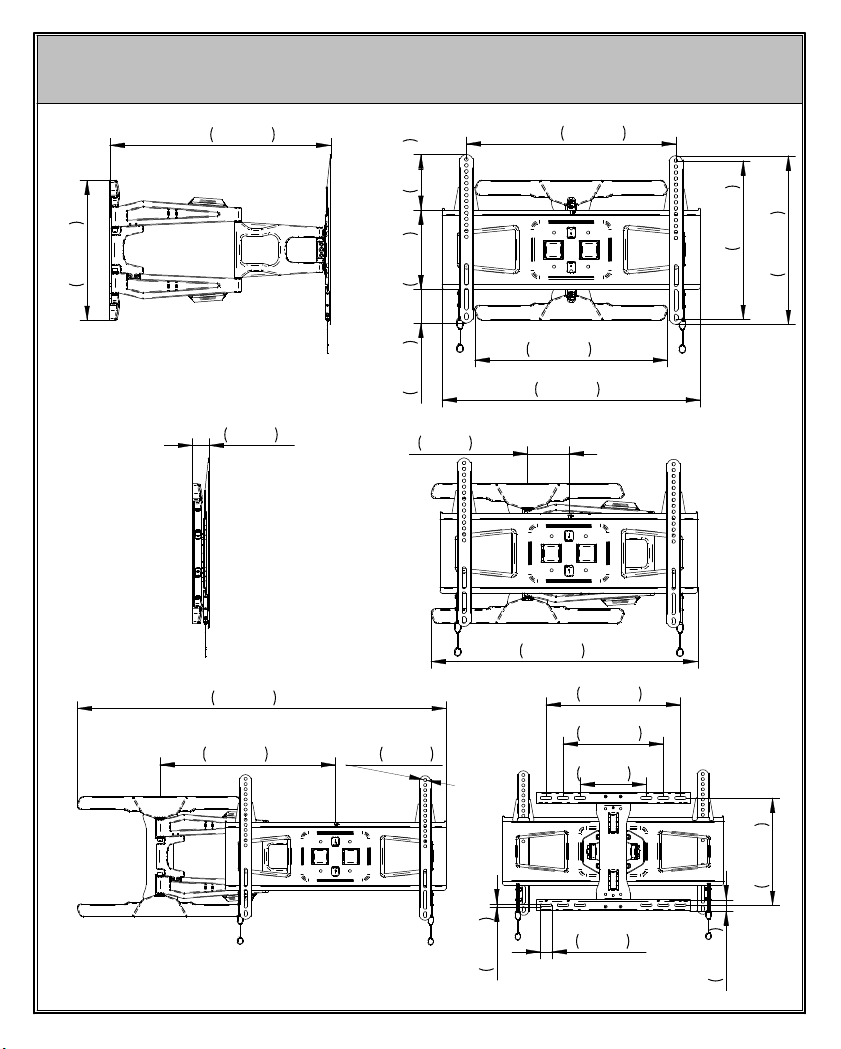

PRODUCT DIMENSIONS

560mm

22.0"MAX
140mm

5.5"

200mm

13.9"

37mm

1.5"

7.9"

85mm

3.3"

104.2mm

4.1"

1084.1mm

42.7"

516.1mm

20.3"

9mm

O

0.4"

600mm

23.6"MAX

485.9mm

19.1"
650mm

25.6"

672.2mm

26.5"
395mm

15.6"
295mm

11.6"
195mm

7.7"

400mm

15.7"MAX
425mm

16.7"

34mm

9mm

0.4"

THESE INSTRUCTIONS ARE INTE NDED AS A GUIDE ONLY AND B-TECH ACCE PTS NO

LIABILITY FOR THE ACCURACY OF THE INFORMATION CONTAINED IN THIS DOCUMENT.

1.3"
33mm

315mm

12.4"

1.3"

11
