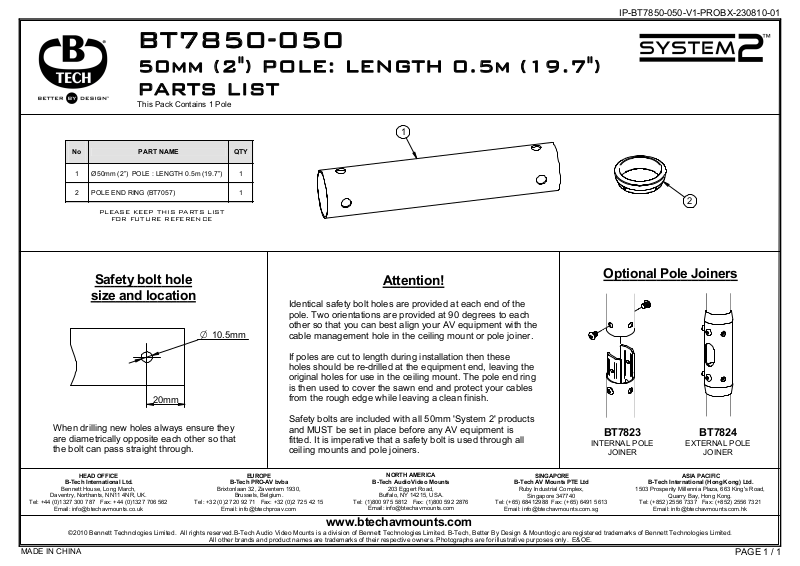

B-TECH BT7850-050/B Datasheet

BT7850-050

50mm (2") POLE: LENGTH 0.5m (19.7")
PARTS LIST

This Pack Contains 1 Pole

No

1 Ø50mm (2”) POLE : LENGTH 0.5m (19.7”) 1

2 POLE END RING (BT7057) 1

PLEASE KEEP THIS PARTS LIST

PART NAME QTY

FOR FUTURE REFERENCE

IP-BT7850-050-V1-PROBX-230810-01

1

2

Safety bolt hole

size and location

When drilling new holes always ensure they
are diametrically opposite each other so that
the bolt can pass straight through.

HEAD OFFICE

B-Tech International Ltd.

Bennett House, Long March,

Daventry, Northants, NN11 4NR, UK.

Tel: [phone] Fax: [phone]

Email: [e-mail]

©2010 Bennett Technologies Limited. All rights reserved.B-Tech Audio Video Mounts is a division of Bennett Technologies Limited. B-Tech, Better By Design & Mountlogic are registered trademarks of Bennett Technologies Limited.

MADE IN CHINA

20mm

Attention!

Identical safety bolt holes are provided at each end of the
pole.

Two orientations are provided at 90 degrees to each

other so that you can best align your AV equipment with the

O 10.5mm

EUROPE

B-Tech PRO-AV bvba

Brixtonlaan 32, Zaventem 1930,

Tel: [phone] Fax: [phone]

Brussels, Belgium.

Email: [e-mail]

All other brands and product names are trademarks of their respective owners. Photographs are for illustrative purposes only. E&OE.

cable management hole in the ceiling mount or pole joiner.

If poles are cut to length during installation then these
holes should be re-drilled at the equipment end, leaving the
original holes for use in the ceiling mount. The pole end ring
is then used to cover the sawn end and protect your cables
from the rough edge while leaving a clean finish.

Safety bolts are included with all 50mm 'System 2' products
and MUST be set in place before any AV equipment is
fitted. It is imperative that a safety bolt is used through all
ceiling mounts and pole joiners.

NORTH AMERICA

B-Tech Audio Video Mounts

203 Eggert Road,

Buffalo, NY 14215, USA.

Tel: [phone] Fax: [phone]

Email: [e-mail]

B-Tech AV Mounts PTE Ltd

Ruby Industrial Complex,

Tel: [phone] Fax: [phone]

Singapore 347740

Email: [e-mail]

www.btechavmounts.com

SINGAPORE

Optional Pole Joiners

BT7823

INTERNAL POLE

JOINER

1503 Prosperity Millennia Plaza, 663 King's Road,

Tel: [phone] Fax: [phone]

B-Tech International (Hong Kong) Ltd.

Quarry Bay, Hong Kong.

Email: [e-mail]

BT7824

EXTERNAL POLE

JOINER

ASIA PACIFIC

PAGE 1 / 1
