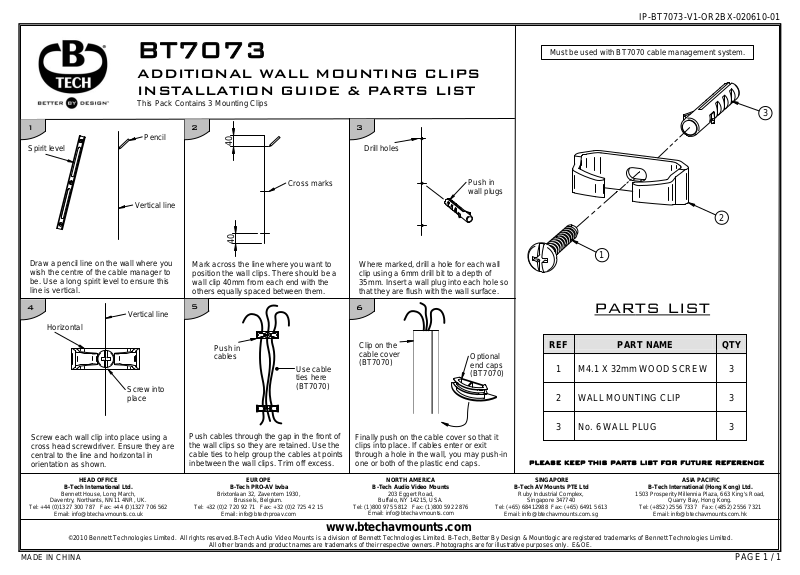

B-Tech BT 7073 User guide

IP-BT7073-V1-OR2BX-020610-01

BT7073

ADDITIONAL WALL MOUNTING CLIPS
INSTALLATION GUIDE & PARTS LIST

This Pack Contains 3 Mounting Clips

1

Pencil

Spirit level

Vertical line

Draw a pencil line on the wall where you
wish the centre of the cable manager to
be. Use a long spirit level to ensure this
line is vertical.

4

Horizontal

Vertical line

Screw into
place

2

40

Cross marks

40

Mark across the line where you want to
position the wall clips. There should be a
wall clip 40mm from each end with the
others equally spaced between them.

5

Push in
cables

Use cable
ties here
(BT7070)

3

Drill holes

Push in
wall plugs

Where marked, drill a hole for each wall
clip using a 6mm drill bit to a depth of
35mm. Insert a wall plug into each hole so
that they are flush with the wall surface.

6

Clip on the
cable cover
(BT7070)

Optional
end caps
(BT7070)

Must be used with BT7070 cable management system.

3

2

1

PARTS LIST

REF PART NAME QTY

1 M4.1 X 32mm WOOD SCREW 3

2 WALL MOUNTING CLIP 3

Screw each wall clip into place using a
cross head screwdriver. Ensure they are
central to the line and horizontal in
orientation as shown.

HEAD OFFICE

B-Tech International Ltd.

Bennett House, Long March,

Daventry, Northants, NN11 4NR, UK.

Tel: [phone] Fax: [phone]

Email: [e-mail]

©2010 Bennett Technologies Limited. All rights reserved.B-Tech Audio Video Mounts is a division of Bennett Technologies Limited. B-Tech, Better By Design & Mountlogic are registered trademarks of Bennett Te chnologies Limited.

MADE IN CHINA

Push cables through the gap in the front of
the wall clips so they are retained. Use the
cable ties to help group the cables at points
inbetween the wall clips. Trim off excess.

EUROPE

B-Tech PRO-AV bvba

Brixtonlaan 32, Zaventem 1930,

Tel: [phone] Fax: [phone]

Brussels, Belgium.

Email: [e-mail]

Finally push on the cable cover so that it
clips into place. If cables enter or exit
through a hole in the wall, you may push-in
one or both of the plastic end caps.

NORTH AMERICA

B-Tech Audio Video Mounts

203 Eggert Road,

Buffalo, NY 14215, USA.

Tel: [phone] Fax: [phone]

Email: [e-mail]

Tel: [phone] Fax: [phone]

PLEASE KEEP THIS PARTS LIST FOR FUTURE REFERENCE

SINGAPORE

B-Tech AV Mounts PTE Ltd

Ruby Industrial Complex,

Singapore 347740

Email: [e-mail]

www.btechavm ounts.c om

All other brands and product names are trademark s of their respective owners. Photographs are for illustrative purposes only. E&OE.

3 No. 6 WALL PLUG 3
