Page 1
BT10
HI-LOGIC PLUS™ SPEAKER FLOOR STANDS
INSTALLATION GUIDE & PARTS LIST
This Pack Contains 2 Speaker Stands
PLEASE KEEP THIS FOR FUTURE RE FERENCE
FEATURES
● Designed for home cinema speakers up to 10kg (22lbs)
● Die-cast base for greater stability, esoteric performance
and to curb unwanted vibration
● Adjustment height: 660mm (26”) – 1200mm (47.2”)
● Suitable for speakers with single point, dual point
and keyhole fixings
● Alternative speaker clamp supplied for speakers
without fixing holes
● Comprehensive mounting kit included
● Integrated cable management with
speaker cable pull-through wire
● Simple assembly and speaker mounting
● This pack contains 2 floor stands
REG DESIGN NO: 3003354
CONTENTS
Installation Safety Notes.....................................................................................................................2
Parts List.............................................................................................................................................4
Installation Instructions.......................................................................................................................6
Product Dimensions..........................................................................................................................11
B-Tech Contact Details.....................................................................................................................12
INSTALLATION TOOLS REQUIRED
Crosshead
screwdriver
4mm Hex Key
(Supplied)
B-TECH AUDIO VIDEO MOUNTS
www.btechavmounts.com
Page 2
INSTALLATION SAFETY INSTRUCTIONS
CAUTION: These stands are intended for use only with the maximum
weights indicated. Use with speakers heavier than the maximum indicated
may result in instability causing possible injury.
Do not attempt to install this product until all instructions and warnings have been read and
properly understood. Please keep these instructions for future reference.
B-Tech International Limited, its distributors and dealers are not liable or responsible for
damage or injury caused by improper installation, improper use or failure to observe these
safety instructions. In such cases, all guarantees will expire.
General
Great care must always be taken during installation as most AV equipment is of a fragile
nature, possibly heavy and easily damaged if dropped.
If you do not fully understand the instructions or are not sure how to install this product
safely, then please consult a professional for advice and/or to install this product for you.
Failure to mount this product correctly may cause serious injury or death both during
installation and at any time thereafter.
Do not mount any AV equipment that exceeds the specific weight limit of the product you are
installing. This weight limit will be clearly stated on each product and its packaging and will
vary from product to product.
Product location
Please pay careful attention to where this product is located. Some locations are not suitable
for installation.
If located in a public or frequently populated area ensure that the product is out of the
immediate reach of people.
Fixing hardware
It is highly recommended that all fixing screws be used where supplied and that the purpose
of all other fixing hardware is fully understood. In some cases more AV equipment fixing
hardware will be supplied to accommodate different models of equipment and set up
configurations.
The installer must be satisfied that any supplied fixing hardware is suitable for each specific
installation. If any fixing screws or included hardware are deemed not sufficient for a safe
installation then please consult a professional or your local hardware store.
Hazard limitation
When routing cables take advantage of any built in cable management features that the
product might provide and ensure that all cables are tidy and secure. Check to see that any
moving aspect of the product can do so unhindered by any cabling.
Some products have moving parts and the potential to cause injury through the crushing or
trapping of fingers or other body parts.
Particular attention to the nature of moving parts is required especially when assembling
installing and adjusting during set up.
Immediately after installations double-check that the work done is safe and secure. Doublecheck all necessary fixings are present and are of ample tightness.
It is recommended that periodic inspections of the product and its fixing points are made as
frequently as possible to ensure that safety is maintained. If in doubt consult a professional
AV installer or other suitably qualified person.
2
Page 3
CS
A
Společnost B-Tech International Ltd. doporučuje provést instalaci tohoto produktu prostřednictvím odborného
instalátora AV či jinak způsobilé osoby. Společnost B-Tech International Ltd, její distributoři a prodejci nenesou
odpovědnost za škody nebo zranění způsobená nevhodnou instalací. Tento výrobek je nutno umístit do vhodné
konstrukce a používat jen po uvedenou maximální výšku.
DE
B-Tech International Ltd. empfiehlt, dass dieses Produkt durch einen qualifizierten AV-Techniker oder eine
andere Person mit geeigneter Qualifikation installiert wird. B-Tech International Ltd, ihre Distributoren und
Händler können nicht für durch fehlerhafte Montage verursachte Beschädigung oder Verletzung haftbar bzw.
verantwortlich gemacht werden. Dieses Produkt muss auf eine geeignetem Untergrund montiert werden und darf
nur bis zum angegebenen Höchstgewicht verwendet werden.
ES
B-Tech International Ltd. recomienda que un instalador de audio y video profesional u otra persona debidamente
cualificada instalen este producto. B-Tech International Ltd, sus distribuidores y concesionarios no se hacen
cargo ni se responsabilizan de ningún daño o lesión provocados por una instalación inapropiada. Este producto
se debe montar en una estructura adecuada y se debe utilizar soportando solamente hasta el peso máximo
indicado.
FR
B-Tech International Ltd. recommande de confier l’installation de ce produit à un installateur AV professionnel ou
à une autre personne dûment qualifiée. B-Tech International Ltd, ses distributeurs et ses revendeurs ne
sauraient être tenus responsables de tout dégât ou de toute blessure résultant d’une installation incorrecte. Ce
produit doit être monté sur un support approprié et utilisé dans la limite du poids maximum indiqué.
IT
B-Tech International Ltd. consiglia di affidare l’installazione di questo prodotto a un installatore specializzato o ad
altra persona adeguatamente qualificata. B-Tech International Ltd, i suoi distributori e rivenditori non accettano
alcuna responsabilità nei riguardi di eventuali danni o infortuni causati da un’errata installazione. Questo prodotto
deve essere fissato a una struttura idonea e utilizzato unicamente sino al peso massimo indicato.
NL
B-Tech International Ltd. adviseert om dit product te laten installeren door een professionele AV-installateur of
andere hiervoor gekwalificeerde persoon. B-Tech International Ltd, haar distributeurs en dealers zijn niet
aansprakelijk of verantwoordelijk voor schade of letsel die is veroorzaakt door onoordeelkundige installatie. Dit
product moet worden gemonteerd aan een geschikte constructie, waarbij het aangegeven maximum gewicht niet
mag worden overschreden.
PL
Firma B-Tech International Ltd. zaleca, aby ten produkt był instalowany przez profesjonalnych instalatorów AV
lub inny odpowiednio przeszkolony personel. Firma B-Tech International Ltd, jej dystrybutorzy i dealerzy nie
ponoszą odpowiedzialności za uszkodzenia lub obrażenia ciała powstałe w wyniku nieprawidłowej instalacji.
Niniejszy produkt musi być zamontowany na odpowiedniej powierzchni, a podczas użytkowania nie wolno
przekraczać podanego maksymalnego obciążenia.
PT
B-Tech International Ltd. recomenda que a instalação deste produto seja efectuada por um instalador de AV
profissional ou outra pessoa devidamente habilitada. A B-Tech International Ltd. e os seus distribuidores e
concessionários não são responsáveis por danos ou lesões causados por uma instalação incorrecta. Este
produto tem de ser montado numa estrutura adequada e utilizado somente até ao peso máximo indicado.
RU
Компания B-Tech International Ltd. рекомендует, чтобы установка данного изделия производилась
инженером по установке аудио-видеотехники или другим специалистом с соответствующей
квалификацией. Компания B-Tech International Ltd., ее дистрибьюторы и дилеры не несут ответственности
за повреждения или травмы, полученные в результате неправильной установки. Данное изделие должно
3
Page 4
BT10

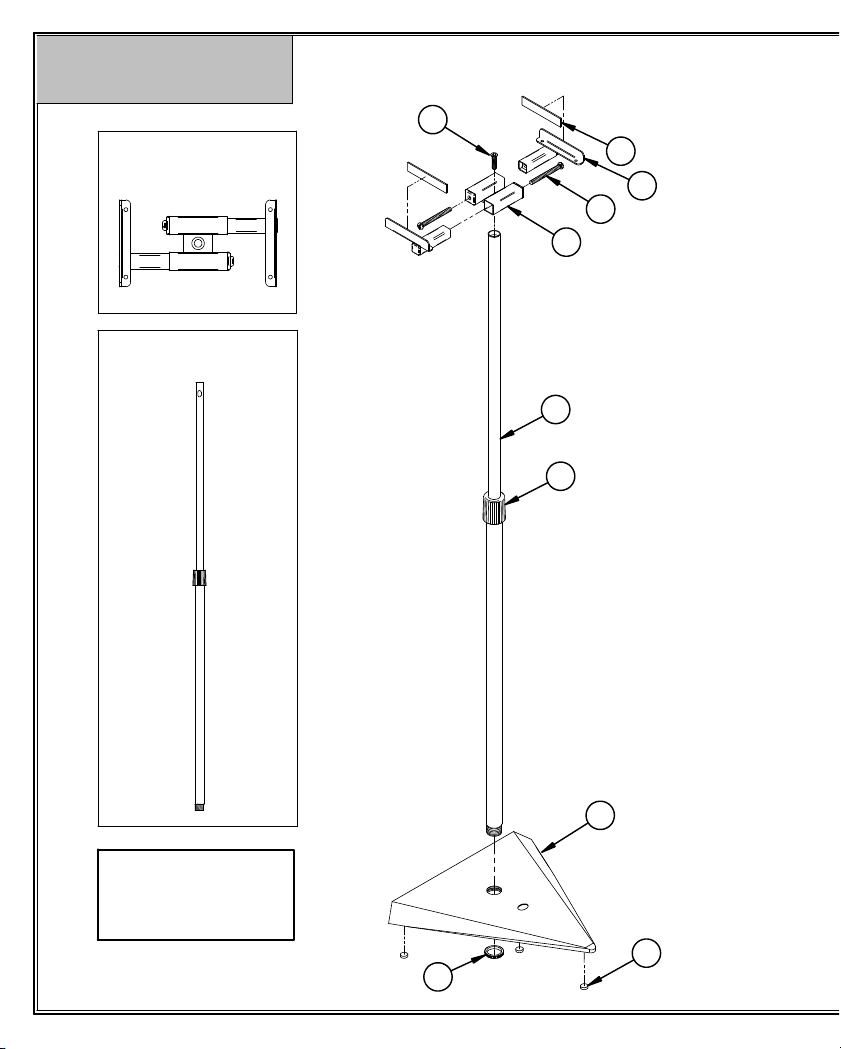

PARTS LIST
CLAMP ASSEMBLY
TUBE ASSEMBLY
6
10
8
9
7
1
2
Suitable for loads
10kg (22lbs)
4
3
up to
5
4
Page 5
11
12
13

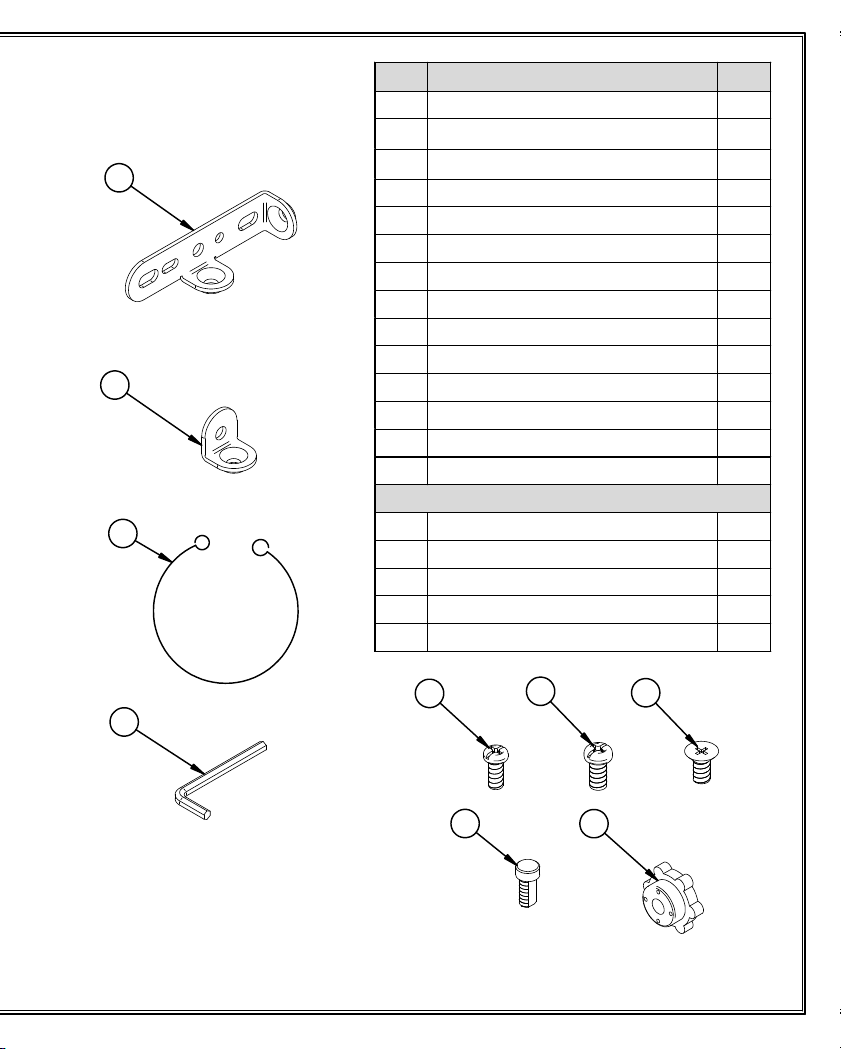

REF PART NAME QTY
1 TUBE ASSEMBLY 2
2 HEIGHT ADJUSTMENT COLLAR 2
3 FLOOR BASE 2
4 M22 NUT 2
5 RUBBER FEET 6
6 M6 X 25mm HEX SCREW 2
7 CLAMP BRACKET 2
8 SPEAKER CLAMP 4
9 M6 x 60mm SCREW 4
10 FOAM PAD 4
11 DUAL POINT SPEAKER FIXING 2
12 SINGLE POINT SPEAKER FIXING 2
13 SPEAKER CABLE PULL-THROUGH WIRE 1
14 4mm HEX KEY (FOR PART 6) 1
INTERFACE KIT
A M5 X 12mm SCREW 4
B M6 X 12mm SCREW 4
C ¼” X ½” UNC SCREW 4
D ¼” X ½” UNC SCREW (FOR PART E) 2
E THUMB WHEEL (FOR PART D) 2
14
A
B
D E
PLEASE KEEP THIS FOR FUTURE REFERENCE
C
5
Page 6
INSTALLATION INSTRUCTIONS
1

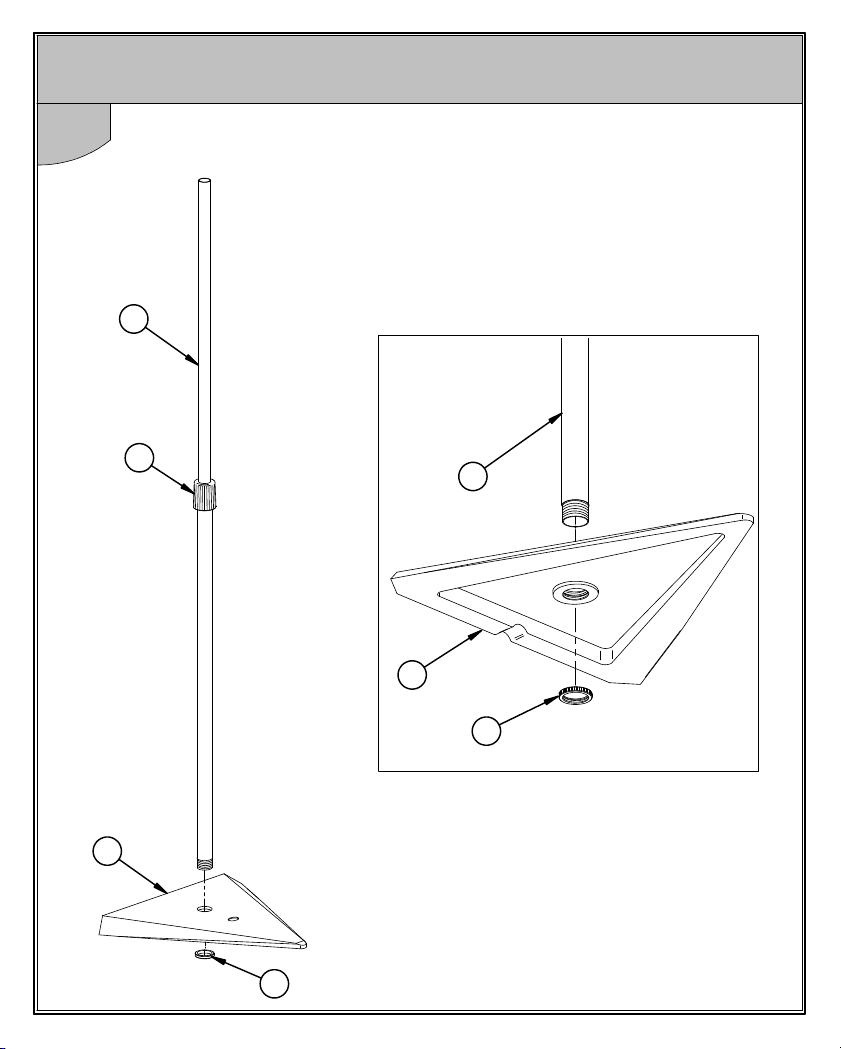

Attach tube to the floor base.
1
2
1
3
4
3
6
4
Page 7
2

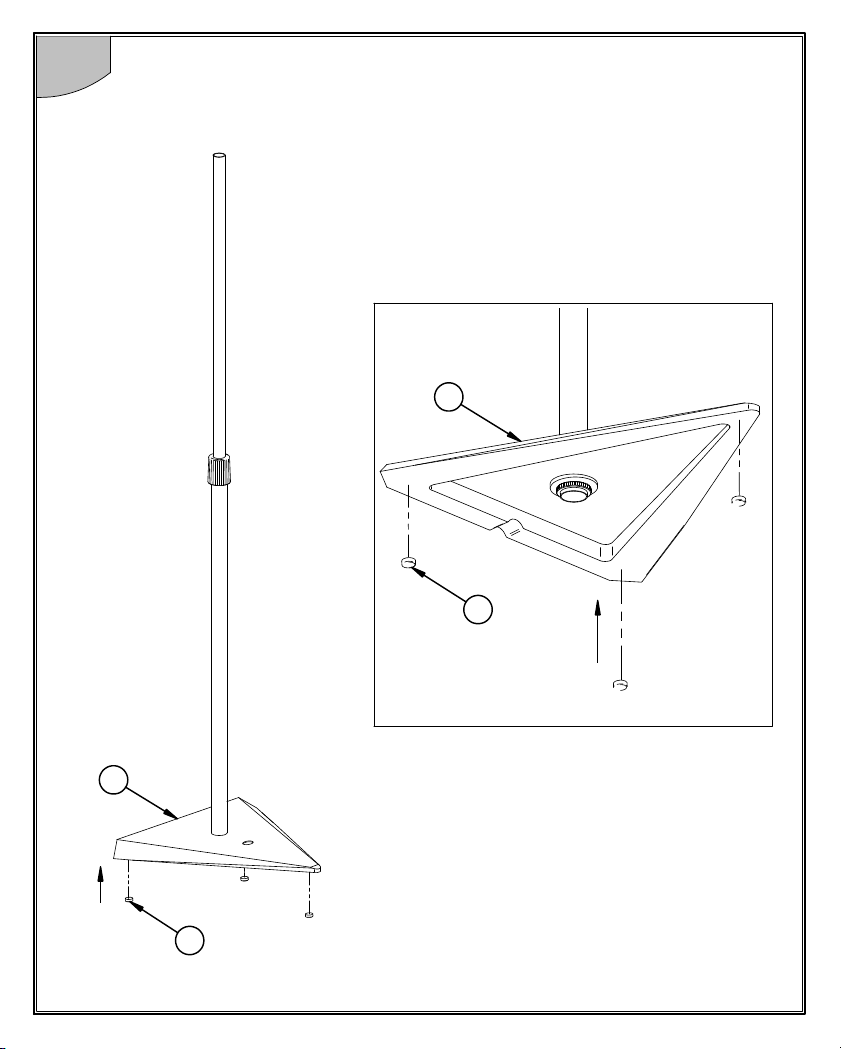

Stick the rubber feet to the bottom of the floor base.
3
5
3
5
7
Page 8
3

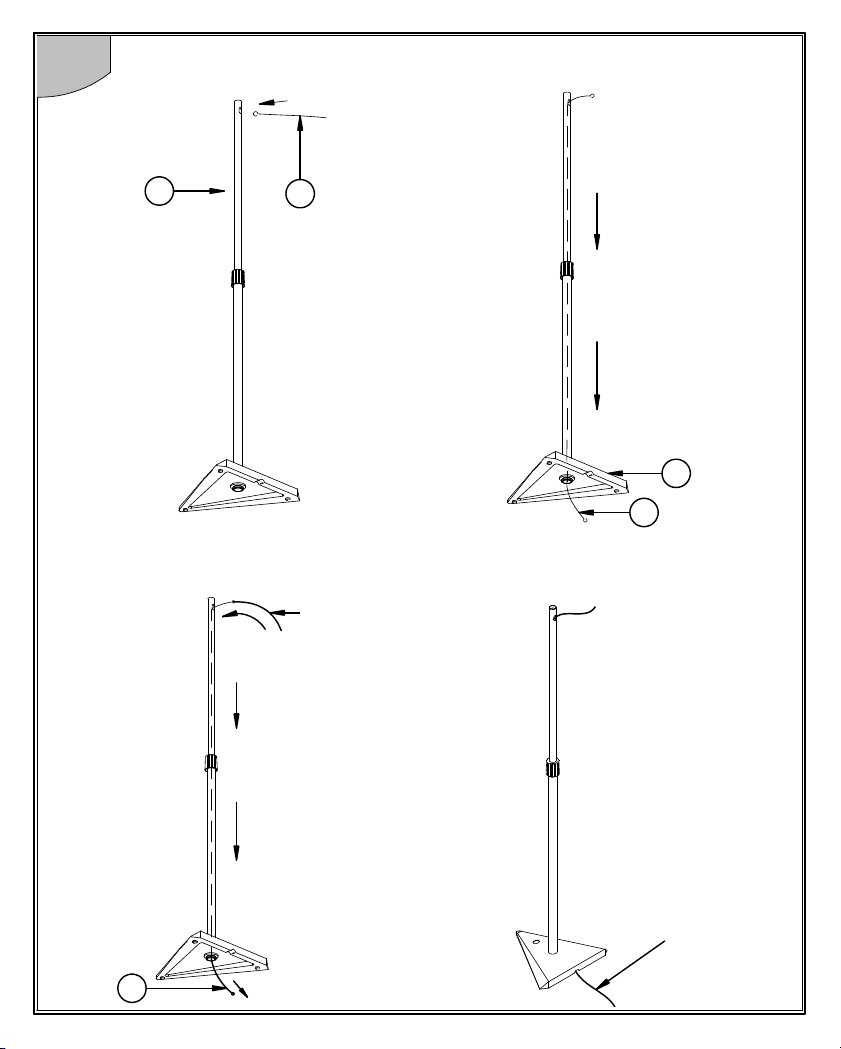

i. Feed the pull-through wire through the hole at the top of the tube down
to the floor base.
1
ii. Attach the speaker cable to the top of the pull-through wire, then pull the
cable all the way through the tube.
13
3
13
SPEAKER
CABLE
SPEAKER
8
13
CABLE
Page 9
4

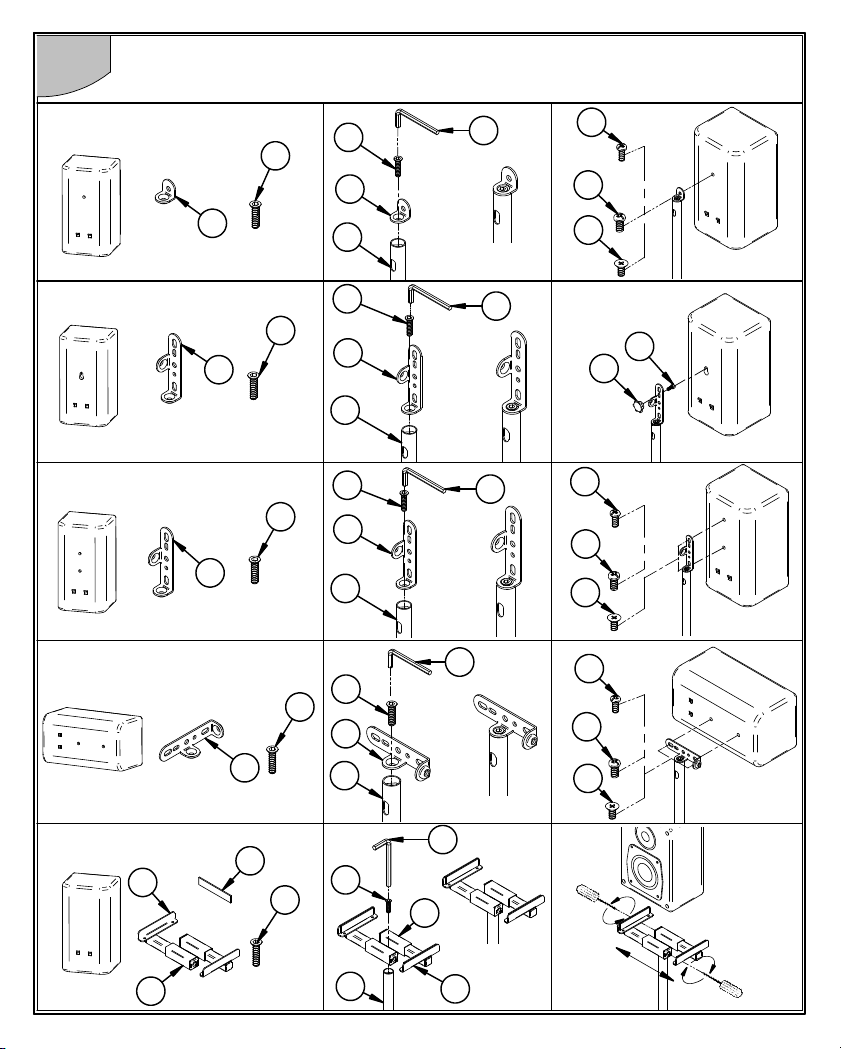

Choose an adaptor for the speaker.
Single point fixing
6
12
Keyhole fixing
6
11
Vertical dual point fixing
6
11
Horizontal dual point fixing
6
12
1
6
11
1
6
11
1
6
6
11
14
14
14
14
A
B
C
D
E
A
B
C
A
B
Speaker Clamp
8
7
11
10
1
14
6
6
7
1
8
C
9
Page 10

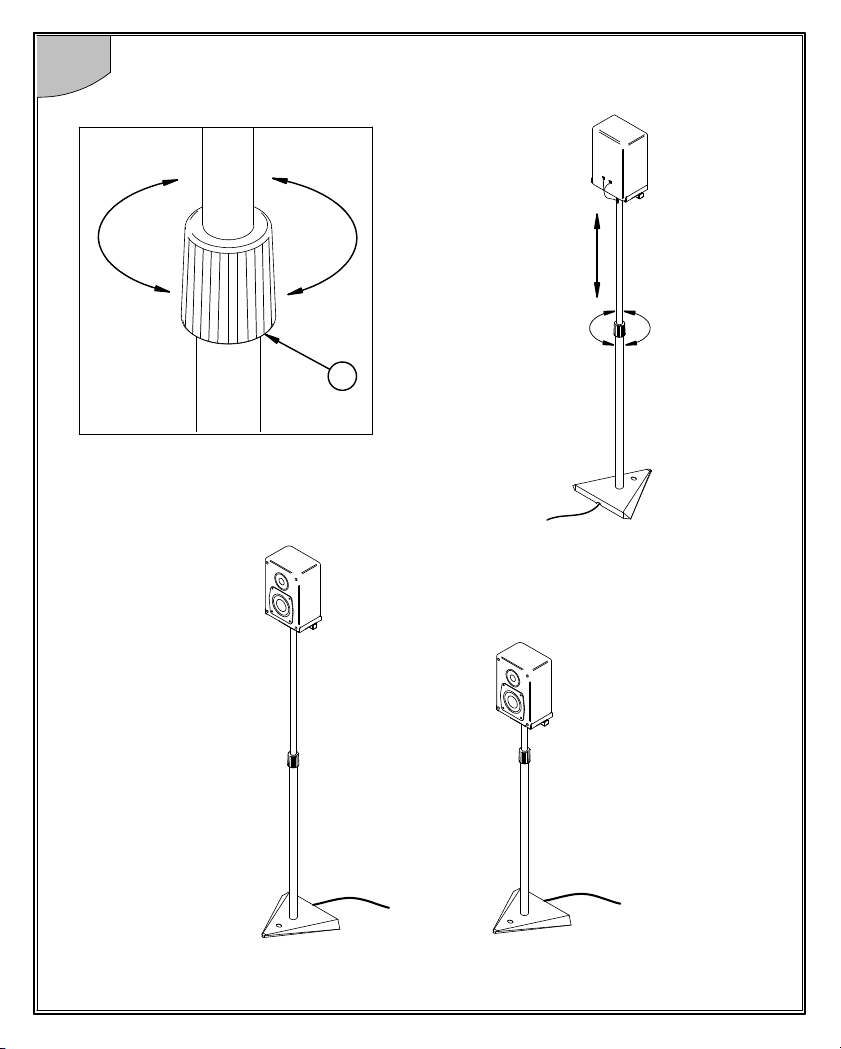

5 Loosen the height adjustment collar, adjust height then retighten.
2
10
Page 11
BT10

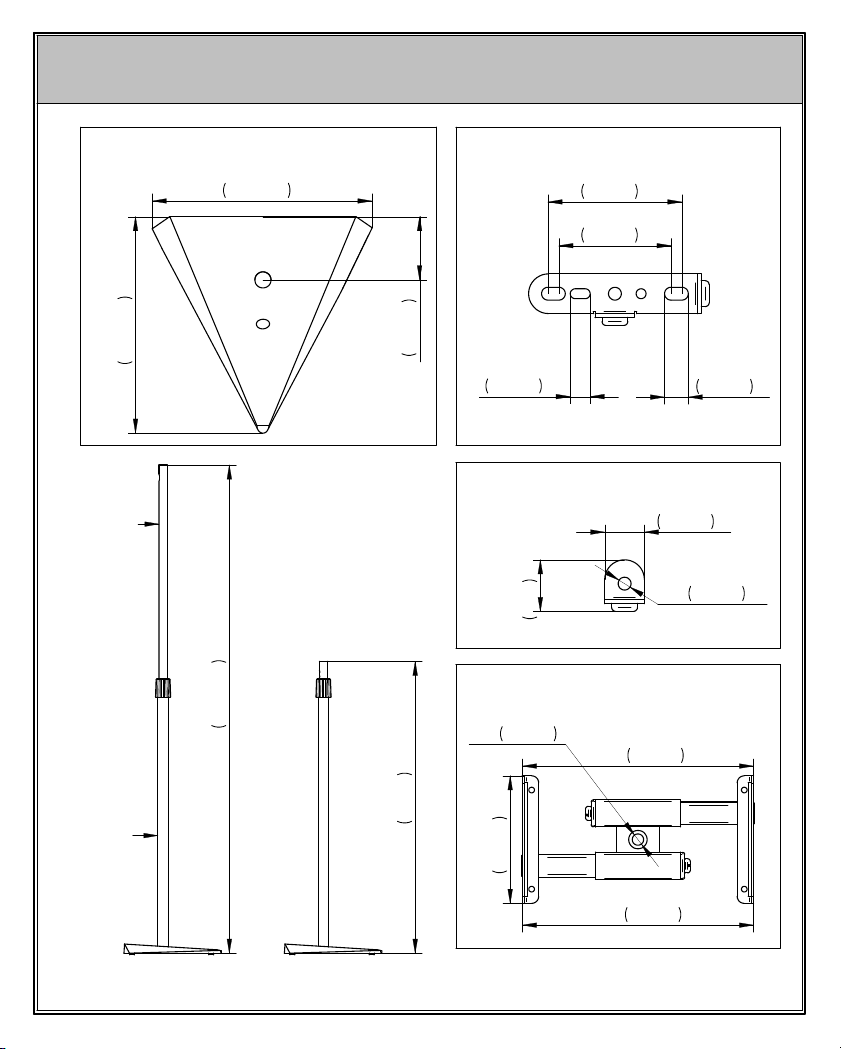

PRODUCT DIMENSIONS
290mm
O18mm
(0.7")
11.4"
FLOOR BASE
300mm
11.8"
1200mm
47.2"MAX
86mm
3.4"
DUAL ADAPTOR
68mm
2.7"
56mm
2.2"
10mm
0.4"
SINGLE ADAPTOR
26mm
1"
ADJUSTABLE CLAMP
8mm
O
0.3"
20mm
0.8"
O
90mm
3.5"MIN
12mm
0.5"
6.5mm
0.3"
O23mm
(0.9")
660mm
26"MIN
90mm
3.5"
165mm
6.5"MAX
THESE INSTRUCTIONS ARE INTEND ED AS A GUIDE ONLY AND B-TECH ACCEPTS NO
LIABILITY FOR THE ACCURACY OF THE I NFORMATION CONTAINED IN THIS DOCUMEN T.
11
Page 12
www.btechavmounts.com
A
A
A
B-TECH AUDIO VIDEO MOUNTS
Bennett House, Long March, Daventry, Northants NN11 4NR, UK
EUROPE
Brixtonlaan 32, Zaventem 1930,
Brussels, Belgium
Email: [email protected]
Buffalo, NY 14215, USA
Email: [email protected]
B-Tech, Better By Design , Mountlogic & Hi-Logic Plus are r egistered trademarks of Bennett Technologies Limited.
Email: info@btechavmoun ts.co. uk
NORTH AMERIC
203 Eggert Road,
©2009 Bennett Technologies Limited. All rights reserved.
B-Tech Audio Video Mounts is a division of Bennett Technologies Limited.
All other brands and product names are trademarks of their respective owners.
Photographs are for illustrative purposes only. E&OE.
IP-BT10-V2-OR2BX-251109-01 MADE IN CHINA
