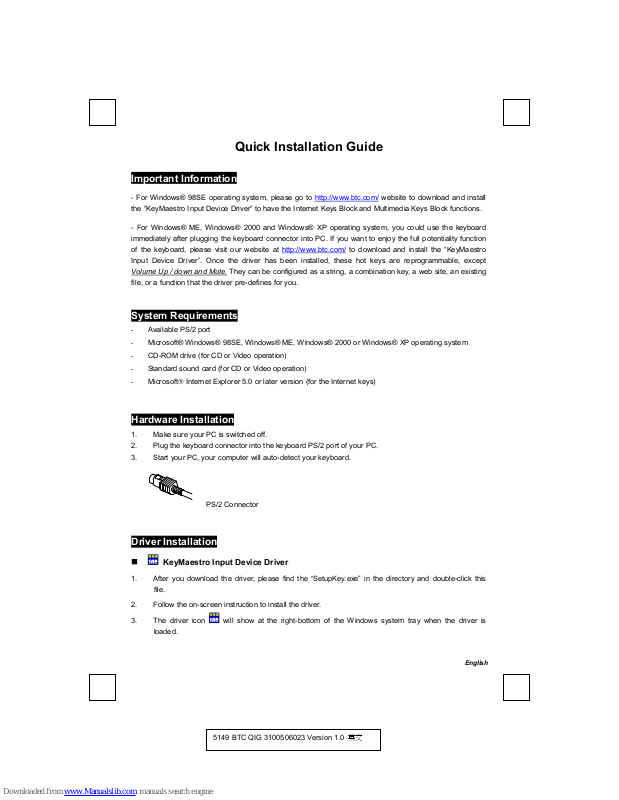

Quick Installation Guide
Important Information
- For Windows® 98SE operating system, please go to http://www.btc.com/ website to download and install
the “KeyMaestro Input Device Driver” to have the Internet Keys Block and Multimedia Keys Block functions.
- For Windows® ME, Windows® 2000 and Windows® XP operating system, you could use the keyboard
immediately after plugging the keyboard connector into PC. If you want to enjoy the full potentiality function
of the keyboard, please visit our website at http://www.btc.com/
to download and install the “KeyMaestro
Input Device Driver”. Once the driver has been installed, these hot keys are reprogrammable, except
Volume Up / down and Mute.
They can be configured as a string, a combination key, a web site, an existing
file, or a function that the driver pre-defines for you.
System Requirements
- Available PS/2 port
- Microsoft® Windows® 98SE, Windows® ME, Windows® 2000 or Windows® XP operating system
- CD-ROM drive (for CD or Video operation)
- Standard sound card (for CD or Video operation)
- Microsoft Internet Explorer 5.0 or later version (for the Internet keys)
Hardware Installation
1. Make sure your PC is switched off.
2. Plug the keyboard connector into the keyboard PS/2 port of your PC.
3. Start your PC, your computer will auto-detect your keyboard.
PS/2 Connector
Driver Installation
KeyMaestro Input Device Driver
1. After you download the driver, please find the “SetupKey.exe” in the directory and double-click this
file.
2. Follow the on-screen instruction to install the driver.
3. The driver icon
will show at the right-bottom of the Windows system tray when the driver is
loaded.
English
5149 BTC QIG 3100506023 Version 1.0 英文
