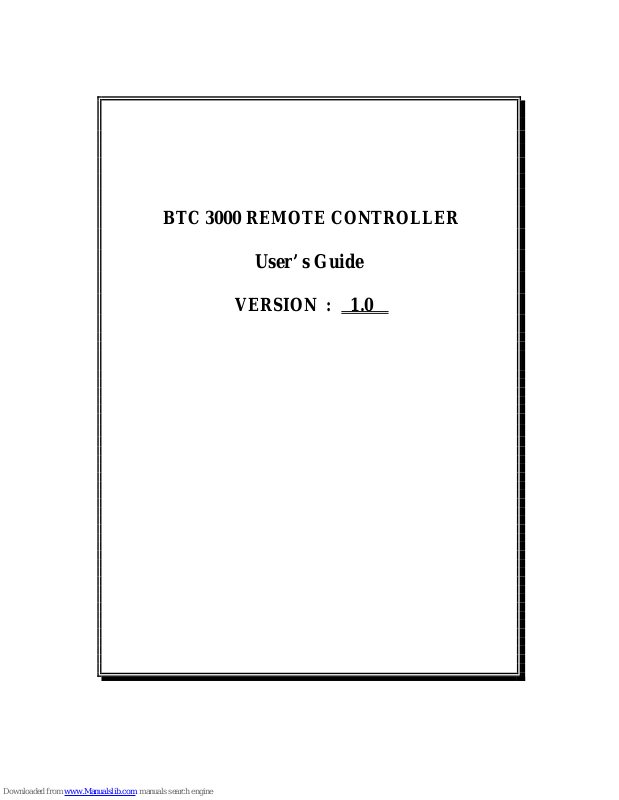

BTC 3000 REMOTE CONTROLLER
User’s Guide
VERSION : 1.0
Page 2
Page 3
Table of Contents
1. PURPOSE ............................................................................................................................................1
1.1 General Description ....................................................................................................................1
2. GENERAL SPECIFICATIONS..........................................................................................................2
2.1 Operation Temperature Range.....................................................................................................2
2.2 Operation Humidity Range..........................................................................................................2
2.3 Material Parts & UL Number ......................................................................................................2
3 LAYOUT ...........................................................................................................................................3
4 BLOCK DIAGRAM..........................................................................................................................4
Page 4
BEHAVIOR TECH COMPUTER CORP. Remote Controller Ver.1.0
May 23, 2000 Page 1
1. PURPOSE
The following specifications is applied to this remote controller.
1.1 General Description

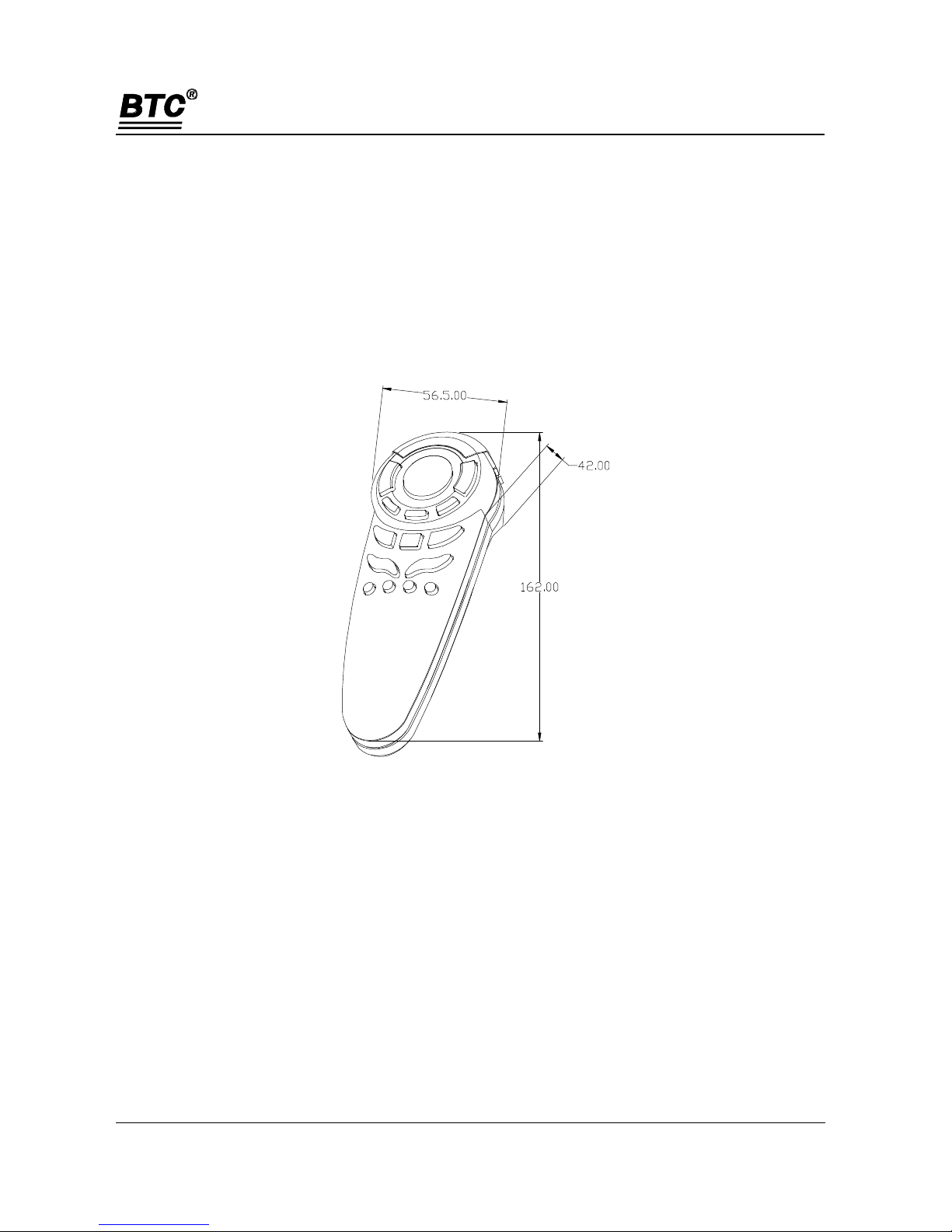

Length: 162 mm.
Width: 56.5 mm.
Height: 42 mm.
Weight: 86 g.
Page 5
BEHAVIOR TECH COMPUTER CORP. Remote Controller Ver.1.0
May 23, 2000 Page 2
2. GENERAL SPECIFICATIONS
2.1 Operation Temperature Range
Operation Temperature Range : 0°C ~ 45°C
Storage Temperature Range : -20°C ~ 60°C
2.2 Operation Humidity Range
Operation Humidity Range : 20% ~ 90%
Storage Humidity Range : 90%RH or less (Non-Condensing)
2.3 Material Parts & UL Number
Component Material Type of
Material
Flame
Class
UL No. Manufacturer of Material
Enclosure &
Base cover
HIPS
HIPS
HIPS
PH-88
HR-1360+
350
94HB
94HB
94HB
E56070
E115797
E115332A
Chi Mei Industrial Co., Ltd.
Cheil Industries Inc.
Gppc Chemical Corp.
Battery Cover HIPS
HIPS
HIPS
PH-88
HR-1360+
350
94HB
94HB
94HB
E56070
E115797
E115332A
Chi Mei Industrial Co., Ltd.
Cheil Industries Inc.
Gppc Chemical Corp.
LED Cover PC
PC
PCVM-112
8B35
94V2
94V2
E118859
E61257
Mobay Corp.
General Electric.
Rubber
Dome
Silicone
Silicone
DY35-840
KE-951
94HB
94HB
E55519
E48923
Dow Ccooling Trray Silicon Co., Ltd.
Shin-Etsu Chemical Co., Ltd.
P.C.B XPC ETL-601 94HB E95862
Eternal Chemical Co., Ltd.
Connector Socket
(Wafer)
Nylon 66
Nylon 66
A3K
JP2411
94V2
94V2
E41871
E127691
Basf Aktiengesellschaft
Just Make Terminal & Machine Co.,
Ltd.
Page 6
BEHAVIOR TECH COMPUTER CORP. Remote Controller Ver.1.0
May 23, 2000 Page 3
3 LAYOUT

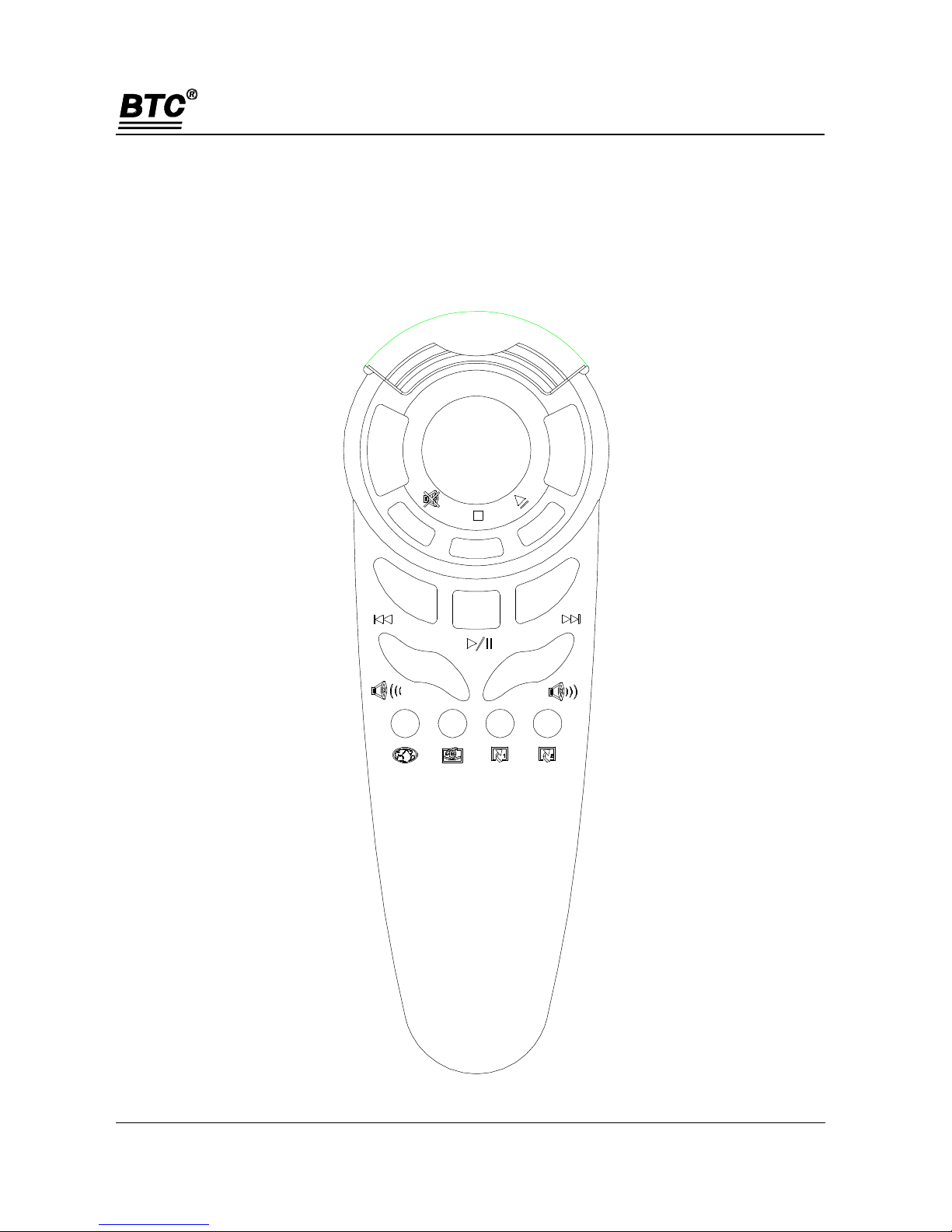

3000 LAYOUT
Page 7
BEHAVIOR TECH COMPUTER CORP. Remote Control Ver.1.0
May 23, 2000 Page 4

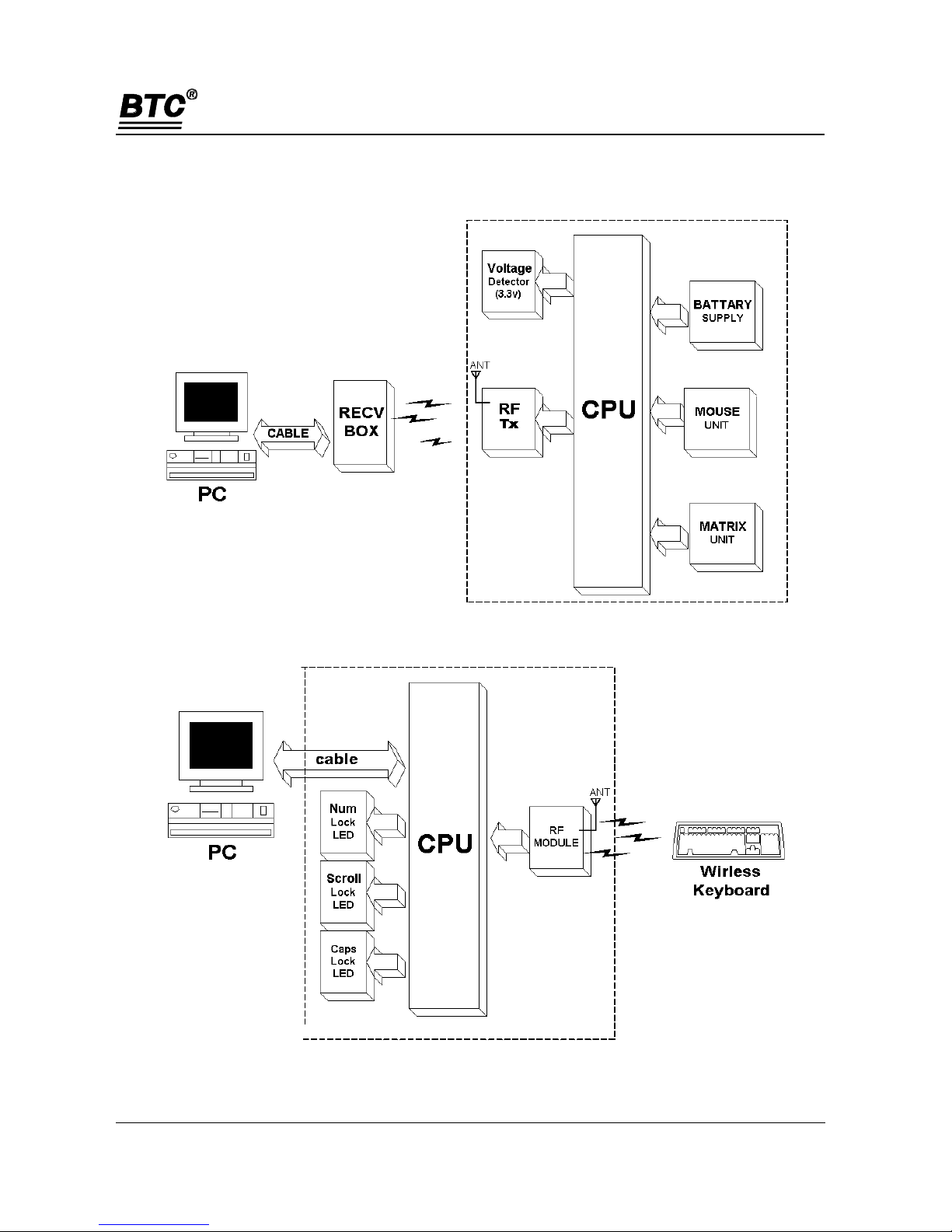

4 BLOCK DIAGRAM
Keyboard
Receiver
