BT HUB PHONE 1020 User Manual

1 Before you start

1. Please make sure you have followed the BT Total Broadband Set-up Guide for

the BT Home Hub.

2. Check that your green phone light is on. This will mean that your Home Hub is

ready to use with your Broadband Talk service. If your light is not on you will need to activate your Broadband Talk service. Please refer to the green box at the bottom of the page for instructions on how to do this.

3. Your BT Hub Phone 1020 box contains:

Charging cradle

Mains power adapter

BT Hub Phone 1020 handset

2 x AAA NiMH rechargeable batteries

(Please note: you will not use this cable if attaching the charging cradle to the BT Home Hub).

IMPORTANT

Need to activate your Broadband Talk account? You will need your Broadband Talk number and password which can be found in your Account Summary Letter or in the email sent to you from BT. Once you have this visit bt.com/bbt, enter your Broadband Talk number and password and follow the instructions until you receive a ‘Configuration Successful’ message.

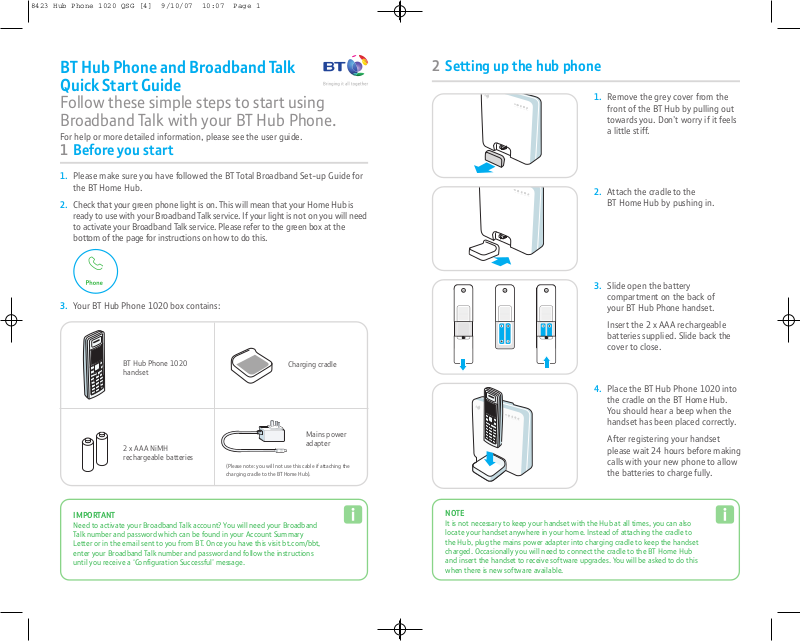

BT Hub Phone and Broadband Talk Quick Start Guide

Follow these simple steps to start using Broadband Talk with your BT Hub Phone.

For help or more detailed information, please see the user guide.

2 Setting up the hub phone

1. Remove the grey cover from the

front of the BT Hub by pulling out towards you. Don’t worry if it feels a little stiff.

2. Attach the cradle to the

BT Home Hub by pushing in.

3. Slide open the battery

compartment on the back of your BT Hub Phone handset.

Insert the 2 x AAA rechargeable batteries supplied. Slide back the cover to close.

4. Place the BT Hub Phone 1020 into

the cradle on the BT Home Hub. You should hear a beep when the handset has been placed correctly.

After registering your handset please wait 24 hours before making calls with your new phone to allow the batt

eries t

o char

ge fully.

NOTE

It is not necessar

y t

o k

eep your handset with the Hub at all times, you can also

locat

e your handset anywher

e in your home. Ins

tead of attaching the cradle to the Hub, plug the mains power adapter into charging cradle to keep the handset charged. Occasionally you will need to connect the cradle to the BT Home Hub and insert the handset to receive software upgrades. You will be asked to do this when there is new software available.

8423 Hub Phone 1020 QSG [4] 9/10/07 10:07 Page 1

3 Registering the hub phone

Ensure your Hub Phone is switched on. To switch it on press and hold the red button. You now need to register the handset with your BT Home Hub. Screen prompts on the handset will help guide you through the registration process – it’s easy!

On the handset:

will appear on

the screen. Press

OK.

2. Now press and hold the wireless

association button on the back or side of the Hub (depending upon which Hub you have) for 3 seconds. When the phone light on the Hub begins to flash you can release the button. Don't hold the button for longer than 3 seconds otherwise you might reset the Hub and have to start again.

3. Press OK and place the handset in

the Hub’s charger.

Registering,

please wait

will appear on screen.

Do not remove the handset until you get a confirmation message:

Handset registered

If r

egis

ation fails, you will have

o try the process again. The screen will automatically return to the r

egis

ter screen.

4 Final set up

Congratulations. You have registered your BT Hub Phone with the BT Home Hub, this is the phone that will use your BT Broadband Talk service.

If you have another phone and wish to continue to use it for standard landline calls, just plug it into your telephone wall socket with an ADSL filter.

If you would like calls that you receive on your standard phone number to also ring on your hub phones then open your web browser to

bthomehub.home

to go to the hub manager. Select the ‘Telephones’ menu on the left to change your settings. (Default hub manager username: admin, password: admin)

Your BT Hub Phone 1020 is ready for use.

For more information on how BT Broadband Talk works on the BT Home Hub refer to the user guide section, ‘Making Calls with BT Broadband Talk’.

ADSL filter

Ofﬁces worldwide

The services described in this publication are subject to availability and may be modiﬁed from time to time. Ser

vices and equipment are provided subject to British Telecommunications plc’s respective standard conditions of contract.

Nothing in this publication forms any part of any contract.

Designed and produced by The Art & Design Partnership Ltd. Printed in China. BT Hub Phone 1020 QSG Issue 2 (10/07) 4.

NOTE

If you have tr

ouble with the aut

omatic registration process, see the user guide

for the manual registration process.

NOTE

Broadband Talk is like a second phone line for the home, but with no extra line rental to pay. It comes with its own phone number so you can have a separate line for the kids or for work calls, keeping the regular home phone free for other calls.

Broadband Talk lets you call any number you like, landlines and mobiles, in the UK and abroad. Don’t forget our great rates on international calls, from just 1.25p a minute.

or more information on how BT Broadband Talk works on the BT Home Hub, refer to the user guide section, ‘Making Calls with Broadband Talk’ or visit www.bt.com/broadbandtalk. To manage your service please visit www

.bt.com/br

oadbandtalk/your

account and have your Br

oadband T

alk

number and password handy.
