BST AD600, AD1000 Instruction Manual
© Copyright LOTRONIC 2014 AD600-AD1000 Page 1

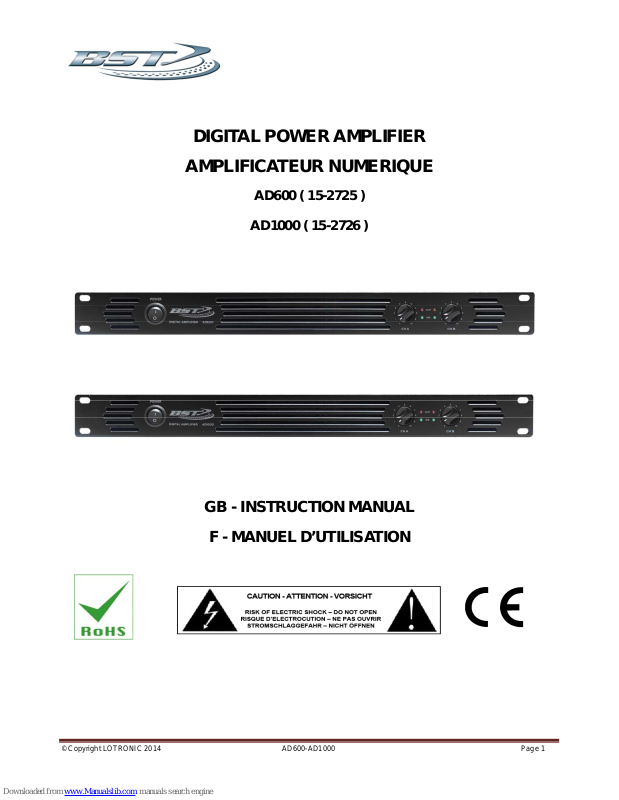

DIGITAL POWER AMPLIFIER
AMPLIFICATEUR NUMERIQUE
AD600 ( 15-2725 )
AD1000 ( 15-2726 )
GB - INSTRUCTION MANUAL
F - MANUEL D’UTILISATION
© Copyright LOTRONIC 2014 AD600-AD1000 Page 2
ENGLISH
Thank you for having chosen our power amplifier. For your own safety, please read this user manual carefully before installing the
device.
SAFETY INTRODUCTION
If the device has been exposed to temperature changes due to environmental changes, do not s witch it on immediately. The
arising condensation could damage the device. Leave the device switched off until it has reached room temperature.
It is essential that the device is earthed. A qualified person must carry out the electric connection.
Make sure that the available voltage is not higher than stated at the end of this manual.
Make sure the power cord is never crimped or damaged. If it is damaged, ask your dealer or authorized agent to replace the
power cord.
Always disconnect from the mains, when the device is not in use or before cleaning it. Only handle the power cord by plug. Never
pull out the plug by tugging the power cord.
DISCONNECT DEVICE: Where the MAINS plug or an appliance coupler is used as the disconnect device, the disconnect device
shall remain readily operable.
CAUTION:
1. Please be aware that damages caused by manual modifications to the device are not subject to warranty. Keep away from
children and non-professionals.
2. The light doesn’t include any spare parts for repair, please check if all the parts are well installed and screws are fitted tightly
before operating. Do not use the light when the cover is open.
GENERAL GUIDELINES
This device is only allowed to be operated wit h an alternating current of max. 110-120VAC / 220-240VAC / 50-60Hz and was
designed for indoor use only.
Operate the device only after having fam iliarized yourself with its functions. Do not permit operation by person not qu alified for
operating the device. Most damages are the result of unprofessional operation.
Please use the original packaging if the device is to be transported.
For safety reasons, please be aware that all modifications on the device are forbidden. Furthermore, any other operation may
lead to short-circuit, burns, electric shock, crash, etc. If this device will be operated in any way different to the one descr ibed in
this manual, the product may suffer damages and the guarantee becomes void.
© Copyright LOTRONIC 2014 AD600-AD1000 Page 3
DESCRIPTION AD600
1) POWER SWITCH
Used to switch the power amplifier on or off
2) VOLUME CONTROL CHANNEL A
In stereo mode, this two control is used to adjust volume of the channel A
In bridge mode, only the A volume control adjust the level of the bridge output
3) SIG & LIMIT LED
The SIG led give you in information about level of signal.
- If the led is off, that means the level is low
- If the led flashes, that mean the level is good.
- If the led lights on, that mean the level is good but near from it max level
The LIMIT led lights on when the level is too high. in this case, decrease the level
4) VOLUME CONTROL CHANNEL B
In stereo mode, this two control is used to adjust volume of the channel B
5) GROUND SWITCH
If you listen hum noise, switch on this selector
6) MODE SWITCH
This switch is used to choose the operating mode of the power amplifier : stereo or bridge
7) INPUTS
Connect on these sockets ( Jack or XLR ) the output of your mixer ( or of the cd player )
8) OUTPUTS
Connect these sockets ( Turnlock or binding post ) to your speakers
Note : in bridge mode, connect binding post + of channel 1 and binding post + of channel B to the speaker
