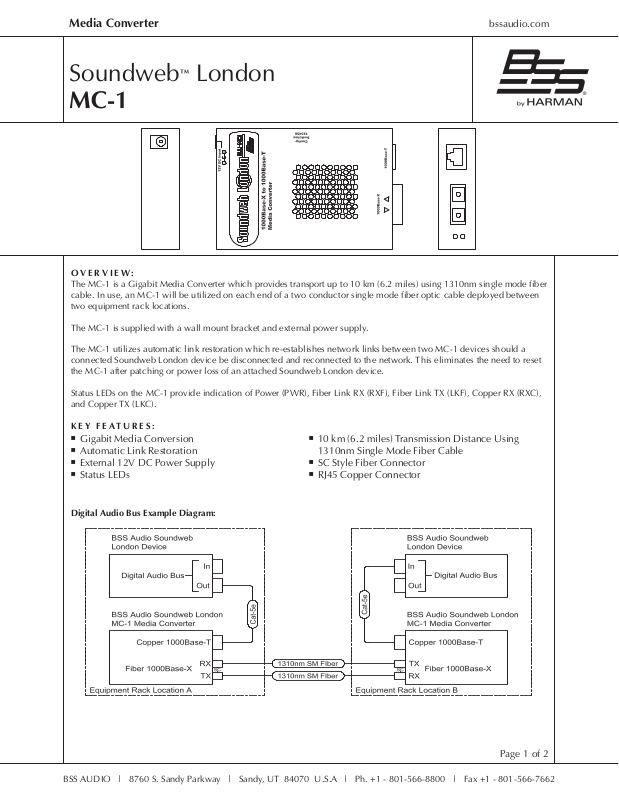

Page 1
Media Converter bssaudio.com
10/100/1000 10/100/1000
Soundweb™ London
MC-1
OVERVIEW:
The MC-1 is a Gigabit Media Converter which provides transport up to 10 km (6.2 miles) using 1310nm single mode fiber
cable. In use, an MC-1 will be utilized on each end of a two conductor single mode fiber optic cable deployed between
two equipment rack locations.
The MC-1 is supplied with a wall mount bracket and external power supply.
The MC-1 utilizes automatic link restoration which re-establishes network links between two MC-1 devices should a
connected Soundweb London device be disconnected and reconnected to the network. This eliminates the need to reset
the MC-1 after patching or power loss of an attached Soundweb London device.
Status LEDs on the MC-1 provide indication of Power (PWR), Fiber Link RX (RXF), Fiber Link TX (LKF), Copper RX (RXC),
and Copper TX (LKC).
KEY FEATURES:
9 Gigabit Media Conversion
9 Automatic Link Restoration
9 External 12V DC Power Supply
9 Status LEDs

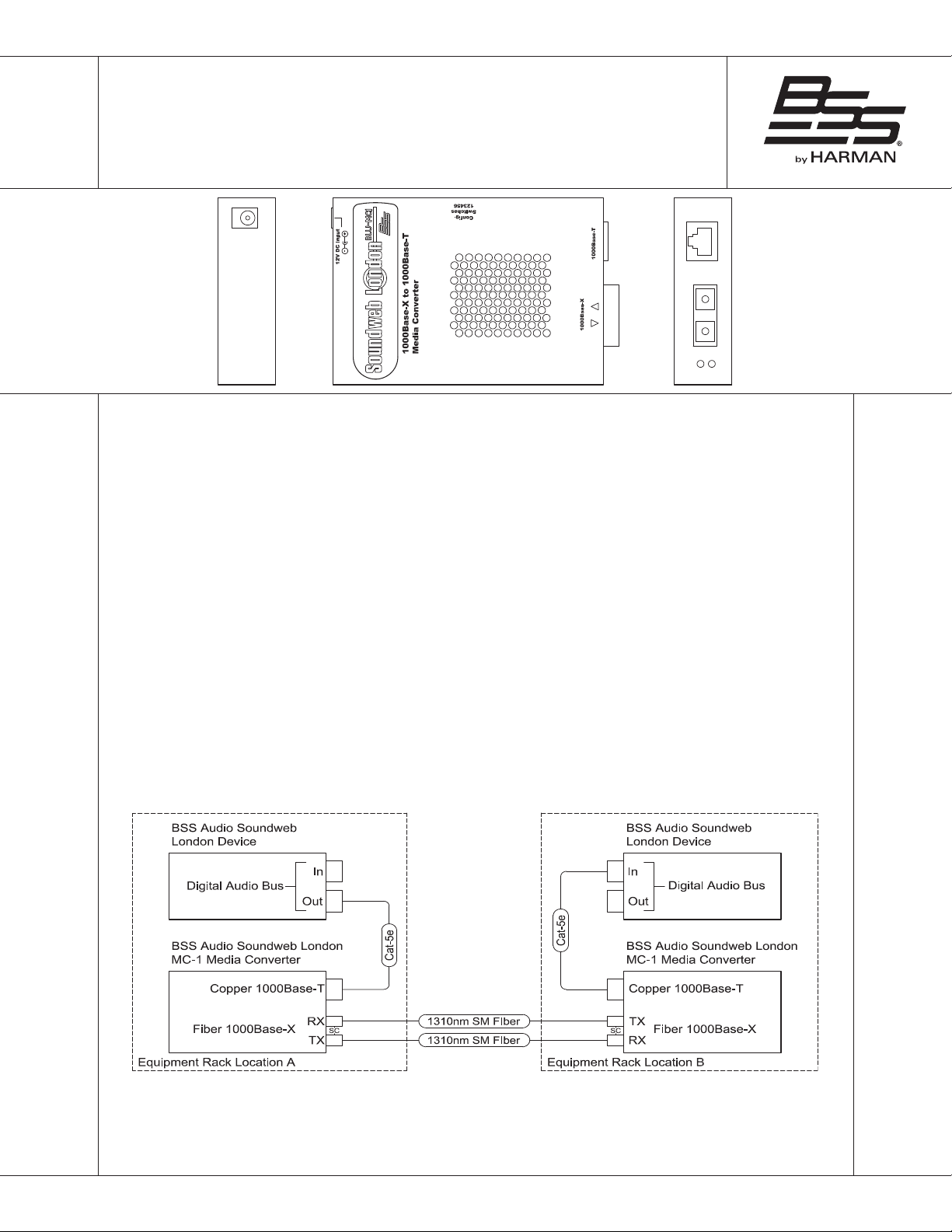

Digital Audio Bus Example Diagram:
9 10 km (6.2 miles) Transmission Distance Using
1310nm Single Mode Fiber Cable
9 SC Style Fiber Connector
9 RJ45 Copper Connector
Page 1 of 2
BSS AUDIO | 8760 S. Sandy Parkway | Sandy, UT 84070 U.S.A | Ph. +1 - 801-566-8800 | Fax +1 - 801-566-7662
Page 2
bssaudio.com Media Converter
10/100/1000 10/100/1000
MC-1 Media Converter
TECHNICAL SPECIFICATIONS:
Standards:
Connectors:
Fiber Optic Connector Type: SC fiber optic connector
UTP Connector Type: Gigabit RJ45
Fiber Optic Connector Specs:
Single Mode: Min TX PWR: -9.5 dBm
Max TX PWR: -3.0 dBm
RX Sensitivity: -20.0 dBm
Max In PWR: -3.0 dBm
Link Budget: 10.50 dB
6-Position Switch: SW1: Remote Fiber Fault Detect (Down=Enabled)
SW2: Symmetric Pause
SW3: Asymmetric Pause
SW4: Transparent Link Pass Through (UP=Enabled)
SW5: Fiber Auto-Negotiation (Down=Enabled)
SW6: Loopback (Down=Enabled)
IEEE Std. 802.3ab™ and IEEE Std. 802.3™
Status LEDs: PWR (Power): Steady green LED indicates connection to external AC power
RXF (Fiber receive): Flashing LED indicates reception of data on fiber link
LKF (Fiber link): Steady LED indicates fiber link connection
RXC (Copper receive): Flashing LED indicates reception of data on copper link
Compliance:
Safety Compliance: Wall Mount Power Supply: UL Listed, C-UL Listed (Canada)
Regulatory Compliance: FCC Class A, CISPR22/EN55022 Class A, EN55024, EN61000, CE Mark
Warranty: Lifetime
Power and Dimensions:
Power External: AC/DC required; 12V DC, 1.5A; unregulated; standard
Environment: 0 – 50° C operating; 5% – 95% humidity non-condensing; 0 – 10,000 feet altitude
Dimensions (H x W x D): 1.0" x 3.25" x 4.8" (25mm x 82mm x 122mm)
Shipping Weight: 2 lbs. / 0.90 kg

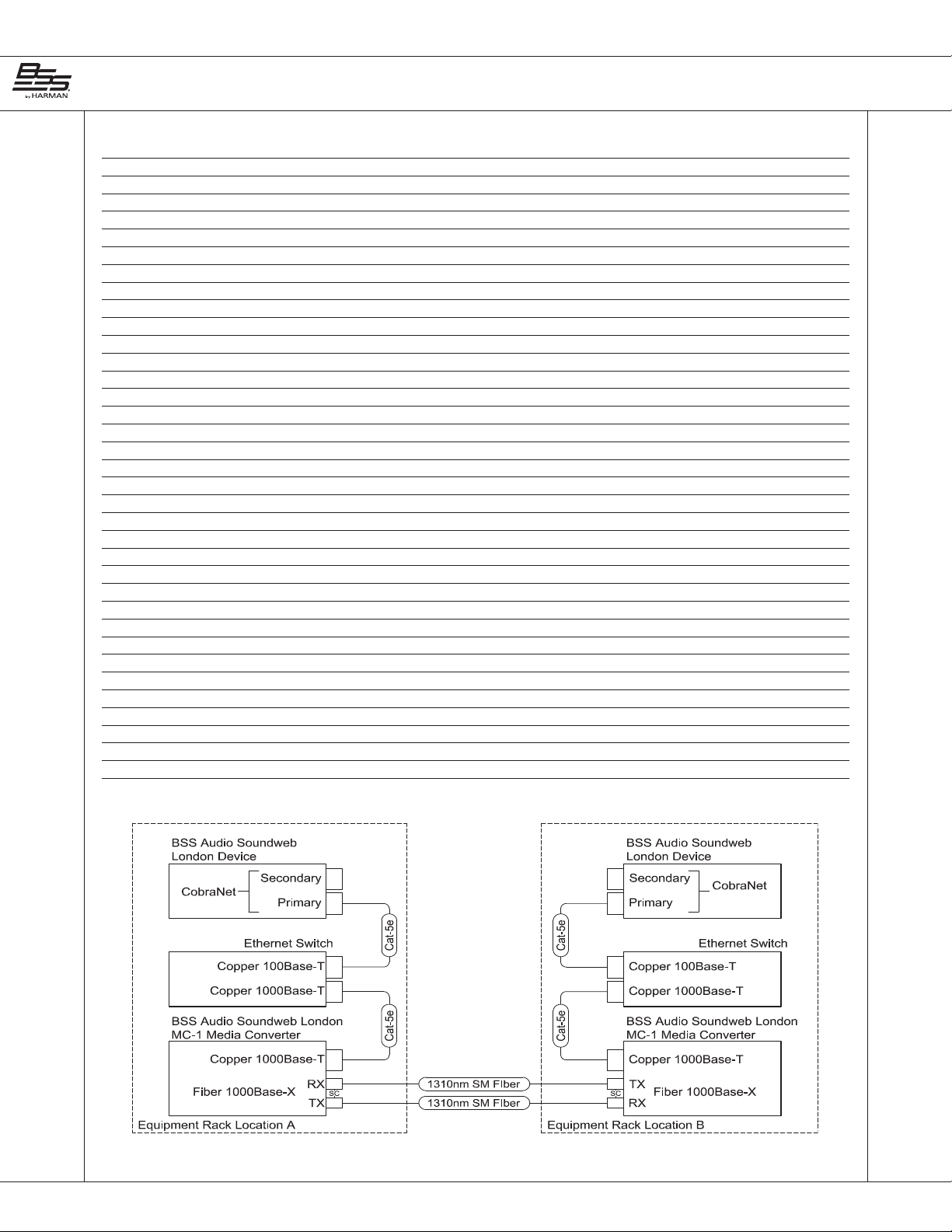

CobraNet™ Example Diagram:
BSS AUDIO | 8760 S. Sandy Parkway | Sandy, UT 84070 U.S.A | - Ph. +1 801-566-8800 | Fax +1 - 801-566-7662
18-0598
Page 2 of 2
