BSR BL-05 User Manual

Bluetooth Smart LED Bulb

BL-05

This product has a unique and exclusive two-in-one design - the

smart LED bulb with Bluetooth and speaker! The E27/B22

socket enjoys easy installation and good compatibility to all

bulbs, can support a wide range of Bluetooth and wireless audio

configuration files and be compatible with the devices that have

Bluetooth function, including iPhone. What’s more, the wireless

Bluetooth speaker of LED bulb supports a transmission range

up to 10m, Bluetooth 4.0+ EDR (enhanced data rate) and purity

and definition of particular voice based on DSP technology.

Wish you can have infinite joy from the combination of light and

music.

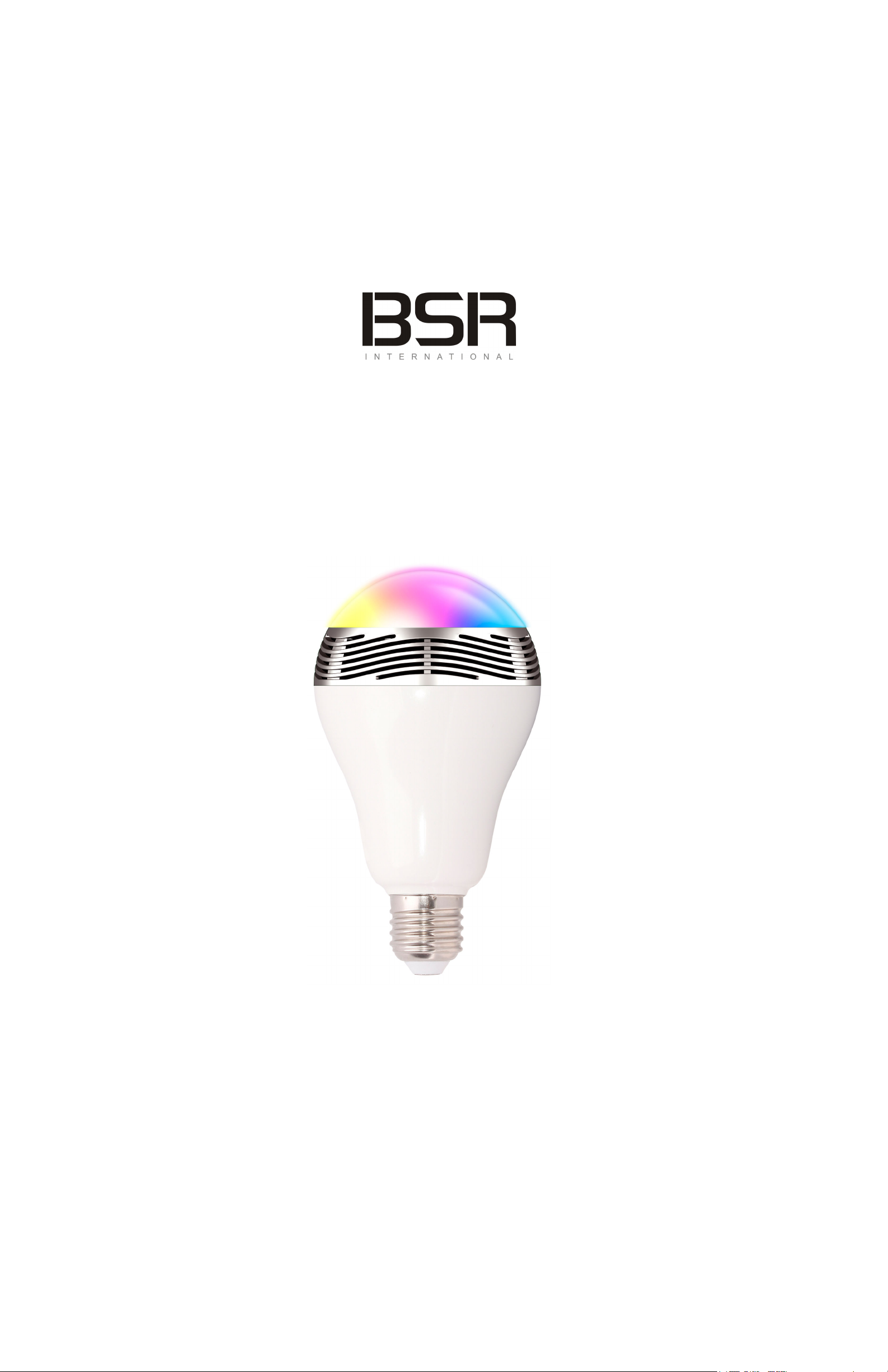

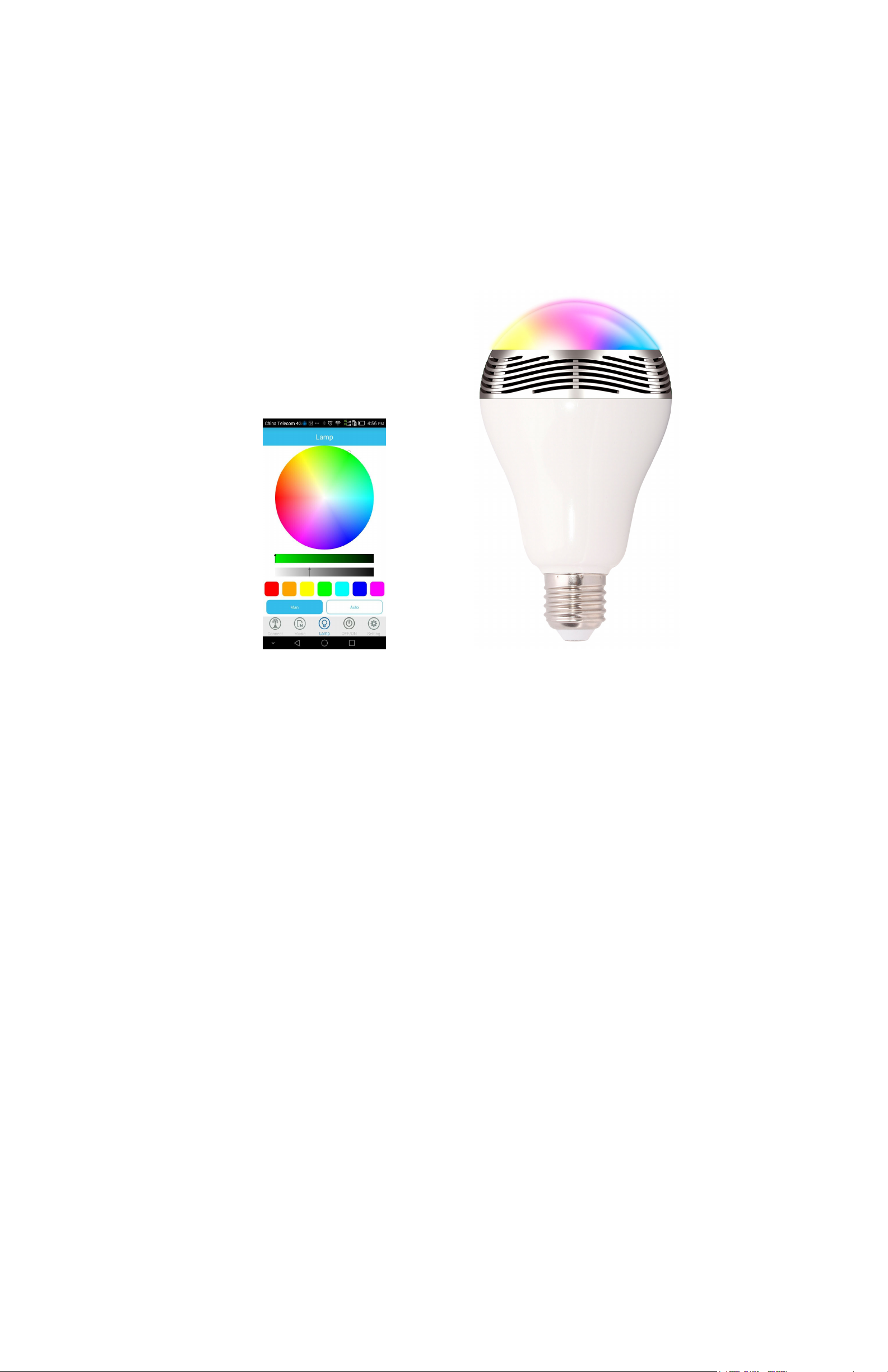

1. BL-05 Product appearance:

2. Installation of APP software:

A. Applicable Apple devices: Supports iPhone 4S and later

with iOS 7.0 and later versions.

B. Applicable Android devices: Supports Android 2.3.3 and

later.

Note: APP software can be downloaded by scanning QR code

with mobile phone for installation.

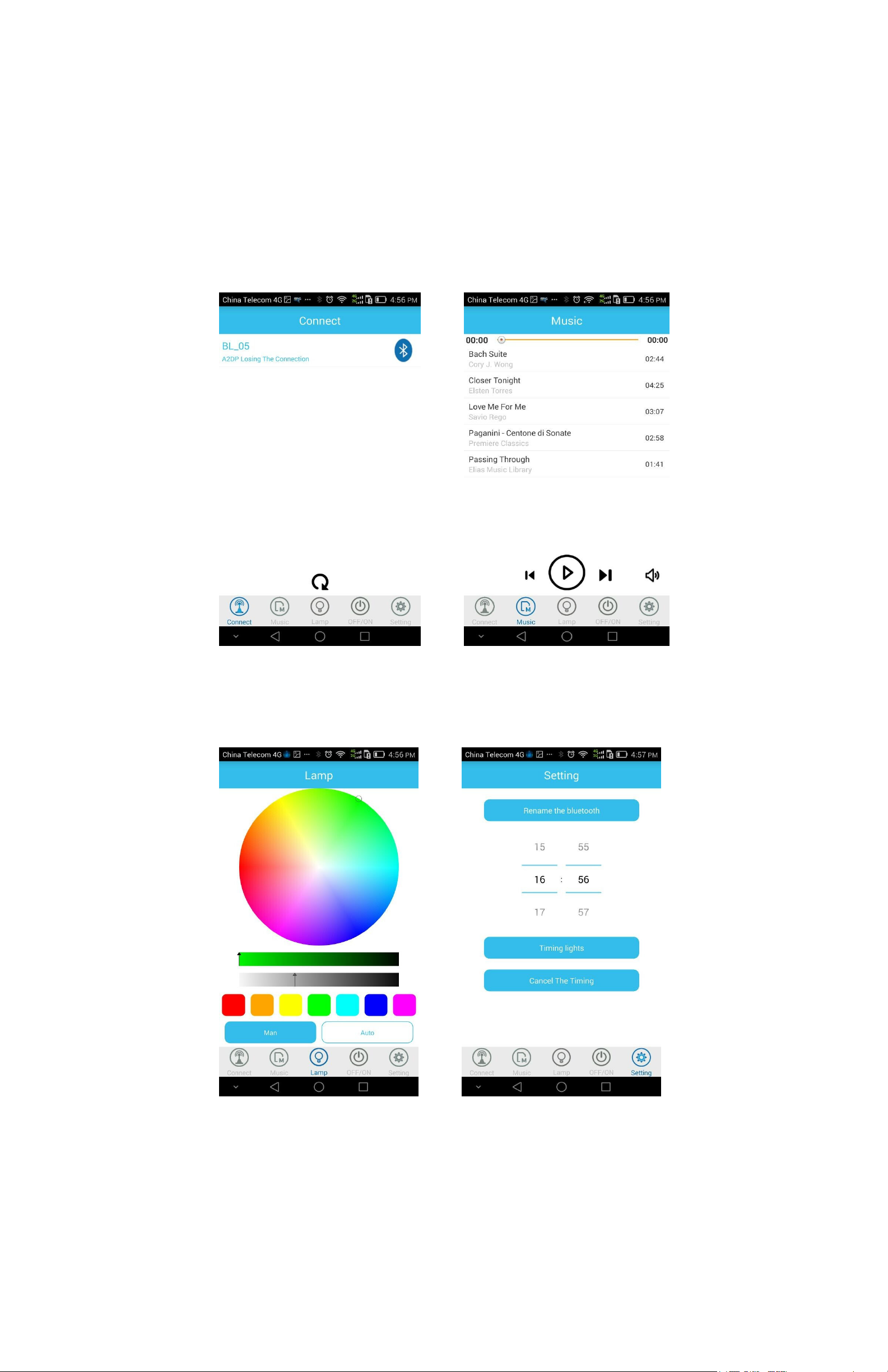

3. Interface after installation

1) Bluetooth connection

2) Music play

3) Colored light control

4) LED on/off

5) Setting of shutdown timer/Bluetooth device name

4. Installation mode:

1. Please turn off switching power supply before installing BL_05

product in E27/B22.

Note: if you have no E27/B22 bulb, you can purchase a

converter that can be converted to E27/B22 socket.

2. As a LED with adjustable brightness, it can be installed on

ceiling and wall and be used as night lamp by adjusting the

brightness to the minimum when you sleep, and helps the old to

find the switch easily when they get up at night by pressing

OFF/ON to turn on/off the light.

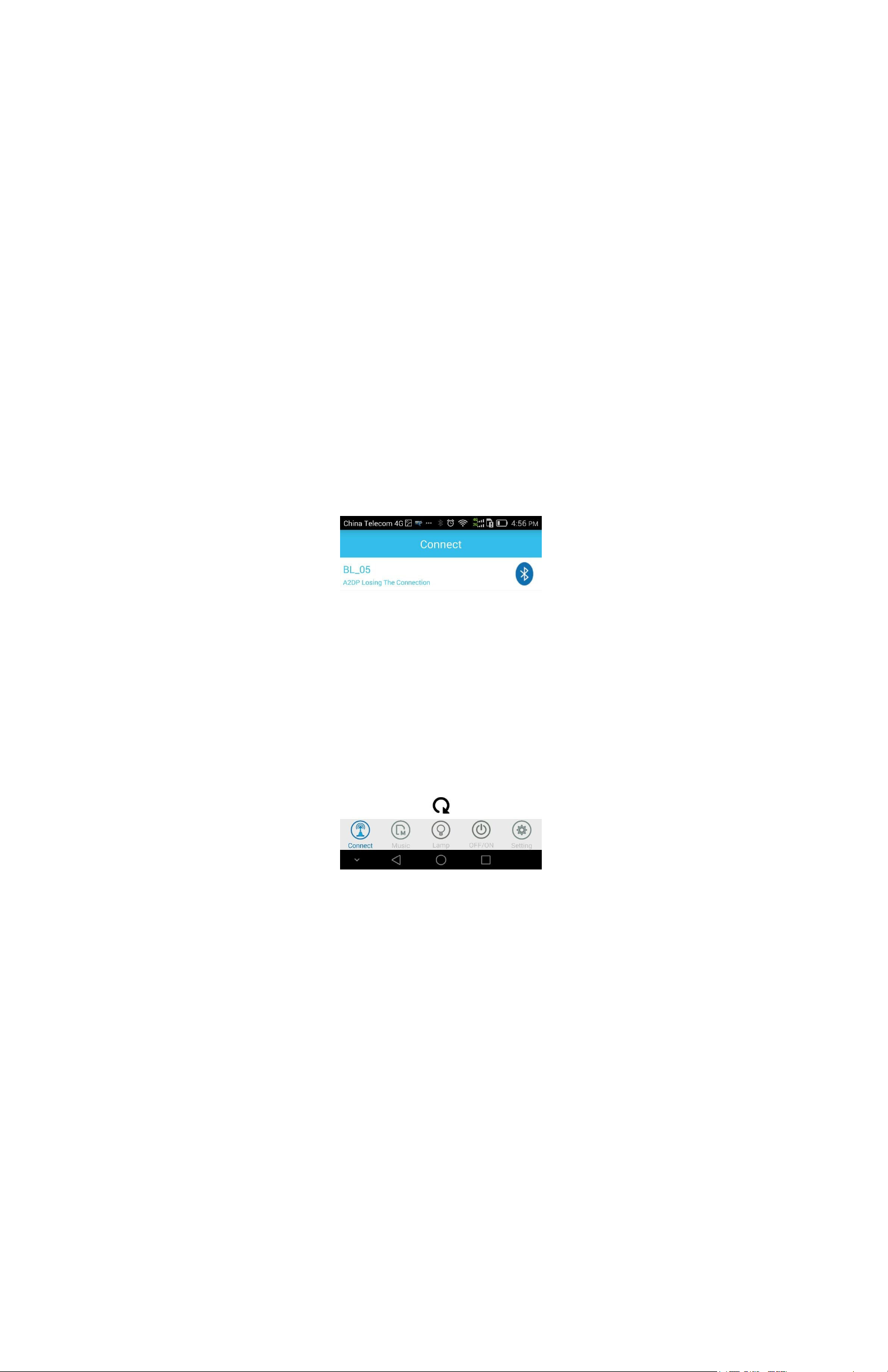

5. Pairing mode:

If using it for the first time or never pair with BL_05 after moving

the equipment, please have it paired according to steps below:

Firstly, power on BL_05, click setting icon on the phone, open

Bluetooth, search BL-05 for pairing, quit setting after “BL-05” is

searched and pairing is done, open APP icon “Smart LED Bulb”,

open the Bluetooth of mobile device and pair with BL-05

automatically. And then automatically access to music play

interface after successful pairing.

Disconnect:

You may deactivate Bluetooth function of mobile device or

select “Disconnect” in Bluetooth function interface of mobile

device.

Switch:

Switch the mobile device by disconnecting the BL-05 with

current mobile device and connect it with another mobile device.

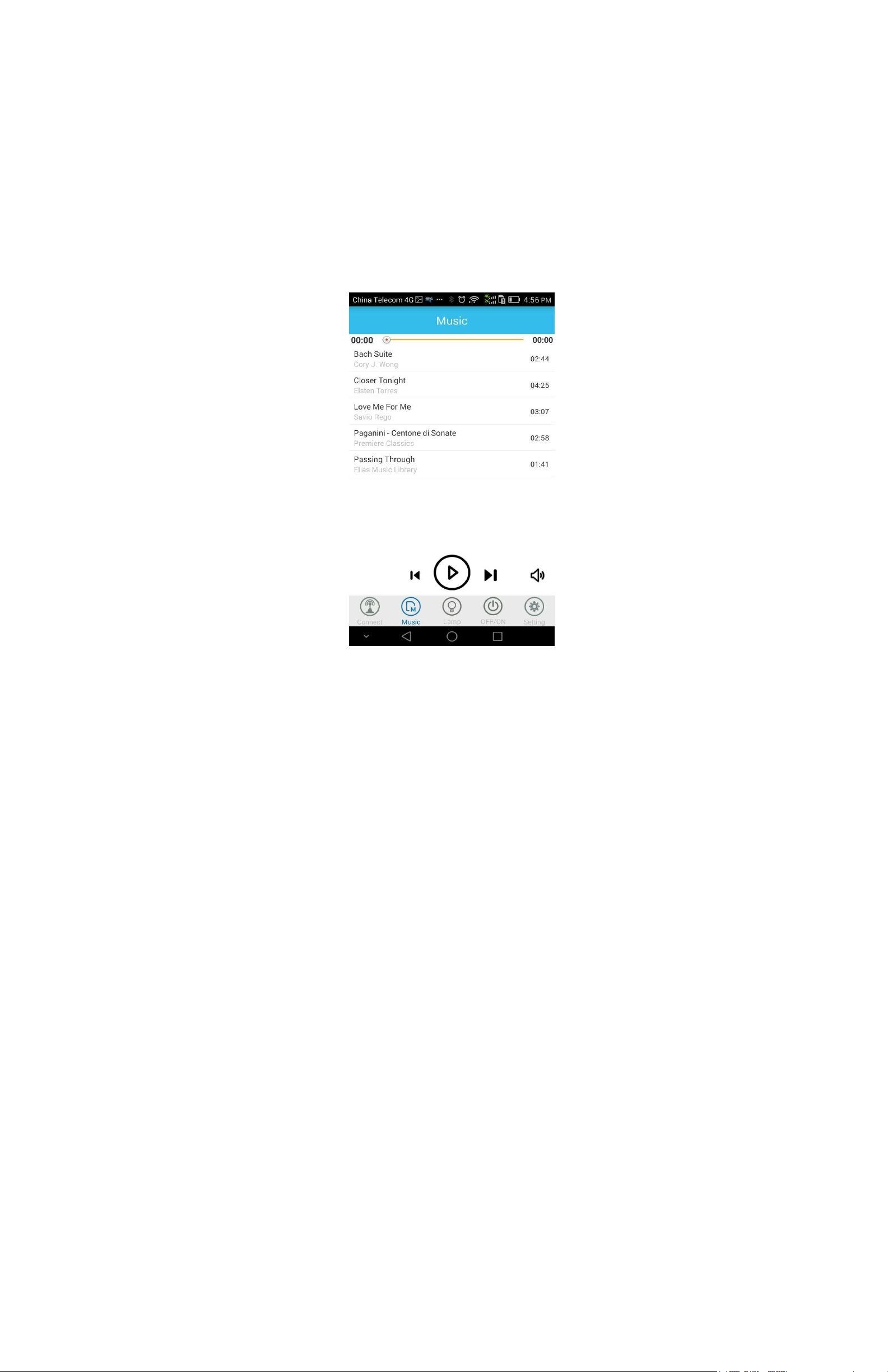

6. Music playing via Bluetooth:

Switch to LED control mode interface from music mode:

1. When speaker is used, connect the product to 220V

household power and connect the Bluetooth of your mobile

phone to enjoy music freely in the living room, dining room,

bathroom or office; it can also be easily adjusted through mobile

phone.

2. Choose your favorite music in above interface, which

includes play/pause, previous, next, volume up/down functions.

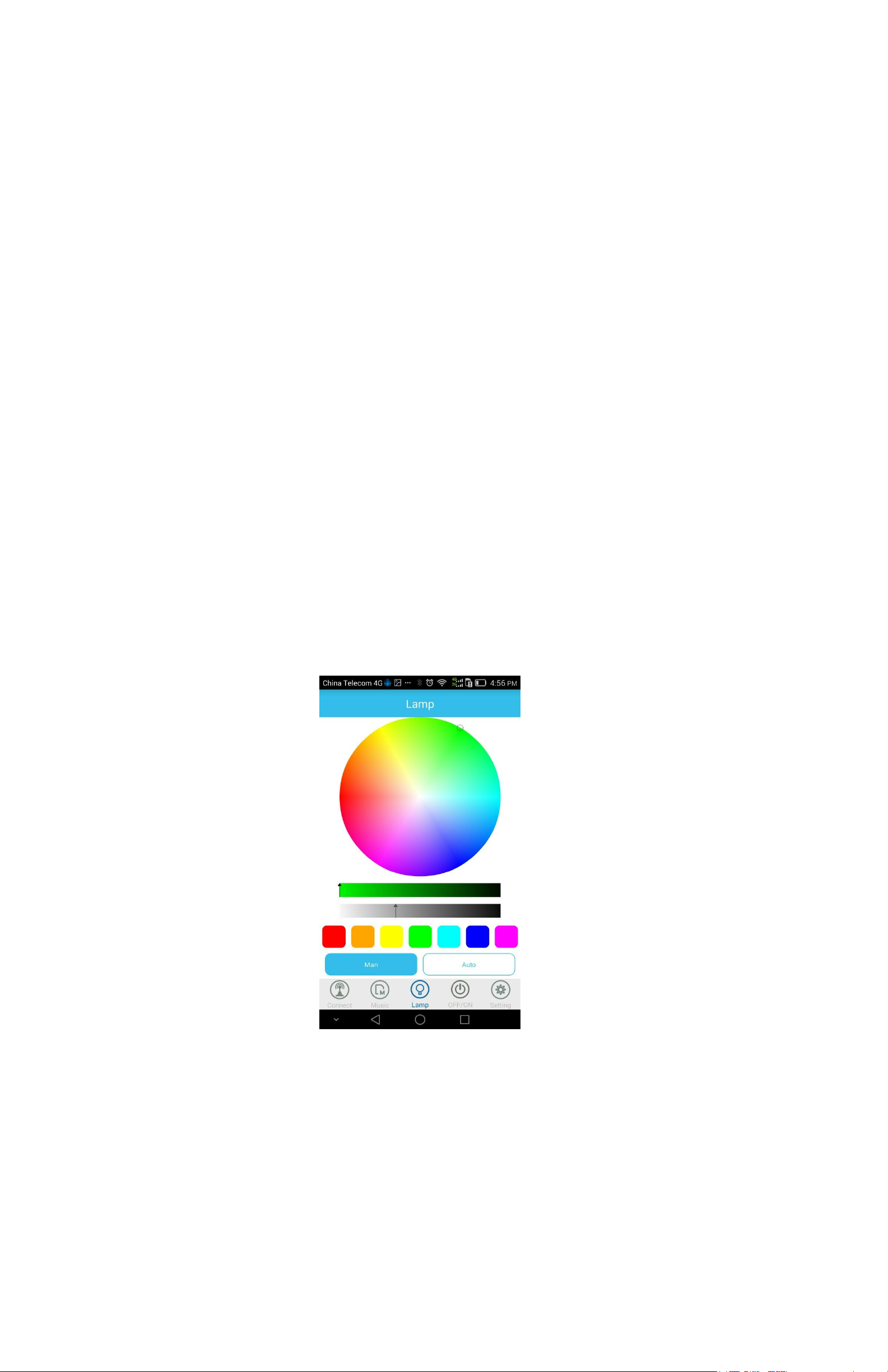

7. Control of LED colored light:

It is shown in interface below

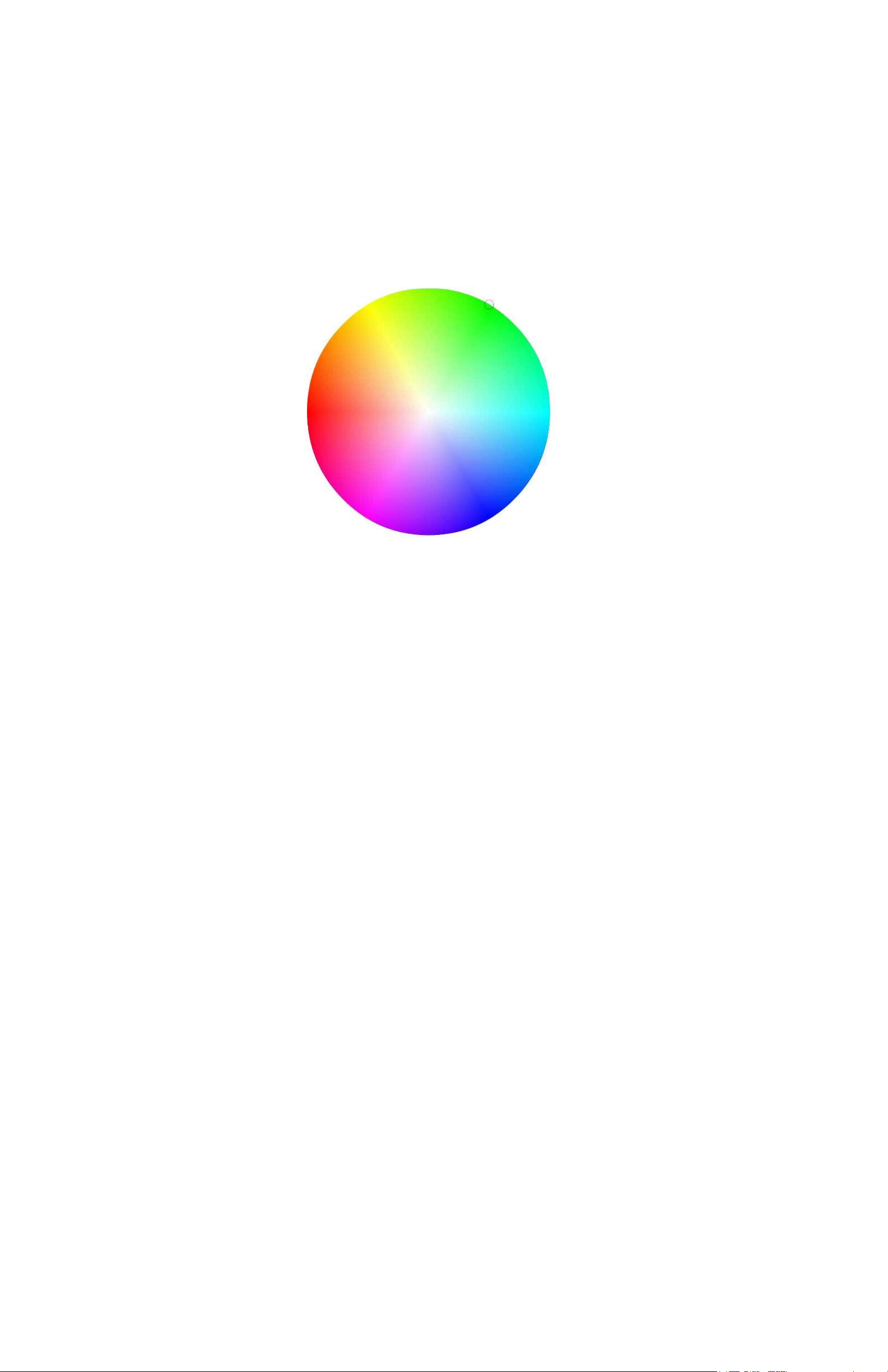

1) Manual control: turn on LED bulb by manually clicking the

colors and use circular icon to adjust LED chromaticity (as

shown in figure below)

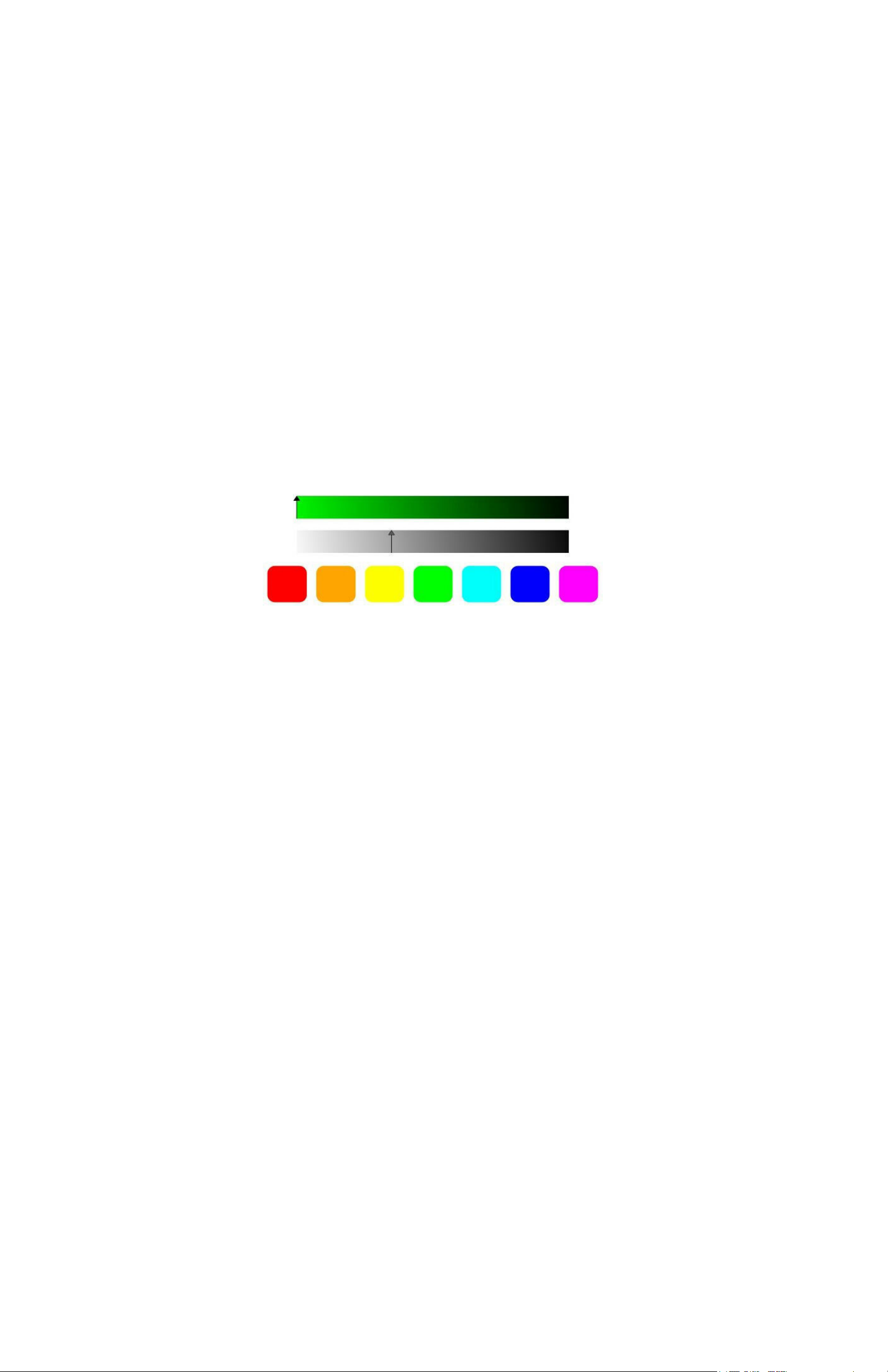

Note: draw upper progress bar to adjust contrast of color

selected and lower progress bar to adjust contrast of white light.

2) Automatic control: Display of music spectrum and

seven-color light will change color of the LED bulb as the music

size.

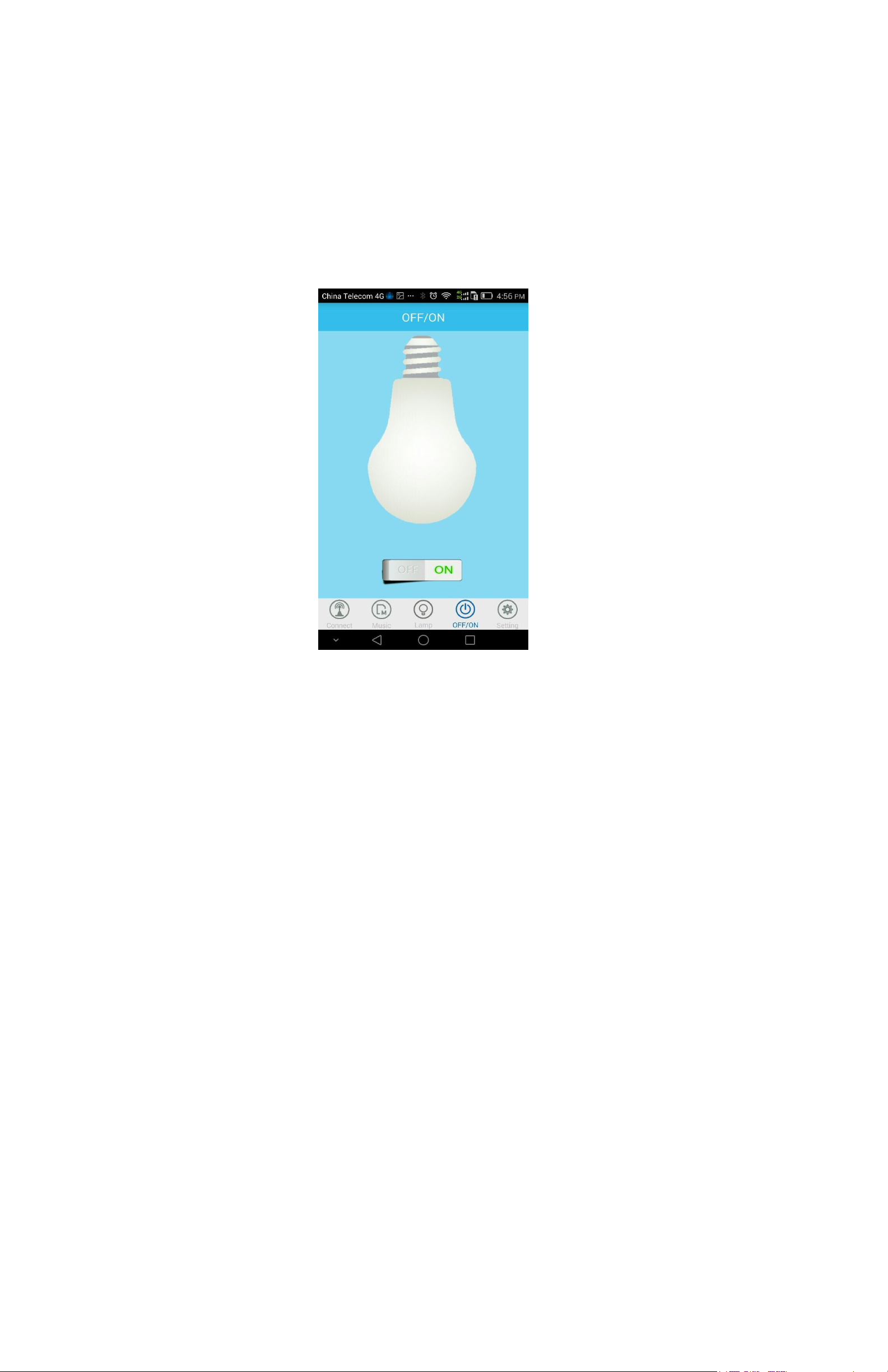

8. Colored light on/off:

Control bulb by clicking OFF/ON icon above.

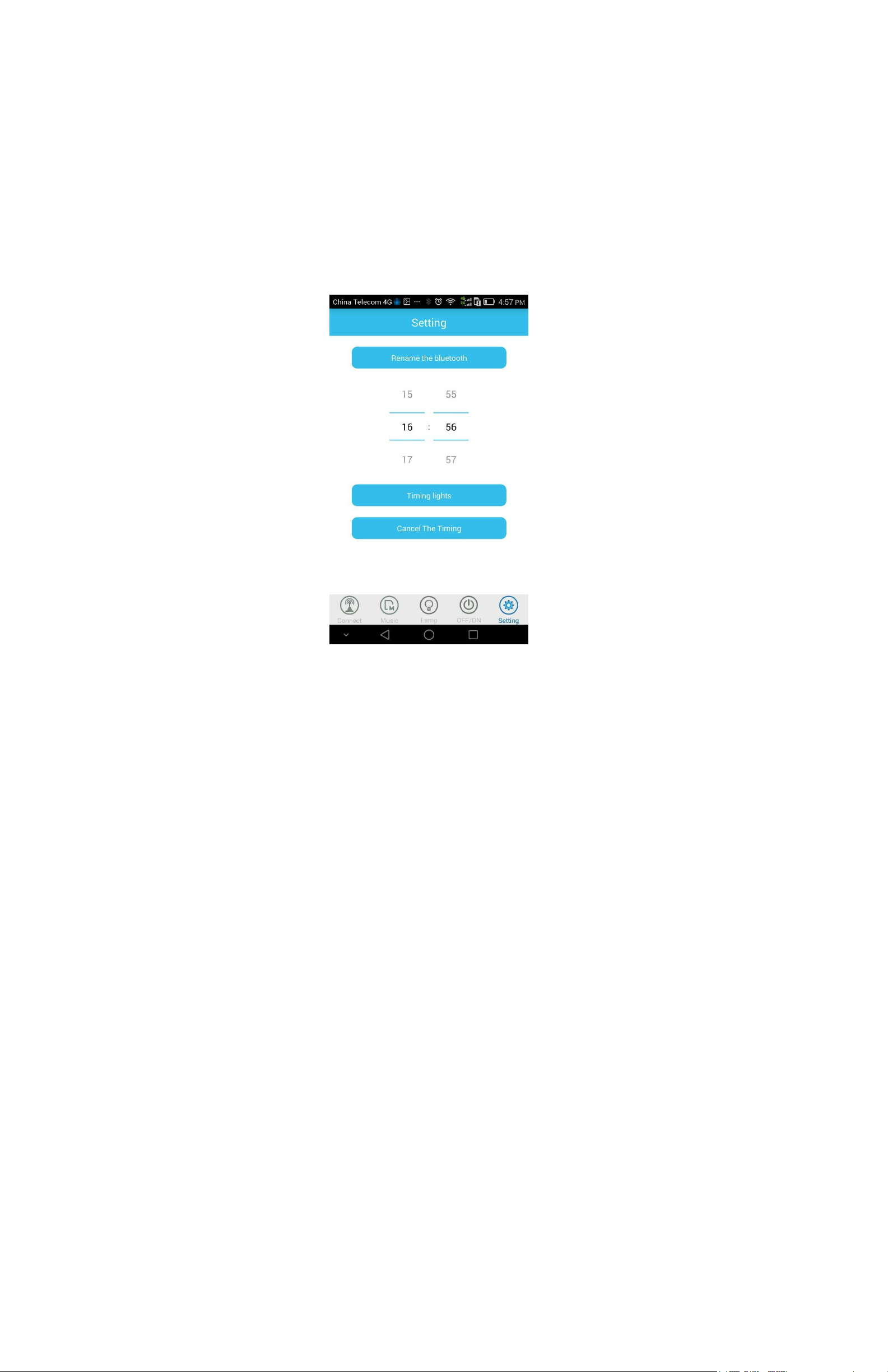

9. Timing off:

Set timing off to turn off LED bulb at the set time by pressing

setting icon in figure above, setting the off time required and

confirming after time is selected; the timing off can also be

canceled by setting.

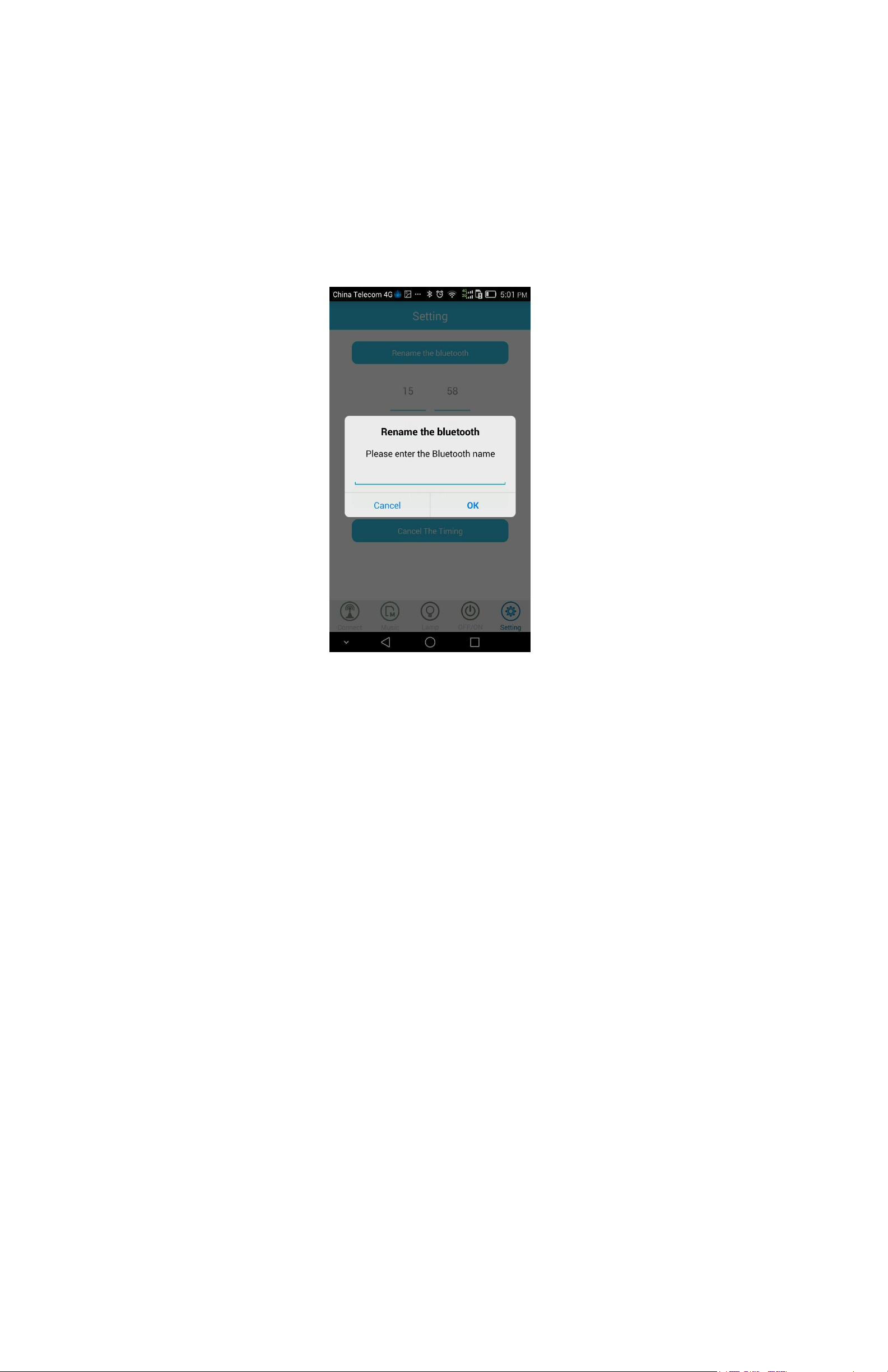

10. Rename Bluetooth:

Since product position may be confusing to customer if the

pairing names searched by Bluetooth are the same when

multiple BL-05 colored lights operated in the same time, this

function allows customer to rename product position as you like,

such as kitchen, bathroom and living room, thus you can

operate different BL-05 smart LED bulbs in different position.

Note: the renamed BL-05 smart LED bulb won’t be effective

unless it’s restarted after power-off.

11. Specifications of BL-05

Product power: LED 6W, AMP 3W

Working voltage: AC100-240V

Working frequency: 50-60HZ

Viewing angle of LED bulb: 120 degree

Color temperature: TC=6520K

Red ratio: R=13.2%

Color rendering index: Ra=70.9

Light-flux: Φ=273.01m

Light effect: 59.61 1m/w

Radiation flux: Φe=836.9mw

Base specification: E27/B22

Bluetooth version: Bluetooth 4.0

LED colors: red, orange, yellow, green, light blue, blue and

purple

Bluetooth distance: No obstacle 10M

Frequency band: 2.4GHZ

Bluetooth protocol: A2DPV1.2 AVCRPV1.0/DIV1.3

Working temp: -10-50℃

Compatibility: Compatible with smart phone, laptop, IPAD,

IPHONE

Application fields: household, shopping mall, hotel, office

building

12. Precautions:

1. Do not put BL_05 in closed lampshade

2. Do not install BL_05 on the light with dimmer switch

3. Do not put BL_05 in the place which is humid or has water

4. Keep using it under the power supply of 100V to 240V AC,

50-60HZ

5. BL_05 is not a toy and keep it untouchable to children

6. Do not put BL_05 on high-temperature surface

7. Do not open any sealing device for safety and according to

Warranty Terms

8. Cool the bulb before replacing it to avoid electric shock or

burning

Our goods come with guarantees that cannot be excluded unde

r the Australian Consumer Law. You are entitled to a replacem

ent or refund for a major failure and compensation for any other

reasonably foreseeable loss or damage. You are also entitled

to have the goods repaired or replaced if the goods fail to be of

acceptable quality and the failure does not amount to a major fa

ilure.
