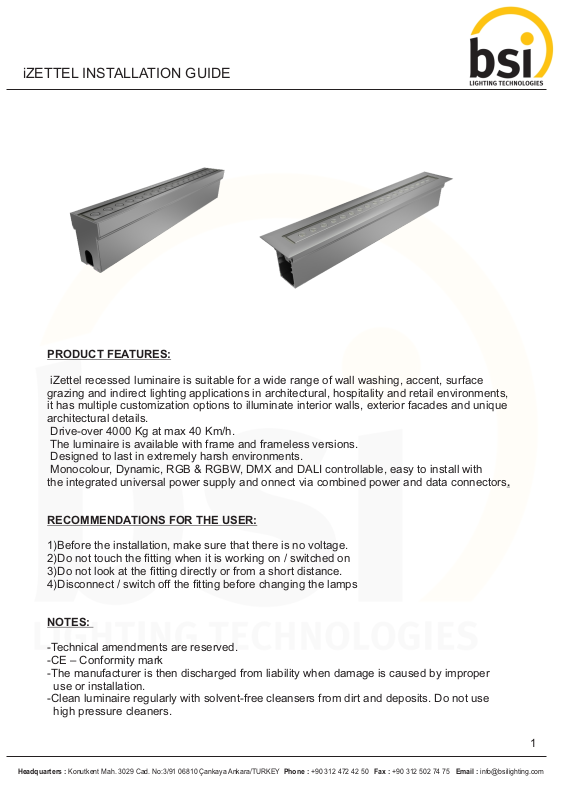

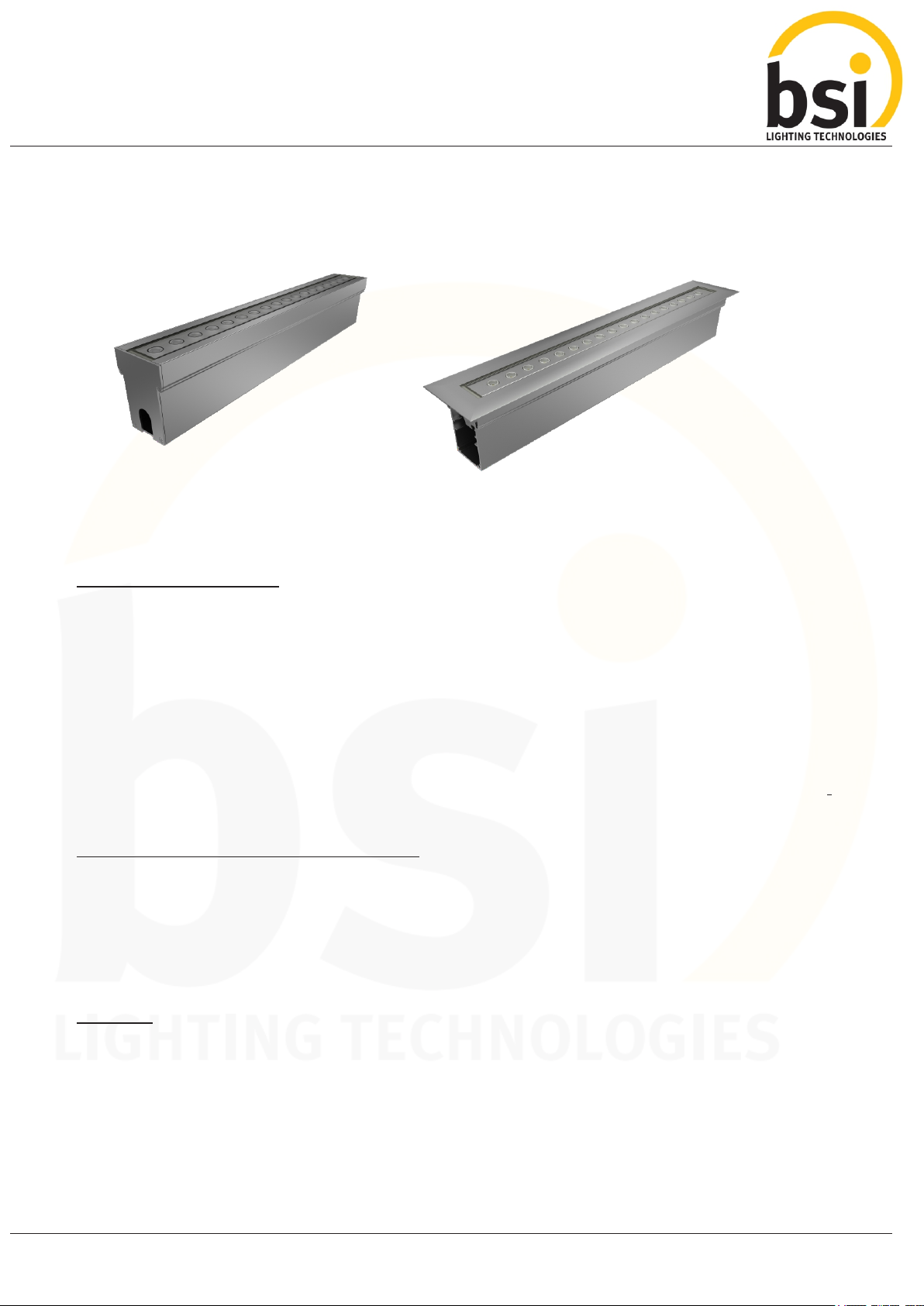

Page 1
iZETTEL INSTALLATION GUIDE
PRODUCT FEATURES:
iZettel recessed luminaire is suitable for a wide range of wall washing, accent, surface
grazing and indirect lighting applications in architectural, hospitality and retail environments,
it has multiple customization options to illuminate interior walls, exterior facades and unique
architectural details.
Drive-over 4000 Kg at max 40 Km/h.
The luminaire is available with frame and frameless versions.
Designed to last in extremely harsh environments.
Monocolour, Dynamic, RGB & RGBW, DMX and DALI controllable, easy to install with
the integrated universal power supply and onnect via combined power and data connectors.
RECOMMENDATIONS FOR THE USER:
1)Before the installation, make sure that there is no voltage.
2)Do not touch the fitting when it is working on / switched on
3)Do not look at the fitting directly or from a short distance.
4)Disconnect / switch off the fitting before changing the lamps
NOTES:
-Technical amendments are reserved.
-CE – Conformity mark
-The manufacturer is then discharged from liability when damage is caused by improper
use or installation.
-Clean luminaire regularly with solvent-free cleansers from dirt and deposits. Do not use
high pressure cleaners.
1
Headquarters : Konutkent Mah. 3029 Cad. No:3/91 06810 Çankaya Ankara/TURKEY Phone : +90 312 472 42 50 Fax : +90 312 502 74 75 Email : [email protected]
Page 2
iZETTEL INSTALLATION GUIDE

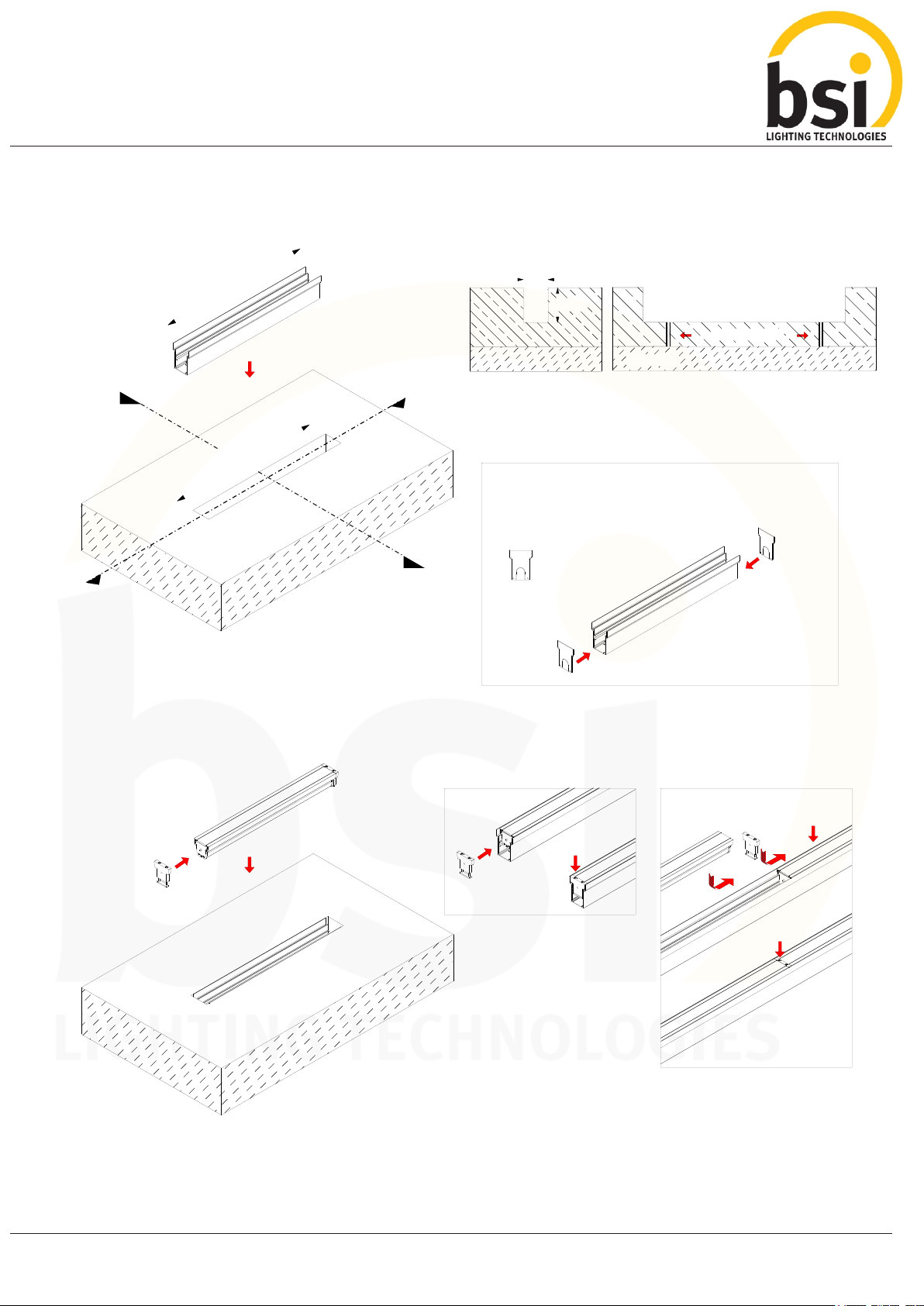

1) Set drillhole 15mm more than luminaire length. Complete the drainage and place the housing.
A
Mounting Surface
B
2-a - Screw-in mounting
L
+ 15mm
L
64mm
85mm
Concrete
or
Filling Material
Soil Ground
B
A - A
Soil Ground
Dreinage Pipes
B - B
* If you have supplied the end cap as an
option, screw the cover to the frame before
inserting the housing into the hole.
A
End-Cap
2
Mounting Surface
Single Luminaire
Mounting
1
Mounting Part
Multi Luminaire Mounting
2
3
Allen Inbus Screw
M4
1
2
Headquarters : Konutkent Mah. 3029 Cad. No:3/91 06810 Çankaya Ankara/TURKEY Phone : +90 312 472 42 50 Fax : +90 312 502 74 75 Email : [email protected]
Page 3
iZETTEL INSTALLATION GUIDE

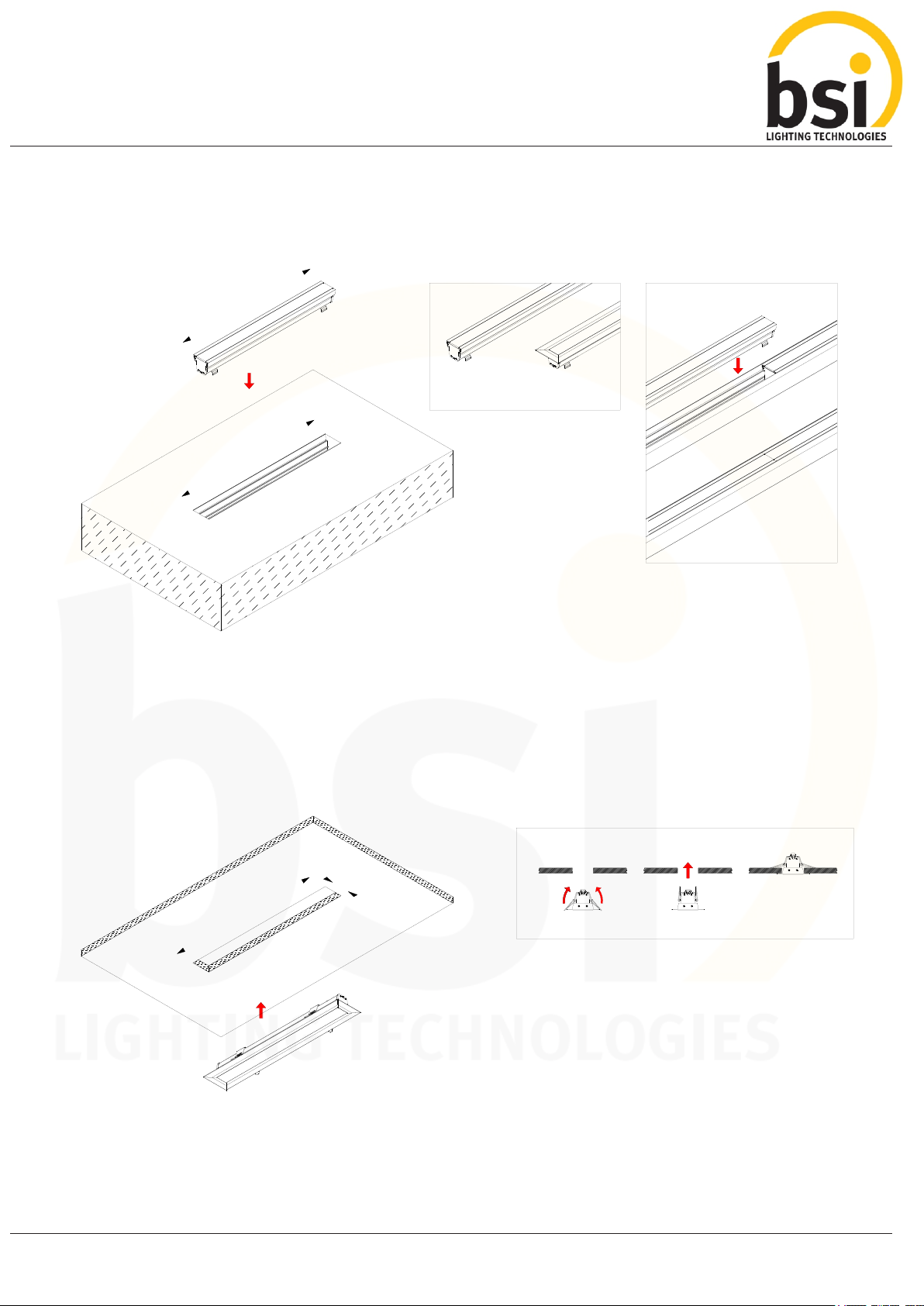

2-b - iZettel Spring Type Mounting
Mounting Surface
L
Frameless
L
With Frame
Multi Luminaire Mounting
2-b - iZettel Spring Type Mounting;
L
1 2 3
64mm
3
Headquarters : Konutkent Mah. 3029 Cad. No:3/91 06810 Çankaya Ankara/TURKEY Phone : +90 312 472 42 50 Fax : +90 312 502 74 75 Email : [email protected]
Page 4
iZETTEL INSTALLATION GUIDE

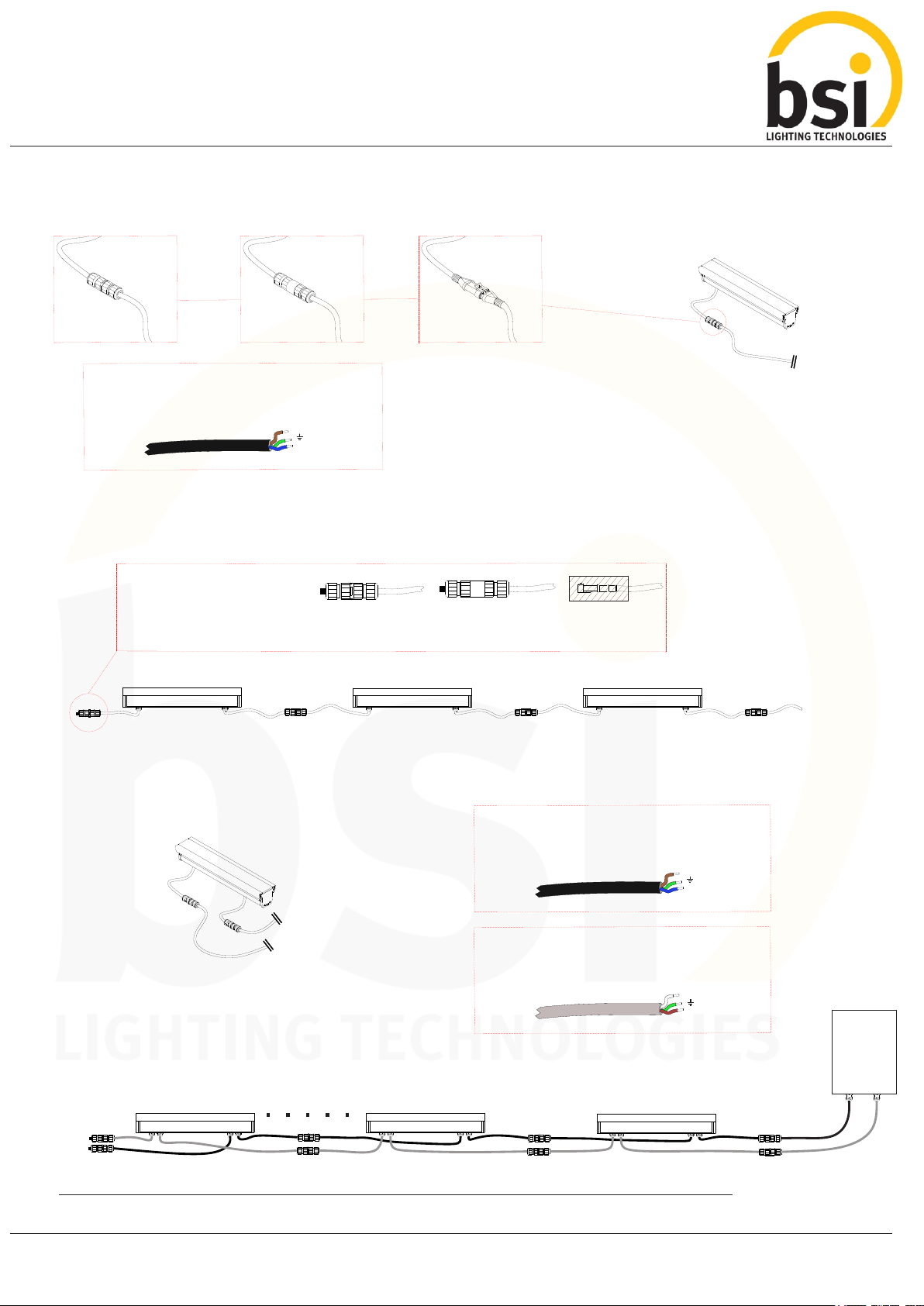

- iZettel Mono Electrical Connection
IP 68 Terminal
Block
IP 68 Plug
Connector
or or
*Page 5
When connecting the
luminaires, make sure that the
same color cables are
matching.
*Page 6
(+) Brown
( ) Yellow - Green
(-) Blue
- iZettel Mono Multi Electrical Connection
At the outlet of AC output RESIN
cable end of the final
luminaire, the component is
tightened as a filled material or
protected by resin.
220VAC
OUT
220VAC
IN
IP 68 Terminal Block
220VAC
OUT
IP 68 Socket
RESIN
IP 68 Plug Connector IP 68 Socket
220VAC
IN
220VAC
OUT
220VAC
The incoming
power line.
IN
The incoming power line.
- iZettel RGB-RGBW Electrical Connection
Input Data
Input Electric
When connecting the
luminaires, make sure that the
same color cables are
matching.
*Please contact us for cables if in different colors.
When connecting the
luminaires, make sure that
the same color cables are
matching.
*Please contact us for cables if in different colors.
220VAC
(+) Brown
( ) Yellow - Green
(-) Blue
DATA
(+) White
( ) Green
(-) Brown
- iZettel RGB-RGBW Multi Electrical Connection
DATA
220VAC
DATA
OUT IN
XX
220VAC
OUT IN
220VAC
DATA
DATA
OUT IN
*Install the luminaires according to the order in numbers. The cable from main controller should first be connected to the luminaire number 1.
220VAC
OUT IN
2 1
220VAC
DATA
DATA
OUT IN
220VAC
OUT IN
Input Electric
Input Data
DMX Main
Controller
and
Fuse Box
220VAC
DATA
OUT
OUT
4
Headquarters : Konutkent Mah. 3029 Cad. No:3/91 06810 Çankaya Ankara/TURKEY Phone : +90 312 472 42 50 Fax : +90 312 502 74 75 Email : [email protected]

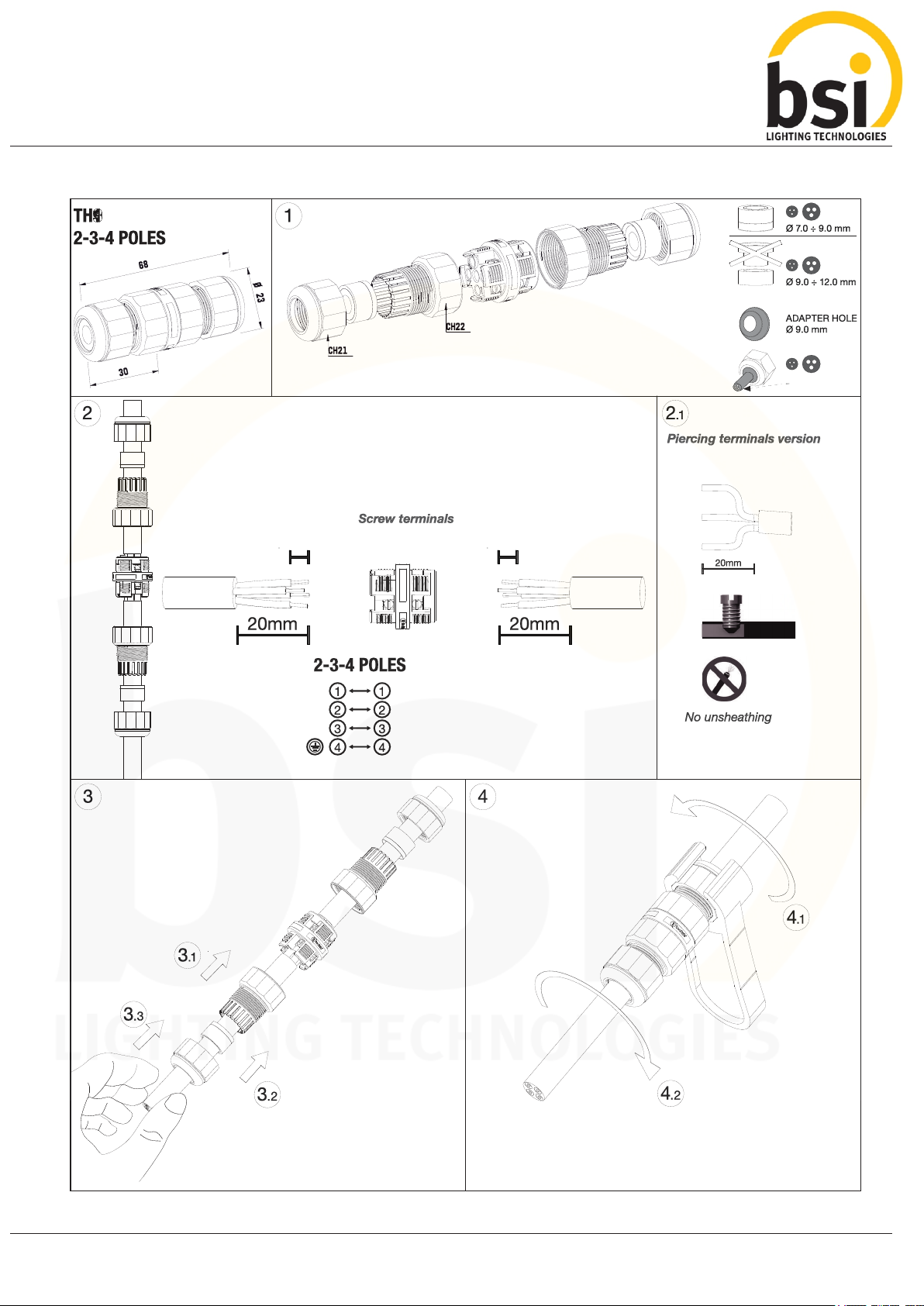

Page 5
iZETTEL INSTALLATION GUIDE
5
Headquarters : Konutkent Mah. 3029 Cad. No:3/91 06810 Çankaya Ankara/TURKEY Phone : +90 312 472 42 50 Fax : +90 312 502 74 75 Email : [email protected]

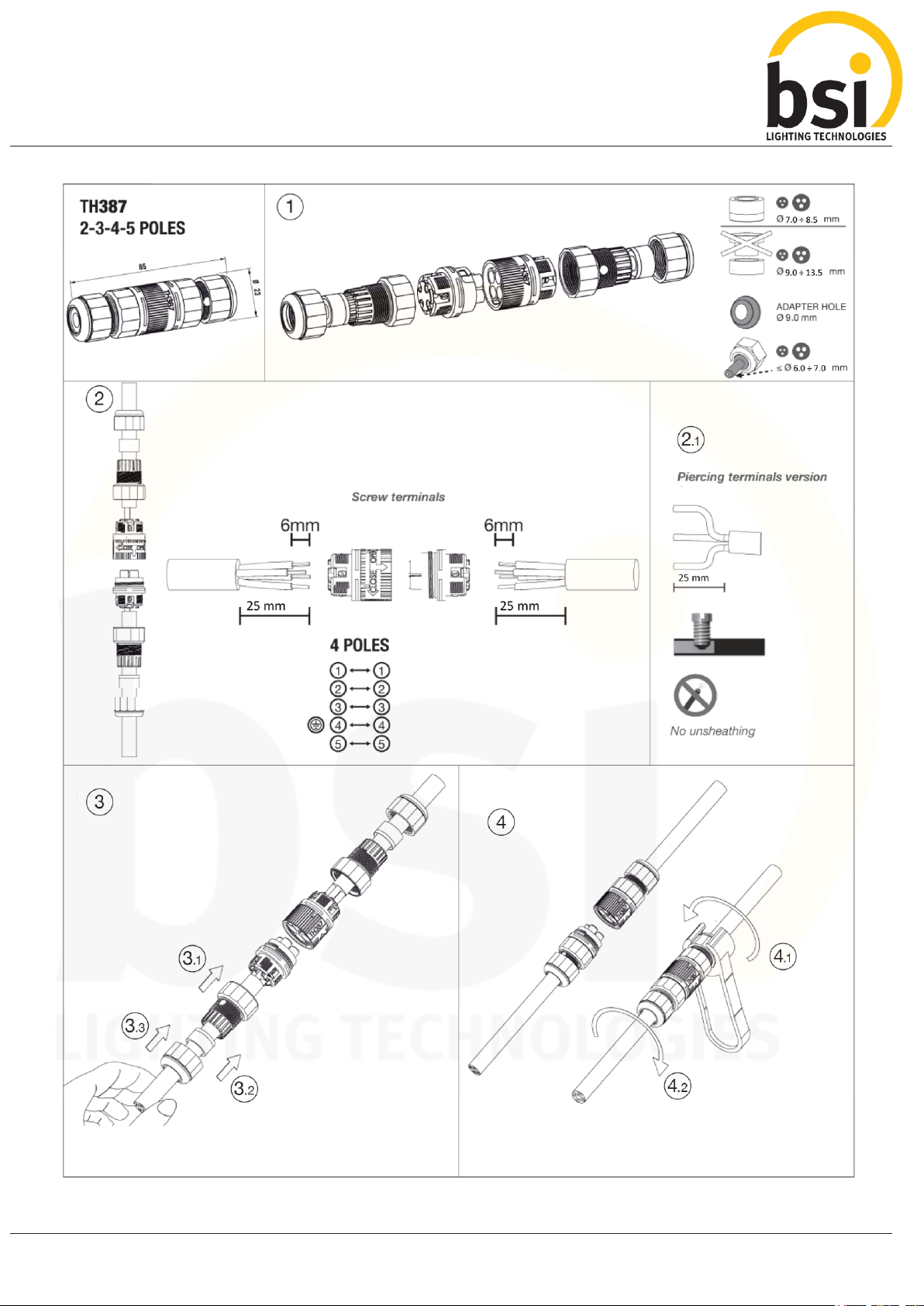

Page 6
iZETTEL INSTALLATION GUIDE
6
6
Headquarters : Konutkent Mah. 3029 Cad. No:3/91 06810 Çankaya Ankara/TURKEY Phone : +90 312 472 42 50 Fax : +90 312 502 74 75 Email : [email protected]
Page 7
iZETTEL INSTALLATION GUIDE
Considerations
- Do not cut-off or damage the cables of the products supplied as sockets.
Otherwise, water may enter to the luminaire through cable and damage the electronic
parts inside.
- If you make the electrical connection, except for IP.68 Terminal Block - IP.68 Plug
connector - IP.68 socket; the connections must be under IP protection. Otherwise,
water may enter to the luminaire through cable and damage the electronic parts inside.
- The IP68 Connecting kits must be assembled in accordance with the installation
instructions. Otherwise, water may enter to the luminaire through cable and damage
the electronic parts inside.
- The luminaire should not be opened and screws should not be loosened. If you want to
open the luminaire, please contact our company.
- Mounting hole should be drainaged.
Out of Warranty Situations
- Opening the product or loosening the screws.
- Product last output cable is not protected IP67-IP68.
- Faulty electrical connection.
- Wrong IP68 socket-terminal block- plug connector connection.
(Wrong opening of the cable length, fauly tightening the screws etc.)
- If the IP68 Connecting kits are under water.
- No drainage in the mounting hole.
7
Headquarters : Konutkent Mah. 3029 Cad. No:3/91 06810 Çankaya Ankara/TURKEY Phone : +90 312 472 42 50 Fax : +90 312 502 74 75 Email : [email protected]
