BSER HS-7321 Instruction Manual

HS-7321

Intel® Core™ 2 Duo/Core™ Duo/

Core™ Solo/Celeron® M processor

PICMG1.3 Half-size SBC

•CompactFlash•Mini PCI•8-bit DIO

•DVI-I/CRT/LVDS•Dual GB LAN•Audio•

•SATA•ATA/33/66/100•RS-232/422/485•

•4 COM•USB2.0•WDT•

•Single +12V•H/W Monitor•

Copyright Disclaimers

The accuracy of contents in this manual has passed thorough checking and review before publishing. BOSER Technology Co., Ltd., the manufacturer and publisher, is not liable for any infringements of patents or other rights resulting from its use. The

manufacturer will not be responsible for any direct, indirect, special, incidental or consequential damages arising from the use of this product or documentation, even if advised of the possibility of such damage(s).

This manual is copyrighted and BOSER Technology Co., Ltd. reserves all documentation rights. Unauthorized reproduction, transmission, translation, and storage of any form and means (i.e.,

electronic, mechanical, photocopying, recording) of this document, in whole or partly, is prohibited, unless granted permission by BOSER Technology Co., Ltd.

BOSER Technology Co., Ltd. reserves the right to change or improve the contents of

this document without due notice.

BOSER Technology Co., Ltd. assumes no

responsibility for any errors or omissions that may appear in this manual, nor does it make any commitment to update the information contained herein.

T

r

a

d

e

m

a

r

k

s

BOSER is a registered trademark of BOSER Technology Co., Ltd. ISB is a registered trademark of BOSER Technology Co., Ltd. Intel is a registered trademark of Intel Corporation. Award is a registered trademark of Award Software, Inc. AMI is a registered trademark of AMI Software, Inc. All other trademarks, products and or product names mentioned herein are

mentioned for identification purposes only, and may be trademarks and/or registered trademarks of their respective companies or owners.

Table of Contents

Chapter 1 General Description ..................................1

1.1 Major Features....................................................................... 2

1.2 Specifications ........................................................................ 2

1.3 Board Dimensions................................................................. 4

Chapter 2 Unpacking ..................................................5

2.1 Opening the Delivery Package............................................. 5

2.2 Inspection............................................................................... 5

Chapter 3 Hardware Installation ..............................7

3.1 Before Installation ................................................................. 7

3.2 Board Layout ......................................................................... 8

3.3 Jumper List ............................................................................ 9

3.4 Connector List ....................................................................... 9

3.5 Configuring the CPU ........................................................... 10

3.6 System Memory ................................................................... 10

3.7 VGA Controller .................................................................... 10

3.8 PCI E-IDE Drive Connector................................................. 13

3.9 Serial ATA Connector ......................................................... 14

3.10 Floppy Disk Drive Connector ............................................. 15

3.11 Serial Port Connectors ....................................................... 16

3.12 Ethernet Connector ............................................................. 17

3.13 USB Connector .................................................................... 18

3.14 CMOS Data Clear ................................................................. 18

3.15 Power and Fan Connectors................................................ 19

3.16 Keyboard/Mouse Connectors ............................................ 20

3.17 System Front Panel Control ............................................... 20

3.18 Watchdog Timer .................................................................. 21

3.19 Audio Connectors ............................................................... 22

3.20 CompactFlash Socekt...................................................... 23

3.21 Expansion Interface ............................................................ 24

3.22 8-bit I/O Function ................................................................. 24

Chapter 4 AMI BIOS Setup..................................... 29

4.1 Starting Setup...................................................................... 29

4.2 Using Setup ......................................................................... 30

4.3 Main Menu............................................................................ 31

4.4 Advanced Settings .............................................................. 32

4.5 Advanced PCI/PnP Settings............................................... 39

4.6 Boot Settings ....................................................................... 40

4.7 Security Settings ................................................................. 41

4.8 Advanced Chipset Settings................................................ 42

4.9 Exit Options ......................................................................... 44

Chapter 5 Software Utilities..................................... 45

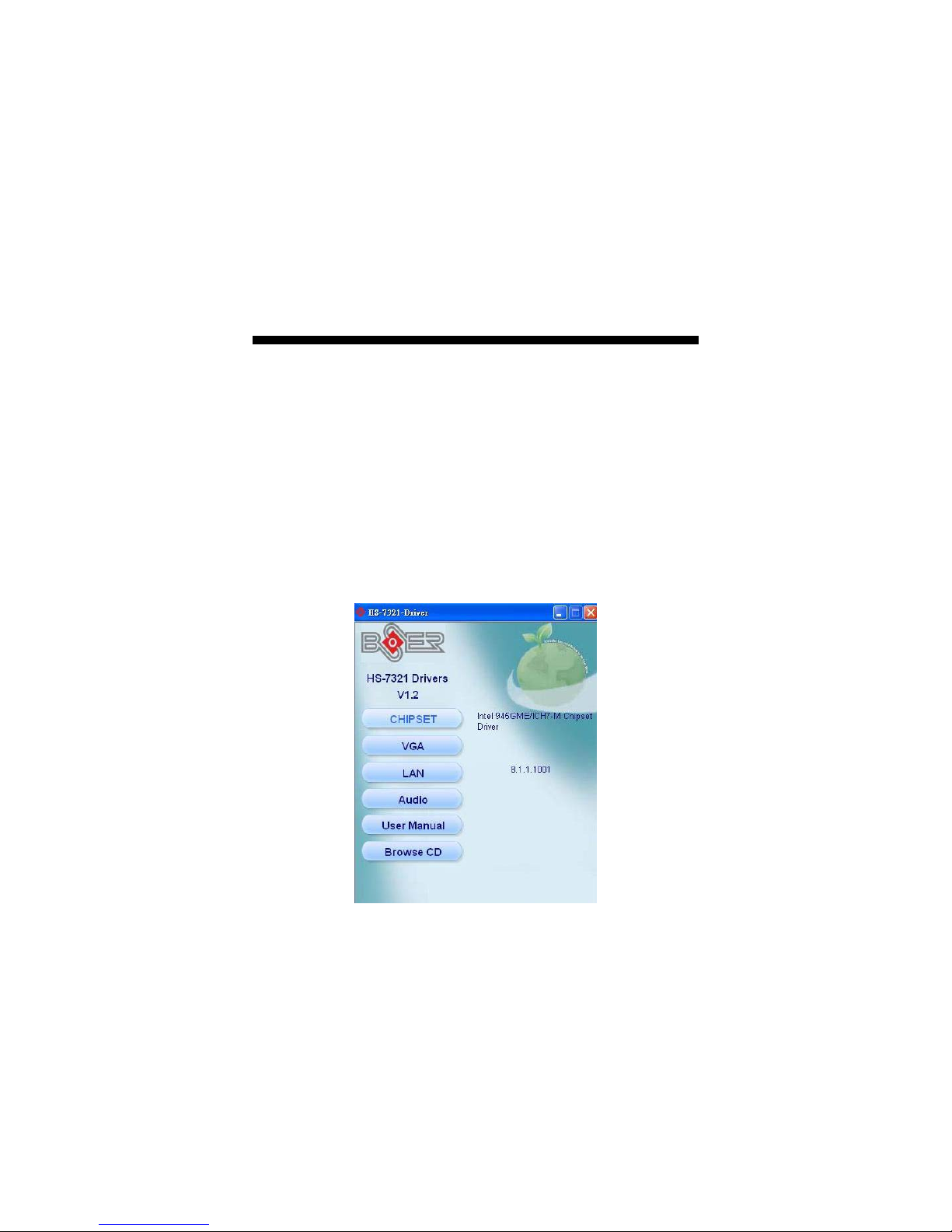

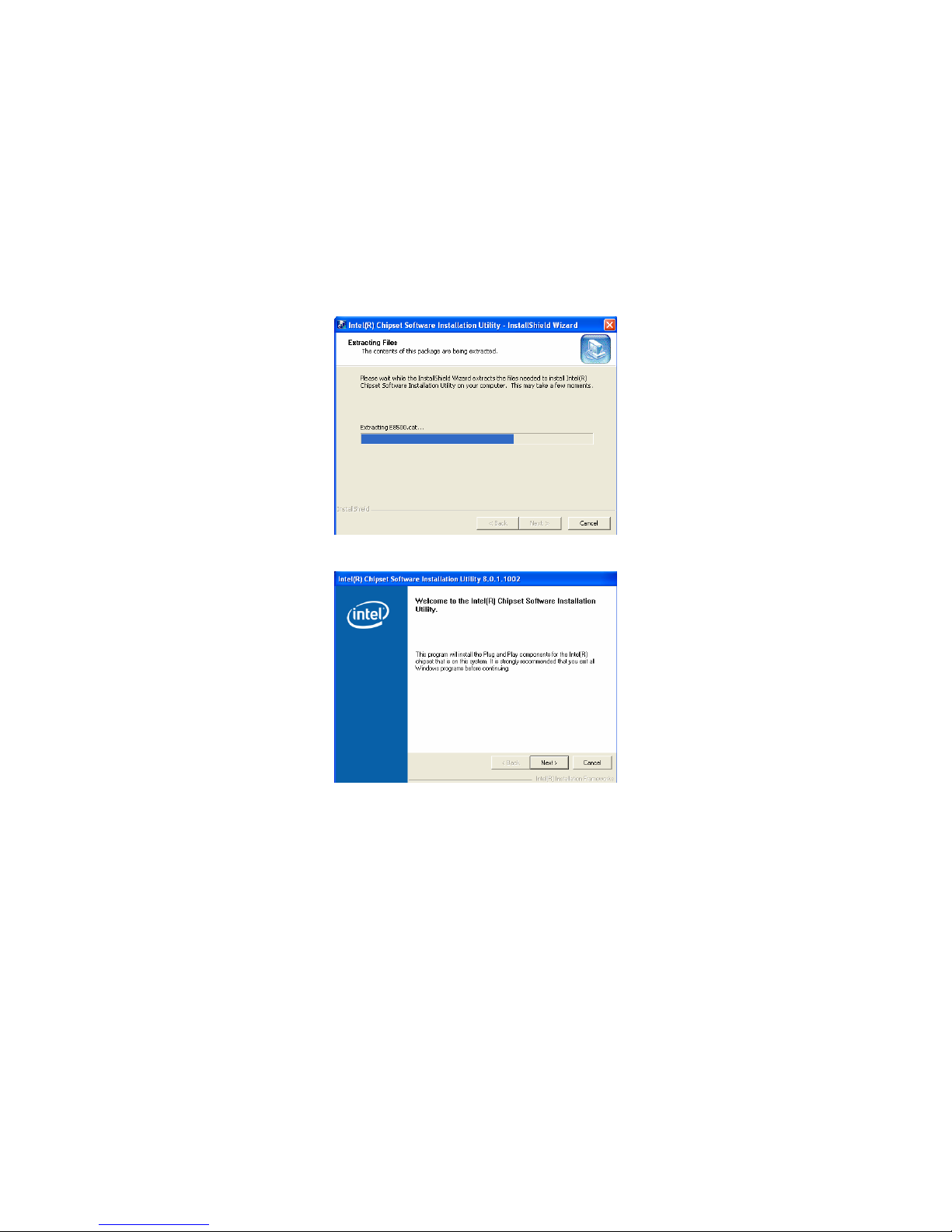

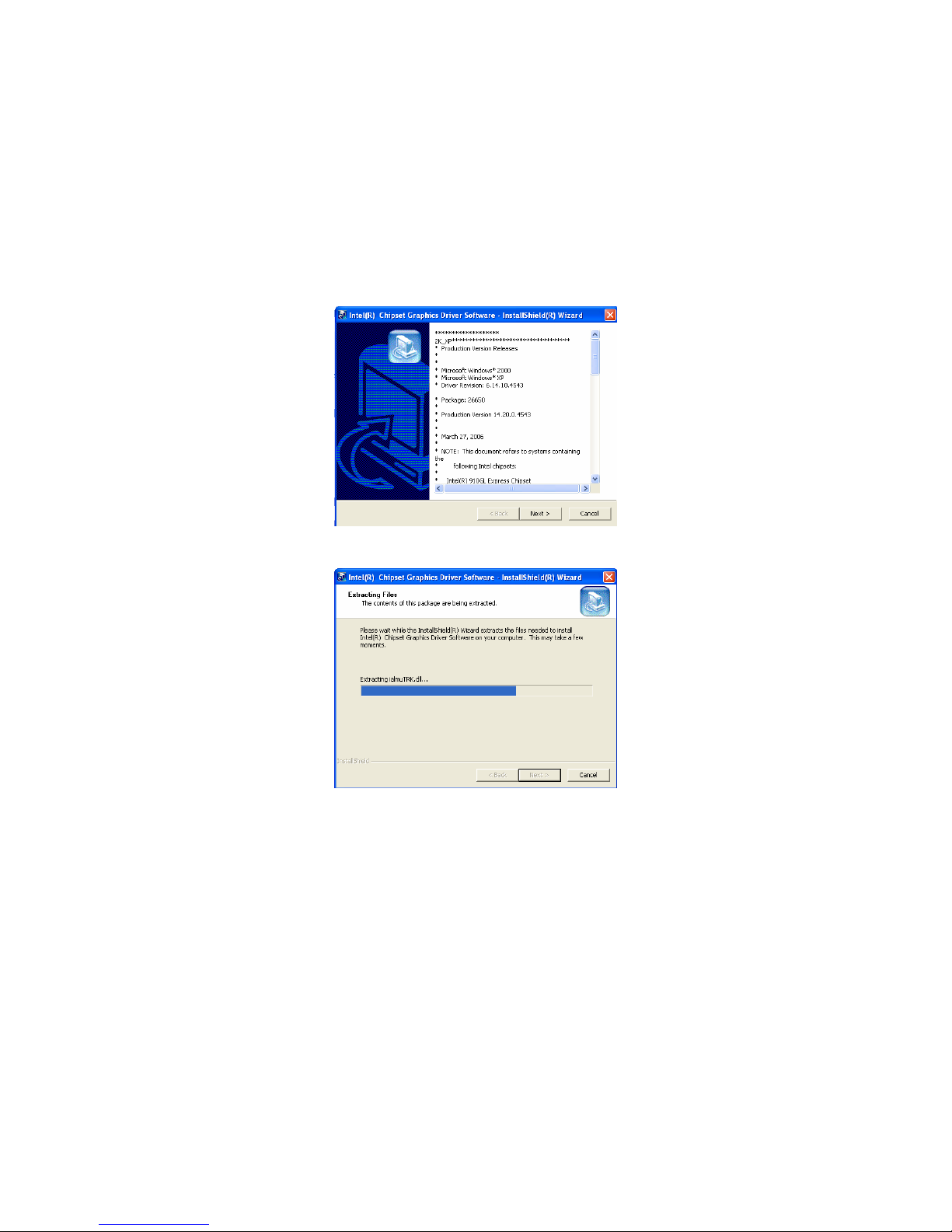

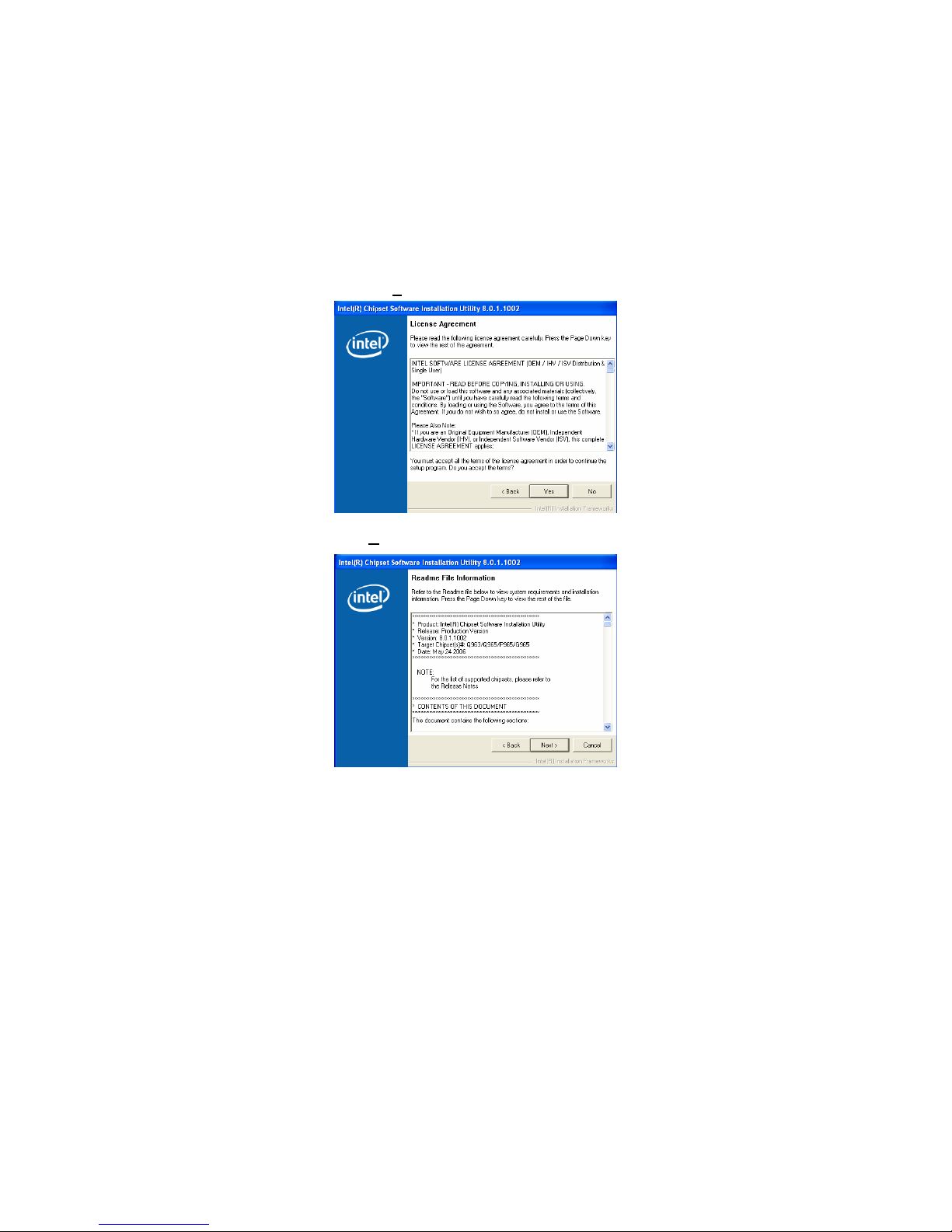

5.1 Chipset Driver Installation.................................................. 45

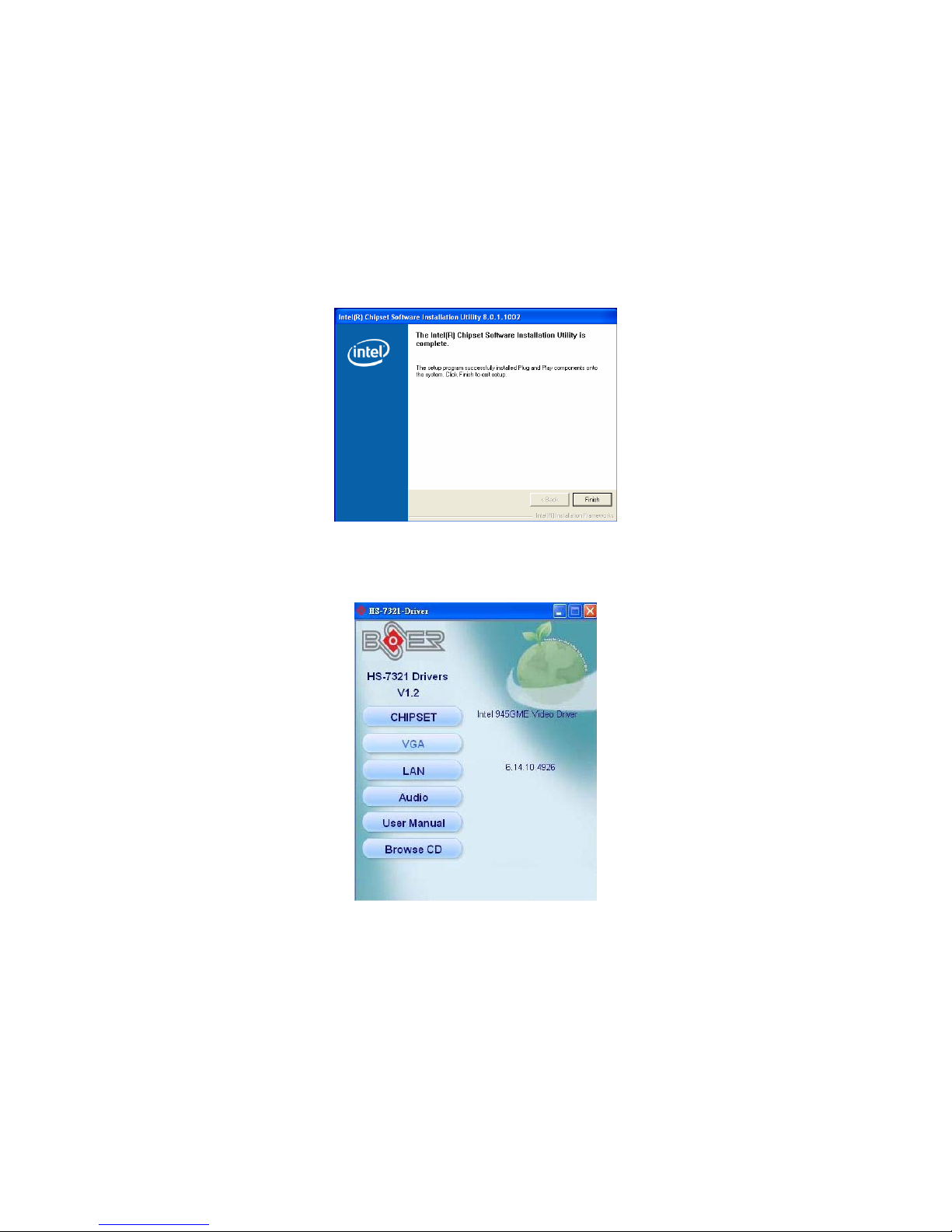

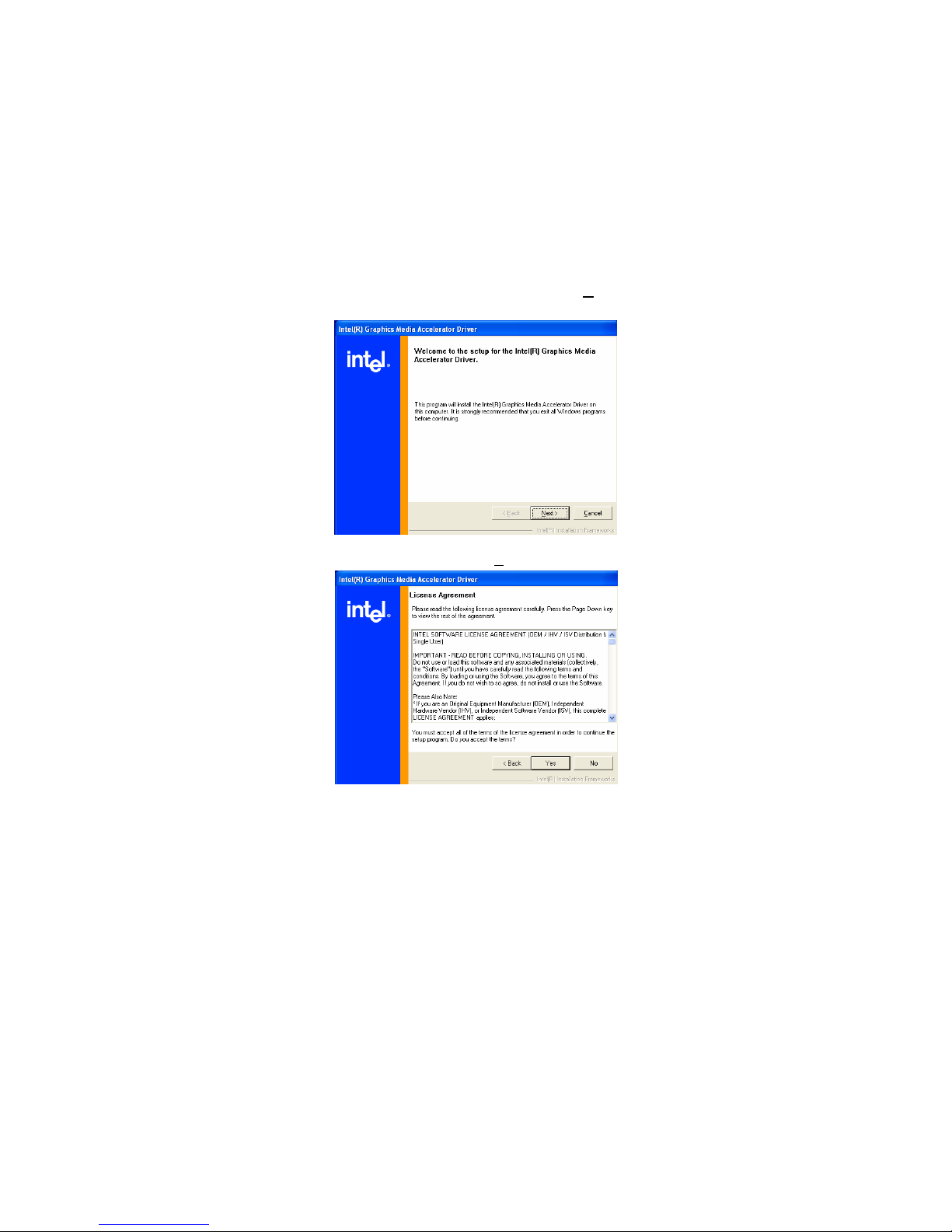

5.2 VGA Driver Installation ....................................................... 48

5.3 Audio Driver Installation..................................................... 51

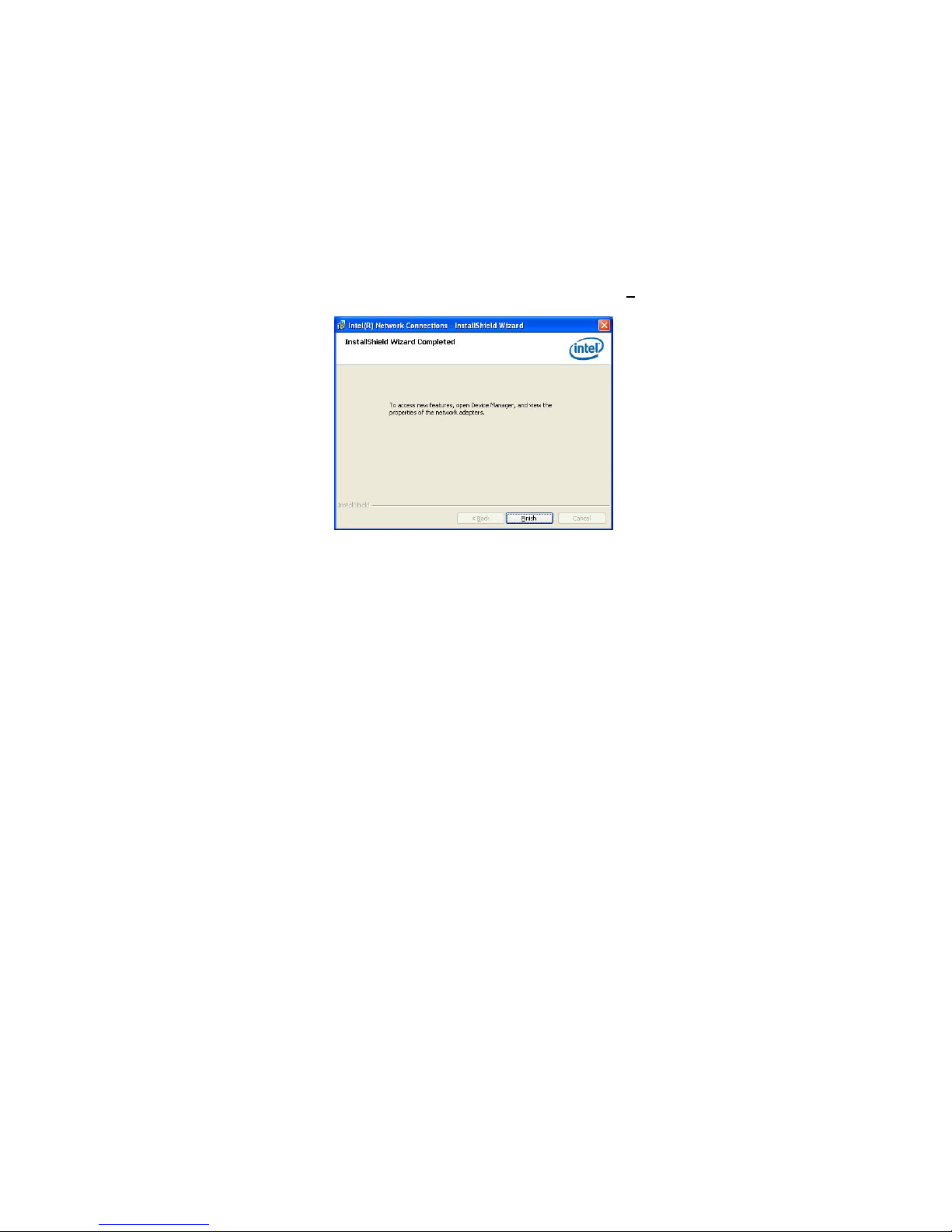

5.4 LAN Driver Installation........................................................ 54

Declaration of Conformity -- CE Mark

BOSER Technology hereby acknowledges that compliance testing in accordance with applicable standards of the EU’s EMC Directive, 89/336/EEC, was successfully completed on a sample of the equipment identified below:

Equipment Class: Information Technology Equipment Product Model Series: HS-7321 This Product Complies With: EN55022: Class A for Radiated emissions

EN50082-2: Heavy Industrial EMC Immunity

We, the undersigned, hereby declare that the equipment specified above conforms to the above directives and standards.

Manufacturer:

BOSER TECHNOLOGY CO., LTD.

Safety Instructions

Integrated circuits on computer boards are sensitive to static electricity. To avoid damaging chips from electrostatic discharge, observe the following precautions:



Do not remove boards or integrated circuits from their anti-static packaging until you are ready to install them.

 Before handling a board or integrated circuit, touch an unpainted portion of

the system unit chassis for a few seconds. This helps to discharge any static electricity on your body.

 Wear a wrist-grounding strap, available from most electronic component

stores, when handling boards and components. Fasten the ALLIGATOR clip of the strap to the end of the shielded wire lead from a grounded object. Please wear and connect the strap before handle the product to ensure harmlessly discharge any static electricity through the strap.

 Please use an anti-static pad when putting down any components or parts or

tools outside the computer. You may also use an anti-static bag instead of the pad. Please inquire from your local supplier for additional assistance in finding the necessary anti-static gadgets.

NOTE: DO NOT TOUCH THE BOARD OR ANY OTHER SENSITIVE

COMPONENTS WITHOUT ALL NECESSARY ANTI-STATIC PROTECTIONS.

1

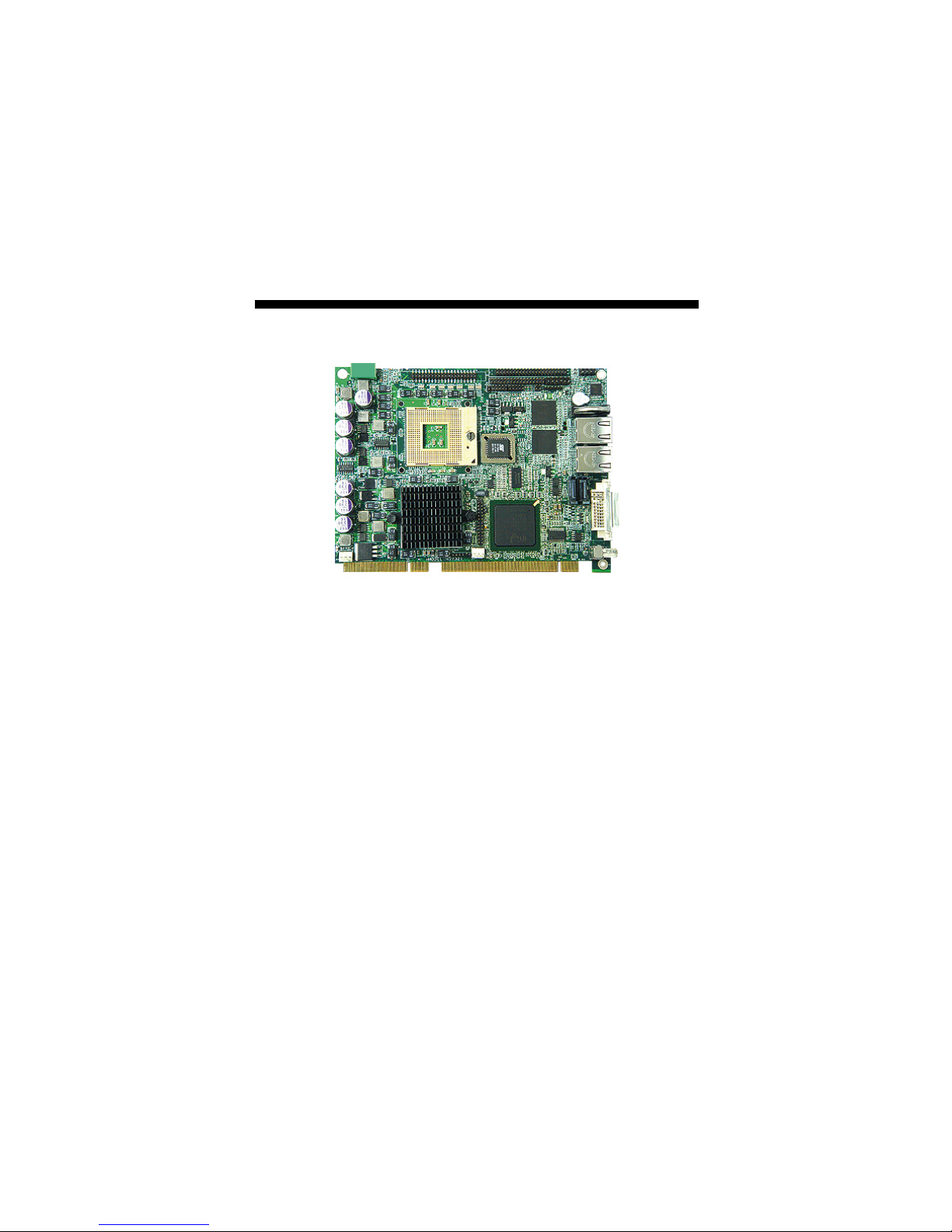

Chapter 1

General Description

The HS-7321 is an Intel® 945GME GMCH chipset-based board designed. The HS-7321 is an ideal all-in-one PICMG1.3 Half-size SBC. Additional features include an enhanced I/O with CF, DVI-I/CRT/LVDS, dual GB LAN, audio, SATA, COM, and USB2.0 interfaces.

Designed with the Intel® 945GME GMCH, the board supports Socket M for Intel® Core™ 2 Duo/Core™ Duo/Core™ Solo/Celeron® M processor 1.66~2.33GHz.

Its onboard ATA/33/66/100 to IDE drive interface architecture allows the HS-7321 to support data transfers of 33, 66 or 100MB/sec. to one IDE drive connection. The Intel® ICH7-M serial ATA controller with two ports supporting transfer rates up to 150MB/sec.

Onboard Intel® 945GME GMCH for CRT display with DVMT or option CHRONTEL 7307 for DVI-I display supporting up to 2048 x 1536. It also supports 18-bit single/dual channel LVDS interface.

System memory is also sufficient with the one SO-DDRII socket that can support up to 1GB.

Additional onboard connectors include an advanced USB2.0 port providing faster data transmission. And two external RJ-45 connectors for 10/100/1000 Based Ethernet uses.

2

To ensure the reliability in an unmanned or standalone system

, the

watchdog timer (WDT) onboard HS-7321 is designed with software that does not need the arithmetical functions of a real-time clock chip. If any program causes unexpected halts to the system, the onboard WDT will automatically reset the CPU or generate an interrupt to resolve such condition.

1.1 Major Features

The HS-7321 comes with the following features:

¾ Socket M for Intel® Core™ 2 Duo/Core™ Duo/Core™ Solo/Celeron® M

processor 1.66~2.33GHz

¾ Supports 667/533MHz FSB ¾ 1 x SO-DIMM up to 1GB DDR2 SDRAM ¾ Intel® 945GME/ICH7-M system chipset ¾ Intel® 945GME integrated VGA for CRT & LVDS ¾ 2 x Intel® 10/100/1000 Mbps ethernet ¾ AC’97 audio codec ¾ Supports CF, mini PCI, 2 x SATA, 4 x COM, 3 x USB2.0 ¾ Supports 18-bit LVDS, 8-bit I/O, Single +12V power in, H/W Monitor

function

1.2 Specifications

z System



CPU:

Socket M for Intel® Core™ 2 Duo/Core™ Duo/Core™ Solo/Celeron® M processor 1.66~2.33GHz Core™ 2 Duo: T5500, T5600, T7200, T7400, T7600 Core™ Duo: T2300, T2400, T2500, T2600, T2700 Celeron® M: 410, 420, 430, 440, 450

 Bus Interface:

PICMG1.3 Half-size

 Front Side Bus:

Supports 667/533MHz FSB (PCB VER:0.5 or later version)

 BIOS:

AMI PnP Flash BIOS

 System Chipset:

Intel® 945GME/ICH7-M

 I/O Chipset:

Winbond W83627EHG

 System Memory:

1 x 200-pin SO-DIMM socket DDR2 667MHz up to 1GB

 Storage:

1 x Type II CF socket

3



Watchdog Timer:

Software programmable time-out intervals from 1~255 sec. or 1~255 min.

 H/W Status Monitor:

Monitoring temperatures, voltages, and cooling fan status

 Expansion Interface:

1 x Type III mini PCI socket

 Power In:

Single +12V power in

 Operating Temperature:

0~60 degrees C

 Operating Humidity

0~95%, non-condensing

 Size(L x W):

167.6 x 126.4 mm

z I/O Interface



MIO: 3 x RS-232 1 x RS-232/422/485 3 x USB2.0 (2 x internal, 1 x external) 1 x IDE 1 x FDD 2 x SATA 1 x 6-pin header for PS/2 KB/MS

 DI/O:

8-bit input/output by parallel port

z Display



Chipset:

Intel® 945GME integrated Intel® GMA950

 LVDS:

18-bit single/dual-channel

 DVI Chipset:

Chrontel 7307 (option)

 Resolution:

CRT Mode: 2048 x 1536

z Audio

 Chipset:

RealTek ALC202A

 Audio Interface (w/pin header):

MIC In, Line Out

4

z Ethernet



Chipset: Dual Intel® 82573L 10/100/1000 Mbps LAN

 Ethernet Interface:

2 x RS-45

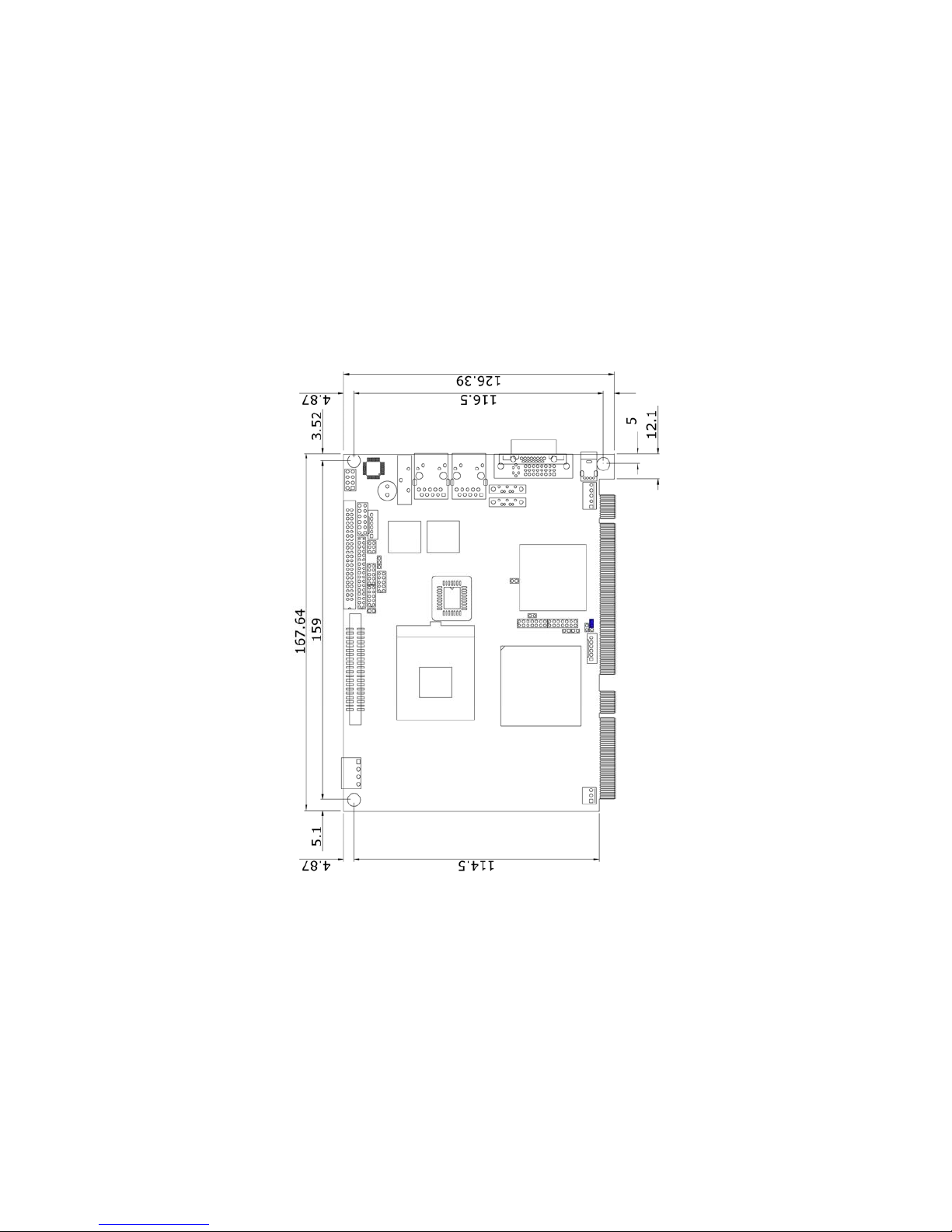

1.3 Board Dimensions

5

Chapter 2

Unpacking

2.1 Opening the Delivery Package

The HS-7321 is packed in an anti-static bag. The board has components that are easily damaged by static electricity. Do not remove the anti-static wrapping until proper precautions have been taken. Safety Instructions in front of this manual describe anti-static precautions and procedures.

2.2 Inspection

After unpacking the board, place it on a raised surface and carefully inspect the board for any damage that might have occurred during shipment. Ground the board and exercise extreme care to prevent damage to the board from static electricity.

Integrated circuits will sometimes come out of their sockets during shipment. Examine all integrated circuits, particularly the BIOS, processor, memory modules, ROM-Disk, and keyboard controller chip to ensure that they are firmly seated. The HS-7321 delivery package contains the following items:

 HS-7321 Board x 1  Utility CD Disk x 1, including User’s Manual  Cables (as following table)  Jumper Bag x 1

6

Cables Package

NO. Description QTY.

1 FDC 34P(2.54)*2 – 34P(2.0) 55cm 1 2 SATA cable 50cm (w/Lock) 1 3 2RS232(2.0) flat cable w/bracket 1 4 SPK 8P(2.54) phone jack x 2 27cm 1 5 USB 1-to-2 20cm w/bracket 1 6 4-pin to 4-pin terminal block power cable 1 7 SATA power cable 15cm 1

It is recommended that you keep all the parts of the delivery package intact and store them in a safe/dry place for any unforeseen event requiring the return shipment of the product. In case you discover any missing and/or damaged items from the list of items, please contact your dealer immediately.

Option Accessories

NO. Description

1 SATA power cable 2 SATA cable 50cm (w/Lock) 3 2RS232(2.0) flat cable w/bracket 4 DVI cable (291-13010040G) 5 40P(2.54)*2 – 44P(2.0)*2 48.5cm IDE flat cable 6 H=23mm CPU Cooling Fan

7

Chapter 3

Hardware Installation

This chapter provides the information on how to install the hardware using the HS-7321. This chapter also contains information related to jumper settings of switch, and watchdog timer selection etc.

3.1 Before Installation

After confirming your package contents, you are now ready to install your hardware. The following are important reminders and steps to take before you begin with your installation process.

1. Make sure that all jumper settings match their default settings and CMOS setup correctly. Refer to the sections on this chapter for the default settings of each jumper. (Set JP8 open)

2. Go through the connections of all external devices and make sure that they are installed properly and configured correctly within the CMOS setup. Refer to the sections on this chapter for the detailed information on the connectors.

3. Keep the manual and diskette in good condition for future reference and use.

8

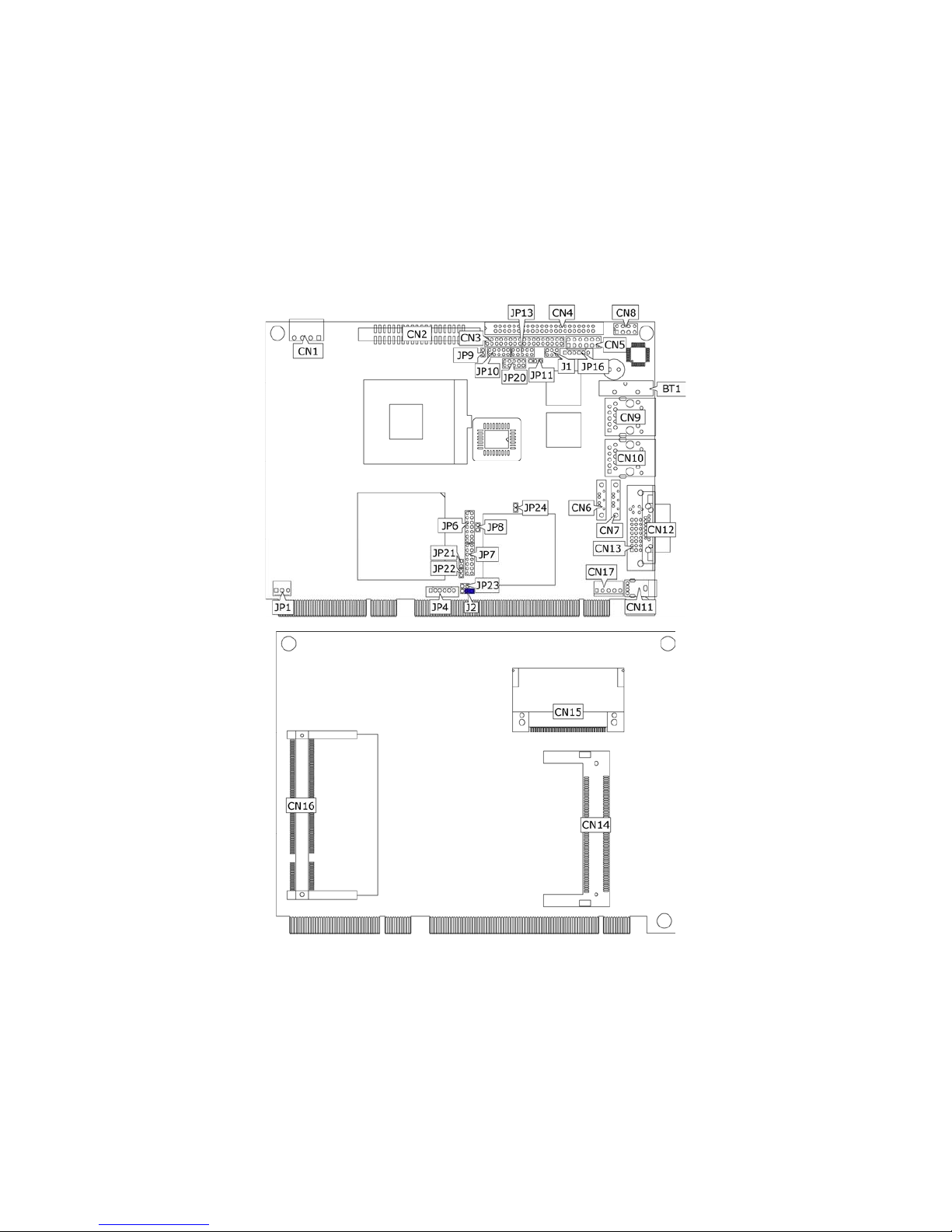

3.2 Board Layout

Top Side

Solder Side

9

3.3 Jumper List

Jumper Default Setting Setting Page

J2 Panel Voltage Select: +3.3V Short 2-3 10 JP8 Clear CMOS: Normal Operation Open 18 JP9 CF Use Master/Slave Select: Slave Open 23

JP20

COM4 Use RS-232 or RS-422/485 Select: RS-232

Open 16

JP21 Open 10 JP22

VGA Use Onboard or Add-on Card Select: Disabled

Open 10

JP23 AT/ATX Function Select: ATX Open 19 JP24 FSB Frequency Select: 667MHz FSB Open 10

3.4 Connector List

Connector Definition Page

CN1 4-pin Power Connector 19 CN2 COM 1~COM 4 Connector 16 CN3 Floppy Connector 15 CN4 IDE Connector 13 CN5 System Front Panel Control 20

CN6/CN7 Serial ATA Connector 14

CN8 MIC In/Line Out Connector 22

CN9/CN10 RJ-45 Connector 17

CN11 External USB2.0 Port 18 CN12 15-pin CRT Connector 10 CN13 DVI-I Connector 10 CN14 Mini PCI Socket 24 CN15 CompactFlash Socket 23 CN16 SO-DDRII Socket 10 CN17 5-pin ATX Power Connector 19

J1 RS-422/485 Connector 16 JP1 Fan Power Connector 19 JP4 Inverter Power Connector 10

JP6/JP7 LVDS Panel Connector 10

JP10 Internal USB2.0 Port 18 JP11 Wake On LAN Connector 17 JP13 8-bit I/O Port 24 JP16 6-pin KB/MS Connector 20

10

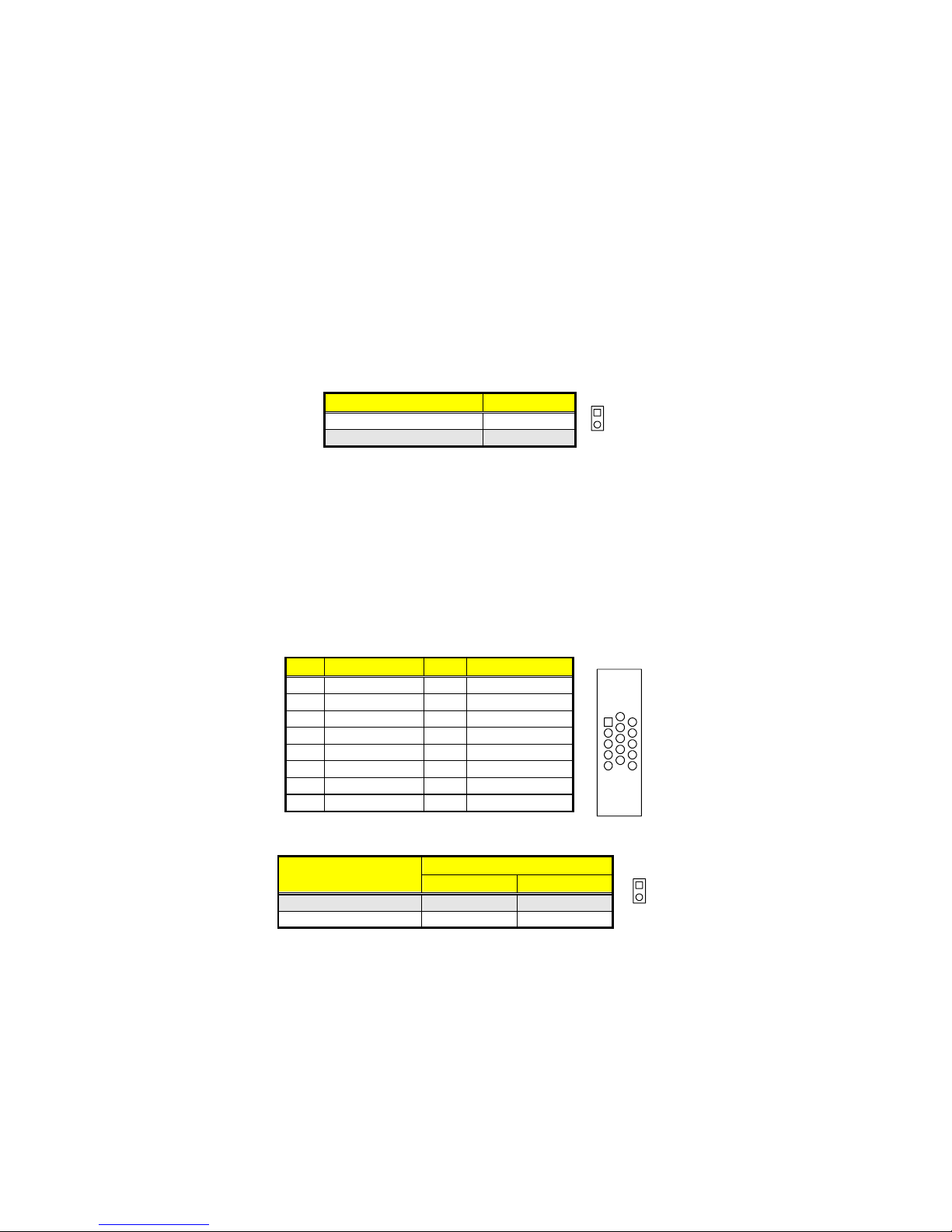

3.5 Configuring the CPU

The HS-7321 provides with Intel® Core™ 2 Duo/Core™ Duo/Core™ Solo/Celeron® M processor 1.66~2.33GHz. User don’t need to adjust the frequently and check speed of processor.

z JP24: FSB Frequency Select

Options Settings

533MHz FSB Short

667MHz FSB (default) Open

2

1

3.6 System Memory

The HS-7321 provides one SO-DDRII socket at locations CN16. The maximum capacity of the onboard memory is 1GB.

3.7 VGA Controller

The HS-7321 provides two types of connection for video output. CN4A offers a single standard CRT connector and JP18/JP19 are the LVDS interface connectors onboard reserved for flat panel installation.

z CN12: CRT Connector

PIN Description PIN Description

1 Red 2 Green

3 Blue 4 N/C

5 GND 6 GND

7 GND 8 GND

9 N/C 10 GND 11 N/C 12 SDA 13 HSYNC 14 VSYNC 15 SCL

1

5

15

10

6

11

z JP21/JP22: VGA Use Onboard or Add-on Card Select

Settings

Options

JP21 JP22

Onboard (default) Open Open

Add-on Card Short Short

2

1

11

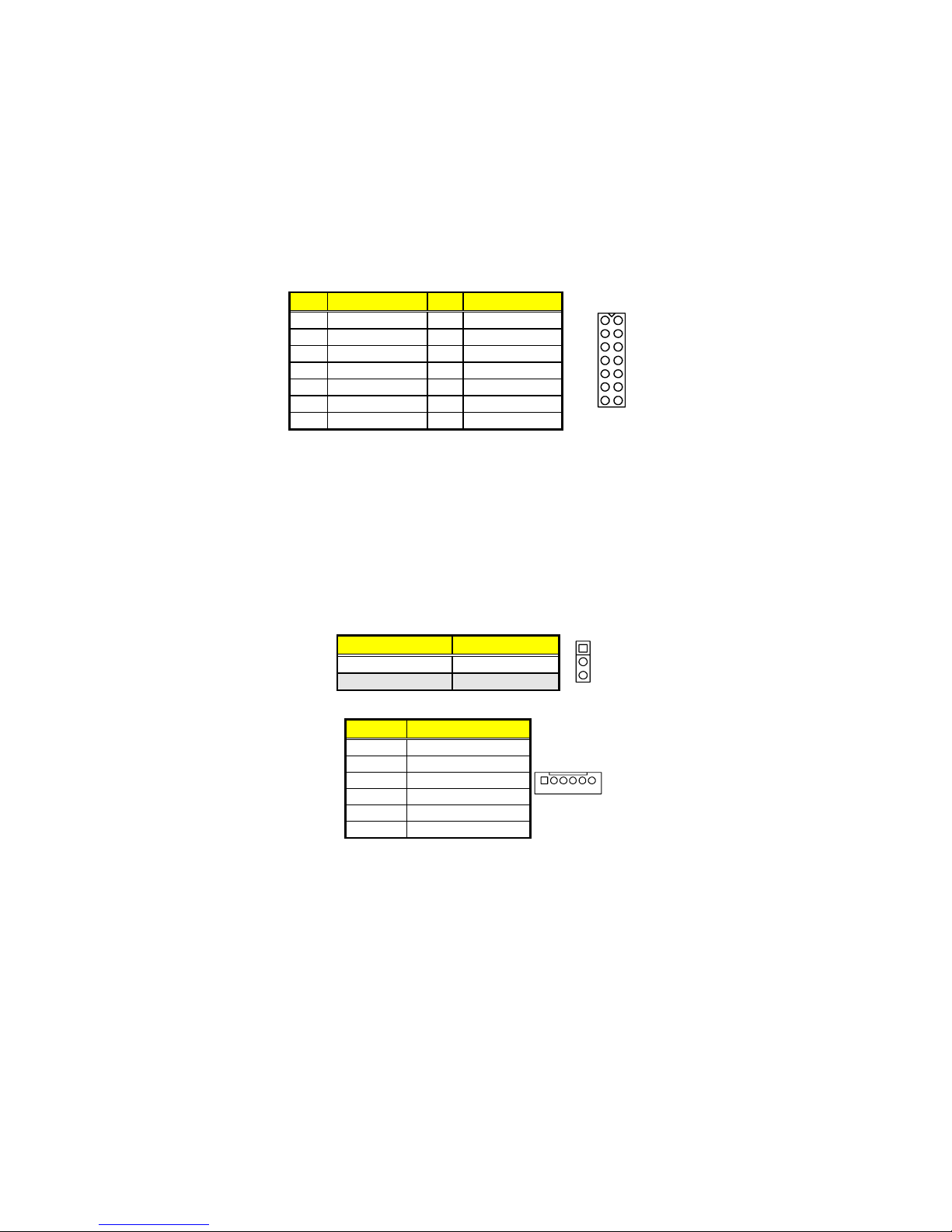

z JP7/JP6: LVDS Interface Connector

PIN Description PIN Description

1 V

LCD

2 V

LCD

3 GND 4 GND 5 Y0-/Z0- 6 Y0+/Z0+ 7 Y1-/Z1- 8 Y1+/Z1+

9 Y2-/Z2- 10 Y2+/Z2+ 11 CLK- 12 CLK+ 13 N/C 14 N/C

12

13 14

NOTE: LVDS cable should be produced very carefully. Y0- & Y0+ have to

be fabricated in twister pair (Y1- & Y1+, Y2- & Y2+ and so on) otherwise the signal won’t be stable. Please set the proper voltage of your panel using J2 before proceeding on installing it.

NOTE: If use JP7 only, it just supports 18-bit single channel LVDS panel;

If you want to use 36-bit dual channel LVDS panel, please use JP7 and JP6 combined.

The HS-7321 has an onboard jumper that selects the working voltage of the flat panel connected to the system. Jumper J2 offers two voltage settings for the user.

z J2: Panel Voltage Select

Options Settings

+5V Short 1-2

+3.3V (default) Short 2-3

1

3

z JP4: Inverter Power Connector

PIN Description

1 +12V 2 +12V 3 +5V 4 +5V 5 VDDEN 6 GND

16

12

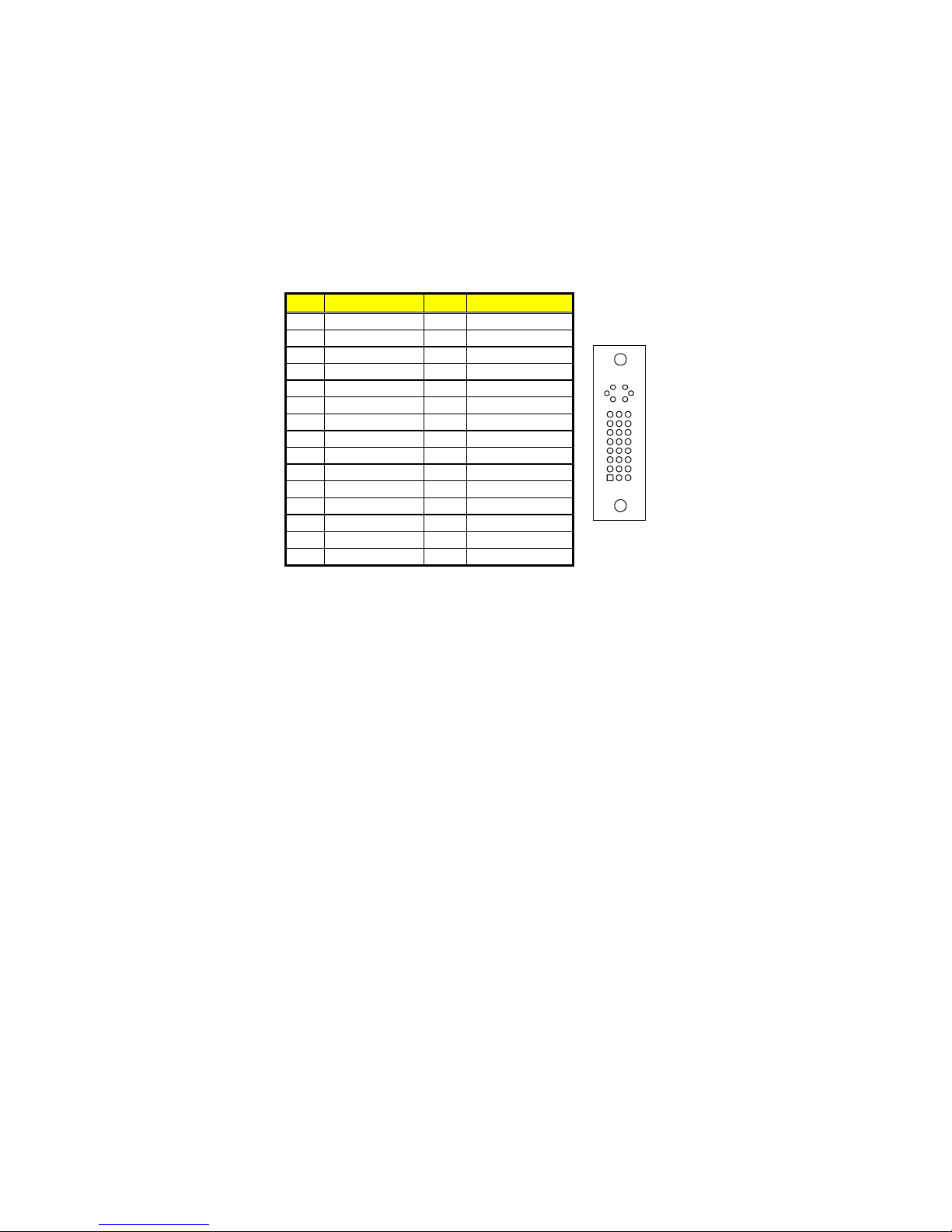

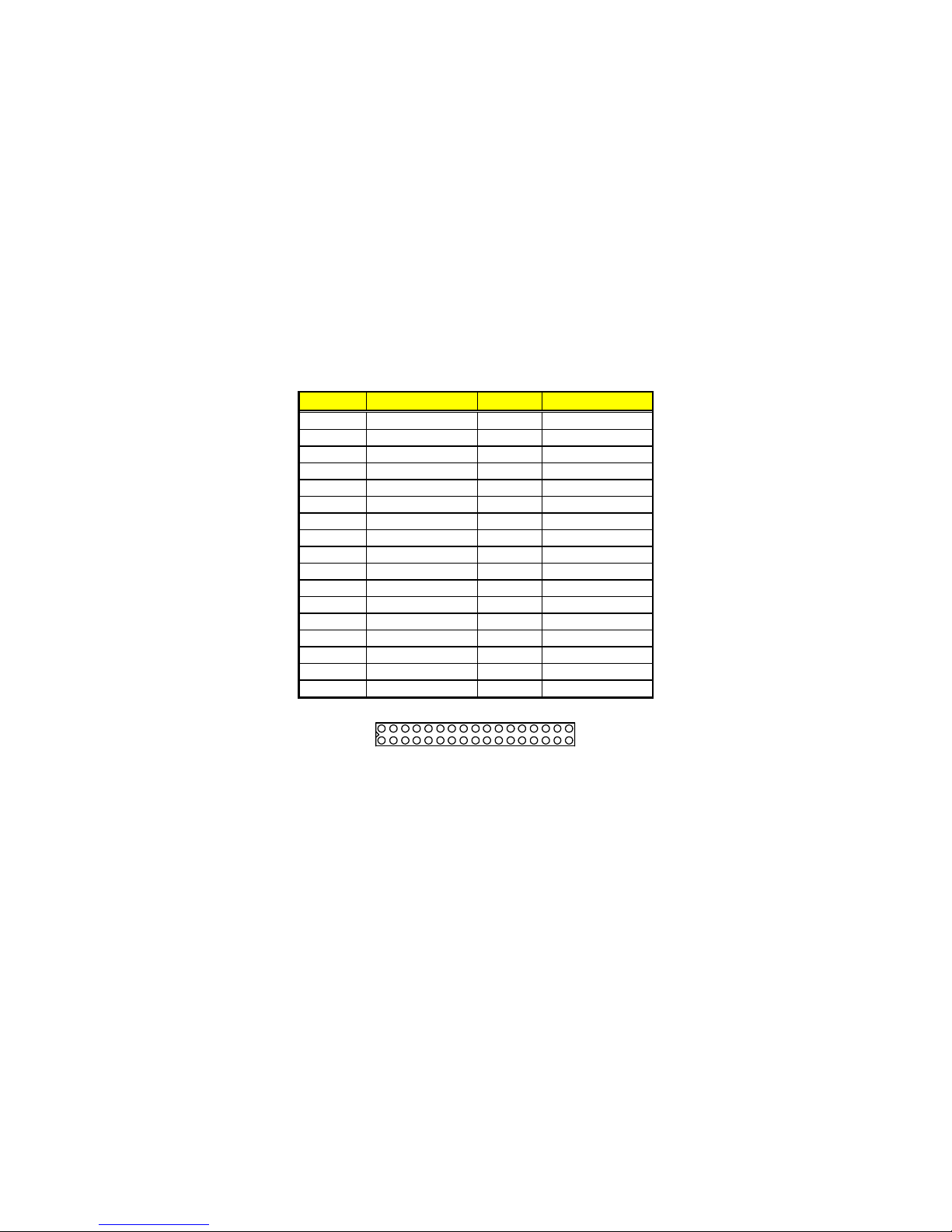

z CN13: DVI-I Connector

PIN Description PIN Description

1 - DATA2 2 DATA2 3 GND 4 -DATA4 5 DATA4 6 DDCCLK 7 DDCDATA 8 VSYNC 9 -DATA1 10 DATA1

11 GND 12 -DATA3 13 DATA3 14 VCC5 15 GND 16 HPDET 17 -DATA0 18 DATA0 19 GND 20 -DATA5 21 DATA5 22 GND 23 CLK 24 -CLK 25 RED 26 GREEN 27 BLUE 28 HSYNC 29 GND 30 GND

13

3.8 PCI E-IDE Drive Connector

CN4 is a standard 2.0-pitch 44-pin connector which support up to two ATA/33/66/100 IDE drives can be connected to the HS-7321 via CN4.

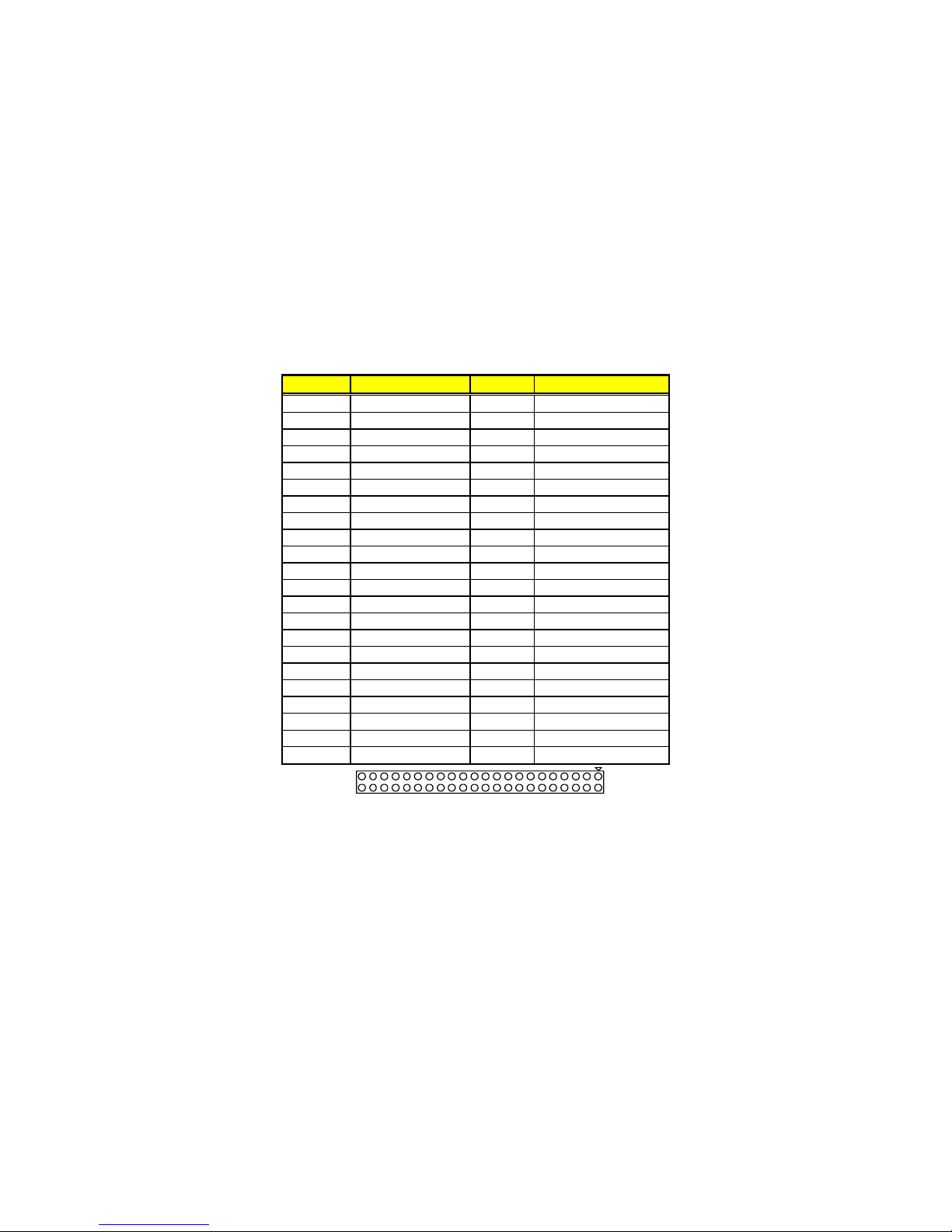

z CN4: IDE Connector

PIN Description PIN Description

1 IDERST 2 GND 3 PDD7 4 PDD8 5 PDD6 6 PDD9 7 PDD5 8 PDD10

9 PDD4 10 PDD11 11 PDD3 12 PDD12 13 PDD2 14 PDD13 15 PDD1 16 PDD14 17 PDD0 18 PDD15 19 GND 20 N/C 21 PDDREQ 22 GND 23 IOW# 24 GND 25 IOR# 26 GND 27 PIORDY 28 470Ω with GND 29 PDDACK# 30 GND 31 IRQ14 32 N/C 33 PDA1 34 PD33/66 35 PDA0 36 PDA2 37 PDCS1# 38 PDCS3# 39 HDD Active 40 GND 41 VCC 42 VCC 43 GND 44 GND

1

2

43 44

14

3.9 Serial ATA Connector

You can connect the Serial ATA device that provides you high speeds transfer rates (150MB/sec.). If you wish to use RAID function, please note that these two serial ATA connectors just support RAID0 and only compatible with WIN XP.

z CN6/CN7: Serial ATA Connector

PIN Description

1 GND 2 SATATXP 3 SATATXN 4 GND 5 SATARXN 6 SATARXP 7 GND

17

15

3.10 Floppy Disk Drive Connector

The HS-7321 uses a standard 34-pin header connector, CN3, for floppy disk drive connection. A total of two FDD drives may be connected to CN3 at any given time.

z CN3: Floppy Connector

PIN Description PIN Description

1 GND 2 DRVDEN0 3 GND 4 N/C 5 GND 6 DRVDEN1 7 GND 8 INDEX#

9 GND 10 MTR0# 11 GND 12 DS1# 13 GND 14 DS0# 15 GND 16 MTR1# 17 GND 18 DIR# 19 GND 20 STEP# 21 GND 22 WDATA# 23 GND 24 WGATE# 25 GND 26 TRAK00# 27 GND 28 WRTPRT# 29 GND 30 RDATA# 31 GND 32 HDSEL# 33 GND 34 DSKCHG#

1

2

33

34

16

3.11 Serial Port Connectors

The HS-7321 offers NS16C550 compatible UARTs with Read/ Receive 16-byte FIFO serial ports and five internal 10-pin headers and two RS-422/485 connectors.

z CN2: COM 1~COM 4 Connector (20x2 Header)

PIN Description PIN Description

1 DCD 2 DSR 3 RXD 4 RTS 5 TXD 6 CTS 7 DTR 8 RI

9 GND 10 +12V 11 DCD 12 DSR 13 RXD 14 RTS 15 TXD 16 CTS 17 DTR 18 RI 19 GND 20 +12V 21 DCD 22 DSR 23 RXD 24 RTS 25 TXD 26 CTS 27 DTR 28 RI 29 GND 30 +12V 31 DCD 32 DSR 33 RXD 34 RTS 35 TXD 36 CTS 37 DTR 38 RI 39 GND 40 +12V

1

2

34

33

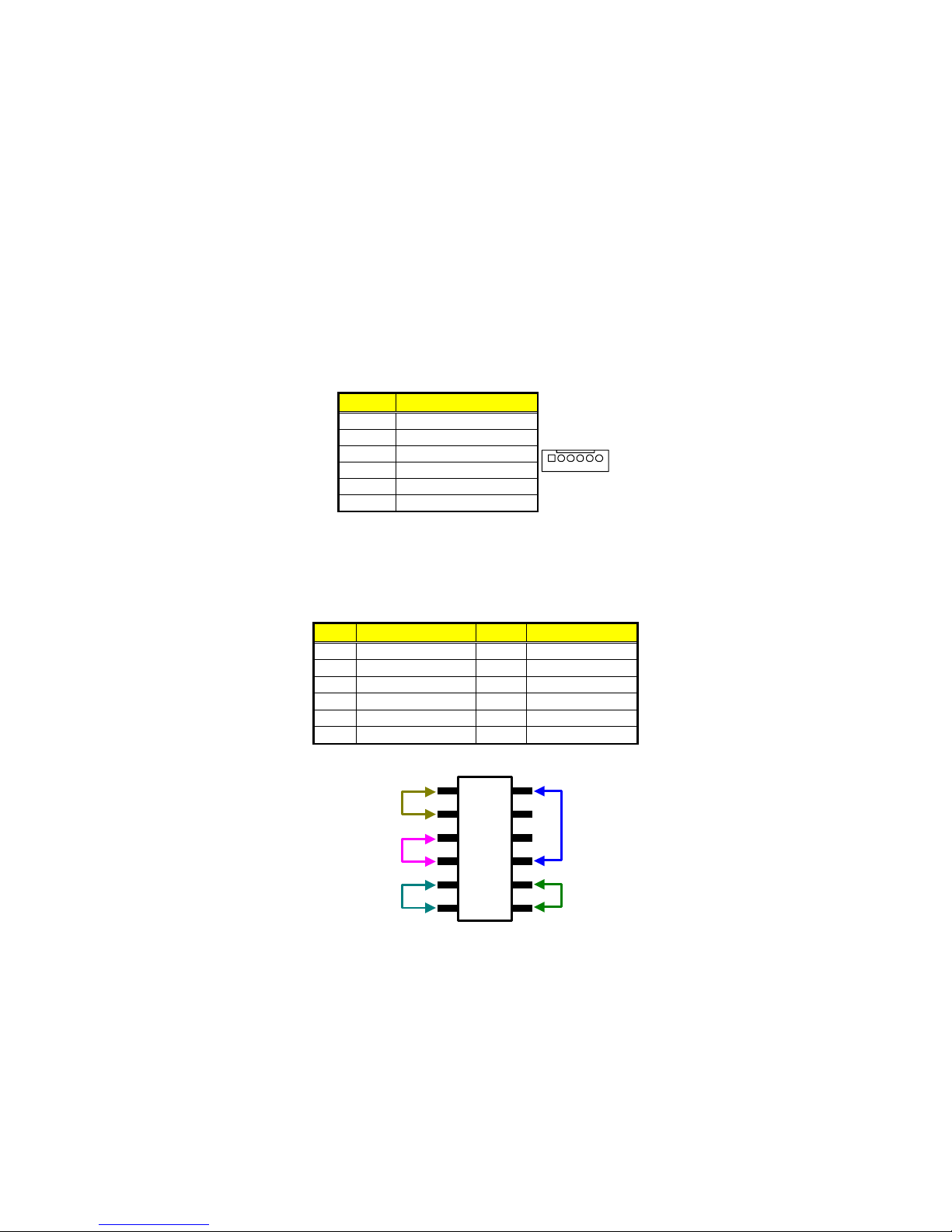

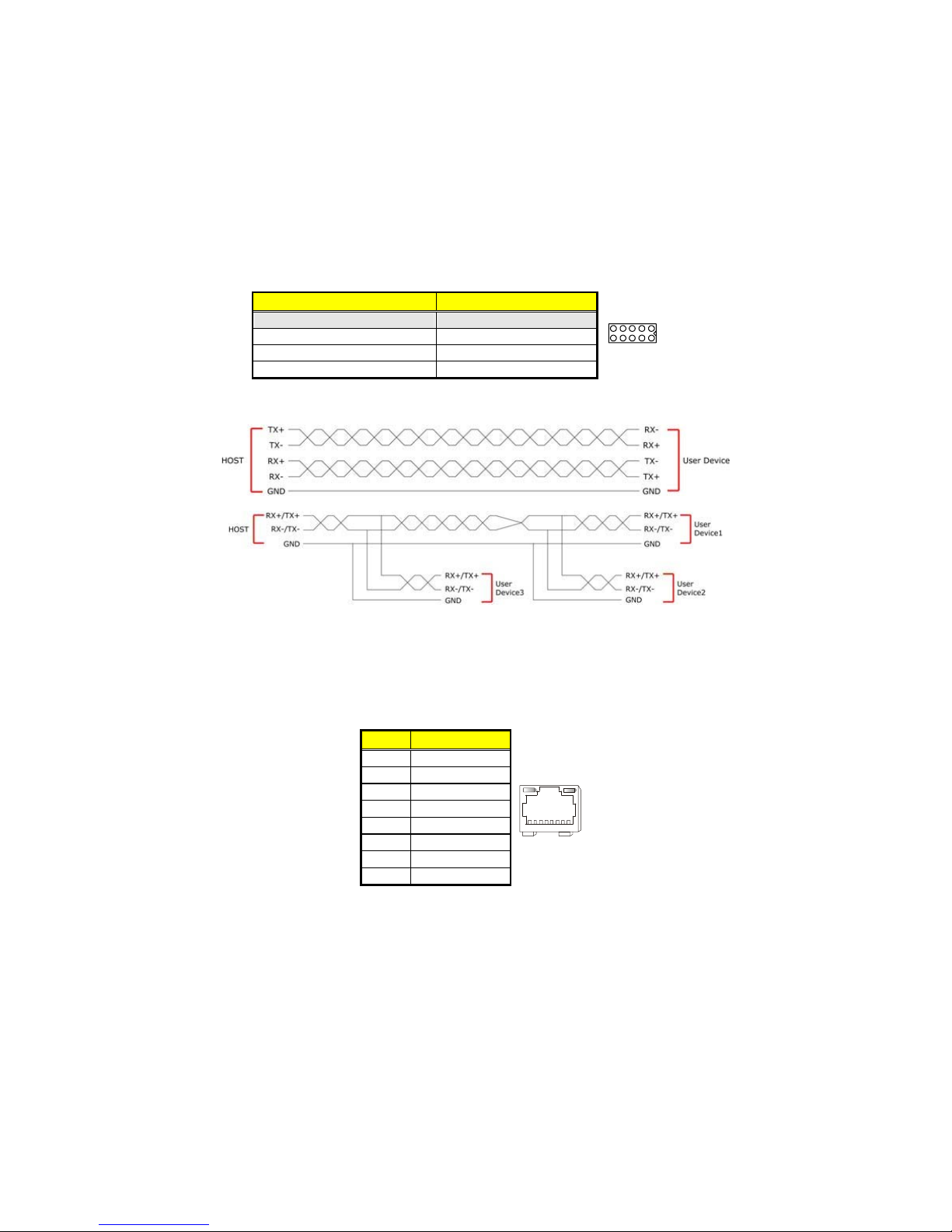

z J1: RS-422/485 Connector (3x2 Header)

PIN Description PIN Description

1 TX- 2 TX+ 3 RX+ 4 RX- 5 GND 6 VCC

15

62

17

z JP20: COM 4 use RS-232 or RS-422/485 Select

Options Settings

RS-232 (default) Open

RS-485 by Auto (*1) Short 1-2, 3-4, 5-7, 8-10

RS-485 by –RTS (*-1) Short 1-2, 3-4, 7-9, 8-10

RS-422/485 Full Duplex (*2) Short 1-2, 3-4, 6-8

19

10 2

NOTE: *1: 2-wires RS-485 function

*2: 4-wires point-to-point full duplex function

4-wires point-to-point full duplex RS-422/485

Typical RS-485 2-wires Mutildrop Network

3.12 Ethernet Connector

The HS-7321 provides two external RJ-45 interface connectors. Please refer to the following for its pin information.

z CN9/CN10: RJ-45 Connector

PIN Description

1 TX+ 2 TX- 3 RX+ 4 R/C GND 5 R/C GND 6 RX- 7 R/C GND 8 R/C GND

1

8

18

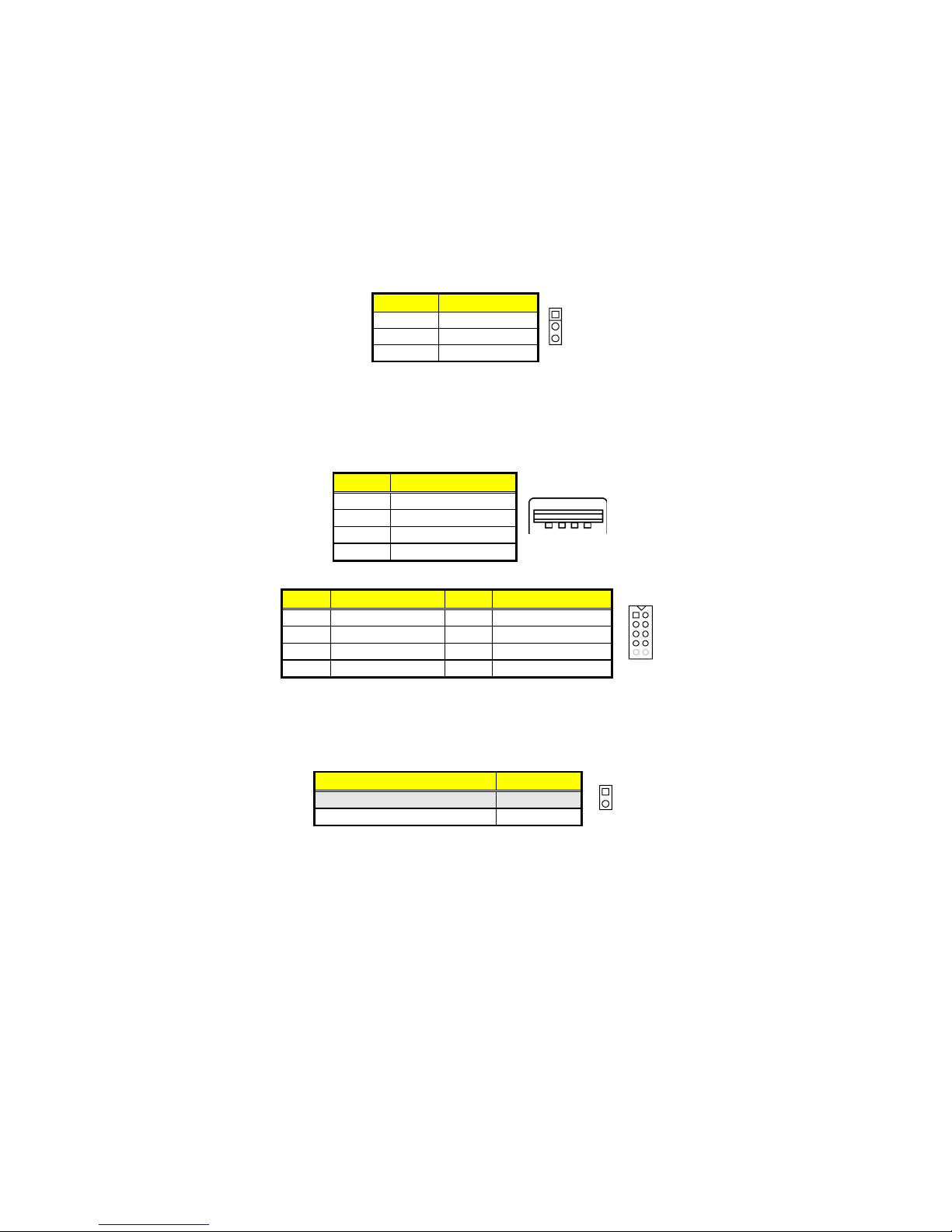

z JP11: Wake On LAN

PIN Description

1 +5V 2 GND 3 Wake On LAN

1

3

3.13 USB Connector

The HS-7321 provides one 8-pin connector, at location JP10, for two USB ports, and one external USB2.0 port at CN11.

z CN11: External USB2.0 Connector

PIN Description

1 VCC 2 USBD2- 3 USBD2+ 4 GND

z JP10: Internal USB2.0 Connector

PIN Description PIN Description

1 VCC 2 VCC 3 USBD0- 4 USBD1- 5 USBD0+ 6 USBD1+ 7 GND 8 GND

12

78

3.14 CMOS Data Clear

The HS-7321 has a Clear CMOS jumper on JP8.

z JP8: Clear CMOS

Options Settings

Normal Operation (default) Open

Clear CMOS Short

2

1

IMPORTANT: Before turn on the power of your system, please set

JP8 to open for normal operation.

19

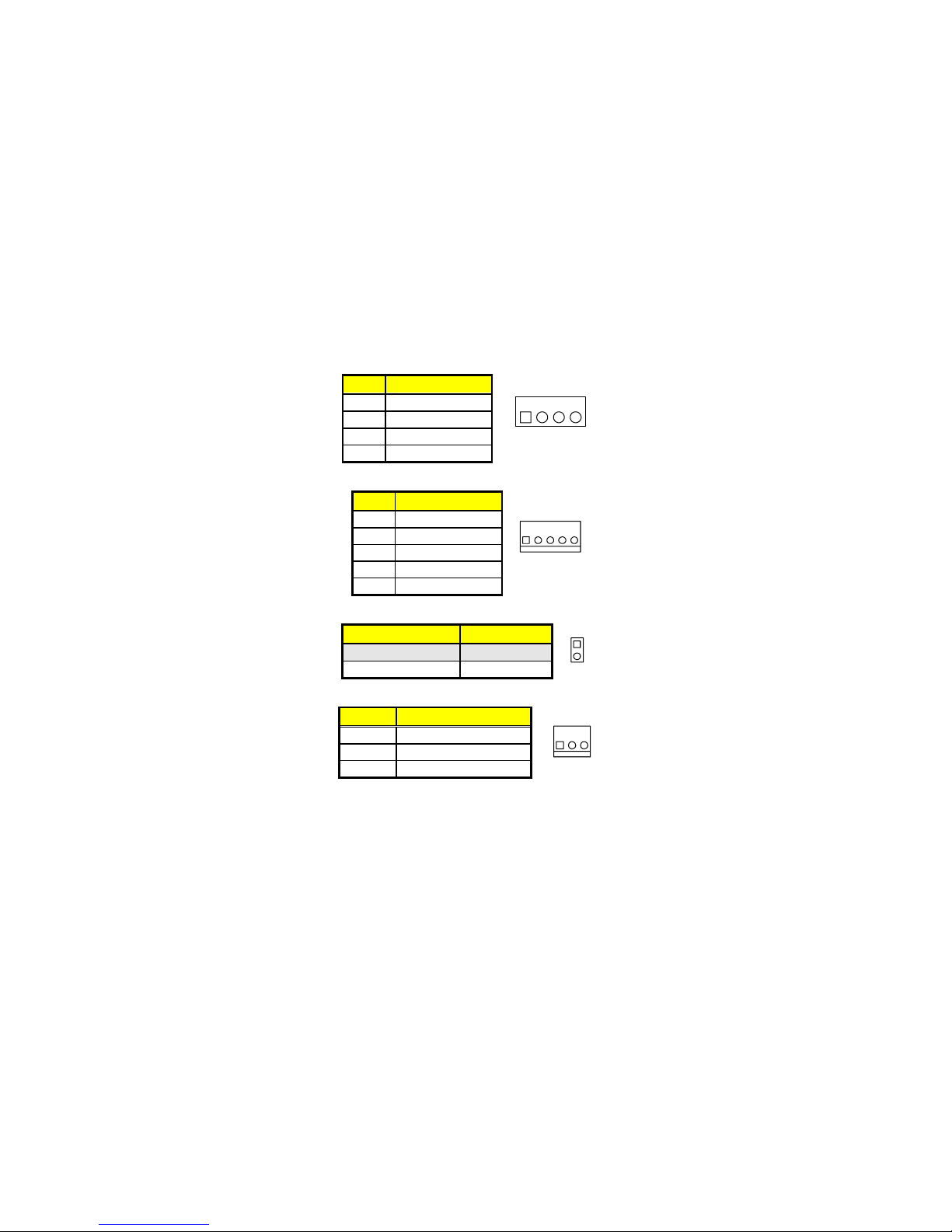

3.15 Power and Fan Connectors

HS-7321 provides one 4-pin power in at CN1. If use ATX power function, the CN1 MUST BE CUT OFF.

z CN1: 4-pin Power Connector

PIN Description

1 +12V 2 GND 3 GND 4 +12V

14

z CN17: 5-pin ATX Power Connector

PIN Description

1 GND 2 PS_ON 3 N/C 4 5VSB 5 VCC

51

z JP23: AT/ATX Power Function Select

Options Settings

ATX (default) Open

AT Short

2

1

z JP1: Fan Power Connector

PIN Description

1 GND 2 +5V 3 Fan In 1/Fan In 2

13

Connector JP1 onboard HS-7321 is a 3-pin fan power output connector.

20

3.16 Keyboard/Mouse Connectors

The HS-7321 offers two possibilities for keyboard/mouse connections. The connection is via JP16 for an internal 6-pin cable converter to a keyboard/mouse.

z JP16: 6-pin Keyboard/Mouse Connector

PIN Description

1 Keyboard Data 2 Mouse Data 3 GND 4 +5V 5 Keyboard Clock 6 Mouse Clock

16

3.17 System Front Panel Control

The HS-7321 has front panel control at location CN5 that indicates the power-on status.

z CN5: System Front Panel Control

PIN Description PIN Description

1 VCC 2 Speaker 3 HDD LED 4 N/C 5 ATX Power Button 6 VCC 7 VCC 8 VCC 9 Reset Switch 10 VCC

11 GND 12 PWR LED

Connector CN5 Orientation

1

3

5

7

9

11

2

4

6

8

10

12

Speaker

PWR LED

Reset

Button

HDD LED

ATX Power

Button

21

3.18 Watchdog Timer

Once the Enable cycle is active a Refresh cycle is requested before the time-out period. This restarts counting of the WDT period. When the time counting goes over the period preset of WDT, it will assume that the program operation is abnormal. A system reset signal will restart when such error happens.

The following sample programs show how to enable, disable and refresh the watchdog timer:

.286

.MODEL SMALL .DATA ;this is data area

x1 db '-------------------------------------------------------',0ah,0dh,'$' copyright db '|Copyright by Boser technology wri te by Richard | ',0ah,0dh,'$' x2 db '-------------------------------------------------------',0ah,0dh,'$'

port equ 02Eh ;W83627H Chipset port datao equ 02Fh ;data port

.CODE

print macro buff mov dx,offset buff;

mov ah,09h int 21h endm

begin proc near

mov ax,@data mov ds,ax STI

; W83627H mov dx,port ; Unlock registor mov al,087H ; out dx,al jmp $+2 out dx,al mov dx,port ; mov al,07H ; out dx,al jmp $+2 mov dx,datao ; set device 8 mov al,08H ; out dx,al jmp $+2

mov dx,port ; Watchdog IO function mov al,030H ; registor out dx,al jmp $+2

mov dx,datao ; set 01h toactivate mov al,01H ; out dx,al

22

jmp $+2

mov dx,port ; set CRF5 mov al,0f5H ; out dx,al jmp $+2

mov dx,datao ; set CRF5 to secend mov al,00H ; out dx,al jmp $+2

mov dx,port ; set CRF6 time mov al,0f6H ; out dx,al jmp $+2

mov dx,datao ; set CRF6 time to 5 s' mov al,05H ; out dx,al

print x1 print copyright print x2 mov ah,4ch ;go back to dos int 21h .stack

begin endp end begin

User can also use AL, 00H’s defined time for reset purposes, e.g.00H for Disable, 01H = 1sec, 02H=2sec….FFH=255sec.

3.19 Audio Connectors

The HS-7321 has an onboard AC97 3D audio controller. The following tables list the pin assignments of the Line In/Audio Out connector.

z CN8: MIC In/Line Out Connector

PIN Description PIN Description

1 AOUTL 2 AOUTR 3 GND 4 GND 5 MIC IN 6 N/C 7 GND 8 GND

1

2

78

23

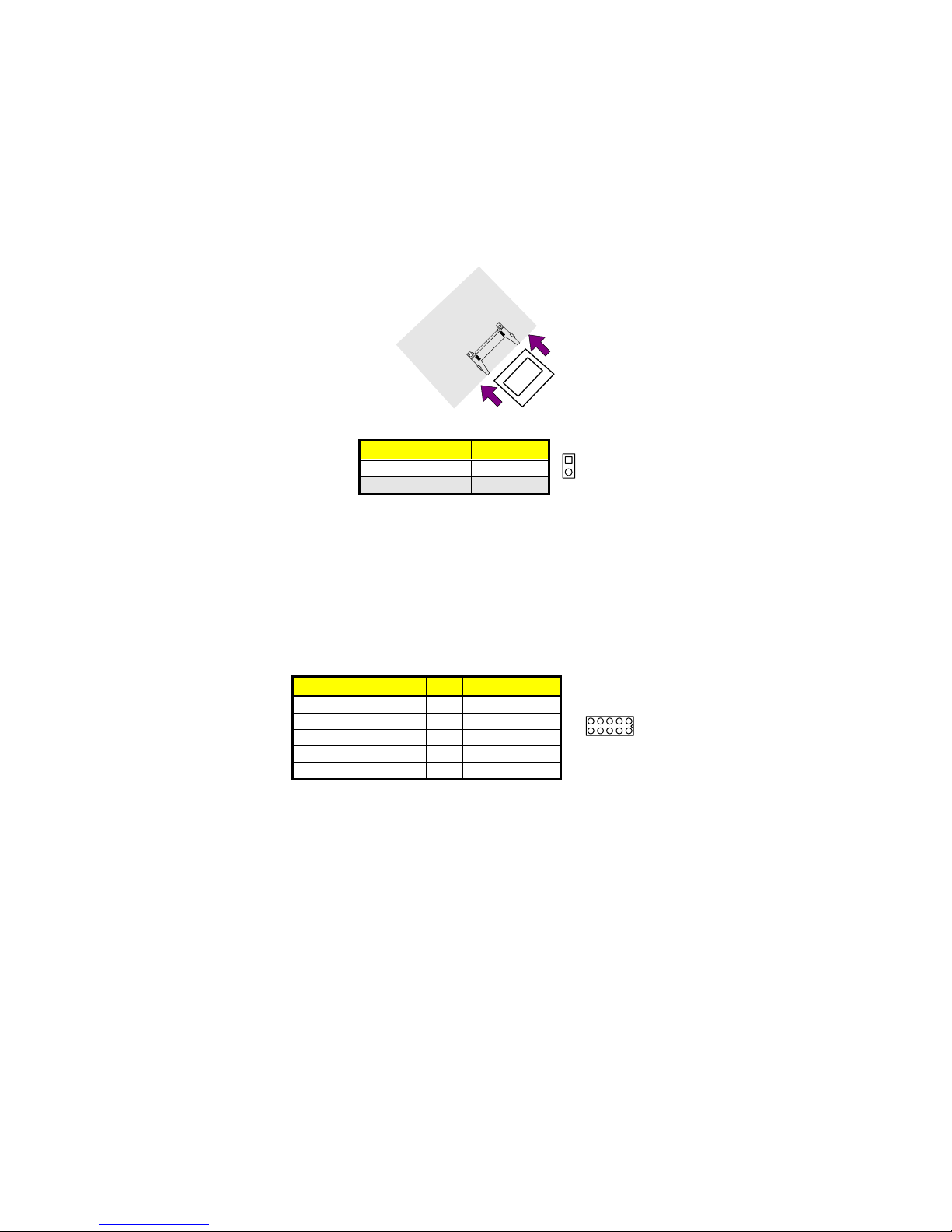

3.20 CompactFlash Socekt

The HS-7321 also offers a Type II CompactFlash socket which is IDE interface located at the solder side of the board. The designated CN15 connector, once soldered with an adapter, can hold CompactFlash cards of various sizes. Please turn off the power before inserting the CF card.

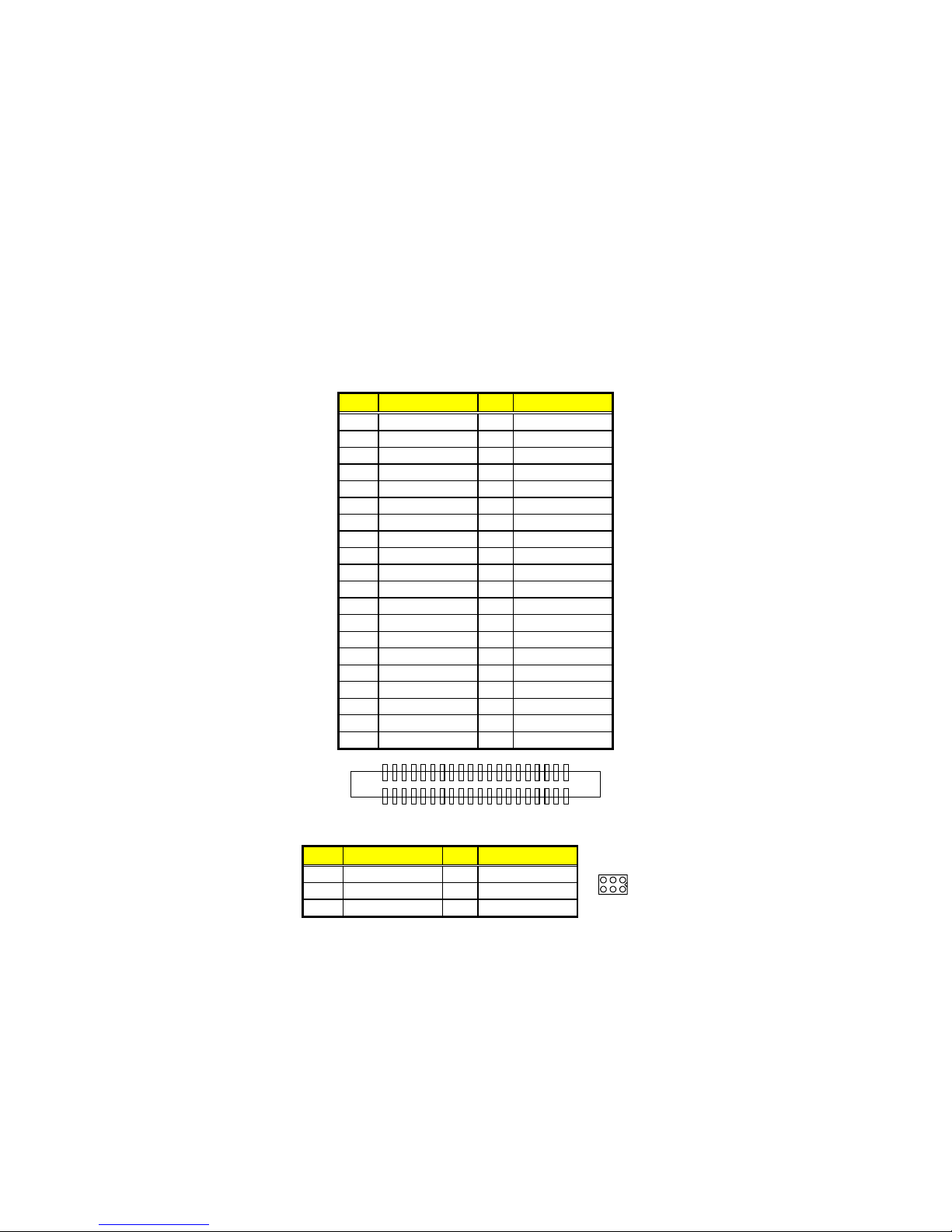

z CN15: CompactFlash Socket

PIN Description PIN Description

1 GND 2 IDE_PDD3 3 IDE_PDD4 4 IDE_PDD5 5 IDE_PDD6 6 IDE_PDD7 7 IDE_PDCS1# 8 GND

9 GND 10 GND 11 GND 12 GND 13 +3.3V 14 GND 15 GND 16 GND 17 GND 18 IDE_PDA2 19 IDE_PDA1 20 IDE_PDA0 21 IDE_PDD0 22 IDE_PDD1 23 IDE_PDD2 24 GND 25 GND 26 GND 27 IDE_PDD11 28 IDE_PDD12 29 IDE_PDD13 30 IDE_PDD14 31 IDE_PDD15 32 IDE_PDCS3# 33 GND 34 IDE_PDIOR# 35 IDE_PDIOW# 36 +3.3V 37 INT_IRQ15 38 +3.3V 39 +3.3V 40 N/C 41 RESET# 42 IDE_PDIORDY 43 CF_PDERQ 44 CF_REGB 45 IDE_ACTP# 46 DETECT 47 IDE_PDD8 48 IDE_PDD9 49 IDE_PDD10 50 GND

Inserting a CompactFlash card into the adapter is not a difficult task. The socket and card are both keyed and there is only one direction for the card to be completely inserted. Refer to the diagram on the following page for the traditional way of inserting the card.

24

C

o

m

p

ac

tF

la

s

h

T

M

C

E

M

a

d

e

i

n

J

a

p

a

n

/

F

a

b

r

i

q

u

e

A

u

J

a

p

o

n

C

F

R

e

a

r

S

i

d

e

P

C

B

S

o

l

d

e

r

S

i

d

e

V

i

e

w

z JP9: CF Use Master/Slave Select

Options Setting

Master Short

Slave (default) Open

2

1

NOTE: When use CF card, IDE device function will be disabled.

3.21 Expansion Interface

The HS-7321 offers one Type III mini PCI slot at CN14.

3.22 8-bit I/O Function

The HS-7321 offers one 8-bit input/output port by parallel port.

z JP13: 8-bit Input/Output

PIN Description PIN Description

1 VCC 2 GND 3 GD0 4 GD4 5 GD1 6 GD5 7 GD2 8 GD6 9 GD3 10 GD7

19

10 2

.286

.MODEL SMALL .DATA ;this is data area

port equ 0378h ;print port can be change to 278h

.CODE

print macro buff

mov dx, offset buff; mov ah,09h int 21h endm

delay :

25

push cx mov cx,0155h

@@:

jmp $+2 push cx mov cx,0ffffh

wait1: loop wait1

pop cx loop @b pop cx ret

begin proc near

mov ax,@data mov ds,ax STI

Mov dx, port

Mov al, 80h out dx, al ;;-------------------;;ROR

mov cx, 08h @@:

ror al, 1

call delay

out dx, al

loop @b

pop cx ;;ROL

push cx

mov cx, 08h @@:

rol al, 1

out dx, al

call delay

loop @b

pop cx ;;-------------------;;-------------------;;ROR

mov cx, 08h @@:

ror al, 1

call delay

out dx, al

loop @b

pop cx ;;ROL

push cx

mov cx, 08h @@:

rol al, 1

out dx, al

call delay

loop @b

pop cx

26

;;-------------------;;-------------------;;ROR

mov cx, 08h @@:

ror al, 1

call delay

out dx, al

loop @b

pop cx ;;ROL

push cx

mov cx, 08h @@:

rol al, 1

out dx, al

call delay

loop @b

pop cx ;;-------------------;;-------------------;;ROR

mov cx, 08h @@:

ror al, 1

call delay

out dx, al

loop @b

pop cx ;;ROL

push cx

mov cx, 08h @@:

rol al, 1

out dx, al

call delay

loop @b

pop cx ;;-------------------;;-------------------;;ROR

mov cx, 08h @@:

ror al, 1

call delay

out dx, al

loop @b

pop cx ;;ROL

push cx

mov cx, 08h @@:

rol al, 1

out dx, al

call delay

loop @b

pop cx ;;--------------------

27

;;-------------------;;ROR

mov cx, 08h @@:

ror al, 1

call delay

out dx, al

loop @b

pop cx ;;ROL

push cx

mov cx, 08h @@:

rol al, 1

out dx, al

call delay

loop @b

pop cx ;;-------------------;;-------------------;;ROR

mov cx, 08h @@:

ror al, 1

call delay

out dx, al

loop @b

pop cx ;;ROL

push cx

mov cx, 08h @@:

rol al, 1

out dx, al

call delay

loop @b

pop cx ;;-------------------;flash LED 3 time

mov cx, 01h @@:

mov al, 0ffh

out dx, al

call delay

mov al,0h

out dx, al

call delay

loop @b ee:

mov ah, 4ch ;go back to dos

int 21h

.stack

begin endp

end begin

28

This page is the blank page.

29

Chapter 4

AMI BIOS Setup

The HS-7321 uses AMI BIOS for the system configuration. The AMI BIOS setup program is designed to provide the maximum flexibility in configuring the system by offering various options that could be selected for end-user requirements. This chapter is written to assist you in the proper usage of these features.

4.1 Starting Setup

The AMI BIOS is immediately activated when you first power on the computer. The BIOS reads the system information contained in the CMOS and begins the process of checking out the system and configuring it. When it finishes, the BIOS will seek an operating system on one of the disks and then launch and turn control over to the operating system.

While the BIOS is in control, the Setup program can be activated in one of two ways:

1. By pressing <Del> immediately after switching the system on, or

2. By pressing the <Del> key when the following message appears briefly at the bottom of the screen during the POST (Power On Self Test).

Press DEL to enter SETUP.

If the message disappears before you respond and you still wish to enter Setup, restart the system to try again by turning it OFF then ON or pressing the "RESET" button on the system case. You may also restart by simultaneously pressing <Ctrl>, <Alt>, and <Delete> keys. If you do not press the keys at the correct time and the system does not boot, an error message will be displayed and you will be asked to...

PRESS F1 TO CONTINUE, DEL TO ENTER SETUP

30

4.2 Using Setup

In general, you use the arrow keys to highlight items, press <Enter> to select, use the <PageUp> and <PageDown> keys to change entries, and press <Esc> to quit. The following table provides more detail about how to navigate in the Setup program using the keyboard.

↑ Move to previous item ↓ Move to next item ← Move to previous item → Move to previous item

Esc key Main Menu -- Quit and not save changes into CMOS

Status Page Setup Menu and Option Page Setup Menu -Exit current page and return to Main Menu

PgUp key Decrease the numeric value or make changes PgDn key Increase the numeric value or make changes

+ key Increase the numeric value or make changes

- key Decrease the numeric value or make changes F1 key Reserved F2 key Change color from total 8 colors. F2 to select color forward F3 key F2 to select color backward F4 key Reserved F5 key Reserved F6 key Reserved F7 key Reserved F8 key Reserved F9 key Reserved

F10 key Save all the CMOS changes, only for Main Menu

31

4.3 Main Menu

Once you enter the AMI BIOS CMOS Setup Utility, the Main Menu will appear on the screen. The Main Menu allows you to select from several setup functions and two exit choices. Use the arrow keys to select among the items and press <Enter> to enter the sub-menu.

BIOS SETUP UTILITY

Main Advanced PCIPnP Boot Security Chipset Exit

System Overview AMIBIOS

Version : 08.00.13 Build Date : 11/01/06 ID : HS732101

Processor Type : Intel® Core™ Duo CPU T2500 Speed : 2000MHz Count : 1

System Memory Size : 504MB



Select Screen



Select Item

System Time [00:29:32] ª -

Change Field

System Date [Tue 01/01/2002] Tab Select Field F1 General Help F10 Save and Exit ESC Exit

NOTE: A brief description of the highlighted choice appears at the bottom

of the screen.

32

4.4 Advanced Settings

This section allows you to configure your system for the basic operation. You have the opportunity to select the system’s default speed, boot-up sequence, keyboard operation, shadowing and security.

BIOS SETUP UTILITY

Main Advanced PCIPnP Boot Security Chipset Exit

Advanced Settings WARNING: Setting wrong values in below sections

may cause system to malfunction.



CPU Configuration



IDE Configuration



Floppy Configuration



Select Screen



SuperIO Configuration



Select Item



Hardware Health Configuration ª - Change Field



ACPI Configuration Tab Select Field



APM Configuration F1 General Help



USB Configuration F10 Save and Exit

ESC Exit

33

BIOS SETUP UTILITY

Main Advanced PCIPnP Boot Security Chipset Exit

Configure advanced CPU settings Module Version –13.03

Manufacturer : Intel Brand String : Intel® Core™ Duo CPU T2500 Frequency : 2.00GHz FSB Speed : 667MHz

Cache L1 : 64 KB Cache L2 : 2048 KB Max CPUID Value Limit [Disabled] Execute Disable Bit [Enabled]



Select Screen

Core Multi-Processing [Enabled]



Select Item

CPU TM function [Enabled] ª - Change Field Venderpool Technology [Enabled] Tab Select Field Digital Thremal Sensor [Disabled] F1 General Help DTS Calibration [Enabled] F10 Save and Exit Intel® SpeedStep™ tech. [Automatic] ESC Exit Intel® C-STATE tech. [Enabled] C1 Enable. [Standard] C2 Enable. [Standard] C3 Enable. [Disabled] C4 Enable. [Disabled] Hard C4 Enable. [Disabled]

34

BIOS SETUP UTILITY

Main Advanced PCIPnP Boot Security Chipset Exit

IDE Configuration

ATA/IDE Configuration [Enhanced]

Configure SATA as [IDE] Configure SATA Channels [Behind PATA]



Primary IDE Master : [Not Detected]



Primary IDE Slave : [Not Detected]



Third IDE Master : [Not Detected]



Third IDE Slave : [Not Detected]



Fourth IDE Master : [Not Detected]



Select Screen



Fourth IDE Slave : [Not Detected]



Select Item

ª - Change Field Tab Select Field Hard Disk Write Protect [Disabled] F1 General Help IDE Detect Time Out (Sec) [35] F10 Save and Exit ATA(PI) 80Pin Cable Detection [Host & Device] ESC Exit

BIOS SETUP UTILITY

Main Advanced PCIPnP Boot Security Chipset Exit

Floppy Configuration

Floppy A [1.44 MB 3.5”] Floppy B [Disabled]



Select Screen



Select Item

ª - Change Field Tab Select Field F1 General Help F10 Save and Exit ESC Exit

35

BIOS SETUP UTILITY

Main Advanced PCIPnP Boot Security Chipset Exit

Configure WIN627EHF Super IO Chipset

OnBoard Floppy Controller [Enabled] Parallel Port Address [378] Parallel Port Mode [Normal] Parallel Port IRQ [IRQ7] Serial Port1 Address [3F8] Serial Port1 IRQ [4] Serial Port2 Address [2F8] Serial Port2 IRQ [3] Serial Port3 Address [3E8] Serial Port3 IRQ [11]



Select Screen

Serial Port4 Address [2E8]



Select Item

Serial Port4 IRQ [10] ª - Change Field Tab Select Field F1 General Help F10 Save and Exit ESC Exit

BIOS SETUP UTILITY

Main Advanced PCIPnP Boot Security Chipset Exit

Hardware Health Configuration

System Temperature : CPU Temperature :

Vcore : 3VCC :



Select Screen

+12V :



Select Item

+1.5V : ª - Change Field +1.05V : Tab Select Field +5V : F1 General Help VSB : F10 Save and Exit ESC Exit

36

BIOS SETUP UTILITY

Main Advanced PCIPnP Boot Security Chipset Exit

ACPI Settings

ACPI Aware O/S [Yes]



General ACPI Configuration



Advanced ACPI Configuration



Select Screen



Chipset ACPI Configuration



Select Item

ª - Change Field Tab Select Field F1 General Help F10 Save and Exit ESC Exit

BIOS SETUP UTILITY

Main Advanced PCIPnP Boot Security Chipset Exit

General ACPI Configuration

Suspend mode [Auto] Repost video on S3 Resume [No]



Select Screen



Select Item

ª - Change Field Tab Select Field F1 General Help F10 Save and Exit ESC Exit

BIOS SETUP UTILITY

Main Advanced PCIPnP Boot Security Chipset Exit

Advanced ACPI Configuration

ACPI Version Features [ACPI v1.0] ACPI APIC support [Enabled] AMI 0EMB table [Enabled] Headless mode [Disabled]



Select Screen



Select Item

ª - Change Field Tab Select Field F1 General Help F10 Save and Exit ESC Exit

37

BIOS SETUP UTILITY

Main Advanced PCIPnP Boot Security Chipset Exit

South Bridge ACPI Configuration

Energy Lake Feature [Disabled] APIC ACPI SCI IRQ [Disabled]



Select Screen

USB Device Wakeup From S3/S4 [Disabled]



Select Item

ª - Change Field Tab Select Field F1 General Help F10 Save and Exit ESC Exit

BIOS SETUP UTILITY

Main Advanced PCIPnP Boot Security Chipset Exit

APM Configuration

Power Management/APM [Enabled] Video Power Down Mode [Disabled] Hard Disk Power Down Mode [Disabled] Suspend Time Out [Disabled] Throttle Slow Clock Ratio [50%] Keyboard & PS/2 Mouse [MONITOR]

Power Button Mode [On/Off]

Advanced Resume Events Controls Resume On Ring [Disabled] Resume On LAN [Disabled] Resume On PME# [Disabled]



Select Screen

Resume On RTC Alarm [Disabled]



Select Item

ª - Change Field Tab Select Field F1 General Help F10 Save and Exit ESC Exit

38

BIOS SETUP UTILITY

Main Advanced PCIPnP Boot Security Chipset Exit

USB Configuration

Module Version – 2.24.0-11.4

USB Devices Enabled: None



Select Screen

Legacy USB Support [Enabled]



Select Item

USB 2.0 Controller Mode [HiSpeed] ª - Change Field Hotplug USB FDD Support [Auto] Tab Select Field



USB Mass Storage Device Configuration F1 General Help F10 Save and Exit ESC Exit

BIOS SETUP UTILITY

Main Advanced PCIPnP Boot Security Chipset Exit

USB Mass Storage Device Configuration

USB Mass Storage Reset Delay [20 Sec]

Device #1 USB Hotplug FDD Emulation Type [Auto]



Select Screen



Select Item

ª - Change Field

Tab Select Field F1 General Help F10 Save and Exit ESC Exit

39

4.5 Advanced PCI/PnP Settings

This section describes configuring the PCI bus system. PCI, or Personal Computer Interconnect, is a system that allows I/O devices to operate at speeds nearing the speed the CPU itself uses when communicating with its own special components. This section covers some very technical items and it is strongly recommended that only experienced users should make any changes to the default settings.

BIOS SETUP UTILITY

Main Advanced PCIPnP Boot Security Chipset Exit

Advanced PCI/PnP Settings

WARNING: Setting wrong values in below

sections may cause system to malfunction.

Clean NVRAM [No] Plug & Play O/S [No] PCI Latency Timer [64] Allocate IRQ to PCI VGA [Yes] Palette Snooping [Disabled] PCI IDE BusMaster [Disabled] Offboard PCI/ISA IDE Card [Auto]

IRQ3 [Available] IRQ4 [Available] IRQ5 [Available] IRQ7 [Available] IRQ9 [Available] IRQ10 [Available] IRQ11 [Available] IRQ14 [Available] IRQ15 [Available]

DMA Channel 0 [Available] DMA Channel 1 [Available]



Select Screen

DMA Channel 3 [Available]



Select Item

DMA Channel 5 [Available] ª - Change Field DMA Channel 6 [Available] Tab Select Field DMA Channel 7 [Available] F1 General Help F10 Save and Exit Reserved Memory Size [Disabled] ESC Exit

40

4.6 Boot Settings

BIOS SETUP UTILITY

Main Advanced PCIPnP Boot Security Chipset Exit

Boot Settings



Boot Settings Configuration



Boot Device Priority



Select Screen



Removable Drivers



Select Item

ª - Change Field Tab Select Field F1 General Help F10 Save and Exit ESC Exit

BIOS SETUP UTILITY

Main Advanced PCIPnP Boot Security Chipset Exit

Boot Settings Configuration

Quick Boot [Enabled] AddOn ROM Display Mode [Force BIOS] Bootup Nom-Lock [On] PS/2 Mouse Support [Auto]



Select Screen

Wait For ‘F1’ If Error [Enabled]



Select Item

Hit ‘DEL’ Message Display [Enabled] ª - Change Field Interrupt 19 Capture [Disabled] Tab Select Field F1 General Help F10 Save and Exit ESC Exit

BIOS SETUP UTILITY

Main Advanced PCIPnP Boot Security Chipset Exit

Boot Device Priority

1st Boot Device [USB:USB Hotplug FD]



Select Screen



Select Item

ª - Change Field Tab Select Field F1 General Help F10 Save and Exit ESC Exit

41

BIOS SETUP UTILITY

Main Advanced PCIPnP Boot Security Chipset Exit

Removable Drives

1st Drive [1st FLOPPY DRIVE] 2nd Drive [USB:USB Hotplug FD]



Select Screen



Select Item

ª - Change Field Tab Select Field F1 General Help F10 Save and Exit ESC Exit

4.7 Security Settings

BIOS SETUP UTILITY

Main Advanced PCIPnP Boot Security Chipset Exit

Security Settings

Supervisor Password : Not Installed User Password : Not Installed



Select Screen

Change Supervisor Password



Select Item

Change User Password ª - Change Field Boot Sector Virus Protection [Disabled] Tab Select Field F1 General Help Hard Disk Security F10 Save and Exit There are no supported Hard Disks. ESC Exit

42

4.8 Advanced Chipset Settings

BIOS SETUP UTILITY

Main Advanced PCIPnP Boot Security Chipset Exit

Advanced Chipset Settings WARNING: Setting wrong values in below

sections may cause system to malfunction.



North Bridge Chipset Configuration



South Bridge Chipset Configuration



Select Screen



Select Item

ª - Change Field

Tab Select Field F1 General Help F10 Save and Exit ESC Exit

BIOS SETUP UTILITY

Main Advanced PCIPnP Boot Security Chipset Exit

North Bridge Chipset Configuration

DRAM Frequency [Auto] Configure DRAM Timing by SPD [Enabled] Memory Hole [Disabled]

Boots Graphic Adapter Priority [PEG/PCI] Internal Graphics Mode Select [Enabled, 8MB]

PEG Port Configuration PEG Port [Auto] PEG Force x1 [Disabled]



Select Screen

Chipset Thermal Throttling [Disabled]



Select Item

DT in SPD [Disabled] ª - Change Field TS on DIMM [Disabled] Tab Select Field F1 General Help



Video Function Configuration F10 Save and Exit

ESC Exit

43

BIOS SETUP UTILITY

Main Advanced PCIPnP Boot Security Chipset Exit

Video Function Configuration

DVMT Mode Select [DVMT Mode] DVMT/FIXED Memory [128MB]

Boot Display Device [CRT] Flat Panel Type [800x600LVDS] Local Flat Panel Scaling [Auto]



Select Screen



Select Item

ª - Change Field Tab Select Field F1 General Help F10 Save and Exit ESC Exit

BIOS SETUP UTILITY

Main Advanced PCIPnP Boot Security Chipset Exit

Sorth Bridge Chipset Configuration

USB Function [4 USB Ports] USB 2.0 Controller [Enabled] Audio Controller [AC’97 Audio Only] PRO-NIC Controller [Disabled] SMBUS Controller [Enabled]

Reserved Page Route [LPC] SLP_S4# Min. Assertion Width [1 to 2 seconds] Restore on AC Power Loss [Last State]

PCIE Ports Configuration



Select Screen

ONBOARD LAN 1 [Auto]



Select Item

ONBOARD LAN 2 [Auto] ª - Change Field PCIE SLOT 1 [Auto] Tab Select Field ASF Support [Enabled] F1 General Help

F10 Save and Exit ESC Exit

44

4.9 Exit Options

BIOS SETUP UTILITY

Main Advanced PCIPnP Boot Security Chipset Exit

Exit Options

Save Changes and Exit Discard Changes and Exit Discard Changes

Load Optimal Defaults Load Failsafe Defaults



Select Screen



Select Item

ª - Change Field Tab Select Field F1 General Help F10 Save and Exit ESC Exit

45

Chapter 5

Software Utilities

This chapter contains the detailed information of

IDE,

VGA, LAN and audio driver installation procedures. The utility disk that comes with the delivery package contains an auto-run program that invokes the installation programs for the

IDE,

VGA, LAN and audio drivers. The

following

sections describe the installation procedures of each driver

based

on

WIN2K/XP operating systems. It is recommended that you

install the drivers matching the sections listed in this chapter.

5.1 Chipset Driver Installation

1. Insert the CD that comes with the board into the CD-ROM drive.

Click CHIPSET to install Intel® 945GME/ICH7-M chipset driver.

46

2. Once the Install Shield Wizard screen appears on the screen,

make sure to close applications that are running and then click on Next> button.

3. The Welcome screen is now displayed, and then click on Next

> button to continue.

47

4. The License Agreement dialog box then appears on the

screen. Choose Y

es to proceed.

5. When the Readme File Information dialog box pops up, just

click on the N

ext > button to proceed.

48

6. The Installation Utility successfully installed Plug and Play

components onto the system. Click Finish to exit setup.

5.2 VGA Driver Installation

1. Insert the CD that comes with the board into the CD-ROM drive. Click VGA to install Intel® 945GME video driver.

49

2. Once the InstallShield Wizard appears on the screen and click on the Next > button.

3. InstallShield Wizard will extracting files to your hard drive, and then click on Next> to continue.

50

4. When the dialog box below appears, make sure you close all other Windows applications then click on the N

ext > button to

proceed.

5. The Intel® OEM Software License Agreement dialog box appears on the screen. Choose Y

es to proceed.

51

6. Once InstallShield Wizard finishes updating your system, it will prompt you to restart the computer. Tick on the Yes, I

want to restart my computer now followed by a click on the F

inish but t on to r eboo t . Only a f ter yo u r comp u ter b o ots wi l l the

new settings take effect.

5.3 Audio Driver Installation

1. Insert the CD that comes with the board into the CD-ROM drive. Click Audio to install RealTek AC97 audio driver.

52

2. Once the Install Shield Wizard screen appears on the screen, make sure to close applications that are running.

3. Realtek AC97 Audio Setup is preparing the Install Shield Wizard, which will guide you through the rest of the setup process. Click on Next> to process.
