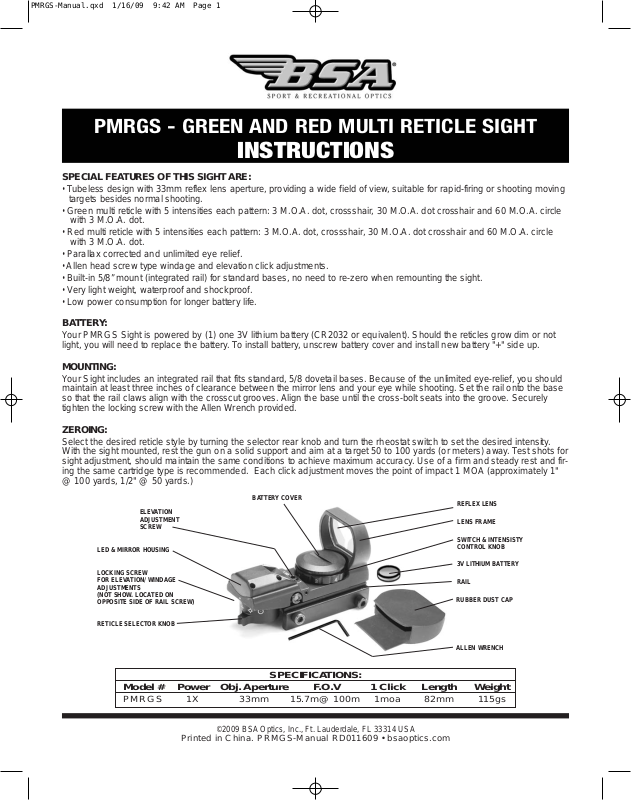

PMRGS - GREEN AND RED MULTI RETICLE SIGHT
SPECIAL FEATURES OF THIS SIGHT ARE:
•
Tubeless design with 33mm reflex lens aperture, providing a wide field of view, suitable for rapid-firing or shooting moving
targets besides normal shooting.
•
Green multi reticle with 5 intensities each pattern: 3 M.O.A. dot, crossshair, 30 M.O.A. dot crosshair and 60 M.O.A. circle
with 3 M.O.A. dot.
•
Red multi reticle with 5 intensities each pattern: 3 M.O.A. dot, crossshair, 30 M.O.A. dot crosshair and 60 M.O.A. circle
with 3 M.O.A. dot.
•
Parallax corrected and unlimited eye relief.
•
Allen head screw type windage and elevation click adjustments.
•
Built-in 5/8” mount (integrated rail) for standard bases, no need to re-zero when remounting the sight.
•
Very light weight, waterproof and shockproof.
•
Low power consumption for longer battery life.
INSTRUCTIONS
BA TTERY:
Your PMRGS Sight is powered by (1) one 3V lithium battery (CR2032 or equivalent). Should the reticles grow dim or not
light, you will need to replace the battery.
To install battery, unscrew battery cover and install new battery "+" side up.
MOUNTING:
Your Sight includes an integrated rail that fits standard, 5/8 dovetail bases. Because of the unlimited eye-relief, you should
maintain at least three inches of clearance between the mirror lens and your eye while shooting. Set the rail onto the base
so that the rail claws align with the crosscut grooves. Align the base until the cross-bolt seats into the groove. Securely
tighten the locking screw with the
Allen Wrench provided.
ZEROING:
Select the desired reticle style by turning the selector rear knob and turn the rheostat switch to set the desired intensity.
With the sight mounted, rest the gun on a solid support and aim at a target 50 to 100 yards (or meters) away. Test shots for
sight adjustment, should maintain the same conditions to achieve maximum accuracy. Use of a firm and steady rest and firing the same cartridge type is recommended. Each click adjustment moves the point of impact 1 MOA (approximately 1"
@ 100 yards, 1/2" @ 50 yards.)
ELEVATION
ADJUSTMENT
SCREW

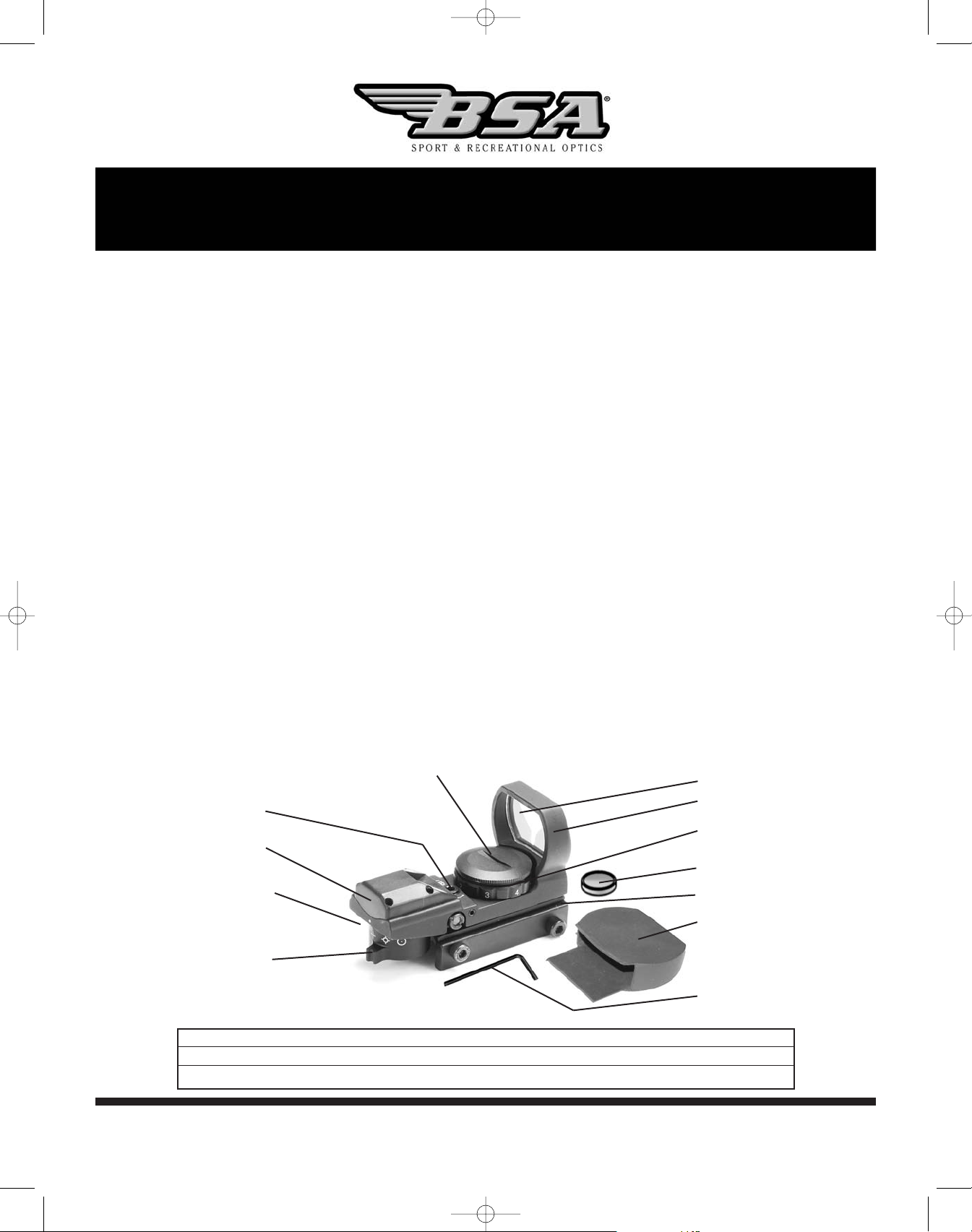

LED & MIRROR HOUSING
LOCKING SCREW
FOR ELEVATION/ WINDAGE
ADJUSTMENTS
(NOT SHOW. LOCATED ON
OPPOSITE SIDE OF RAIL SCREW)
BATTERY COVER
REFLEX LENS
LENS FRAME
SWITCH & INTENSISTY
CONTROL KNOB
3V LITHIUM BATTERY
RAIL
RUBBER DUST CAP
RETICLE SELECTOR KNOB
SPECIFICATIONS:
Model # Power Obj. Aperture F.O.V 1 Click Length Weight
PMRGS 1X 33mm 15.7m@ 100m 1moa 82mm 115gs
©2009 BSA Optics, Inc., Ft. Lauderdale, FL 33314 USA
Printed in China. PRMGS-Manual RD011609 • bsaoptics.com
ALLEN WRENCH
