2

3

t

Color Teller

BRY

TECH Inc

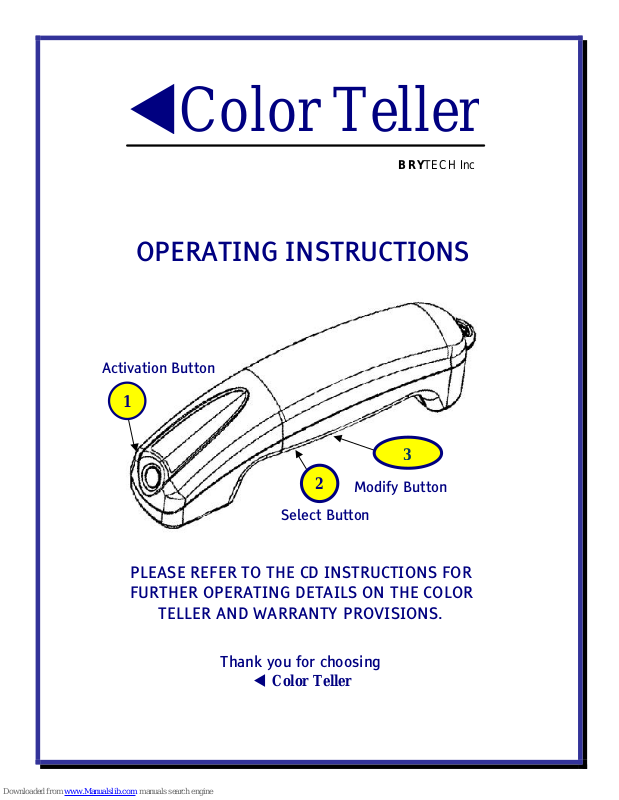

OPERATING INSTRUCTIONS

Activation Button

1

Modify Button

Select Button

PLEASE REFER TO THE CD INSTRUCTIONS FOR

FURTHER OPERATING DETAILS ON THE COLOR

TELLER AND WARRANTY PROVISIONS.

Thank you for choosing

t Color Teller

t

Operating Controls

Your Color Teller has three operating controls:

1 – Activate button (top recessed end of unit) –

brings the unit out of power save mode and initiates
a color sample.

2 - Select Button – round button on the bottom of

unit, nearest to sensor end. This allows you to
select volume, language and other announcements
for modifying.

3 - Modify Button – oblong button on the bottom of

unit, nearest battery door. This button allows
changes to be made to the “announce mode”
previously selected. (e.g. volume can be set to high,
medium or low. Language can be set to English,
French or Spanish).

Please take some time to go through all the options
in order to find what “set-up” best suits you.

t Operating COLOR TELLER:

• Hold the Color Teller with a finger on the

activation button, which is on the top of the
recessed end of the unit.

• Place the square flat sensor head on object

selected for color recognition.

• Press the activation button; once the button is

released it will announce the color being
identified. Color Teller can announce up to 42

different color combinations.

Page 2 of 4

•

The announcement may be delayed by holding

the activation button, upon release it will

durable electronic device there are some basic steps

announce.
The Select and Modify buttons may only be used
when the unit is operational. The Activate button
brings the unit out of power-save mode into an
operational mode. If no buttons are pressed for 30
seconds, the unit returns to power-save mode.

t Color Teller Announcements:
In addition to announcing the identified color, the
Color Teller will also advise you when the battery
needs to be replaced. Please listen to CD for full
operating details.

t Maintenance Instructions:
To help maintain the life and performance of your
Color Teller the following instructions and
suggestions are provided. Although Color Teller is a

one can take to reduce maintenance, which can be
costly and inconvenient.

• Ensure that Color Teller is kept clean.

• Do not drop or subject to forceful impact.

• Keep the unit dry.

• Keep in protective case when not in use.

• Use a 3-volt 123 battery and insert it correctly.

Page 3 of 4

SERVICE:

letters address and shipping information, for ease

t
Call BRYTECH for assistance at [phone].
If your Color Teller needs to be returned, please
follow these instructions.

• Place the unit in the original shipping box and

enclose a note with your name, address and

telephone number. Wrap the box securely.

• Mail by Post to: BRYTECH, address below –

DO NOT SEND BY COURIER

• Write on the outside of the package in large bold

the shipping label below can be cut out.

600 Peter Morand Crescent, Suite 240

Product for the blind returned to manufacturer

Ottawa, ON Canada K1G 5Z3

BRYTECH INC

Non-Canadian residents need to add:

Customs # 9813.00.0097 GST # 66

Useful contact information:
Tel: [phone]
Fax: [phone]
E-mail: [e-mail]
Website: www.brytech.com

Page 4 of 4
