Quick Start Guide
1 2 3 4 5 6
7
8 9
Geing Started
Before you begin, please make sure that you have the following available:
A computer network with 2.4GHz WiFi or Ethernet
One of the following devices:
An Apple® iPhone®, iPod®, or iPad® running iOS 7 or greater
An Android smartphone or tablet running version 4.0 or greater
A PC with WiFi adapter running Windows 7 or greater
A Mac® computer with AirPort® card running OS X® 10.7 or greater
Controls and Connections
1. Power buon: To turn on the BryFi press and release the power buon. To turn o the system, press the power
buon briey and the BryFi will safely shutdown in about 20 seconds. If the system should become unresponsive for
any reason, simply press and hold the power buon until the green LED turns o. (is can take over 30 seconds.)
2. Analog input: An external playback device with a line or headphone output can be connected to the BryFi system
using this 3.5mm stereo input jack. To select the analog input, click on the gear icon in the top right corner of the web
interface and click the check box beside analog input.
3. Analog volume control: Use this control to adjust the volume of an external analog source. Note that this control will
not function with digital le playback via AirPlay, UPnP, or local digital music les.
4. Status Lights: See page 2 for a full description of the status light indicators.
5. USB ports: Can be used to aach external USB thumb drives for music playback. Note that one USB port is
populated with a WiFi adapter. Do not remove or change the location of this device.
6. Ethernet port: Can be used to connect to a wired LAN.
7. Power Input: Plug the round connector from the supplied power brick into this jack . e at side should be facing
up.
8. Sub Out: 3.5mm output jack to connect an external subwoofer. A 3.5mm to RCA cable may be necessary depending
on subwoofer.
9. Analog input: An external playback device with a line or headphone output can be connected to the BryFi system
using this 3.5mm stereo input jack. To select the analog input, click on the gear icon in the top right corner of the web
interface and click the check box beside analog input.
1
Page 4
Status Lights
Lights Status/Description
None BryFi is o
Solid Green BryFi is on
Flashing Blue (slow) BryFi is in hotspot mode
Flashing Blue (fast) BryFi is in hotspot mode and is in WiFi accessory conguration mode
Solid Blue BryFi is connected to local WiFi / wired network
Flashing Red BryFi is out of range of local network / conguration error
Solid Red BryFi baery needs charging (if equipped)
Connect to Power
Place your BryFi in a location where you’d like to enjoy your music.
Align the round connector from the supplied power brick to the jack marked 15VDC IN on the back of your BryFi by keeping the
at side of the connector facing up before inserting fully.
Plug the supplied power cable into the power brick and then into a nearby wall outlet.
Optional: If you are connecting to a wired network, ip down the door at the boom ont of the BryFi and plug in an Ethernet
cable. Do not connect an Ethernet cable if you’d like to connect your BryFi to a wireless network.
Flip down the door at the boom front of the BryFi and press the white buon. You should see a green LED illuminate.
In approximately 45 seconds you will hear a xylophone start-up sound, followed by a ashing blue LED, indicating that the system is
in hotspot mode and ready to be added to your home WiFi network.
Find the Section in the following pages for your device type
Section 1 – iOS devices
Section 2 – Android Devices
Section 3 – Windows PC
Section 4 – Mac computer
2
Turn On
Connect to WiFi
Page 5
Section 1 - iOS
1. Open WiFi seings. Your BryFi
will appear under the caption
“SET UP NEW AIRPLAY
SPEAKER” as BryFi-xxxxxx.
3. Your BryFi will join your WiFi
network. Once successfully
connected to your own WiFi
network, the blue LED on the front
of your BryFi will stop ashing
and you will hear the xylophone
startup sound.
Your system is now ready to play!
2. Tap BryFi-xxxxxx. Select the
desired wireless network. We
then recommend changing the
speaker name to something easy to
remember. Tap Next on the AirPlay
Setup screen.
PLAYING A SONG:
Slide up “Control Center” from the
boom of the screen (iOS9 and
earlier) and swipe le (iOS10). Tap
AirPlay (iOS9 and earlier) or click
the pull down at the boom of the
pop-up screen (iOS10).
Select the BryFi speaker from the
list and tap Done.
ACCESSING THE USER
INTERFACE:
Open a web browser like Safari and
enter {speaker name}.local into
the address bar, where {speaker
name} is whatever you named
your speaker while adding it to
your network in the previous steps.
e speaker name can be found
by looking at the list of available
devices in the Airplay menu (see
le illustration). In the illustration
to the right you can see we named
our speaker bry so we entered
bry.local in the address bar.
3
Page 6
Section 2 - Android
1. Download the latest BryFi app
from Google Play at
hps://play.google.com/store/
apps/details?id=volumio.browser.
BryFi2
3. Once connected, open the BryFi
App.
Tap the gear icon in the top right
corner.
2. Open WiFi seings.
Connect to the BryFi-xxxxxx
network (no password is required).
4. Tap on Network.
5. Under the list of available
wireless networks, tap the connect
buon beside the network you
wish to join.
Enter your network password and
tap Connect.
Once successfully connected to
your own WiFi network, the blue
LED on the front of your BryFi will
stop ashing.
Your system is now ready to play!
4
PLAYING A SONG:
Open your UPnP compatible music
player (eg. BubbleUPnP, UPnPlay).
Select BryFi as your Renderer.
Select your music and press play.
Page 7
Section 3 - Windows PC
1. Open Network
Seings.
Connect to the BryFi
-xxxxxx network (no
password is required).
Once connected to the
BryFi hotspot, open a
browser and enter
hp://BryFi.local/ to open the BryFi WebUI. If the page fails
to load, enter 192.168.211.1 in the address bar.
(Note: the page will fail to load using hp://BryFi.local / if
your PC does not have a program called Bonjour installed. To
get Bonjour download Apple iTunes as it is included)
3. Enter your network
password and click on
Connect.
Once successfully
connected to your own
WiFi network, the blue
LED on the front of your
BryFi will stop ashing.
Press F5 in your browser
to refresh the WebUI window.
2. Click on the gear icon in
the top right corner.
Click on Network.
Under the list of available
wireless networks, click on
the connect buon beside
the network you wish to
join.
PLAYING A SONG with iTunes:
Open iTunes. Click on the AirPlay icon on the top of the
toolbar.
Click on BryFi. e AirPlay icon will turn blue. Select your
music and press play.
Your system is now ready to play!
PLAYING A SONG with Windows Media Player:
For Windows 7, 8, 8.1, and 10
Open Windows Media Player.
In the Stream tab, make sure “Automatically allow devices to
play my media” is selected and that your system is set to allow
media sharing.
Select your music, select BryFi as the PlayTo device, and press
play.
5
Page 8

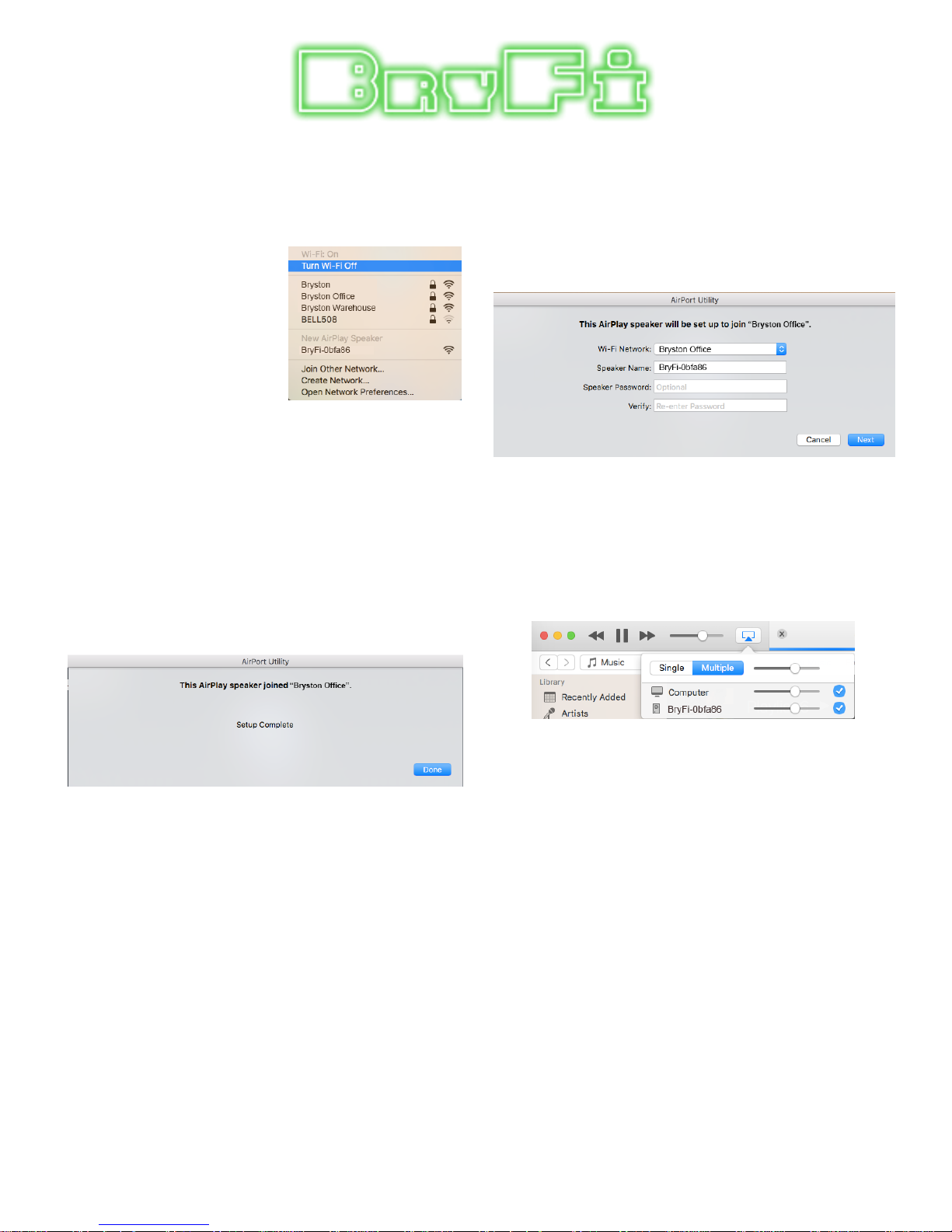

Section 4 - Mac Computer
1. Choose Wi-Fi on your Mac.
Your BryFi will appear under the
caption “SET UP NEW AIRPLAY
SPEAKER” as BryFi-xxxxxx.
3. Your BryFi will join your WiFi network. Once successfully
connected to your own WiFi network, the blue LED on the
front of your BryFi will stop ashing and you will hear the
xylophone startup sound.
Your system is now ready to play!
2. Select the wireless network you would like your BryFi to join
and click next. If prompted enter the network password.
PLAYING A SONG with iTunes:
Open iTunes. Click on the AirPlay icon on the top of
the toolbar.
6
Click on BryFi. e AirPlay icon will turn blue. Select
your music and press play.
Page 9
Using In Other Locations
ere are many places where you might want to enjoy music on your BryFi that are out of range of or lacking a
useable WiFi network: at the dock, on the beach, on a camping trip, etc. To make sure that you can still enjoy your
music, the BryFi has a built-in WiFi hotspot which automatically becomes active when out of range of your home
network. is is signied by ashing blue and red LEDs. When the hotspot is available, your BryFi will appear
as an available WiFi network on your device’s WiFi or network settings. To connect to the BryFi WiFi hotspot,
simply join the BryFi-xxxxxx network. On iOS devices, a Safari window will automatically open to our WebUI.
Tap “Cancel” in the top right corner and a pop-up will appear. Tap “Use Without Internet” and then close the web
page. Once connected you will be able to play music using the same method used when you were connected to
your home network.
Using Wired Devices
If you’d like to use an audio source with your BryFi that does not have wireless capability, your BryFi has both
front and rear 3.5mm analog input jacks signied by the icon. To use the analog input, simply connect your
source to one of the analog input jacks with an appropriate cable. Open a web browser and enter BryFi.local/ in
the address bar (or name.local/ if you have renamed your BryFi). On Android devices, open the BryFi app. In the
top right corner of the page, tap or click on the gear icon. In the menu pop-up, click the check box beside Analog
Input. e analog input will now be active and the volume can be controlled using the volume knob on the front
of your BryFi.
(Note: if playback from the WebUI, AirPlay, or uPnP is started while in analog input mode, your BryFi will
automatically switch o the analog input and begin playback of the selected stream.)
Playing to Multiple BryFis
If you have more than one BryFi and would like to play the same music on multiple devices, a Playback Group can
be created. To do this, navigate to the Playback page of the BryFi WebUI. At the bottom of the page you will see all
the BryFi systems that are available on your network (Note: all systems must be powered on and connected to the
same WiFi network and each system should be given a unique name). Click on the BryFi with access to the music
that you’d like to play and start playback. Next click on the Edit Group button on the right side of the Playback
page. You will now see each available BryFi listed on a new page and the system currently playing music will show
the track information next to Now Playing. To create a group, simply click and hold on the system you’d like to
group and drag it on top of the system with music currently playing. You will see the single “Axiom A” icon change
to two icons. Each system will now have its own volume control slider to allow the volume of each individual
system to be changed, along with a master slider beside the group which changes all levels together. Additional
systems may be added to the group by dragging and dropping onto the group as described above. Any individual
system can be removed from the group at any time by clicking the trash bin icon next to that system.
7
Page 10
Turning O Your BryFi
Your BryFi contains a computer, and computers need to be shut down properly. When you’re nished listening to your BryFi
and wish to turn it o, simply press the white power buon. Aer approximately 20 seconds the green power LED will turn o,
indicating the system has turned o.
Note: Avoid unplugging your BryFi before shuing it down as shown above.
Tips and Troubleshooting
Best Locations for your BryFi
- Place your BryFi in an open area where there are few obstructions and away from metallic surfaces.
- Avoid placing your BryFi behind furniture or inside cabinets.
- Avoid placing your BryFi near microwave ovens, cordless phones, or other sources of electrical or radio interference.
Problems and Solutions
If you experience dropouts or stuering:
- Try locating your BryFi and/or the device you are using to play music closer to your WiFi router.
- Check to see if any devices are being used that could be creating interference (microwave ovens, cordless phones, etc.).
- Check to see if your WiFi network is under high usage.
- Prioritize your BryFi in your router seings (check with your router manufacturer for details).
- Add a WiFi repeater to extend WiFi signal coverage.
If your BryFi isn’t responding or cannot be seen from your devices:
- Press the white power buon once and wait until the green light extinguishes. Press the power buon again to re-start.
- If the green light fails to extinguish above, press and hold the white power buon until the green light extinguishes (approx.
20 seconds). Press the power buon again to re-start.
To update your BryFi soware:
- Open a web browser and enter BryFi.local/ in the address bar (or name.local/ if you have renamed your BryFi). On
Android devices, open the BryFi app.
- In the top right corner of the page, tap or click on the gear icon. In the menu pop-up, select System.
- Tap or click on Check Updates. If an update is available, follow the prompts to update your system.
To reset your BryFi to its factory seings:
- Open a web browser and enter BryFi.local/ in the address bar (or name.local/ if you have renamed your BryFi). On
Android devices, open the BryFi app.
- In the top right corner of the page, tap or click on the gear icon. In the menu pop-up, select System.
- Tap or click on Factory Seings and follow the prompts.
8
Page 11
Apple, AirPlay, AirPort, iPad, iPhone, iPod, Mac and OS X are trademarks of Apple Inc., registered in the U.S. and other countries.
“Made for iPod,” “Made for iPhone,” and “Made for iPad” mean that an electronic accessory has been designed to connect
specically to iPod, iPhone, or iPad, respectively, and has been certied by the developer to meet Apple performance standards.
Apple is not responsible for the operation of this device or its compliance with safety and regulatory standards. Please note that the
use of this accessory with iPod, iPhone, or iPad may aect wireless performance.
9
Page 12
Bryston Head Office 677 Neal Drive
Siège Social Bryston Peterborough, ON
Canada, K9J 6X7
Phone 1-705-742-5325
Toll Free • Sans frais 1-800-632-8217
Email • Courriel contact@bryston.com
www.bryston.com
Loading...
