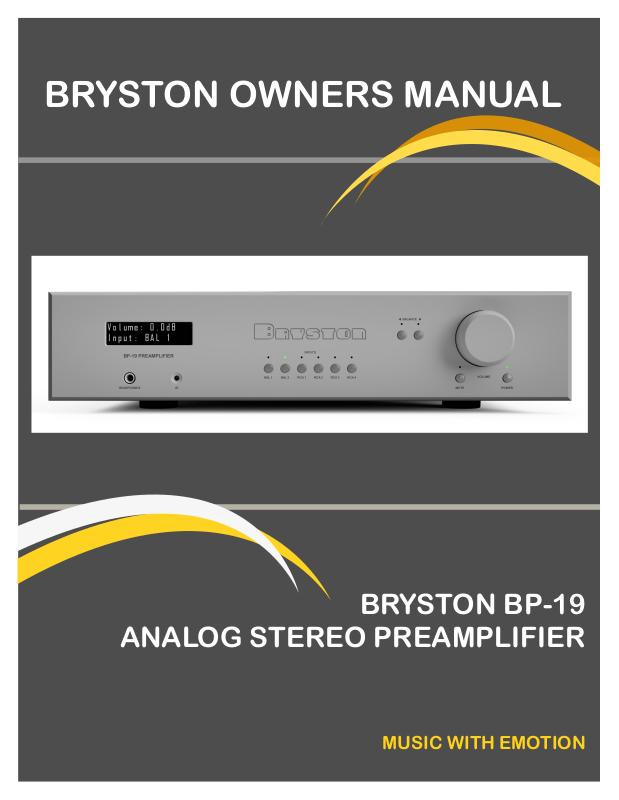

Page 1
MUSIC WITH EMOTION
BRYSTON OWNERS MANUAL
BRYSTON BP-19
ANALOG STEREO PREAMPLIFIER
Page 2
MUSIC WITH EMOTION
CONNECTING YOUR BUSINESS TO THE TECHNOLOGY RESOURCES
YOU NEED
The lightning ash with arrowhead symbol within an equilateral
triangle, is intended to alert the user to the presence of uninsulated
“dangerous voltage “ within the product’s enclosure that may be of
sucient magnitude to constute a risk of electric shock to persons.
The exclamaon point within an equilateral triangle is intended to
alert the user to the presence of important operang and maintenance (servicing) instrucons in the literature accompanying the
product.
1.Read these instrucons. 2. Keep these instrucons.
3. Heed all warnings. 4. Follow all instrucons.
5. Do not use this apparatus near water.
6. Clean only with dry cloth.
7. Do not block any venlaon openings. Install in accordance with the manufacturer’s instrucons.
8. Do not install near any heat sources such as radiators, heat registers, stoves, or
other apparatus (including ampliers) that produce heat.
9. Do not defeat the safety purpose of the polarized or grounding-type plug. A
polarized plug has two blades with one wider than the other. A grounding type
plug has two blades and a third grounding prong. The wide blade or the third
prong are provided for your safety. If the provided plug does not t into your
outlet, consult an electrician for replacement of the obsolete outlet.
10. Protect the power cord from being walked on or pinched parcularly at plugs,
convenience receptacles, and the point where they exit from the apparatus.
11. Only use aachments/accessories specied by the manufacturer.
12. Unplug this apparatus during lightning storms or when unused for long periods of me.
13. Refer all servicing to qualied service personnel.
Servicing is required when the apparatus has been damaged in any way, such as
power-supply cord or plug is damaged, liquid has been spilled or objects have
fallen into the apparatus, the apparatus has been exposed to rain or moisture,
does not operate normally, or has been dropped.
IMPORTANT SAFETY INSTRUCTIONS
WARNING:
TO REDUCE THE RISK OF FIRE OR
ELECTRIC SHOCK:
DO NOT EXPOSE THIS APPARATUS TO
RAIN OR MOISTURE.
DO NOT EXPOSE THIS EQUIPMENT TO
DRIPPING OR SPLASHING AND ENSURE THAT NO OBJECTS FILLED WITH
LIQUIDS, SUCH AS VASES, ARE
PLACED ON THE EQUIPMENT.
COMPLETELY DISCONNECT THIS
EQUIPMENT FROM THE AC MAINS.
DISCONNECT THE POWER SUPPLY
CORD FROM THE AC RECEPTACLE
PAGE 2
Page 3
MUSIC WITH EMOTION
CONNECTING YOUR BUSINESS TO THE TECHNOLOGY RESOURCES
YOU NEED
IMPORTANT SAFETY INSTRUCTIONS
WARNING:
The XLR and RCA outputs labeled
‘FIXED Le and Right’ are ‘FIXED’ so
they output a ‘FULL LEVEL SIGNAL.’
So it is important not to use these
outputs unless you are feeding a unit
that allows volume control independent of the Bryston BP-19 Preamplier.
PAGE 3
The exclamation point within an
equilateral triangle is intended to
alert the user to the presence of important operating and maintenance
(servicing) instructions in the literature accompanying the product.
WARNING:
There are four (4) audio OUTPUTS on the Bryston BP-19
Preamplifier.
Two (2) Single Ended RCA and Two (2) Balanced XLR
The XLR and RCA outputs labeled ‘MAIN’ Left and Right
are ‘VARIABLE’ outputs so they are controlled by the
volume control on the BP-19 front panel or the hand held
Remote.
The XLR and RCA outputs labeled ‘FIXED’ Left and Right
have a fixed volume so they output a ‘FULL LEVEL SIGNAL’. So it is important NOT to use these outputs unless
you are feeding a unit that allows volume control independent of the Bryston BP-19 Preamplifier.
Page 4
GENERAL SPECIFICATIONS
ADDITIONAL SPECIFICATIONS FOR BP-19 Phono MM/MC Stages
Moving Magnet: is a 41dB @1kHz gain preamp with RIAA playback
equalizaon for moving magnet cartridges.
Moving Coil: selectable 20dB or 26dB of gain transformers inserted
before the MM stage for moving coil cartridges with output levels
around .3 to .5mV.
MUSIC WITH EMOTION
Features:
2 pair balanced female XLR inputs
2 pair balanced male XLR outputs
(Number 1 Variable - 2 Fixed)
2 pair single ended outputs
(Number 1 Variable - 2 Fixed)
4 pair RCA inputs (Input 1 Opon
Phono BP-19P & BP-19MC only)
Opons:
Standard Silver or Black Faceplates
Available in 17 or 19 Inch
Pro 19 Inch Rackmount
Custom Colour Faceplates
Available
Moving magnet RIAA phono equali-
zaon module
Moving Coil Transformer phono
module 20/26 dB
PAGE 4
Page 5
MUSIC WITH EMOTION
CONNECTING YOUR BUSINESS TO THE TECHNOLOGY RESOURCES
YOU NEED
INTRODUCTION:
Thank you for choosing a Bryston Preamplier. Bryston welcomes any sugges-
ons you may have, or comments regarding the operaon of your amplier. We
consider you, our customer, to be Bryston’s most important resource, and your
opinion is very much appreciated.
SETUP:
The Bryston BP-19 preamp, with remote-control, should be placed where there is
a direct line-of-sight between the hand-held remote and the remote infra-red
sensor eye located on the le side of the pre-amplier’s front panel. If you purchased the BP-19P or BP-19MC, both of which include a Phono secon, avoid
placing the preamplier directly on top of your power amplier. Power ampliers
usually employ large power supplies and the transformers in the power supplies
can cause interference (hum) with the sensive phono secon inside the preamp.
WHITE OLED DISPLAY:
• Currently selected source.
• Current volume level.
• Brightness level adjust.
• Auto Turn O
FULLY DISCRETE FULLY BALANCED CLASS ‘A’ ANALOG CIRCUITS:
The BP-19 analog preamplier is a byproduct of years of R&D that resulted in the
development of an opmized fully discrete opamp buer amplier capable of
delivering a staggeringly low THD+N measurement at or below 0.0006%. The
analog signal path is a FULLY BALANCED DESIGN from input to output, using an
array of very ghtly matched components and a compact circuit design to
achieve the lowest possible noise and superior common mode rejecon.
Connect the pre-amplier’s le and right outputs from either the RCA or Bal-
anced XLR connectors to the appropriate le and right input jacks on your power
amplier. Balanced cables are an advantage if you are using long runs of cable,
(greater than 10 feet), between your preamplier and power amplier. Connect
your CD player, tuner, tape deck, video recorder, or laser disc, etc. to the specic
le/right preamplier inputs. With phono stage equipped models, (BP-19P & BP19MC) connect your phono cables to the phono input jacks. If your turntable
leads have a separate ground wire, it may be connected to the ground post adjacent to the phono inputs on the rear panel.
PAGE 5
Page 6
MUSIC WITH EMOTION
CONNECTING YOUR BUSINESS TO THE TECHNOLOGY RESOURCES
YOU NEED
The Bryston BP-19 preamp also features two pairs of balanced XLR input jacks.
Many signal sources, including CD-players and separate D/A converters are now
available with Balanced outputs for minimum noise pickup on the cables.
HEADPHONE OUTPUT:
The main outputs, both balanced and single-ended, will be muted when a phone
plug is inserted into the headphone jack. The front panel indicator LED will not
turn red, however, as is does when the outputs are muted via the MUTE toggle
switch or the hand held remote control. The output is a 1/4” (6.35mm) TRS connector where the Tip=Le, Ring=Right, and Sleeve=Ground. Output impedance is
<5Ω.
ANALOG AUDIO INPUTS:
BP-19 preampliers are equipped with four pairs of RCA input connectors: two
pairs of balanced XLR input connectors. Balanced inputs use 3 pin XLR female
connectors with pin 1 being ground, pin 2 as posive signal, and pin 3 as negave
signal. Input sensivity is 1 volt and input impedance is 15K ohms. Single-ended
(or unbalanced) inputs employ gold plated RCA (Phono) jacks. Line input sensivity is 500mV and input impedance is 50K ohms. See also PHONO EQUALIZATION
MODULES for Phono input details.
ANALOG AUDIO OUTPUTS:
There are two pairs of RCA main outputs one pair xed and one pair variable.
Two pair of balanced outputs, using 3 pin male XLR jacks. One pair xed one pair
variable.
PAGE 6
Page 7
MUSIC WITH EMOTION
CONNECTING YOUR BUSINESS TO THE TECHNOLOGY RESOURCES
BALANCED OUTPUTS:
As with the input XLR jacks, pin 1 is ground, pin 2 is posive and pin 3 is negave.
These outputs are capable of driving 12 volts into any load of 1K ohms or greater.
Do not use tradional XLR to RCA adapters that
short pins 1 and 3!
SINGLE ENDED OUTPUTS (RCA):
As with unbalanced inputs, these connectors are gold plated RCA (phono) jacks.
They are capable of driving 12 volts into any load of 1K ohms or greater.
BRYSTON BR-4 REMOTE:
You may control many funcons of the
BP-19 with Bryston’s included Remote
ulizing the Preamp buon. The six analog inputs have six buons on the front
panel and Volume, Mute, and Power are
also available.
The Mute buon mutes the main outputs (both balanced and unbalanced) of the
preamplier.
PHONO EQUALIZATION MODULES (OPTIONAL):
Bryston’s oponal phono equalizer circuitry features highly accurate equalizaon, extremely low noise and distoron and provides headroom margins sucient to prevent overload from any known phono source. If your turntable provides a separate ground lead system noise may be minimized by connecng it to
the ground post adjacent to the phono inputs on the rear panel.
Moving Magnet Phono Cartridge Input (MM): This is Bryston’s standard RIAA
phono equalizaon stage. It is found in both the “-P” and “-MC” versions of the
BP-19 preamp. Input impedance is 47K ohms and sensivity is 5mV.
Moving Coil Phono Cartridge Input (MC): Moving coil phono cartridges require
much more gain than the more common moving magnet types. To accommodate
moving coil cartridges Bryston oers the BP-19MC pre-amp which include specially designed, custom-made step-up transformers in addion to Bryston’s
standard RIAA phono equalizaon stage found in the “-P” versions of the BP-19
pre-amp.
Which phono equalizaon stages are engaged is determined by the front panel
display menu “MC Phono / MM Phono”. Please note that it is important that
your phono cartridge is connected to the correct inputs (INPUT 1) in order to
achieve proper performance. Input impedance is 180 ohms and sensivity is
350uV
VISUAL INDICATORS:
The LED on the front panel of the BP-19 lights GREEN when power is on. RED in
standby. Display is white.
PAGE 7
Page 8
GENERAL SPECIFICATIONS
FRONT PANEL CONTROLS: MUTE/NORMAL BUTTON:
Mutes or releases mute at the main outputs, without changing the volume con-
trol seng, each me pushed.
VOLUME CONTROL: Rotary control varies the output level to the ‘MAIN OUT-
PUTS’. The volume control is a digitally controlled aenuated analog step-ladder
design, ensuring long-lasng quiet linear performance. Resoluon is 1/2dB and
le/right channel accuracy of .1dB.
BALANCE CONTROL:
Adjust the le / right balance of audio output by pressing the corresponding
buons on the front panel. Each buon press will aenuate that channel by
0.5dB and increase the opposite channel by 0.5dB (creang a 1dB dierenal.
When either channel is aenuated, the LED above the aected channel will illuminate green. When balance is adjusted fully to one side, the opposite channel
will fully mute and the LED above that channel will illuminate red.
LINEAR POWER SUPPLY:
The BP-19 preamplier ulizes a toroidal power transformer.
CONTROL SECTION:
The BP-19 preamplier
can be controlled by
remotely using RS232
or IP when connected
through the RS232 or
SVC Ethernet ports.
TRIGGER INPUT:
The BP-19 can be remotely turned on or placed into standby when receiving DC
voltage into this port.
TRIGGER OUT:
These outputs can be connected to DC trigger inputs of other equipment to modulate the power state of connected equipment. For example, you can automacally power on an amplier when the BP-19 is powered on.
MUSIC WITH EMOTION
PAGE 8
Page 9
GENERAL SPECIFICATIONS

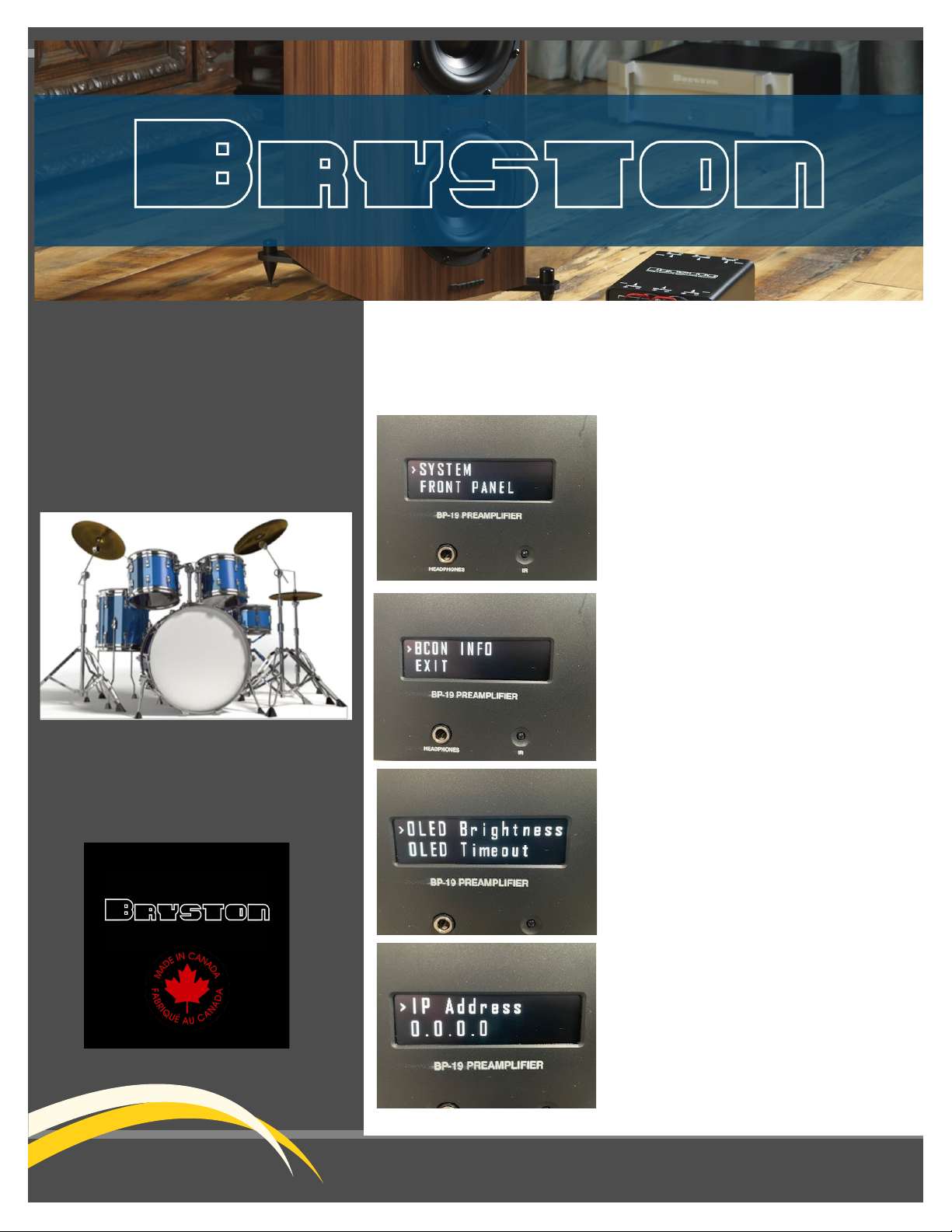

FRONT PANEL CONTROLS: ADDITIONAL MENUS
You can access addional controls by ‘Pushing In’ the front panel
Volume control and releasing.
Then turn the volume control
‘Counter Clockwise’ to enter a
menu .
Push the Volume knob a second
me and the menu will open.
Rotate the volume control counter
clockwise to EXIT the push.
These menus will allow you to set
the:
• ‘Display Timeout’
• ‘Brightness of the LED’s
• Colour of LED’s
• ‘IP Address’ for soware up-
dates.
There are Menus for ‘Sengs’,
‘Front Panel’ and ‘Advanced’
You can exit the menus quickly by
pushing the MUTE buon.
MUSIC WITH EMOTION
PAGE 9
Page 10
Bryston Ltd
2885 Highway 60
Dwight, Ontario
Canada
P0A 1H0
MUSIC WITH EMOTION
Personalized Faceplates
Bryston is pleased to introduce the availability of personalized faceplate colours, available now for Bryston amplifiers, preamplifiers,
CD players, digital players, phono stages and
DAC’s.
Our new colour choices, plus the option to
create custom colours, enable Bryston electronics to blend seamlessly or contrast ele-
gantly within any décor or equipment rack.
Enjoy bespoke colour choices as an added
touch to any entertainment space.
ADDITIONAL CUSTOM COLOURS AVAILABLE UPON REQUEST
Source buttons only available in Black or Silver
Loading...
