1) SAFETY
Terms in this manual

WARNING identifies conditions and actions that could result in serious injury or even

death to the user.

CAUTION identifies conditions and actions that could cause damage or malfunction in

the instrument.

This manual contains information and warnings that must be followed for operating the
instrument safely and maintaining the instrument in a safe operating condition. If the
instrument is used in a manner not specified by the manufacturer, the protection
provided by the instrument may be impaired. The meter is intended only for indoor use.

The meter protection rating, against the users, is double insulation per

1 Ed. 3.0, IEC/EN61010-2-030 Ed. 1.0, IEC/EN61010-2-033 Ed. 1.0, IEC/UL/EN61010-031
Ed. 1.1 and CAN/CSA-C22.2 No. 61010-1-12 Ed. 3.0

to Category IV 1000 Volts AC & DC.

IEC/UL/EN61010-

Terminals (to COM) measurement category:

V / mAA / A : Category IV 1000 Volts AC & DC

Per IEC61010-1 2nd Ed. (2001) Measurement Category
Measurement Category IV (CAT IV) is for measurements performed at the source of

the low-voltage installation. Examples are electricity meters and measurements on
primary overcurrent protection devices and ripple control units.

Measurement Category III (CAT III) is for measurements performed in the building
installation. Examples are measurements on distribution boards, circuit- breakers,
wiring, including cables, bus-bars, junction boxes, switches, socket-outlets in the fixed
installation, and equipment for industrial use and some other equipment, for example,
stationary motors with permanent connection to the fixed installation.

Measurement Category II (CAT II) is for measurements performed on circuits directly
connected to the low voltage installation. Examples are measurements on household
appliances, portable tools and similar equipment.

2

WARNING
To reduce the risk of fire or electric shock, do not expose this product to rain or
moisture. To avoid electrical shock hazard, observe the proper safety precautions when
working with voltages above 60 VDC or 30 VAC rms. These voltage levels pose a
potential shock hazard to the user. Do not touch test lead tips or the circuit being tested
while power is applied to the circuit being measured. Keep your fingers behind the
finger guards of the test leads during measurement. Inspect test leads, connectors, and
probes for damaged insulation or exposed metal before using the instrument. If any
defects are found, replace them immediately. Do not measure any current that exceeds
the current rating of the protection fuse. Do not attempt a current measurement to any
circuit where the open circuit voltage is above the protection fuse voltage rating.
Suspected open circuit voltage should be checked with voltage functions. Never attempt
a voltage measurement with the test lead inserted into the A/mA or A input jack. Only
replace the blown fuse with the proper rating as specified in this manual.

test lead provided with the equipment or UL Listed Probe Assembly rated

1000V

or better.

Only use the

CAT IV

CAUTION
Disconnect the test leads from the test points before changing functions. Always set the
instrument to the highest range and work downward for an unknown value when using
manual ranging mode.

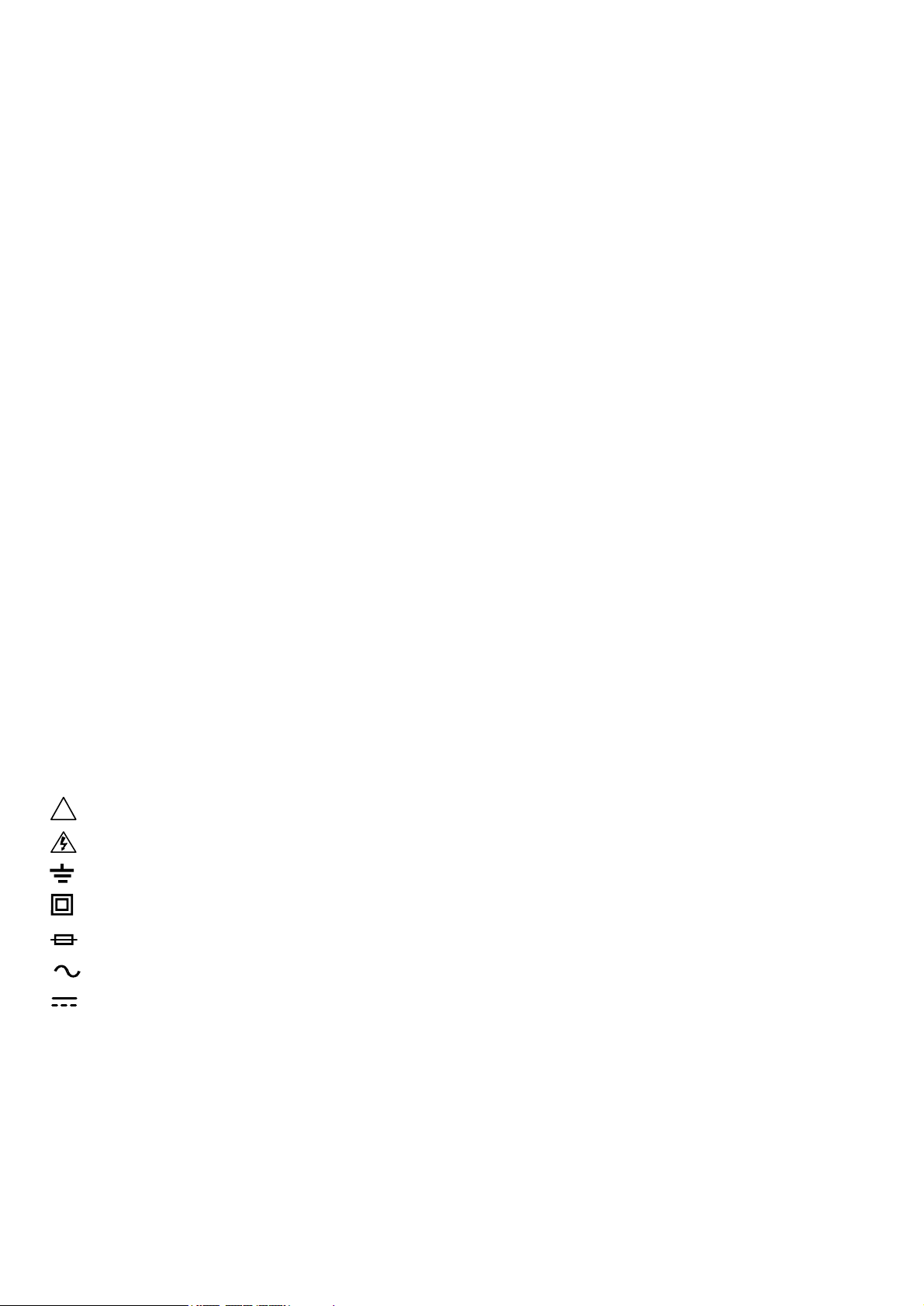

INTERNATIONAL ELECTRICAL SYMBOLS

!

Caution ! Refer to the explanation in this Manual

Caution ! Risk of electric shock
Earth (Ground)
Double Insulation or Reinforced insulation

Fuse

AC--Alternating Current

DC--Direct Current

2) CENELEC DIRECTIVES

The instruments conform to CENELEC Low-voltage directive 2006/95/EC and
Electromagnetic compatibility directive 2004/108/EC

functions

3

3) PRODUCT DESCRIPTION

Note: Top of the line model is used as representative for illustration purposes. Please
refer to your respective model for function availability.

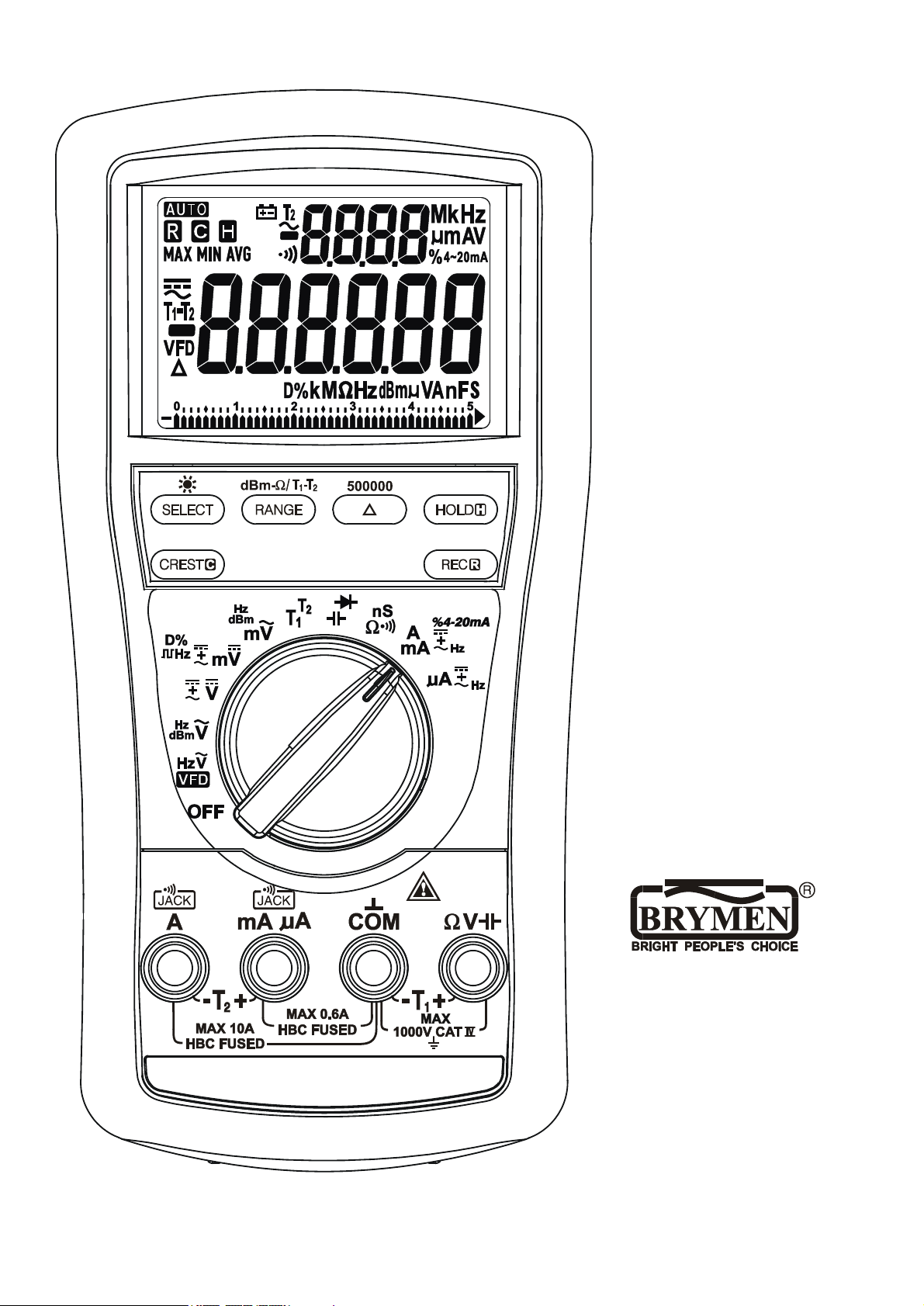

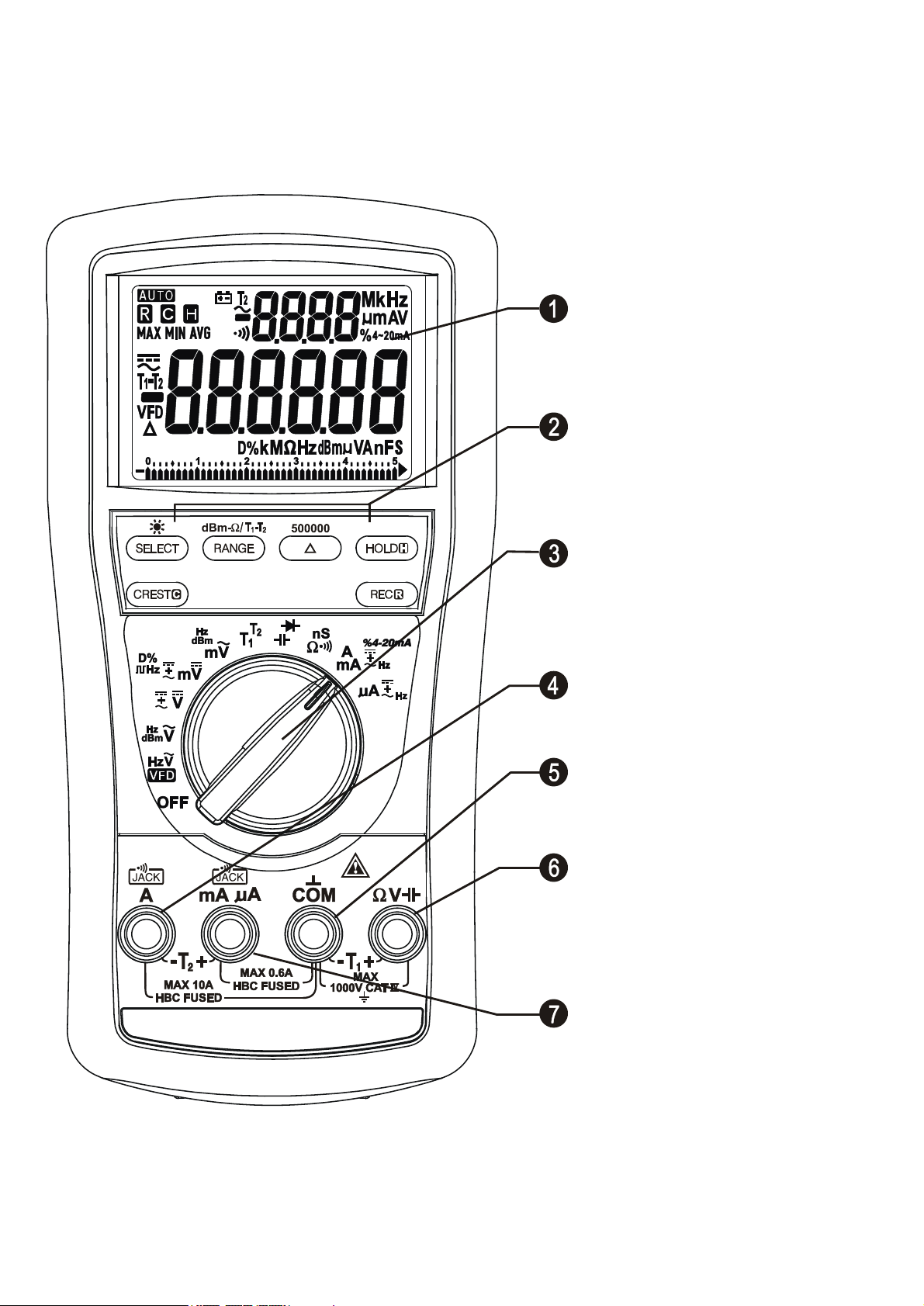

1) 5-4/5 digits 500000
counts dual displays

2) Push-buttons for special
functions & features

3) Selector to turn the
Power On or Off and Select
a function

4) Input Jack for 10A (20A
for 30sec) current, and for
T2 (-) functions

5) Common (Ground
reference) Input Jack for all
functions EXCEPT T2
function

6) Input Jack for all
functions EXCEPT current
(A, mA, A) and T2
functions

7) Input Jack for milli-amp,
micro-amp and T2 (+)

Analog bar-graph

The analog bar graph provides a visual indication of measurement like a traditional
analog meter needle. It is excellent in detecting faulty contacts, identifying
potentiometer clicks, and indicating signal spikes during adjustments.

4

Average sensing RMS calibrated
RMS (Root-Mean-Square) is the term used to describe the effective or equivalent DC

value of an AC signal. Most digital multimeters use average sensing RMS calibrated
technique to measure RMS values of AC signals. This technique is to obtain the
average value by rectifying and filtering the AC signal. The average value is then scaled
upward (calibrated) to read the RMS value of a sine wave. In measuring pure sinusoidal
waveform, this technique is fast, accurate and cost effective. In measuring non­sinusoidal waveforms, however, significant errors can be introduced because of
different scaling factors relating average to RMS values.

AC True RMS

AC True RMS, normally refers as True RMS, identifies a DMM function that is AC
coupled, and responds accurately only to the effective RMS AC component value
regardless of the waveforms. However, DC component plays an important role in the
distorted non-symmetrical waveforms, and will also be of interest sometimes.

DC+AC True RMS

DC+AC True RMS calculates both of the AC and DC components given by the
expression

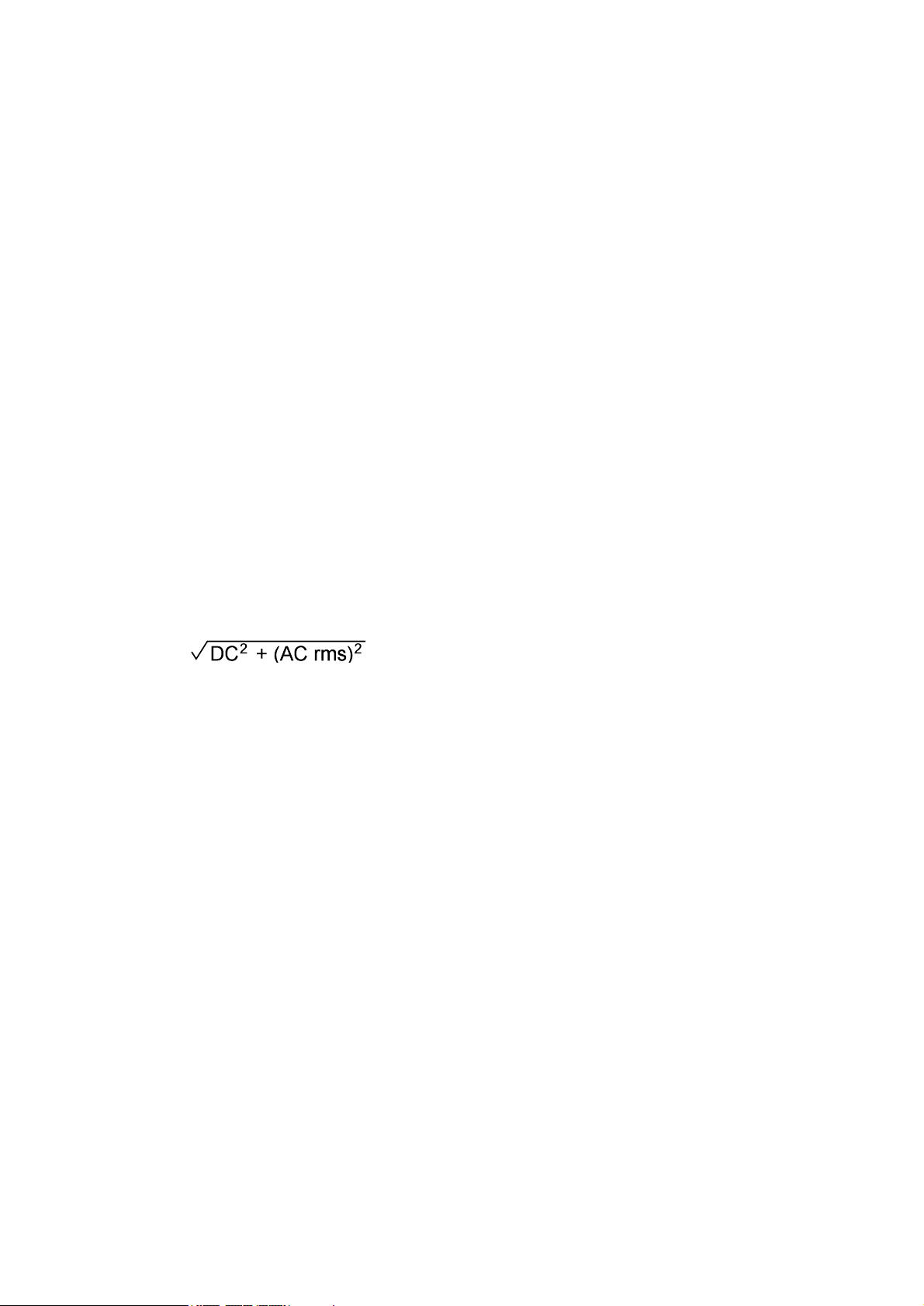

when making measurements, and can responds
accurately to the total effective RMS value regardless of the waveform. Distorted
waveforms with the presence of DC components and harmonics may cause:

1) Overheated transformers, generators and motors to burn out faster than normal

2) Circuit breakers to trip prematurely

3) Fuses to blow

4) Neutrals to overheat due to the triplen harmonics present on the neutral

5) Bus bars and electrical panels to vibrate

AC-Bandwidth

AC-bandwidth of a DMM is the range of frequencies over which AC measurements can
be made within the specified accuracy. It is not the frequency measurement function,
but is the frequency response of the AC functions. A DMM cannot accurately measure
the AC value with frequency spectrums fall beyond the AC-bandwidth of the DMM.
Therefore, wide AC-bandwidth plays an important role in high performance DMMs. In
reality, complex waveforms, noise and distorted waveforms contain much higher
frequency spectrum than its fundamental.

Crest Factor

5

Crest Factor is the ratio of the Crest (instantaneous peak) value to the True RMS
value, and is commonly used to define the dynamic range of a True RMS DMM. A pure
sinusoidal waveform has a Crest Factor of 1.4. A badly distorted sinusoidal waveform
normally has a much higher Crest Factor.

4) OPERATION

CAUTION

Before and after hazardous voltage measurements, test the voltage function on a
known source such as line voltage to determine proper meter functioning.

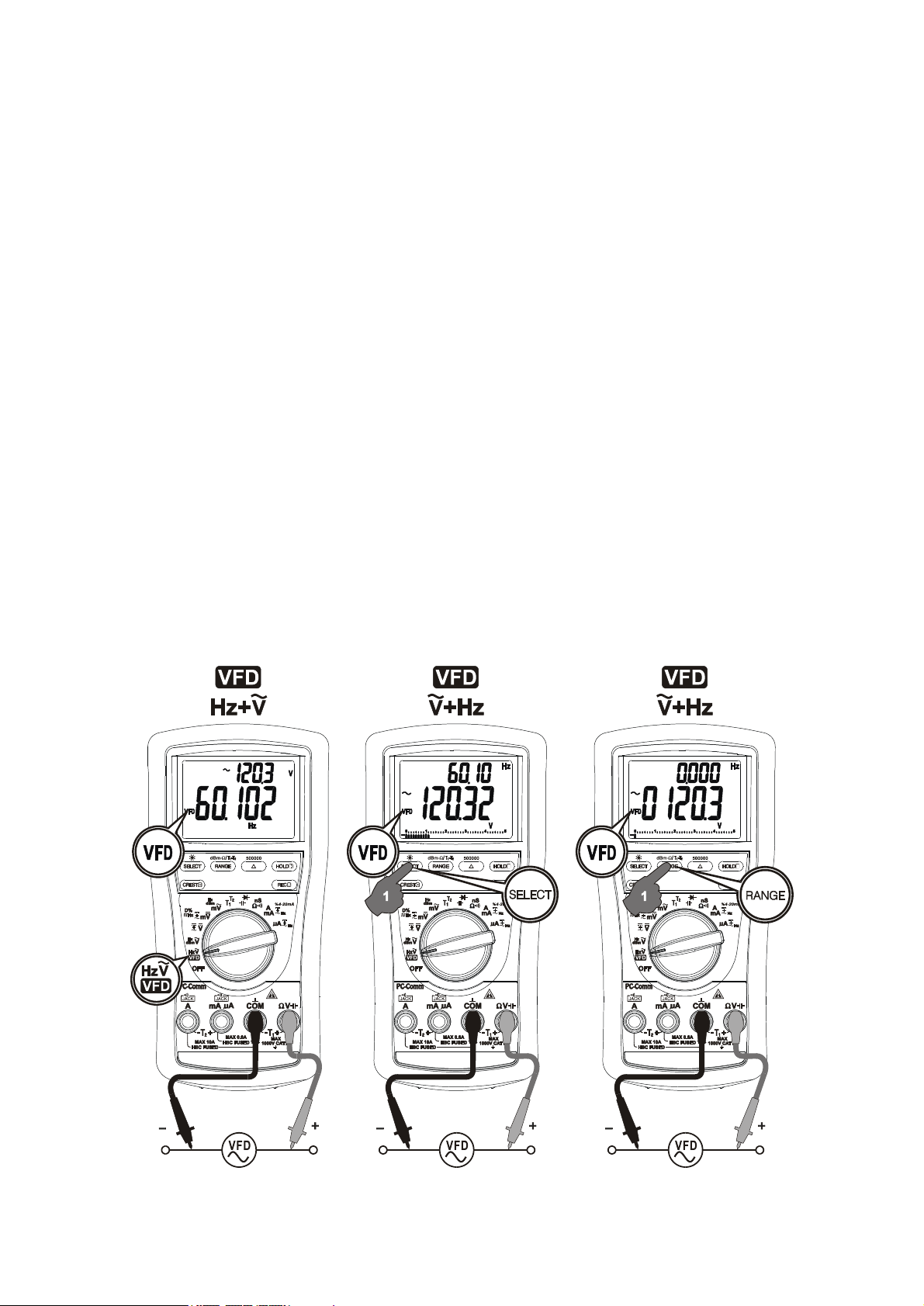

VFD ACV

+Hz

, VFD Hz

+ACV

functions (Model

869s only)

Press the SELECT button momentarily to toggle between the subject functions. Last
selection will be saved as power up default for repeat measurement convenience. By
default, voltage is always set at manual-range 500V to best cope with most Variable
Frequency Drives (VFD) measurements. Press the RANGE button momentarily to
select other ranges only when needed. High noise-rejection frequency measurement
algorithm and Low-pass filter circuit are permanently bundled with all the voltage and
frequency function-ranges within this rotary-switch position.

Note: Hz Input sensitivity varies automatically with voltage (current function alike) range

6

selected. 5V range has the highest and the 1000V range has the lowest. This VFD
function defaults at the most appropriate trigger level for Variable Frequency Drive
measurements. You can also press the RANGE button momentarily to select another
trigger level (voltage range) manually. If the Hz reading becomes unstable, select
higher voltage range to avoid electrical noise. If the reading shows zero, select lower
voltage range for better sensitivity.

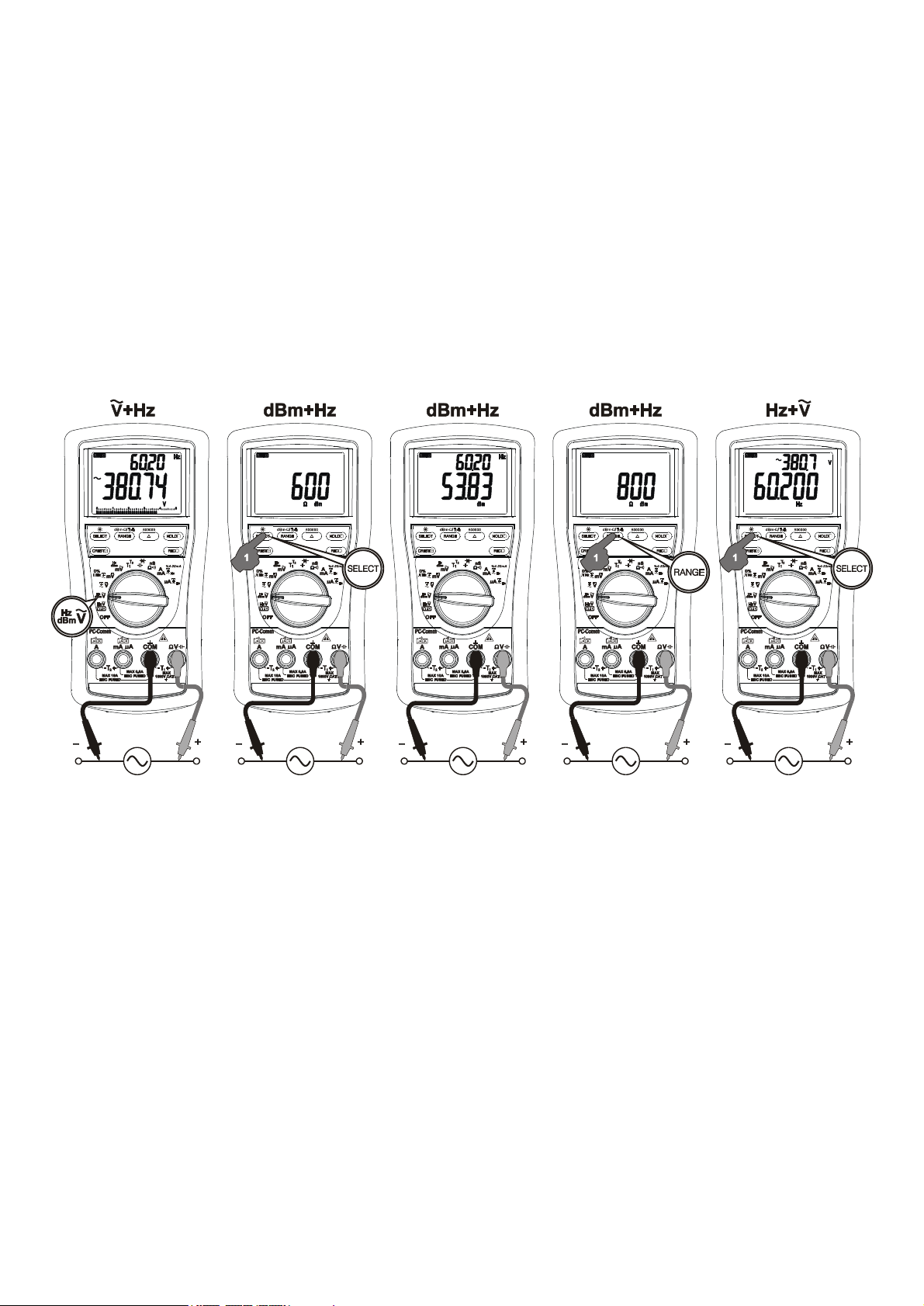

dBm

+Hz

, Hz

+ACV

, ACV

+Hz

functions

Press the SELECT button momentarily to select the subject functions in sequence. Last
selection will be saved as power up default for repeat measurement convenience.

Note: Hz Input sensitivity varies automatically with voltage (current function alike) range
selected. 5V range has the highest and the 1000V range has the lowest. Auto-ranging
measurements normally set the most appropriate trigger level. You can also press the
RANGE button momentarily to select another trigger level (voltage range) manually. If
the Hz reading becomes unstable, select higher voltage range to avoid electrical noise.
If the reading shows zero, select lower voltage range for better sensitivity.

Note: In dBm
second before displaying the dBm readings. Press dBm-

+Hz

function, power up default reference impedance will be displayed for 1

 (RANGE) button
momentary to select different reference impedance of 4, 8, 16, 32, 50, 75, 93, 110, 125,
135, 150, 200, 250, 300, 500, 600, 800, 900, 1000, up to 1200

. Last selection will be
saved as power up default for repeat measurement convenience. Manual trigger level
selection on Hz reading is not available in this function.

7

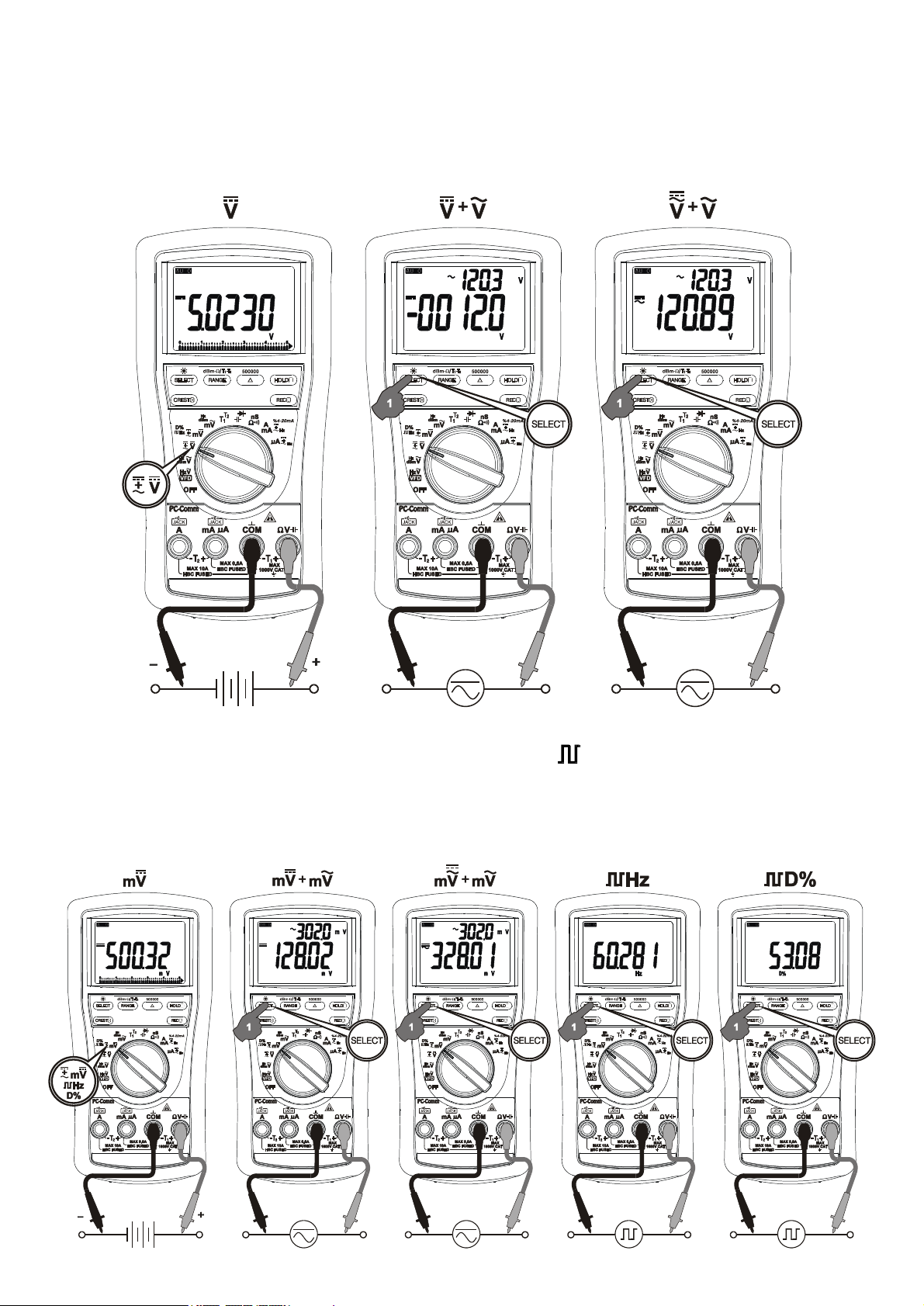

DCV, DCV

+ACV

, DC+ACV

+ACV

functions

Press the SELECT button momentarily to select the subject functions in sequence. Last
selection will be saved as power up default for repeat measurement convenience.

DCmV, DCmV

+ACmV

, DC+ACmV

+ACmV

, Logic-Level

Hz, Duty% functions

Press the SELECT button momentarily to select the subject functions in sequence. Last
selection will be saved as power up default for repeat measurement convenience.

8

ACmV

+Hz

, dBm

+Hz

, Hz

+ACmV

functions

Press the SELECT button momentarily to select the subject functions in sequence. Last
selection will be saved as power up default for repeat measurement convenience.

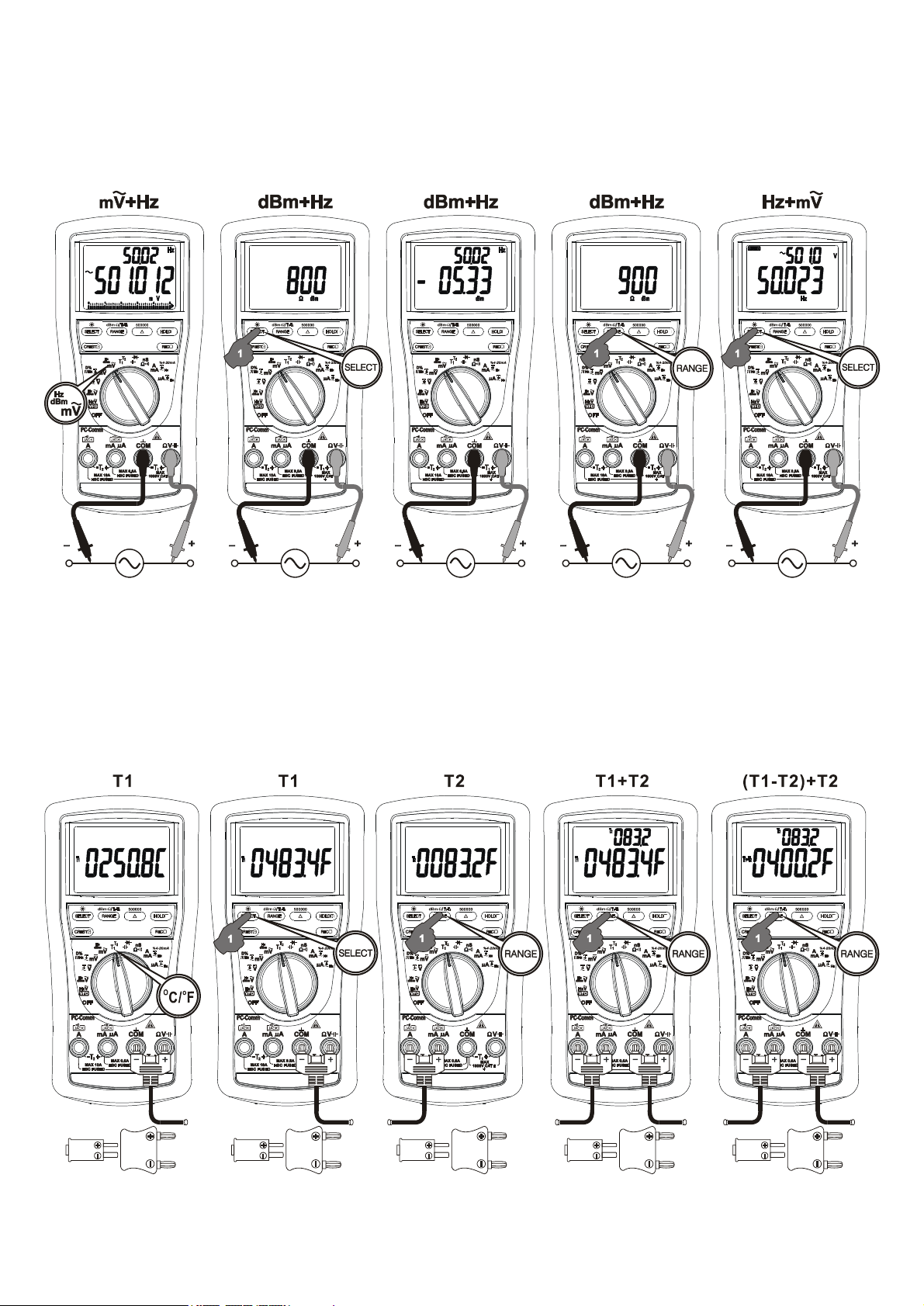

Temperature functions (

Model 869s only)

Press SELECT button momentarily to toggle between C and F readings. Press T1-T2
(RANGE) button momentarily can select T1, T2, T1

+T2

or T1-T2

+T2

readings. Last

selection will be saved as power up default for repeat measurement convenience.

Note: Be sure to insert the banana plug type-K temperature bead probe Bkp60 with

9

correct polarities. You can also use a plug adapter Bkb32 (Optional purchase)
with banana pins to type-K socket to adapt other standard type-K mini plug temperature
probes.

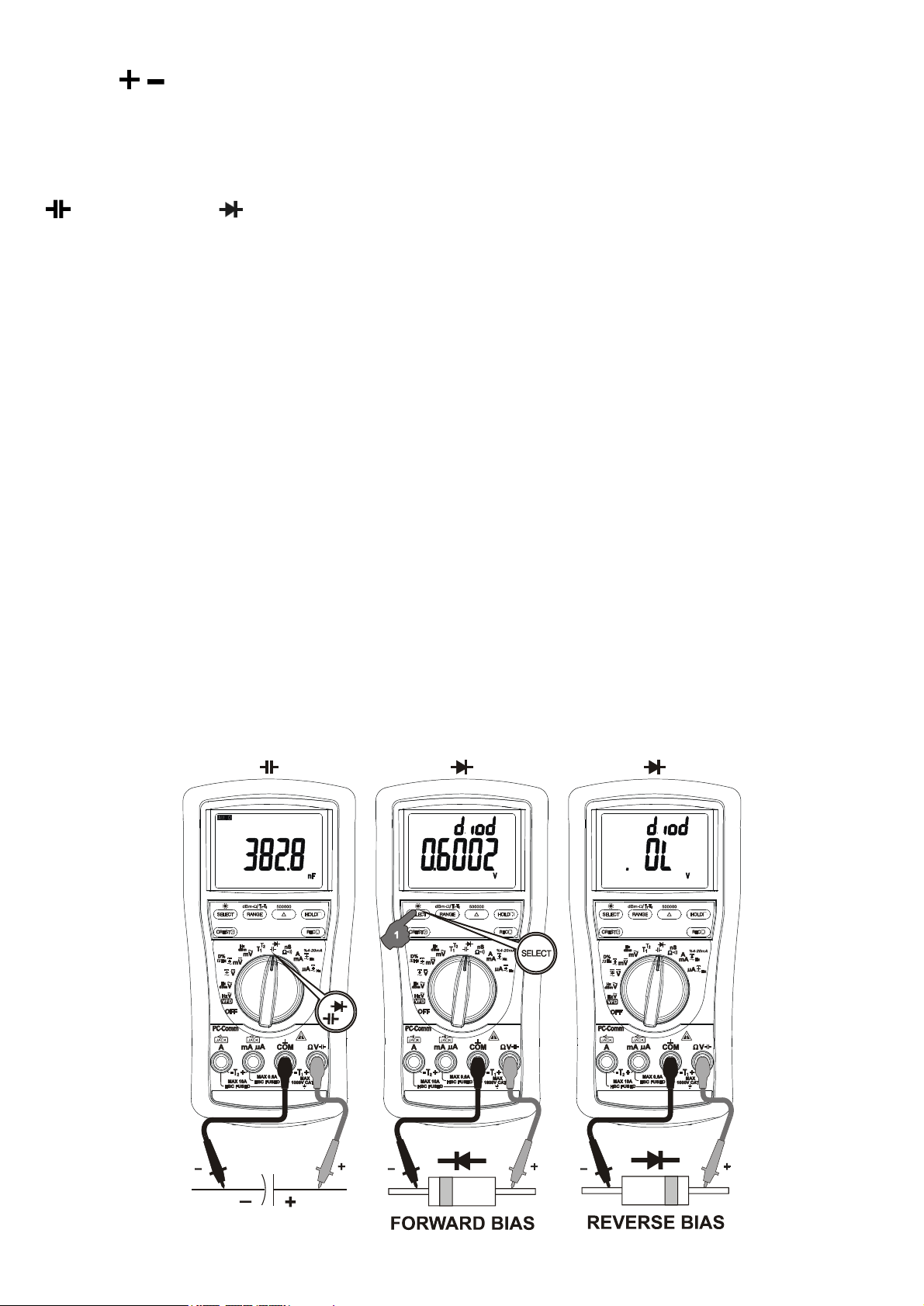

Capacitance, Diode test functions

For model

869s: Press the SELECT button momentarily to toggle between the subject

functions. Last selection will be saved as power up default for repeat measurement
convenience.
For model

867s: Direct rotary switch selection on Capacitance and Diode functions is

used.

CAUTION

Discharge capacitors before making any measurement. Large value capacitors should
be discharged through an appropriate resistance load.

Normal forward voltage drop (forward biased) for a good silicon diode is between

0.400V to 0.900V. A reading higher than that indicates a leaky diode (defective). A zero
reading indicates a shorted diode (defective). An OL indicates an open diode
(defective). Reverse the test leads connections (reverse biased) across the diode. The
digital display shows OL if the diode is good. Any other readings indicate the diode is
resistive or shorted (defective).

10

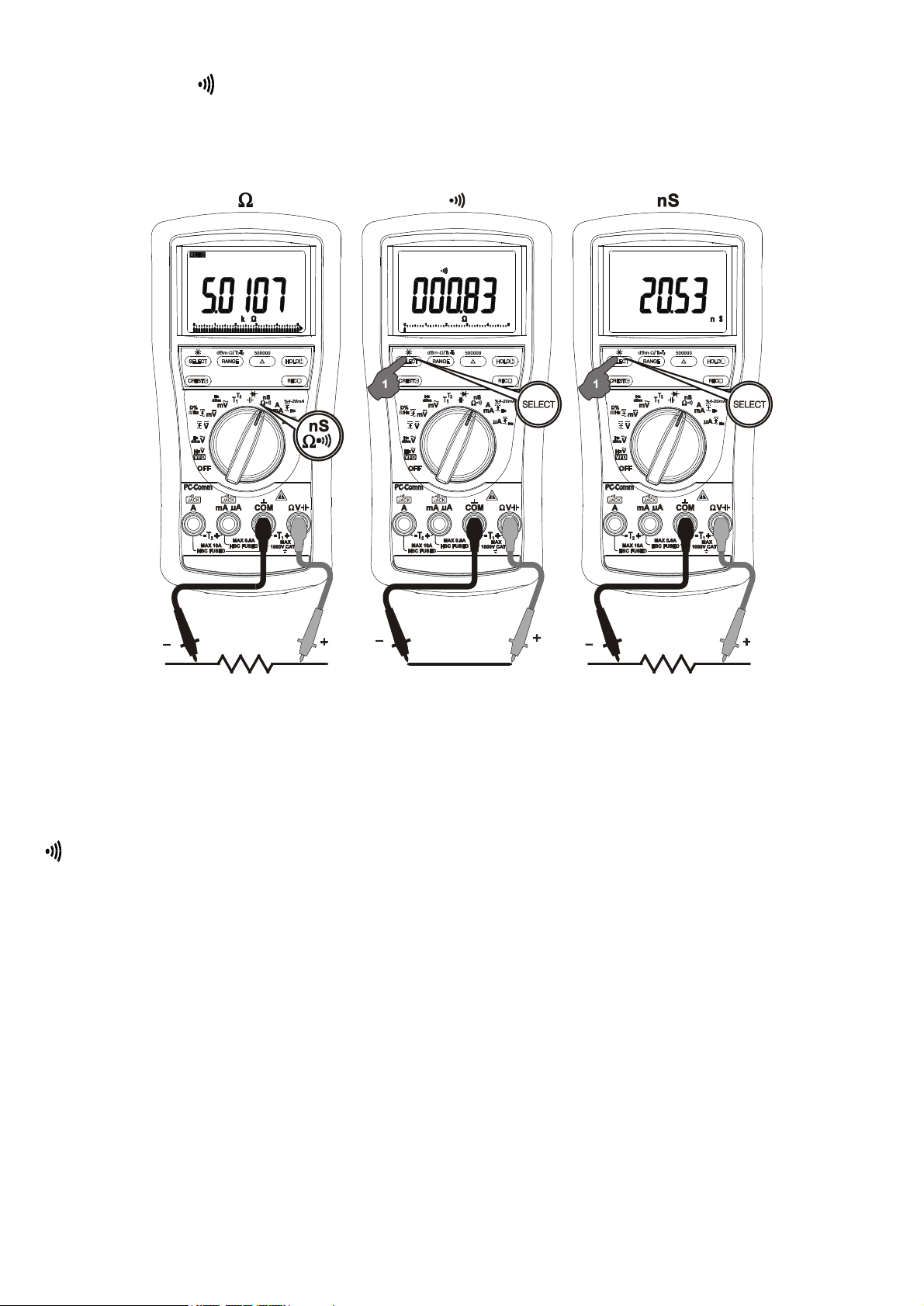

 Resistance, Continuity, nS Conductance functions

Press the SELECT button momentarily to select the subject functions in sequence. Last
selection will be saved as power up default for repeat measurement convenience.

Note:
Conductance is the inverse of Resistance, that is S=1/ or nS=1/G. It virtually
extends the Resistance measurements to the order of Giga-Ohms for leakage
measurements.

Continuity function is convenient for checking wiring connections and operation of

switches. A continuous beep tone indicates a complete wire.

CAUTION

Using resistance and continuity function in a live circuit will produce false results and
may damage the instrument. In many cases the suspected component must be
disconnected from the circuit to obtain an accurate reading

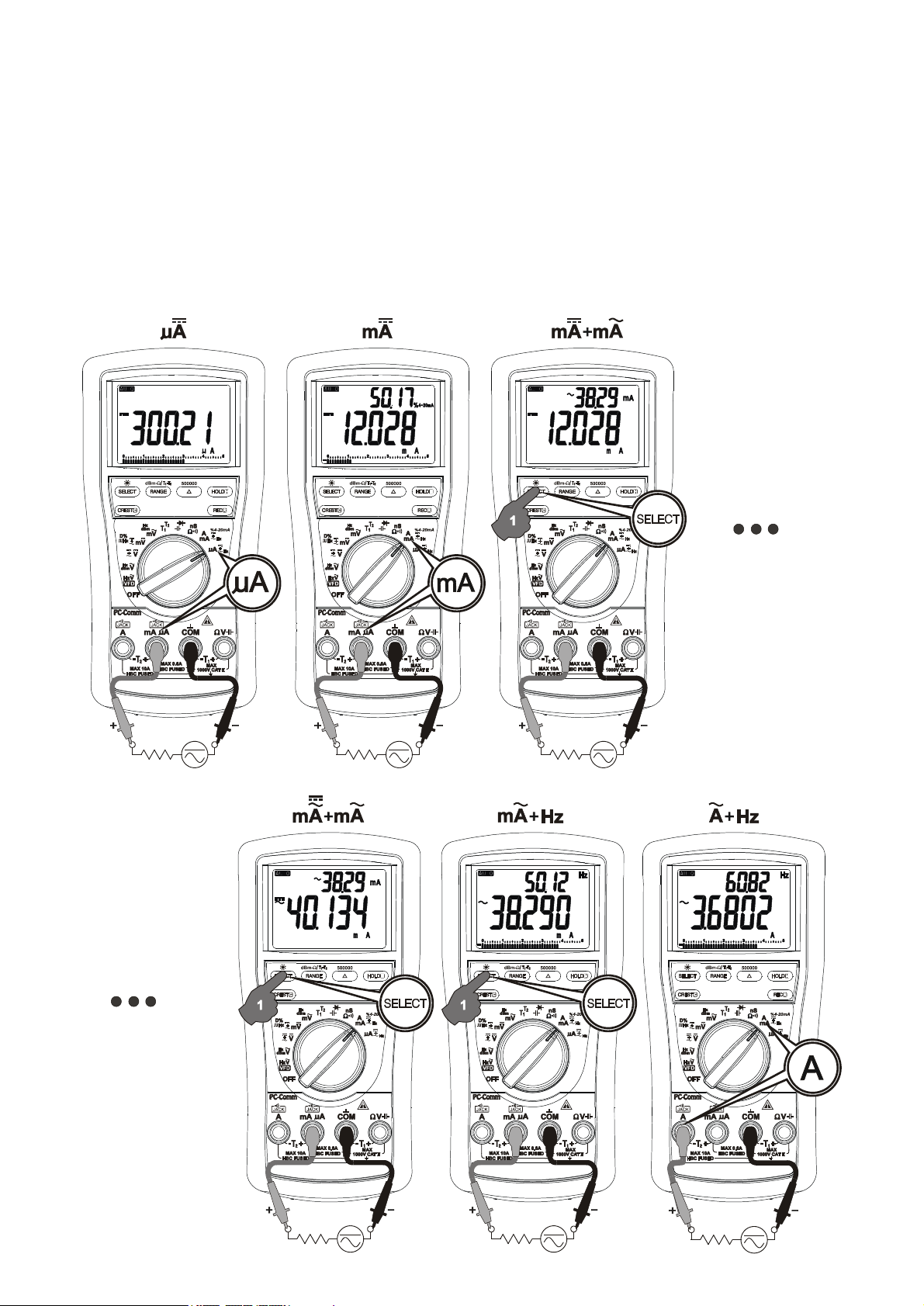

A, mA (DCmA with %4-20mA) and A Current functions

Press SELECT button momentarily to select DC, DC

+AC

, DC+AC

+AC

and AC

+Hz

. Last

selection will be saved as power up default for repeat measurement convenience.
In DC mA function, neither in AC nor DC+AC selection, loop-current percentage (%4-
20mA) reading is displayed simultaneously. It is set at 4mA = 0% (zero) and 20mA =

11

100% (span) with 0.01% high resolution for testing and monitoring externally powered
loop current in industrial process control applications.

*Note: When measuring a 3-phase system, special attention should be taken to the
phase-to-phase voltage which is significantly higher than the phase-to-earth voltage. To
avoid exceeding the voltage rating of the protection fuse(s) accidentally, always
consider the phase-to-phase voltage as the working voltage for the protection fuse(s).

12

PC-COMM computer interface capabilities

The instrument equips with an optical isolated interface port at the meter back for data
communication. Optional purchase PC USB interface kit BU-86X is required to connect
the meter to PC computers.

MAX/MIN/AVG recording mode

Press REC button momentarily to activate MAX/MIN/AVG recording mode. The LCD
“R” & “MAX MIN AVG” turn on. The meter beeps when new MAX (maximum) or MIN
(minimum) reading is updated. AVG (Average) reading is calculated over time. Press
the button momentarily to read the MAX, MIN and AVG readings in sequence. Press
the button for 1 second or more to exit MAX/MIN/AVG recording mode.

*Note:
When activated, nominal measurement speed and manual/auto-ranging selection
remains, and Auto-Power-Off is disabled automatically. Main display readings are used
for MAX/MIN Comparison and AVG calculation. Secondary display is the accompanied
significant readings where available. In 500,000 count mode, lower resolution 50,000
count mode will be used instead.

1ms CREST capture mode
Press CREST button momentarily to activate CREST (Instantaneous Peak-Hold) mode
to capture voltage or current signal duration as short as 1ms. It is available to main
display 5000uA, 500mA, 10A and voltage function ranges. The LCD “C” & “MAX” turn
on. The meter beeps when new MAX (maximum) or MIN (minimum) reading is updated.
Press the button momentarily to read the MAX and MIN readings in sequence. Press
the button for 1 second or more to exit CREST mode. Voltage manual/auto-ranging (up
range) remains, and Auto-Power-Off is disabled automatically in this mode.

Backlighted display

Press the SELECT button for 1 second or more to toggle the LCD backlight. The
backlight will also be turned off automatically after approximate 32 seconds to extend
battery life.

500000 count mode

Press the 500000 ( ) button for 1 second or more to toggle the 50000/500000 count
mode. It is available to single display DC Voltage function ranges. Measuring speed is
reduced to 1.25 times per second.

13

Beep-Jack™ Input Warning

The meter beeps as well as displays “InEr” to warn the user against possible damage to
the meter due to improper connections to the A, mA, or A input jacks when other
function (like voltage function) is selected.

Hold

The hold feature freezes the display for later view. Press the HOLD button momentarily
to toggle the hold feature.

Relative Zero mode

Press the

button momentarily to toggle relative zero mode. It allows the user to offset
the meter consecutive measurements with the displaying reading as the reference value
in the main display. Practically all displaying readings in the main display can be
activated as relative reference values including MAX/MIN/AVG readings.

Manual or Auto-ranging

Press the RANGE button momentarily to select manual-ranging, and the meter will
remain in the range it was in, the LCD

turns off. Press the button momentarily
again to select an adjacent range. Press and hold the button for 1 second or more to
resume auto-ranging.
Note: Manual ranging feature is not available in Hz function. Hz Sensitivity will be
changed instead where available.

Set Beeper Off

Press the RANGE button while turning the meter on to temporarily disable the Beeper
feature. Turn the rotary switch OFF and then back on to resume.

Auto-Power-off (APO)

The Auto-Power-off (APO) mode turns the meter off automatically to extend battery life
after approximately 17 minutes of no activities. Activities are specified as: 1) Rotary
switch or push button operations, and 2) Significant measuring readings of above 9% of
range or non-OL  readings. In other words, the meter will intelligently avoid entering
the APO mode when it is under normal measurements.. To wake up the meter from
APO, press the SELECT, RANGE, RELATIVE or HOLD button momentarily or turn the
rotary switch OFF and then back on. Always turn the rotary switch to the OFF position
when the meter is not in use.

Disabling Auto-Power-off
Press the SELECT button while turning the meter on to temporarily disable the Auto­Power-Off feature. Turn the rotary switch OFF and then back on to resume.

14

5) MAINTENANCE

WARNING
To avoid electrical shock, disconnect the meter from any circuit, remove the test leads
from the input jacks and turn OFF the meter before opening the case. Do not operate
with open case. Install only the same type of fuse or equivalent

Calibration

Accuracy is specified for a period of one year after calibration. Periodic calibration at
intervals of one year is recommended to maintain meter accuracy.

If self-diagnostic message “rE-O” is being displayed while powering on, the meter is re­organizing internal parameters. Do not switch off the meter, and it will be back to normal
measurement shortly. However, if self-diagnostic message “C_Er” is being displayed
while powering on, some meter ranges might be largely out of specifications. To avoid
mis-leading measurements, stop using the meter and send it for re-calibration. Refer to
the LIMITED WARRANTY section for obtaining warranty or repairing service.

Cleaning and Storage

Periodically wipe the case with a damp cloth and mild detergent; do not use abrasives
or solvents. If the meter is not to be used for periods of longer than 60 days, remove the
battery and store it separately

Trouble Shooting

If the instrument fails to operate, check battery, fuses, leads, etc., and replace as
necessary. Double check operating procedure as described in this user’s manual

If the instrument voltage-resistance input terminal has subjected to high voltage
transient (caused by lightning or switching surge to the system) by accident or abnormal
conditions of operation, the series fusible resistors will be blown off (become high
impedance) like fuses to protect the user and the instrument. Most measuring functions
through this terminal will then be open circuit. The series fusible resistors and the spark­gaps (or varistors) should then be replaced by qualified technician. Refer to the
LIMITED WARRANTY section for obtaining warranty or repairing service.

Battery and Fuse replacement

Battery use: Single 9V battery; NEDA1604G, JIS006P IEC6F22, NEDA1604A,
JIS6AM6 or IEC6LF22

15

Fuses use:

Fuse (FS1) for AmA current input:

0.44A/1000Vac & Vdc, IR 10kA or better, F fuse; Dimension: 10 x 38 mm
Fuse (FS2) for A current input:
11A/1000Vac & Vdc, IR 20kA or better, F fuse; Dimension: 10 x 38 mm

Battery replacement:

Loosen the 2 screws from the battery access door of the case bottom. Lift the battery
access door and thus the battery compartment up. Replace the battery. Re-fasten the
screws.

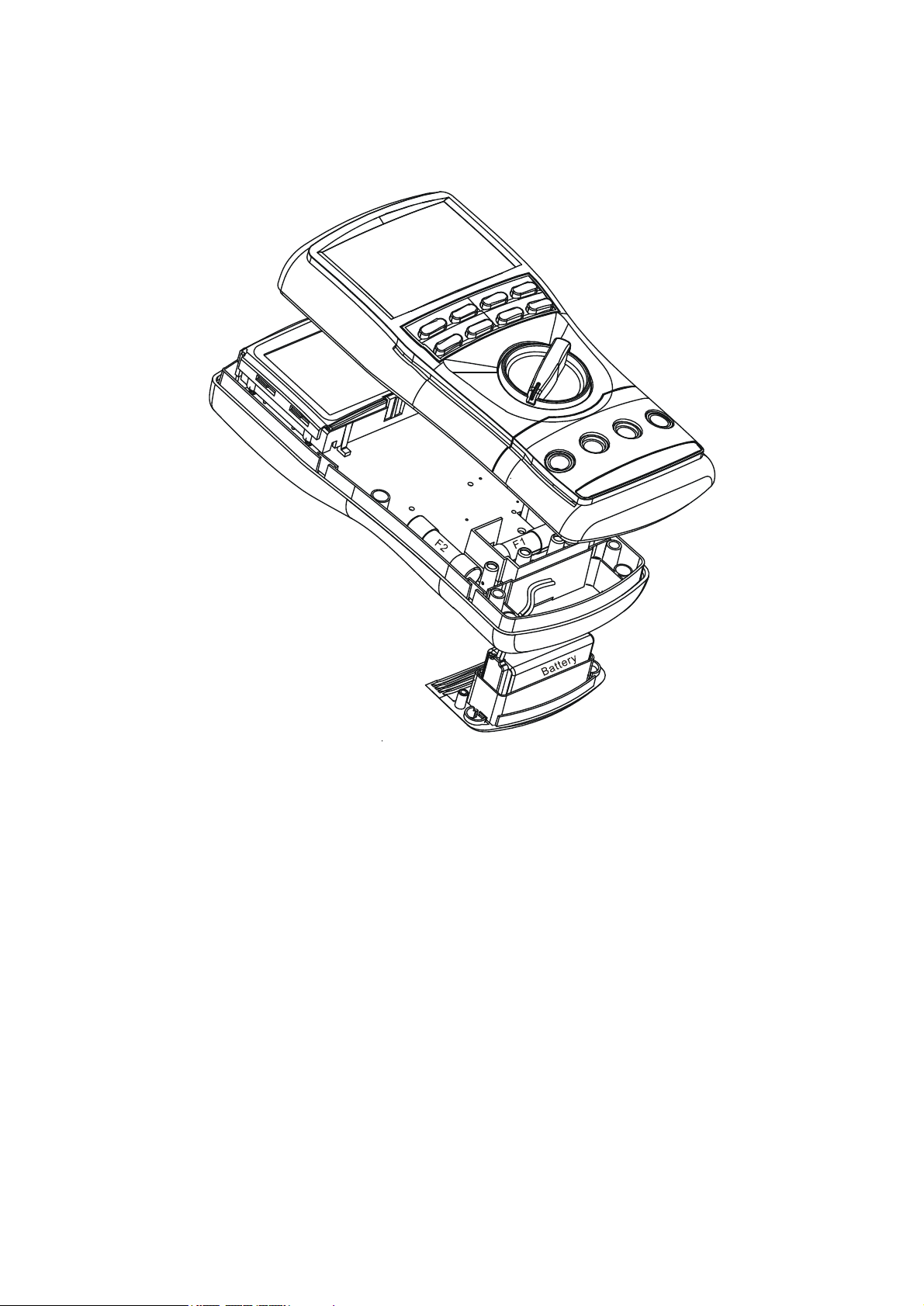

Fuse replacement:

Loosen the 4 screws from the case bottom. Lift the end of the case bottom nearest the
input jacks until it unsnaps from the case top. Replace the blown fuse(s). Replace the
case bottom, and ensure that all the gaskets are properly seated and the two snaps on
the case top (near the LCD side) are engaged. Re-fasten the screws.

16

GENERAL SPECIFICATION
Display: 4-4/5 digits 50,000 counts fast mode. Selectable stable mode 5-4/5 digits 500,000

counts for DC Voltage & 5 digits 99,999 counts for Hz

Polarity: Automatic
Update Rate:

4-4/5 digits fast mode: 5 per second nominal;
5-4/5 digits stable mode: 1.25 per second nominal;

41 Segments Bar graph: 60 per second max
Operating Temperature: 0C to 45C
Relative Humidity: Maximum relative humidity 80% for temperature up to 31C decreasing

linearly to 50% relative humidity at 45C

Pollution degree: 2
Storage Temperature: -20C to 60C, < 80% R.H. (with battery removed)
Altitude: Operating below 2000m
Temperature Coefficient: nominal 0.15 x (specified accuracy)/ C @(0C ~ 18C or 28C

~ 45C), or otherwise specified

Sensing: AC, AC+DC True RMS
Safety: Double insulation per

IEC/UL/EN61010-1 Ed. 3.0, IEC/EN61010-2-030 Ed. 1.0,
IEC/EN61010-2-033 Ed. 1.0, IEC/UL/EN61010-031 Ed. 1.1 and CAN/CSA-C22.2 No.
61010-1-12 Ed. 3.0

to Category IV 1000V AC & DC

Terminals (to COM) Measurement Category:

V / A / mAA : Category IV 1000 Vac & Vdc

Overload Protections:

A & mA : 0.44A/1000V DC/AC rms, IR 10kA, F fuse
A : 11A/1000V DC/AC rms, IR 20kA, F fuse
V : 1100V DC/AC rms
mV,  & Others :

1000V DC/AC rms

Transient protection: 12kV (1.2/50s surge)
E.M.C.: Meets EN61326-1:2006 (EN55022, EN61000-3-2, EN61000-3-3, EN61000-4-2,

EN61000-4-3, EN61000-4-4, , EN61000-4-5, EN61000-4-6, EN61000-4-8, EN61000-4-11)
In an RF field of 3V/m:

Capacitance function is not specified
Other function ranges:

Total Accuracy = Specified Accuracy +

1000 digits

Performance above 3V/m is not specified

Power Supply: Single Alkaline 9V battery; NEDA1604A, JIS6AM6 or IEC6LF22
Power Consumption: 6.5mA typical; 8mA for VFD ranges (

Model 869s only)

Low Battery: Below approx. 7V

APO Timing: Idle for 17 minutes
APO Consumption: 70A typical .
Dimension: L208mm X W103mm X H64.5mm with holster
Weight: 635 gm with holster
Accessories: Test leads (pair), holster, battery installed, user's manual, Bkp60 banana

17

plug K-type thermocouple x 1 (

Model 869s only)

Optional Accessories: BU-86X PC interface kit, Bkb32 banana pins to K-type socket plug
adapter (

Model 869s only)

Special Features: Record MAX, MIN & AVG readings; Crest (Instantaneous Peak hold)
MAX & MIN readings; Relative zero mode; 500,000 counts stable DCV mode; Paper-White
Backlit display; dBm readings; %4-20mA loop current readings; Data Hold; BeepJackTM
Audible & visible input warning; T1-T2 differential temperature readings (
VFD V & Hz readings (

Model 869s only)

Model 869s only);

Electrical Specifications

Accuracy is (% reading digits + number of digits) or otherwise specified, at 23C  5C &
less than 75% relative humidity.
True RMS voltage & current accuracies are specified from 5 % to 100 % of range or
otherwise specified. Maximum Crest Factor < 2.1:1 at full scale & < 4.2:1 at half scale, and
with frequency components within the specified frequency bandwidth for non-sinusoidal
waveforms.

18

DC Voltage

RANGE

869s 867s

Accuracy

500.00mV,

0.02% + 2d 0.03% + 2d

5.0000V,

50.000V 0.03% + 2d 0.04% + 2d

500.00V 0.04% + 2d 0.05% + 2d

1000.0V 0.15% + 2d 0.15% + 2d

Input Impedance: 10M, 60pF nominal

(80pF nominal for 500mV range)

Ohms

RANGE

869s 867s

Accuracy

500.00

5.0000k

50.000k

500.00k

5.0000M

50.000M

0.07%+10d 0.1%+10d

0.07%+2d 0.1%+6d

0.1%+2d 0.1%+6d

0.1%+2d 0.1%+6d

0.3%+6d 0.4%+6d

2.0%+6d 2.0%+6d

99.99nS* 2.0%+10d 2.0%+10d
Open Circuit Voltage: < 1.3VDC ( < 3VDC
for 500 range)

*From 0% to 10% of range: Specified
accuracy + 30d

Audible Continuity Tester

Audible threshold: between 20 and 200
Response time < 100s

Crest mode (Instantaneous Peak Hold)

Resolution: 5000 counts
Accuracy: Specified accuracy  100 digits
for changes > 0.8ms in duration

AC Voltage

RANGE 869s 867s

Accuracy *

20Hz ~ 45Hz

500.00mV,

5.0000V,

50.000V

1.2% + 40d
Unspec'd

500.00V,
Unspec'd

1000.0V

45Hz ~ 300Hz

500.00mV 0.3% + 20d

5.0000V,

0.4% + 30d

50.000V

0.8%+60d

500.00V,

0.5% + 40d

1000.0V

300Hz ~ 5kHz

300Hz ~ 1kHz

500.00mV 0.3% + 20d 0.8%+40d

5.0000V,

50.000V,

0.4% + 40d 2.0%+60d

500.00V

1000.0V 0.8% + 40d** 1.0%+40d

5kHz ~ 20kHz

1kHz ~ 20kHz

500.00mV 0.5%+30d 1dB***

5.0000V,

0.7%+40d 2dB***

50.000V

500.00V 0.5%+40d 3dB***

1000.0V Unspec'd Unspec'd

20kHz ~ 100kHz

500.00mV 2.5%+40d

5.0000V,

4.0%+40d***

50.000V

Unspec'd

500.00V
Unspec'd

1000.0V

*From 5% to 10% of range: Specified
accuracy + 80d
**Specified bandwidth 300Hz ~ 1kHz
***From 5% to 10% of range: Specified
accuracy + 180d
From 10% to 15% of range: Specified

19

accuracy + 100d
Input Impedance: 10M, 60pF nominal
(80pF nominal for 500mV range)
Residual reading less than 50 digits with
test leads shorted.

DC AC & AC+DC AC Voltage

RANGE

869s 867s

Accuracy *

20Hz ~ 45Hz

500.00mV,

5.0000V,

50.000V

1.5% + 40d
Unspec'd

500.00V,
Unspec'd

1000.0V

DC, 45Hz ~ 300Hz

500.00mV 0.45% + 40d

5.0000V,

0.7% + 80d

50.000V

0.8%+60d

500.00V,

0.7% + 40d

1000.0V

300Hz ~ 5kHz

300Hz ~ 1kHz

500.00mV 0.8% + 40d 0.8%+40d

5.0000V,

50.000V,

0.8% + 40d 2.0%+60d

500.00V

1000.0V 1.0% + 40d** 1.0%+40d

5kHz ~ 20kHz

1kHz ~ 20kHz

500.00mV 1.0%+40d 1dB***

5.0000V,

1.5%+40d 2dB***

50.000V

500.00V 1.5%+40d 3dB***

1000.0V Unspec'd Unspec'd

20kHz ~ 40kHz

500.00mV 3.5%+40d

5.0000V,

4.0%+40d***

50.000V

Unspec'd

500.00V
Unspec'd

1000.0V

*From 5% to 10% of range: Specified
accuracy + 80d
**Specified bandwidth 300Hz ~ 1kHz
***From 5% to 10% of range: Specified
accuracy + 180d
From 10% to 15% of range: Specified
accuracy + 100d
Input Impedance: 10M, 60pF nominal
(80pF nominal for 500mV range)
Residual reading less than 50 digits with
test leads shorted.

VFD AC Voltage (

Model 869s only)

RANGE Accuracy*

5Hz ~ 20Hz

5.0000V, 50.000V,
3% + 80d

500.00V, 1000.0V

20Hz ~ 200Hz

5.0000V, 50.000V,
2% + 50d

500.00V, 1000.0V

200Hz ~ 440Hz

5.0000V, 50.000V,

6% + 80d**

500.00V, 1000.0V

*Not specified for fundamental frequency >
440Hz
**Accuracy linearly decreases from 2% +
50d @ 200Hz to 6% + 80d @ 440Hz

dBm

Range and accuracy are subjected to
ACmV, ACV, and reference impedance
selected. Typical 600 reference
impedance ranges:
At ACmV : -29.83dBm to –03.80dBm
At ACV : -01.09dBm to 62.22dBm
Input Impedance: 10M, 60pF nominal
Selectable reference impedance of 4, 8,
16, 32, 50, 75, 93, 110, 125, 135, 150, 200,

20

250, 300, 500, 600, 800, 900, 1000 &
1200

Diode Tester

Test

Range Accuracy

Current

(Typical)

2.0000V 1%+1d 0.4mA

Open

Circuit

Voltage

< 3.5 VDC

Capacitance

RANGE Accuracy*

50.00nF 0.8% + 3d

500.0nF 0.8% + 3d

5.000F

1.5% + 3d

*10A continuous, >10A to 20A for 30
second max with 5 minutes cool down
interval

AC, DC AC & AC+DC AC Current

869s 867s RANGE

Accuracy

Burden

Voltage

DC, 50Hz ~ 60Hz

500.00A

5000.0A

50.000mA 3.3mV/mA

500.00mA 3.3mV/mA

0.5% +
50d

1.0% +
40d

0.15mV/A

0.15mV/A

5.0000A 45mV/A

10.000A*

45mV/A

40Hz ~ 1kHz

50.00F

500.0F**

2.5% + 3d

3.5% + 5d

5.000mF** 5.0% + 5d

25.00mF** 6.5% + 5d

*Accuracies with film capacitor or better
**In manual-ranging mode, measurements
not specified below

45.0F/0.450mF/4.50mF (450 counts) for

500.0F/5.000mF/25.00mF ranges
respectively

DC Loop Current %4~20mA

4mA = 0% (zero); 20mA = 100% (span)
Resolution: 0.01% Accuracy:  25d

DC Current

Burden

RANGE Accuracy

Voltage

500.00A

5000.0A

0.15%+20d

0.1%+20d

0.15mV/A

0.15mV/A

50.000mA 0.15%+20d 3.3mV/mA

500.00mA 0.15%+30d 3.3mV/mA

5.0000A 0.5%+20d 45mV/A

10.000A* 0.5%+20d 45mV/A

500.00A

5000.0A

50.000mA 3.3mV/mA

500.00mA 3.3mV/mA

0.7% +
50d

1.0% +
40d

0.15mV/A

0.15mV/A

5.0000A 45mV/A

10.000A*

45mV/A

1kHz ~ 20kHz

500.00A

5000.0A

50.000mA 3.3mV/mA

2.0% +
50d

Unspec'

d

500.00mA

5.0000A

Unspec'd Unspec'

0.15mV/A

0.15mV/A

3.3mV/mA

45mV/A

10.000A*

d

20kHz ~ 100kHz

500.00A

5000.0A

50.000mA 3.3mV/mA

5.0% +
50d

Unspec'

d

500.00mA

5.0000A

Unspec'd Unspec'

0.15mV/A

0.15mV/A

3.3mV/mA

45mV/A

10.000A*

d

*10A continuous, >10A to 20A for 30
second max with 5 minutes cool down
interval

21

~ Hz Line Level Frequency

AC

Sensitivity

Function

Range

(Sine RMS)

RANGE
500mV 100mV 10Hz ~ 200kHz
5V 0.6V 10Hz ~ 100kHz
50V 6V 10Hz ~ 100kHz
500V 50V 10Hz ~ 100kHz
1000V 500V 10Hz ~ 10kHz
VFD 5V 0.5V ~ 2V* 10Hz ~ 440Hz
VFD 50V 5V ~ 20V* 10Hz ~ 440Hz
VFD 500V 50V ~ 200V* 10Hz ~ 440Hz
500A 50A
5000A 500A

10Hz ~ 10kHz

10Hz ~ 10kHz
50mA 5mA 10Hz ~ 10kHz
500mA 50mA 10Hz ~ 10kHz
5A 1A 10Hz ~ 3kHz

Hz Logic Level Frequency

RANGE Accuracy

5.000Hz ~

0.002%+4d

1.0000MHz

Sensitivity: 2.5Vp square wave

%Duty Cycle

RANGE Accuracy

0.1% ~ 99.99% 3d/kHz+2d

Input Frequency: 5Hz -- 500 kHz, 5V Logic
Family

T1-T2 Type-K Temperature (

Model 869s

only)

RANGE Accuracy

-50.0C to

0.3%+1.5C

1000.0C

10A 10A 10Hz ~ 3kHz

Accuracy: 0.02%+4d
*VFD sensitivity linearly decreases from
10% F.S. @ 200Hz to 40% F.S. @ 440Hz

-58.0F to 1832.0F

0.3%+3.0F

Type-K thermocouple range & accuracy not
included

22

NOTE

LIMITED WARRANTY

BRYMEN warrants to the original product purchaser that each product it manufactures will
be free from defects in material and workmanship under normal use and service within a
period of one year from the date of purchase. BRYMEN's warranty does not apply to
accessories, fuses, fusible resistors, spark gaps, batteries or any product which, in
BRYMEN's opinion, has been misused, altered, neglected, or damaged by accident or
abnormal conditions of operation or handling.

To obtain warranty service, contact your nearest BRYMEN authorized agent or send the
product, with proof of purchase and description of the difficulty, postage and insurance
prepaid, to BRYMEN TECHNOLOGY CORPORATION. BRYMEN assumes no risk for
damage in transit. BRYMEN will, at its option, repair or replace the defective product free of
charge. However, if BRYMEN determines that the failure was caused by misused, altered,
neglected, or damaged by accident or abnormal conditions of operation or handling, you will
be billed for the repair.

THIS WARRANTY IS EXCLUSIVE AND IS IN LIEU OF ALL OTHER WARRANTIES,
EXPRESSED OR IMPLIED, INCLUDING BUT NOT LIMITED TO ANY IMPLIED
WARRANTY OR MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE OR
USE. BRYMEN WILL NOT BE LIABLE FOR ANY SPECIAL, INDIRECT, INCIDENTAL OR
CONSEQUENTIAL DAMAGES.

BRYMEN TECHNOLOGY CORPORATION

TEL:[phone]

FAX:[phone]

http://www.brymen.com

PRINTED ON RECYCLABLE PAPER, PLEASE RECYCLE

COPYRIGHT ©

7M1C-1311-0000 PRINTED IN TAIWAN

P/N:

MMXIII BTC, ALL RIGHTS RESERVED
