Brymen BM805s, BM806s, BM807s User Manual

USER'S

MANUAL

BM805s
BM806s
BM807s

Practical
Multimeters

2

1) SAFETY

This manual contains information and warnings that must be followed for operating the
instrument safely and maintaining the instrument in a safe operating condition. If the
instrument is used in a manner not specified by the manufacturer, the protection
provided by the instrument may be impaired. The meter is intended only for indoor use.

The meter protection rating, against the users, is double insulation per

IEC/UL/EN61010-1 Ed. 3.0, IEC/EN61010-2-030 Ed. 1.0, IEC/EN61010-2-033 Ed. 1.0,
IEC/UL/EN61010-031 Ed. 1.1 and CAN/CSA-C22.2 No. 61010-1-12 Ed. 3.0 to

Category II 1000 Volts, CAT III 600Volts and CAT IV 300Volts AC & DC.

Terminals (to COM) measurement category:

V / A / mAA: Category II 1000V, Category III 600V and Category IV 300V AC & DC.

Per IEC61010-1 2nd Ed. (2001) Measurement Category

Measurement Category IV (CAT IV) is for measurements performed at the source of

the low-voltage installation. Examples are electricity meters and measurements on
primary overcurrent protection devices and ripple control units.

Measurement Category III (CAT III) is for measurements performed in the building
installation. Examples are measurements on distribution boards, circuit- breakers,
wiring, including cables, bus-bars, junction boxes, switches, socket-outlets in the fixed
installation, and equipment for industrial use and some other equipment, for example,
stationary motors with permanent connection to the fixed installation.

Measurement Category II (CAT II) is for measurements performed on circuits directly
connected to the low voltage installation. Examples are measurements on household
appliances, portable tools and similar equipment.

Terms in this manual:

WARNING identifies conditions and actions that could result in serious injury or even

death to the user.

CAUTION identifies conditions and actions that could cause damage or malfunction

in the instrument.

3

WARNING

To reduce the risk of fire or electric shock, do not expose this product to rain or
moisture. To avoid electrical shock hazard, observe the proper safety precautions
when working with voltages above 60 VDC or 30 VAC rms. These voltage levels pose
a potential shock hazard to the user. Do not touch test lead tips or the circuit being
tested while power is applied to the circuit being measured. Keep your fingers behind
the finger guards of the test leads during measurement. Inspect test leads, connectors,
and probes for damaged insulation or exposed metal before using the instrument. If
any defects are found, replace them immediately. Do not measure any current that
exceeds the current rating of the protection fuse(s). Do not attempt a current
measurement to any circuit where the open circuit voltage is above the protection
fuse(s) voltage rating(s). Suspected open circuit voltage should be checked with
voltage functions. Never attempt a voltage measurement with the test lead inserted into

the A/mA or A input jack. Only replace the blown fuse(s) with the proper rating as
specified in this manual. Only use the test lead provided with the equipment or UL

Listed Probe Assembly.

CAUTION
Disconnect the test leads from the test points before changing functions. Always set
the instrument to the highest range and work downward for an unknown value when
using manual ranging mode.

INTERNATIONAL ELECTRICAL SYMBOLS

!

Caution ! Refer to the explanation in this Manual
Caution ! Risk of electric shock
Earth (Ground)
Double Insulation or Reinforced insulation
Fuse

AC--Alternating Current
DC--Direct Current

2) CENELEC DIRECTIVES

The instruments conform to CENELEC Low-voltage directive 2006/95/EC and
Electromagnetic compatibility directive 2004/108/EC

4

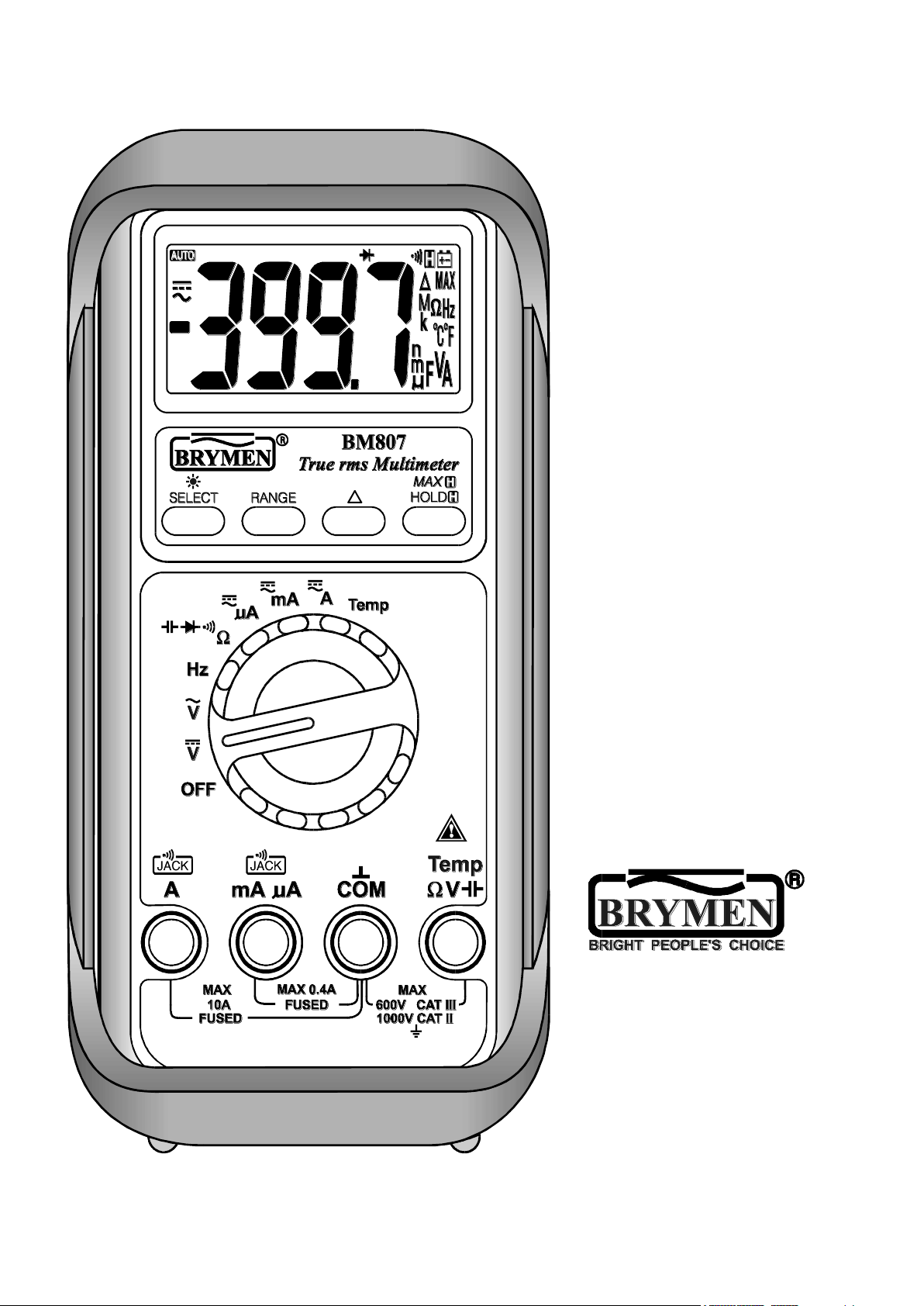

3) PRODUCT DESCRIPTION

This user's manual uses only representative model for illustrations. Please refer
specification details for function availability to each model.

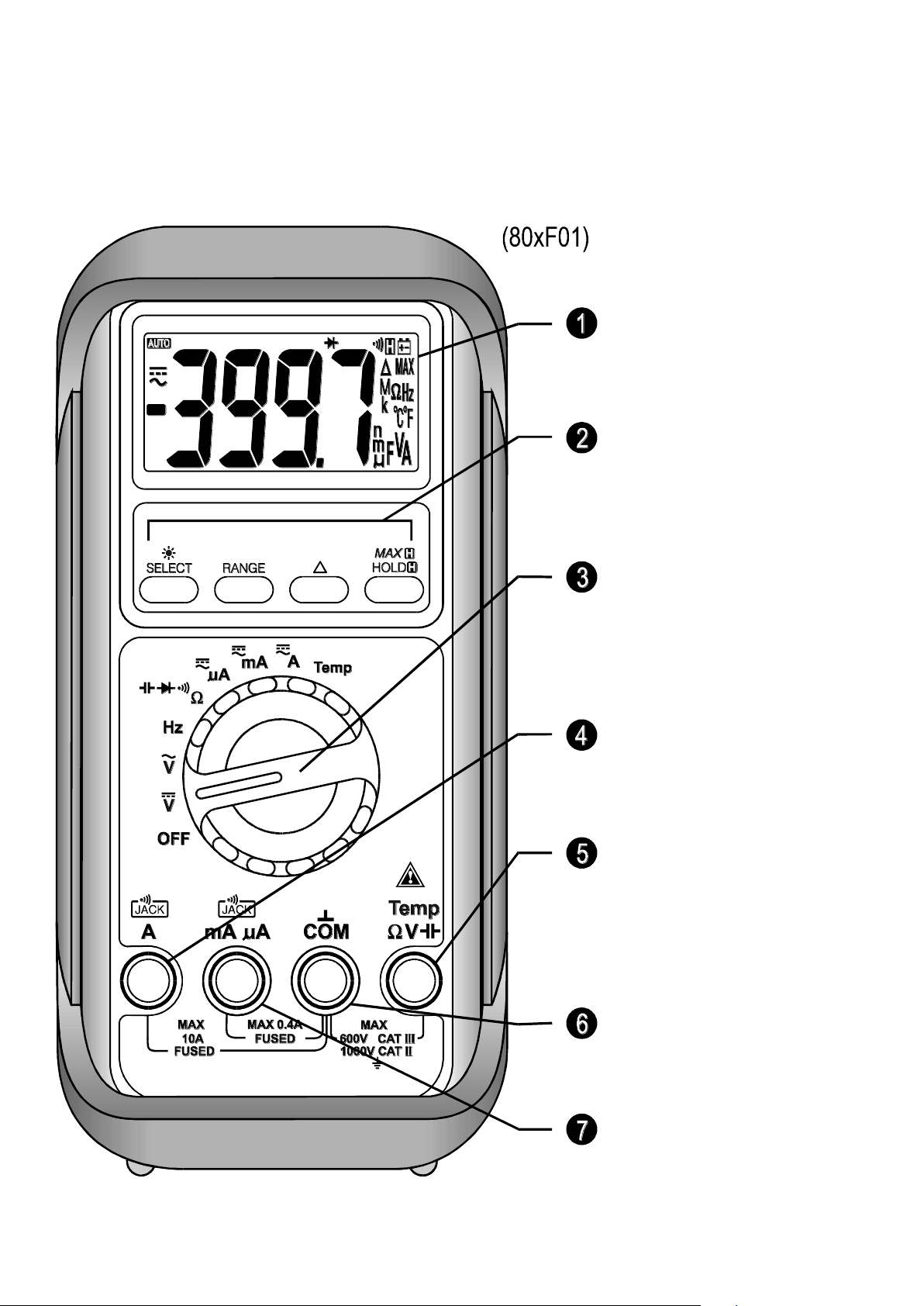

1) 3-3/4 digits 4000
counts LCD display

2) Push-buttons for
special functions &
features

3) Selector to turn the
Power On or Off and
select a function

4) Input Jack (+) for 10A
(20A for 30sec) current
function

5) Input Jack (+) for all
functions EXCEPT

current (A, mA, A)
function

6) Common (Ground
reference) Input Jack (-)
for all functions

7) Input Jack (+) for
milli-amp and micro-amp
functions

5

4) OPERATION

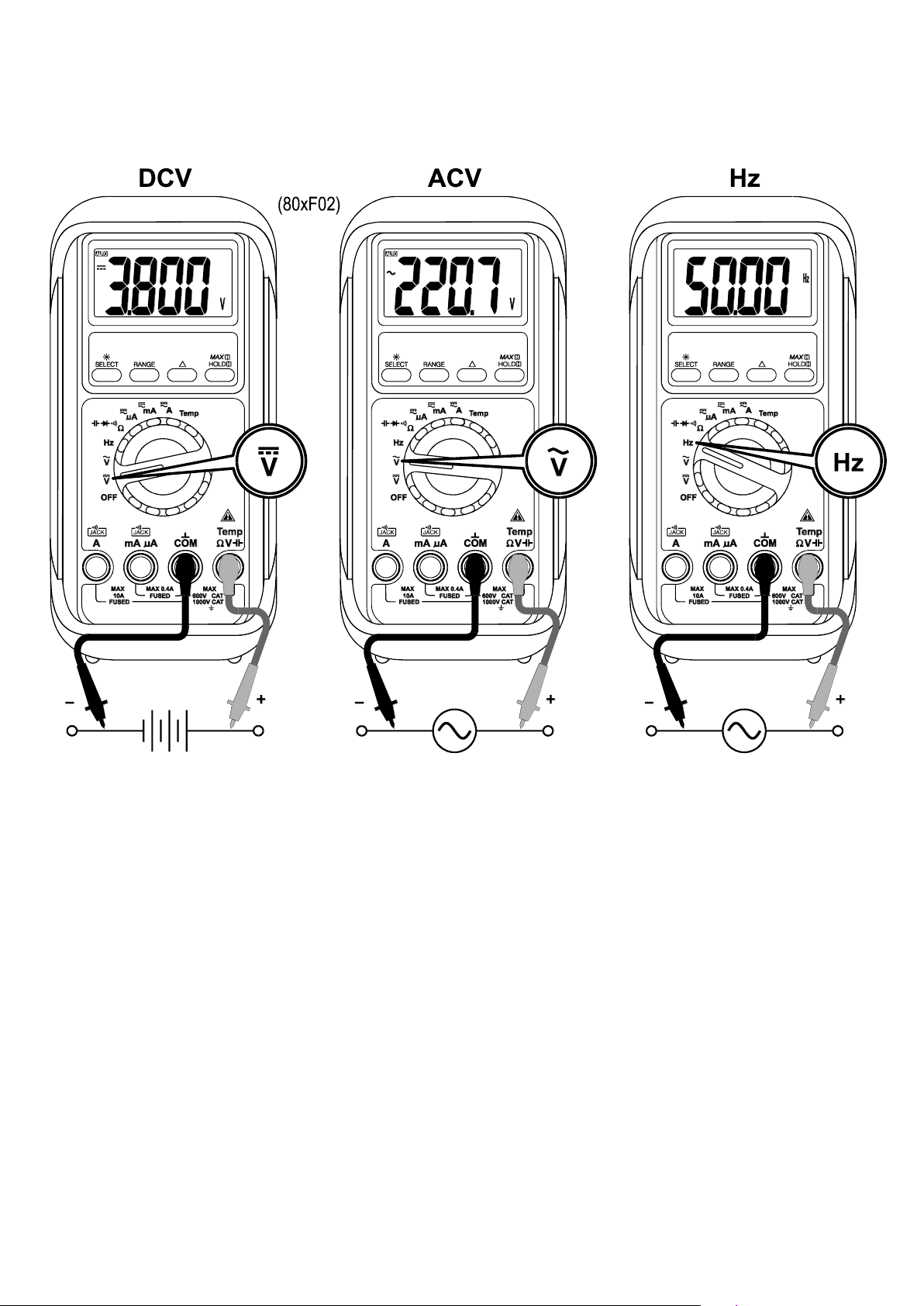

DC Voltage, AC Voltage, & Hz Frequency functions

CAUTION
Before and after hazardous voltage measurements, test the voltage function on a
known source such as line voltage to determine proper meter functioning.

Note:

1) AC 400.0mV range selection is by RANGE button manually, and is specified from
AC 10mV (AC 40mV for True RMS model Model 807s) and up.

2) DC 400.0mV range is designed with 1000M high input impedance for least current
drain in measuring small signals, and can cope better with most commercially available
voltage output transducers and adapters. The non-zero display reading is normal when
the meter inputs are open circuit, which will not affect actual measurement accuracy.
Open input is actually a floating condition, which is not a zero-volt-input condition. The
meter will show zero or close to zero reading when the inputs are shorted.

6

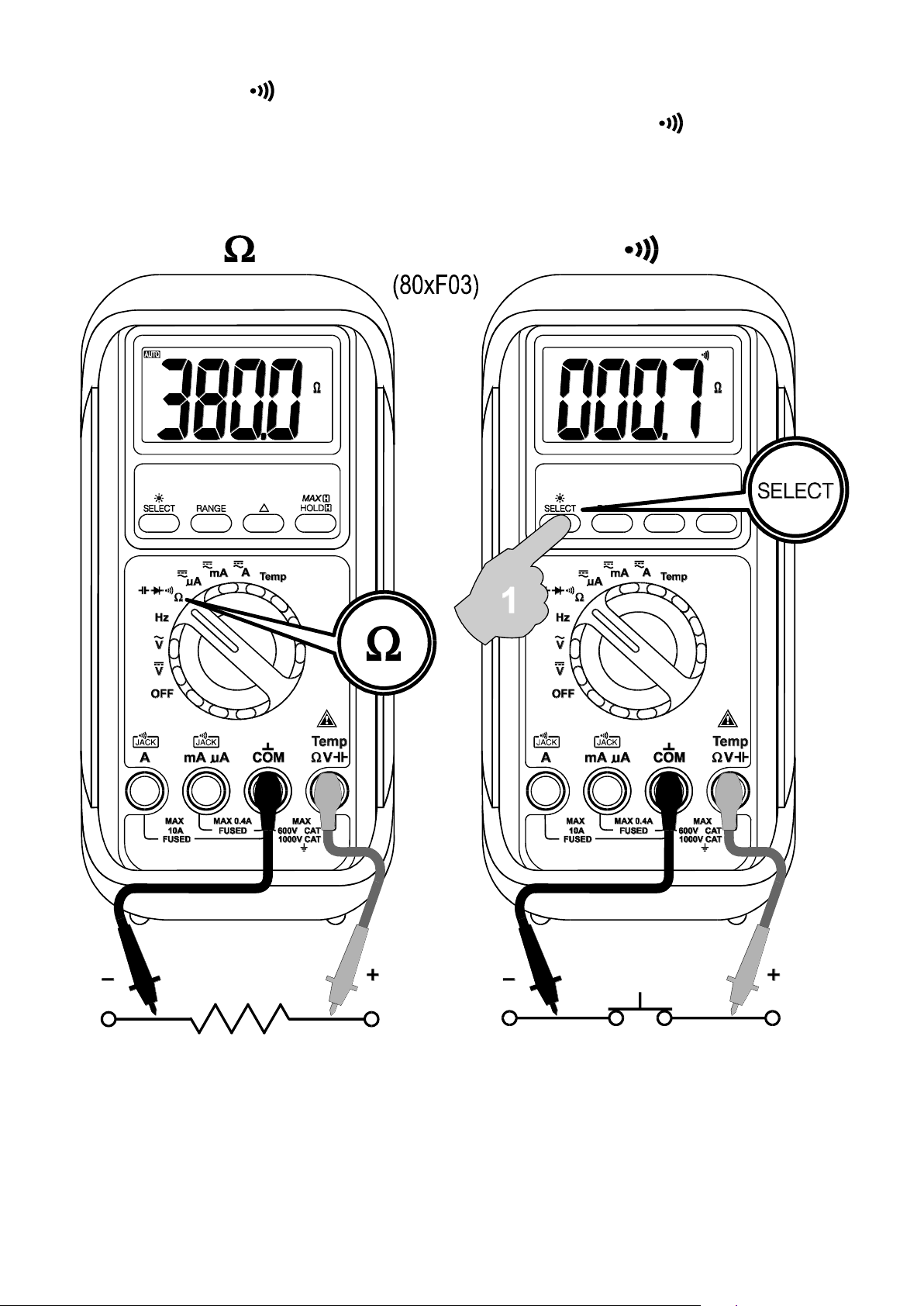

 Resistance, and Continuity functions

Defaults at . Press SELECT button momentarily to select Continuity function
which is convenient for checking wiring connections and operation of switches. A
continuous beep tone indicates a complete wire.

CAUTION

Using Resistance, Continuity, Diode or Capacitance function in a live circuit will
produce false results and may damage the instrument. In many cases the suspected
component must be disconnected from the circuit to obtain an accurate measurement
reading.

7

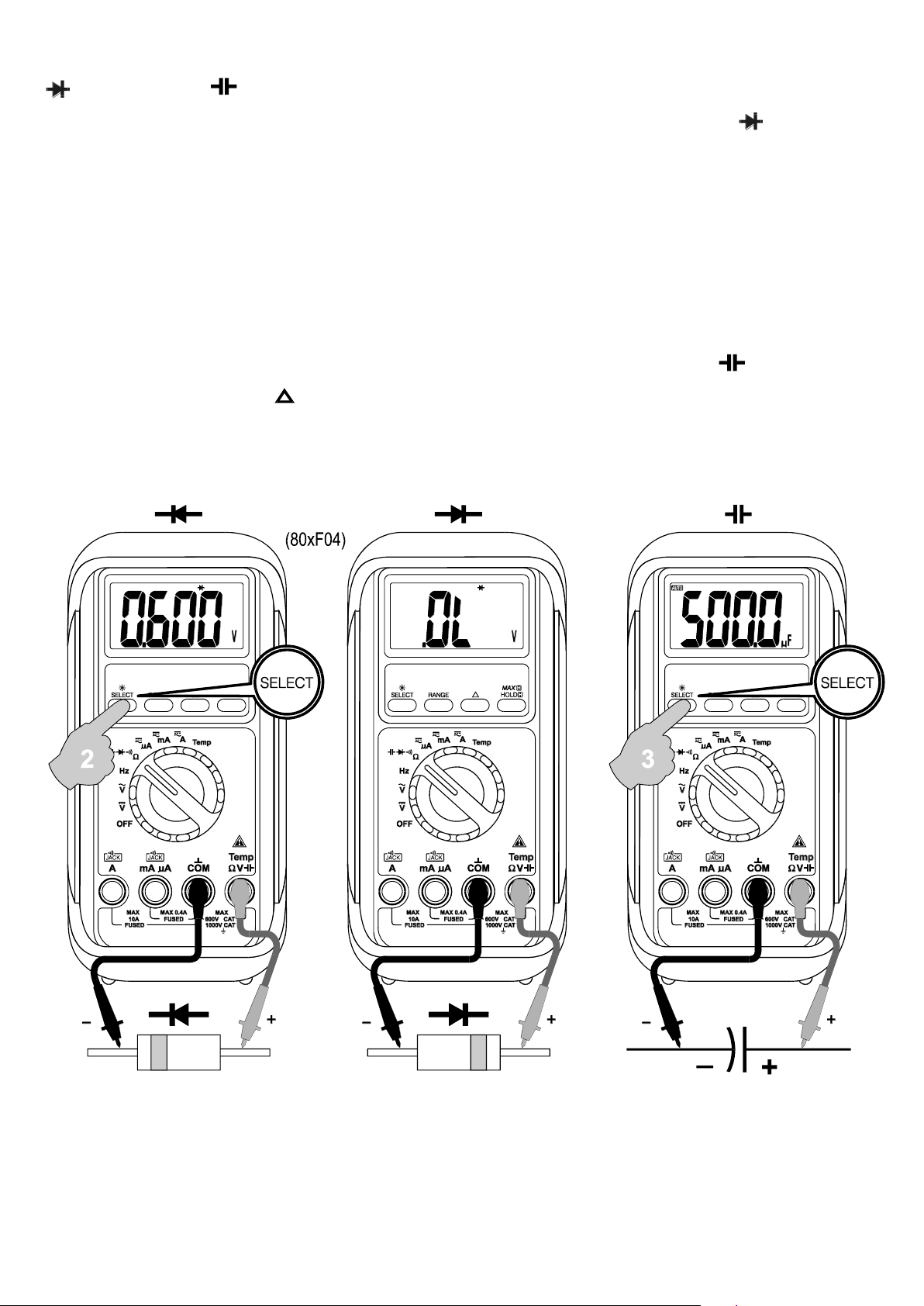

Diode test, Capacitance functions

Defaults at . Press SELECT button momentarily 2 times to select Diode test
function. Normal forward voltage drop (forward biased) for a good silicon diode is
between 0.400V to 0.900V. A reading higher than that indicates a leaky diode
(defective). A zero reading indicates a shorted diode (defective). An OL indicates an
open diode (defective). Reverse the test leads connections (reverse biased) across the
diode. The digital display shows OL if the diode is good. Any other readings indicate
the diode is resistive or shorted (defective).

Defaults at . Press SELECT button momentarily 3 times to select Capacitance
function. Relative zero mode can be used to zero out the parasitic capacitance of
the leads and the internal protection circuitry of the meter when measuring low
capacitance in the order of Pico Farad (pF).

CAUTION

Discharge capacitors before making any measurement. Large value capacitors should
be discharged through an appropriate resistance load

8

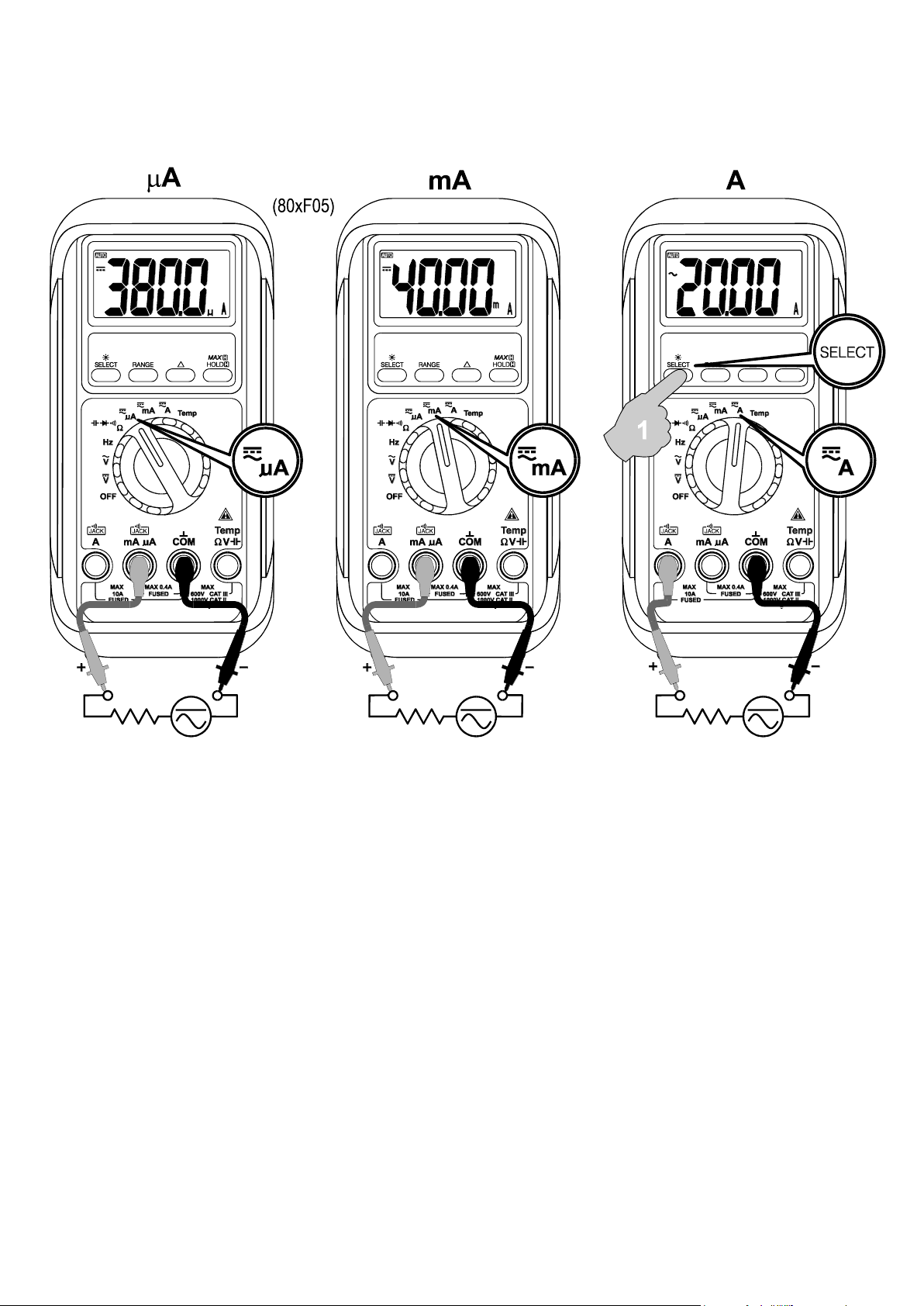

A, mA, and A Current functions

Default at DC. Press SELECT button momentarily to select AC.

CAUTION

When measuring a 3-phase system, special attention should be taken to the
phase-to-phase voltage which is significantly higher than the phase-to-earth voltage.
To avoid exceeding the voltage rating of the protection fuse(s) accidentally, always
consider the phase-to-phase voltage as the working voltage for the protection fuse(s).

Beep-Jack™ Input Warning

The meter beeps to warn the user against possible damage to the meter due to
improper connections to the A, mA, or A input jacks when other function (like voltage

function) is selected.

9

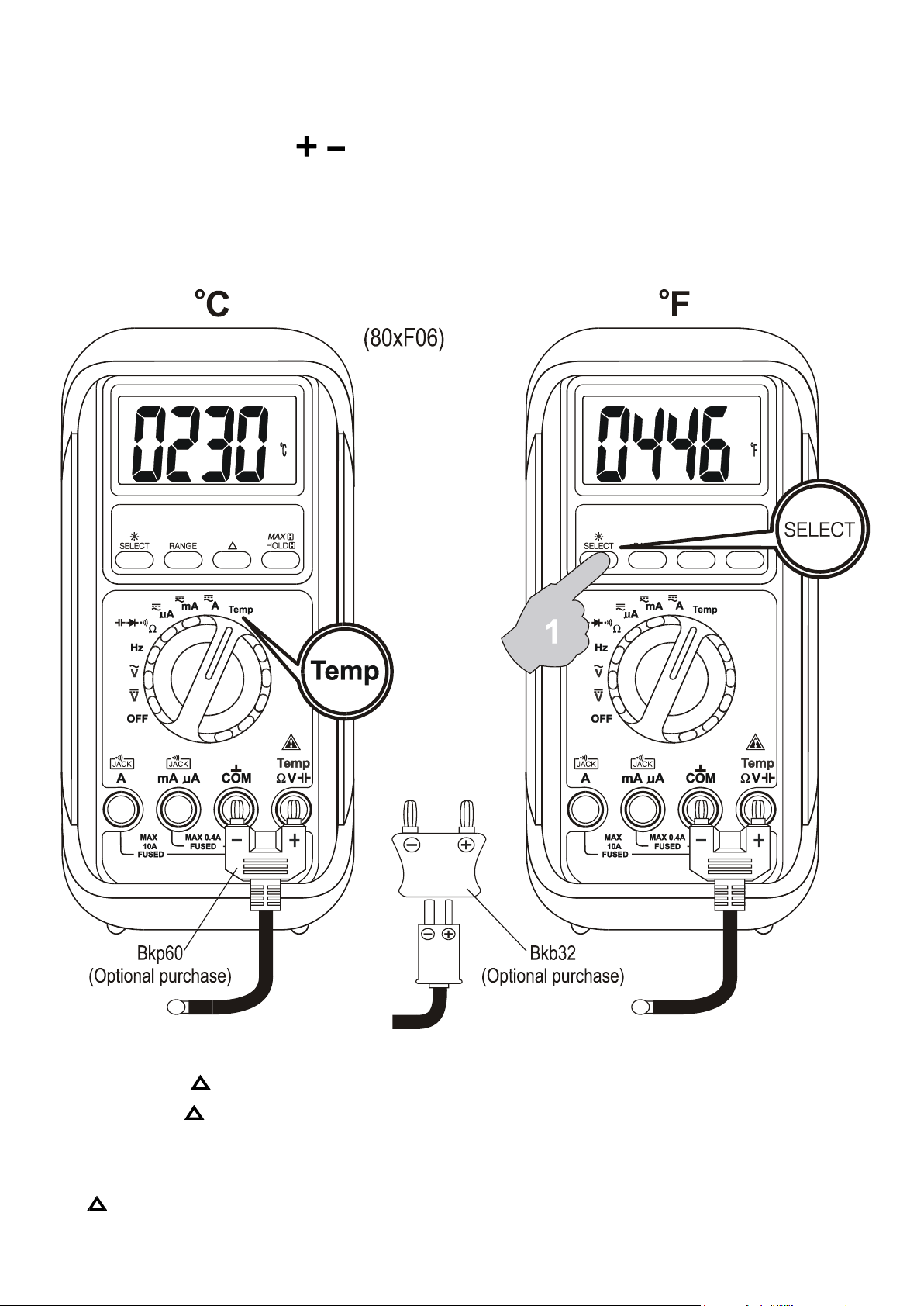

Temperature function (Models 806s & 807s only)

Be sure to insert the banana plug type-K temperature bead probe Bkp60 (Optional
purchase) with correct polarities. Defaults at degree C (Celsius). Press
SELECT button momentarily to select degree F (Fahrenheit). You can also use a plug
adapter Bkb32 (Optional purchase) with banana pins to type-K socket to adapt other
type-K standard mini plug temperature probes.

Relative zero mode

Relative zero mode allows the user to offset the meter consecutive measurements
with the displaying reading as the reference value. The display will now show readings
relative to the stored reference value. That is, display = reading - stored value. Press
the button momentarily to activate or to exit relative zero mode.

10

Backlighted display (Model 807s only)

Press the SELECT button for 1 second or more to turn on or off the display backlight
function.

Manual or Auto-ranging

Press the RANGE button momentarily to select manual-ranging mode, and the meter
will remain in the range it was in, the LCD annunciator turns off. Press the
button momentarily again to step through the ranges. Press and hold the button for 1
second or more to resume auto-ranging mode.
Note: Manual ranging mode feature is not available in Hz & Cx functions.

HOLD

The hold feature freezes the display for later view. Press the HOLD button
momentarily to activate or to exit the hold feature.

MAX

The max feature compares and displays the measured maximum value as fast as
25ms in a single range, and with automatic up range capability. Press the MAX
button for 1 second or more to activate or to exit the max feature in the voltage or
current functions.

Sleep Mode

The meter will enter a low power consumption sleep mode automatically to extend
battery life after approximately 30 minutes of no rotary-switch or push button
operations. To wake up the meter from sleep mode, press any buttons momentarily or
turn the rotary-switch to an adjacent position. Always set the rotary-switch to the OFF
position manually when the meter is not in use.

5) MAINTENANCE

WARNING
To avoid electrical shock, disconnect the meter from any circuit, remove the test leads
from the input jacks and turn OFF the meter before opening the case. Do not operate
with open case.

Cleaning and Storage

Periodically wipe the case with a damp cloth and mild detergent; do not use abrasives
or solvents. If the meter is not to be used for periods of longer than 60 days, remove
the batteries and store them separately

11

Trouble Shooting

If the instrument fails to operate, check batteries and test leads etc., and replace as
necessary. Double check operating procedure as described in this user’s manual.

If the instrument voltage-resistance input terminal has subjected to high voltage
transient (caused by lightning or switching surge to the system) by accident or
abnormal conditions of operation, the series fusible resistors will be blown off (become
high impedance) like fuses to protect the user and the instrument. Most measuring
functions through this terminal will then be open circuit. The series fusible resistors and
the spark gaps should then be replaced by qualified technician. Refer to the LIMITED
WARRANTY section for obtaining warranty or repairing service.

Battery and Fuse replacement

Battery use:

Standard 1.5V AAA Size (NEDA 24A or IEC LR03) battery X 2

Fuse use:

Fuse (FS1) for AmA current input:

0.4A/1000V ac & dc, IR 30kA, F fuse, or better; Dimension: 6 x 32 mm

Fuse (FS2) for A current input:

11A/1000V ac & dc, IR 20kA, F fuse, or better; Dimension: 10 x 38 mm

Battery replacement for models with
battery access door:

Loosen the 2 screws from the
battery access door of the case
bottom. Lift the battery access door
and thus the battery compartment
up. Replace the battery. Re-fasten
the screws.

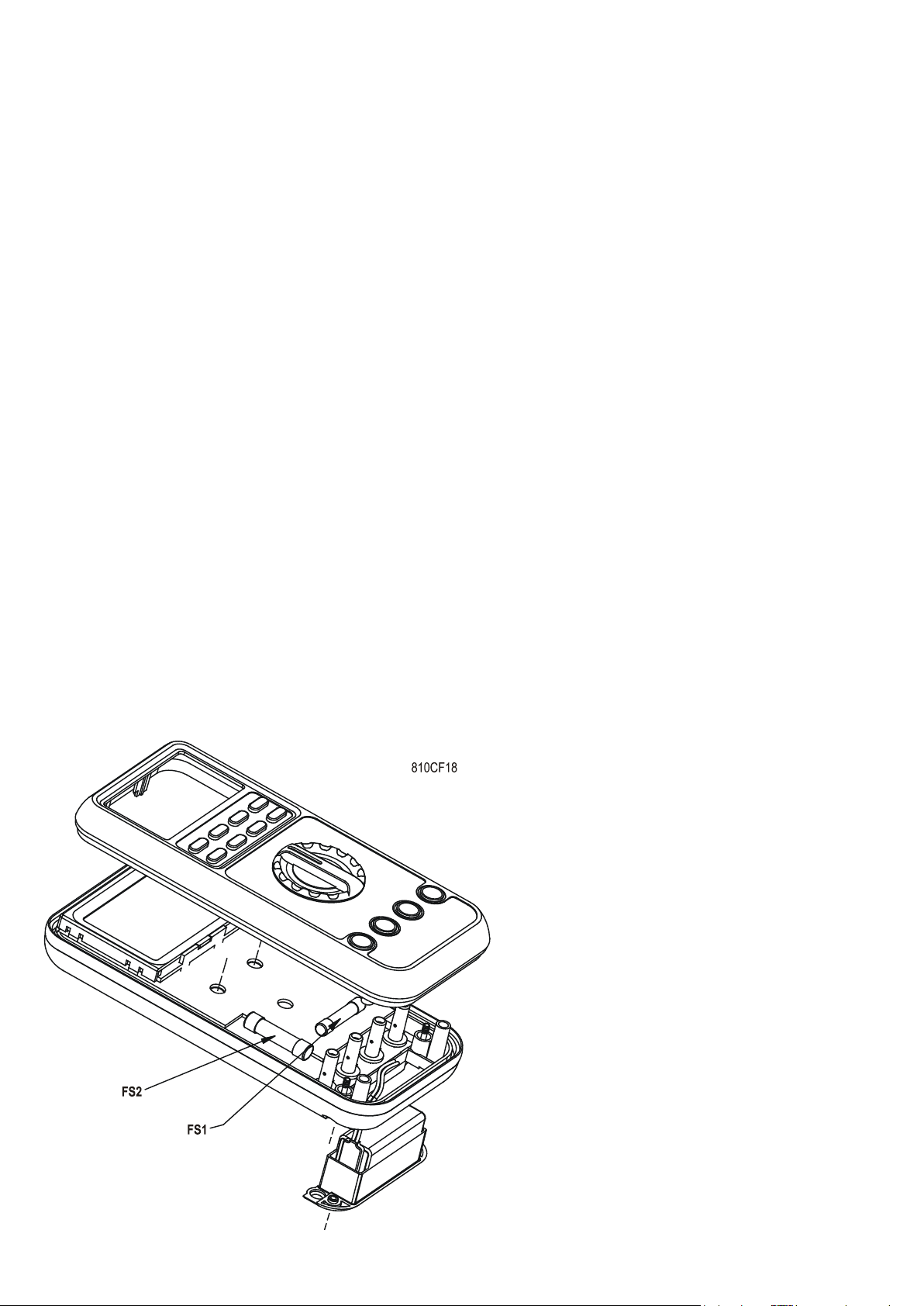

Fuse replacement (and also Battery
replacement for splash proof version
without battery access door):

Loosen the 4 screws from the case
bottom. Lift the end of the case
bottom nearest the input jacks until it
unsnaps from the case top. Replace
the blown fuse(s) and/or the battery.

12

Replace the case bottom, and ensure that all the gaskets are properly seated and
the two snaps on the case top (near the LCD side) are engaged. Re-fasten the screws.

6) Specifications
General Specifications
Display : 3-3/4 digits 4000 counts LCD display
Polarity : Automatic
Update Rate : 3 per second nominal

Operating Temperature : 0C to 40C
Relative Humidity : Maximum relative humidity 80% for temperature up to 31C

decreasing linearly to 50% relative humidity at 40C

Altitude : Operating below 2000m
Pollution degree : 2
Storage Temperature : -20C to 60C, < 80% R.H. (with battery removed)
Temperature Coefficient : nominal 0.15 x (specified accuracy)/ C @(0C -18C or

28C -40C), or otherwise specified

Sensing : Average sensing for Models 805s & 806s. True RMS for Model 807s
Safety : The meter protection rating, against the users, is double insulation per

IEC/UL/EN61010-1 Ed. 3.0, IEC/EN61010-2-030 Ed. 1.0, IEC/EN61010-2-033 Ed. 1.0,
IEC/UL/EN61010-031 Ed. 1.1 and CAN/CSA-C22.2 No. 61010-1-12 Ed. 3.0 to

Category II 1000 Volts, CAT III 600Volts and CAT IV 300Volts AC & DC.

Terminals (to COM) measurement category:

V / A / mAA : Category II 1000V, CAT III 600V and CAT IV 300V AC & DC.

Overload Protections :

A & mA : 0.4A/1000V DC/AC rms, IR 30kA @ 1000V DC/AC rms
A : 11A/1000V DC/AC rms, IR 20kA @ 1000V DC/AC rms
V : 1100V DC/AC rms

Hz, Ohm & others : 1000V DC/AC rms

Transient protection : 6kV (1.2/50s surge)
Power Supply : 1.5V AAA Size (NEDA 24A or IEC LR03) battery X 2
Power Consumption : 3.2 mA typical
Low Battery : Below approx. 2.4V
E.M.C. : Meets EN61326(1997, 1998/A1), EN61000-4-2(1995), and

EN61000-4-3(1996)
In an RF field of 3V/m:

Capacitance function is not specified

AC 4.000V range: Total Accuracy = Specified Accuracy + 700 digits

13

AC 400.0A range: Total Accuracy = Specified Accuracy + 300 digits

Other function ranges: Total Accuracy = Specified Accuracy + 40 digits
Performance above 3V/m is not specified

Sleep Mode Timing : Idle for 30 minutes
Sleep Mode Consumption : 300A typical for Models 805s & 806s; 360A typical for

Model 807s

Dimension : L186mm X W87mm X H35.5mm; L198mm X W97mm X H55mm with
holster

Weight : 296 gm; 396 gm with holster
Special Features : 25ms Max Hold; Data Hold; Relative zero mode; Beep-jack™ input

warning; Back-lighted display (Model 807s only)

Accessories : Test leads (pair), batteries installed, user's manual
Optional Accessories : Banana plug type-K bead probe Bkp60 x 1 (Models 806s &

807s only), Banana pins to type-K socket plug adapter Bkb32 (Models 806s & 807s

only)

Electrical Specifications

Accuracy is ±(% reading digits + number of digits) or otherwise specified, at 23C ±
5C & less than 75% R.H.

1)

Model 807s True RMS accuracy of ACV & ACA is specified from 5 % (10% for

AC400.0mV range) to 100 % of range, or otherwise specified. Maximum Crest Factor <

1.75 : 1 at full scale & < 3.5 : 1 at half scale, and with frequency components within the
specified frequency bandwidth for non-sinusoidal waveforms

14

DC Voltage

RANGE

Accuracy

400.0 mV

0.3% + 4d

4.000V, 40.00V,

400.0V

0.5% + 3d

1000V

1.0% + 4d

NMRR : >50dB @ 50/60Hz
CMRR : >120dB @ DC, 50/60Hz,

Rs=1k

Input Impedance : 10M, 30pF nominal

(1000M for 400.0mV range)

AC Voltage

RANGE

Accuracy

1)

50Hz -- 500Hz

400.0mV*

4.0% + 5d

4.000V, 40.00V,

400.0V

1.5% + 5d

1000V

4.0% + 5d

CMRR: >60dB @ DC to 60Hz, Rs=1k
Input Impedance: 10M, 30pF nominal

*Selection by RANGE button manually,
and is specified from AC 10mV (AC
40mV for True RMS Model 807s) and
up

Max Hold (Voltage & Current)

Specified accuracy ± 50 digits for
changes > 25ms in duration

DC Current

RANGE

Accuracy

Burden

Voltage

400.0A

2.0% + 5d

0.15mV/A

4000A

1.2% + 3d

0.15mV/A

40.00mA

2.0% + 5d

3.3mV/mA

400.0mA

1.2% + 3d

3.3mV/mA

4.000A

2.0% + 5d

0.03V/A

10.00A*

1.2% + 3d

0.03V/A

*10A continuous, 20A for 30 second
max with 5 minutes cool down interval

AC Current

RANGE

Accuracy 1)

Burden

Voltage

50Hz -- 500Hz

400.0A

2.0% + 6d

0.15mV/A

4000A

1.5% + 4d

0.15mV/A

40.00mA

2.0% + 6d

3.3mV/mA

400.0mA

1.7% + 4d

3.3mV/mA

4.000A

2.0% + 6d

0.03V/A

10.00A*

1.8% + 4d

0.03V/A

*10A continuous, 20A for 30 second
max with 5 minutes cool down interval

Diode Tester

Open Circuit

Voltage

Test Current

(Typical)

< 1.6 VDC

0.25mA

15

Type-K Temperature (Models 806s &

807s)

RANGE

Accuracy*

-20 C TO 300 C

2% + 3 C

-4 F TO 572 F

2% + 6 F

*Type-K thermocouple range &
accuracy not included

Audible Continuity Tester

Audible threshold : between 10 and
120

Ohms

RANGE

Accuracy

400.0

0.8% + 6d

4.000k, 40.00k,

400.0k

0.6% + 4d

4.000M

1.0% + 4d

40.00M

2.0% + 4d

Open Circuit Voltage : 0.4VDC typical

Capacitance

RANGE*

Accuracy**

500.0nF, 5.000F,

50.00F, 500.0F,
3000F

3.5%*** + 6d

*Additional 50.00nF range accuracy is
not specified
**Accuracies with film capacitor or
better
***Specified with battery voltage above

2.8V (approximately half full battery).
Accuracy decreases gradually to 12%
at low battery warning voltage of
approximately 2.4V

Hz Frequency

RANGE*

Accuracy**

50.00Hz, 500.0Hz,

5.000kHz, 50.00kHz,

500.0kHz, 1.000MHz

0.5%+4d

*Additional 5.000Hz range accuracy &
sensitivity are not specified
**Accuracy is specified at < 20VAC rms
Input Signal : Square wave with duty
cycle > 40% & < 70%; or Sine wave
Vrms AC
Sensitivity :

10Hz--20Hz : > Sine 0.9Vrms;
20Hz--500kHz : > 2.6Vp; or Sine

1.9Vrms;

500kHz--1MHz : > 4.2Vp; or Sine

3Vrms

Update Rate : 2 per second nominal

LIMITED WARRANTY

BRYMEN warrants to the original product purchaser that each product it manufactures
will be free from defects in material and workmanship under normal use and service
within a period of one year from the date of purchase. BRYMEN's warranty does not
apply to accessories, fuses, fusible resistors, spark gaps, batteries or any product
which, in BRYMEN's opinion, has been misused, altered, neglected, or damaged by
accident or abnormal conditions of operation or handling.

To obtain warranty service, contact your nearest BRYMEN authorized agent or send
the product, with proof of purchase and description of the difficulty, postage and
insurance prepaid, to BRYMEN TECHNOLOGY CORPORATION. BRYMEN assumes
no risk for damage in transit. BRYMEN will, at its option, repair or replace the defective
product free of charge. However, if BRYMEN determines that the failure was caused
by misused, altered, neglected, or damaged by accident or abnormal conditions of
operation or handling, you will be billed for the repair.

THIS WARRANTY IS EXCLUSIVE AND IS IN LIEU OF ALL OTHER WARRANTIES,
EXPRESSED OR IMPLIED, INCLUDING BUT NOT LIMITED TO ANY IMPLIED
WARRANTY OR MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE
OR USE. BRYMEN WILL NOT BE LIABLE FOR ANY SPECIAL, INDIRECT,
INCIDENTAL OR CONSEQUENTIAL DAMAGES.

BRYMEN TECHNOLOGY CORPORATION

TEL: [phone]

FAX: [phone]

http://www.brymen.com

PRINTED ON RECYCLABLE PAPER, PLEASE RECYCLE

COPYRIGHT © MMXIII Btc, ALL RIGHTS RESERVED

P/N: 7M1C-1291-0000 PRINTED IN TAIWAN
