Brymen BM195, BM197 User Manual

USER'S
MANUAL

BM195
BM197

Versatile
Clamp-on
Multimeter
Series

1

1) SAFETY

This manual contains information and warnings that must be followed for operating the
instrument safely and maintaining the instrument in a safe operating condition. If the
instrument is used in a manner not specified by the manufacturer, the protection
provided by the instrument may be impaired.

The meter protection rating, against the users, is double insulation per
UL/IEC/EN61010-1 Ed. 2 & 3, IEC/EN61010-2-030 Ed. 1, CAN/CSA C22.2 No. 61010­1 Ed. 2 & 3, IEC/EN61010-2-032 Ed. 2 & IEC/EN61010-031 Ed. 1.1:

Measurement Category IV 1000V AC & DC.

Per IEC61010-1 (2010) OVERVOLTAGE CATEGORY
OVERVOLTAGE CATEGORY ll (CAT II) is for equipment intended to be supplied

from the building wiring. It applies both to plug-connected equipment and to
PERMANENTLY CONNECTED EQUIPMENT.

OVERVOLTAGE CATEGORY lll (CAT III) is for equipment intended to form part of a
building wiring installation. Such equipment includes socket outlets, fuse panels, and
some MAINS installation control equipment.

OVERVOLTAGE CATEGORY lV (CAT IV) is for equipment installed at or near the
origin of the electrical supply to a building, between the building entrance and the main
distribution board. Such equipment may include electricity tariff meters and primary
overcurrent protection devices.

TERMS IN THIS MANUAL

WARNING identifies conditions and actions that could result in serious injury or even

death to the user.

CAUTION identifies conditions and actions that could cause damage or malfunction

in the instrument.

2

WARNING

To reduce the risk of fire or electric shock, do not expose this product to rain or
moisture. The meter is intended only for indoor use.

To avoid electrical shock hazard, observe the proper safety precautions when working
with voltages above 60 VDC or 30 VAC rms. These voltage levels pose a potential
shock hazard to the user. Before and after hazardous voltage measurements, test the
voltage function on a known source such as line voltage to determine proper meter
functioning.

Keep your hands/fingers behind the hand/finger barriers (of the meter and the test
leads) that indicate the limits of safe access of the hand-held part during measurement.
Inspect test leads, connectors, and probes for damaged insulation or exposed metal
before using the instrument. If any defects are found, replace them immediately. Only
use the test lead provided with the equipment or UL Listed Probe Assembly rated CAT
IV 1000V or better.

This Clamp-on meter is designed to apply around or remove from uninsulated
hazardous live conductors. But still, individual protective equipment must be used if
hazardous live parts in the installation where measurement is to be carried out could
be accessible.

CAUTION

Disconnect the test leads from the test points before changing meter functions.

INTERNATIONAL ELECTRICAL SYMBOLS

!!!!

Caution ! Refer to the explanation in this Manual
Caution ! Risk of electric shock
Earth (Ground)
Double Insulation or Reinforced insulation
Fuse
AC--Alternating Current
DC--Direct Current

Application around and removal from hazardous live conductors is permitted

2) CENELEC Directives

The instruments conform to CENELEC Low-voltage directive 2006/95/EC and
Electromagnetic compatibility directive 2004/108/EC

3

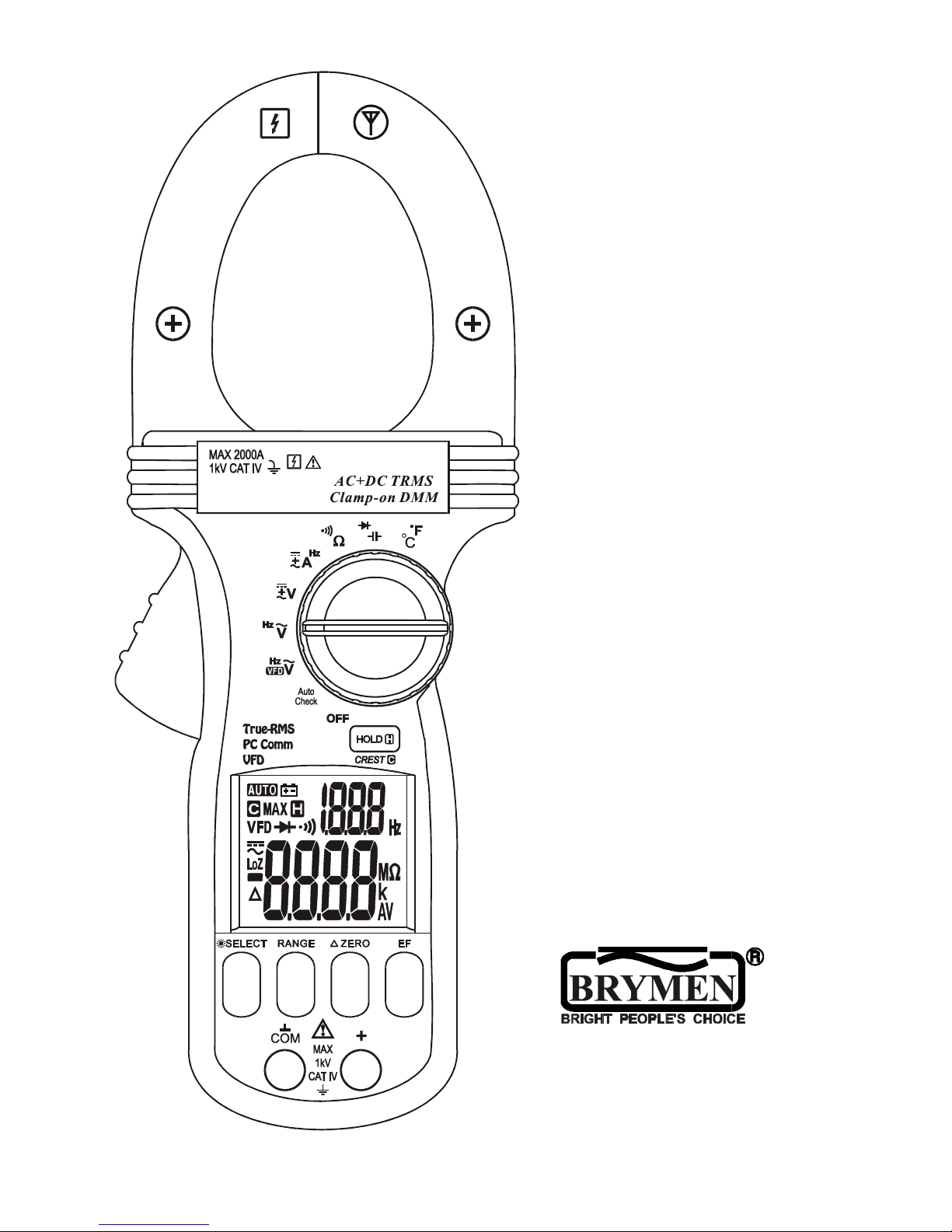

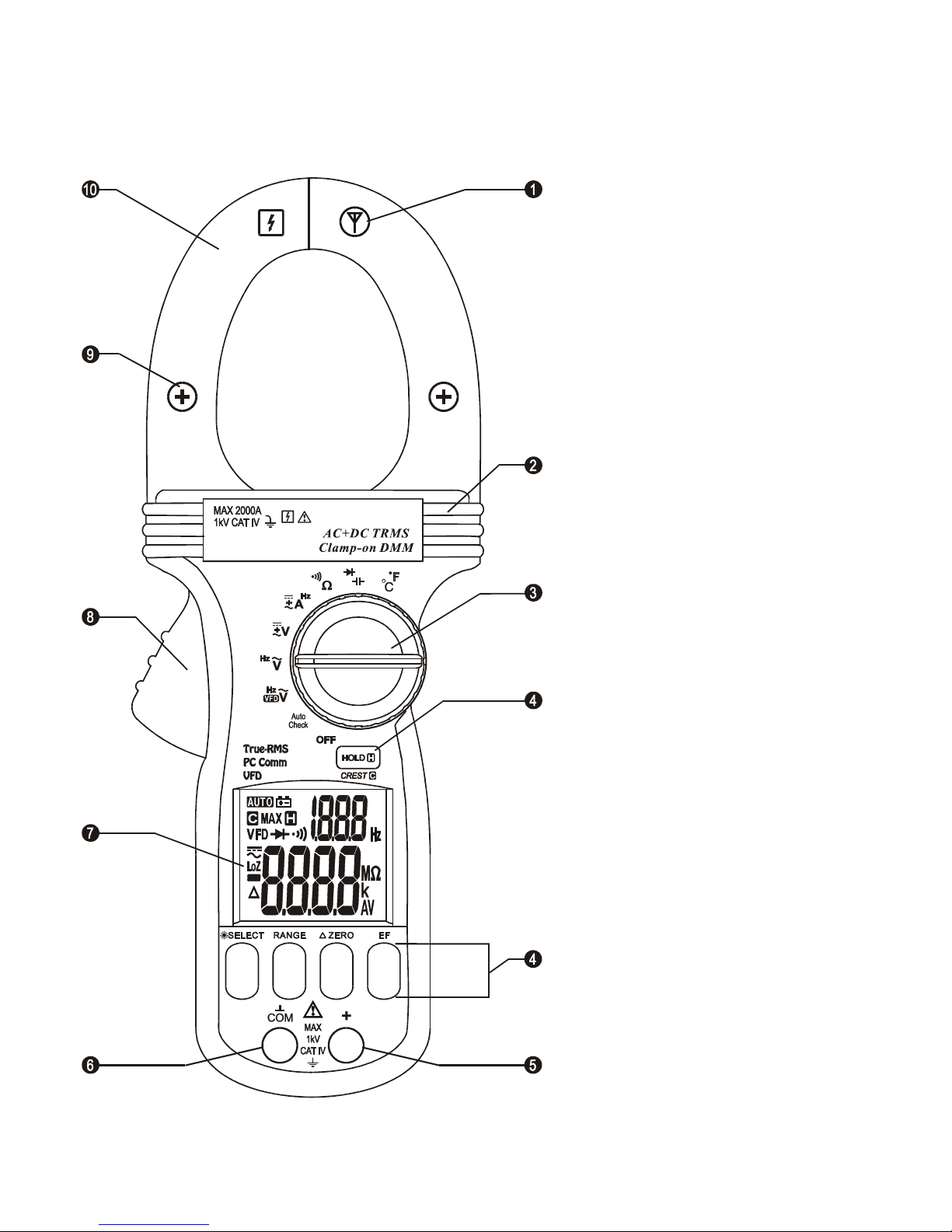

3) PRODUCT DESCRIPTION

This user's manual uses only representative model(s) for illustrations. Please refer
specification details for function availability to each model.

1) Antenna for Non-Contact EF­Detection

2) Hand/Finger Barrier to
indicate the limits of safe
access of the meter during
measurement

3) Rotary-switch Selector to turn
the power ON/OFF and
Select a function

4) Push-buttons for special

functions & features.

5) Input Jack for all functions
EXCEPT non-invasive DCA
& ACA current functions

6) Common (Ground reference)

Input Jack for all functions
EXCEPT non-invasive DCA &
ACA current functions

7) 3-5/6 digits 6000 counts & 3-

1/2 digits 2000 counts dual
numeric LCD display

8) Jaw trigger for opening the

clamp jaw

9) Jaw center (& DCA polarity)

Indicator, at where best DCA &
ACA accuracy is specified

10) Hall-effect Clamp Jaw for

AC & DC current magnetic field
pick up

4

4) OPERATION

CAUTION: Before and after hazardous voltage measurements, test the voltage
function on a known source such as line voltage to determine proper meter functioning.

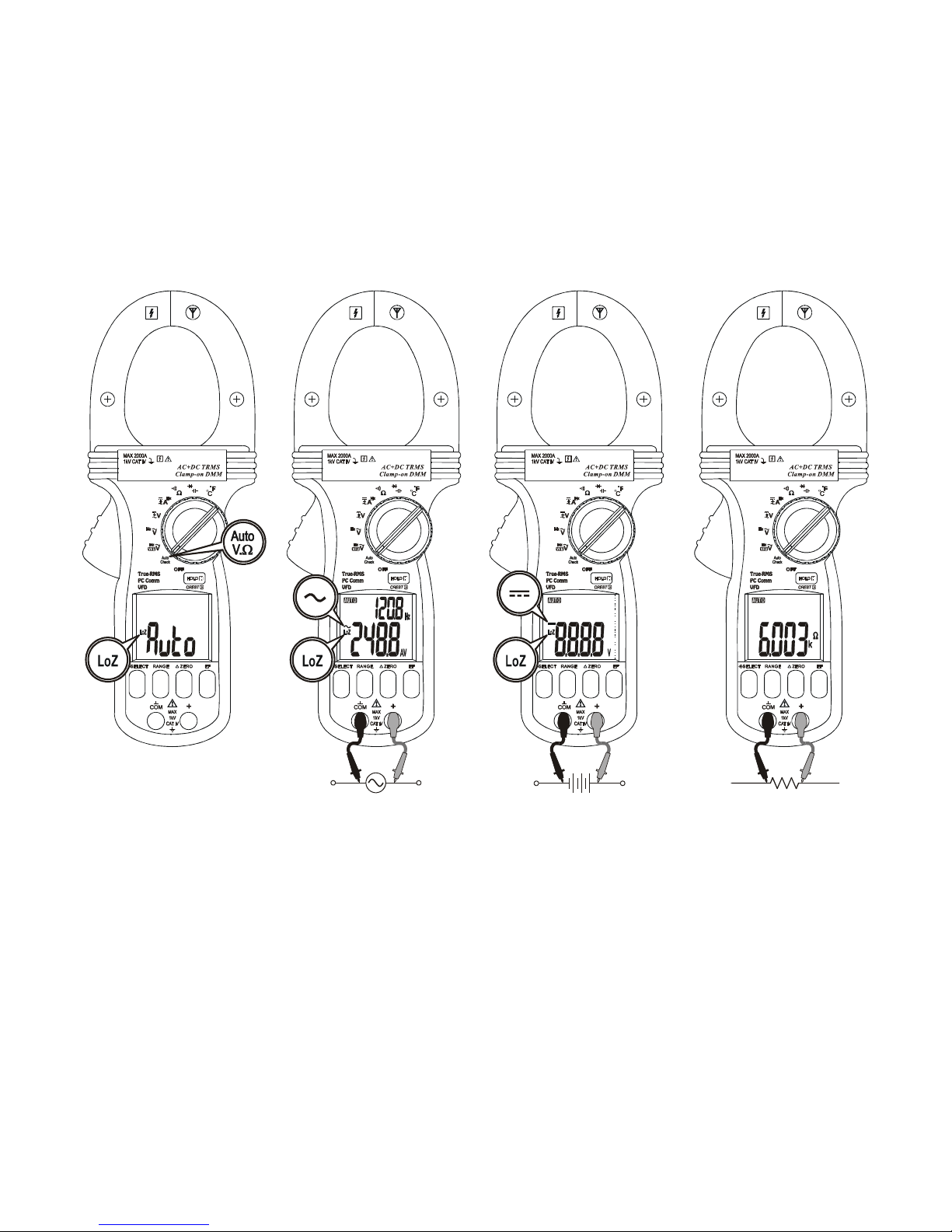

AutoCheckTM mode
This innovative AutoCheckTM feature automatically selects measurement function of

ACV

Hz

, DCV, or Resistance (ΩΩΩΩ) based on the input via test leads.

●With no input, the meter displays “Auto” when it is ready.

●With no voltage signal but a resistance below 10MΩ (nominal) is present, the meter
displays the resistance value. When the resistance is below the “Audible Threshold”,
the meter further gives a continuity beep tone.

●When a signal above the voltage threshold of 1.5V DC or AC up to the rated 1000V is
present, the meter displays the voltage value in appropriate DCV or ACV, whichever
larger in peak magnitude.

Note:
*Range-Lock and Function-Lock Feature: When a measurement reading is being
displayed in AutoCheck

TM

mode, press the RANGE or SELECT button momentarily 1

time can lock the range or function it was in. Press the button momentarily repeatedly

5

to step through the ranges or functions.
*As Hazardous-Alert: When making resistance measurements in AutoCheckTM
mode, an unexpected display of voltage readings alerts you that the object under test
is being energized.
*Ghost-voltage Buster: Ghost-voltages are unwanted stray signals coupled from
adjacent hard signals, which confuse common multimeter voltage measurements. Our
AutoCheckTM mode provides low (ramp-up) input impedance (approx. 2.5kΩ at low
voltage) to drain ghost voltages leaving mainly hard signal values on meter readings. It
is an invaluable feature for precise indication of hard signals, such as distinguishing
between hot and open wires (to ground) in electrical installation applications.

WARNING:
AutoCheckTM mode input impedance increases abruptly from initial 2.5kΩ to a few

hundred kΩ’s on high voltage hard signals. “LoZ” displays on the LCD to remind the
users of being in such low impedance mode. Peak initial load current, while probing
1000VAC for example, can be up to 566mA (1000V x 1.414 / 2.5kΩ), decreasing
abruptly to approx. 3.37mA (1000V x 1.414 / 420kΩ) within a fraction of a second. Do
not use AutoCheckTM mode on circuits that could be damaged by such low input
impedance. Instead, use rotary-switch selector or high input impedance voltage
modes to minimize loading for such circuits.

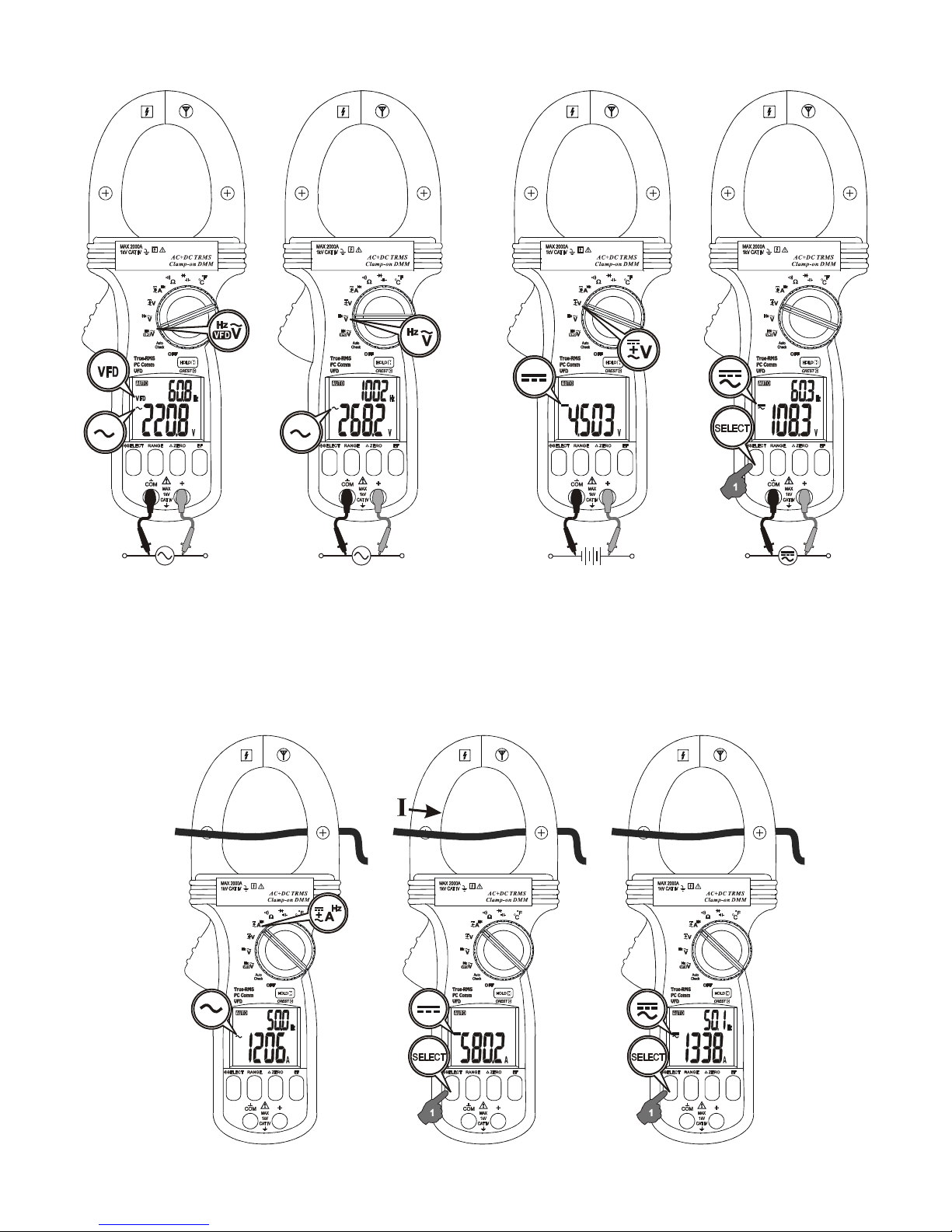

VFD-ACV

Hz

& ACV

Hz

functions

Inputs are made through the test leads terminals.

VFD-ACV

Hz

function is to deal with VFD (Variable Frequency Device) signals. It,
however, further pre-selects the most appropriate voltage-ranges and thus the Hz
trigger levels to best cope with most VFD-Voltage and VFD-Frequency applications.

Note: The Hz trigger level is determined by the AC/DC+AC Voltage or Current
function-range being in use. Press RANGE button to select

different

function-ranges

and thus

trigger levels manually.

DCV & DC+ACV

Hz

(Model 197 only) functions

Inputs are made through the test leads terminals. Defaults at DCV Function. Press
SELECT button momentarily and release to select DC+ACV

Hz

.

6

ACA Hz, DCA & DC+ACA

Hz

(Model 197 only) functions

Input is made through the clamp jaws for non-invasive current measurements. Defaults
at ACA

Hz

Function. Press SELECT button momentarily and release to select the

subject functions in sequence.

7

CAUTION (Application and removal of the Clamp-on meter)

For non-invasive current measurements, press the jaw trigger and clamp the jaws
around conductor(s) of only one single pole of a circuit for load current measurement.
Make sure the jaws are completely closed, or else it will introduce measurement errors.
Enclosing conductor(s) of more than one pole of a circuit may result in differential
current (like identifying leakage current) measurement. Locate the conductor(s) at the
Jaws center as much as possible to get the best measuring accuracy. For removal,
press the jaw trigger and remove the jaws from the conductor(s).

Adjacent current-carrying devices such as transformers, motors and conductor wires
will affect measurement accuracy. Keep the jaws away from them as much as possible
to minimize influence.

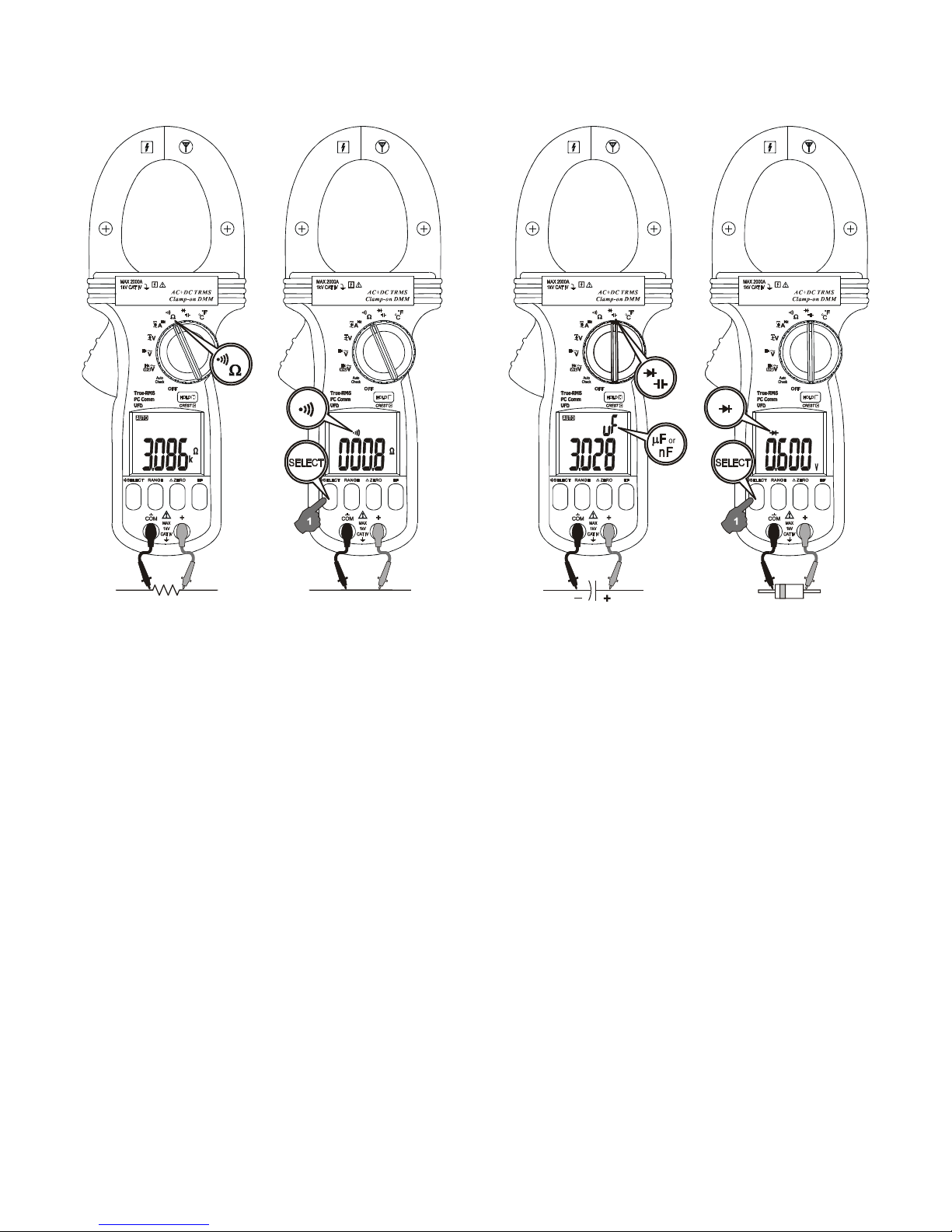

ΩΩΩΩ Resistance & Continuity functions

Inputs are made through the test leads terminals. Defaults at ΩΩΩΩ Resistance. Press
SELECT button momentarily and release to select. Continuity

Capacitance & Diode functions

Inputs are made through the test lead terminals. Defaults at Capacitance. Press
SELECT button momentarily and release to select Diode.

Note

When using Diode test function, normal forward voltage drop (forward biased) for a
good silicon diode is between 0.400V to 0.900V. A reading higher than that indicates a
leaky diode (defective). A zero reading indicates a shorted diode (defective). An OL
indicates an open diode (defective). Reverse the test leads connections (reverse
biased) across the diode. The digital display shows OL if the diode is good. Any other
readings indicate the diode is resistive or shorted (defective).

CAUTION

1. Using Resistance, Continuity, Diode or Capacitance function in a live circuit will
produce false results and may damage the meter. In many cases the suspected
component(s) must be disconnected from the circuit to obtain an accurate
measurement reading.

2. When using Capacitance function, discharge capacitor(s) before making any
measurements. Large value capacitors should be discharged through an appropriate
resistance load

8

9

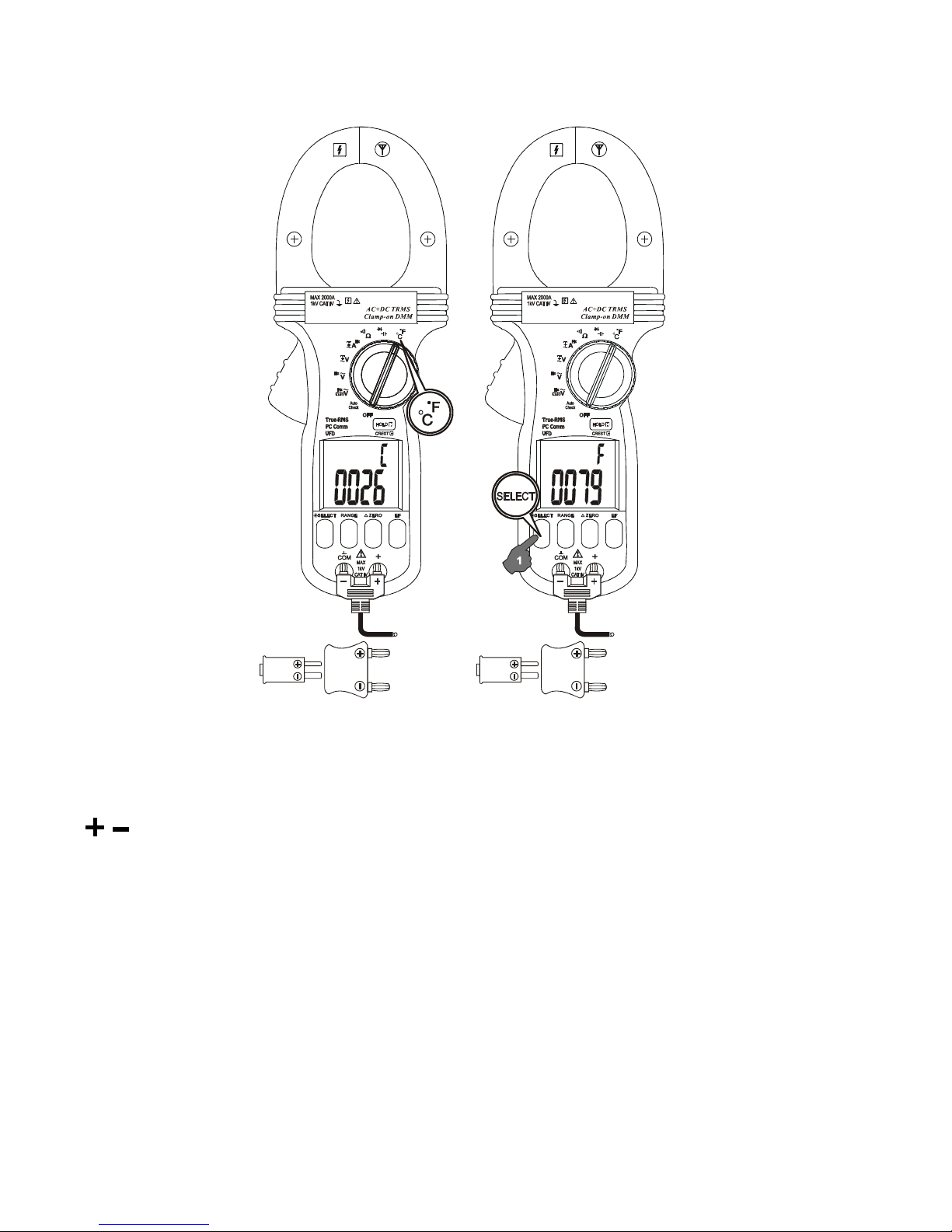

Temperature function (Model 197 only)

Defaults at oC (Celsius) readings. Press SELECT button momentarily and release to
select oF (Fahrenheit) readings. Inputs are made through the test leads terminals. Be
sure to insert the banana plug type-K temperature bead probe Bkp60 with correct

polarities. You can also use a plug adapter Bkb32 (Optional purchase) with
banana pins to type-K socket to adapt other type-K standard mini plug temperature
probes.

10

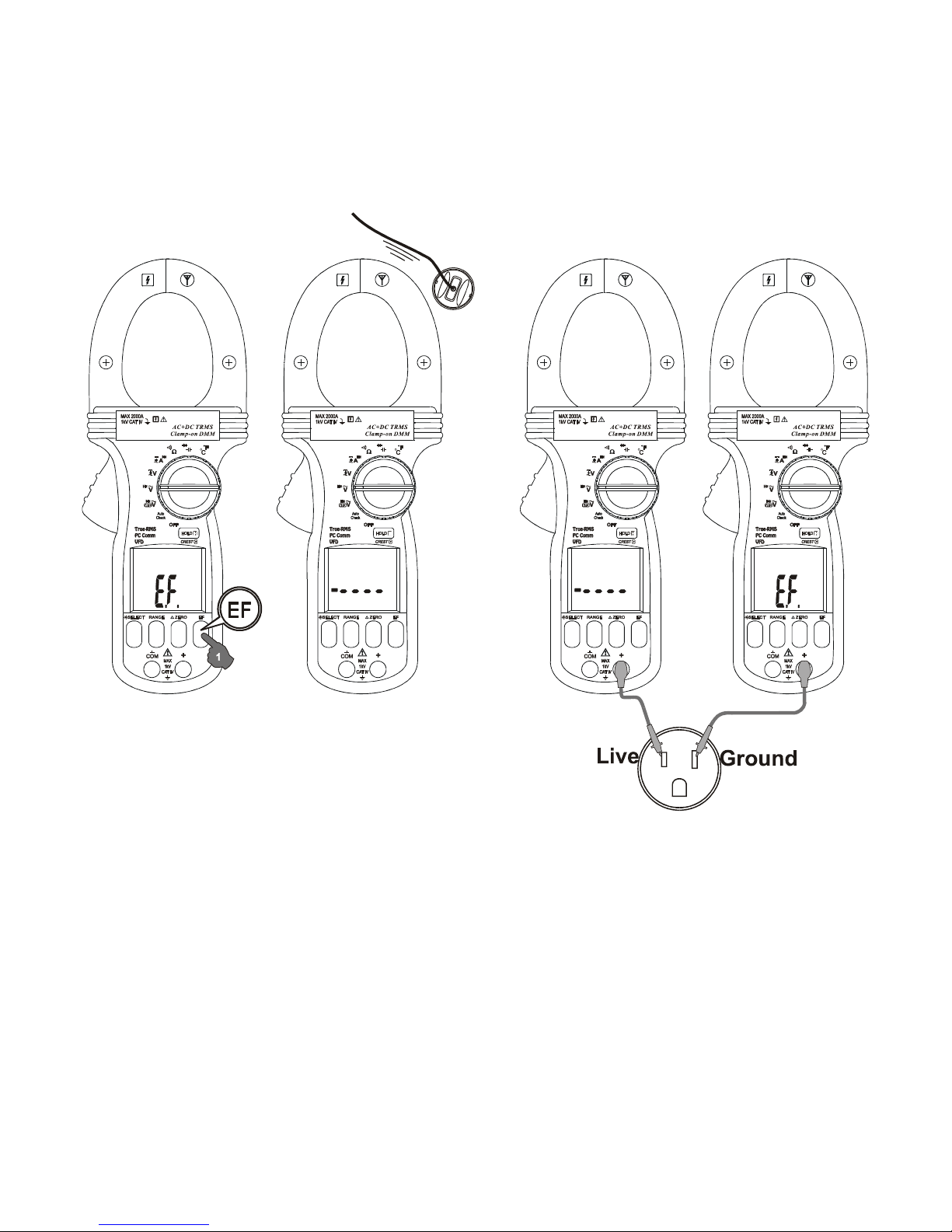

Electric Field EF-Detection

In Voltage or Current function, press the EF button momentarily and release to toggle
to EF-Detection feature. The meter displays “E.F.” when it is ready. Signal strength is
indicated as a series of bar-graph segments on the display together with variable beep
tones.

●Non-Contact EF-Detection: An antenna is located along the top-right end of the
clamp jaw, which detects electric field surrounds energized conductors. It is ideal for
tracing live wiring connections, locating wiring breakage and to distinguish between live
or earth connections.

●Probe-Contact EF-Detection: For more precise indication of live wires, such as
distinguishing between live and ground connections, use the Red (+) test probe for
direct contact measurements.

PC computer interface capabilities

The instrument equips with an optical isolated interface port at the meter back for data
communication. Optional purchase PC interface kit BRUA-19X is required to connect

11

the meter to the PC computer RS232 or USB ports. Press and hold the HOLD
button while turning the meter on to enable meter PC-COMM output.

Hold

The hold feature freezes the display for later view. Press the HOLD button momentarily
and release to toggle the hold feature.

5ms CREST-MAX capture mode

Press CREST (HOLD) button for one second or more and release to activate CREST­MAX capture (Instantaneous Peak-Hold) mode to capture signal peak of voltage or
current in duration as short as 5ms. The LCD “C” & “MAX” turn on. Press again the
button momentarily and release can toggle the combination use of HOLD feature.
Press the button for 1 second or more and release to exit CREST-MAX capture mode.
Auto-ranging and Auto-Power-Off are disabled automatically in this mode.

Backlighted LCD display (Models 197 only)

Press the SELECT button for 1 second or more to toggle the LCD backlight. The
backlight will also be turned off automatically after 32 seconds to extend battery life.

Relative-Zero ( ) mode

Relative-Zero allows the user to offset the meter consecutive measurements with the
main display displaying reading as the reference value. Press the REL button
momentarily and release to toggle Relative-Zero mode.

Manual or Auto-ranging

Press the RANGE button momentarily and release to select manual-ranging, and the
meter will remain in the range it was in, the LCD turns off. Press the button
again to step through the ranges. Press and hold the button for 1 second or more and
release to resume auto-ranging.
Note: Manual-ranging feature is not available in Hz and function ranges.

Set Beeper Off

Press the RANGE button while turning the meter on to temporarily disable the Beeper
feature. Turn the rotary switch OFF and then back on to resume.

Auto-Power-Off (APO)

The Auto-Power-Off (APO) mode turns the meter off automatically to extend battery life
after approximately 34 minutes of no rotary switch or push button operations. To wake
up the meter from APO, press the SELECT button momentarily and release or turn the
rotary switch OFF and then back on. Always turn the rotary switch to the OFF position

12

when the meter is not in use

Disabling Auto-Power-Off

Press and hold the SELECT button while turning the meter on to temporarily disable
the Auto-Power-Off (APO) feature. Turn the rotary switch OFF and then back on to
resume.

5) MAINTENANCE
WARNING

To avoid electrical shock, disconnect the meter from any circuit, remove the test leads
from the input jacks and turn OFF the meter before opening the case. Do not operate
with open case.

Trouble Shooting

If the instrument fails to operate, check batteries and test leads etc., and replace as
necessary. Double check operating procedure as described in this user’s manual.

If the instrument voltage-resistance input terminal has subjected to high voltage
transient (caused by lightning or switching surge to the system under test) by accident
or abnormal conditions of operation, the protective impedance components in series
might be blown off (become high impedance) like fuses to protect the user and the
instrument. Most measuring functions through this terminal will then be open circuit.
Such components should then be replaced by qualified technician. Refer to the
LIMITED WARRANTY section for obtaining warranty or repairing service.

Accuracy and Calibration

Accuracy is specified for a period of one year after calibration. Periodic calibration at
intervals of one year is recommended to maintain meter accuracy. Refer to the
LIMITED WARRANTY section for obtaining calibration, repairing or warranty service.

Cleaning and Storage

Periodically wipe the case with a damp cloth and mild detergent; do not use abrasives
or solvents. If the meter is not to be used for periods of longer than 60 days, remove
the batteries and store them separately.

Battery replacement

The meter uses standard 1.5V AA Size (IEC LR6) battery X 2

13

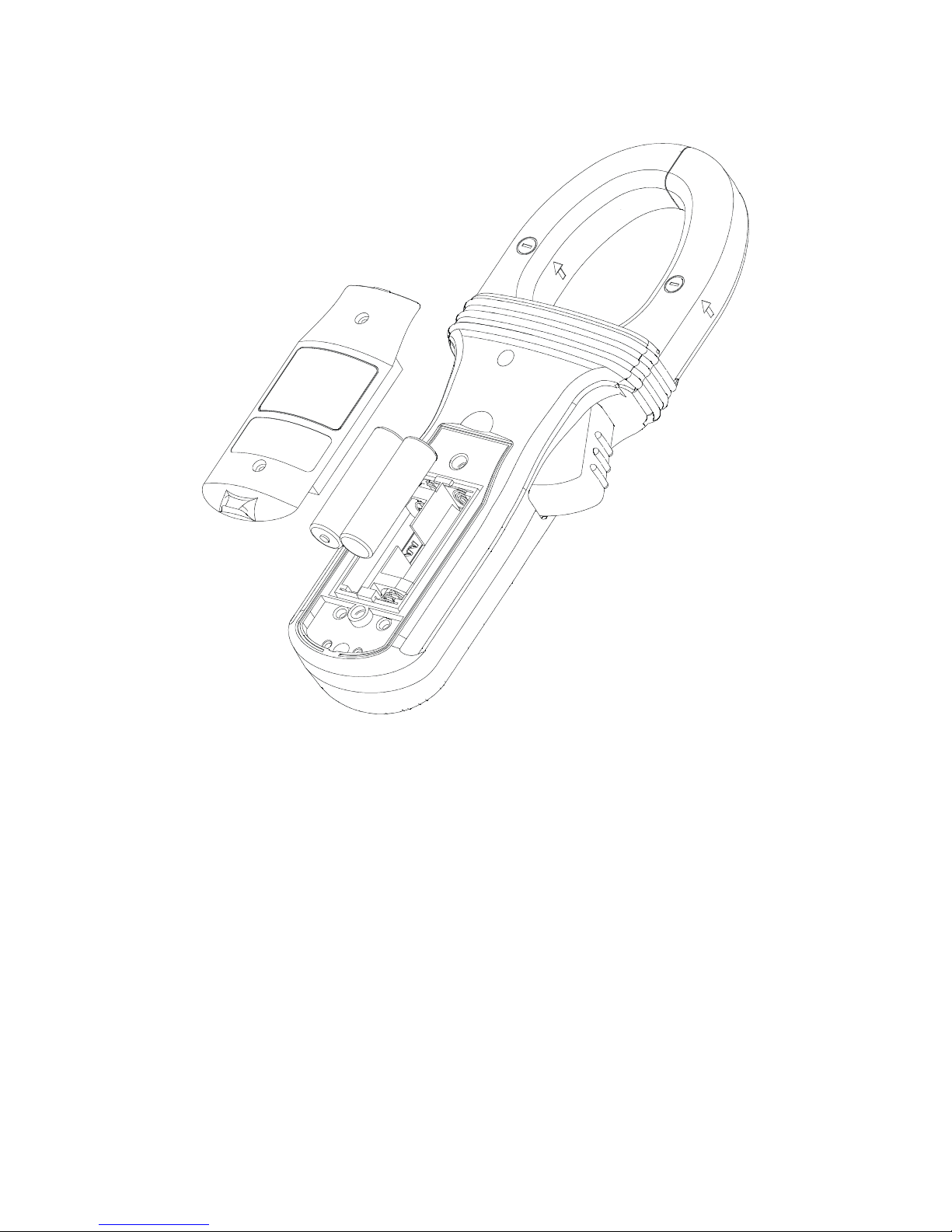

Loosen the 2 captive screws from the battery cover case. Lift the battery cover case.
Replace the batteries. Replace battery cover case. Re-fasten the screws.

14

GENERAL SPECIFICATIONS
Display: 3-5/6 digits 6000 counts. & 3-1/2 digits 1,999 counts for Hz
Polarity: Automatic
Update Rate: 5 per second nominal;
Operating Temperature: 0°C to 40°C
Relative Humidity: Maximum relative humidity 80% for temperature up to 31°C decreasing

linearly to 50% relative humidity at 40°C

Pollution degree: 2
Storage Temperature: -20°C to 60°C, < 80% R.H. (with battery removed)
Altitude: Operating below 2000m
Temperature Coefficient: nominal 0.15 x (specified accuracy)/ °C @(0°C -- 18°C or 28°C -

- 40°C), or otherwise specified

Sensing: Average sensing for model 195; True RMS for model 197
Safety: Double insulation per

UL/IEC/EN61010-1 Ed. 2 & 3, IEC/EN61010-2-030 Ed. 1,
CAN/CSA C22.2 No. 61010-1 Ed. 2 & 3, IEC/EN61010-2-032 Ed. 2 & IEC/EN61010­031 Ed. 1.1

to CAT IV 1000V AC & DC

Transient Protection: 12kV (1.2/50µs surge)
Overload Protections:

Clamp-on jaws: 2000A rms continuous

“ + “ & COM Terminals (all other functions): 1000V rms
E.M.C.: Meets EN61326-1:2006 (EN55022, EN61000-3-2, EN61000-3-3, EN61000-4-2,
EN61000-4-3, EN61000-4-4, , EN61000-4-5, EN61000-4-6, EN61000-4-8, EN61000-4-11)

In an RF field of 3V/m:
Capacitance function is not specified

Other function ranges: Total Accuracy = Specified Accuracy + 200 digits

Performance above 3V/m is not specified

Power Supply: 1.5V AA Size (IEC LR6) battery X 2
Power Consumption: Typical 14mA for Current functions, and 5.2mA for others
Low Battery: Below approx. 2.4V
APO Timing: Idle for 34 minutes
APO Consumption: 10µA typical
Dimension: L264mm X W97mm X H43mm
Weight: 608 gm
Jaw opening & Conductor diameter : 55mm max
Accessories: Test leads (pair), user's manual, Bkp60 banana plug K-type thermocouple x 1

(Model 197 only), Soft carrying pouch
Optional purchase accessories: USB interface kit BRUA-19X; BKB32 banana plug to type­K socket plug adaptor (Model 197 only)

Special Features: AutoCheckTM V&Ω; VFD-V & VFD-Hz; Backlighted LCD (Model 197
only);

5ms CREST-MAX Capture

mode (Peak Hold); Auto-ranging Relative-Zero mode;

15

Display Hold; EF-Detection (NCV); Optional Interface capabilities with PC computers

Electrical Specifications

Accuracy is ±(% reading digits + number of digits) or otherwise specified, at 23°C ± 5°C &
less than 75% relative humidity.
True RMS model 197 voltage accuracies are specified from 5 % to 100 % of range or
otherwise specified. Maximum Crest Factor < 1.4 : 1 at full scale & < 2.8 : 1 at half scale, and
with frequency components within the specified frequency bandwidth for non-sinusoidal
waveforms.

DC Voltage

RANGE Accuracy

6.000V, 60.00V,

600.0V & 1000V

0.5%+5d

Input Impedance: 10MΩ, 50 pF nominal

AutoCheckTM_ DCV

RANGE Accuracy

6.000V, 60.00V,

600.0V & 1000V

1.3% + 5d

AutoCheckTM Lo-Z DCV Threshold:

> +1.5VDC & < -1.5VDC nominal

AutoCheckTM Lo-Z DCV Input Impedance:

Initially approx. 2.5kΩ, 600pF nominal;
Impedance increases abruptly within a
fraction of a second as display voltage is
above 50V (typical). Ended up impedances

vs display voltages typically are:
10kΩ @100V
60kΩ @300V
200kΩ @600V
420kΩ @1000V

AC Voltage

RANGE Accuracy
50Hz ~ 400Hz

6.000V, 60.00V,

600.0V & 1000V

1.2% + 5d

Input Impedance: 10MΩ, 50 pF nominal

AC+DC Voltage (Model 197 Only)

RANGE Accuracy
DC, 50Hz ~ 400Hz

6.000V, 60.00V,

600.0V & 1000V

1.4% + 7d

Input Impedance: 10MΩ, 50 pF nominal

AutoCheck_ACV

RANGE Accuracy

1)

50Hz ~ 60Hz

6.000V, 60.00V,

600.0V & 1000V

1.5%+5d

AutoCheckTM Lo-Z ACV Threshold:

> 1.5V(50/60Hz) nominal

AutoCheckTM Lo-Z ACV Input Impedance:

Initially approx. 2.5kΩ, 600pF nominal;
Impedance increases abruptly within a
fraction of a second as display voltage is
above 50V (typical). Ended up impedances

vs display voltages typically are:
10kΩ @100V
60kΩ @300V
200kΩ @600V
420kΩ @1000V

16

VFD_ACV (with Low Pass Filter )

RANGE Accuracy

1)

10Hz ~ 20Hz

6.000V, 60.00V,

600.0V & 1000V

4%+80d

20Hz ~ 200Hz

6.000V, 60.00V,

600.0V & 1000V

2%+60d

200Hz - 400Hz

2)

6.000V, 60.00V,

600.0V & 1000V

7%+80d

1)

Not specified for fundamental frequency >

400Hz

2)

Accuracy linearly decreases from 2% +

60d @ 200Hz to 7% + 80d @ 400Hz

CREST-MAX Capture Mode

Accuracy: Specified accuracy plus 250
digits for changes > 5ms in duration

Ohm & AutoCheckTM_Ohm

1)

RANGE Accuracy

600.0Ω, 6.000KΩ, 60.00KΩ

0.5%+5d

600.0KΩ

0.8%+5d

6.000MΩ

1.2%+5d

40.00MΩ

2.3%+5d

Open Circuit Voltage: 0.45VDC typical

1)

AutoCheckTM Ohm Threshold:

< 10.00MΩ nominal

Audible Continuity Tester

Audible Threshold: Between 10Ω and 200Ω
Response time: 32ms approx.

Capacitance

RANGE Accuracy

1)

60.00nF, 600.0nF, 6.000µF

2.0%+5d

60.00µF,600.0uF

3.5%+5d

2)

2000µF

4.0%+5d

2)

1)

Accuracies with film capacitor or better

2)

Temperature Coefficient: 0.25 x (specified
accuracy)/ °C @(0°C -- 18°C or 28°C -­40°C)

Diode Tester

RANGE Accuracy

1.000V 1.0% + 3d

Test Current: 0.56mA typically
Open Circuit Voltage: < 1.8VDC typically

DCA Current (Clamp on)

RANGE Accuracy

1) 2)

200.0A 2.0%+5d
0~500A 2.0%+5d
500~2000A 3.0%+5d

1)

Induced error from adjacent current­carrying conductor: <0.1A/A

2)

Specified with Relative Zero mode
applied to offset the non-zero residual
readings, if any

Temperature (Model 197 only)

RANGE Accuracy

-50 oC ~ 1000 oC 0.3% +4d

-58 oF ~ 1832 oF 0.3% + 6d

K-type thermocouple range & accuracy not
included

17

ACA Current (Clamp on)

RANGE Accuracy

1)

50Hz ~ 60Hz

200.0A 2.0%+5d
0~500A 2.5%+5d
500~2000A 3.0%+5d
40Hz ~ 50Hz & 60Hz ~ 400Hz

200.0A 2.5%+5d
0~500A 3.0%+5d
500~1000A 3.5%+5d
1000~2000A unspecified

True RMS Crest Factor (Model 197 only):

< 1.4 : 1 at full scale & < 2.8: 1 at half
scale

1)

Induced error from adjacent current-

carrying conductor: < 0.1A/A

DC+ACA Current (Clamp on)
(Model 197 Only)

RANGE Accuracy

1) 2)

DC, 50Hz ~ 60Hz

200.0A, 2000A 3.0%+8d
40Hz ~ 50Hz & 60Hz ~ 400Hz

200.0A 3.5%+8d
0~1000A 3.5%+8d
1000~2000A unspecified

True RMS Crest Factor:

< 1.4 : 1 at full scale & < 2.8 : 1 at half
scale

1)

Induced error from adjacent current-

carrying conductor: < 0.1A/A

2)

Specified with Relative Zero mode
applied to offset the non-zero residual
readings, if any

Hz Line Level Frequency

Function

Sensitivity

(Sine RMS)

Range

6V 2V

2)

40Hz ~ 1999

Hz

60V 20V

2)

40Hz ~ 1999Hz

600V 100V

2)

40Hz ~ 1999Hz

1000V 600V

3)

40Hz ~ 1999Hz

200A 10A

2)

20Hz ~ 400Hz

2000A 100A

2)

20Hz ~ 400Hz

VFD 6V

1)

0.6V~2.4V

2)

10Hz ~ 400Hz

VFD 60V

1)

6~24V

2)

10Hz ~ 400Hz

VFD 600V

1)

60V~240V

2)

10Hz ~ 400Hz

Accuracy: 0.1%+4d

1)

VFD sensitivity linearly decreases from

10% F.S. @ 200Hz to 40% F.S. @ 400Hz

2)

DC-bias, if any, not more than 50% of Sine

RMS

3)

DC-bias, if any, not more than 100V

Non-Contact EF-Detection

Typical Voltage

Bar-

Graph

Indication
20V (tolerance: 10V ~ 36V) ­55V (tolerance: 23V ~ 85V) - - ­110V (tolerance: 59V ~ 1000V)

- - - - -

Indication: Bar-graph segments & audible

beep tones proportional to the field

strength
Detection Frequency: 50/60Hz
Detection Antenna: Top side of the
stationary jaw
Probe-Contact EF-Detection: For more
precise indication of live wires, such as
distinguishing between live and ground
connections, use the Red (+) test probe for
direct contact measurement

- NOTE -

LIMITED WARRANTY

BRYMEN warrants to the original product purchaser that each product it manufactures
will be free from defects in material and workmanship under normal use and service
within a period of one year from the date of purchase. BRYMEN's warranty does not
apply to accessories, fuses, fusible resistors, spark gaps, batteries or any product
which, in BRYMEN's opinion, has been misused, altered, neglected, or damaged by
accident or abnormal conditions of operation or handling.

To obtain warranty service, contact your nearest BRYMEN authorized agent or send
the product, with proof of purchase and description of the difficulty, postage and
insurance prepaid, to BRYMEN TECHNOLOGY CORPORATION. BRYMEN assumes
no risk for damage in transit. BRYMEN will, at its option, repair or replace the
defective product free of charge. However, if BRYMEN determines that the failure was
caused by misused, altered, neglected, or damaged by accident or abnormal
conditions of operation or handling, you will be billed for the repair.

THIS WARRANTY IS EXCLUSIVE AND IS IN LIEU OF ALL OTHER WARRANTIES,
EXPRESSED OR IMPLIED, INCLUDING BUT NOT LIMITED TO ANY IMPLIED
WARRANTY OR MERCHANTABILITY OR FITNESS FOR A PARTICULAR
PURPOSE OR USE. BRYMEN WILL NOT BE LIABLE FOR ANY SPECIAL,
INDIRECT, INCIDENTAL OR CONSEQUENTIAL DAMAGES.

BRYMEN TECHNOLOGY CORPORATION

TEL:[phone]

FAX:[phone]

http://www.brymen.com

PRINTED ON RECYCLABLE PAPER, PLEASE RECYCLE

COPYRIGHT © MMXII Btc, ALL RIGHTS RESERVED

P/N: 7M1C-1221-A000 PRINTED IN TAIWAN
