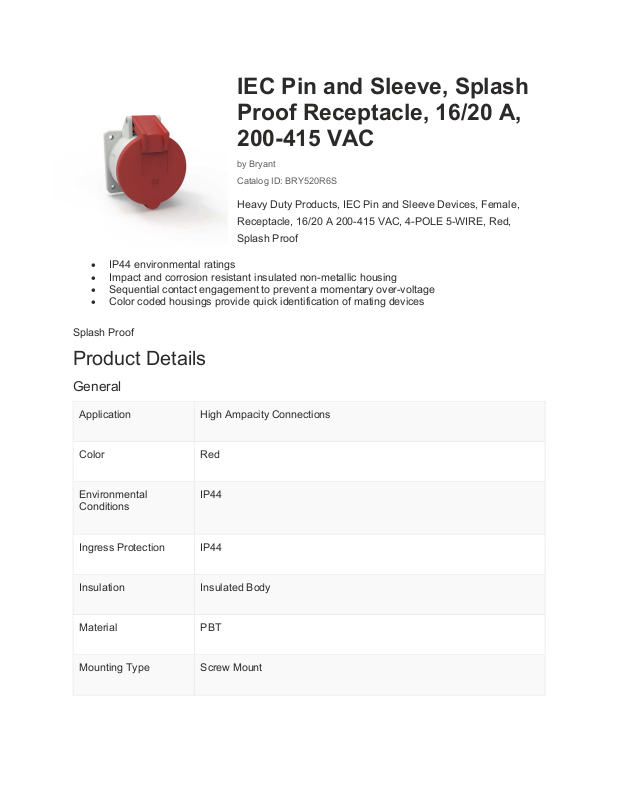

IEC Pin and Sleeve, Splash
Application
High Ampacity Connections
Color
Red
Environmental
IP44
Ingress Protection
IP44
Insulation
Insulated Body
Material
PBT
Mounting Type
Screw Mount
Proof Receptacle, 16/20 A,
200-415 VAC
by Bryant
Catalog ID: BRY520R6S
Heavy Duty Products, IEC Pin and Sleeve Devices, Female,
Receptacle, 16/20 A 200-415 VAC, 4-POLE 5-WIRE, Red,
Splash Proof
• IP44 environmental ratings
• Impact and corrosion resistant insulated non-metallic housing
• Sequential contact engagement to prevent a momentary over-voltage
• Color coded housings provide quick identification of mating devices
Splash Proof
Product Details
General
Conditions
Page 2
Number Of Poles
4-POLE
Series
Splash Proof
Size
Standard
Temperature Rating
Maximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact,
Type
Receptacle
UPC
781786784772
Electrical Ratings
Amperage Rating
16/20 A
Current /
16/20 A
Dielectric Strength
Withstand 3000V AC
Voltage -
600 VAC
Voltage Rating
200-415 VAC
Voltage Rating
200-415 VAC
Number Of Wires
5-WIRE
Amperage Rating
-25° with impact.
Maximum
Description
Conductor Related
Page 3
Wire Size
#14 AWG to #12 AWG
Certifications and Compliance
Industry
All constructions are UL Listed & cUL Listed, FileE14632, UL1686 Standard
Nema Rating
Non-NEMA
Carton Quantity
10
Standard(s)
Logistics
for Pin & Sleeve Configurations, VDE, CE
