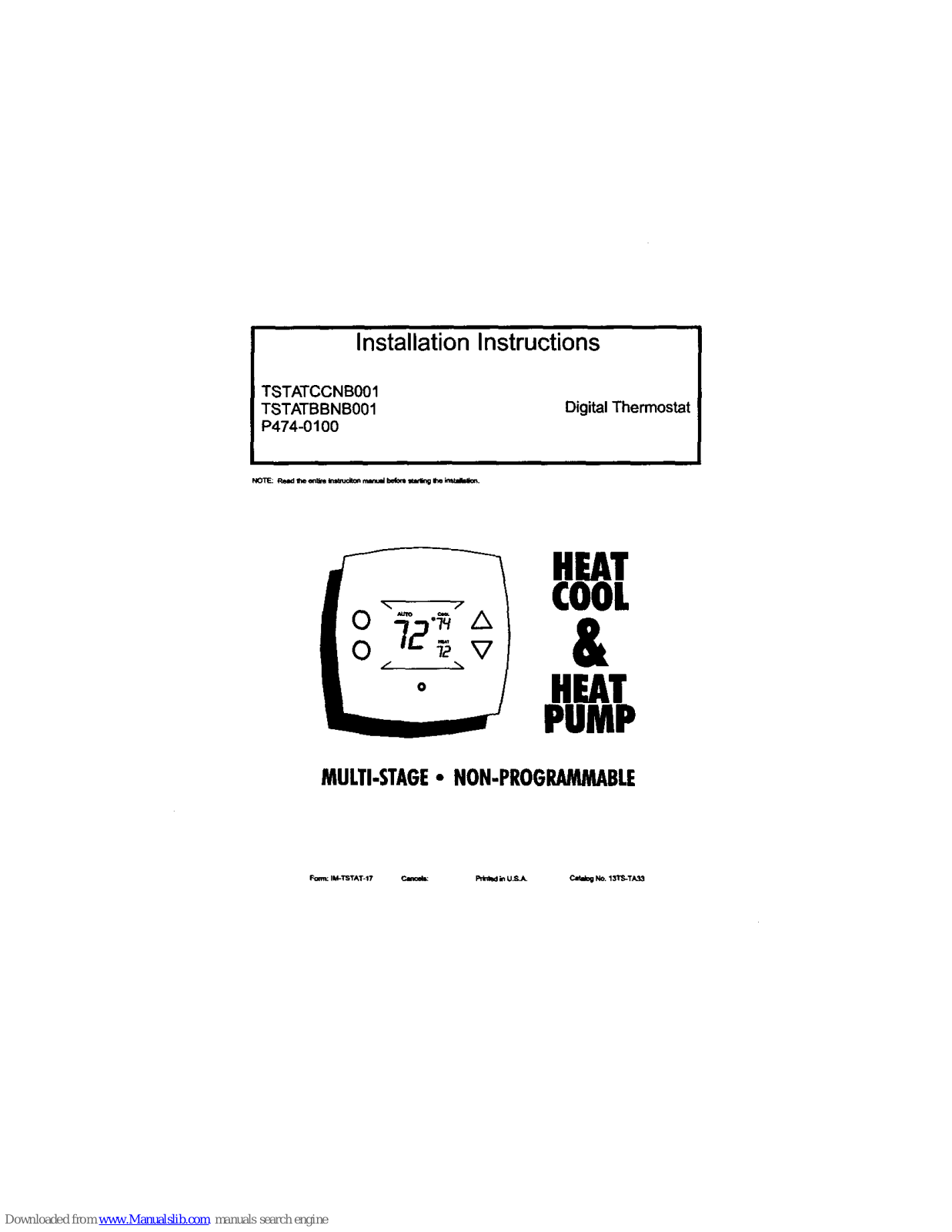

Bryant TSTATCCNB001, TSTATBBNB001 Installation Instructions Manual

Installation Instructions

TSTATCCNB001
TSTATBBNB001

P474-0100

Digital Thermostat

NOTE: _od tne e_lm _l=_dton rt,_tu_ k_,0_ tu=l_ _e i_,_blion.

O

HEAT

COOL

&

HEAT

PUMP

MULTI-STAGE-NON-PROGRAMMABLE

IM-TSTAT-17 _ _ in U_A_ Clit_og NO. 131_-TA33

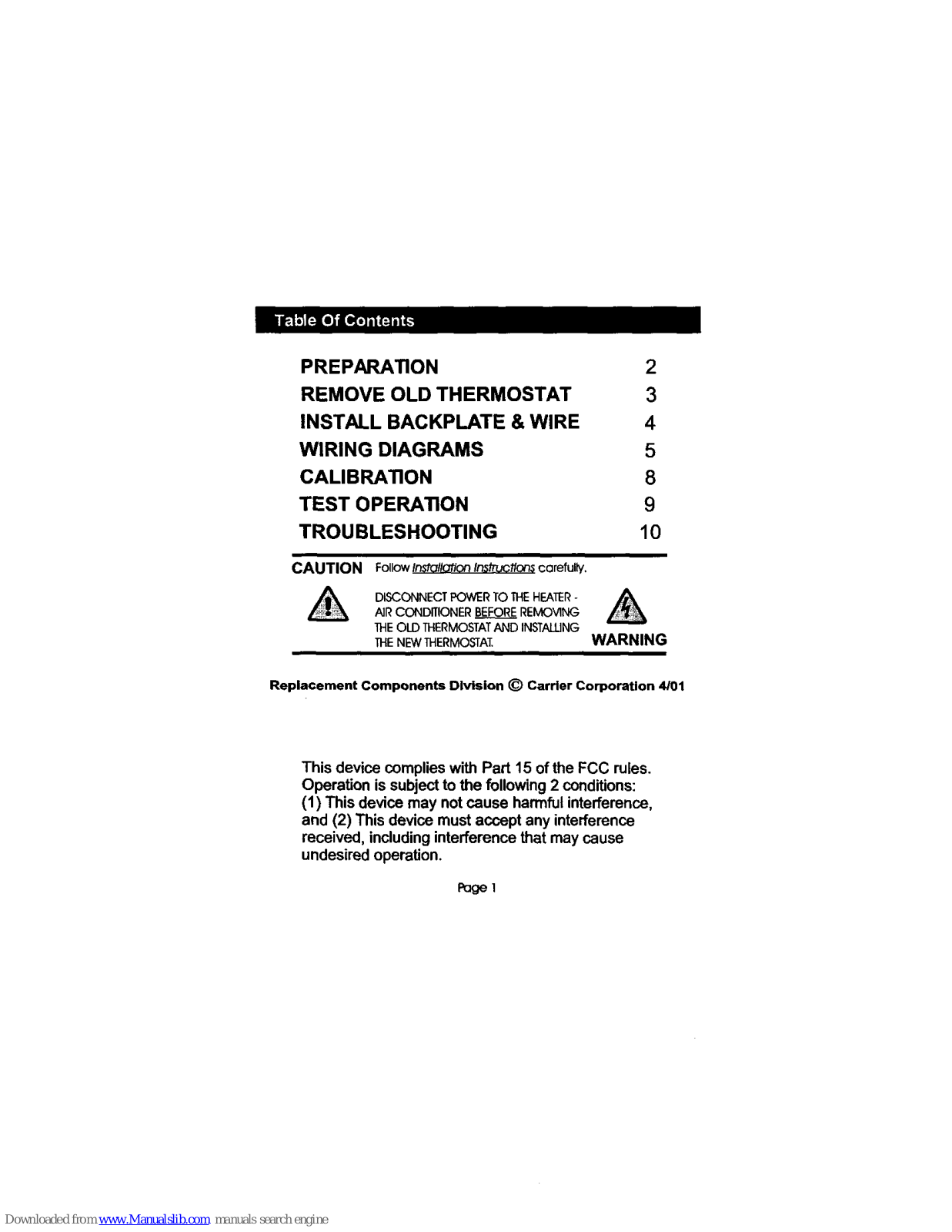

PREPARATION 2
REMOVE OLD THERMOSTAT 3

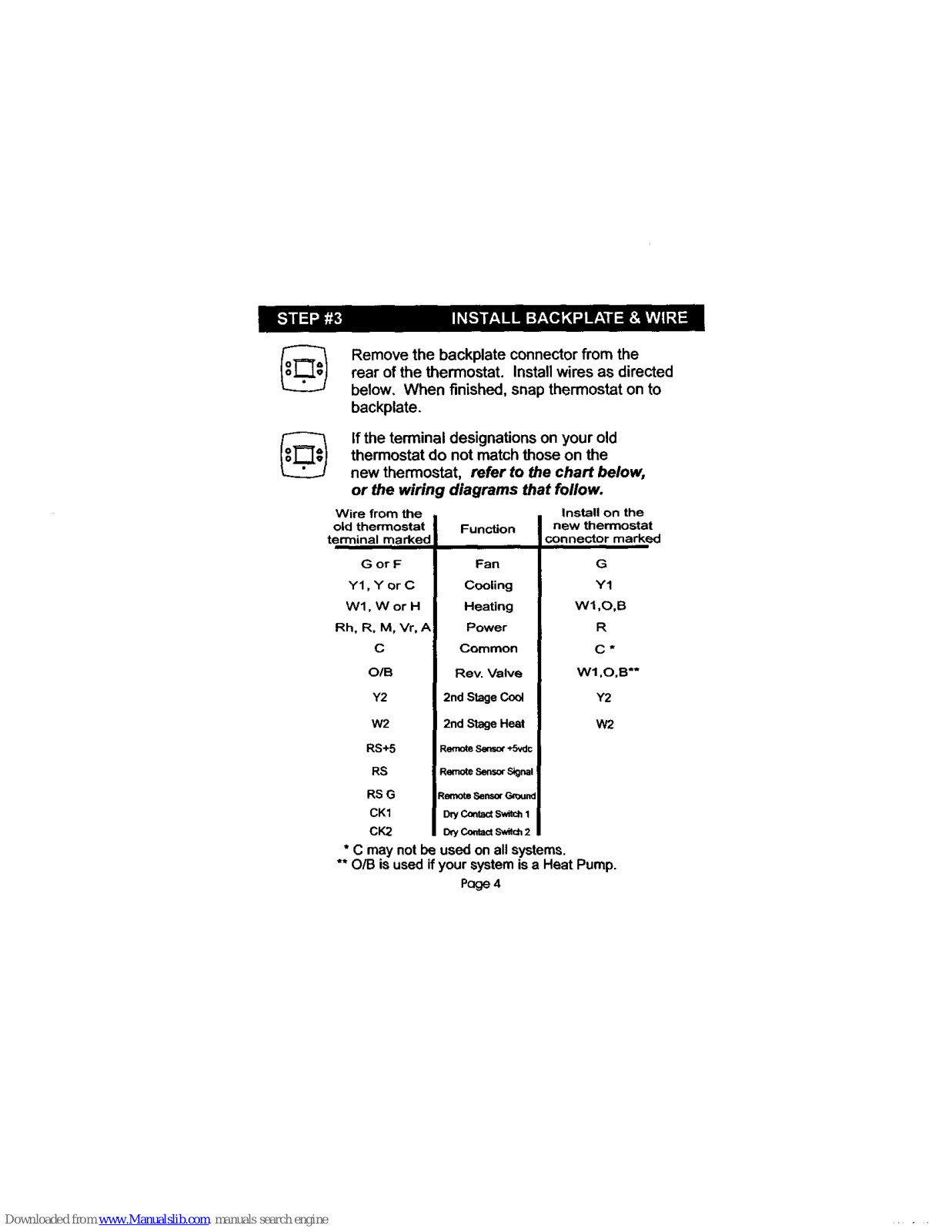

INSTALL BACKPLATE & WIRE 4

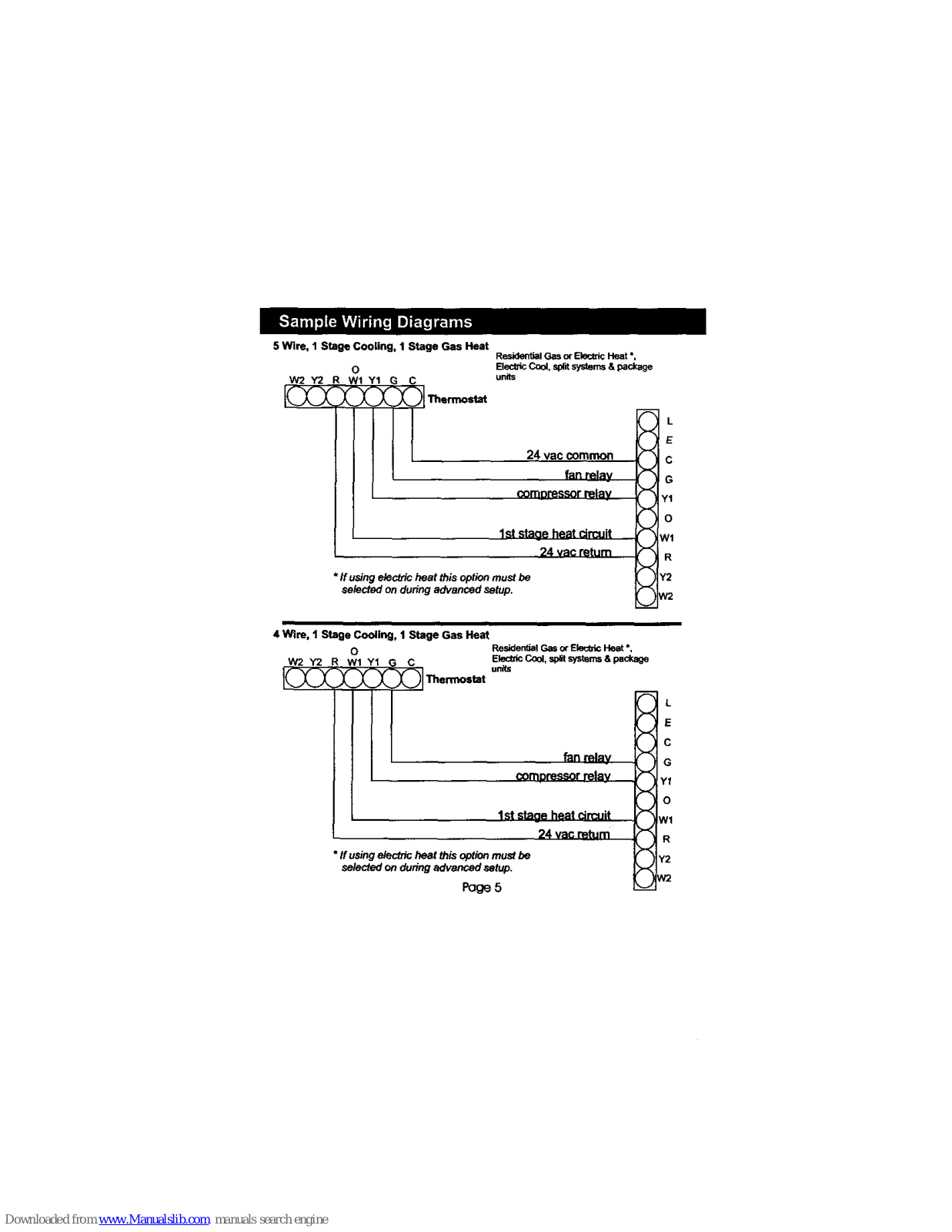

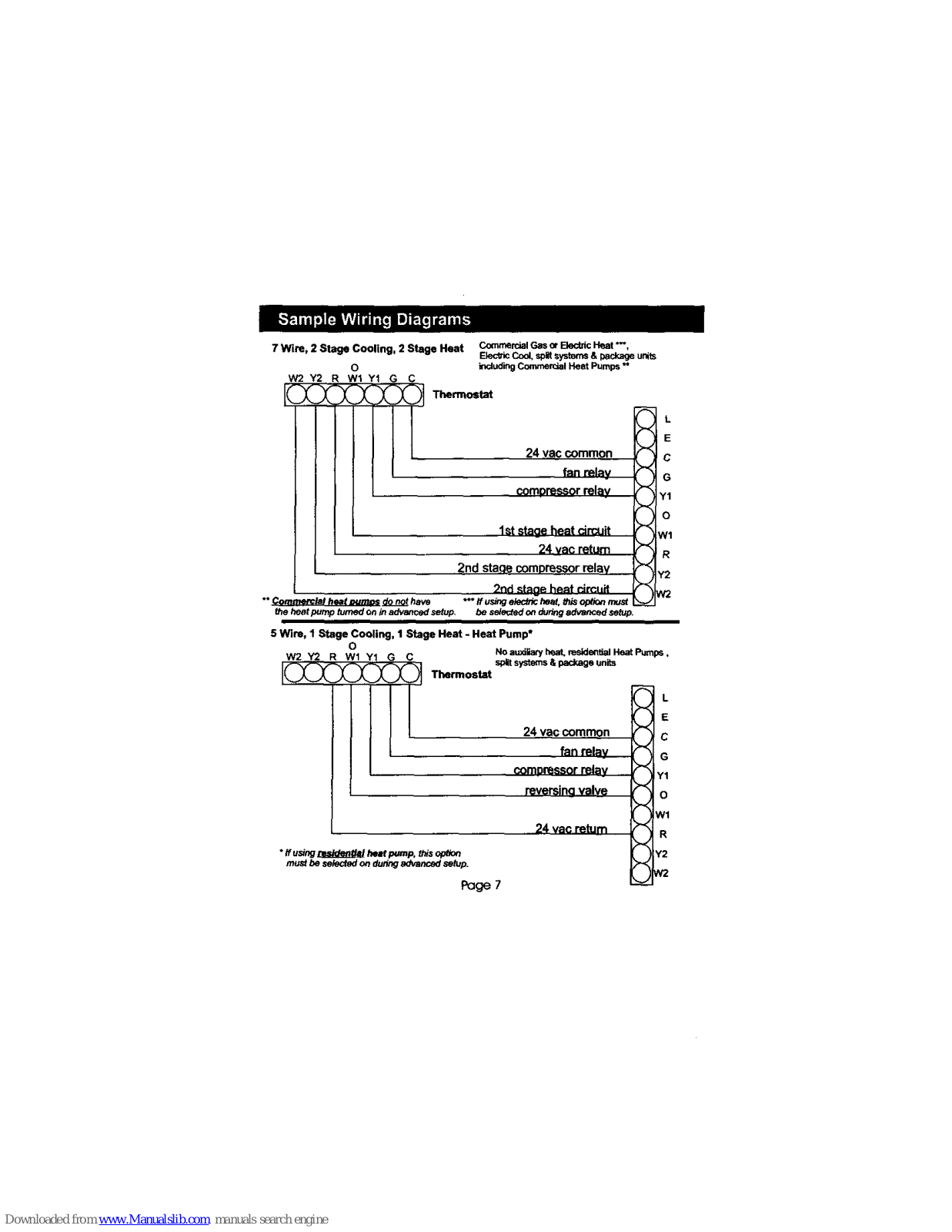

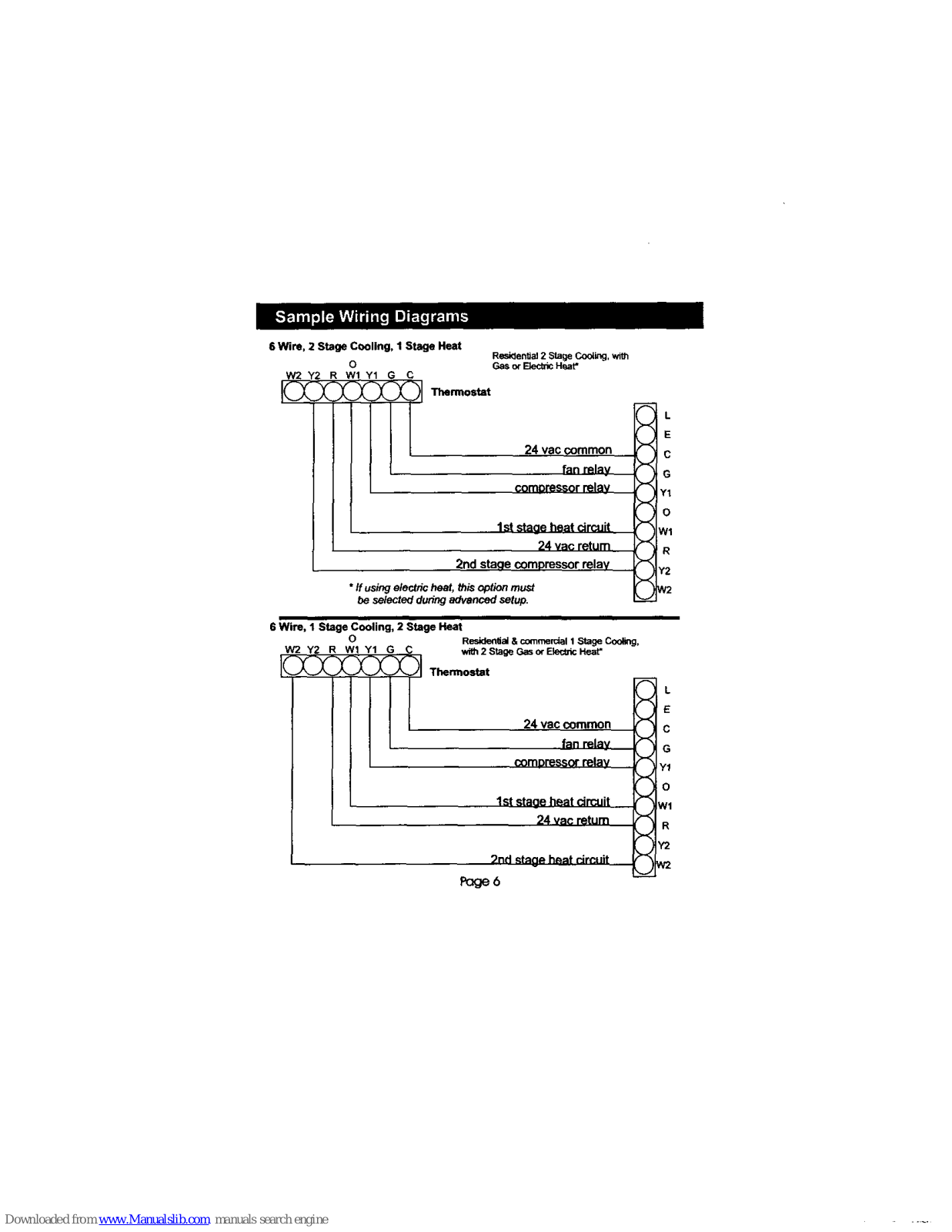

WIRING DIAGRAMS 5

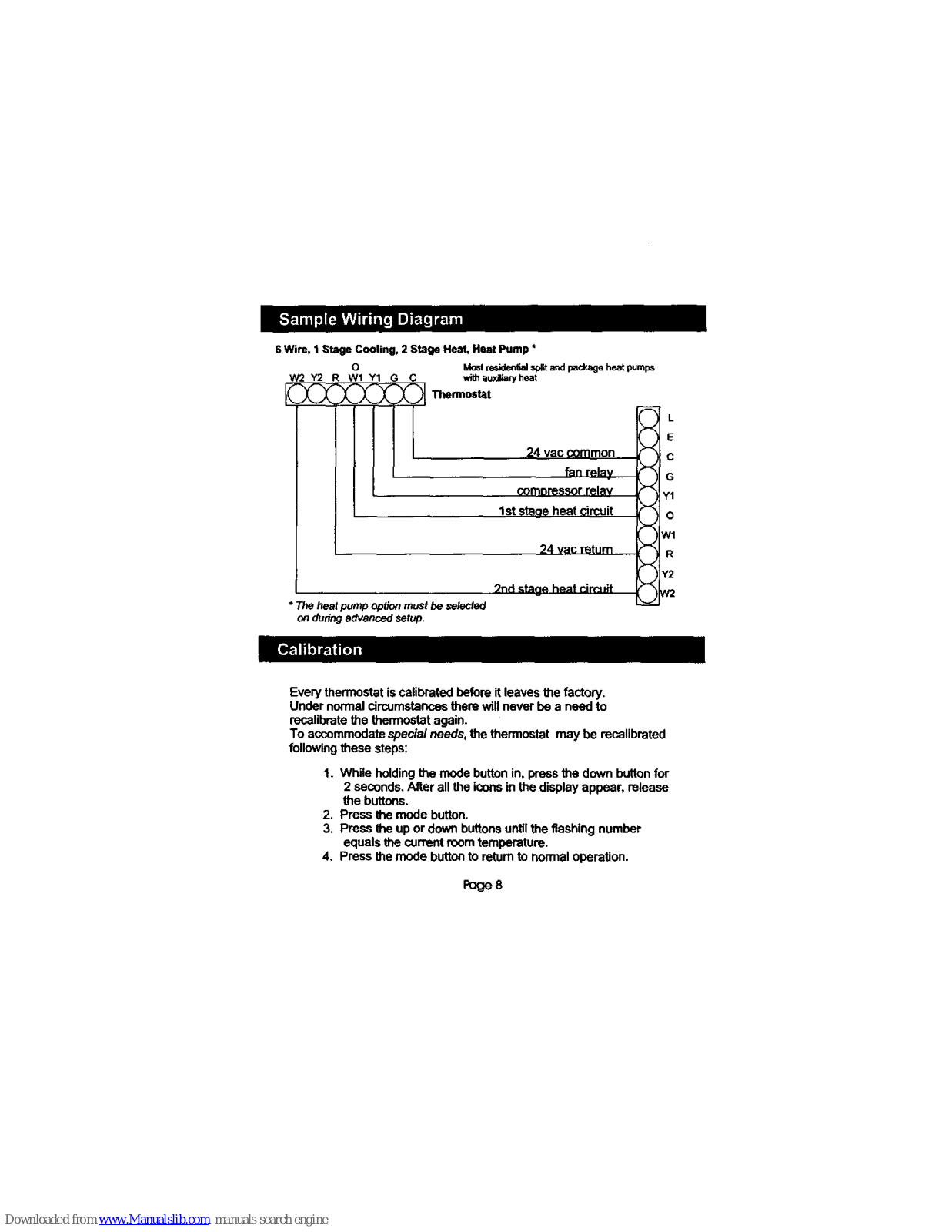

CALIBRATION 8

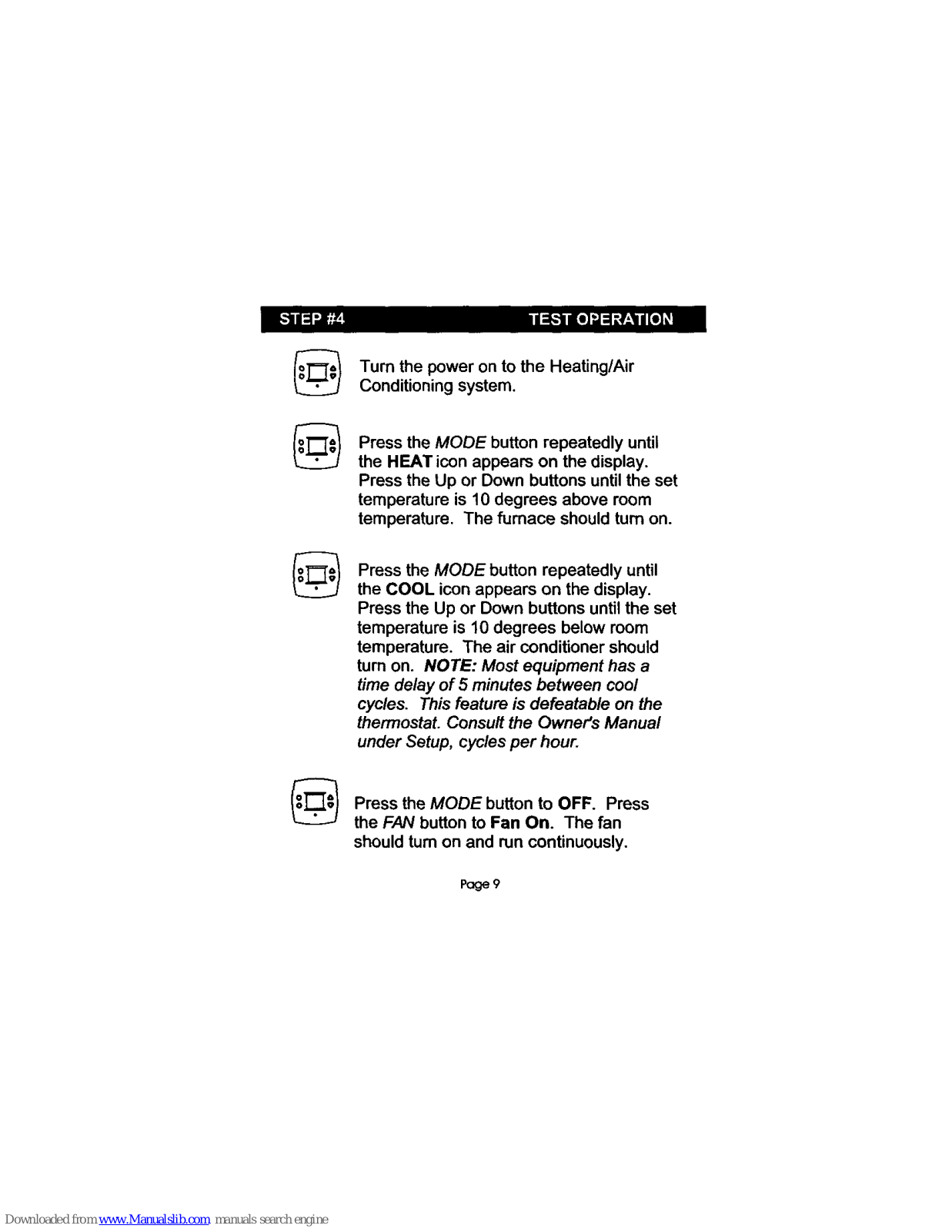

TEST OPERATION 9

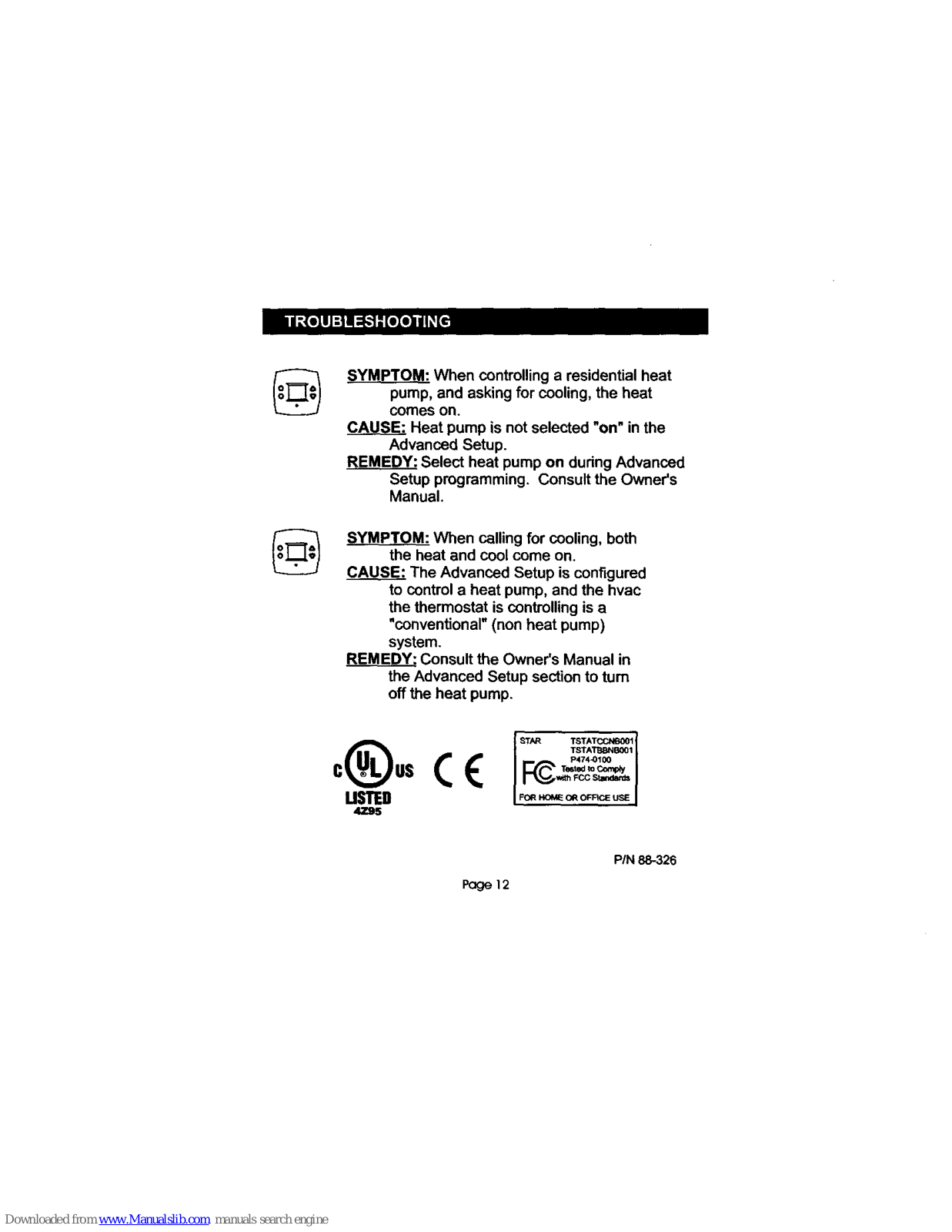

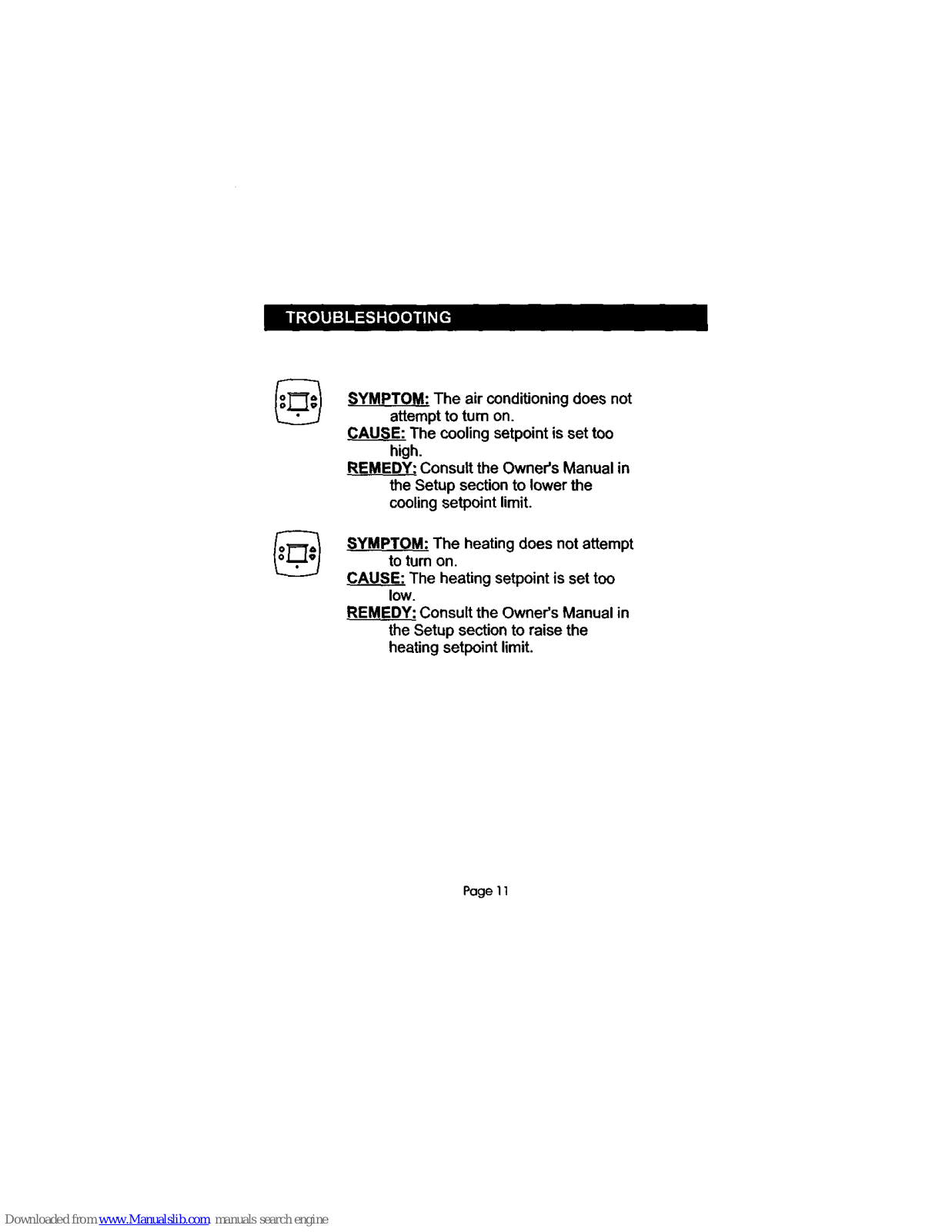

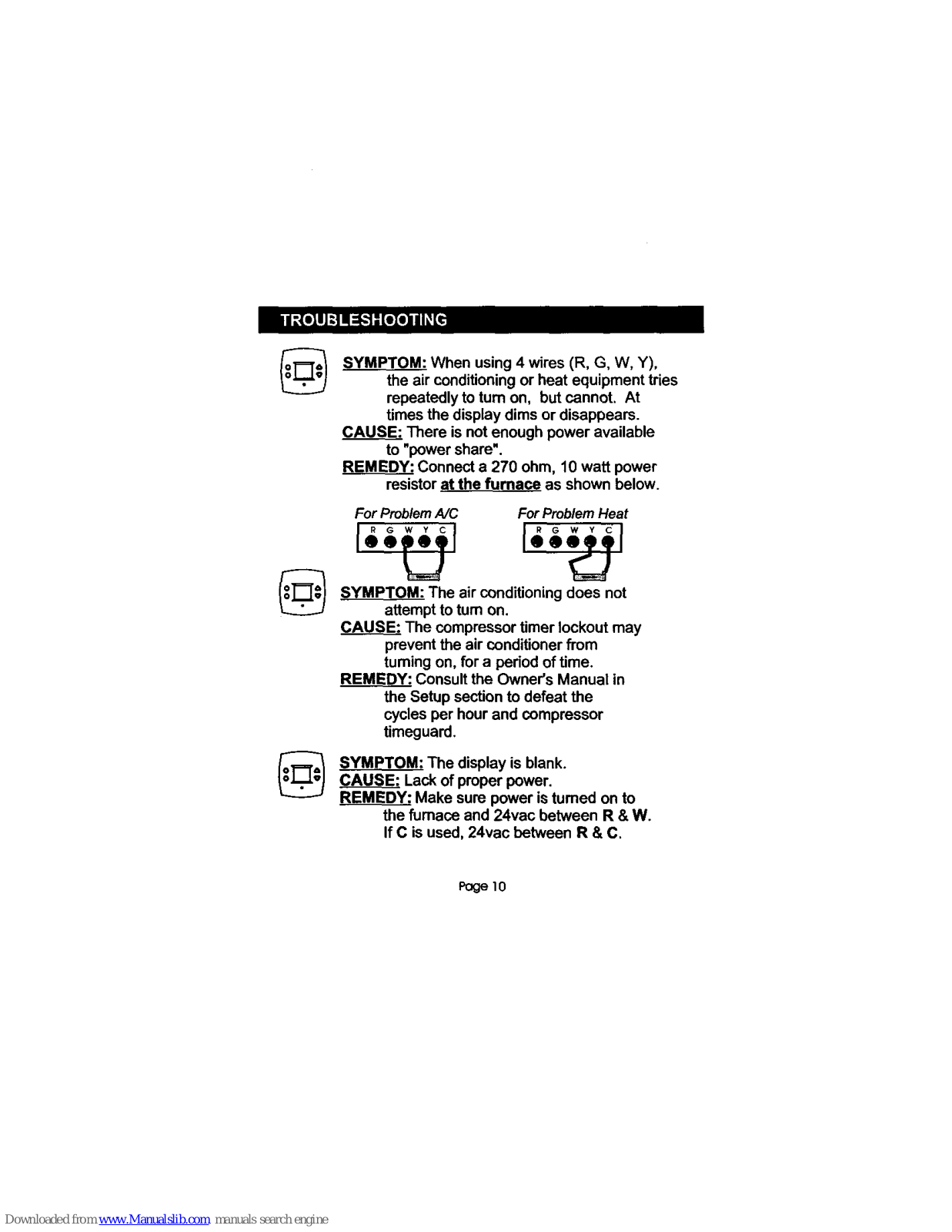

TROUBLESHOOTING 10

CAUTION FollOw Installation Instructions carefully.

DISCONNECT POWI_RTO THE HF..AII_R-
AIR CONDITIONER BEFOREREMOV1NG
THEOLD THERMOSTATAND INSTALLING
THENEWTHER_A_ WARNING

Replacement Components Dlvtsion (_) Carrier CorlporaUon 4/01

This device complies with Part 15 of the FCC rules.
Operation is subject to the following 2 conditions:

(1) This device may not cause harmful interference,
and (2) This device must accept any interference
received, including interference that may cause
undesired operation.

FQgel

@

@

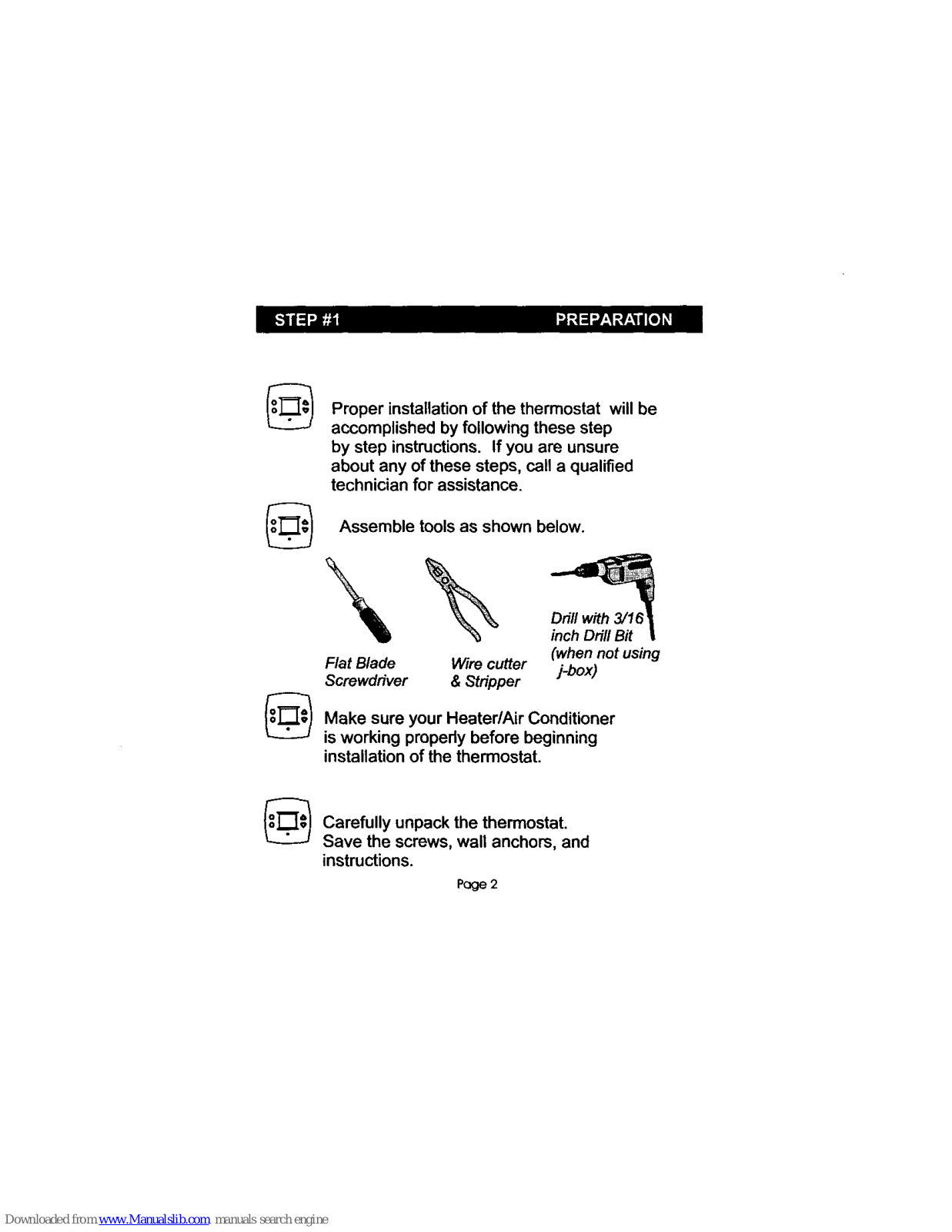

Proper installation of the thermostat will be
accomplished by following these step
by step instructions. If you are unsure
about any of these steps, call a qualified
technician for assistance.

Assemble tools as shown below.

(when not using

Flat Blade Wire cutter j-box)
Screwdriver & Stripper

Make sure your Heater/Air Conditioner
is working properly before beginning

installation of the thermostat.

@

Carefully unpack the thermostat.
Save the screws, wall anchors, and
instructions.

Poge 2

@
@

@

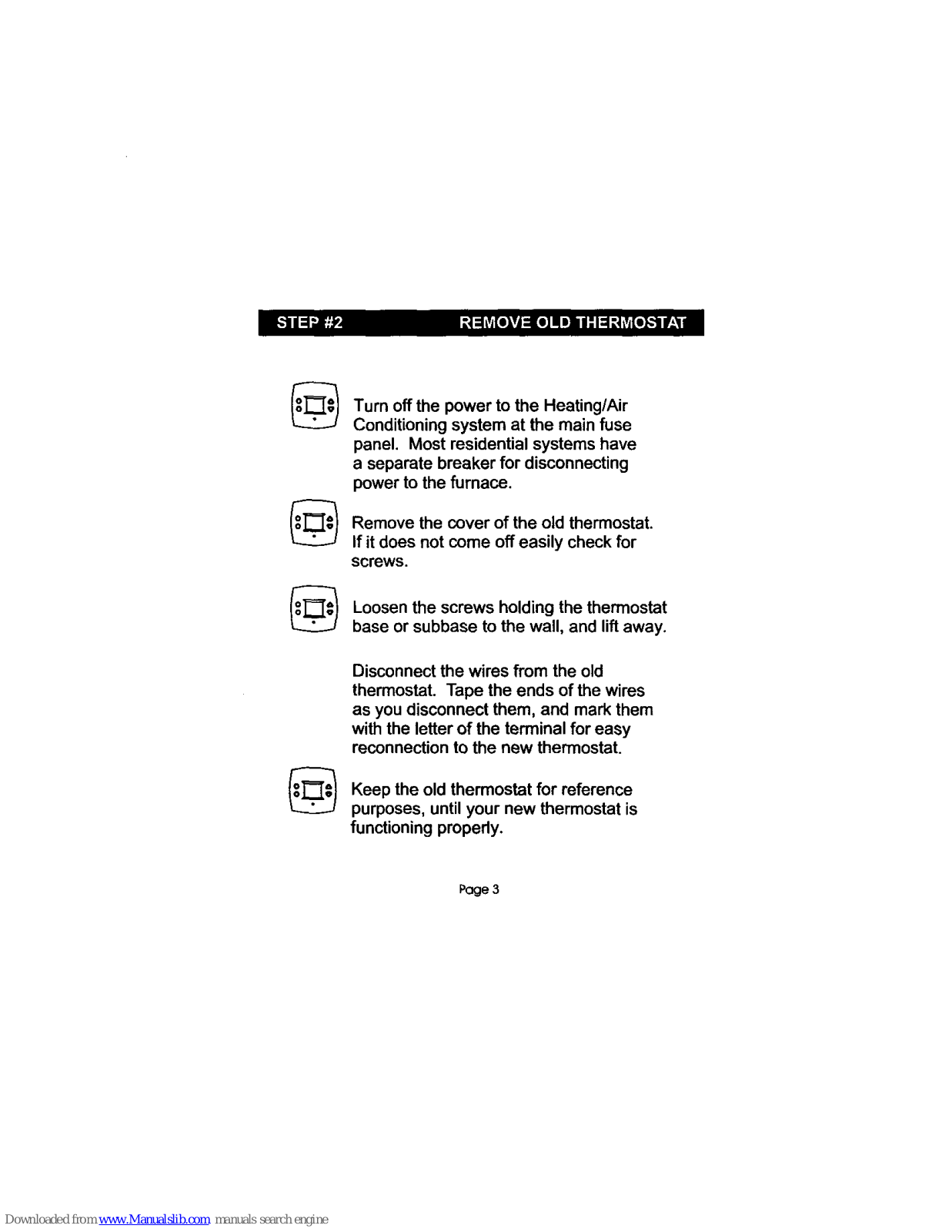

Turn off the power to the Heating/Air
Conditioning system at the main fuse
panel. Most residential systems have

a separate breaker for disconnecting

power to the furnace.

Remove the cover of the old thermostat.
If it does not come off easily check for

screws.

Loosen the screws holding the thermostat

base or subbase to the wall, and lift away.

@

Disconnect the wires from the old
thermostat. Tape the ends of the wires

as you disconnect them, and mark them
with the letter of the terminal for easy

reconnection to the new thermostat.

Keep the old thermostat for reference
purposes, until your new thermostat is

functioning properly.

Poge3
