MODEL TSTATBBPS701
PROGRAMMABLE DIGITAL
THERMOSTAT
6:03
Su
AUTO
Am
68
70
67
o
COOL
HEAT
o
Heat Pump & Heat Cool
This manual must be left with the equipment user.
NOTE TO INSTALLER:
7 Day Programmable
4 Time Periods per Day
Auto Changeover
Large, Easy To Read
Display
Thermoglow Backlight
Very Easy to Program
Programmable Fan
No Batteries Required
Outdoor Temperature
Sensor Available
Meets California Title 24 Residential
Table Of Contents
FRONT PANEL
DISPLAY
QUICK START Set the clock and go
BASIC OPERATION
PROGRAMMING 4 Time Periods
ADVANCED SETUP
ABOUT ADVANCED OPERATION
WARRANTY
CAUTION
Follow Installation Instructions before proceeding.
SET THERMOSTAT TO MODE “OFF” PRIOR TO
CHANGING SETTINGS IN SETUP OR RESTORING
FACTORY DEFAULTS.
Residential Light Commercial Systems Carrier Corporation 4/01
2
3
5
6
8
12
17
23
TSTATBBPS101
Page 1
Front Panel
Backlit LCD Display
6:03
Su
AUTO
Am
68
70
67
o
COOL
HEAT
o
Warmer or + Button
Cooler or - Button
Mode Button
Heat or Cool Indicator
Red = Heat, Green = Cool
Programmable
Thermostat
o
70
COOL
HEAT
o
67
SET CLOCK
PROGRAMVACATIONOUTSIDEFANMODE
PROGRAMVACATION
SET CLOCKOUTSIDE
FAN
6:03
S
AUTO
Am
68
Page 2
Display
2
9
1
6
8
:
12:00
SMTWTFS
Service
Filter
AUTO
Night
OFF
Morning
Evening
Fan On
Day
1
Am
Pm
11
Program
Start
10
On
Setup
Locked
88
7
88
Outside
88
COOL
HEAT
o
o
4
1
5
1
4
1
Mode Indicators
Selects the operation mode of the equipment.
HEAT - indicates the heat mode.COOL - indicates the air conditioning mode.
AUTO - indicates the system will automatically
changeover between heat and cool modes
as the temperature varies.
OFF - indicates the entire system is turned off.
PROGRAM ON - indicates the stored program
is enabled to run. Page 8.
2
Clock with Day of the Week
Indicates the current time and day. This clock is
also used to program the timer periods. Page 5.
3
Room Temperature Display
Indicates the current room temperature.
4
Desired Set Temperature
Indicates desired room temperature(s). Page 7.
3
Page 3
Display
5
6
7
8
9
10
Outside Indication
Indicates the temperature displayed is from
the optional outside sensor. Page 21.
Morning, Day, Evening & Night Indication
Indicates the program time period. Page 8-11.
Setup Indication
Indicates the thermostat is in the programming
mode. Page 12.
Fan Operation Indication
Fan On - indicates constant, continuous fan
operation.
When Fan On is not lit - indicates the fan will
only operate when necessary to heat or
to cool. Page 7.
Service Filter Indication
Service Filter indicates when the filter should
be serviced under normal conditions.
Appears after 0 - 1950 hours of blower
operation (adjustable). Page 15.
Locked Indication
Locked appears after the right combination of
buttons are pressed, rendering the buttons
inoperative. Page 22.
11
Start Indication
Start appears when programming
timer functions. Page 8.
Page 4
Quick Start Set the Clock and Go
SET CLOCK
Press the SET CLOCK
button.
:
12:00
S
Am
Setup
Setup
Press the SET CLOCK
i
2
SET CLOCK

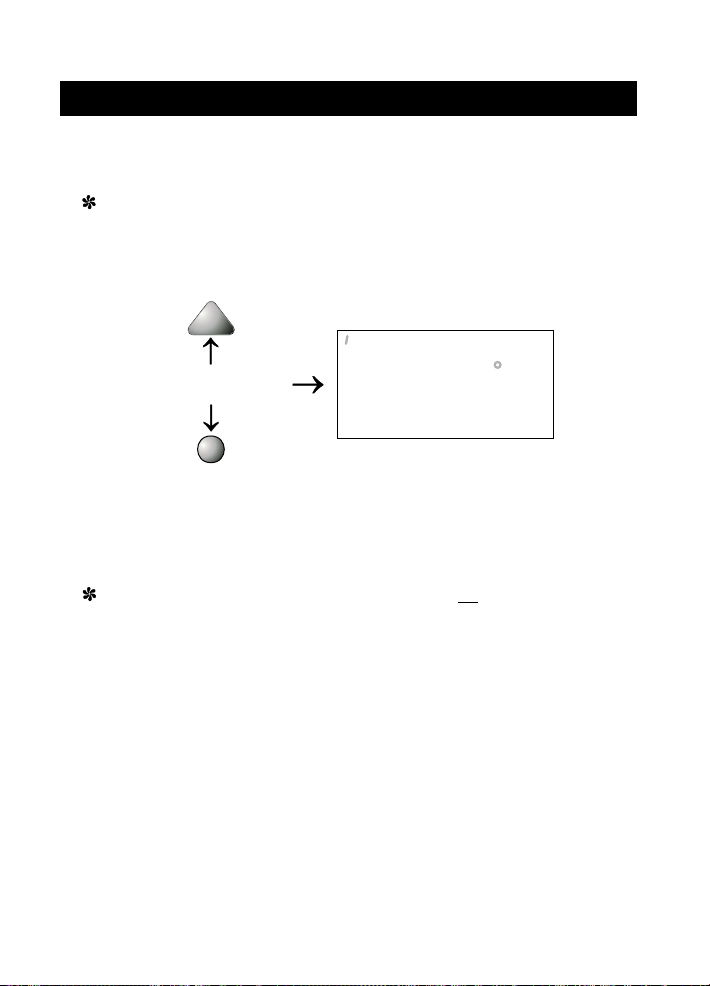

During Setup & Programming:
Pressing the Up and Down
buttons will modify the flashing
selection.
.
(Represented in dark black)
Press
MODE
To adjust the
clock or Day use
buttons.
button as above to
return to normal
operation.
This thermostat is preprogrammed from the
factory to operate 1 or 2 Stage equipment without
the need for further programming. To optimize the
installation of this thermostat follow the instructions
in the Advanced Setup section.
Page 5
Basic Operation
Select Mode
The HEAT setting indicates the
temperature the room has to
reach before the furnace will
turn on to heat the room.
The COOL setting indicates the
temperature the room has to
reach before the air conditioner
will turn on to cool the room.
AUTO will automatically select
heat or cool based on room
temperature demand.
Program On will activate the
stored timer operation.
(Morning, Day, Evening
& Night Periods)
OFF indicates both heating
and air conditioning
systems are turned off.
:
12:00
M
:
12:00
M
:
12:00
M
AUTO
:
12:00
M
:
12:00
M
OFF
Pm
70
Pm
70
Pm
70
Program
Pm
Day
70
Pm
70
HEAT
o
69
o
72
COOL
o
72
COOL
HEAT
o
69
73
COOL
HEAT
o
o
On
70
Press
MODE
Press
MODE
Press
MODE
Press
MODE
Page 6
Basic Operation
Select Desired Temperature
:
M
AUTO
Pm
12:00
70
Pressing the Up or Down buttons in Auto mode will adjust both the heat and cool
set temperatures simultaneously.
Pressing the Up or Down buttons in Heat or Cool modes will adjust only the
heat or cool set temperature.
Fan
Operation
:
Pm
12:00
S
Fan On
65
FAN
72
COOL
HEAT
69
Press
85
COOL
HEAT
55
o
o
o
Fan On indicates constant fan operation.
This feature is active even if the thermostat
o
is set to Off.
In any mode, adjust the
desired Set Temperature
with
buttons.
Page 7
Programming 4 Time Periods
Press
PROGRAM
Press the PROGRAM button to enter time period programming.
Use the back cover Programming Worksheet to help with this section.
M
Select the day of week
(M - S)
Am
Adjust the start time
for Morning.
Adjust the cooling
setpoint for Morning.
(35 - 99 )
Adjust the heating
setpoint for Morning.
(35 - 99 )
:
7 30
M
Morning
:
7 30
M
Morning
:
7 30
M
Morning
Am
Am
Start
74
COOL
74
COOL
HEAT
o
o
o
72
Press
MODE
Press
MODE
Press
MODE
Press
MODE
Page 8
Continued
Programming 4 Time Periods
Am
:
I0 30
Adjust the start time
for Day.
M
Day
Star t
Press
MODE
Adjust the cooling
setpoint for Day.
(35 - 99 )
Adjust the heating
setpoint for Day.
(35 - 99 )
Adjust the start time
for Evening.
Adjust the cooling
setpoint for Evening.
(35 - 99 )
:
I0 30
M
:
I0 30
M
:
5 30
M
Evening
:
5 30
M
Evening
Day
Day
Am
Am
Pm
Pm
Star t
75
COOL
75
COOL
HEAT
73
75
COOL
Continued
o
Press
MODE
o
o
Press
MODE
Press
MODE
o
Press
MODE
Page 9
Programming 4 Time Periods
Adjust the heating
setpoint for Evening.
(35 - 99 )
Adjust the start time
for Night.
Adjust the cooling
setpoint for Night.
(35 - 99 )
Adjust the heating
setpoint for Night
(35 - 99 )
:
5 30
M
Evening
:
I I 30
M
:
I I 30
M
:
I I 30
M
Night
Night
Night
Pm
Pm
Am
Pm
Star t
75
COOL
HEAT
73
78
COOL
78
COOL
HEAT
70
o
o
Press
MODE
Press
MODE
o
Press
MODE
o
o
Press
MODE
Page 10
Continued
Programming 4 Time Periods
The copy command becomes available after
programming the entire previous day.
Yes
Select Yes or No to copy
the previous day’s
program to this day.
No
If Yes is selected:
Selecting Yes, then pressing mode will copy the
Press
MODE
If No is selected, as in previous steps, flashing prompts for input will appear for
the 4 time periods for the next day.
previous day’s program and then will ask the
same copy question again. If yes is selected
each time, this routine will repeat.
:
18:no
T
co
py
If No is selected:
Press
MODE
Page 11

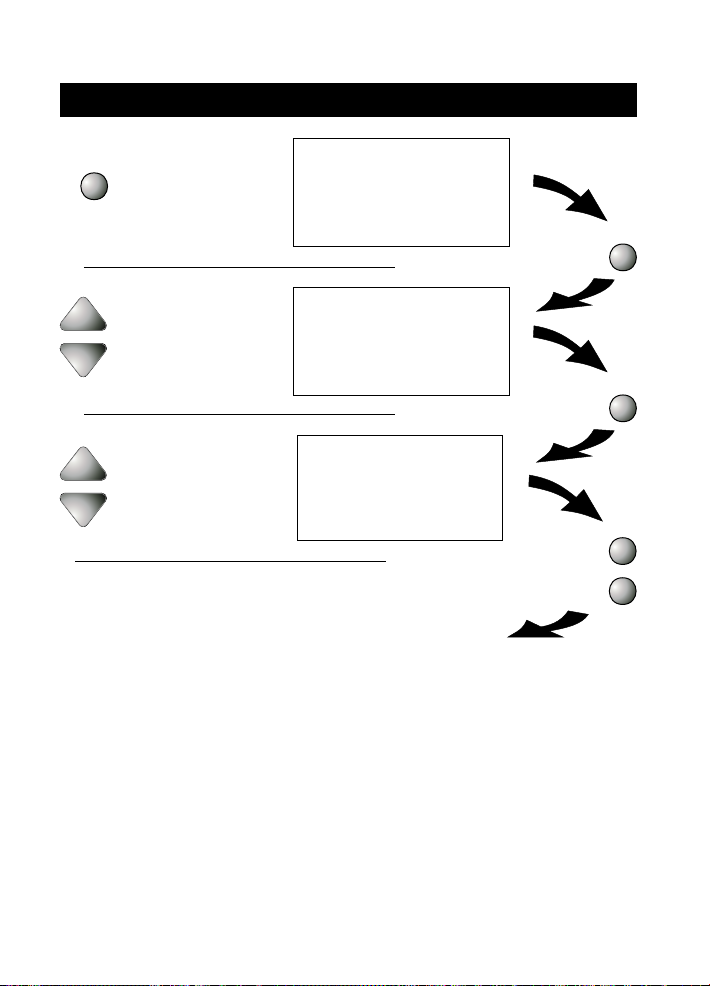

Advanced Setup
MODE
PROGRAM
Tip: To change hours quickly, press and
hold the override button in and press
the up or down buttons.
Press the Mode button.
While holding the Mode,
press the Program button
to enter Setup screens.
Adjust the time of day
clock.
Select the day of the
week.
On
Select residential Heat
Pump, On or Off.
Off
B
Select the reversing
valve polarity for
Heat Pump, O or B.
(Step 4 only appears if
heat pump is on in step 3)
O
I2:00
Mo
OFF
HP
O
NOTE: Each step # is located at
the top right corner of the
display for easy reference.
AM
Setup
I
Press
Setup
MODE
2
Press
Setup
MODE
3
Press
Setup
MODE
4
Press
MODE
Continued
Page 12
Advanced Setup
On
Select Electric Heat On
or Off. (Step 5 only
appears if heat pump is
off in step 3)
Off
Adjust the deadband
from 1 - 6 degrees.
Adjust the minimum
difference between
cooling & heating
setpoints.
(0 - 6 )
Select the cycles per
hour limit.
d=cycles per hour
limit defeated.
d1=d + defeat 5 min.
Compressor lockout.
(d, d1, 2 - 6)
Adjust the programmable
fan timer.
0 - 60 minutes.
0:00 = off
OFF
EH
8
8
2
8
If
2
6
:
0:00
Fan On
Page 13
Setup
Setup
Setup
Setup
Setup
5
7
COOL
HEAT
8
Cy
9
Continued
Press
MODE
6
Press
MODE
Press
MODE
Press
MODE
Press
MODE
Advanced Setup
Adjust the programmable
fan start time. (step 10
appears only if step 9
is not 0:00)
Adjust the programmable
fan stop time. (step 11
appears only if step 9
is not 0:00)
On
Select the display backlight always On, or Off
after 8 seconds.
Off
Press
Reset the Energy Watch
Heat hour counter.
FAN
Press
FAN
(0 - 1999)
Reset the Energy Watch
Cool hour counter.
(0 - 1999)
7:00
Fan On
9:00
OFF
Fan On
0
0
Am
Pm
L I
On
Setup
I0
Press
MODE
Setup
I I
Press
MODE
On
Setup
I2
Press
MODE
Setup
I3
HEAT
Press
MODE
Setup
I4
COOL
Press
MODE
Continued
Page 14
Advanced Setup
Press
Reset the Service Filter
counter. This will also
remove the Service
Filter icon from the
FAN
display
Adjust the number of
hours the blower will
run before the Service
Filter icon appears on
the display. 0 = off.
C
Select thermostat
operation in degrees
Fahrenheit or Centigrade.
F
(0 - 1950)
0
Service
0
Service
Filter
Filter
Setup
I5
Setup
Setup
I7
F
While holding the Mode, press the Fan
button for 2 seconds to leave the Setup
screens. If no buttons are pressed, the
display will leave the setup screens after
Press the Mode button.
30 seconds.
Press
MODE
I6
Press
MODE
Press
MODE
FAN
Page 15
Advanced Setup
Advanced Setup Table
Step # Description Range Factory Default
1 Time of day clock set 24 hour 12:00 Am
2 Day of the week Sun - Sat Monday
Heat Pump Off / On Off
3
Reversing Valve polarity O / B O
4
Electric Heat Off / On Off
5
Deadband or Temperature swing 1 - 6 1
6
Forced minimum difference heat/cool 0 - 6 2
7
Cycles per hour d, d1, 2 - 6 6
8
9 Programmable Fan
10 Programmable Fan Start Time 24 hour 7:00 Am
11 Programmable Fan Stop Time 24 hour 9:00 Pm
Thermoglow backlight Off / On On
12
Energy Watch - Heat Timer 0 - 1999 0
13
Energy Watch - Cool Timer 0 - 1999 0
14
15 Reset Service Filter icon - - - 16 Service Filter run time set 0 - 1950 0
Fahrenheit or Centigrade F / C F
17
0:00 - 0:60 0:00
Page 16
About Advanced Features & Operation
MEMORY BACKUP - In the event of a power loss, the
thermostat will retain the stored program settings without
external power or batteries.
2 STAGE OPERATION - The 2nd Stage of heat or cool is
turned on when (1) the 1st Stage has been on for a
minimum of two minutes, and (2) the temperature spread
from the setpoint is equal to or greater than: the setpoint
plus the deadband, plus 2 degrees.
Heating
2 degrees
Dead
Band
Dead
Band
Cooling
2 degrees
2nd Stage
turn on
1st Stage
turn on
Heat
Setpoint
Setpoint
Cool
1st Stage
turn on
2nd Stage
turn on
MINIMUM HEAT/COOL SETPOINT DIFFERENCE - The Heat
and Cool setpoints will not be allowed to come any closer
to each other than the value set in Advanced Setup step# 7, on page 13. This minimum difference is enforced
during Auto changeover operation.
and Program On
PROGRAMMABLE FAN - If the Programmable Fan timer is
set to a value other than 0:00, the fan will run for the
preprogrammed amount of time,
page 13, step# 9.
The Programmable Fan timer will start the fan at the top
of each hour. The Programmable Fan may be active
even if the thermostat mode is Off. Steps 10 & 11
restrict the hours in which Programmable Fan may
operate. Step# 10, page 14 is the start time and step# 11
is the stop time. Setting the times to the same setting
in both steps 10 & 11 will allow Programmable Fan to
operate 24 hours a day.
Page 17
About Advanced Features & Operation
EMERGENCY HEAT - Is a feature available to Heat Pump
installations. To turn on Emergency Heat press in the
Fan button. While holding the Fan button press
Up button for 2 seconds. The Cool setpoint display
will read ‘EH’.
the
Am
:
12:00
Press for
Emergency Heat
73
FAN
During Emergency Heat the thermostat will turn
on the fan and the 2nd stage of heat, when there is a
demand for heat, locking out the 1st stage compressor.
Exiting Emergency Heat is the same as entering. During
Emergency Heat only OFF and HEAT are available.
ELECTRIC HEAT - Selecting Electric Heat on, page 13,step 5, will cause the thermostat to turn on the fan
immediately
any time there is a heat demand. Since all
gas furnaces
control the fan, this feature should be off
unless the heater
is only electric.
Page 18
eh
HEAT
74
o
o
About Advanced Features & Operation
KEYPAD LOCK - To prevent unauthorized use of the thermostat,
the front panel buttons may be disabled. To disable, or
‘lock’ the keypad, press and hold in the Mode button.
While holding the Mode button in, press the Up and Down
buttons in together. The Locked icon will appear on the
display.
Press all 3 for
Keypad Lockout
MODE
To unlock the buttons, again press and hold the Mode
button. While holding the Mode button in, press the Up
and Down buttons in together. The Locked icon will
disappear from the display.
:
12:00
Pm
Locked
65
85
COOL
HEAT
55
o
o
Page 19
About Advanced Features & Operation
VACATION MODE - When the thermostat is in Vacation mode, the
thermostat will operate under the Vacation time period set points.
In order for Vacation mode to become active the thermostat must
be in the Program On mode. Vacation mode will take effect when
the time clock reaches 12:00am.
VACATION
Press the VACATION button to enter the
vacation programming setup steps.
Select the number of days
that the Vacation Schedule
will be in effect. A value
of 0 disables Vacation
mode.
unoccupied
0
Adjust the cooling
setpoint for Vacation
mode.
(35 - 99 )
Adjust the heating
setpoint for Vacation
mode.
(35 - 99 )
Press the Vacation button to exit
the Setup screens. If no buttons are
pressed, the display will leave the
setup screens after 30 seconds.
unoccupied
85
unoccupied
55
Setup
Setup
Setup
23
y
8
24
COOL
25
HEAT
MODE
MODE
VACATION
Press
Press
Press
Page 20
About Advanced Features & Operation
DUAL SETPOINT BEHAVIOR - The adjustable setpoint range
is: 35 - 99 degrees in Fahrenheit and 7 - 35 degrees in
Centigrade. When in the modes Heat or Cool, this
adjustable range is unhampered.
When adjusting any Auto mode, including programming
4 Time periods, the thermostat will not
Heat setpoint to get closer to the Cool setpoint
than the value programmed as the minimum difference
in
step 7, page 13.
When entering the Auto mode from Cool, the Heat and
Cool setpoints will remain spread apart by the amount
that they were adjusted, prior to entering Auto.
For example: If the Cool setpoint was set to 80 while
in the Cool mode and the Heat setpoint was adjusted to
70 while in the Heat mode, upon entering the Auto mode
the Heat and Cool setpoints would be 80 and 70. Both
setpoints would then move up and down together, (in this
example spread by 10 degrees), by pressing the up or
down buttons.
To move the Heat and Cool setpoints closer together,
enter the Cool or Heat mode by pressing the Mode button,
then adjust the setpoint(s) closer together. Heat is limited
to how close it can come to Cool by step 7, page 13.
allow the
Page 21
About Advanced Features & Operation
OUTSIDE SENSOR (Optional Accessory) - When connected
to terminals RS+5, RS, & GND on the back of the
thermostat, the thermostat will read the temperature from
the Outside
not control to this sensor, it is only to read outside
temperature.
To read the temperature
press the Outside button of the thermostat .
The display will then only show Outside temperature.
Pressing the Outside button will then return the display to
normal operation.
The Outside Sensor is available in a wired or wireless
version. The wired sensor can be connected to the
thermostat with
Unshielded,
See the Outside Sensor instructions for further details.
FACTORY DEFAULTS - If, for any reason it is desirable to
return all stored settings back to the factory default
settings, press the Mode button. While holding the Mode
button in, press the Fan button for 5 sec. All icons will
appear. Press and hold in the Fan button until Fd
appears. This resets all factory settings. To calibrateroom temperature, press the Up and Down arrow buttons
simultaneously, twice.
At this point use the Up and Down buttons to calibrate
room temperature, if needed. Press the Mode button to
return to normal operation. NOTE CAUTION ON PAGE 1.
Sensor when asked to. This thermostat will
from the Outside Sensor,
up to 500’ of 20 ga. or 300’ of 18 ga.
thermostat wire.
Page 22
Warranty
Five-Year Warranty - This Product is warranted to be free from defects in material and
workmanship. If defect appears within five years from the date of original installation, whether
or not actual use begins on that date, then the product does meet this warranty. A new or
remanufactured part, at the manufacturer’s sole option, to replace any defective part will be
provided without charge for the part itself; PROVIDED the defective part is returned to the
distributor through a qualified servicing dealer.
THIS WARRANTY DOES NOT INCLUDE LABOR OR OTHER COSTS incurred for diagnosing,
repairing, removing, installing, shipping, servicing or handling of either defective parts or
replacement parts. Such costs may be covered by a separate warranty provided by the installer.
THIS WARRANTY APPLIES ONLY TO PRODUCTS IN THEIR ORIGINAL INSTALLATION
LOCATION AND BECOMES VOID UPON REINSTALLATION.
LIMITATIONS OF WARRANTIES – ALL IMPLIED WARRANTIES (INCLUDING IMPLIED
WARRANTIES OF FITNESS FOR A PARTICULAR PURPOSE AND MERCHANTABILITY) ARE
HEREBY LIMITED IN DURATION TO THE PERIOD FOR WHICH THE LIMITED WARRANTY
IS GIVEN. SOME STATES DO NOT ALLOW LIMITATIONS ON HOW LONG AN IMPLIED
WARRANTY LASTS, SO THE ABOVE MAY NOT APPLY TO YOU. THE EXPRESSED
WARRANTIES MADE IN THIS WARRANTY ARE EXCLUSIVE AND MANY NOT BE ALTERED,
ENLARGED, OR CHANGED BY ANY DISTRIBUTOR, DEALER, OR OTHER PERSON
WHATSOEVER.
ALL WORK UNDER THE TERMS OF THIS WARRANTY SHALL BE PERFORMED DURING
NORMAL WORKING HOURS. ALL REPLACEMENT PARTS, WHETHER NEW OR
REMANUFACTURED, ASSUME AS THEIR WARRANTY PERIOD ONLY THE REMAINING
TIME PERIOD OF THIS WARRANTY.
THE MANUFACTURER WILL NOT BE RESPONSIBLE FOR:
1. Normal maintenance as outlined in the installation and servicing instructions or owners
manual including filter cleaning and/or replacement and lubrication.
2. Damage or repairs required as a consequence of faulty installation, misapplication, abuse,
improper servicing, unauthorized alteration or improper operation.
3. Failure to start due to voltage conditions, blown fuses, open circuit breakers or other
damages due to the inadequacy or interruption of electrical service.
4. Damage as a result of floods, winds, fires, lightning, accidents, corrosive environments or
other conditions beyond the control of the Manufacturer.
5. Parts not supplied or designated by the Manufacturer, or damages resulting from their use.
6. Manufacturer products installed outside the continental U.S.A., Alaska, Hawaii, and
Canada.
7. Electricity or fuel costs or increases in electricity or fuel costs from any reason whatsoever
including additional or unusual use of supplemental electric heat.
8. ANY SPECIAL INDIRECT OR CONSEQUENTIAL PROPERTY OR COMMERCIAL
DAMAGE OF ANY NATURE WHATSOEVER. Some states do not allow the exclusion of
incidental or consequential damages, so the above may not apply to you.
This warranty gives you specific legal rights, and you may also have other rights which may vary
form state to state.
Page 23
Programming Worksheet see page 8
DAY
M
O
N
D
A
Y
T
U
E
S
D
A
Y
W
E
D
N
E
S
D
A
Y
T
H
U
R
S
D
A
Y
F
R
D
A
Y
S
A
T
U
R
D
A
Y
S
U
N
D
A
Y
I
PERIOD
Morning
Day
Evening
Night
Morning
Day
Evening
Night
Morning
Day
Evening
Night
Morning
Day
Evening
Night
Morning
Day
Evening
Night
Morning
Day
Evening
Night
Morning
Day
Evening
Night
START TIME
COOL
HEAT
Copy Mon Tue
No
Yes
Copy Tue Wed
No
Yes
Copy Wed Thu
No
Yes
Copy Thu Fri
No
Yes
Copy Fri Sat
No
Yes
Copy Sat Sun
No
Yes
Printed on recycled paper.
P/N 88-307
Rev. 1
Form No. OM17-45
Catalog No. 13TS-TA52
Loading...
+ hidden pages
You need points to download manuals.
1 point = 1 manual.
You can buy points or you can get point for every manual you upload.
