Heating & Cooling Systems
USERS INFORMATION MANUAL
MODEL TSTATBBPS101
PROGRAMMABLE DIGITAL
THERMOSTAT
6:03
Su
AUTO
Am
68
o
70
COOL
HEAT
o
67
Heat Pump & Heat Cool
This manual must be left with the equipment user.
NOTE TO INSTALLER:
1 Day Programmable
4 Time Periods per Day
Auto Changeover
Easy To Read Display
Thermoglow Backlight
No Batteries Required
Meets California Title 24 Residential
Table Of Contents
FRONT PANEL
DISPLAY
QUICK START Set the clock and go
BASIC OPERATION
PROGRAMMING 4 Time Periods
ADVANCED SETUP
ABOUT ADVANCED OPERATION
WARRANTY
CAUTION
Follow Installation Instructions before proceeding.
SET THERMOSTAT TO MODE “OFF” PRIOR TO
CHANGING SETTINGS IN SETUP OR RESTORING
FACTORY DEFAULTS.
Residential Light Commerical Systems Carrier Corporation 4/01
2
3
5
6
8
11
14
18
TSTATBBPS101
Page 1
Front Panel
6:03
Su
AUTO
Am
68
o
70
COOL
HEAT
o
67
EMERGENCY HEAT
FAN
Backlit LCD Display
Warmer or + Button
Cooler or - Button
Mode Button
Heat or Cool Indicator
Red = Heat, Green = Cool
Programmable
Thermostat
Am
6:03
S
AUTO
BACKLIGHT
68
70
COOL
HEAT
67
PROGRAMVACATIONOUTSIDEFAN MODE
PROGRAM
o
o
SET CLOCK
SET CLOCK
Page 2
Display
2
1
5
7
:
12:00
AUTO
Night
OFF
Morning
Evening
Fan On
Day
Am
Pm
1
9
Program
Start
8
On
Setup
Locked
88
6
88
88
COOL
HEAT
o
o
4
1
1
4
1
Mode Indicators
Selects the operation mode of the equipment.
HEAT - indicates the heat mode.
COOL - indicates the air conditioning mode.
AUTO - indicates the system will automatically
changeover between heat and cool modes
as the temperature varies.
OFF - indicates the entire system is turned off.
PROGRAM ON - indicates the stored program
is enabled to run. Page 6.
2
Time Clock
Indicates the current time of day. This clock is
also used to program the timer periods. Page 8.
3
Room Temperature Display
Indicates the current room temperature.
4
Desired Set Temperature
Indicates desired room temperature(s). Page 6
3
Page 3
Display
5
6
7
8
9
Morning, Day, Evening & Night Indication
Indicates the program time period. Page 8-10.
Setup Indication
Indicates the thermostat is in the programming
mode. Page 6.
Fan Operation Indication
Fan On - indicates constant, continuous fan
operation.
When Fan On is not lit - indicates the fan will
only operate when necessary to heat or
to cool. Page 7.
Locked Indication
Locked appears after the right combination of
buttons are pressed, rendering the buttons
inoperative. Page 16.
Start Indication
Start appears when programming
timer functions. Page 8
Page 4
Quick Start Set the Clock and Go
SET CLOCK
I2:00
Mo
Press the Set Clock
button to enter Setup
screens.
AM
Setup
Setup
Press the SET CLOCK
button to return to
I
2
SET CLOCK
During Setup & Programming:
Pressing the Mode button
selects different flashing items.
(Represented in dark black)
Pressing the Up and Down
buttons will modify the flashing
selection.
Press
MODE
To adjust the
clock or Day use
buttons.
normal operation.
The thermostat is preprogrammed from the
factory to operate 1 stage of cooling or 2 Stages
of heating equipment* without the need for further
programming. To optimize the installation of this
thermostat follow the instructions in the Advanced
Setup section.
* The thermostat is not preprogrammed from the
factory to operate electric heat or heat pump systems.
To control these systems, follow the steps in the
Advanced Setup section, pages 11 & 12.
Page 5

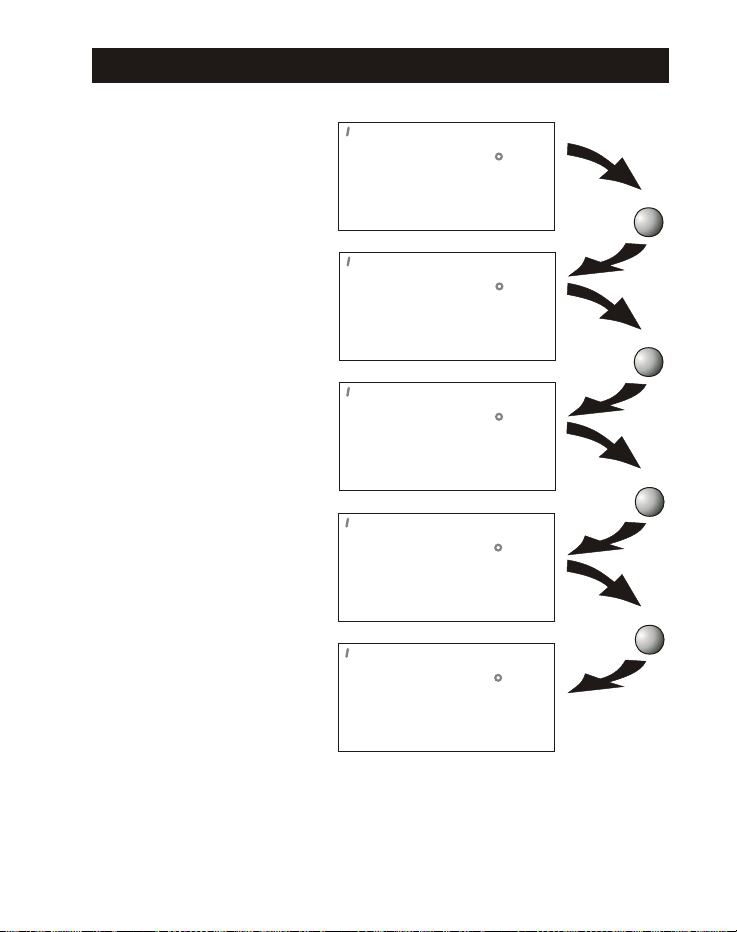

Basic Operation
Select Mode
The HEAT setting indicates the
temperature the room has to
reach before the furnace will
turn on to heat the room.
The COOL setting indicates the
temperature the room has to
reach before the air conditioner
will turn on to cool the room.
AUTO will automatically select
heat or cool based on room
temperature demand.
Program On will activate the
stored timer operation.
(Morning, Day, Evening
& Night Periods)
OFF indicates both heating
and air conditioning
systems are turned off.
:
12:00
:
12:00
:
12:00
AUTO
:
12:00
:
12:00
OFF
Pm
70
Pm
70
Pm
70
Program
Pm
Day
70
Pm
70
HEAT
o
69
o
72
COOL
o
72
COOL
HEAT
o
69
73
COOL
HEAT
o
o
On
70
Press
MODE
Press
MODE
Press
MODE
Press
MODE
Page 6
Basic Operation
Select Desired Temperature
:
12:00
Pm
AUTO
70
Pressing the Up or Down buttons in Auto mode will adjust both the heat and cool
set temperatures simultaneously.
Pressing the Up or Down buttons in Heat or Cool modes will adjust only the
heat or cool set temperature.
Fan
Operation
:
Pm
12:00
Fan On
65
FAN
72
COOL
HEAT
69
Press
85
COOL
HEAT
55
o
o
o
Fan On indicates constant fan operation.
This feature is active even if the thermostat
o
is set to Off.
In any mode, adjust the
desired Set Temperature
with
buttons.
Page 7
Programming 4 Time Periods
Press
PROGRAM
Press the PROGRAM button to enter time period programming.
Use the back cover Programming Worksheet to help with this section.
Am
Adjust the start time
for Morning.
Adjust the cooling
setpoint for Morning.
(35 - 99 )
Adjust the heating
setpoint for Morning.
(35 - 99 )
:
7 30
Morning
:
7 30
Morning
:
7 30
Morning
Start
Am
Am
74
COOL
74
COOL
HEAT
o
o
o
72
Continued
Press
MODE
Press
MODE
Press
MODE
Page 8
Programming 4 Time Periods
Am
:
Adjust the start time
for Day.
I0 30
Day
Start
Press
MODE
Adjust the cooling
setpoint for Day.
(35 - 99 )
Adjust the heating
setpoint for Day.
(35 - 99 )
Adjust the start time
for Evening.
Adjust the cooling
setpoint for Evening.
(35 - 99 )
:
I0 30
:
I0 30
:
5 30
Evening
:
5 30
Evening
Day
Day
Am
Am
Start
Pm
Pm
75
COOL
75
COOL
HEAT
73
75
COOL
Continued
o
Press
MODE
o
o
Press
MODE
Press
MODE
o
Press
MODE
Page 9
Programming 4 Time Periods
Adjust the heating
setpoint for Evening.
(35 - 99 )
Adjust the start time
for Night.
Adjust the cooling
setpoint for Night.
(35 - 99 )
Adjust the heating
setpoint for Night
(35 - 99 )
:
5 30
Evening
:
I I 30
:
I I 30
:
I I 30
Night
Night
Night
Pm
Start
Pm
Pm
Am
75
COOL
HEAT
73
78
COOL
78
COOL
HEAT
70
o
o
Press
MODE
Press
MODE
o
Press
MODE
o
o
Press
PROGRAM
Page 10
Advanced Setup
MODE
PROGRAM
Tip: To change hours quickly, press and
hold the fan button in and then press
the up or down buttons.
On
Off
Press the Mode button.
While holding the Mode,
press the Program button
to enter Setup screens.
Adjust the time of day
clock.
On
Select residential Heat
Pump, On or Off.
Off
B
Select the reversing
valve polarity for
Heat Pump, O or B.
(Step 3 only appears if
heat pump is on in step 2)
O
Select Electric Heat On
or Off. (Step 4 only
appears if heat pump is
off in step 2)
I2:00
OFF
HP
O
OFF
EH
NOTE: Each step # is located at
the top right corner of the
display for easy reference.
AM
Setup
I
Press
Setup
MODE
2
Press
Setup
MODE
3
Press
MODE
Setup
4
Press
MODE
Page 11
Continued
Advanced Setup
Adjust the deadband
from 1 - 6 degrees.
Adjust the minimum
difference between
cooling & heating
setpoints.
(0 - 6 )
Select the cycles per
hour limit.
d=cycles per hour
limit defeated.
d1=d + defeat 5 min.
Compressor lockout.
(d, d1, 2 - 6)
C
Select thermostat
operation in degrees
Fahrenheit or
Centigrade.
F
8
2
8
If
2
6
8
F
Setup
Setup
Setup
Setup
6
COOL
HEAT
7
Cy
9
5
Press
MODE
Press
MODE
Press
MODE
Press
PROGRAM
Page 12
Advanced Setup
Advanced Setup Table
Step # Description Range Factory Default
1 Time of day clock set 24 hour 12:00 Am
2 Heat Pump Off/On Off
Reversing Valve polarity O / B O
3
4 Electric Heat Off / On Off
Deadband 1 - 6 2
6
7 Forced minimum difference heat/cool 0 - 6 2
Cycles per hour d, d1, 2 - 6 6
8
Fahrenheit or Centigrade F / C F
9
Accessed and configured through the Set Clock button.
Page 13
About Advanced Features & Operation
MEMORY BACKUP - In the event of a power loss, the
thermostat will retain the stored program settings without
external power or batteries.
2 STAGE OPERATION - The 2nd Stage of heat is turned
on when (1) the 1st Stage has been on for a minimum
of two minutes, and (2) the temperature spread from
the setpoint is equal to or greater than: the setpoint
plus the deadband, plus 2 degrees.
Heating
Dead
2 degrees
Band
Dead
Band
Cooling
2nd Stage
turn on
1st Stage
turn on
Heat
Setpoint
Setpoint
Cool
1st Stage
turn on
MINIMUM HEAT/COOL SETPOINT DIFFERENCE - The Heat
and Cool setpoints will not be allowed to come any closer
to each other than the value set in Advanced Setup step
# 6, on page 12. This minimum difference is enforced
during Auto changeover operation.
and Program On
ELECTRIC HEAT - Selecting Electric Heat on, page 11,
step # 4, will cause the thermostat to turn on the fan
immediately
any time there is a heat demand. Since all
gas furnaces
control the fan, this feature should be off
unless the heater
is only electric.
Page 14
About Advanced Features & Operation

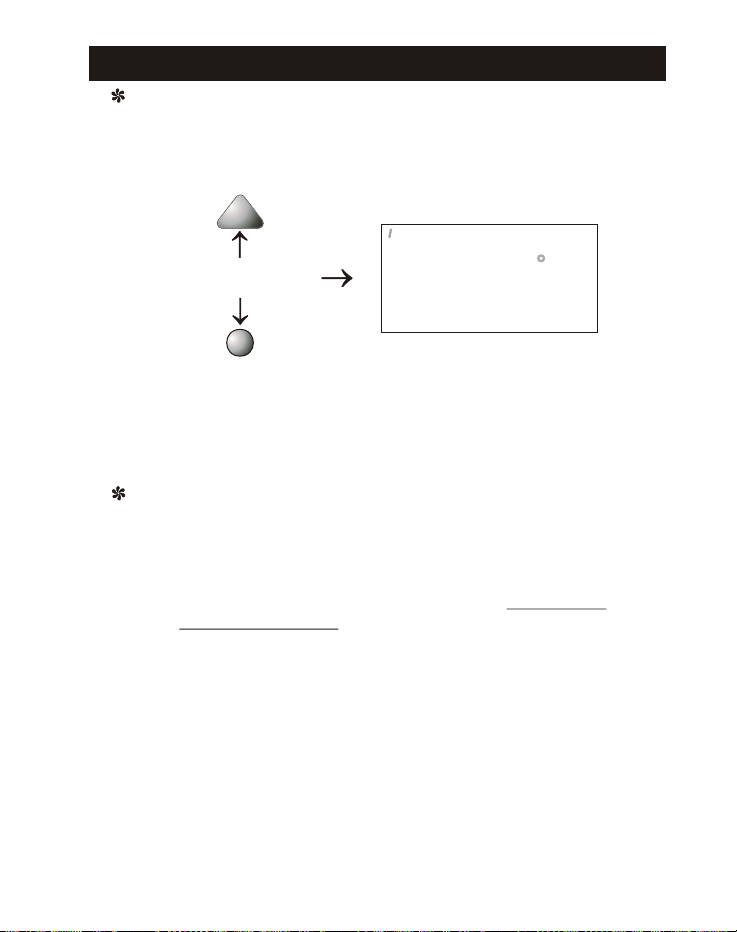

EMERGENCY HEAT - Is a feature available to Heat Pump
installations. To turn on Emergency Heat press in the
Fan button. While holding the Fan button press
Up button for 2 seconds. The Cool setpoint display
will read ‘EH’.
the
Am
:
12:00
Press for
Emergency Heat
73
FAN
During Emergency Heat the thermostat will turn
on the fan and the 2nd stage of heat, when there is a
demand for heat, locking out the 1st stage compressor.
Exiting Emergency Heat is the same as entering. During
Emergency Heat only OFF and HEAT are available.
FACTORY DEFAULTS - If, for any reason it is desirable to
return all stored settings back to the factory default
settings, press the Mode button. While holding the Mode
button in, press the Fan button for 5 sec. All icons will
appear. Press and hold in the Fan button until Fd
appears. This resets all factory settings. To calibrate
room temperature, press the up and down arrow buttons
simultaneously, twice..
At this point use the Up or Down buttons to calibrate
room temperature, if needed. Press the Mode button to
return to normal operation. NOTE CAUTION ON PAGE 1.
eh
HEAT
74
o
o
Page 15
About Advanced Features & Operation
KEYPAD LOCK - To prevent unauthorized use of the thermostat,
the front panel buttons may be disabled. To disable, or
‘lock’ the keypad, press and hold in the Mode button.
While holding the Mode button in, press the Up and Down
buttons in together. The Locked icon will appear on the
display.
Press all 3 for
Keypad Lockout
MODE
To unlock the buttons, again press and hold the Mode
button. While holding the Mode button in, press the Up
and Down buttons in together. The Locked icon will
disappear from the display.
:
12:00
Pm
Locked
65
85
COOL
HEAT
55
o
o
Page 16
About Advanced Features & Operation
DUAL SETPOINT BEHAVIOR - The adjustable setpoint range
is: 35 - 99 degrees in Fahrenheit and 7 - 35 degrees in
Centigrade. When in the modes Heat or Cool, this
adjustable range is unhampered.
When adjusting any Auto mode, including programming
4 Time periods, the thermostat will not
Heat setpoint to get closer to the Cool setpoint
than the value programmed as the minimum difference
in
step # 6, page 12.
When entering the Auto mode from Cool, the Heat and
Cool setpoints will remain spread apart by the amount
that they were adjusted, prior to entering Auto.
For example: If the Cool setpoint was set to 80 while
in the Cool mode and the Heat setpoint was adjusted to
70 while in the Heat mode, upon entering the Auto mode
the Heat and Cool setpoints would be 80 and 70. Both
setpoints would then move up and down together, (in this
example spread by 10 degrees), by pressing the up or
down buttons.
To move the Heat and Cool setpoints closer together,
enter the Cool or Heat mode by pressing the Mode button,
then adjust the setpoint(s) closer together. Heat is limited
to how close it can come to Cool by step # 6, page 12.
allow the
Page 17
Warranty
Five-Year Warranty - This Product is warranted to be free from defects in material and
workmanship. If it appears within five years from the date of original installation, whether or not
actual use begins on that date, than the product does meet this warranty, a new or
remanufactured part, at the manufacturer’s sole option, to replace any defective part will be
provided without charge for the part itself; PROVIDED the defective part is returned to the
distributor through a qualified servic ing dealer.
THIS WARRANTY DOES NOT INCLUDE LABOR OR OTHER COSTS incurred for diagnosing,
repairing, removing, installing, shipping, servic ing or handling of either defective parts or
replacement parts. Such costs may be covered by a separate warranty provided by the installer.
THIS WARRANTY APPLIES ONLY TO PRODUCTS IN THEIR ORIGINAL INSTALLATION
LOCATION AND BECOMES VOID UPON REINSTALLATION.
LIMITATIONS OF WARRANTIES – ALL IMPLIED WARRANTIES (INCLUDING IMPLIED
WARRANTIES OF FITNESS FOR A PARTICULAR PURPOSE AND MERCHANTABILITY) ARE
HEREBY LIMITED IN DURATION TOT THE PERIOD FOR WHICH THE LIMITED WARRANTY
IS GIVEN. SOME STATES DO NOT ALLOW LIMITATIONS ON HOW LONG AN IMPLIED
WARRANTY LASTS, SO THE ABOVE MAY NOT APPLY TO YOU. THE EXPRESSED
WARRANTIES MADE IN THIS WARRANTY ARE EXCLUSIVE AND MANY NOT BE ALTERED,
ENLARGED, OR CHANGED BY ANY DISTRIBUTOR, DEALER, OR OTHER PERSON
WHATSOEVER.
ALL WORK UNDER THE TERMS OF THIS WARRANTY SHALL BE PERFORMED DURING
NORMAL WORKING HOURS. AL REPLACEMENT PARTS, WHETHER NEW OR
REMANUFACTURED, ASSUME AS THEIR WARRANTY PERIOD ONLY THE REMAINING
TIME PERIOD OF THIS WARRANTY.
THE MANUFACTURER WILL NOT BE RESPONSIBLE FOR:
1. Normal maintenance as outlined in the installation and servicing instructions or owners
manual including filter cleaning and/or replacement and lubrication.
2. Damage or repairs required as a consequence of faulty installation, misapplication, abuse,
improper servicing, unauthorized alteration or improper operation.
3. Failure to start due to voltage conditions, blown fuses, open circuit breakers or other
damages due to the inadequacy or interruption of electrical service.
4. Damage as a result of floods, winds, fires, lightning, accidents, corrosive environments or
other conditions beyond the control of the Manufacturer.
5. Parts not supplied or designated by the Manufacturer, or damages resulting from their use.
6. Manufacturer products installed outside the continental U.S.A., Alaska, Hawaii, and
Canada.
7. Electricity or fuel costs or increases in electricity or fuel costs from any reason whatsoever
including additional or unusual use of supplemental electric heat.
8. ANY SPECIAL INDIRECT OR CONSEQUENTIAL PROPERTY OR COMMERCIAL
DAMAGE OF ANY NATURE WHATSOEVER. Some states do not allow the exclusion of
incidental or consequential damages, so the above may not apply to you.
This warranty gives you specific legal rights, and you may also have other rights which may vary
form state to state.
P/N 88-168
Page 18
Form No. OM17-44
Catalog No. 13TS-TA51
Loading...
