Heating & Cooling Systems
USERS INFORMATION MANUAL
MODEL TSTATBBPQ501
5+2 DAY PROGRAMMABLE
DIGITAL THERMOSTAT
SINGLE STAGE HEAT & COOL
THERMOSTAT
AM
Tu
I2:00
SET
72
72
5+2 DAY PROGRAMMABLE
next
run
prog
off
set
This manual must be left with the equipment user.
NOTE TO INSTALLER:
Separate programs for
weekdays & weekends
Large, easy to read,
backlit digital display
Installation Flexibility
Batteries required for
4-wire operation
No batteries needed
for 5-wire operation
Meets California Title 24 Residential
Table Of Contents
SAFETY WARNINGS
LOCATION OF CONTROLS
DISPLAY
NORMAL OPERATION
Manual Thermostat Operation
Time Period Operation
CLOCK SET
PROGRAMMING Setup
Overview
Program Setup
ADVANCED SETUP
BATTERY REPLACEMENT
WARRANTY
2
3
4
5
6
7
8
9
16
18
19
Bryant Heating & Cooling Systems Patents Pending 4/03
Page 1
Safety Warnings
TSTATBBPQ501
CAUTION
The 2 Alkaline “AA” batteries must be replaced at least
every 12 months to assure proper operation.
The thermostat will display the Low Battery
code (fig. 1) on the display of the thermostat
when it is time to replace the batteries. If the
thermostat is connected to 24v power, the
Batteries may still be installed, but are not required.
When is displayed the batteries must be replaced
immediately. The manufacturer cannot be liable for
improper operation of the thermostat if the batteries are
not immediately replaced.
The annual battery replacement is especially critical in
locations subject to freezing temperatures. The
thermostat will be unable to turn on the Heat if the
batteries are exhausted.
Follow Installation Instructions carefully.
DISCONNECT POWER TO THE HEATER AIR CONDITIONER BEFORE REMOVING
THE OLD THERMOSTAT AND INSTALLING
THE NEW THERMOSTAT.
CAUTION
WARNING
FIG. 1
This device complies with Part 15 of the FCC rules.
Operation is subject to the following 2 conditions:
(1) This device may not cause harmful interference, and (2)
This device must accept any interference received, including
interference that may cause undesired operation.
Page 2
Location of Controls
AM
Tu
I2:00
SET
72
72
HEAT/COOL
INDICATOR
next
UP & DOWN
run
prog
off
BUTTONS
set
The Heat/Cool
indicator will only
energize if the
thermostat is system
powered.
MODE SWITCH
Heat, Cool or Off
FAN SWITCH
On or Auto
NEXT BUTTON
For programmingFor programming
How to Use: The Next button is used to advance
from one step to the next in the programming and
advanced setup screens of the thermostat (pages 8-16).
It is also used to enter the Advanced Setup screens (page 16).
PROGRAM SWITCH
RUN program
Program OFF
SET program
Page 3
Display
MTuWThF
SaSuHeatCool
88
Day of the week. When programming, MTuWThF
represents the 5 weekdays, SaSu represent the
2 weekend days.
Heat and Cool indicators. In normal operation, Heat
or Cool appears, reflecting the mode switch position.
Clock Display.
Time period indicators. These indicate the part of
the program that is currently active, if the program
switch is positioned to Run.
Desired Set temperature indicator.
Current room temperature indicator.
AM
PM
I2:00
88
Day
Morning
Night
Evening
SET
Page 4
Normal Operation
PROGRAM
SWITCH
AM
Tu
I2:00
Heat
Program
Switch
RUN
OFF
SET
MODE SWITCH
Heat, Cool or Off
72
SET
72
FAN SWITCH
On or Auto
Manual Operation (program switch OFF)
Select heat or cool with the mode switch.
Normally leave the fan switched to auto.
In fan auto, the fan will turn on only with a heat
or cool demand. When Fan On is selected, the
fan will run continuously.
Adjust the desired set temperature with the
Up or Down buttons.
next
UP & DOWN
BUTTONS
run
prog
off
set
Page 5
Normal Operation
PROGRAM
SWITCH
AM
Tu
I2:00
Program
Switch
RUN
OFF
SET
MODE SWITCH
Heat, Cool or Off
Heat
72
SET
72
FAN SWITCH
On or Auto
UP & DOWN
BUTTONS
Programmed Operation (program switch RUN)
Select heat or cool with the mode switch.
Normally leave the fan switched to auto.
In fan auto, the fan will turn on only with a heat
or cool demand. When Fan On is selected, the
fan will run continuously.
Optionally; adjust the desired set temperature
for temporary override. The programmed
settings will restore in the following time period.
next
run
prog
off
set
Page 6
Clock Set
Program
RUN
OFF
SET

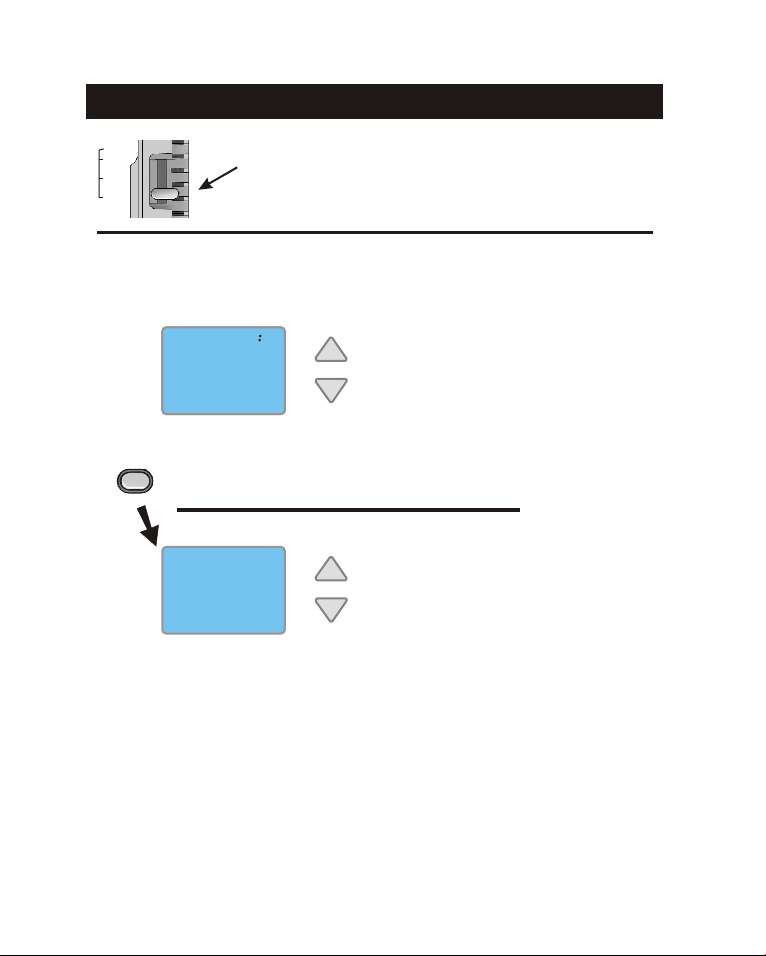

Slide the program switch to the SET position.
Setting the time & day are the first 2 steps after
sliding the program switch to SET.
PM
PM
6:00
6:00
Pushing and holding the Up or Down buttons will slew the time by
10s of minutes.
Press the NEXT button for 5 seconds to enter advanced
setup. (Page16)
NEXT
Use these buttons to
adjust the current time.
Su
Use these buttons to
adjust the current day.
Page 7
Time Period Programming
Overview
PROGRAM SWITCH
Slide the program switch to the SET position.
The blinking icon(s) on the display may be
changed by pressing the Up or Down buttons.
After the blinking icon is changed how you want
it, press the Next button.
The next icon in ‘programming sequence’ will flash.
It can be modified with the Up & Down buttons.
Continue the steps above until programming is complete.
Slide the program switch to RUN and the thermostat
will now run the time period programming.
If the program switch is in the OFF position, the thermostat
will not run the time period program. In this case the
thermostat will be a manual heat or cool only thermostat.
Please be certain to program each time period in chronological
order to ensure proper programmed operation of the
thermostat. For example, if the Morning Start Time is
6:30am, then the Day Start Time MUST be programmed
for any time AFTER the 6:30am Morning Start Time.
Program
Switch
RUN
OFF
SET
Page 8

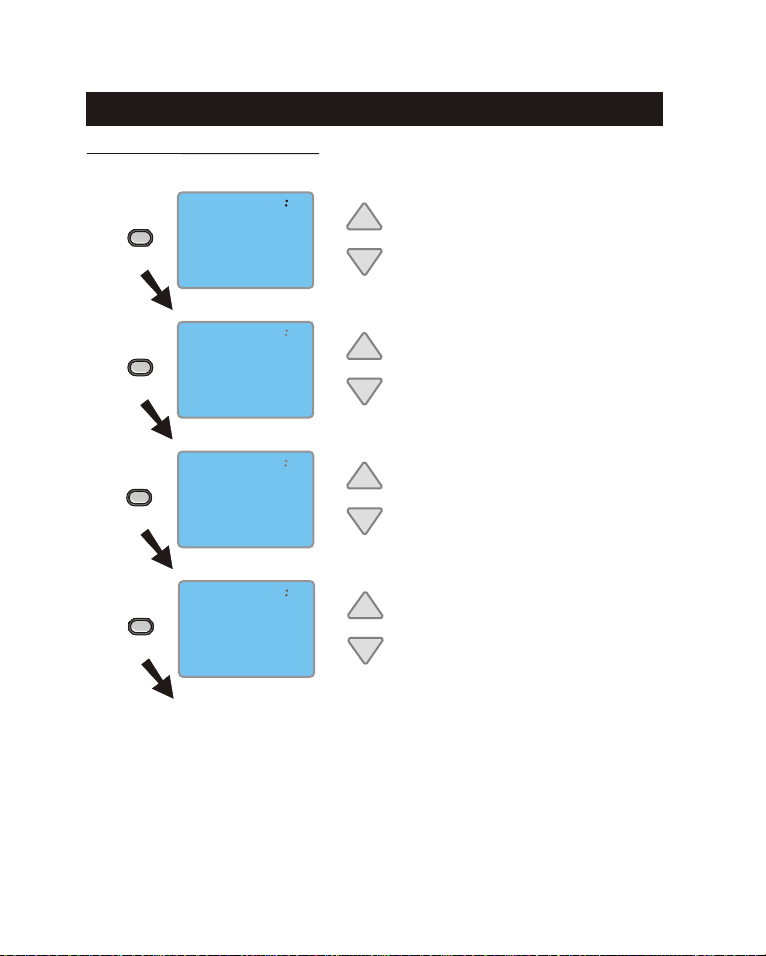

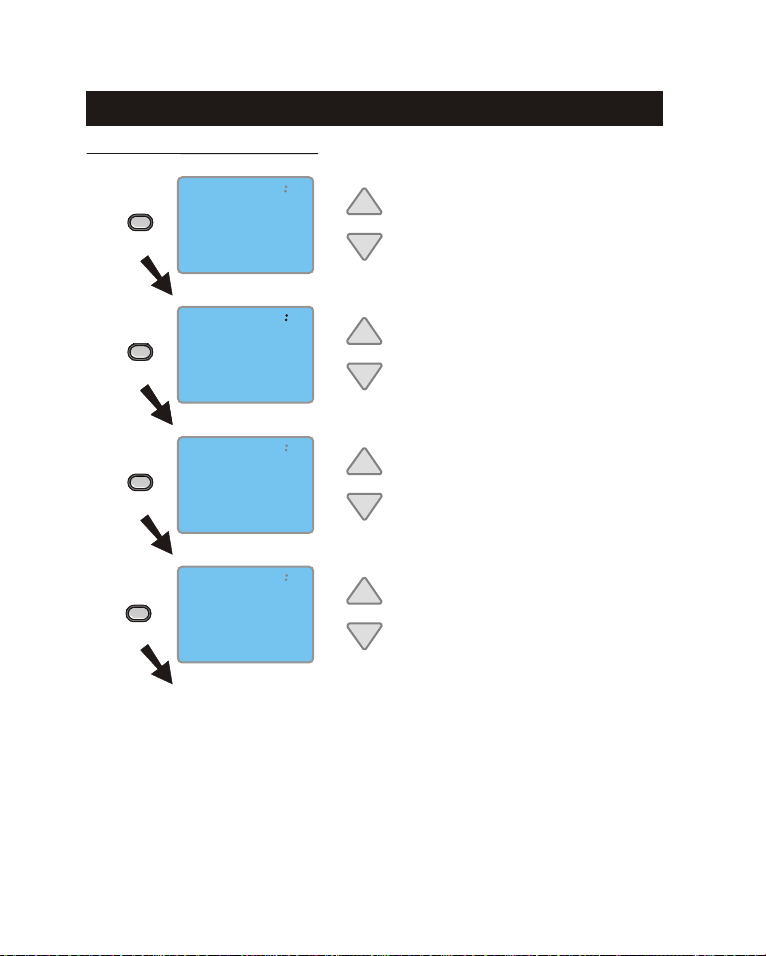

Time Period Programming
Weekday Programming
Program
RUN
OFF
SET
NEXT
NEXT
NEXT
NEXT

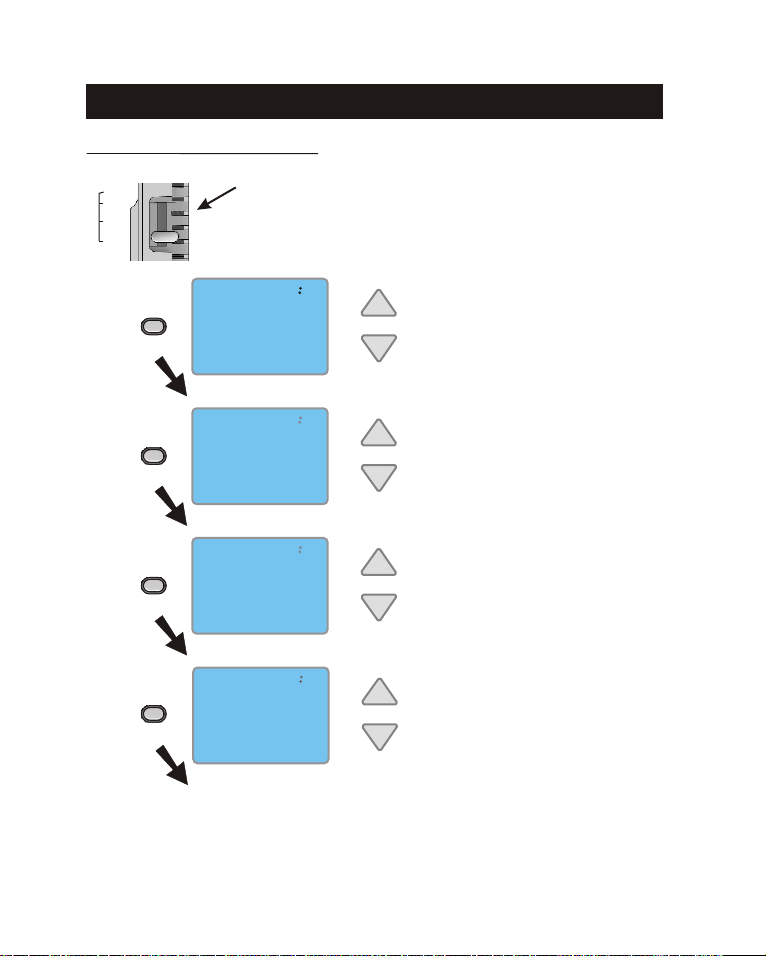

Slide the program switch to the SET position. The
1st 2 steps are clock and day set, see page 7.
MTuWThF
AM
6:00
Morning
Use these buttons to
adjust the start time for
the morning time period.
MTuWThF
Cool
MTuWThF
Heat
MTuWThF
AM
AM
AM
6:00
Morning
SET
78
6:00
Morning
SET
70
8:00
Day
Use these buttons to
adjust the cool setpoint for
the morning time period.
Use these buttons to
adjust the heat setpoint for
the morning time period.
Use these buttons to
adjust the start time for
the day time period.
Next Page
Page 9
Time Period Programming
Weekday Programming
NEXT
NEXT
NEXT
NEXT
MTuWThF
Cool
MTuWThF
Heat
MTuWThF
MTuWThF
Cool
AM
AM
PM
Next Page
8:00
85
8:00
62
6:00
Evening
PM
6:00
Evening
78
SET
SET
SET
Day
Day
Use these buttons to
adjust the cool setpoint for
the day time period.
Use these buttons to
adjust the heat setpoint for
the day time period.
Use these buttons to
adjust the start time for
the evening time period.
Use these buttons to
adjust the cool setpoint for
the evening time period.
Page 10
Time Period Programming
Weekday Programming
NEXT
NEXT
NEXT
NEXT
MTuWThF
Heat
MTuWThF
MTuWThF
Cool
MTuWThF
Heat
Next Page
PM
PM
PM
PM
6:00
Evening
SET
70
I0:00
Night
I0:00
Night
SET
82
I0:00
Night
SET
62
Use these buttons to
adjust the heat setpoint for
the evening time period.
Use these buttons to
adjust the start time for
the night time period.
Use these buttons to
adjust the cool setpoint for
the night time period.
Use these buttons to
adjust the heat setpoint for
the night time period.
Page 11
Time Period Programming
Weekend Programming
AM
AM
6:00
Morning
6:00
Morning
SET
NEXT
NEXT
SaSu
SaSu
Cool
78
AM
6:00
Morning
SET
NEXT
SaSu
Heat
70
AM
SaSu
NEXT
8:00
Day
Use these buttons to
adjust the start time for
the morning time period.
Use these buttons to
adjust the cool setpoint for
the morning time period.
Use these buttons to
adjust the heat setpoint for
the morning time period.
Use these buttons to
adjust the start time for
the day time period.
Next Page
Page 12
Time Period Programming
Weekend Programming
AM
8:00
Day
SET
NEXT
SaSu
Cool
85
AM
8:00
Day
SET
NEXT
SaSu
Heat
62
PM
6:00
Evening
PM
6:00
Evening
SET
NEXT
NEXT
SaSu
SaSu
Cool
78
Use these buttons to
adjust the cool setpoint for
the day time period.
Use these buttons to
adjust the heat setpoint for
the day time period.
Use these buttons to
adjust the start time for
the evening time period.
Use these buttons to
adjust the cool setpoint for
the evening time period.
Next Page
Page 13
Time Period Programming
Weekend Programming
PM
6:00
Evening
SET
NEXT
SaSu
Heat
70
PM
PM
I0:00
Night
I0:00
Night
SET
NEXT
NEXT
SaSu
SaSu
Cool
82
PM
I0:00
Night
SET
NEXT
SaSu
Heat
62
Use these buttons to
adjust the heat setpoint for
the evening time period.
Use these buttons to
adjust the start time for
the night time period.
Use these buttons to
adjust the cool setpoint for
the night time period.
Use these buttons to
adjust the heat setpoint for
the night time period.
Next Page
Page 14
Time Period Programming
After completion of setting the time period
programming, you have 2 options:
1) Run the time period program by sliding the
Program Switch to the RUN position.
Or,
2) Do not run the time period program. The
thermostat will operate as a manual
heat/cool thermostat. Slide the Program
Switch to OFF in this case.
Program
Switch
RUN
OFF
SET
Page 15
Advanced Setup
This is normally done by the installer at initial installation.
Enter advanced setup by adjusting the program switch to
SET. When the clock is flashing, press NEXT for 5 seconds.
Do not release the button until this screen appears.
Use these buttons to
NEXT
adjust the deadband
from 1 to 6 degrees.
I
Use these buttons to
adjust the cycles/hour
from 2 to 6.
NEXT
6
Step only
Yes
appears
NEXT
L I
if connected to 24
volt power
F
Adjust the program switch to OFF or RUN to exit
Advanced Setup.
d=no limit (zoning)
d1=d+no compressor
lockout.
Select YES to have the
backlight always on, or NO
to turn off the backlight 8
seconds after a button press.
Use these buttons to select
thermostat operation in
degrees C or F.
If degrees C is selected two presses of the Up or Down
buttons will be required to change the setpoint.
Page 16
Battery Replacement
To Open The Thermostat
The top of the thermostat housing has two (2) screwdriver slots to assist when seperating.
To pull the housing apart, insert a small blade screwdriver into the slot and rotate 90 . This will release
the top housing snaps.
Repeat the procedure in the other screw driver slot.
Separate the housing halves by pulling the top
forward until the pins release, and then lift the bottom
out.
SCREWDRIVER
SLOTS
The batteries must be replaced
immediately when the thermostat
displays the Low Battery code (fig.1).
Page 17
FIG. 1
Battery Replacement
REPLACE WITH ALKALINE BATTERIES AT LEAST ONCE
EVERY YEAR, OR WHEN THE “LOW BATTERY” ICON
APPEARS (pages 2,17).
POSITION BATTERIES AS SHOWN
USE “AA” SIZE
ALKALINE BATTERIES
GASHPGAS
ELEC
USE “AA” SIZE
ALKALINE BATTERIES
IF THE THERMOSTAT IS CONNECTED TO 24V POWER,
THE BATTERIES MAY STILL BE INSTALLED. INSTALLING
THE BATTERIES WHEN SYSTEM POWERED (24VAC) WILL
KEEP THE CLOCK RUNNING IN THE EVENT OF LINE POWER
INTERRUPTION.
Page 18
Warranty
5-Year Warranty - This Product is warranted to be free from defects in material and
workmanship. If it appears within five years from the date of original installation, whether or
not actual use begins on that date, that the product does meet this warranty, a new or
remanufactured part, at the manufacturer’s sole option, to replace any defective part will
be provided without charge for the part itself; PROVIDED the defective part is returned to
the distributor through a qualified servicing dealer.
THIS WARRANTY DOES NOT INCLUDE LABOR OR OTHER COSTS incurred for diagnosing, repairing,
removing, installing, shipping, servicing or handling of either defective parts or replacement
parts. Such costs may be covered by a separate warranty provided by the installer.
THIS WARRANTY APPLIES ONLY TO PRODUCTS IN THEIR ORIGINAL
INSTALLATION LOCATION AND BECOMES VOID UPON REINSTALLATION.
LIMITATIONS OF WARRANTIES – ALL IMPLIED WARRANTIES (INCLUDING IMPLIED
WARRANTIES OF FITNESS FOR A PARTICULAR PURPOSE AND MERCHANTABILITY)
ARE HEREBY LIMITED IN DURATION TO THE PERIOD FOR WHICH THE LIMITED
WARRANTY IS GIVEN. SOME STATES DO NOT ALLOW LIMITATIONS ON HOW
LONG AN IMPLIED WARRANTY LASTS, SO THE ABOVE MAY NOT APPLY TO YOU.
THE EXPRESSED WARRANTIES MADE IN THIS WARRANTY ARE EXCLUSIVE AND
MANY NOT BE ALTERED, ENLARGED, OR CHANGED BY ANY DISTRIBUTOR,
DEALER, OR OTHER PERSON WHATSOEVER.
ALL WORK UNDER THE TERMS OF THIS WARRANTY SHALL BE PERFORMED
DURING NORMAL WORKING HOURS. ALL REPLACEMENT PARTS, WHETHER
NEW OR REMANUFACTURED, ASSUME AS THEIR WARRANTY PERIOD ONLY THE
REMAINING TIME PERIOD OF THIS WARRANTY.
1. Normal maintenance as outlined in the installation and servicing instructions or owners
manual including filter cleaning and/or replacement and lubrication.
2. Damage or repairs required as a consequence of faulty installation, misapplication,
abuse, improper servicing, unauthorized alteration or improper operation.
3. Failure to start due to voltage conditions, blown fuses, open circuit breakers or other
damages due to the inadequacy or interruption of electrical service.
4. Damage as a result of floods, winds, fires, lightning, accidents, corrosive environments or
other conditions beyond the control of the Manufacturer.
5. Parts not supplied or designated by the Manufacturer, or damages resulting from their
use.
6. Manufacturer products installed outside the continental U.S.A., Alaska, Hawaii, and
Canada.
7. Electricity or fuel costs or increases in electricity or fuel costs from any reason whatsoever
including additional or unusual use of supplemental electric heat.
8. ANY SPECIAL INDIRECT OR CONSEQUENTIAL PROPERTY OR COMMERCIAL
DAMAGE OF ANY NATURE WHATSOEVER. Some states do not allow the exclusion of
incidental or consequential damages, so the above may not apply to you.
This warranty gives you specific legal rights, and you may also have other rights which may
vary form state to state.
THE MANUFACTURER WILL NOT BE RESPONSIBLE FOR:
Page 19
Programming Worksheet see page 8
DAY
Monday
Tuesday
Wednesday
Thursday
Friday
PERIOD
Morning
Day
Evening
Night
START TIME
COOL
HEAT
Morning
Saturday
Sunday
Day
Evening
Night
Please be certain to program each time period in
chronological order to ensure proper programmed
operation of the thermostat. For example, if the
Morning Start Time is 6:30am, then the Day Start
Time MUST be programmed for any time AFTER the
6:30am Morning Start Time. Also, if the Day Start time
is set for 10:30am, then the Evening Start Time MUST
be programmed for any time AFTER the 10:30am
Day Start Time. Finally, if the Evening Start Time is
set for 5:30pm, then the Night Start Time MUST be
programmed for any time AFTER the 5:30pm Night
Start Time.
Printed on recycled paper.
P/N 88-403 Rev. 2
Form No. OM17-54
Catalog No. 13TS-TA62
Loading...
