Heating & Cooling Systems
USERS INFORMATION MANUAL
MODEL TSTATBBP2W01
PROGRAMMABLE DIGITAL
THERMOSTAT
I2:34
Mo
72
Heat only, or Cool only
HEAT
72
This manual must be left with the equipment user.
NOTE TO INSTALLER:
2 - Wire Operation
No Batteries Required
Simple, Single Setpoint
7 Day Programmable
4 Time Periods
Very Easy to Program
Large, Easy To Read Display
Thermoglow Backlight
Locking Keypad
Meets California Title 24 Residential
Table Of Contents
FRONT PANEL
DISPLAY
QUICK START Set the clock and go
BASIC OPERATION
PROGRAMMING Time Periods
ADVANCED SETUP
ABOUT ADVANCED OPERATION
WARRANTY
CAUTION
Follow Installation Instructions before proceeding.
SET THERMOSTAT TO MODE “OFF” PRIOR TO
CHANGING SETTINGS IN SETUP OR RESTORING
FACTORY DEFAULTS.
Residential Light Commercial Systems Carrier Corporation 4/01
TSTATBBP2W01
2
3
5
6
8
12
16
19
Page 1
Front Panel
1
3
I2:00
Mo
72
HEAT
70
2
4
1
Liquid Crystal Display
5
with Thermoglow
Up/Down Buttons
2
On/Off Button
3
Outside Button
4
5
Heat or Cool Indicator
Heat = Red, Cool = Green
Page 2
Display
5
6
Night
2
3
I2:00
SuMoTuWeThFrSa
88
5
1
Mode Indicators
Selects the operation mode of the equipment.
HEAT - indicates the heat mode.
COOL - indicates the air conditioning mode.
OFF - indicates the entire system is turned off.
PROGRAM ON - indicates the stored program
is enabled to run. Page 6.
2
Clock with Day of the Week
Indicates the current time and day. This clock is
also used to program the time periods. Page 5.
3
Room Temperature Display
Indicates the current room temperature, or can
be configured to display the setpoint. Page 7.
MorningDay
Am
Pm
Evening
Setup
88
COOL
Outside
Locked
ONOFF
Program On
HEAT
88
4
1
8
7
1
4
4
Desired Set Temperature
Indicates desired room temperature(s). Page 7.
Page 3
Display
5
6
7
8
Morning, Day, Evening & Night Indication
Indicates the program time period.
Page 8-11.
Setup Indication
Indicates the thermostat is in the programming
mode. Page 12.
Locked Indication
Locked appears after the right combination of
buttons are pressed, rendering the buttons
inoperative. Page 16.
Outside Indication
Outside temperature appears after pressing the
Outside button if the thermostat is connected
to an optional Outside Sensor.
Page 4
Quick Start Set the Clock and Go
Press the On/Off button.
ON/OFF
OUTSIDE
I2:00
Su
While holding the On/Off
press the Outside button
for 2 seconds to enter Setup
screens.
I
2
Press both On/Off and
ON/OFF
During Setup & Programming:
Pressing the Mode button
selects different flashing items.
(Represented in dark black)
Pressing the Up and Down
buttons will modify the flashing
selection.
Press
ON/OFF
clock or Day use
Outside buttons as
above to return to
normal operation.
OUTSIDE
The thermostat is preprogrammed from the
factory to operate without the need for further
programming. To optimize the installation
of this thermostat follow the instructions
in the Advanced Setup section.
To adjust the
buttons.
Page 5
Basic Operation
Select Mode
The HEAT setting indicates the
temperature the room has to
reach before the furnace will
turn on to heat the room.
Program On will activate the
stored timer operation.
(Morning, Day, Evening, Night)
OFF indicates the heating
system is turned off.
I2:00
Su
70
I2:00
Su
70
Day
I2:00
Su
69
70
OFF
ON/OFF
ON/OFF
70
NOTE: The operating mode of this thermostat may be changed from the
factory default HEAT operation, to COOL operation in the Advanced Setup
Section.
In the following pages Cool operation may be substituted for Heat operation
if the factory default is changed in Advance Setup Step #3.
The Program On operating mode will be bypassed if the factory default is
changed in Advanced Setup, step #4.
Press
Press
Page 6
Basic Operation
Select Desired Temperature
I2:00
Mo
70
Pm
HEAT
Adjust the
desired Set Temperature
buttons.
69
Pressing the up/down buttons in Heat or Cool will adjust only the H
Cool set temperature.
Outside
Temperature
70
Press
OUTSIDE
OUTSIDE
This feature is only available if an
optional wired, or wireless Outside
Sensor is connected to the
thermostat.
Pressing the Outside button will display the
outside temperature. A subsequent press
of the Outside button will return the display
to the previous screen. Normal operation
will continue while the Outside temperature
is being displayed.
with
eat or
Page 7
Programming 4 Time periods
Press the On/Off button. While holding the On/Off,
press the Up button for 2 seconds to enter
ON/OFF
time period programming.
Select the Day of the Week.
Adjust the start time for
Morning.
Mo
6:00
Mo
Am
Press
ON/OFF
Adjust the heating setpoint
for Morning.
(35 - 99 )
Page 8
Morning
6:00
Mo
70
Morning
Press
ON/OFF
Am
HEAT
Continued
Press
ON/OFF
Programming 4 Time Periods
Am
8:00
Mo
Adjust the start time for
Day.
Day
Am
8:00
Adjust the heating setpoint
for Day.
(35 - 99 )
Adjust the start time for
Evening.
Mo
62
Day
Pm
6:00
Mo
HEAT
Press
ON/OFF
Press
ON/OFF
Page 9
Evening
Press
ON/OFF
Continued
Programming 4 Time Periods
Pm
6:00
Adjust the heating setpoint
for Evening.
(35 - 99 )
Adjust the start time
for Night.
Adjust the heating setpoint
for Night.
(35 - 99 )
Mo
70
Evening
I0:00
Mo
I0:00
Mo
Night
Pm
Night
Pm
62
HEAT
HEAT
Press
ON/OFF
Press
ON/OFF
Press
ON/OFF
Continued
Page 10
Programming 4 Time Periods
Copy Command
Yes
No
ON/OFF
Select Yes to copy the stored
program to the next day.
Select No to continue manually
storing the time period
programming for the next day.
If NO was selected above, Continue Time Period Programming
Morning through Night as done in previous steps starting on page 8
for the next day’s schedule.
Press the On/Off button. While holding the On/Off,
press the Up button to exit time period programming.
No
Tu
Co
Py
ON/OFF
To Exit Programming
Press
Page 11
Advanced Setup
ON/OFF
Press the On/Off button.
While holding the On/Off,
press the Outside button
OUTSIDE
Tip: To change hours quickly, press and
hold the Outside button in and press
the up or down buttons.
for 10 seconds to enter Setup
screens.
Adjust the time of day
clock.
Select the day of the
week.
COOL
Select HEAT or COOL
operation.
HEAT
I2:00
NOTE: Each step # is located at
the top right corner of the
display for easy reference.
Am
Setup
I
Setup Mo
2
Setup
3
HEAT
Press
ON/OFF
Press
ON/OFF
Press
ON/OFF
Page 12
Continued
Advanced Setup
ON
Select the operation
of the thermostat:
ON is 7-day programmable,
OFF is non-programmable
OFF
Configure the display.
1 = setpoint only
2 = room temperature
with setpoint.
Adjust the deadband
from 1 - 6 degrees.
Select the cycles per
hour limit.
d=cycles per hour
limit defeated.
d1=d + defeat 5 min.
Compressor lockout,
lockout is for Cool
operation.
(d, d1, 2 - 6)
8sp
2
2
6
Setup
4
ON
Program
Setup
5
Setup
6
88
Setup
7
Cy
Press
ON/OFF
Press
ON/OFF
Press
ON/OFF
Press
ON/OFF
Page 13
Continued
Advanced Setup
C
Select thermostat
operation in degrees
Fahrenheit or Centigrade.
F
On
Select the display backlight always On, or Off
after 8 seconds.
Off
While holding the On/Off press the
outside button to leave the Setup screens.
If no buttons are pressed, the display will
leave the setup screens after 60 seconds.
F
Press the On/Off button.
Setup
Setup
9
ON
L I
8
Press
ON/OFF
ON/OFF
OUTSIDE
Page 14
Advanced Setup
Advanced Setup Table
Step # Description Range Factory Default
1 Time of day clock set 24 hour 12:00 Am
2 Day of the week Sun - Sat Monday
3 Operating Mode - Heat or Cool Heat / Cool Heat
4 Programmability flag On / Off On
5 Configurable Display 1 / 2 2
6 Deadband or Temperature swing 1 - 6 2
7
8
9
SINGLE SETPOINT OPERATION
The thermostat display may be configured such that only the setpoint is
visible.
This is done in Advance Setup Step #5, by selecting 1.
The room temperature may be viewed by holding in the On/Off button for
2 seconds. Releasing the On/Off button will return the display to the previous
screen.
OUTDOOR SENSOR
An outdoor temperature sensor may be connected to this thermostat. Totaline
offers wired or wireless models. Compatible models include: P474-0401RF/REC
& P474-0400.
Consult the remote sensor instruction sheet for wiring connections.
Cycles per hour d, d1, 2 - 6 6
Fahrenheit or Centigrade F / C F
Thermoglow backlight Off / On On
Page 15
About Advanced Features & Operation
KEYPAD LOCK - To prevent unauthorized use of the thermostat,
the front panel buttons may be disabled. To disable, or
‘lock’ the keypad, press and hold in the On/Off button.
While holding the On/Off button in, press the Up and Down
buttons in together. The Locked icon will appear on the
display.
Press all 3 for
Keypad Lockout
ON/OFF
To unlock the buttons, again press and hold the On/Off
button. While holding the On/Off button in, press the Up
and Down buttons in together. The Locked icon will
disappear from the display.
FACTORY DEFAULTS - If, for any reason it is desirable to
return all stored settings back to the factory default
settings, press the On/Off button. While holding the On/Off
button in, press the Down button for 5 sec. All icons will
appear. Press and hold in the Outside button until Fd
appears. This resets all factory settings. To calibrate
room temperature, press the On/Off button once more.
At this point use the Up and Down buttons to calibrate
room temperature, if needed. Press the On/Off button to
return to normal operation. NOTE CAUTION ON PAGE 1.
I2:00
Su
70
Am
Locked
HEAT
55
Page 16
About Advanced Features & Operation

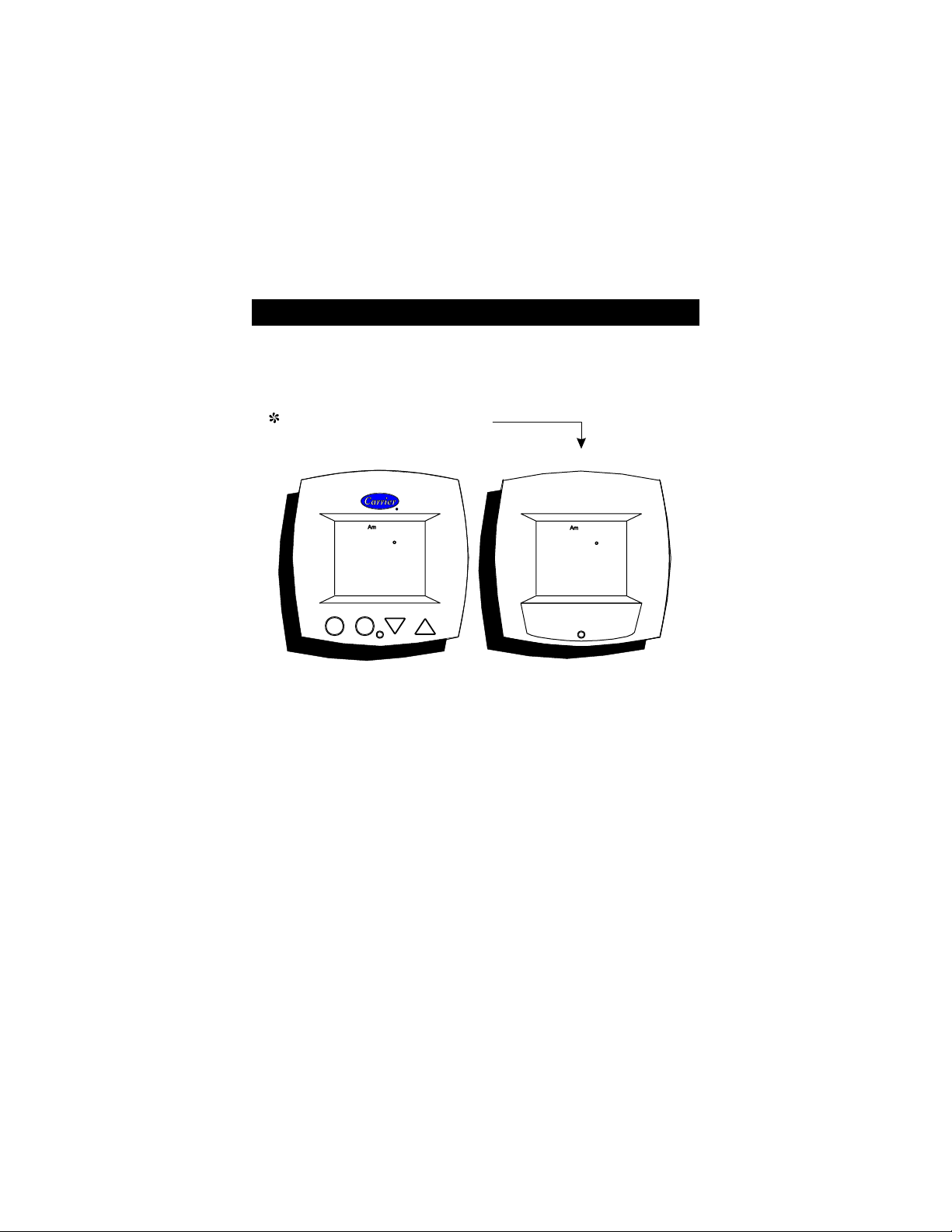

OPTIONAL LOCKING COVER
I2:00
Mo
72
HEAT
70
Page 17
I2:00
Mo
72
HEAT
70
About Advanced Features & Operation
TWO-WIRE THERMOSTAT
INSTALLATION WIRING
D
N
+5
S
S
SGR
L
L
R
R
Two-Wire Thermostat
R
W1
Resistor
(If Required)
250 OHM
10 WATT
C
HVAC Equipment
If the Two-Wire thermostat is losing time or
showing PF or P- it may be neccessary to
install the 10 watt 250 ohm resistor that
is supplied with the thermostat.
Page 18
STEP #1
Flat Blade
Screwdriver
Make sure your Heater/Air Conditioner
is working properly before beginning
installation of the thermostat.
PREPARATION
Proper installation of the thermostat will be
accomplished by following these step
by step instructions. If you are unsure
about any of these steps, call a qualified
technician for assistance.
Assemble tools as shown below.
Drill with 3/16
inch Drill Bit
Wire cutter
& Stripper
(when not using
j-box)
Carefully unpack the thermostat.
Save the screws, wall anchors, and
instructions.
Page 19
STEP #2
REMOVE OLD THERMOSTAT
Turn off the power to the Heating/Air
Conditioning system at the main fuse
panel. Most residential systems have
a separate breaker for disconnecting
power to the furnace.
Remove the cover of the old thermostat.
If it does not come off easily check for
screws.
Loosen the screws holding the thermostat
base or subbase to the wall, and lift away.
Disconnect the wires from the old
thermostat. Tape the ends of the wires
as you disconnect them, and mark them
with the letter of the terminal for easy
reconnection to the new thermostat.
Keep the old thermostat for reference
purposes, until your new thermostat is
functioning properly.
Page 20
STEP #3
terminal marked
INSTALL BACKPLATE & WIRE
Remove the backplate connector from the
rear of the thermostat. Install wires as directed
below. When finished, snap thermostat on to
backplate.
If the terminal designations on your old
thermostat do not match those on the
new thermostat, refer to the chart below,
or the wiring diagrams that follow.
Wire from the
old thermostat
G or F Fan G
Y1, Y or C
W1, W or H
C
O/B
Y2
W2
RS+5
RS
RS G
CK1
CK2
Function
Cooling Y1
Heating
PowerRh, R, M, Vr, A R
Common
Rev. Valve
2nd Stage Cool
2nd Stage Heat
Remote Sensor +5vdc
Remote Sensor Signal
Remote Sensor Ground
Dry Contact Switch 1
Dry Contact Switch 2
* C may not be used on all systems.
** O/B is used if your system is a Heat Pump.
Install on the
new thermostat
connector marked
W1,O,B
C *
W1,O,B**
Y2
W2
Page 21
Warranty
Five-Year Warranty - This Product is warranted to be free from defects in material and
workmanship. If defect appears within five years from the date of original installation, whether
or not actual use begins on that date, then the product does meet this warranty. A new or
remanufactured part, at the manufacturer’s sole option, to replace any defective part will be
provided without charge for the part itself; PROVIDED the defective part is returned to the
distributor through a qualified servicing dealer.
THIS WARRANTY DOES NOT INCLUDE LABOR OR OTHER COSTS incurred for diagnosing,
repairing, removing, installing, shipping, servicing or handling of either defective parts or
replacement parts. Such costs may be covered by a separate warranty provided by the installer.
THIS WARRANTY APPLIES ONLY TO PRODUCTS IN THEIR ORIGINAL INSTALLATION
LOCATION AND BECOMES VOID UPON REINSTALLATION.
LIMITATIONS OF WARRANTIES – ALL IMPLIED WARRANTIES (INCLUDING IMPLIED
WARRANTIES OF FITNESS FOR A PARTICULAR PURPOSE AND MERCHANTABILITY) ARE
HEREBY LIMITED IN DURATION TO THE PERIOD FOR WHICH THE LIMITED WARRANTY
IS GIVEN. SOME STATES DO NOT ALLOW LIMITATIONS ON HOW LONG AN IMPLIED
WARRANTY LASTS, SO THE ABOVE MAY NOT APPLY TO YOU. THE EXPRESSED
WARRANTIES MADE IN THIS WARRANTY ARE EXCLUSIVE AND MANY NOT BE ALTERED,
ENLARGED, OR CHANGED BY ANY DISTRIBUTOR, DEALER, OR OTHER PERSON
WHATSOEVER.
ALL WORK UNDER THE TERMS OF THIS WARRANTY SHALL BE PERFORMED DURING
NORMAL WORKING HOURS. ALL REPLACEMENT PARTS, WHETHER NEW OR
REMANUFACTURED, ASSUME AS THEIR WARRANTY PERIOD ONLY THE REMAINING
TIME PERIOD OF THIS WARRANTY.
THE MANUFACTURER WILL NOT BE RESPONSIBLE FOR:
1. Normal maintenance as outlined in the installation and servicing instructions or owners
manual including filter cleaning and/or replacement and lubrication.
2. Damage or repairs required as a consequence of faulty installation, misapplication, abuse,
improper servicing, unauthorized alteration or improper operation.
3. Failure to start due to voltage conditions, blown fuses, open circuit breakers or other
damages due to the inadequacy or interruption of electrical service.
4. Damage as a result of floods, winds, fires, lightning, accidents, corrosive environments or
other conditions beyond the control of the Manufacturer.
5. Parts not supplied or designated by the Manufacturer, or damages resulting from their use.
6. Manufacturer products installed outside the continental U.S.A., Alaska, Hawaii, and
Canada.
7. Electricity or fuel costs or increases in electricity or fuel costs from any reason whatsoever
including additional or unusual use of supplemental electric heat.
8. ANY SPECIAL INDIRECT OR CONSEQUENTIAL PROPERTY OR COMMERCIAL
DAMAGE OF ANY NATURE WHATSOEVER. Some states do not allow the exclusion of
incidental or consequential damages, so the above may not apply to you.
This warranty gives you specific legal rights, and you may also have other rights which may vary
form state to state.
P/N 88-315
Rev. 1
Page 22
Form: OM17-50
Catalog: 13TS-TA57
Loading...
