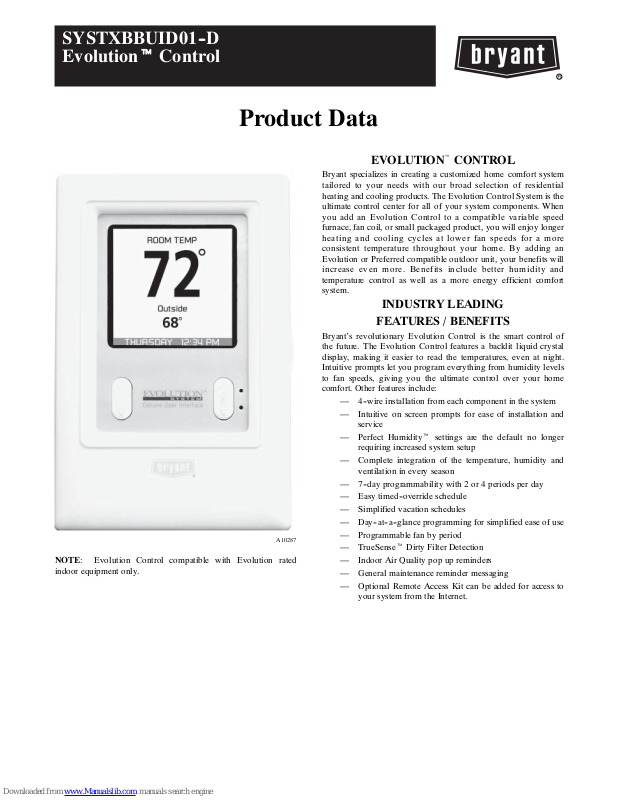

Page 1
SYSTXBBUID01--D
Evolutiont Control
Product Data
A10287
NOTE: Evolution Control compatible with Evolution rated
indoor equipment only.
EVOLUTIONtCONTROL
Bryant specializes in creating a customized home comfort system
tailored to your needs with our broad selection of residential
heating and cooling products. The Evolution Control System is the
ultimate control center for all of your system components. When
you add an Evolution Control to a compatible variable speed
furnace, fan coil, or small packaged product, you will enjoy longer
heating and cooling cycles at lower fan speeds for a more
consistent temperature throughout your home. By adding an
Evolution or Preferred compatible outdoor unit, your benefits will
increase even mo re. Benefits in clud e better hu midity an d
temperature control as well as a more energy efficient comfort
system.
INDUSTRY LEADING
FEATURES / BENEFITS
Bryant’s revolutionary Evolution Control is the smart control of
the future. The Evolution Control features a backlit liquid crystal
display, making it easier to read the temperatures, even at night.
Intuitive prompts let you program everything from humidity levels
to fan speeds, giving you the ultimate control over your home
comfort. Other features include:
— 4--wire installation from each component in the system
— Intuitive on screen prompts for ease of installation and
service
— Perfect Humidityt settings are the default no longer
requiring increased system setup
— Complete integration of the temperature, humidity and
ventilation in every season
— 7--day programmability with 2 or 4 periods per day
— Easy timed--override schedule
— Simplified vacation schedules
— Day--at--a--glance programming for simplified ease of use
— Programmable fan by period
— TrueSenset Dirty Filter Detection
— Indoor Air Quality pop up reminders
— General maintenance reminder messaging
— Optional Remote Access Kit can be added for access to
your system from the Internet.
Page 2
MODEL NUMBER NOMENCLATURE
1234567891011121314
SYSTXBBUI D01 --D
Product Type Software V ersion
Evolution System -- D
Packaged Quantity
Brand 01
Bryant
Model Type
UID -- User Interface Deluxe
NIM -- Network Interface Module
SAM -- System Access Module (SkyTel)
RCT -- System Access Module (CAT5)
RWF -- System Access Module (WiFi)
1.5-in
(38 mm)
®
SYSTXBBUID01--D
4.2-in
(107 mm)
6.4-in
(163 mm)
A09494
Fig. 1 -- Unit Dimensions
2
Page 3
PRODUCT DATA INFORMATION
Current Compatible Communicating Products
Air Conditioning units -- 180B, 187B, 186B
Heat Pumps -- 286B, 289B, 285B
Gas Furnace -- 355AAV, 315AAV, 315JAV, 355CAV
Fan Coils -- FE
Small Packaged Products -- 577D, 707D, 607D, 677D
Physical Characteristics
Dimensions: See drawing
Appearance: Plastic, white color, textured
Electrical Characteristics/Communication
Input Volts/Amps 24VAC
Each device in the Evolution System has a four-- pin
connector labeled ABCD. It is recommended that the
following color code be used when wiring each device:
A — Green = Data A
B — Yellow = Data B
C — White = 24VAC (Com)
D — Red = 24VAC (Hot)
Environmental Requirements:
Operating Temperature/Relative Humidity:
User interface and all sensors: 32_F to 104_F/0_Cto40_C,
95% rh non --condensing
Storage Temperature/Relative Humidity:
User interface: -- 40_F to 134_F/--40_C to 56.7_C, 95% rh
non--condensing
Feature Specifications:
Temperature set point range: 40_Fto90_F/4.4_C to 32.2_C
Separate heat and cool setpoints
Programming days: 7 day
Programming periods:
2--Day, Sleep
4--Wake, Day, Eve, Sleep
Non-- Programmable
Auto changeover (may be disabled)
Programmable fan (installer selectable)
Humidity Sensor Offsets
Auto Changeover Timer (installer adjustable)
Smart Recovery (in heating and cooling)
Hold function
Copy functions: Copy period, day and zone
Permanent memory
Humidity display and control
Temperature sensor offsets (indoor and outdoor)
TrueSenset Dirty Filter Detection
Wiring Requirements:
Power supply: Dedicated 24VAC, 40 va, 60 Hz, via indoor
equipment ABCD Connector. Isolated transformer, field
supplied.
Wiring material: Standard thermostat wire 18 to 24 gauge.
SYSTXBBUID01--D
Equipment
DESCRIPTION PAR T NO.
Evolution Control (4--- Wire User Interface w/ multiple functionality) SYSTXBBUID01 --- D
Evolution Network Interface Module (NIM) SYSTXBBNIM01*
* Required for ventilator control
Required for Hybrid Heat applications with non--communicating heat pumps
Required for use with 2--stage (non --communicating) AC or HP (598A / 698A)
Optional Accessories
DESCRIPTION PA RT NO.
Evolution Remote Room Sensor SYSTXBBRRS01*
Evolution Large Decorative Backplate SYSTXBBLBP01---C
10 Pack Replacement --- Green Indoor Unit Plug (ABCD Connector) SYSTXGRPLG10
Evolution System Access Module (Remote Access Kit, Wired, CAT5) SYSTXBBRCT01
Evolution System Access Module (Remote Access Kit, Wireless WiFi) SYSTXBBRWF01
Outdoor Sensor TSTATXXSEN01--- B
* Not required, but may be used to remote sense indoor room temperature.
3
Page 4
SYSTXBBUID01--D
E2011 Bryant Heating & Cooling Systems D 7310 W. Morris St. D Indianapolis, IN 46231 Printed in U.S.A. Edition Date: 04/11
Manufacturer reserves the right to dis continue, or chang e a t a ny time, specifications or designs without notice and without incurring obligations.
4
Catalog No. PDSUID01--07
Replaces: PDSUID01--06
