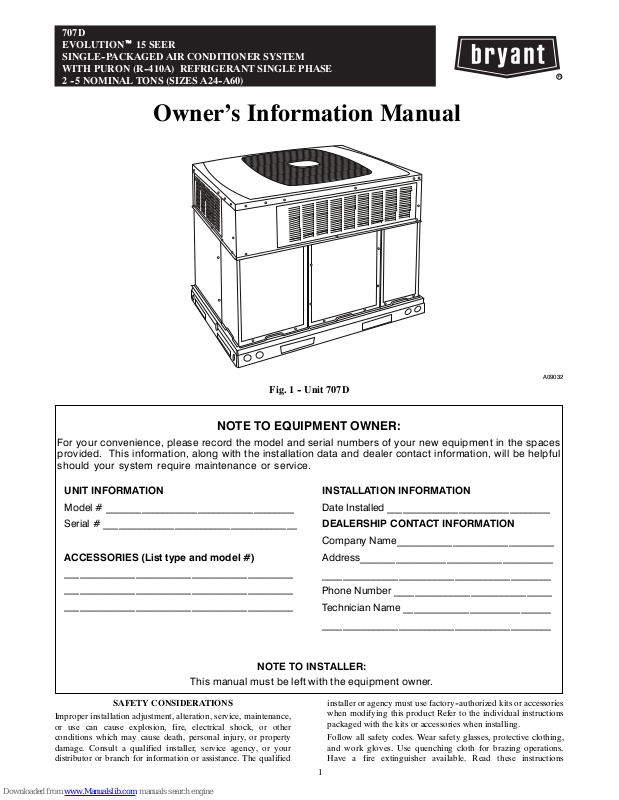

707D EVOLUTIONt 15 SEER SINGLE--PACKAGED AIR CONDITIONER SYSTEM WITH PURON (R--410A) REFRIGERANT SINGLE PHASE 2 --5 NOMINAL TONS (SIZES A24--A60)
Owner’s Information Manual
A09032
NOTE TO EQUIPMENT OWNER:
For your convenience, please record the model and serial numbers of your new equipment in the spaces provided. This information, along with the installation data and dealer contact information, will be helpful should your system require maintenance or service.
UNIT INFORMATION
Model # _____________________________________
Serial # ______________________________________
ACCESSORIES (List type and model #)
_____________________________________________
_____________________________________________
_____________________________________________
NOTE TO INSTALLER:
This manual must be left with the equipment owner.
INSTALLATION INFORMATION
Date Installed ________________________________
DEALERSHIP CONTACT INFORMATION
Company Name_______________________________
Address______________________________________
_____________________________________________
Phone Number _______________________________
Technician Name _____________________________
_____________________________________________
SAFETY CONSIDERATIONS
Improper installation adjustment, alteration, service, maintenance, or use can cause explosion, fire, electrical shock, or other conditions which may cause death, personal injury, or property damage. Consult a qualified installer, service agency, or your distributor or branch for information or assistance. The qualified
installer or agency must use factory--authorized kits or accessories when modifying this product Refer to the individual instructions packaged with the kits or accessories when installing.
Follow all safety codes. Wear safety glasses, protective clothing, and work gloves. Use quenching cloth for brazing operations. Have a fire extinguisher available. Read these instructions
1
Page 2
thoroughly and follow all warnings or cautions included in literature and attached to the unit. Consult local building codes, the current editions of the National Electrical Code (NEC) NFPA
70.
In Canada refer to the current editions of the Canadian electrical Code CSA C22.1.
Recognize safety information. This is the safety--alert symbol When you see this symbol on the unit and in instructions or manuals, be alert to the potential for personal injury. Understand these signal words; DANGER, WARNING, and CAUTION. These words are used with the safety--alert symbol. DANGER identifies the most serious hazards which will result in severe personal injury or death. WARNING signifies hazards which could result in personal injury or death. CAUTION is used to identify unsafe practices which may result in minor personal injury or product and property damage. NOTE is used to high­light suggestions which will result in enhanced installation, reli­ability, or operation.
Note: Installer: This manual should be left with the equipment user.
!
CAUTION
FORYOURSAFETY
Failure to follow this caution may result in personal injury.
Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other appliance.
!
CUT HAZARD
Failure to follow this warning could result in personal injury, death or property damage.
Do not use this unit if any part has been underwater. Immediately call a qualified service technician to inspect the unit and to replace any part of the control system which has been underwater.
CAUTION
OPERATING YOUR UNIT
The operation of your packaged cooling system is controlled by the Infinityt User Interface (UI). You may adjust the temperature manually through the UI or program the UI for automatic control. See UI manual for detailed instructions.
To start the unit:
1. Turn on the electrical power supply to unit.
.
2. Set MODE control to desired mode and the UI forautomatic control. See your UI instructions for more details.
To shut off unit: Note: If the unit is being shut down because of a malfunction, call
your dealer as soon as possible.
1. Set system MODE control to OFF.
2. Turn off the electrical power supply to unit.
Cooling Mode
With the UI control set to COOL, your unit will run in cooling mode until the indoor temperature is lowered to the level you have se­lected. On extremely hot days, your unit will run for longer periods at a time and have shorter “off” periods than on moderate days.
Heating Mode (if installed with optional electric heat)
Your system may also be equipped with an electric heating source. On cold days and nights, place your UI control to HEAT and your system will automatically turn on the electric heat in order to main­tain the level of comfort you have selected.
Emergency Heating Mode
In the event of UI failure, the emergency heat mode allows your electricheating source to keep your home or officewarm until your UI can be serviced. Contact your dealer for more information.
Emergency Cooling Mode
In the event of UI failure, the emergency coolingmode allows your unit to keep your home or office cool until your UI can be serviced. Contact your dealer for more information.
MAINTENANCE AND SERVICE
This section discusses maintenance that should be performed by your dealer and care you, as the owner,may wish to handle for your new unit.
Routine Maintenance
All routine maintenance should be handled by skilled, experienced personnel. Your dealer can help you establish a standard procedure.
!
CAUTION
!
ELECTRICAL SHOCK HAZARD
Failure to follow this warning could result in personal injury or death.
Before performing recommended maintenance, be sure the main power switch to unit is turned off.
WARNING
FORYOURSAFETY
Failure to follow this caution may result in personal injury.
Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other appliance.
To assureproper functioning of the unit,flow of condenserairmust not be obstructed from reaching the unit. Clearance from the top of the unit is 48 in. (1219 mm). Clearance of at least 36 in. (914 mm) is required on sides except the power entry side (42 in. [1067 mm] clearance) and the duct side (12 in. minimum [305 mm] clearance).
2
Page 3
Maintenance and Care for the Equipment Owner
Before proceeding with those things you might want to maintain yourself, please carefully consider the following:
!
FIRE, EXPLOSION, ELECTRICAL SHOCK AND CUT HAZARD
Failure to follow this warning could result in personal injury, death or property damage.
1. TURN OFF ELECTRICAL POWER TO YOUR UNIT BEFORE SERVICING OR PERFORMING MAINTENANCE.
2. When removing access panels or performing maintenance functions inside your unit, be aware of sharp sheet metal parts and screws. Although special care is taken to reduce sharp edges to a minimum, be extremely careful when handling parts or reaching into the unit.
Air Filters
The air filter(s) should be checked at least every 3 months and changed or cleaned whenever it becomes dirty. Dirty filters produce excessive stress on the blower motor and can cause the motor to overheat and shut down.
This unit must have an air filter in place before it can be operated. These filters should be locatedin atleastone of two places. In many applications, the installer will provide return air filter grilles mounted on the wall or ceiling of the conditioned structure. In the instance of filter grilles, the filters can simply be removed from the grille and replaced.
The other typical application is an accessory filter rack installed in­side the unit itself. The following information is given to assist in changing filters used in these internal filter racks.
Table 1 indicates the correct filter size for your unit.
Table 1—Air Filters Located Inside Unit
Unit Size Quantity
A24--- A30 2
A36--- A60 3
To replace or inspect filters in accessory filter rack:
1. Remove the filter access panel (See Fig. 2) using a 5/16--in. nut driver.
2. Remove the filter(s) by pulling it out of the unit. If the filter(s) is dirty, clean or replace with a new one.
When installing the new filter(s), note the direction of the airflow ar­rows on the filter frame.
If you have difficulty locating your air filter(s) or have questions concerning proper filter maintenance, contact your dealer for in­structions. When replacing filters, always use the same size and type of filter that was supplied originally by the installer.
WARNING
(For Replacement Purposes)
Filter Size in.
(mm)
12x20x1
(305x508x25)
12x24x1
(305x610x25)
Filter Access Panel For Accessory Filter Rack
Access Panels
A09045

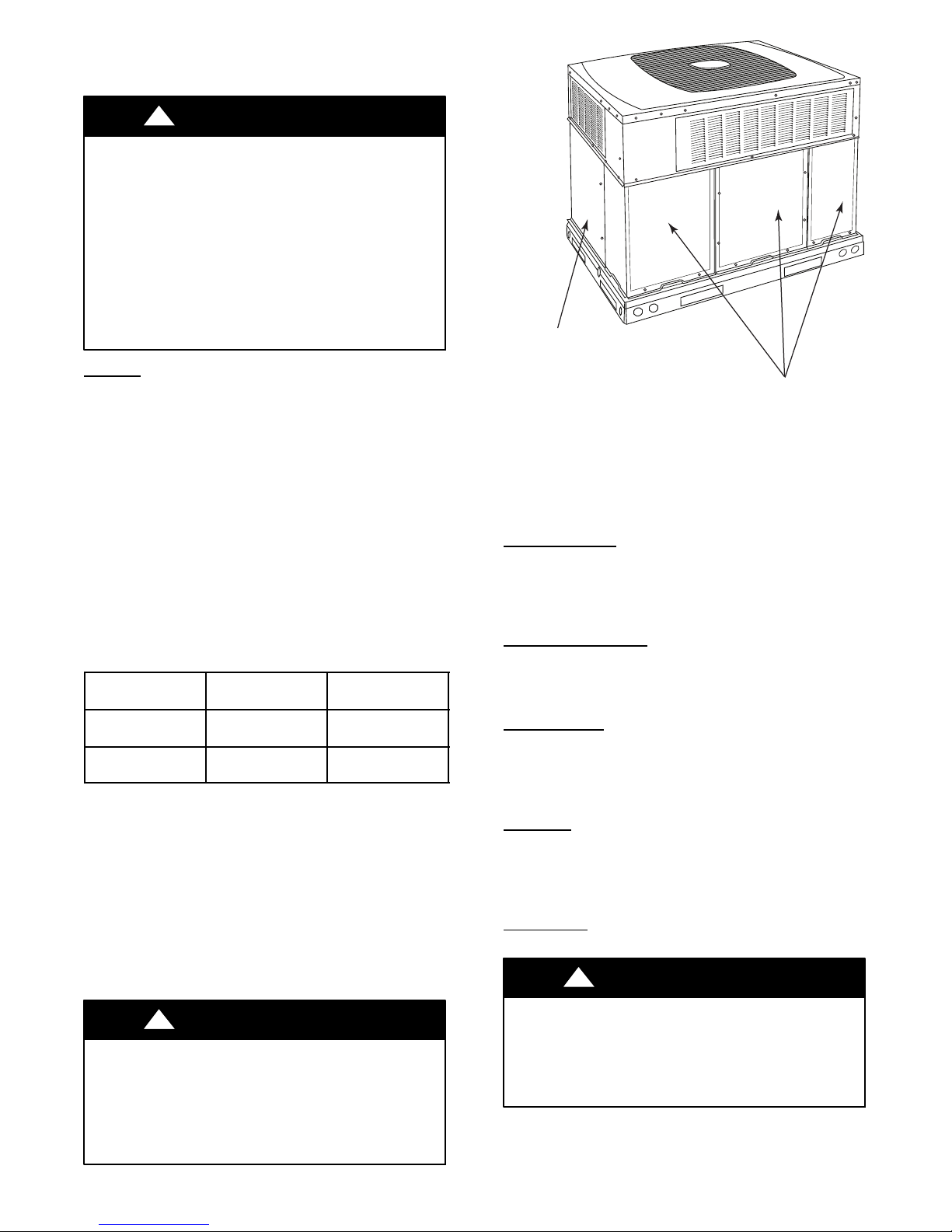

Fig. 2 -- Accessory Filter Rack Access Panel
Fans and Fan Motor
Periodically check the condition of fan wheels and housings and fan--motor shaftbearings. Contactyour dealer for the required annu­al maintenance.
Drain
!
Coils
WARNING
Indoor and Outdoor
Cleaning of the coils should only be done by qualified service per­sonnel. Contact your dealer for the required annual maintenance.
Condensate
The drain pan and condensate drain line should be checked and cleaned at the same time the cooling coilsare checked by your deal­er.
Compressor
Allcompressors arefactory shippedwith anormalcharge of thecor­rect type of refrigeration grade oil. A compressor should rarely re­quire additional oil.
Condenser
Fan
!
FIRE AND UNIT OPERATION HAZARD
Failure to follow this warning could result in personal injury, death or property damage.
Never operate your unit without filters in place. An accumulation of dust and lint on internal parts of your unit can cause loss of efficiency.
WARNING
PERSONAL INJURY AND UNIT DAMAGE HAZARD
Failure to follow this warning could result in personal injury, death or property damage.
Do not poke sticks, screwdrivers, or any other object into revolving fan blades.
The fan must be kept free of all obstructions to ensure proper cool­ing. Contact your dealer for any required service.
3
Page 4
Electrical Controls and W
iring
Electricalcontrolsaredifficult to checkwithoutproper instrumenta­tion. If there are any discrepancies in the operating cycle, contact your local dealer and request service.
Refrigerant
Circuit
Therefrigerantcircuitis difficult to check for leaks without the prop­er equipment. If inadequate cooling is suspected, contact your local dealer for service.
!
WARNING
EXPLOSION, BURN AND ENVIRONMENTAL HAZARD
Failure to follow this warning could result in personal injury, death or property damage.
System under pressure. Relieve pressure and recover all refrigerant before system repair or final unit disposal. Use all service ports and open all flow--control devices, including solenoid valves.
Unit Panels Afterperforming any maintenance or service on the unit,be sureall
panels are fastened securely in place to prevent rain from entering unit cabinet and to prevent disruption of the correct unit airflow pat­tern.
Regular Dealer Maintenance
In addition to the type of routine maintenance you might be willing to perform, your unit should be inspected regularly by a properly trained service technician. An inspection (preferably each year, but at least every other year) should include the following:
1. Inspection and, if required, cleaning of the outdoor and indoor coils.
2. Inspection and, if required, cleaningof the indoor coil drain pan.
3. Inspection and cleaningof blower wheel housing and motor.
4. Inspection of all supply and return air ducts for leaks, obstructions, and insulation integrity. Any problems found should be resolved at this time.
5. Inspection of theunit base to ensurethat no cracks, gaps, etc., exist which may cause a hazardous condition.
6. Inspection of the unit casing for signs of deterioration.
7. Inspection of all electrical wiring and components to assure proper connection.
8. Inspection for leaks in the refrigerant circuit. Pressure check to determine appropriate refrigerant charge.
9. Inspection of compressor oil level by service person to ensureproper oil level is maintained in the compressor when it is installed and running.
10. Operational check of the unit to determine working conditions.Repairor adjustmentshouldbe made at thistime.
Your servicing dealer may offeran economical servicecontract that covers seasonal inspections. Ask for further details.
Completeservice instructions can be found in the unit Installation, Start--up and Service Instructions.
Warranty Certificate
Your707D has a limited warranty. Be sure to readthe warranty care­fully to determine the coverage for your unit.
Before you call for service...
...check for several easily solved problems.
If insufficient heating or cooling is suspected:
( ) Check for sufficient airflow. Check the air filter for dirt. Check forblockedreturnor supply air grilles. Be sure they are open and un­obstructed. If these checks do not reveal the cause, call your servic­ing dealer.
If your unit is not operating at all, check the following list for easy solutions:
( ) Check to be sure that thetemperature specified by your UI is set below the indoor temperature during the cooling season or above the indoor temperature during heating season (if equipped with electric heater). Be sure the UI is set to COOL or HEAT and not OFF.
( ) If your unit still fails to operate, call your servicing dealer for troubleshooting and repairs. Specify the model and serial numbers of your unit. (Record them in this manualin the space provided.) If the dealer knows exactly whichunit you have,he may be able to of­fer suggestions over the phone, or save valuable time through knowledgeable preparation for the service call.
In Case of Trouble
If you perform the steps above and unit performance is still unsatis­factory, shut off the unit and call your dealer.
Heating&CoolingSystems
TO OBTAIN INFORMATION ON PARTS: Consult your installing dealer or classified section of your local telephone directory under the
“Heating Equipment” or “Air Conditioning Contractors & Systems” heading for dealer listing by brand name.
Have available the Model No., Series Letter, & Serial No. of your equipment to ensure correct replacement part.
Copyright 2009 Bryant Heating & Co ol ing Systems, 7310 W. Mo rris St. Indianapolis, IN 46231
Manufacturer reserves the right to change, at any time, specifications and designs without notice and without obligations.
Printed i n the U.S.A.
Edition Date: 03/09
Catalog No:OM707D---01
R e p l a c e s : O M 0 1 --- 7 9
4
